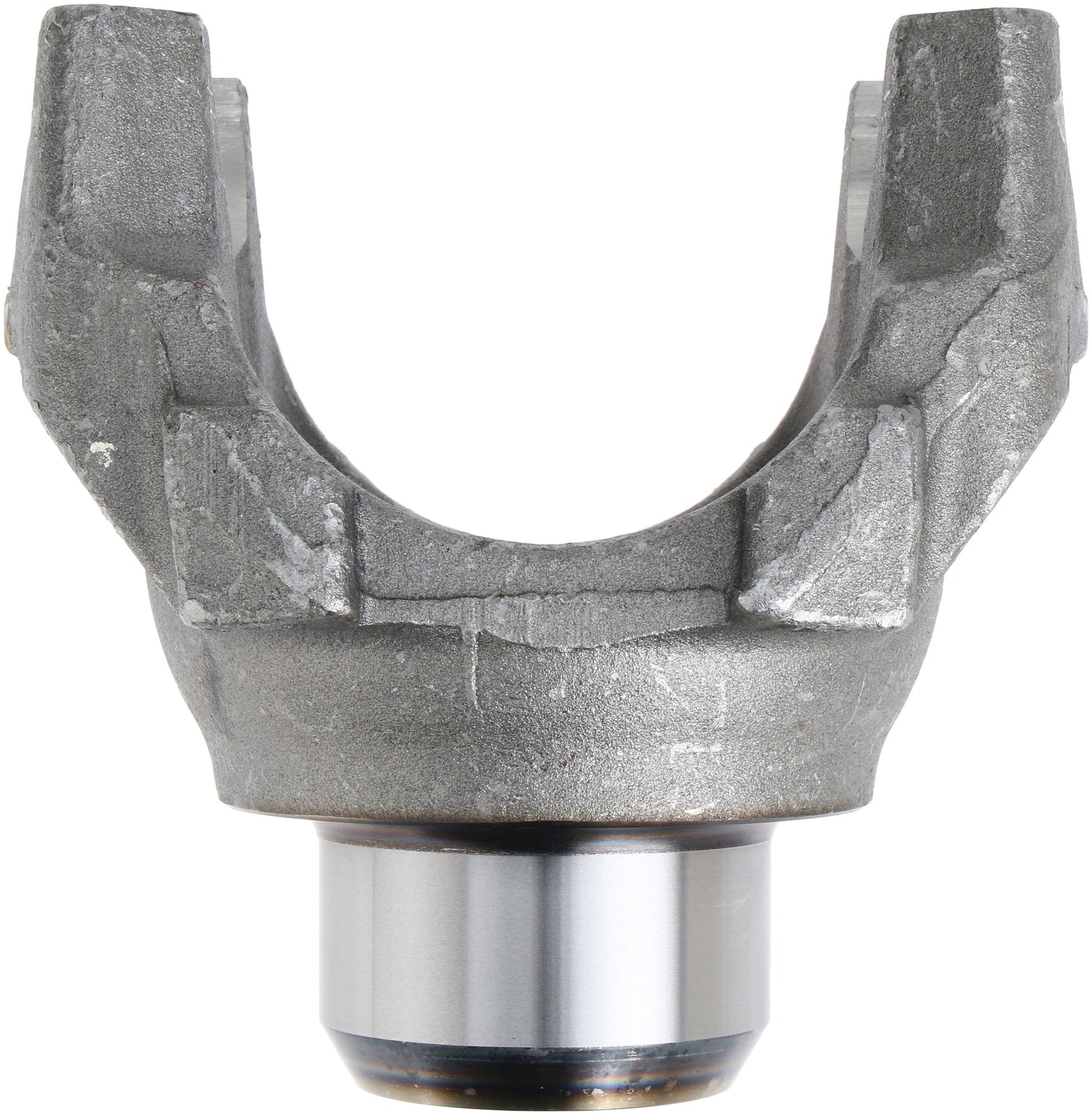

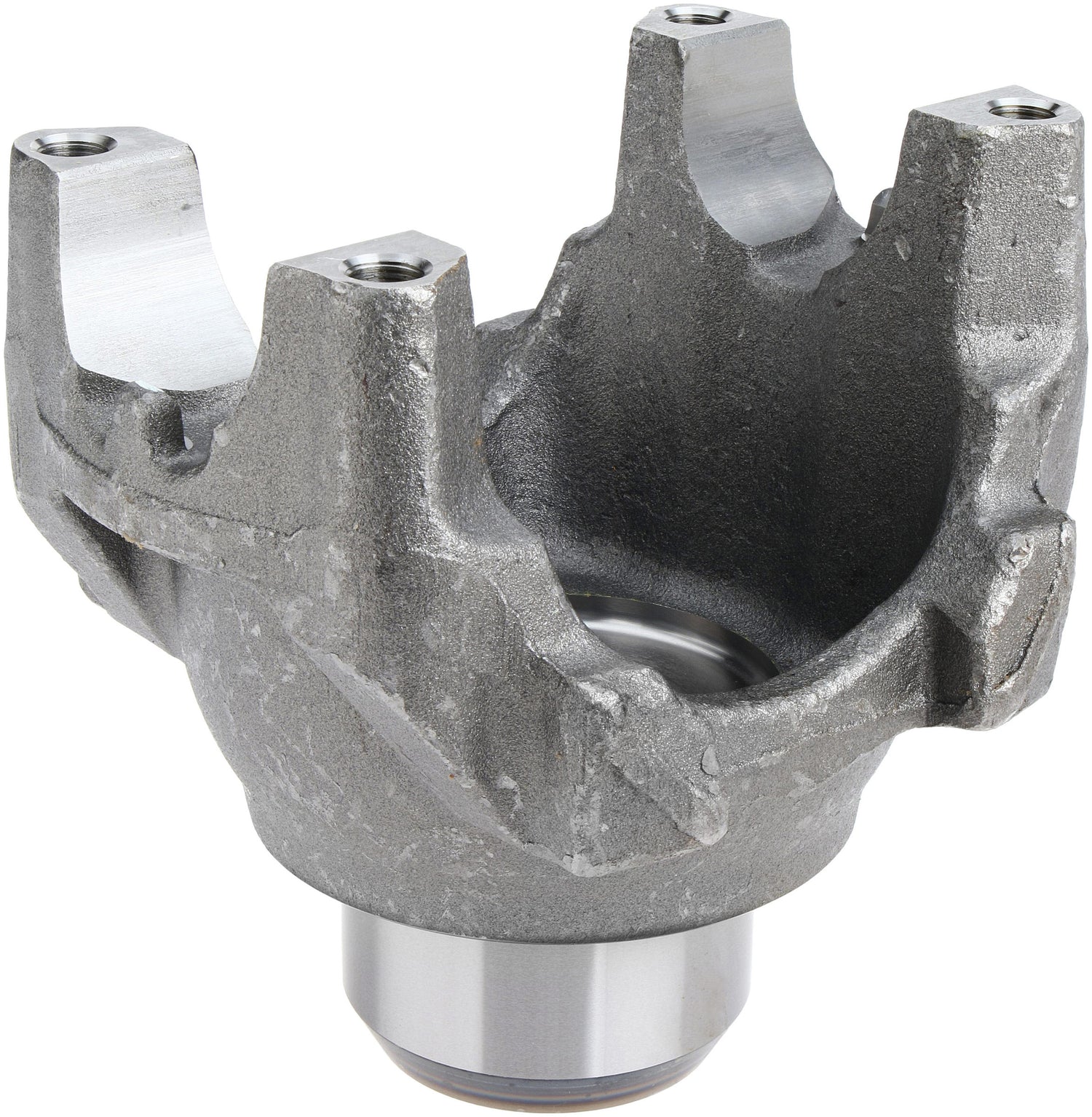

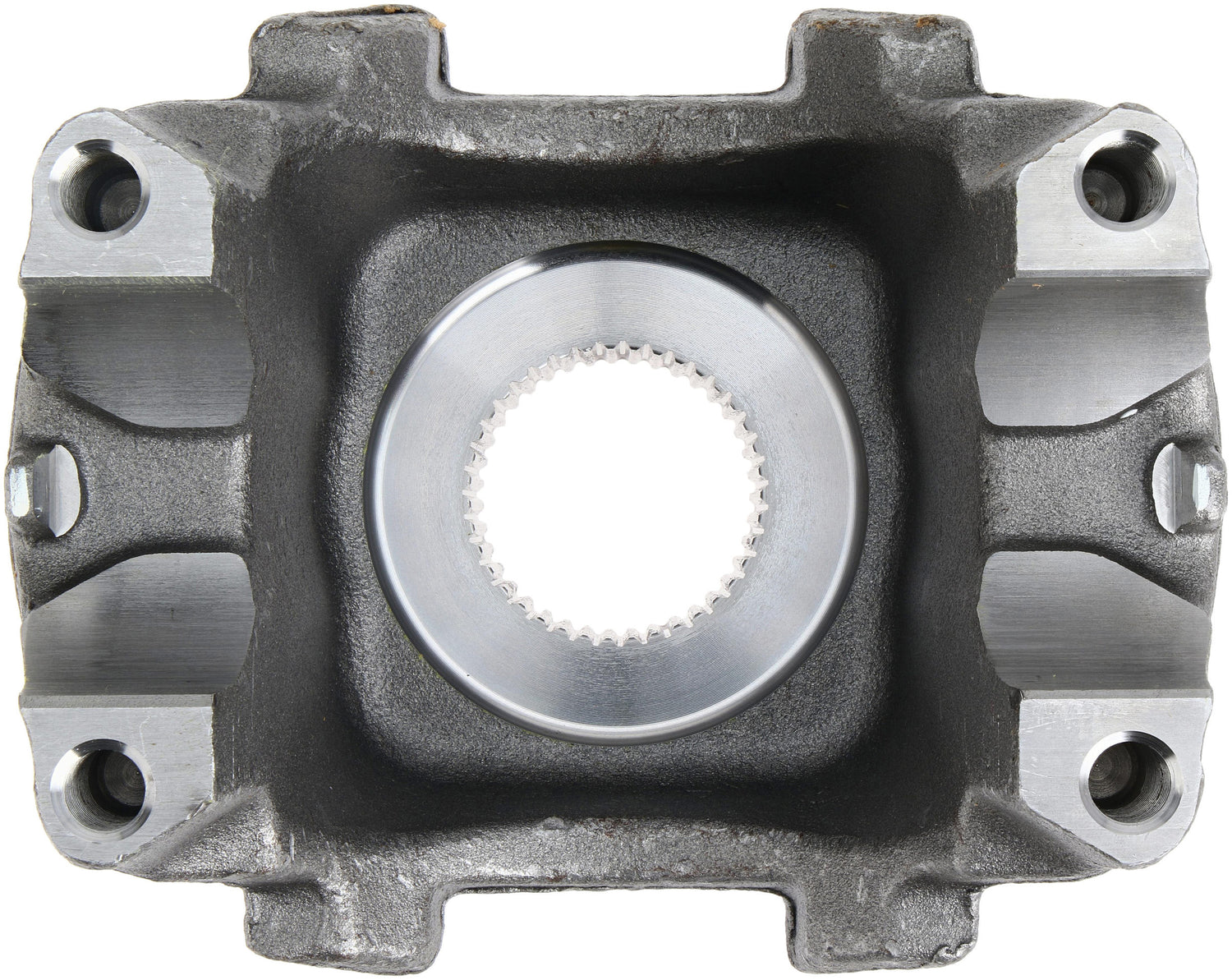

Spicer 170-4-831-1 - OUTPUT SHAFT END YOKE
Spicer | SKU:
FSGR-170-4-831-1
Sale price
$36799
Regular price
$49628
Unit price
/
Unavailable
$128.29 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Spicer 170-4-831-1 - OUTPUT SHAFT END YOKE
OUTPUT SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: SPL170
Material: Steel
Spline Count: 39
Type: Splined Hole
Hub Diameter R: 3.000
Involute Spline: I
Length Thru Hole Q: 2.500
Outside Yoke Dimension (In) E: 6.456
Yoke Bearing Dimension (In) D: 2.166
Yoke Style: HR
Major Diameter: 2.024
C/L To End Hub S: 6.500
C-Bore Depth: 0.280
C-Bore Diameter: 2.09
Joint Angle #1: 45
