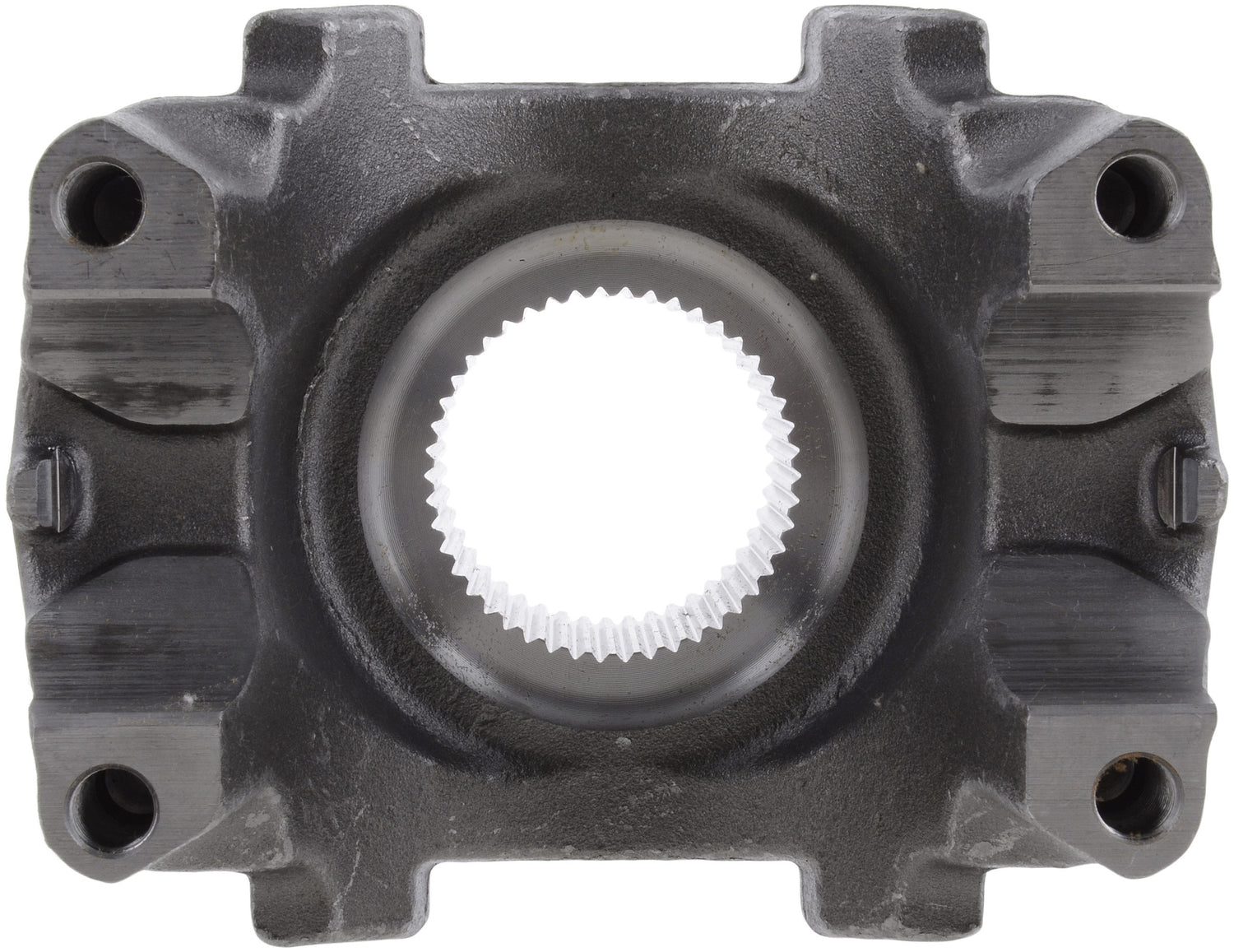

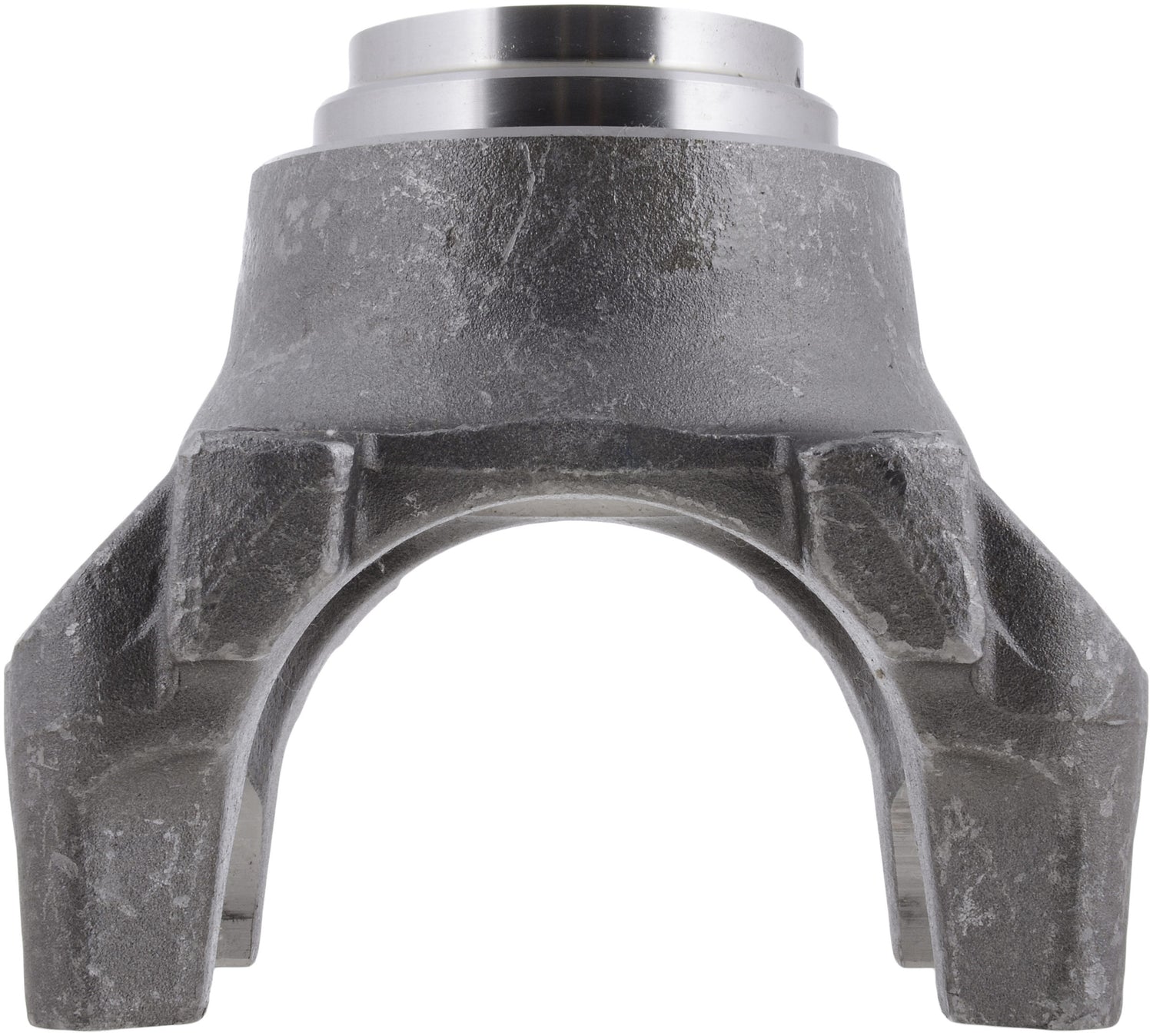

Spicer 170-4-1271-1 - DRIVE SHAFT END YOKE
Spicer | SKU:
FSGR-170-4-1271-1
Sale price
$24999
Regular price
$33630
Unit price
/
Unavailable
$86.31 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Spicer 170-4-1271-1 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: SPL170
Material: Steel
Spline Count: 46
Type: Splined Hole
Assembly: N
Hub Diameter R: 2.879
Includes Slinger/Plug: N
Involute Spline: I
Length Thru Hole Q: 2.750
Outside Yoke Dimension (In) E: 6.456
Yoke Bearing Dimension (In) D: 2.166
Yoke Style: HR
Major Diameter: 2.390
C/L To End Hub S: 5.590
C-Bore Depth: 0.157
C-Bore Diameter: 2.4409
Joint Angle #1: 25
