Spicer 170-4-08577-1X - PINION SHAFT END YOKE
Spicer | SKU:
FSGR-170-4-08577-1X
Sale price
$31799
Regular price
$42870
Unit price
/
Unavailable
$110.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

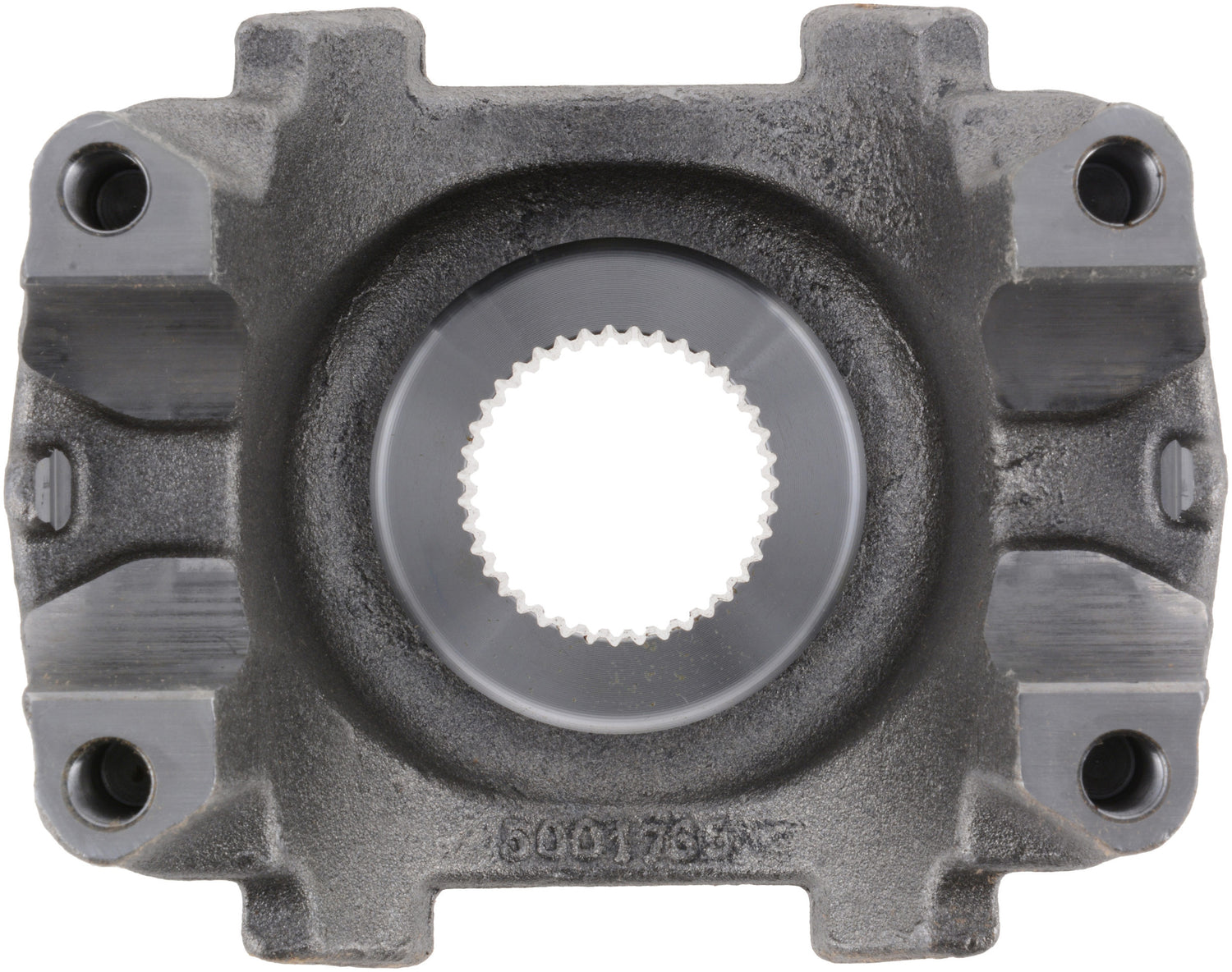

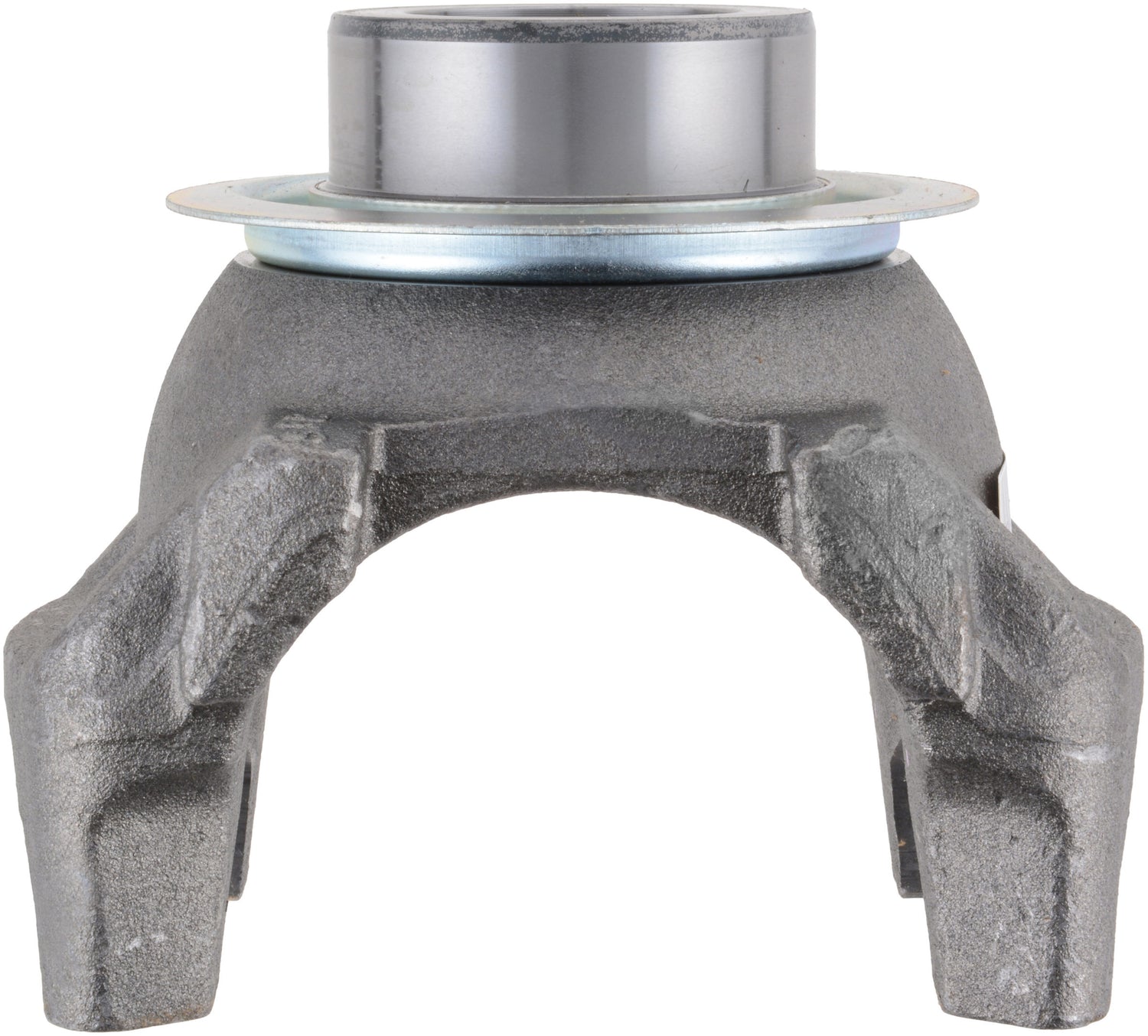

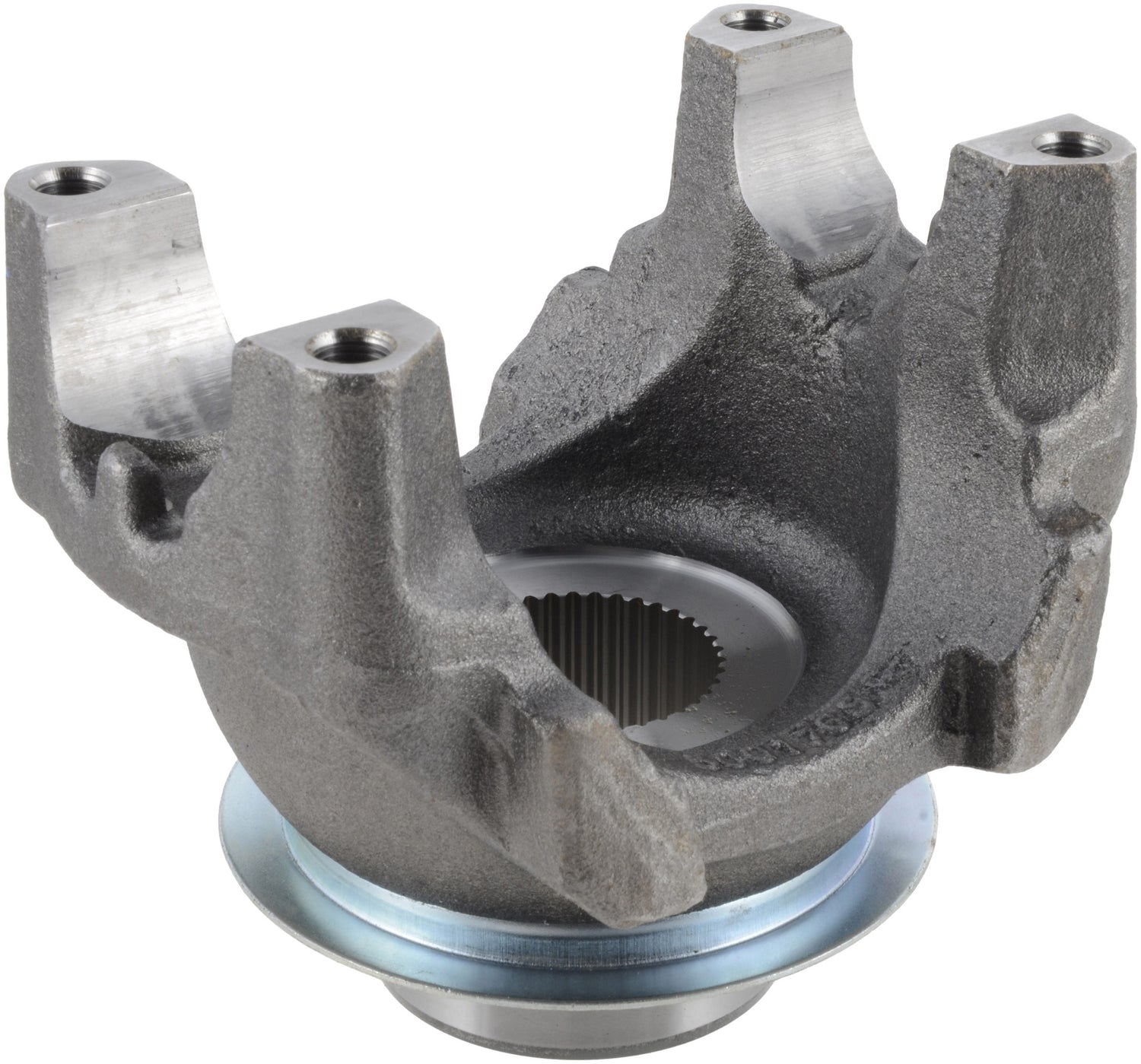

Spicer 170-4-08577-1X - PINION SHAFT END YOKE
PINION SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine Spicer End Yoke
- Accommodates 1350 Series U-Joint
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana engineering-approved for fit, form and function
Series: SPL170
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Y
Hub Diameter R: 3.000
Includes Slinger/Plug: Y
Involute Spline: Y
Length Thru Hole Q: 2.281
Outside Yoke Dimension (In) E: 6.456
Yoke Bearing Dimension (In) D: 2.166
Yoke Style: HR
Major Diameter: 2.024
C/L To End Hub S: 5.540
C-Bore Depth: 0.250
