Spicer 10144198 - Ultimate Dana 60 Crate Axle (Bracketless) - Rear 5.38 ARB

Spicer  |  SKU: FSGR-10144198
$8,79999 $12,98043

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

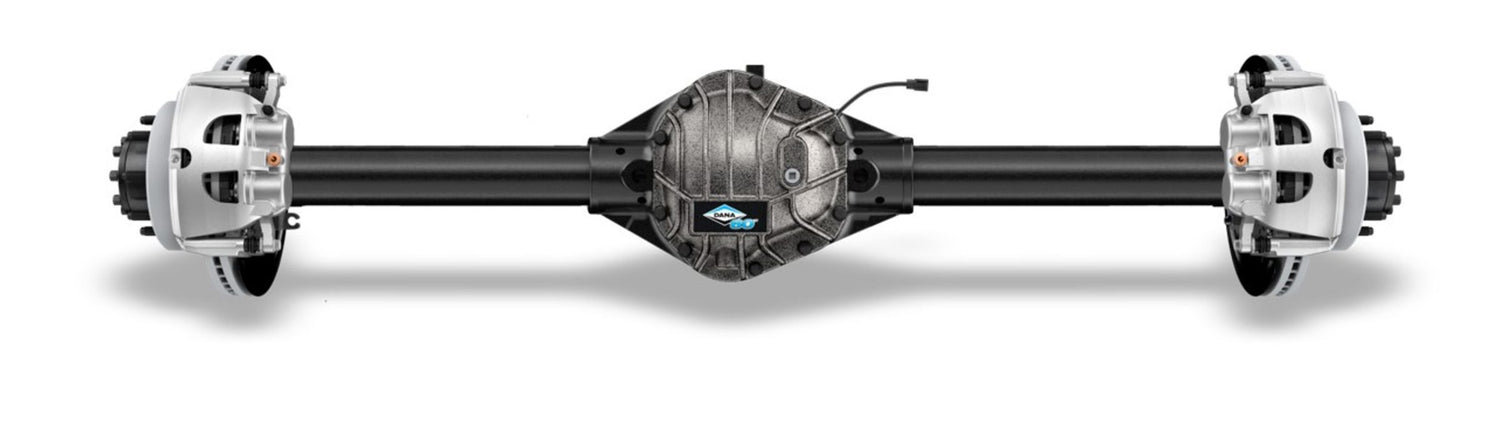

Spicer 10144198 - Ultimate Dana 60 Crate Axle (Bracketless) - Rear 5.38 ARB

Ultimate Dana 60 Crate Axle (Bracketless) - Rear 5.38 ARB

All of the features; none of the brackets. The new Ultimate Dana 60 Bracketless Crate Axles allow for installation in virtually any application. The axles include all the features of the Ultimate Dana 60, from Spicer performance ring and pinion gears and heavy-duty upgraded brakes, to the Dana-exclusive high clearance Dana 60 front housing. Get the performance and dependability of Ultimate Dana 60 for your custom build today!

  • Redesigned housing improve off-road capability by adding clearance and reducing contact with obstacles.
  • Thick tubes and brackets are used to add strength and durability.
  • Includes chromoly axle shafts with large 1410 series universal joints for added strength.
  • Designed to mate with existing vehicle wheel ends.
Gear Ratio: 5.38
Vehicle Location: Rear
Axle Shaft Material: Chromoly
Axle Shaft U Joint Series: SPL70
Brakes Included: Y
Drive Shaft U Joint Series: 1350
End Yoke Style: Half Round
Inner Axle Shaft Spline Count: 35
Mounting Bracket Included: N
Outer Axle Spline Count: 35
Traction Device: ARB Air Locker
Wheel Bolt Pattern: 8 X 6.5
Hub Surface to Hub Surface(IN): 69.000
Axle Model: DANA 60
