Spicer 10097843 - Drive Shaft Assy-1350 Series-Wrangler JL DANA 35-AdvanTEK Rear-with T-Case Yoke

Spicer  |  SKU: FSGR-10097843
$84899 $93389

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

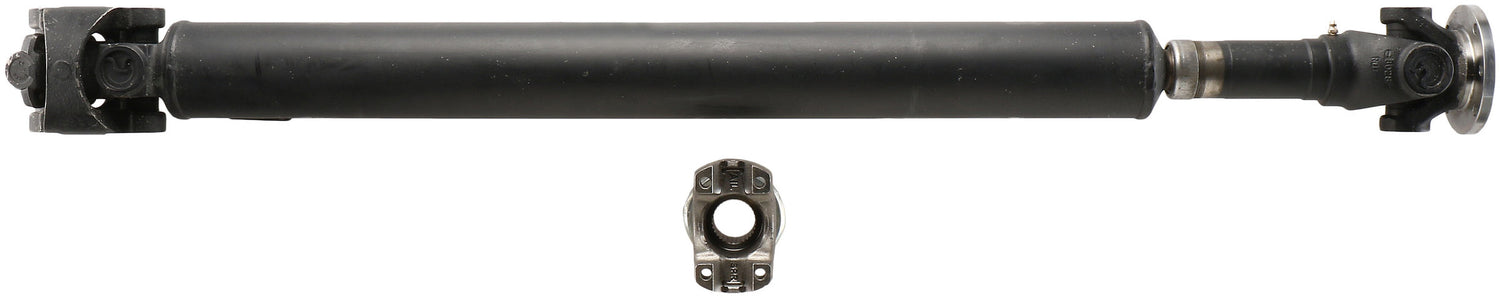

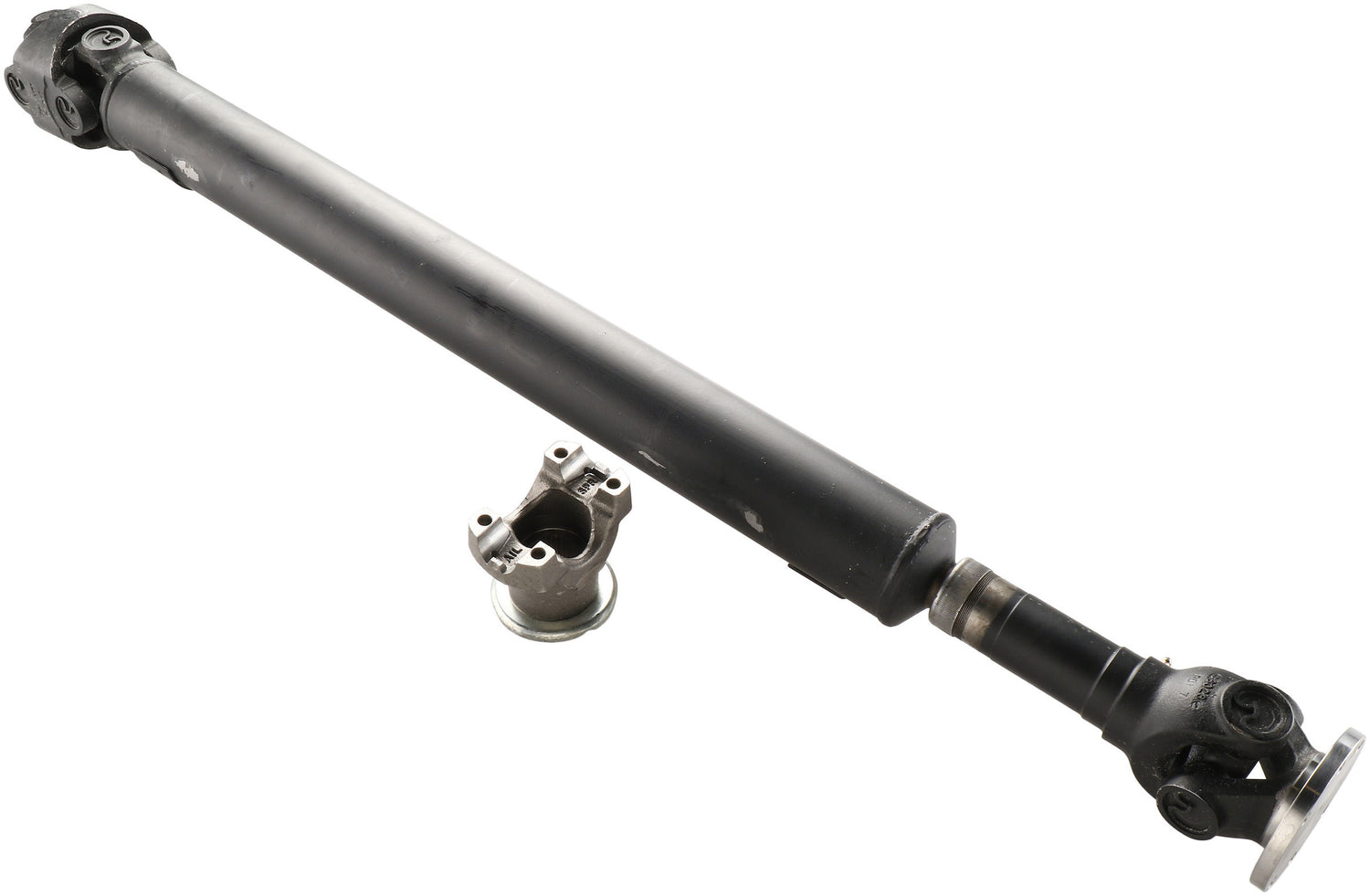

Spicer 10097843 - Drive Shaft Assy-1350 Series-Wrangler JL DANA 35-AdvanTEK Rear-with T-Case Yoke

Drive Shaft Assy-1350 Series-Wrangler JL DANA 35-AdvanTEK Rear-with T-Case Yoke

The Spicer 1350 series driveshaft is manufactured with high-quality steel that delivers increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includes extra thick tubing and a slip assembly located at the transfer case to minimize impacts and contamination. With all the hardware required for a 100% bolt-in solution, Spicer performance driveshafts are built with the innovations that give you the confidence to take on the toughest terrain.

  • Highest quality mix of bearings, cups and cones for performance you can count on.
  • Premium oil seals to keep lube in - and dust and grime out.
  • RTV or gasket included to seal the repair.
  • Genuine OE quality. Tested and proven.
Series: 1350
Tube Size (In): 91.6000
Tube Size (Mm): 76.2 x 2.10
Cl Yoke To Cl Yoke(IN) - COLL.: 45.8000
Cl Yoke To Cl Yoke(MM) - COLL.: 758.0000
Shaft Material: Steel
Max Slip (IN): 3.6063
Max Slip (MM): 3.00 x .083
CL (Yoke To Bearing) (IN): 1.8031
CL (Yoke To Bearing) (MM): 29.8425
Notes: 45.8
Inboard Spline Quantity: 1.8031
Outboard Spline Quantity: No
Grade Type: 0
CL (Yoke To Flange Face): 20
