Spicer 10097842 - Drive Shaft Assy Kit - Jeep Wrangler JL UD60 Rear-1350 Series with T-Case Yoke

Spicer  |  SKU: FSGR-10097842
$84899 $93389
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

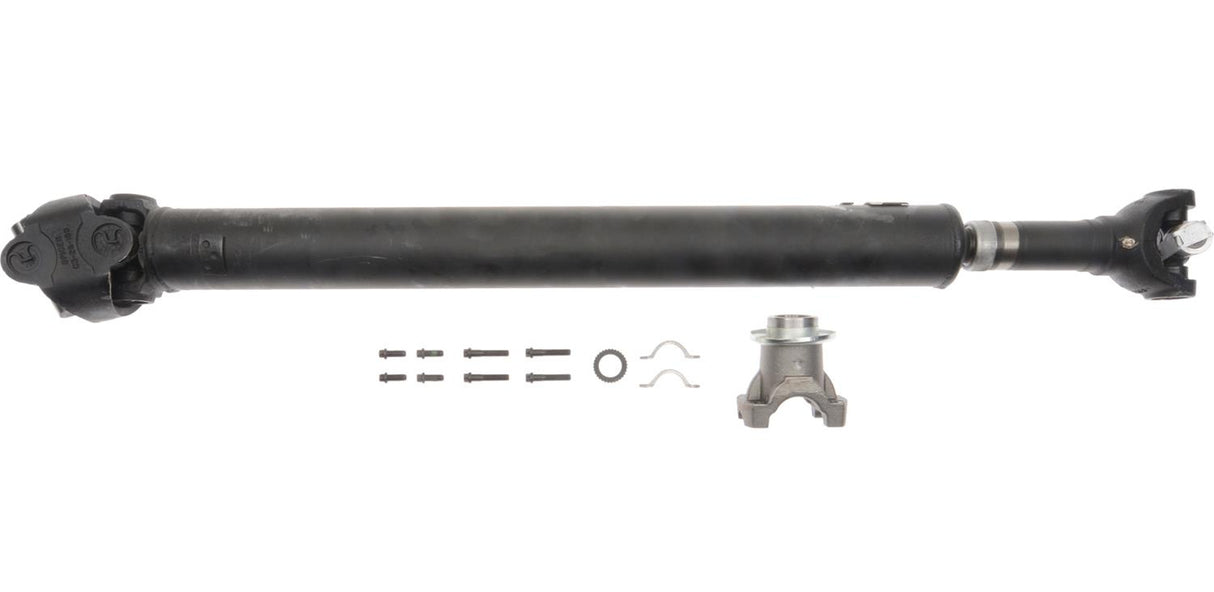

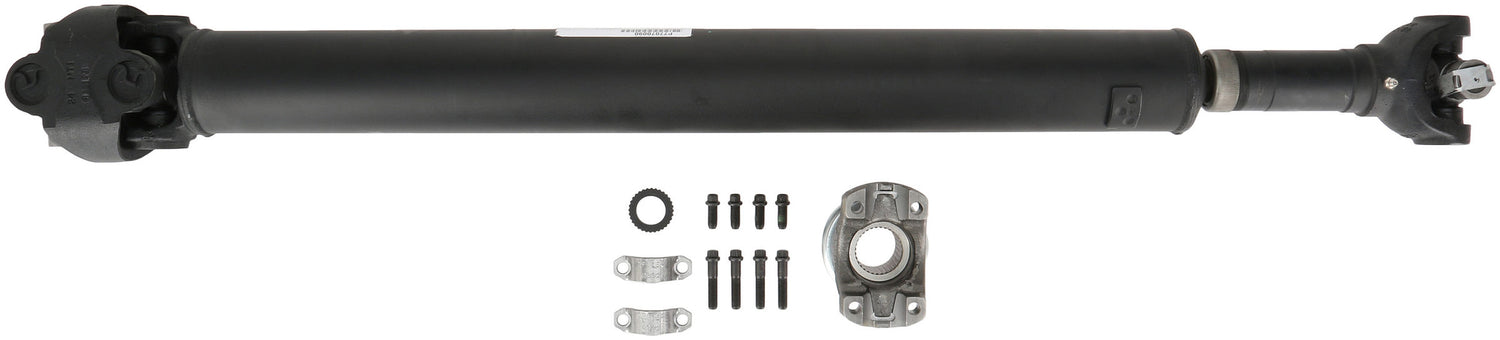

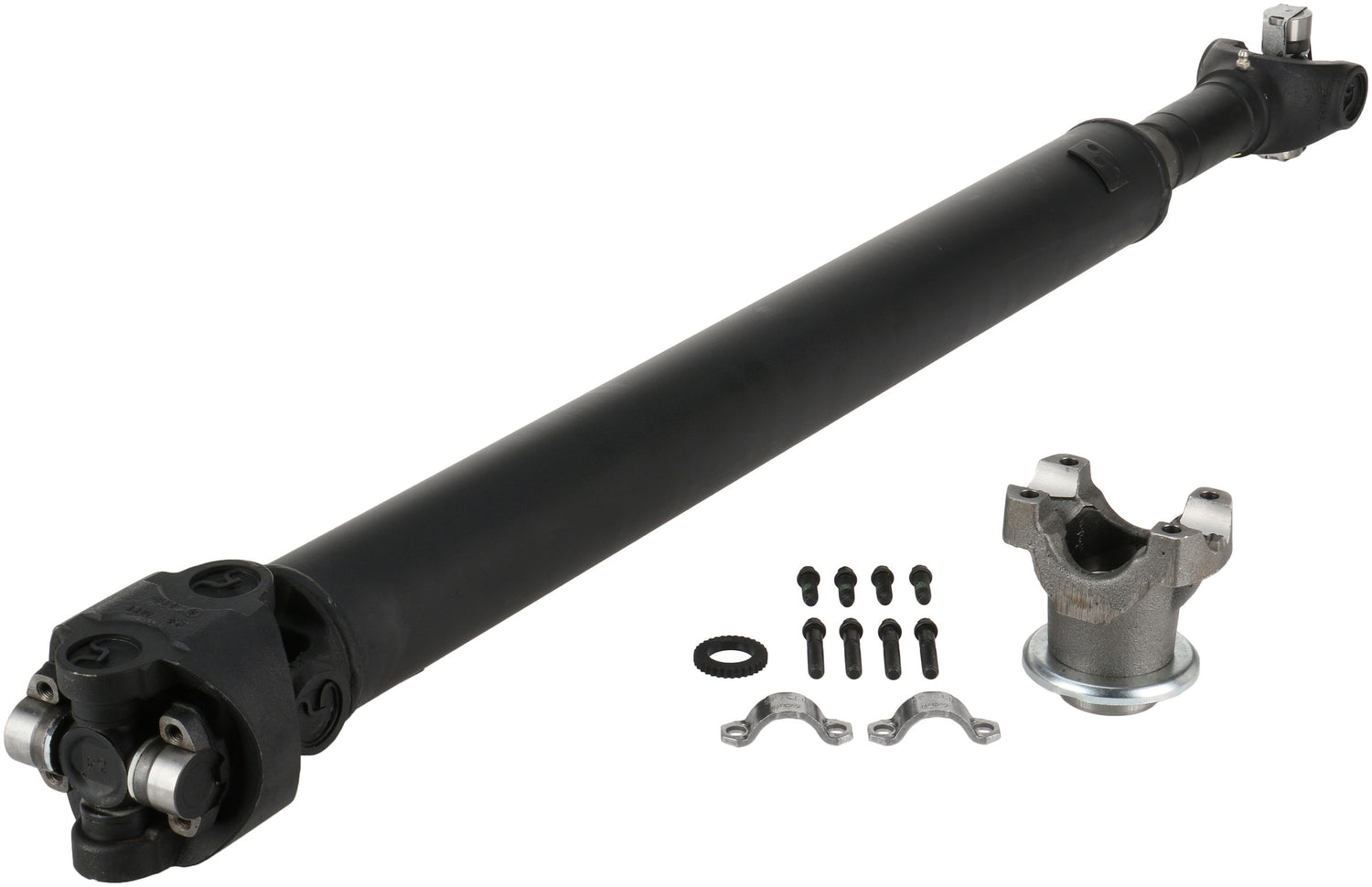

Spicer 10097842 - Drive Shaft Assy Kit - Jeep Wrangler JL UD60 Rear-1350 Series with T-Case Yoke

Drive Shaft - Spicer 1350 Series - 41.441 in Long - 3 in OD - Steel - Natural - Rear - 4-Door - Dana 60 - Jeep Wrangler JL 2018-21 - Each

Drive Shaft Assy Kit - Jeep Wrangler JL UD60 Rear-1350 Series with T-Case Yoke

The Spicer 1350 series driveshaft is manufactured with high-quality steel that delivers increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includes extra thick tubing and a slip assembly located at the transfer case to minimize impacts and contamination. With all the hardware required for a 100% bolt-in solution, Spicer performance driveshafts are built with the innovations that give you the confidence to take on the toughest terrain.

  • Highest quality mix of bearings, cups and cones for performance you can count on.
  • Premium oil seals to keep lube in - and dust and grime out.
  • RTV or gasket included to seal the repair.
  • Genuine OE quality. Tested and proven.
Series: 1350
Tube Length (In): 28.5827
Tube Length (Mm): 726.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 3.6063
Max Slip (MM): 91.6000
Notes: Double Cardan Yoke at one end
CL Yoke To CL Yoke (IN) - COLL: 41.4409
CL Yoke To CL Yoke (MM) - COLL: 1052.6000
Mid Slip (MM): 45.8000
Mid Slip (IN): 1.8031
Phase (Yes/No): No
CV Joints Included: No
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 14.5000
1/2 Max Slip (IN): 1.8031
1/2 Max Slip (MM): 45.8
