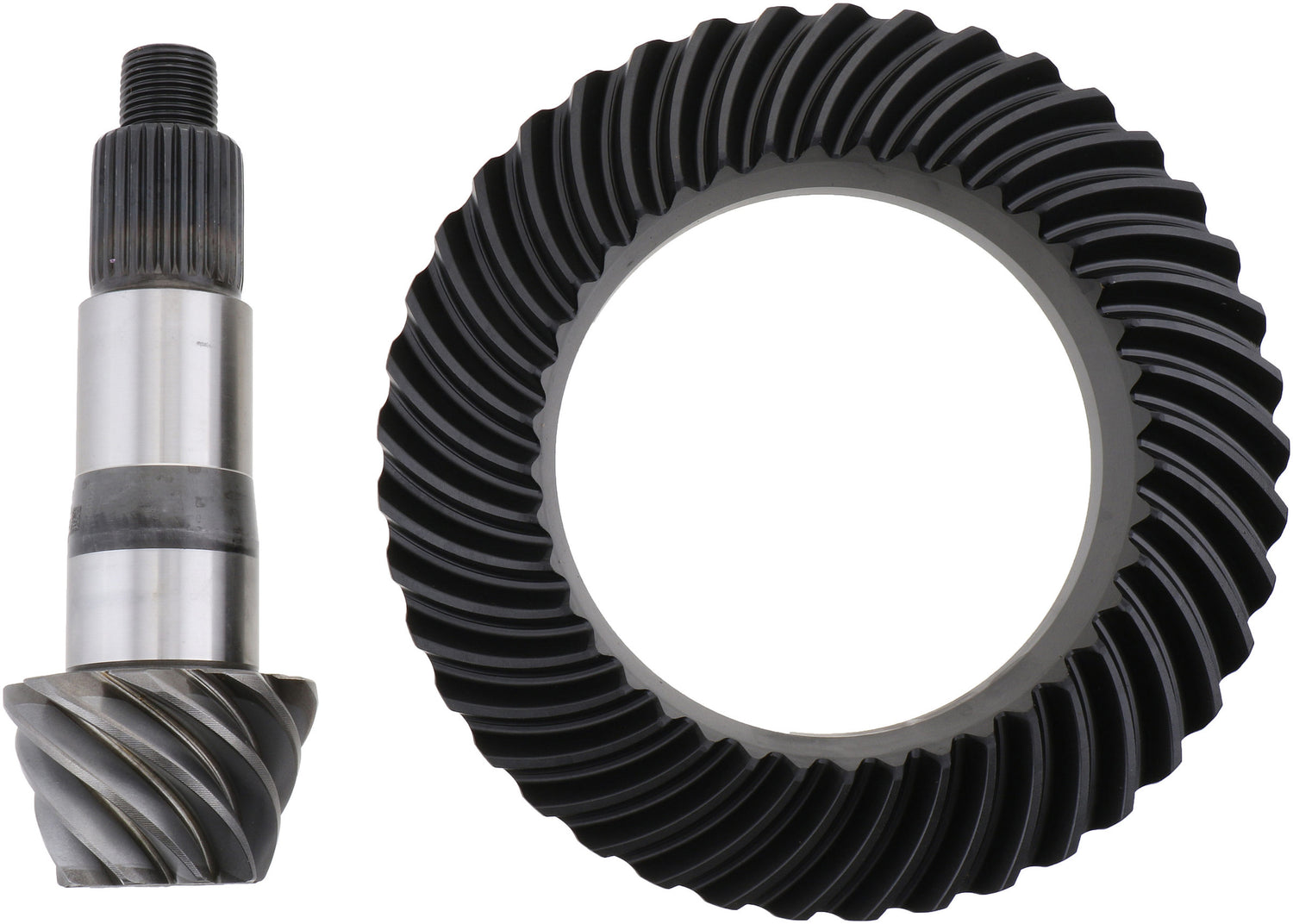

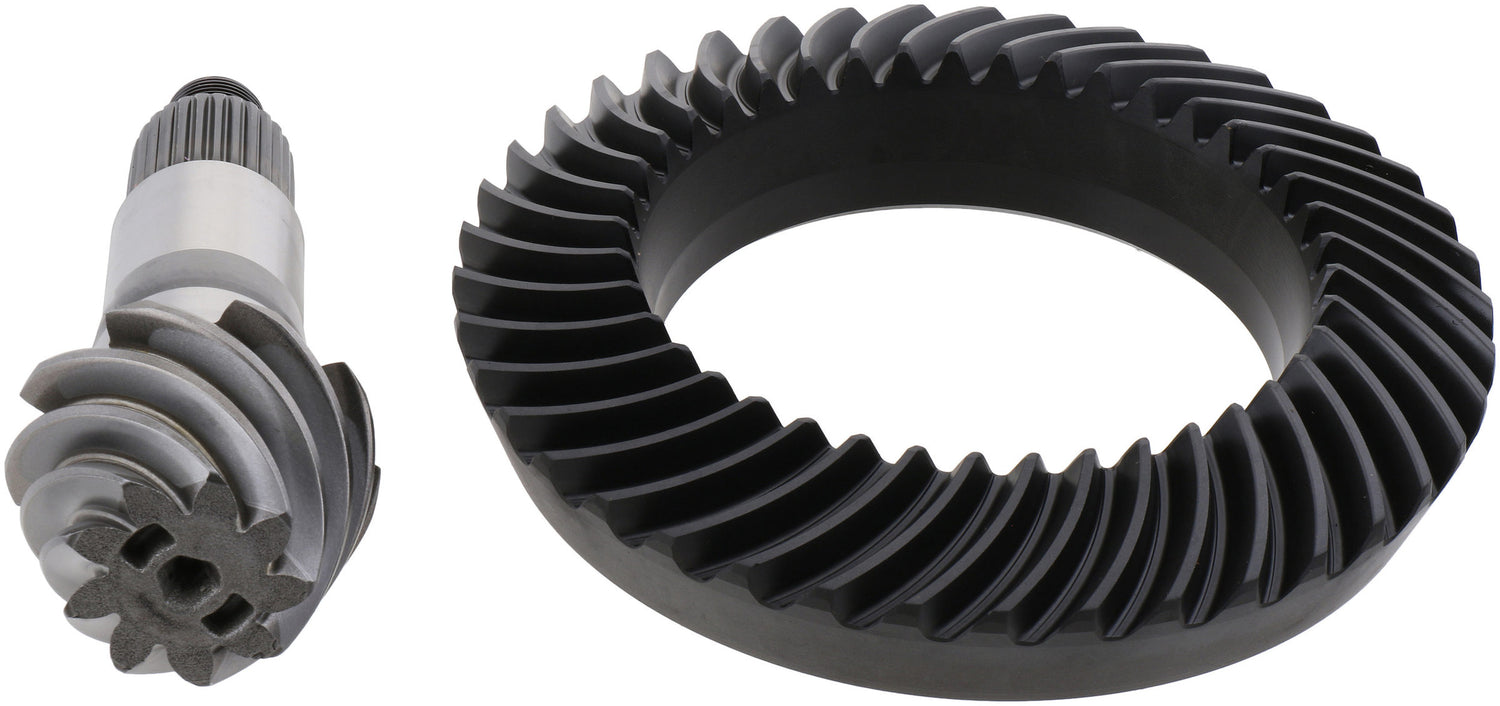

Spicer 10067141 - Differential Ring and Pinion - Dana 44 AdvanTEK M220 Rear 4.56 Ratio

Spicer  |  SKU: FSGR-10067141
$42599 $46859
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Spicer 10067141 - Differential Ring and Pinion - Dana 44 AdvanTEK M220 Rear 4.56 Ratio

Differential Ring and Pinion - Dana 44 AdvanTEK M220 Rear 4.56 Ratio

FORD BRONCO USERS PLEASE NOTE: For Ford Bronco Applications need to pair with UD44 FDU part number(s) UD44FBRO456ELD32 or UD44FBRO456ELD29 For vehicles that require extreme performance, Spicer gearing offers strength that can not be beaten. Dana design, engineering, testing, and manufacturing processes all work together to ensure reliability that others simply cannot deliver. For when you push your vehicle to the extreme, Spicer gearing is proven to be the best in the business.

  • Superior Metallurgy: Ensures more consistent, higher quality product.
  • Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life.
  • Precision Heat-treating and Shot-peening: Delivers consistent quality, enhanced life by reducing residual stress and exceptional durability.
  • All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
Axle Model: DANA 44 AdvanTEK
Gear Ratio: 4.56
Ring Teeth Count: 41
Carrier Breaks: 3.07 And Up
Cover Bolt Quantity: 12
Include Installation Kit: N
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 9
Pinion Shaft Diameter: 1.750
Pinion Spline Count: 28
Ring Gear Bolt Qty: 10
Ring Gear Bolt Thread In.: M12 X 1.25
Ring Gear Diameter (In.): 8.660
Ring Gear Rotation: Standard
Axle Type: M220
New Or Remanufactured: New
Shims Included: N
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
