Spicer 10060460 - Differential Ring and Pinion - DANA M200 - Rear 3.45 Ratio
Spicer | SKU:
FSGR-10060460
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

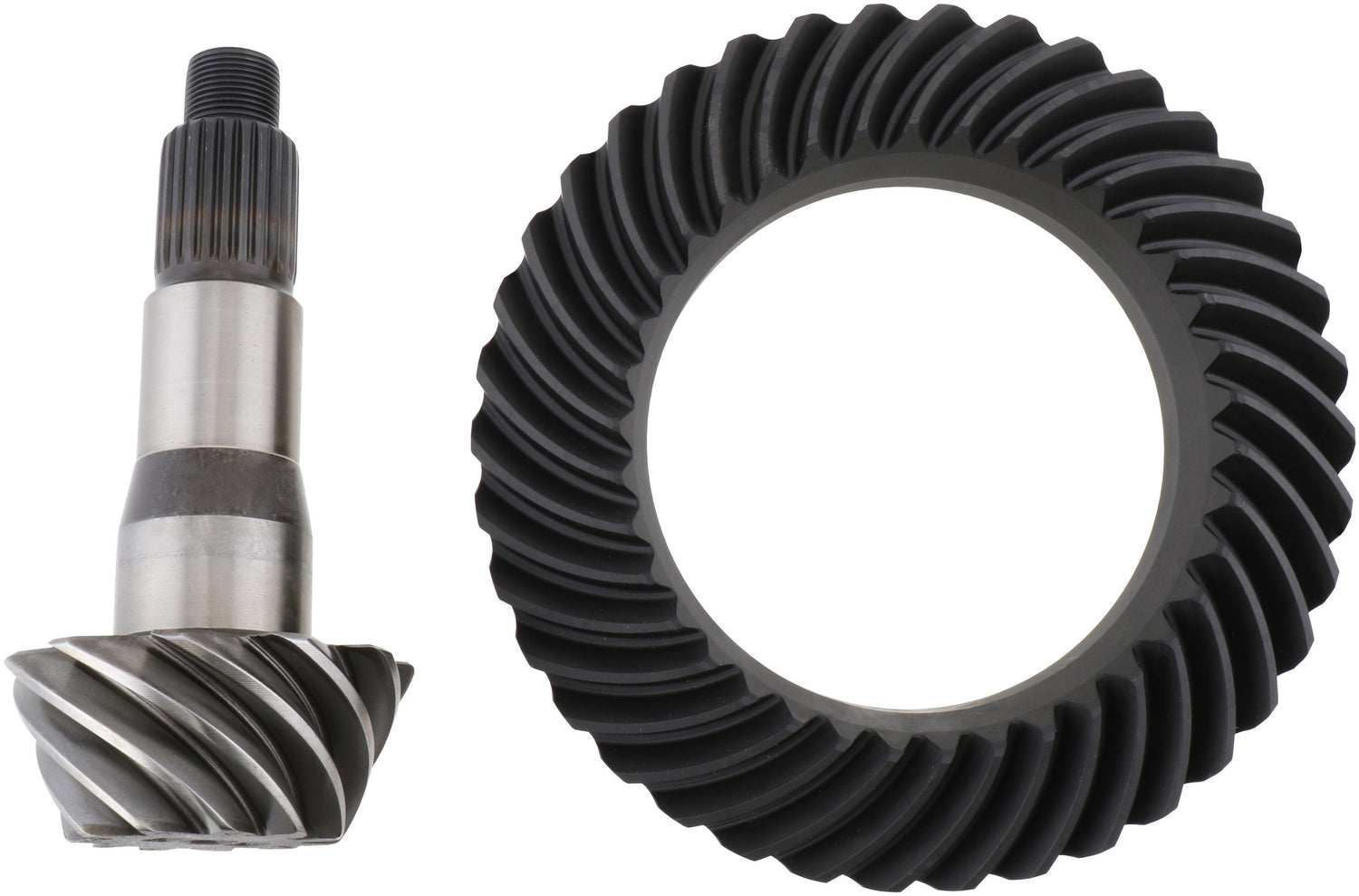

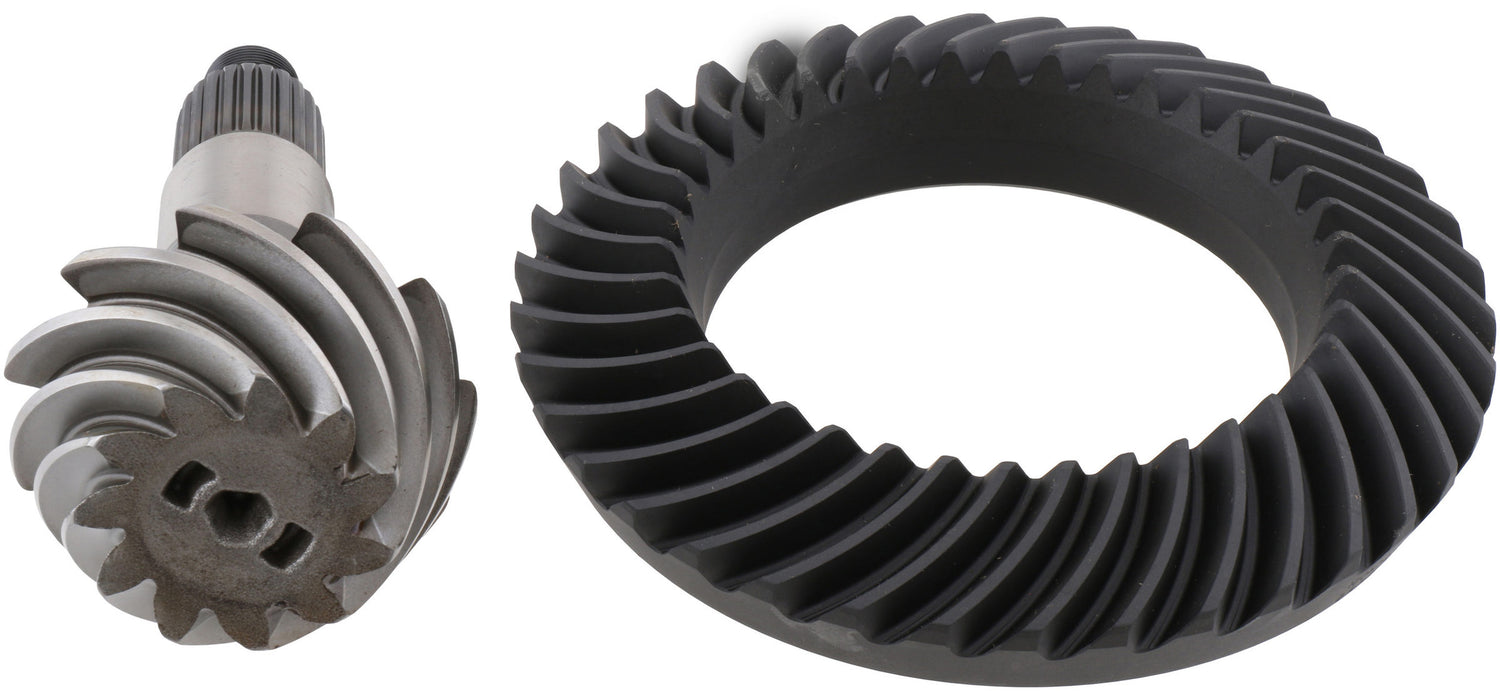

Spicer 10060460 - Differential Ring and Pinion - DANA M200 - Rear 3.45 Ratio
Differential Ring and Pinion - DANA M200 - Rear 3.45 Ratio
For vehicles that require extreme performance, Spicer gearing offers strength that cannot be beaten. Dana design, engineering, testing, and manufacturing processes all work together to ensure reliability that others simply cannot deliver. For when you push your vehicle to the extreme, Spicer gearing is proven to be the best in the business.
- Superior Metallurgy: Ensures more consistent, higher quality product
- Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear
- High-grade steel for maximum durability
Axle Model: DANA 35 AdvanTEK
Gear Ratio: 3.45
Ring Teeth Count: 38
Carrier Breaks: 3.07 And Up
Cover Bolt Quantity: 12
Include Installation Kit: N
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 11
Pinion Shaft Diameter: 1.630
Pinion Spline Count: 24
Ring Gear Bolt Qty: 10
Ring Gear Bolt Thread In.: M12 X 1.25
Ring Gear Diameter (In.): 7.880
Ring Gear Rotation: Standard
Axle Type: M200
New Or Remanufactured: New
Shims Included: N
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
