Spicer 10055400 - Ultimate Dana 60 Crate Axle (Bracketless) - Rear 5.38 ELD

Spicer  |  SKU: FSGR-10055400
$8,49999 $11,92085

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

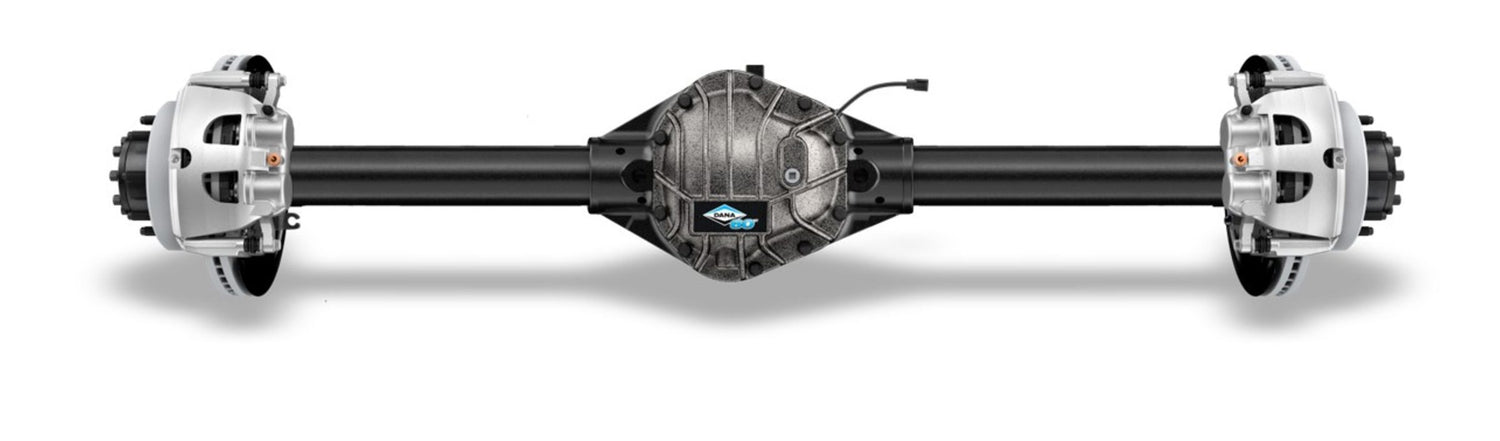

Spicer 10055400 - Ultimate Dana 60 Crate Axle (Bracketless) - Rear 5.38 ELD

Ultimate Dana 60 Crate Axle (Bracketless) - Rear 5.38 ELD

All of the features; none of the brackets. The new Ultimate Dana 60 Bracketless Crate Axles allow for installation in virtually any application. The axles include all the features of the Ultimate Dana 60, from Spicer performance ring and pinion gears and heavy-duty upgraded brakes, to the Dana-exclusive high clearance Dana 60 front housing. Get the performance and dependability of Ultimate Dana 60 for your custom build today!

  • Spicer 10 inch ring gears inside.
  • 3-1/2" tubes with 3/8" wall thickness.
  • 35 spline chromoly axle shafts.
  • 14" disc brakes with dual piston calipers.
Axle Model: DANA 60
Gear Ratio: 5.38
Vehicle Location: Rear
Axle Shaft Material: Chromoly
Axle Shaft U Joint Series: SPL70
Brakes Included: Y
Drive Shaft U Joint Series: 1350
End Yoke Style: Half Round
Inner Axle Shaft Spline Count: 35
Mounting Bracket Included: N
Outer Axle Spline Count: 35
Traction Device: Eaton Electronic Locker
Wheel Bolt Pattern: 8 X 6.5
Hub Surface to Hub Surface(IN): 69.000
