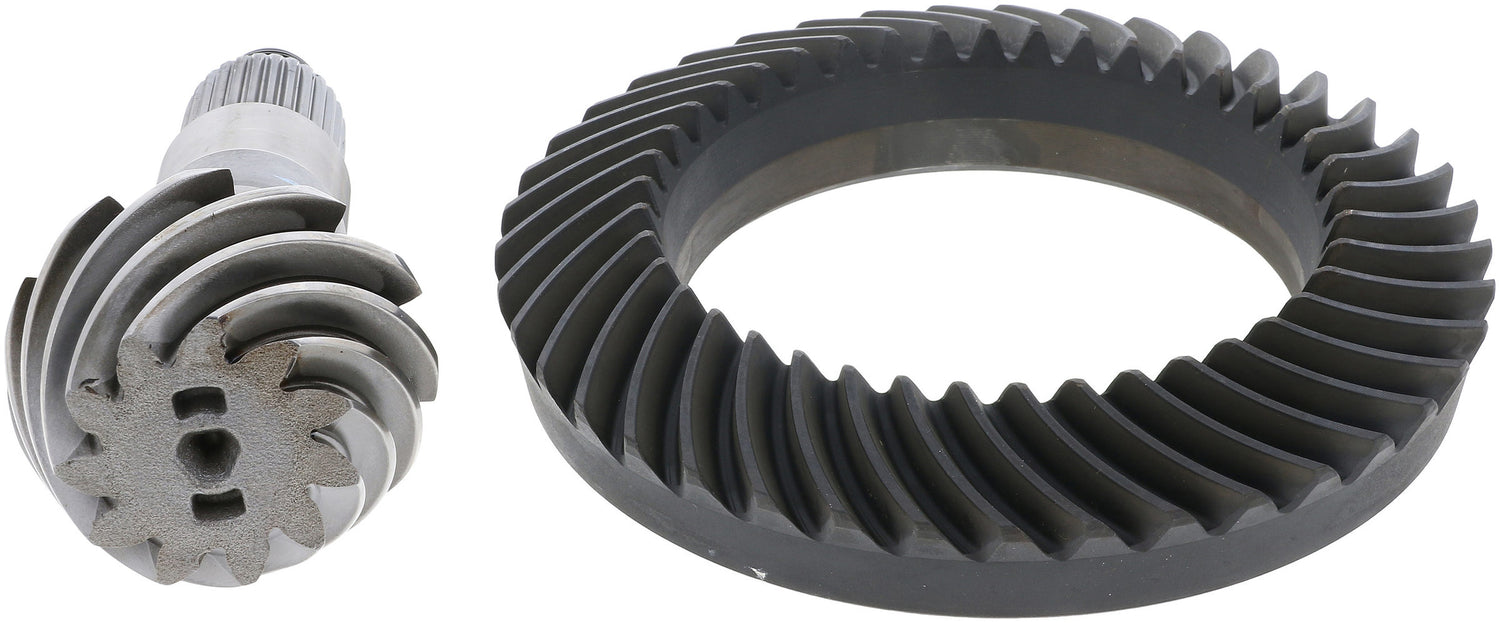

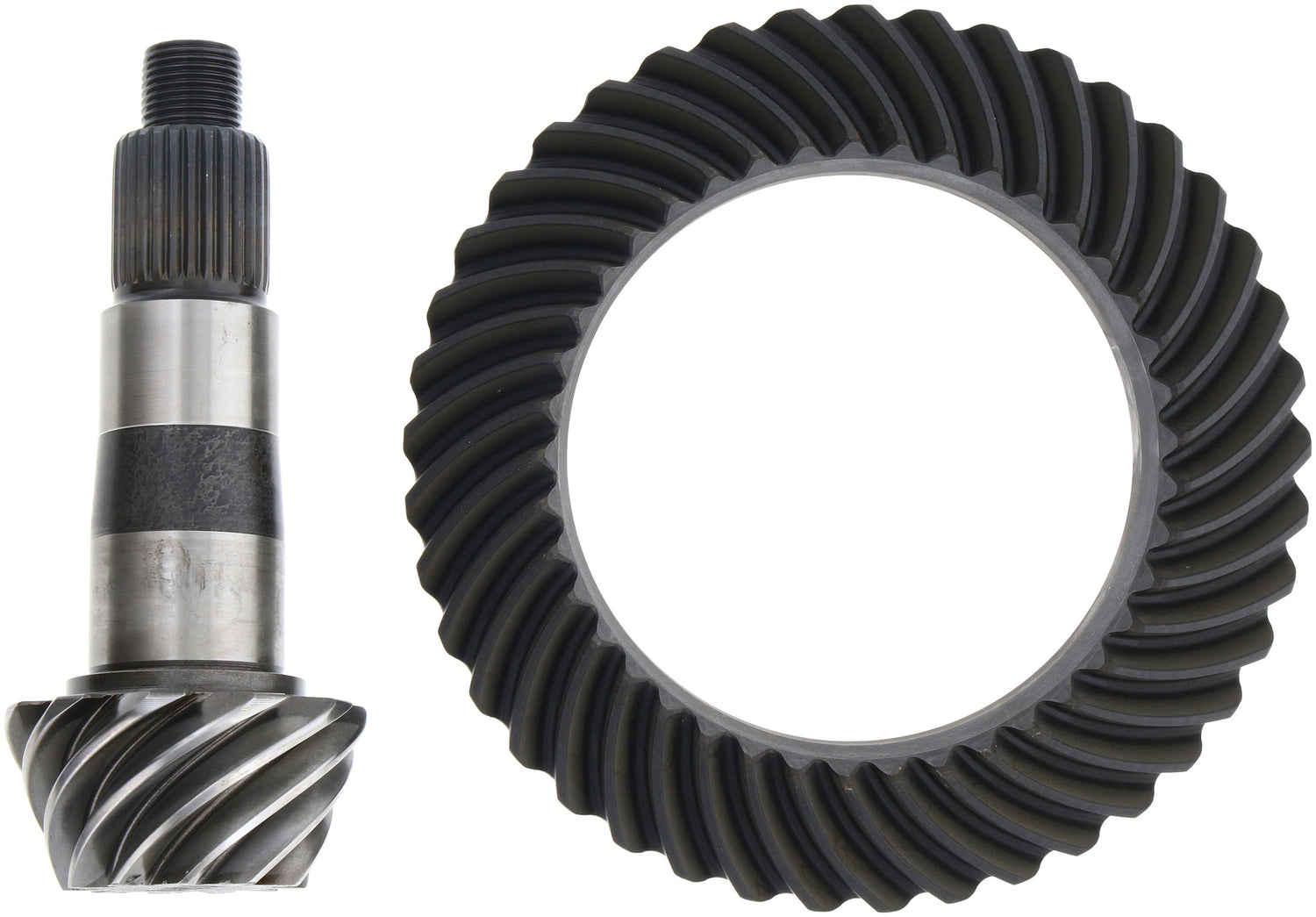

Spicer 10046055 - Differential Ring and Pinion - DANA 44 AdvanTEK - Front 3.73 Ratio

Spicer  |  SKU: FSGR-10046055
Sale price $36499 Regular price $49170

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Spicer 10046055 - Differential Ring and Pinion - DANA 44 AdvanTEK - Front 3.73 Ratio

Differential Ring and Pinion - DANA 44 AdvanTEK - Front 3.73 Ratio

For vehicles that require extreme performance, Spicer gearing offers strength that can not be beaten. Dana design, engineering, testing, and manufacturing processes all work together to ensure reliability that others simply cannot deliver. For when you push your vehicle to the extreme, Spicer gearing is proven to be the best in the business.

  • Superior Metallurgy: Ensures more consistent, higher quality product.
  • Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life.
  • Precision Heat-treating and Shot-peening: Delivers consistent quality, enhanced life by reducing residual stress and exceptional durability.
  • All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
Axle Model: DANA 44 AdvanTEK
Gear Ratio: 3.73
Ring Teeth Count: 41
Carrier Breaks: 3.07 And Up
Cover Bolt Quantity: 12
Include Installation Kit: N
On Vehicle Location: Front
Pinion Gear Tooth Quantity: 11
Pinion Shaft Diameter: 1.750
Pinion Spline Count: 28
Ring Gear Bolt Qty: 10
Ring Gear Bolt Thread In.: M12 X 1.25
Ring Gear Diameter (In.): 8.270
Pinion Nut Included: N
Ring Gear Included: Y
Pinion Gear Included: Y
Shims Included: N
New Or Remanufactured: New
Axle Type: M210
Ring Gear Rotation: Reverse
