Spicer 10020345 - Drive Shaft-Wrangler JK DANA 30/44-Wrangler JL/Gladiator JT DANA 30/44 AdvanTEK

Spicer  |  SKU: FSGR-10020345
Sale price $54499 Regular price $59949

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

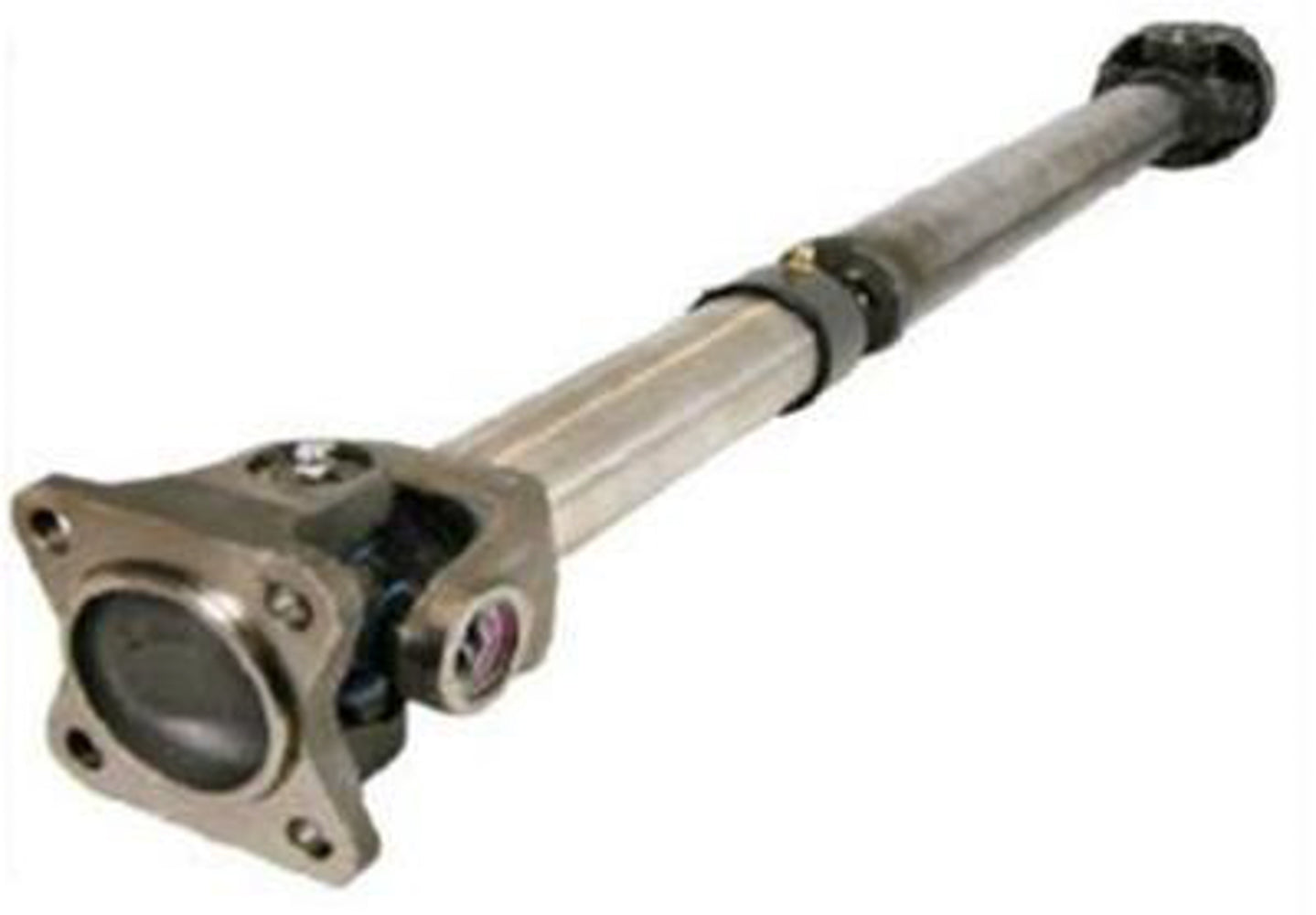

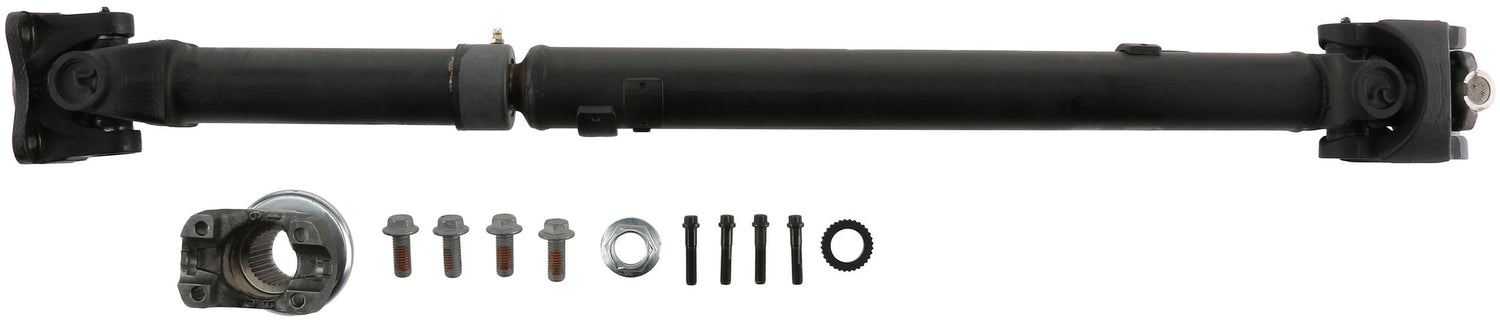

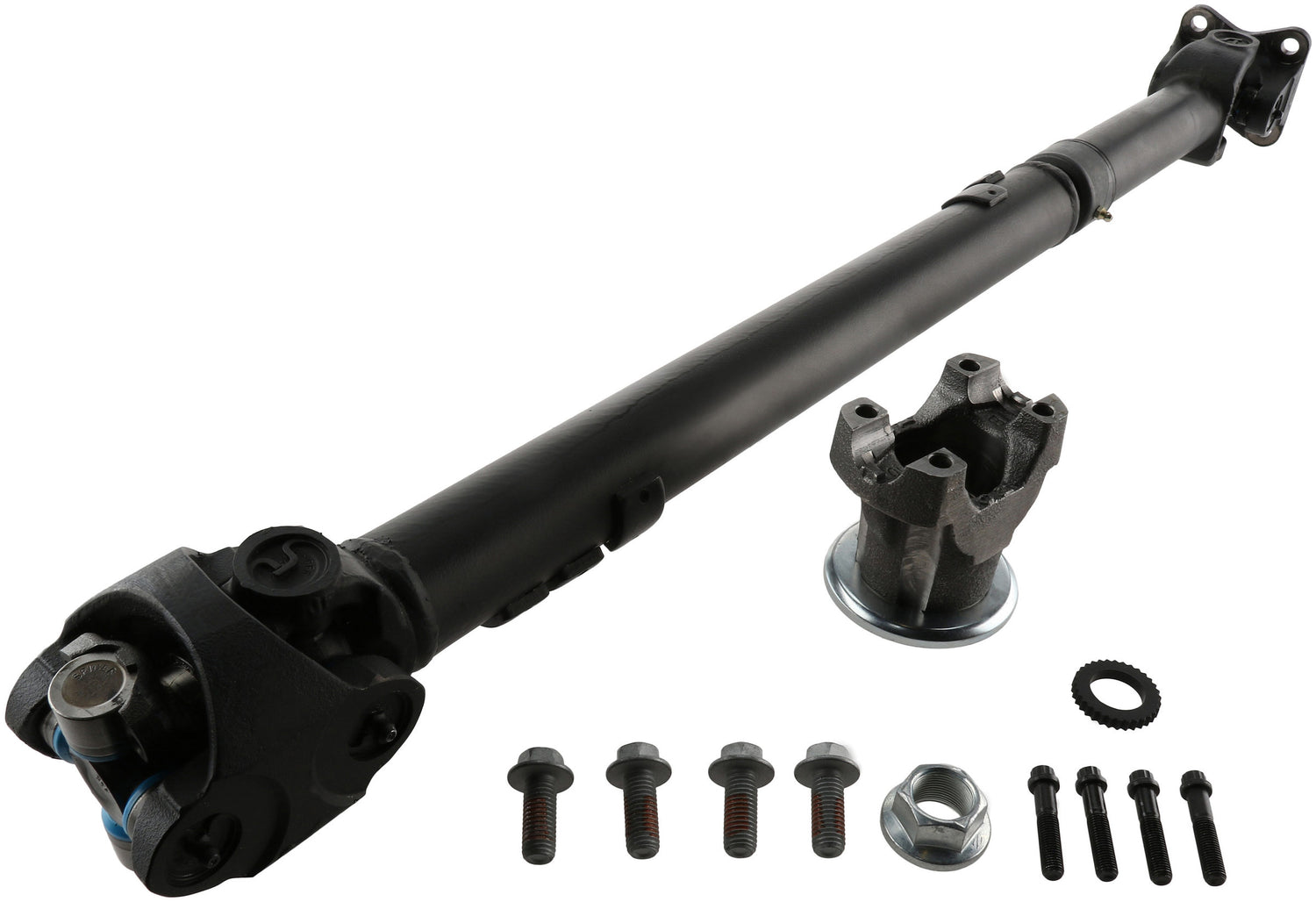

Spicer 10020345 - Drive Shaft-Wrangler JK DANA 30/44-Wrangler JL/Gladiator JT DANA 30/44 AdvanTEK

Drive Shaft - Dana 1310 Series - 35.945 in Long - 2 in OD - Steel - Natural - Dana 1310 Series - Jeep Wrangler 2007-21 - Each

Drive Shaft-Wrangler JK DANA 30/44-Wrangler JL/Gladiator JT DANA 30/44 AdvanTEK

Wherever limits are pushed, Dana is there. Spicer performance driveshafts for the Jeep Gladiator have been specifically designed off road punishment. Fitting Gladiators with 0 to 6 inch lifts these shafts yield better balance, greater strength and less vibration than other aftermarket alternatives. Features 50% thicker tubing for added strength and small diameter design to eliminate exhaust clearance issues on lifted vehicles. We engineer our parts to deliver peak performance and optimum strength so you can hit the road, the track, or the trail with confidence that comes from knowing you are backed by the industry leader in driveline technology.

  • Highest quality mix of bearings, cups and cones, each precisely selected for maximum performance in every position and application.
  • Premium oil seals for your best protection against nagging leaks and damaging contamination.
  • All the small parts to do the job right, including sealant, snap rings, gasket, shims, ring gear bolts and more.
  • Production upgrades that ensure genuine Spicer parts are as good as - or better than - the OE parts they replace.
Series: 1310
Tube Length (In): 19.2913
Tube Length (Mm): 490.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 4.5276
Max Slip (MM): 115.0000
Notes: Flange yoke and Double Carden joint at one end
CL Yoke To CL Yoke (IN) - COLL: 34.1654
CL Yoke To CL Yoke (MM) - COLL: 867.8000
Mid Slip (MM): 57.0000
Mid Slip (IN): 2.2441
Phase (Yes/No): No
End 1 Type SJ Side: 2-2-1949
CV Joints Included: No
CL Yoke To Flange Face(IN)-COLL: 35.9449
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 913.0000
CL Yoke To Flange Face (MM)-INST: 970.000
1/2 Max Slip (IN): 2.2441
1/2 Max Slip (MM): 57
