Spicer 100-4-1551-1X - End Yoke Assembly
Spicer | SKU:
FSGR-100-4-1551-1X
Sale price
$26199
Regular price
$35268
Unit price
/
Unavailable
$90.69 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

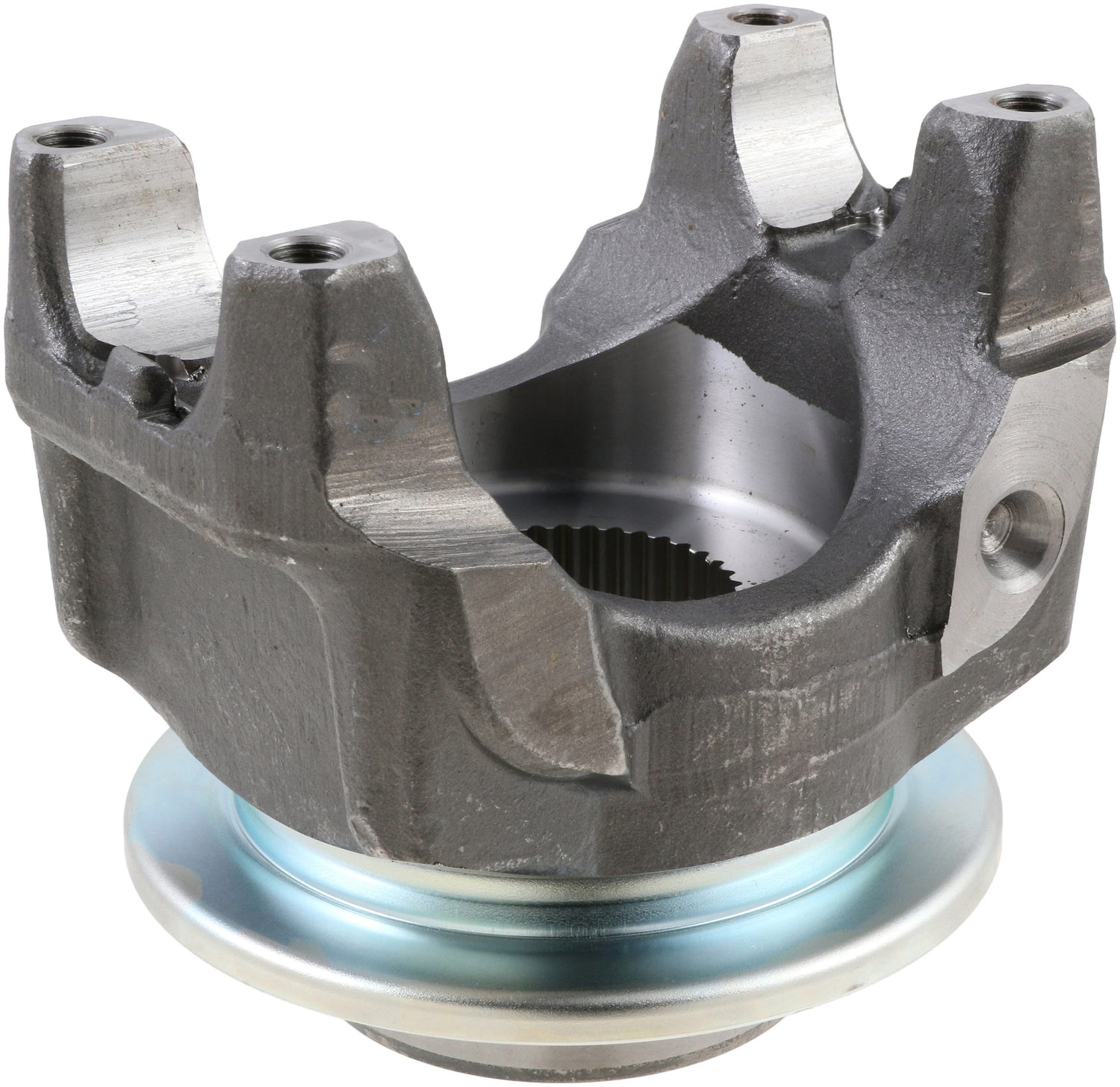

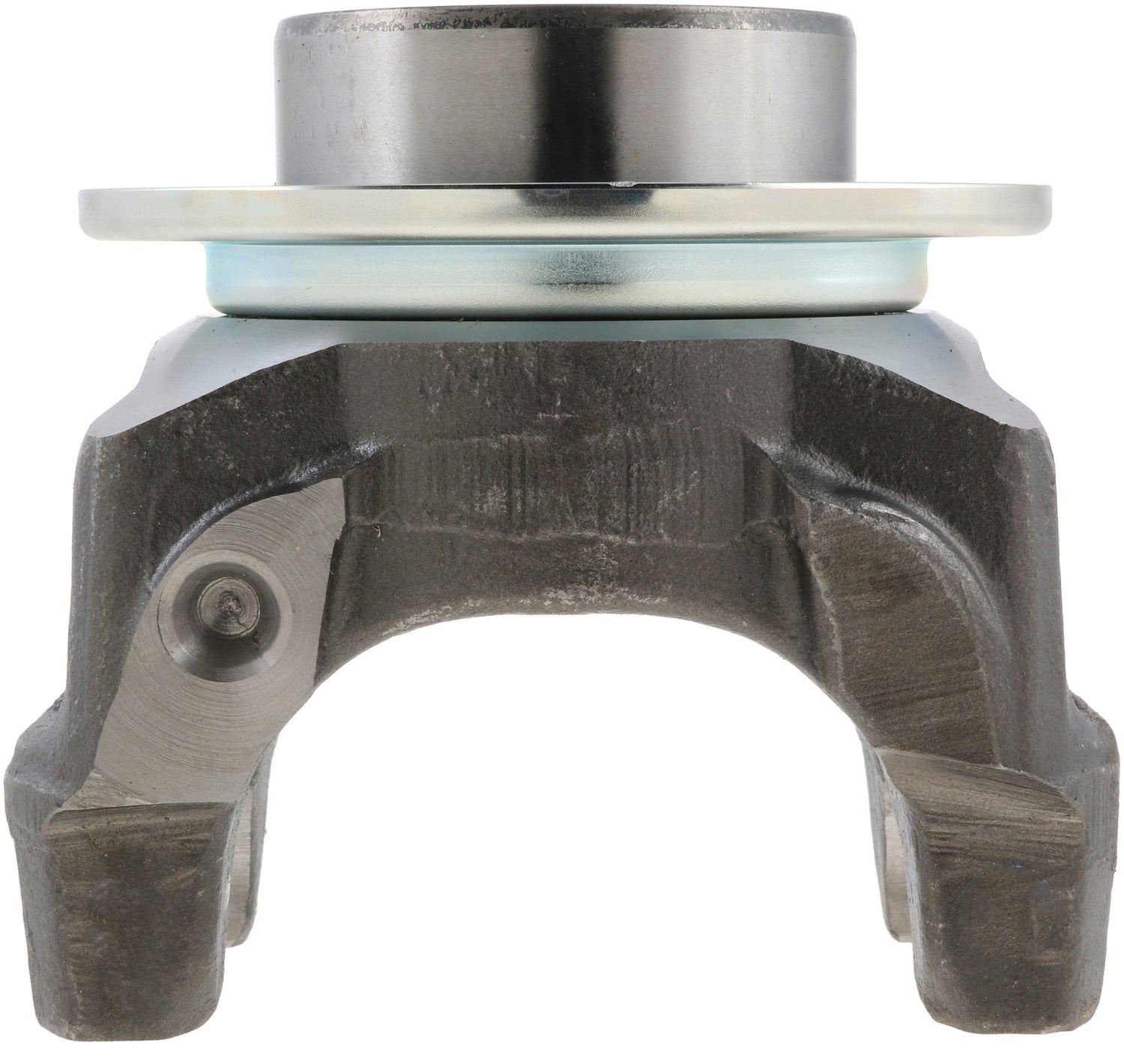

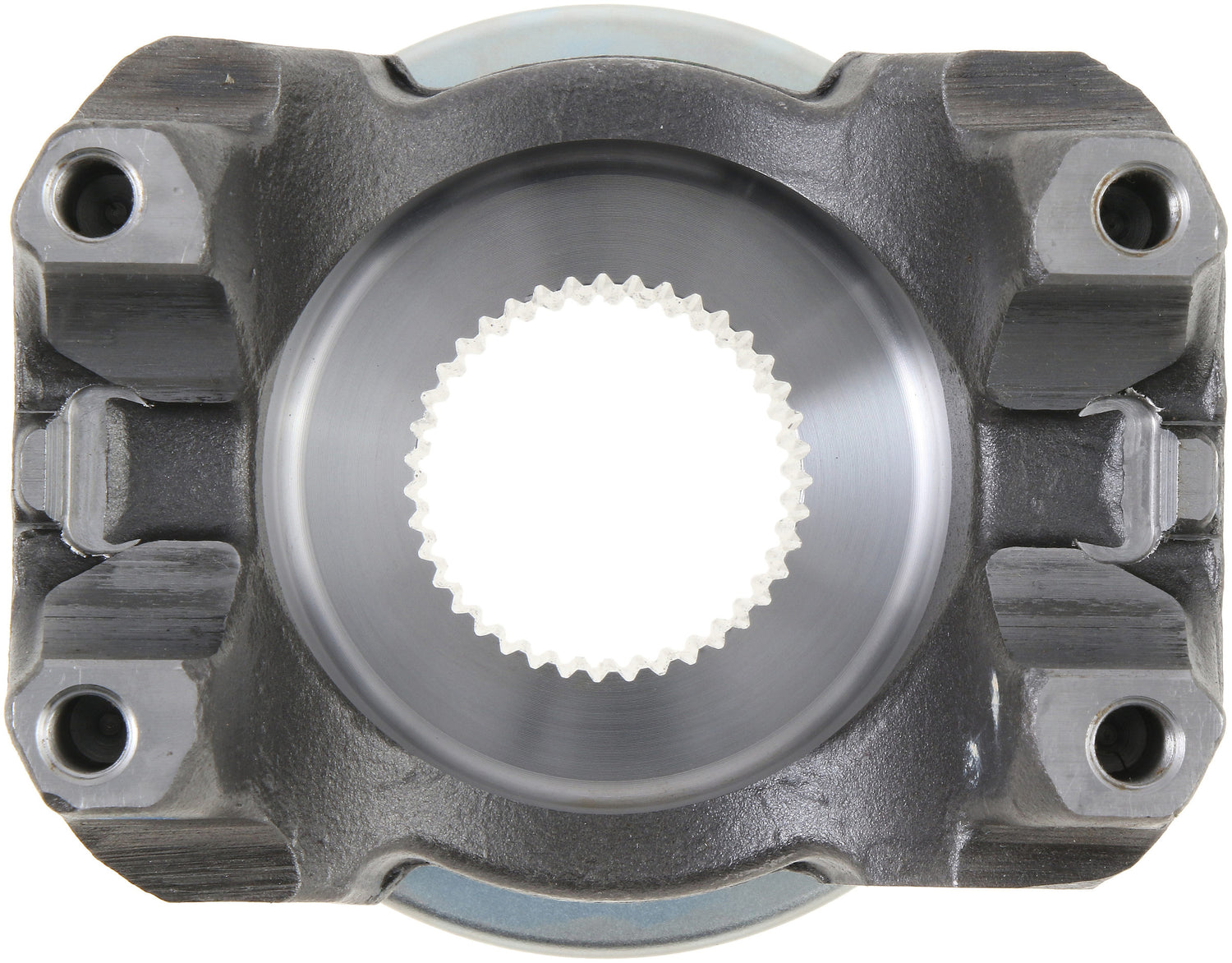

Spicer 100-4-1551-1X - End Yoke Assembly
End Yoke Assembly
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: SPL100
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Y
Hub Diameter R: 3
Includes Slinger/Plug: Y
Involute Spline: Y
Length Thru Hole Q: 2.281
Outside Yoke Dimension (In) E: 4.958
Yoke Bearing Dimension (In) D: 1.625
Yoke Style: BS
Major Diameter: 2.024
C/L To End Hub S: 4.75
C-Bore Depth: 0.25
