Spicer 10-4-383 - Power Take Off (PTO) End Yoke
Spicer | SKU:
FSGR-10-4-383
Sale price
$18699
Regular price
$25191
Unit price
/
Unavailable
$64.92 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

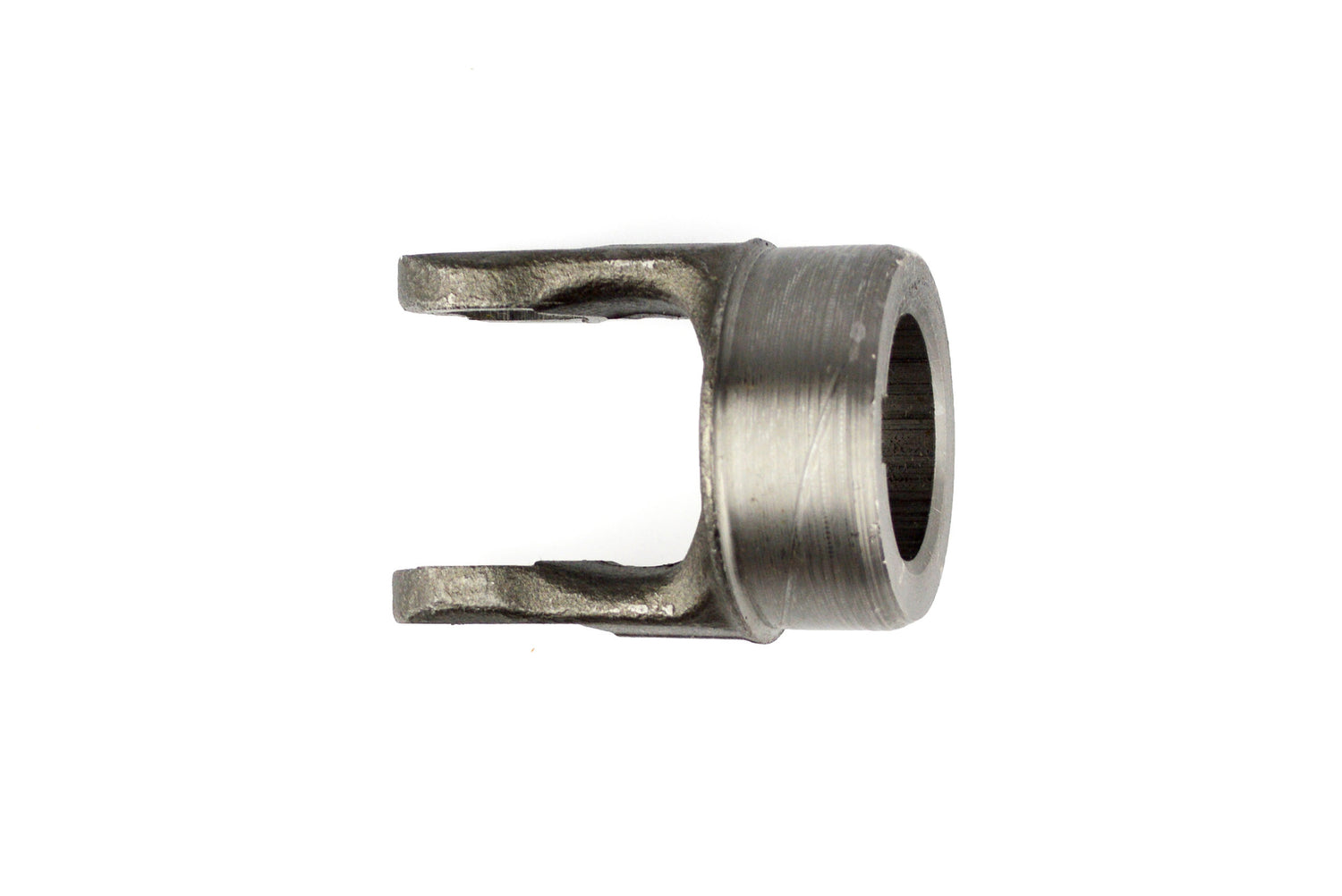

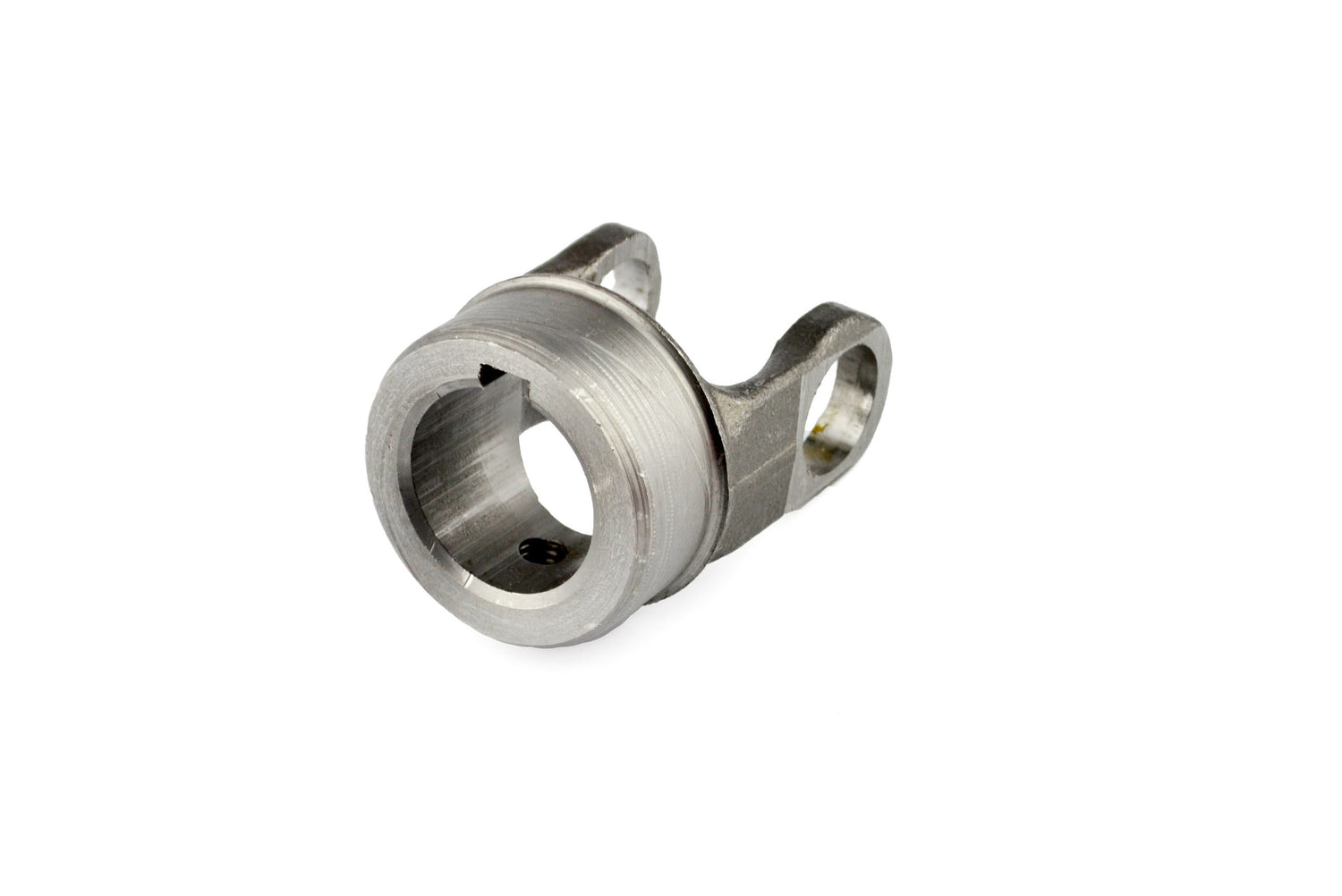

Spicer 10-4-383 - Power Take Off (PTO) End Yoke
Power Take Off (PTO) End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1000
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.438
Hub Diameter R: 2.250
Yoke Bearing Dimension (In) D: 0.938
Yoke Style: ISR
Keyway Location W: 3
Sae Keyway Width (In) X: 0.375
Set Screw Location W: 9
Inside Yoke Dimension (In) K: 1.500
C/L To End Hub S: 2.500
Joint Angle #1: 60
Set Screw Hole Diameter (In): 0.375
