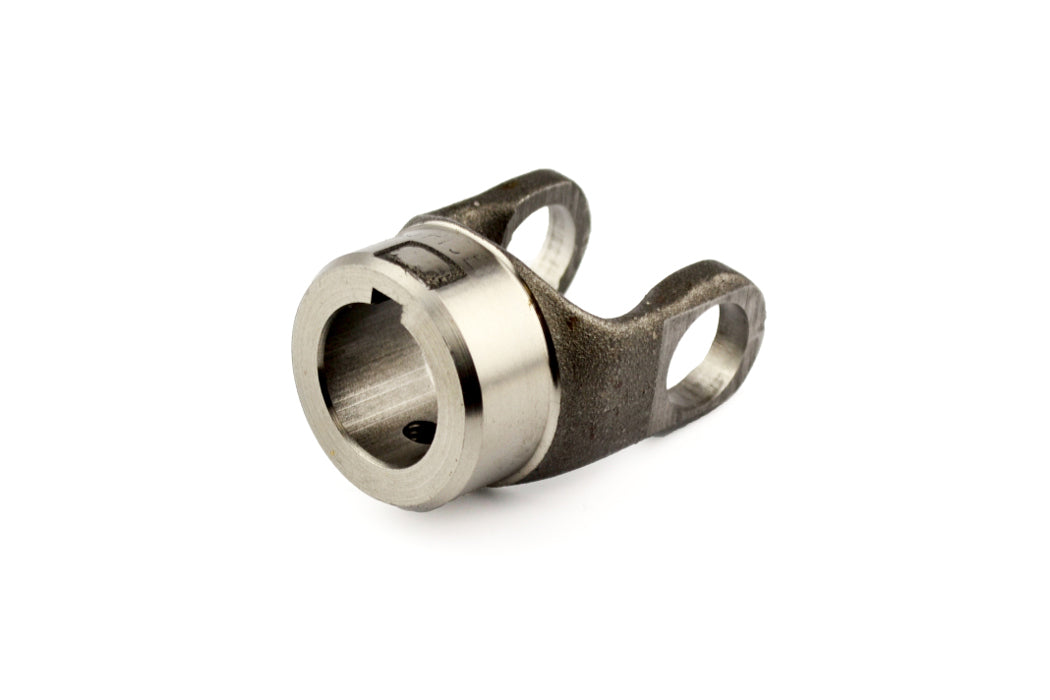

Spicer 10-4-123 Power Take Off (PTO) End Yoke

Spicer  |  SKU: FSGR-10-4-123
$4099 $4509

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Spicer 10-4-123 Power Take Off (PTO) End Yoke

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
Joint Angle #1: 60
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.2505
Hole Diameter - Min: 1.2495
Keyway Width - Max: 0.3155
Keyway Width - Min: 0.3135
Series: 1000
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.250
Hub Diameter R: 2.000
Involute Spline: N
Length Thru Hole Q: 1.030
Yoke Bearing Dimension (In) D: 0.938
Yoke Style: ISR
Keyway Location W: 3
Sae Keyway Width (In) X: 0.312
Set Screw Location W: 9
Inside Yoke Dimension (In) K: 1.500
C/L To End Hub S: 2.500
