SPC Performance 23188 - 2 deg. CAMBER/CASTER SLV

SPC Performance  |  SKU: FCMW-23188
$2899 $3189

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

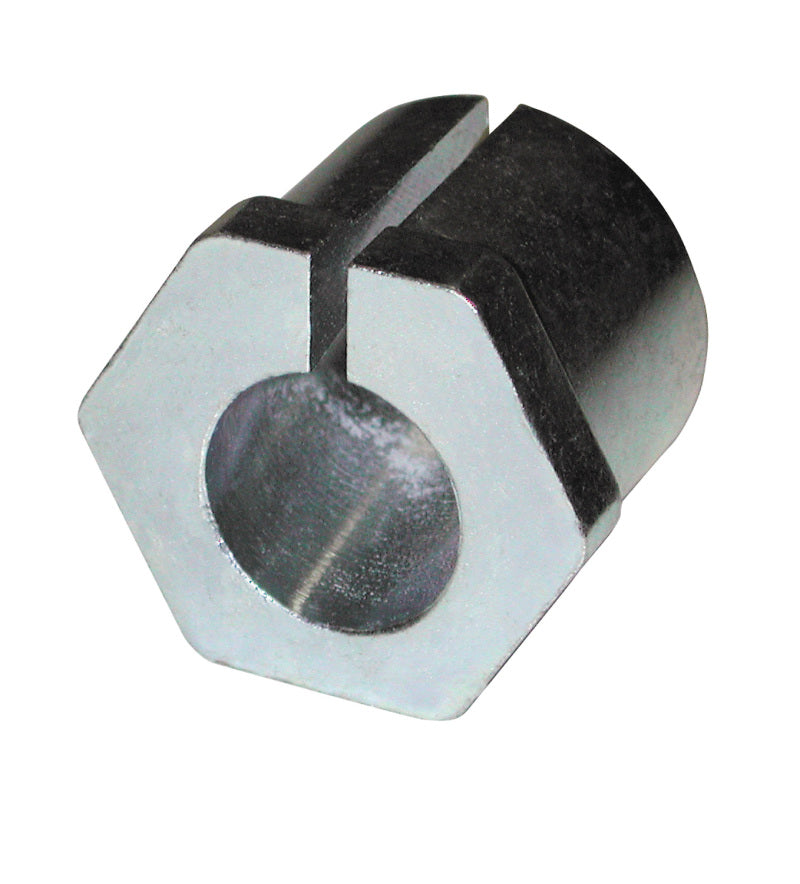

SPC Performance 23188 - 2 deg. CAMBER/CASTER SLV

2deg CAMBER/CASTER SLEEVE

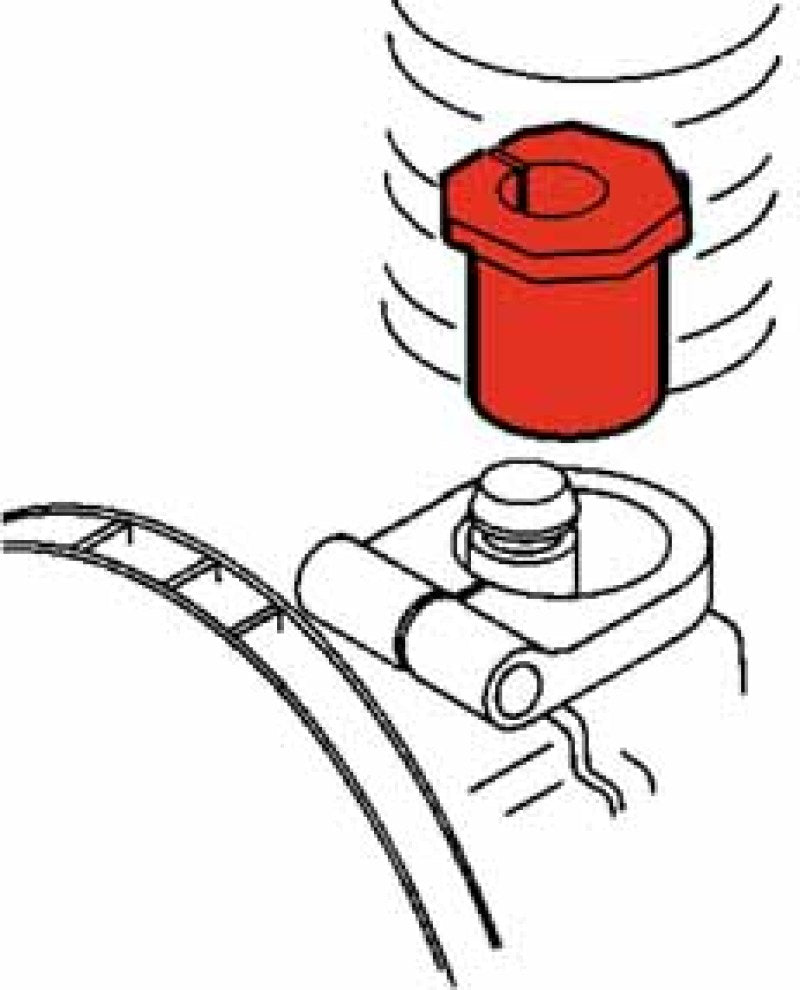

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light truck/SUVS. California Residents WARNING

  • Easily change caster / camber or both at the same time
  • Clear Zinc coating for corrosion resistance
  • Recommended Tools: 77880 - Sleeve Puller
  • Front Adjustment Range RWD: Camber/Caster ±2.00°
  • Front Adjustment Range 4WD: Camber/Caster ±1.40°
Material: Steel
Color: Silver
Inside Diameter: 21.25
Outside Diameter: 36
Height: 32
Universal Or Specific Fit: Specific
Grade Type: Standard Replacement
Adjustable: Yes
Hardware Included: No
Add-On: 77880, 87175, 23180, 23181, 23182, 23183, 23184, 23185, 23186, 23187, 23189, 23190, 23191, 23192, 23193, 23194, 23199, 24180
Adjustment Range 4WD: 1.4
Adjustment Range RWD: 2
