Sniper 838232 - EFI LS3 HI-RAM 90MM BLACK

Sniper  |  SKU: SNIP-838232
$1,49995 $1,68795

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 838232 - EFI LS3 HI-RAM 90MM BLACK

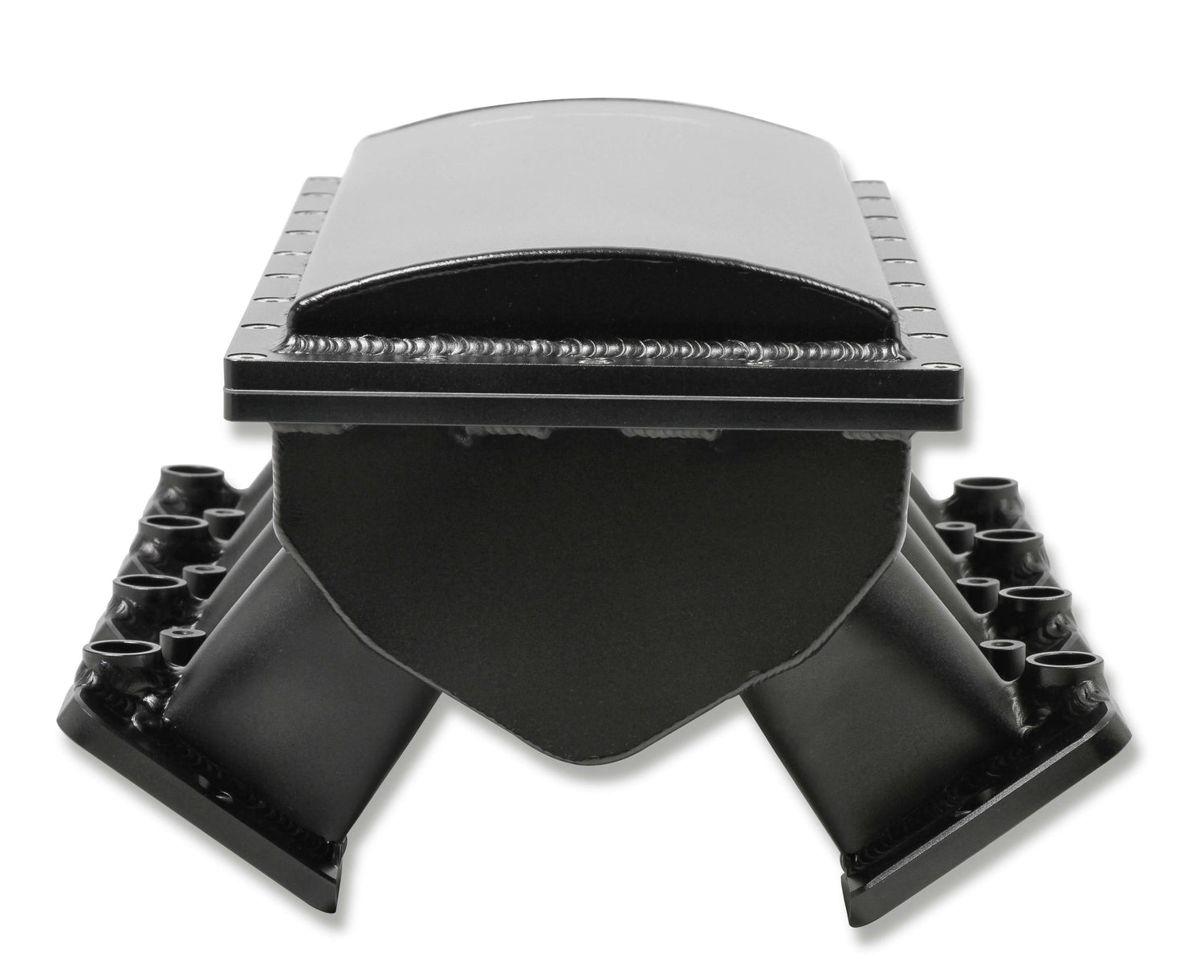

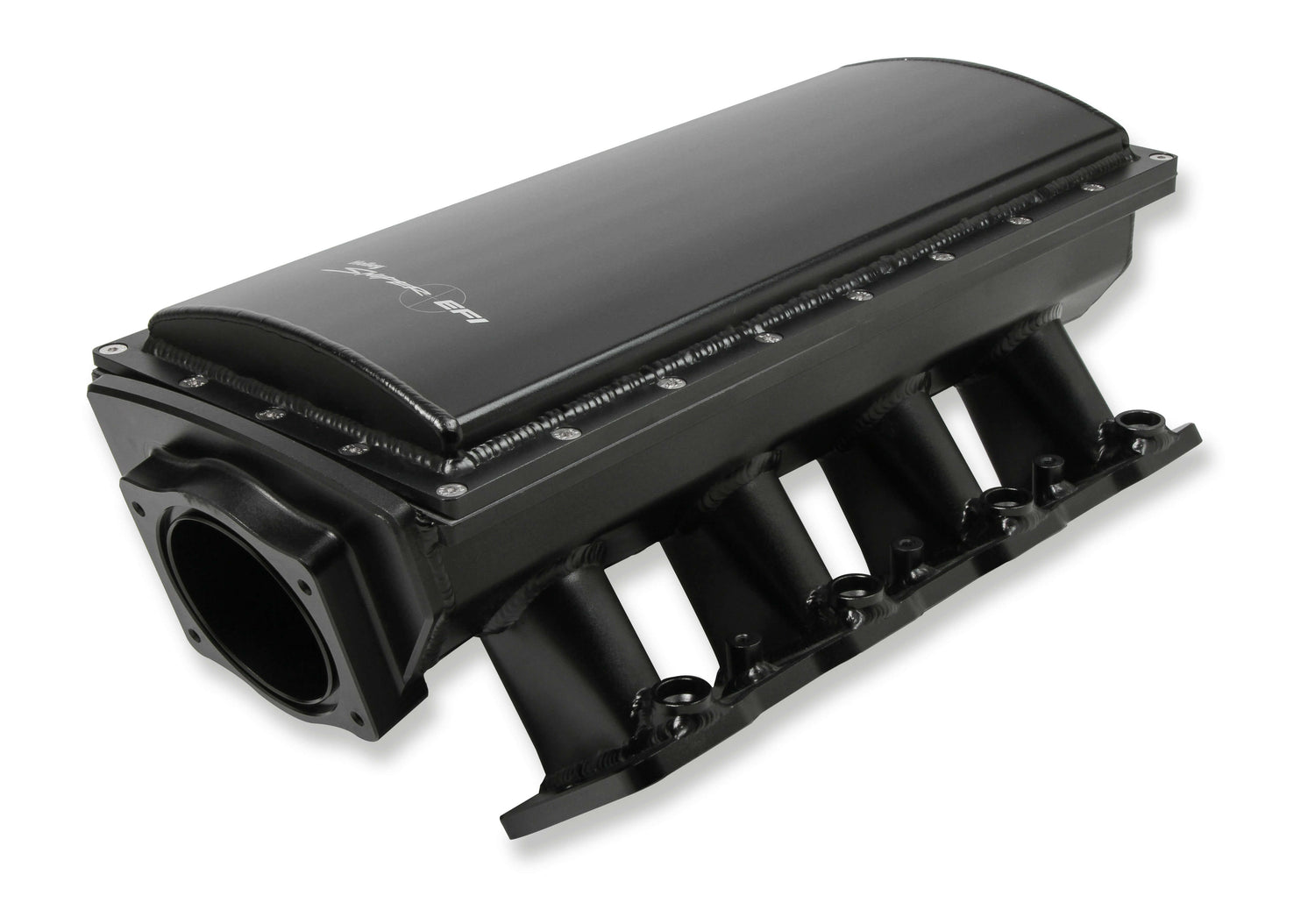

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Black

Continued feedback from racers and install shops, related to our original line of EFI intakes, were critical in the development of our Race Series line of fabricated intake manifolds. The Race Series Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold.

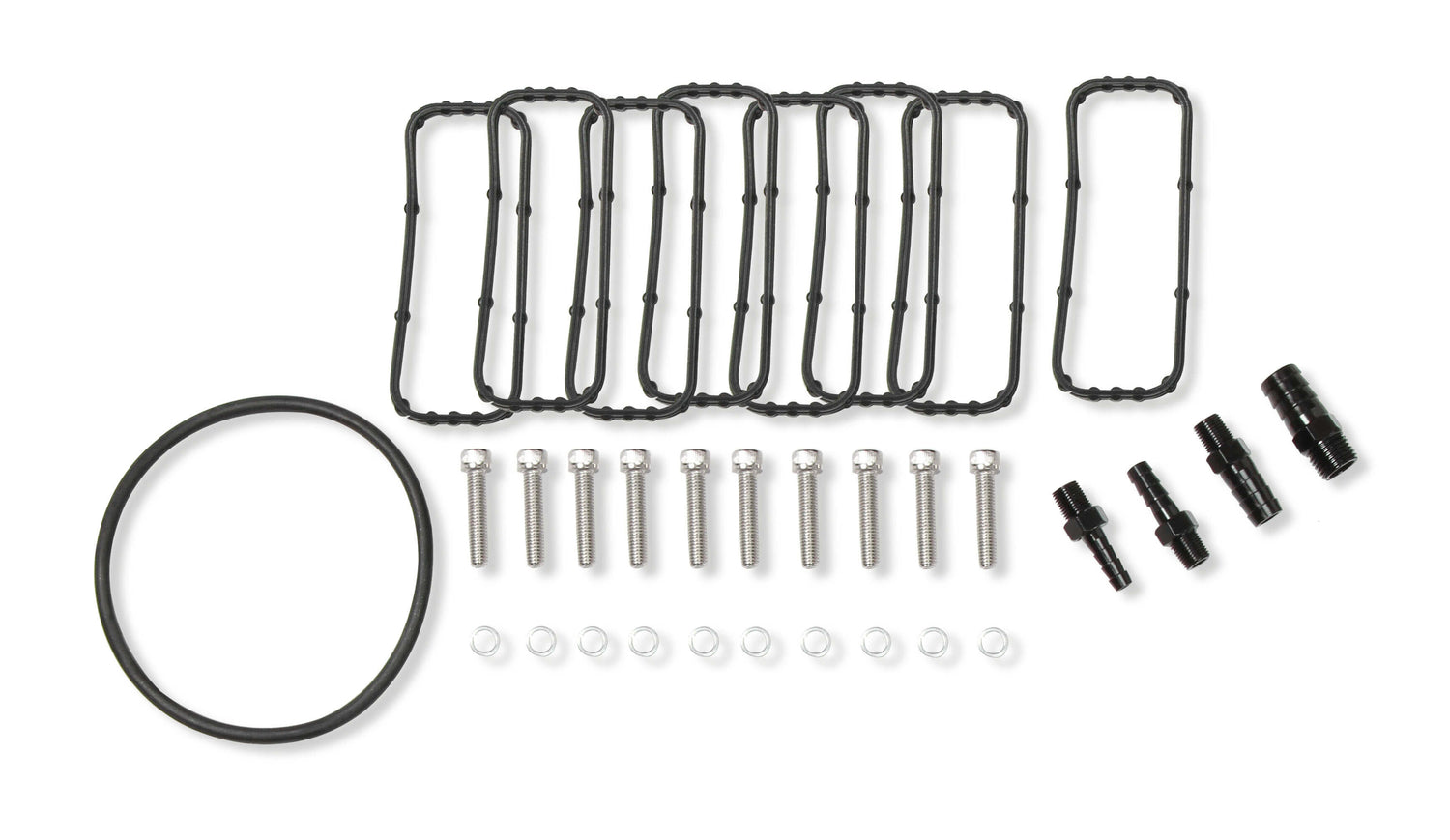

  • Product includes all gaskets and hardware for a hassle-free installation

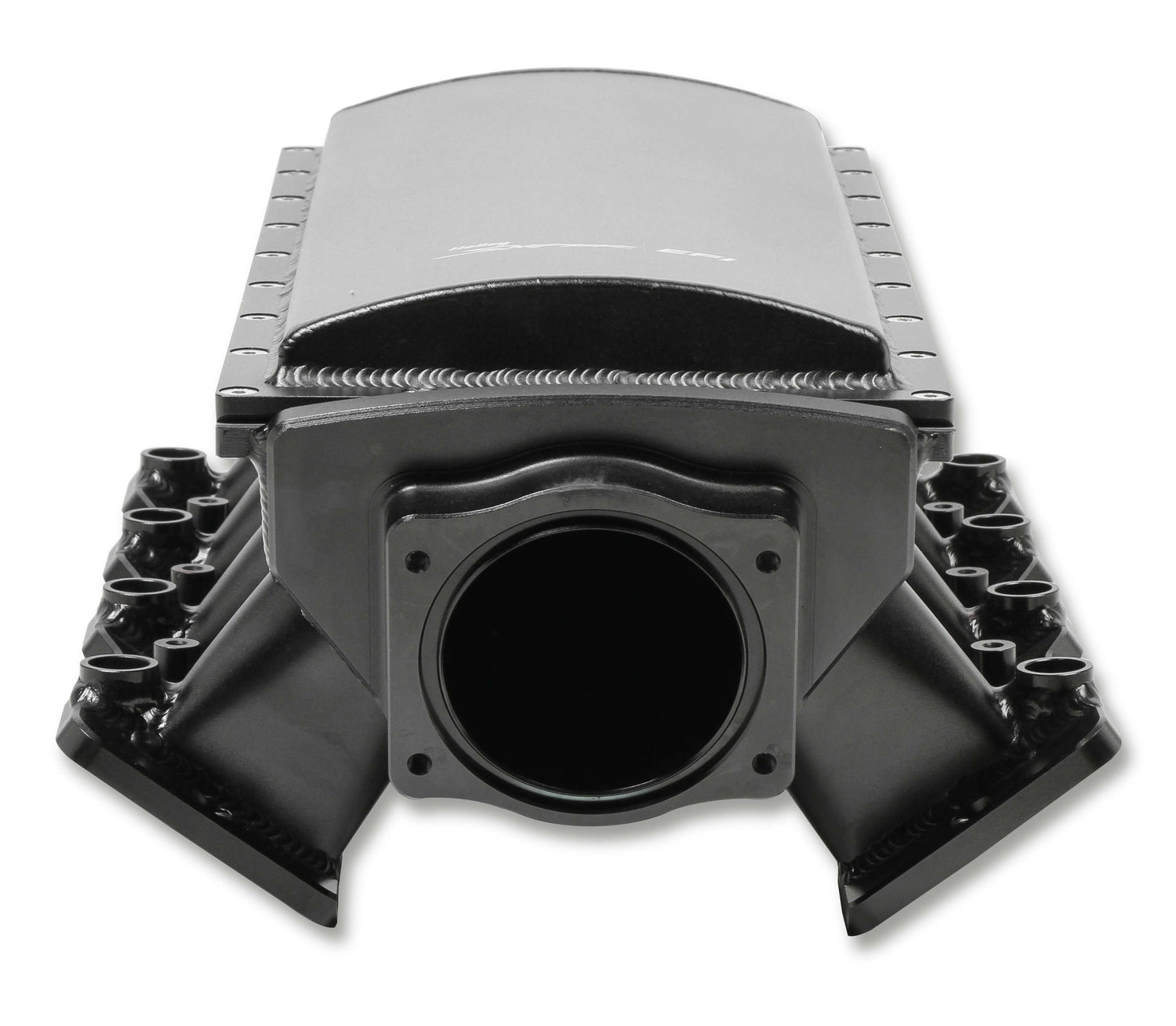

  • 90mm throttle bore opening for increased air flow
  • Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Black Finish creates stealthy under-hood styling

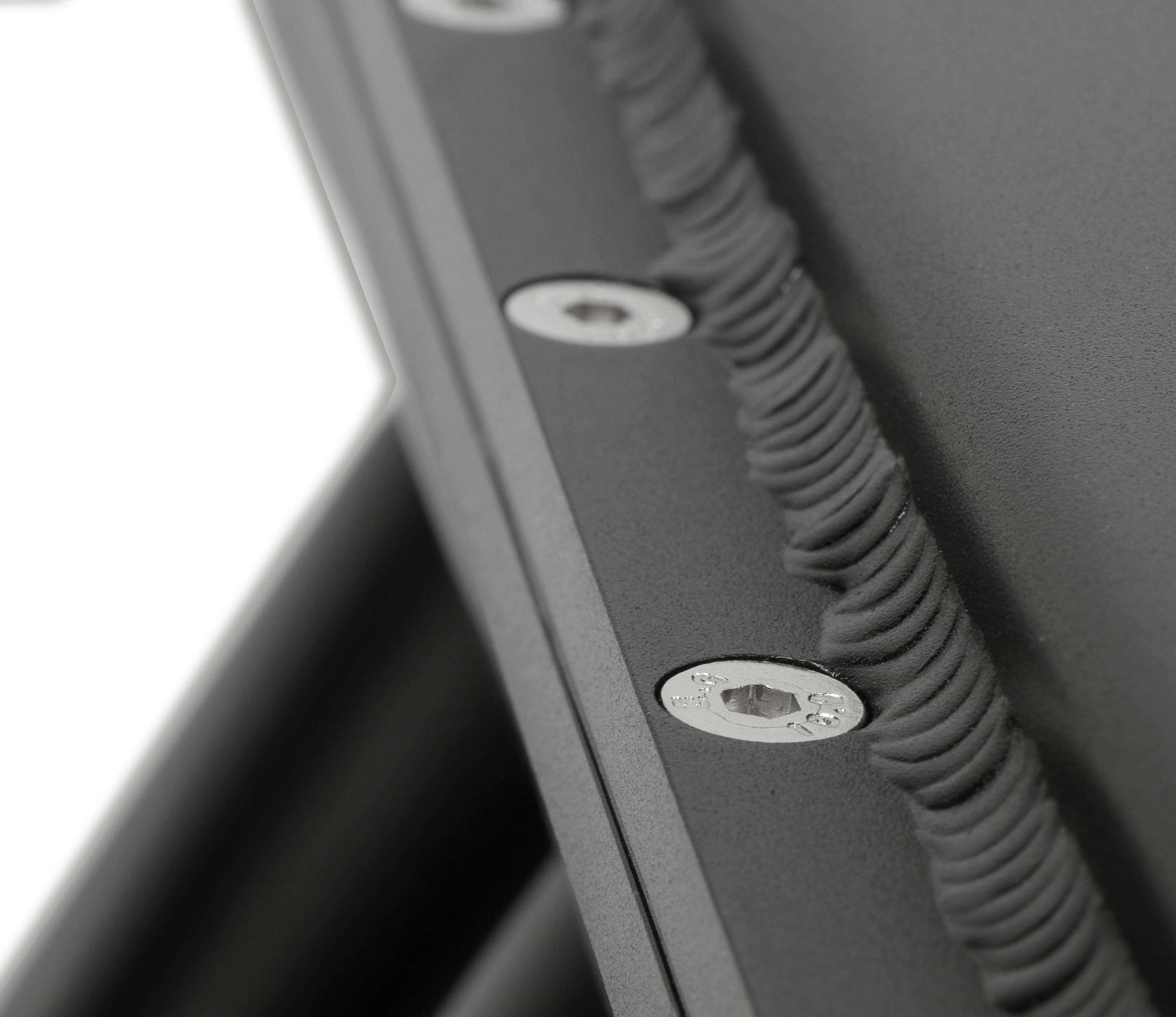

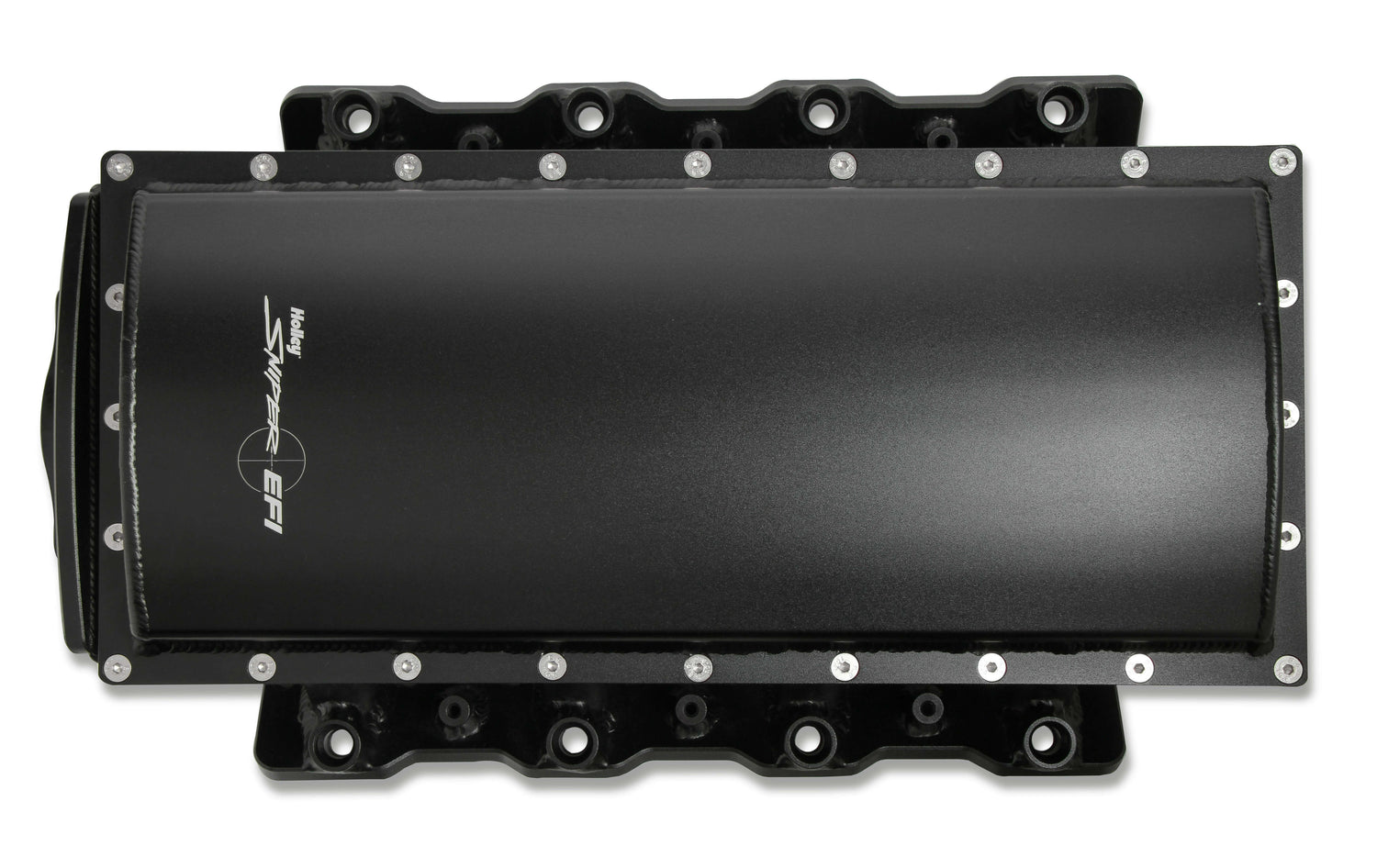

  • Removable top for ease of inspection, modification, and addition of sensors

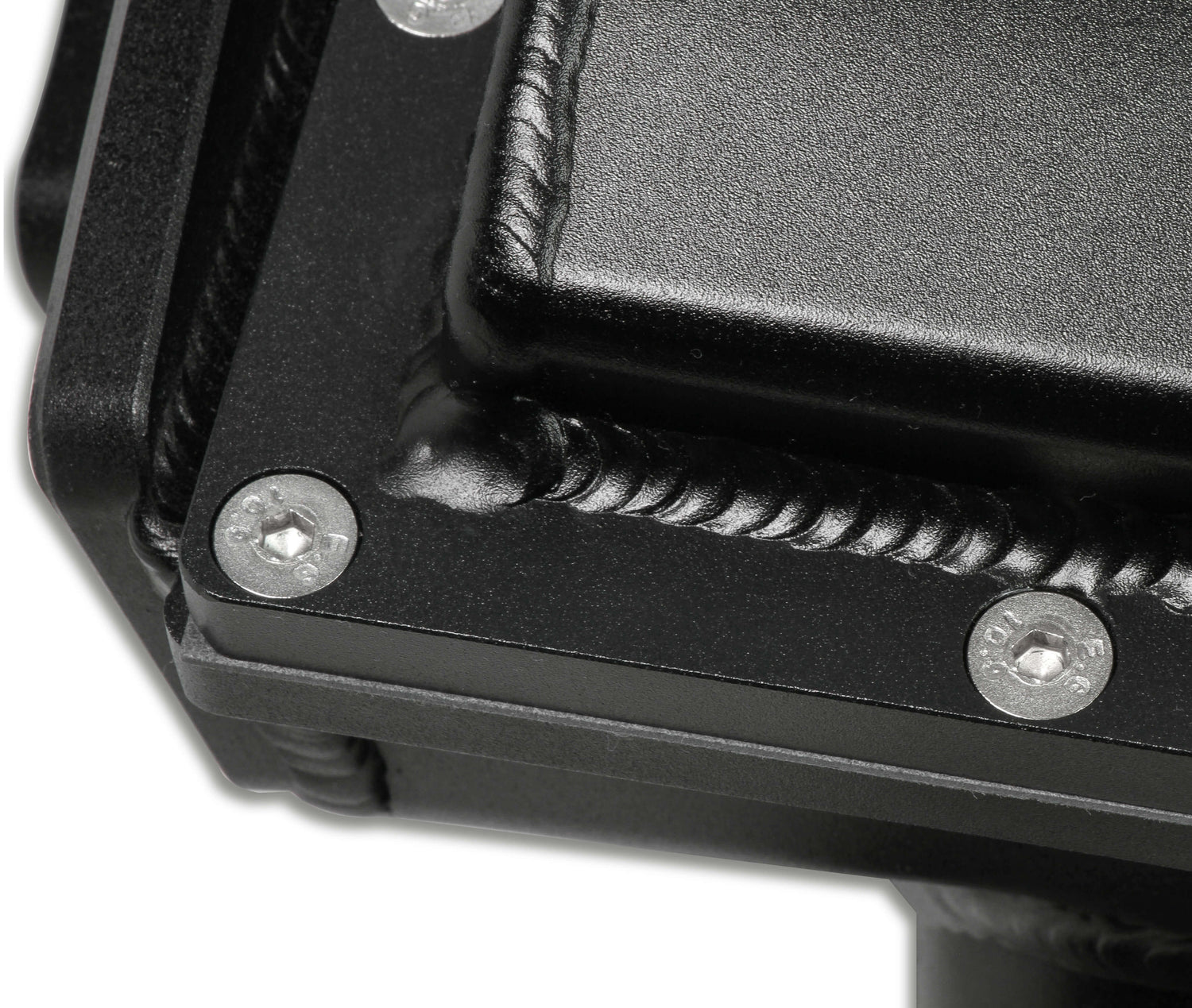

  • 100% TIG welded for strength and durability
  • 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability
  • Longer Intake runner lengths offering a wider RPM operating range of 2400-8200 RPM

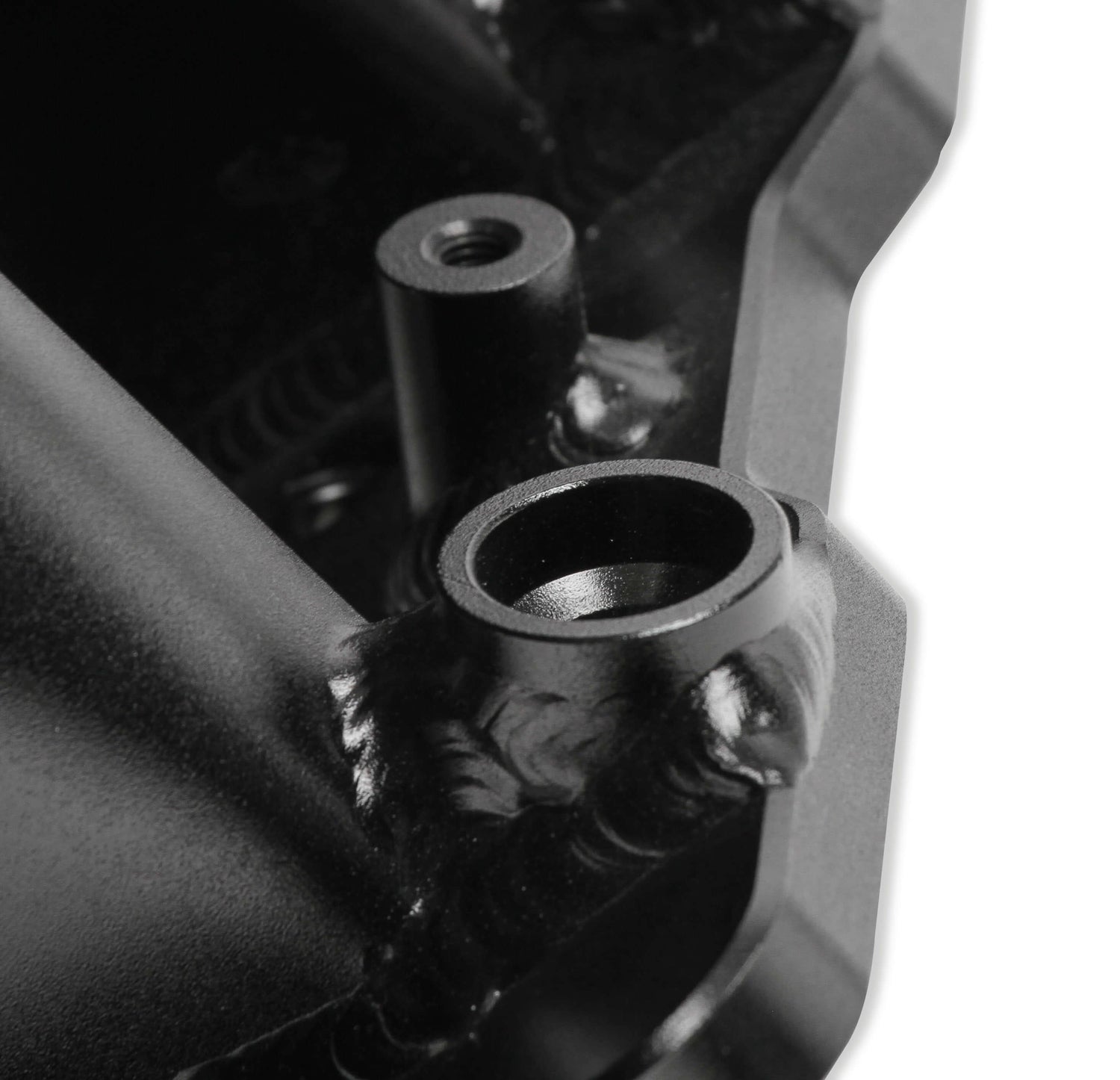

  • Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications

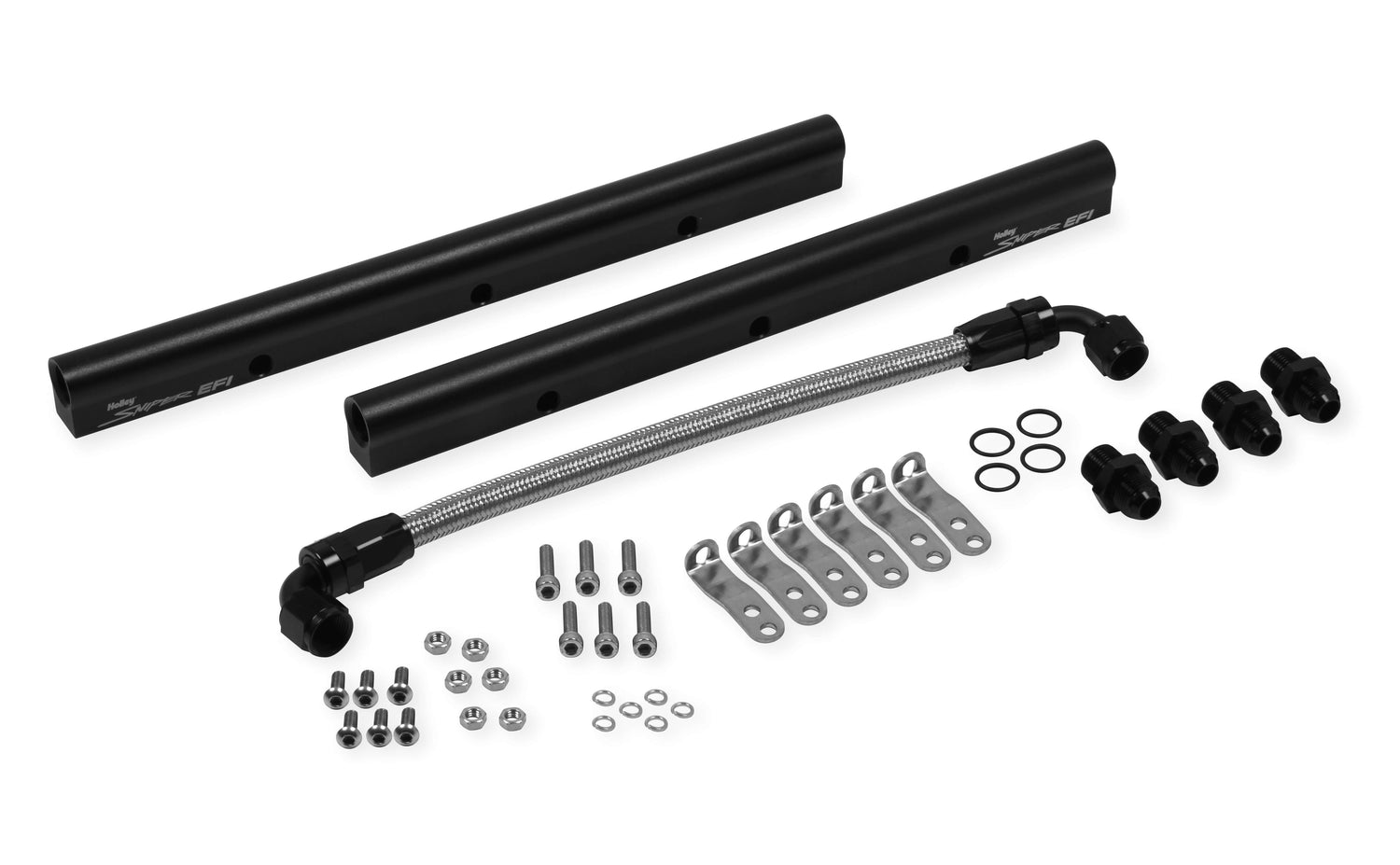

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
Basic Operating RPM Range: 3500-8000
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Sniper EFI Intakes
CNC Ported: No
Color: Black
Construction: Fabricated

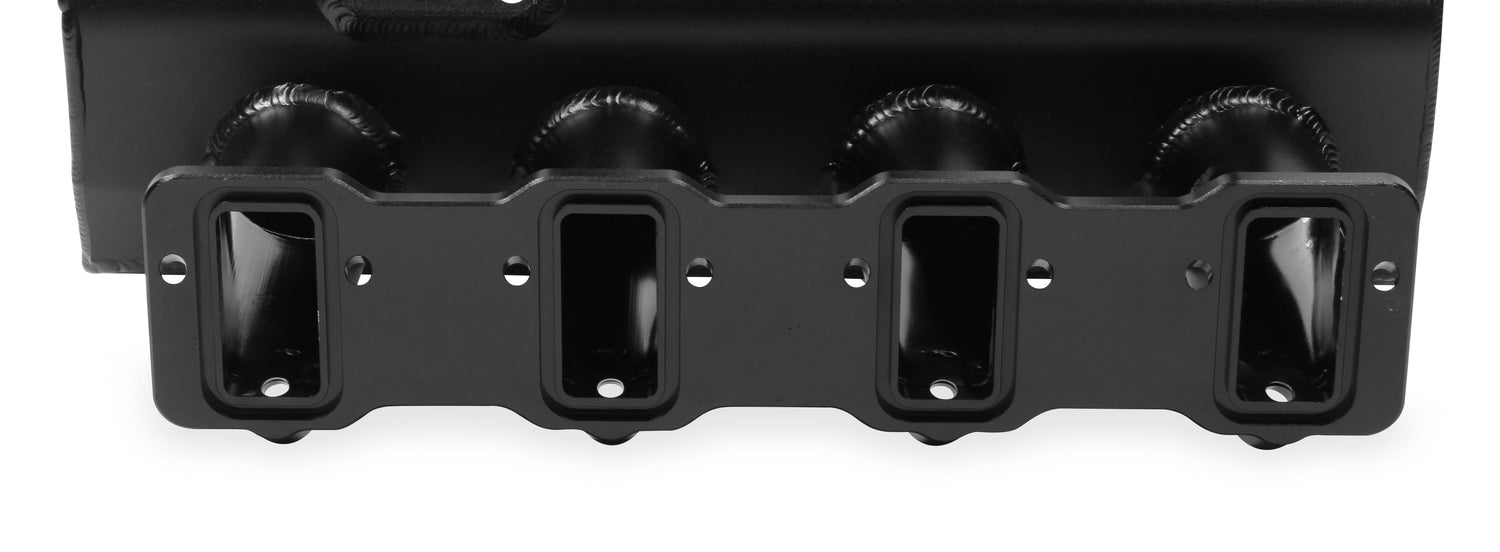

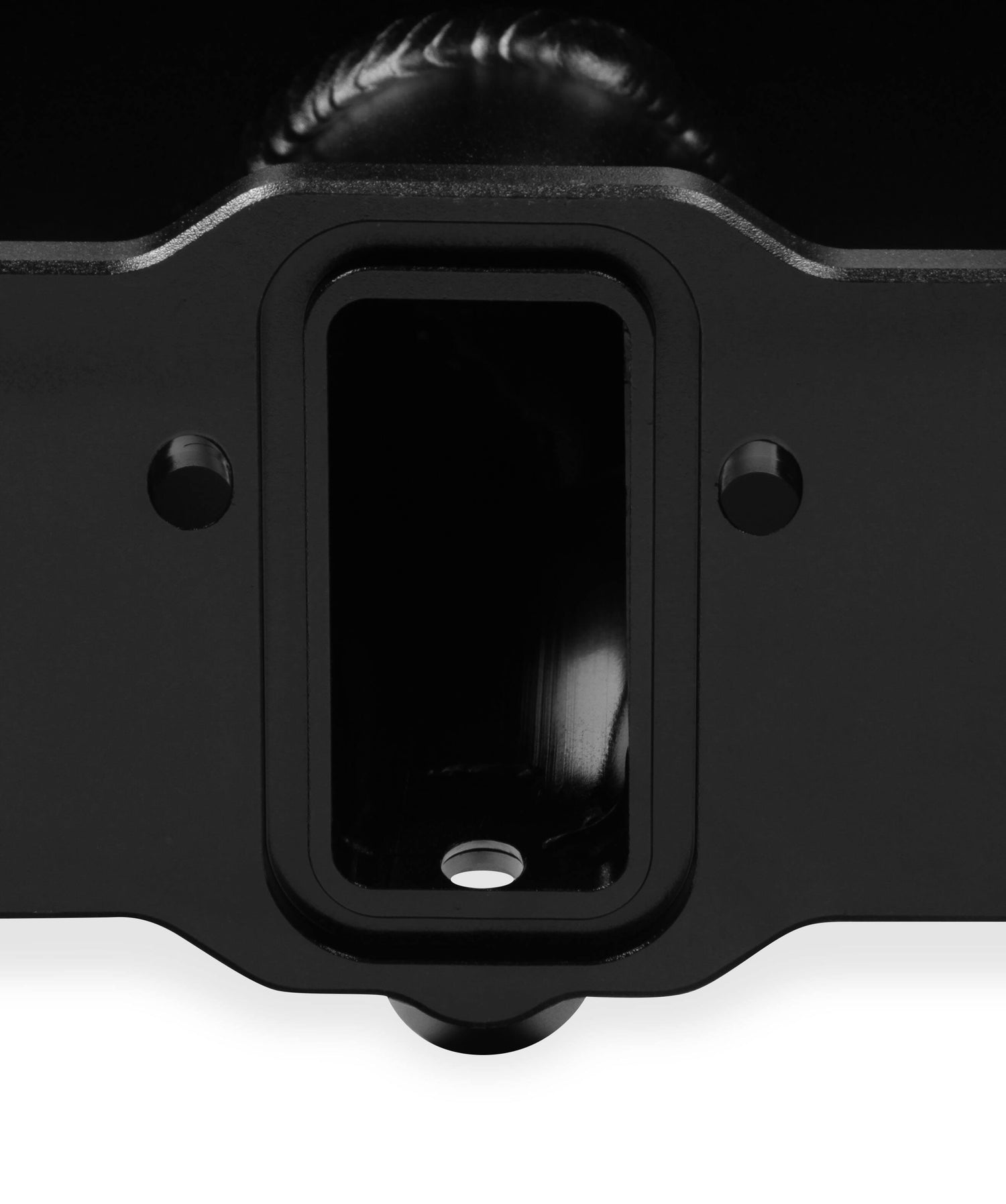

Cylinder Head Port Shape: Rectangle
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS3/L92
Flange Style: N/A
Front Maximum Height: 9.62
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: LS3/L92 EV6 USCAR
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Black
Product Type: Intake Manifold
Rear Maximum Height: 9.015
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 5.512" (140mm)
Single Or Dual Plane Type: Single
Style: EFI
Throttle Body Bore Diameter: 90
Throttle Body Gasket Included: Yes
Throttle Body Included: No
Throttle Bore: 90mm

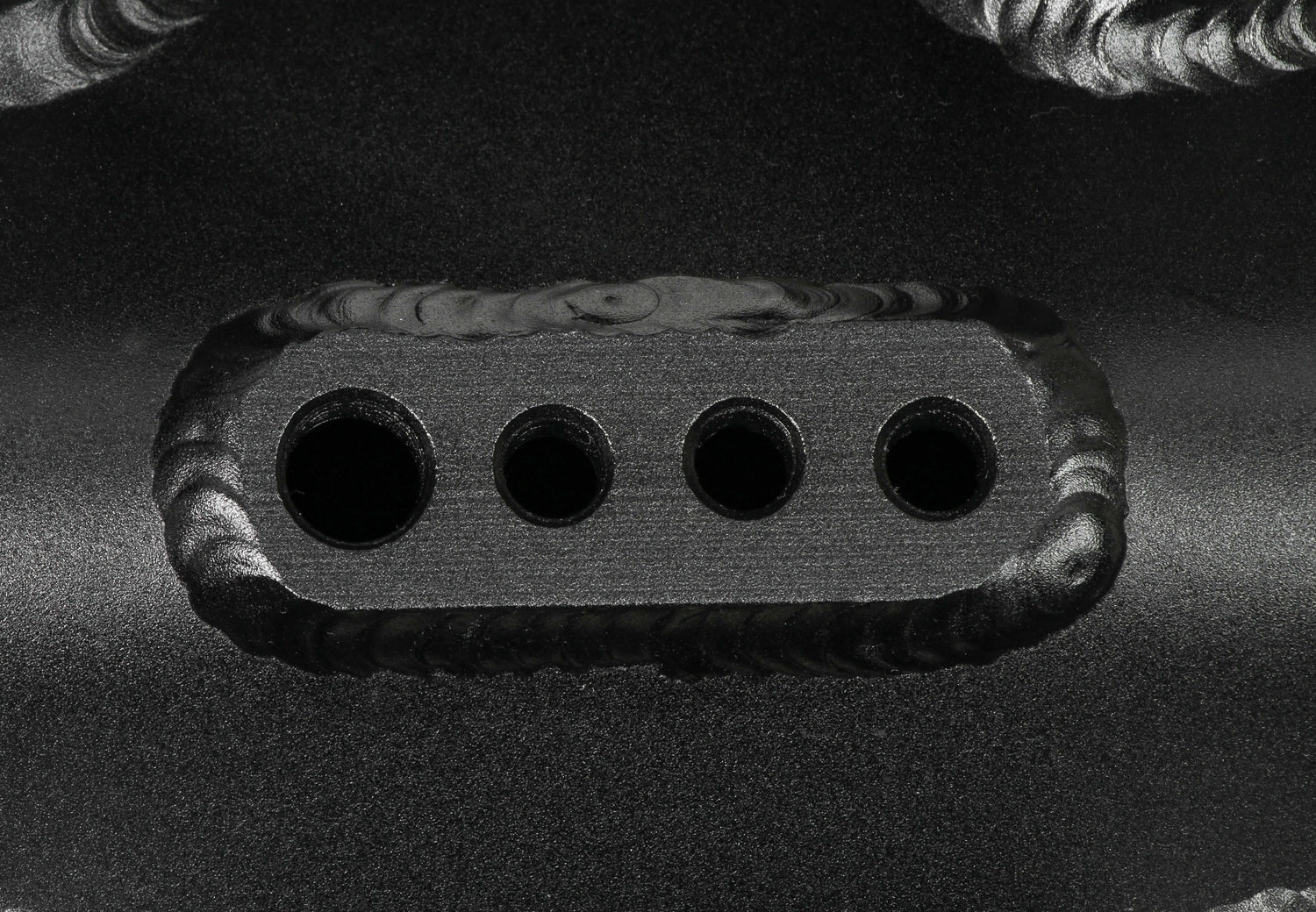

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
