Sniper 838231 - EFI LS3 HI-RAM 90MM SILVER
Sniper | SKU:
SNIP-838231
Sale price
$1,27395
Regular price
$1,68795
Unit price
/
Unavailable
$414.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Sniper 838231 - EFI LS3 HI-RAM 90MM SILVER

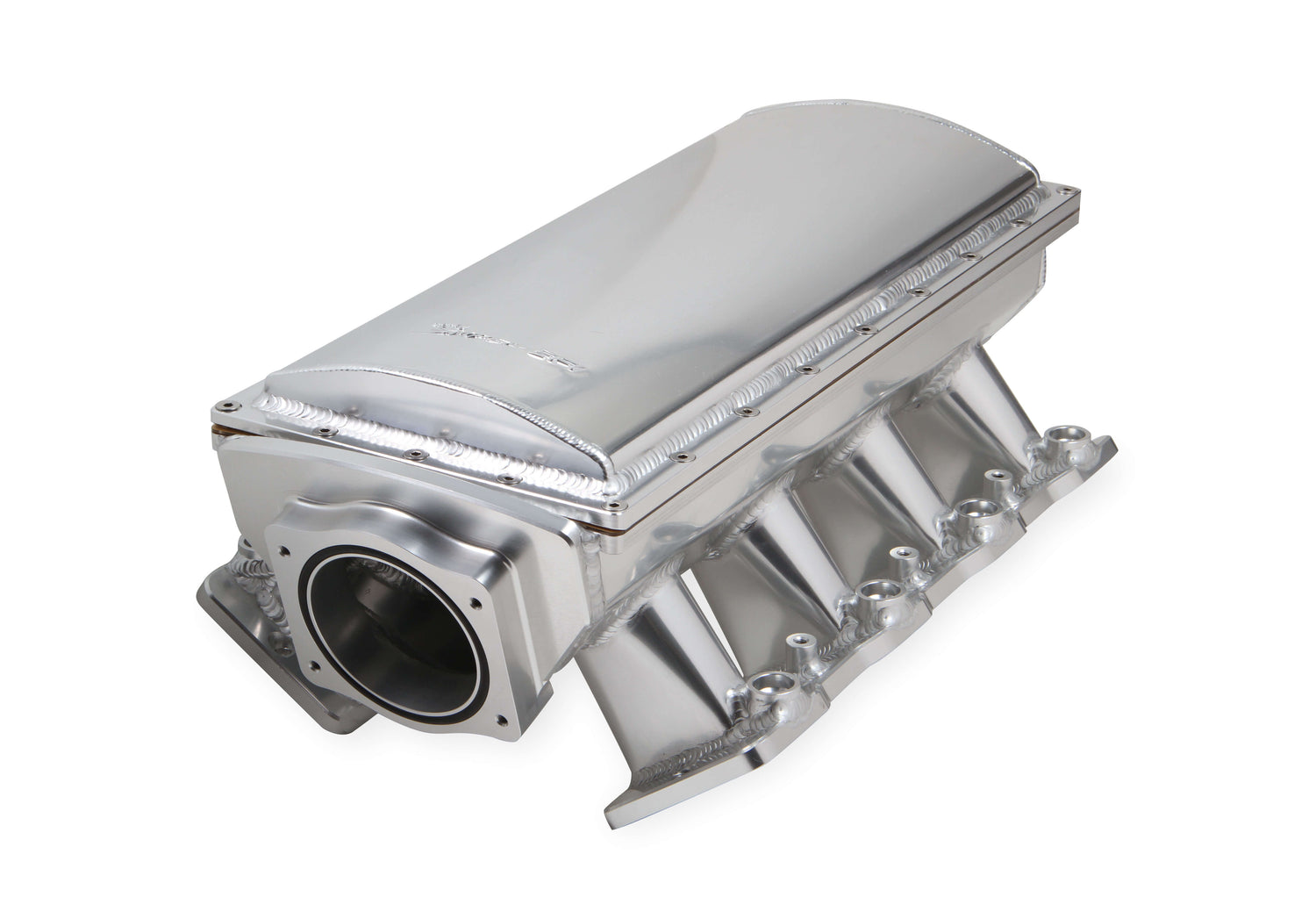

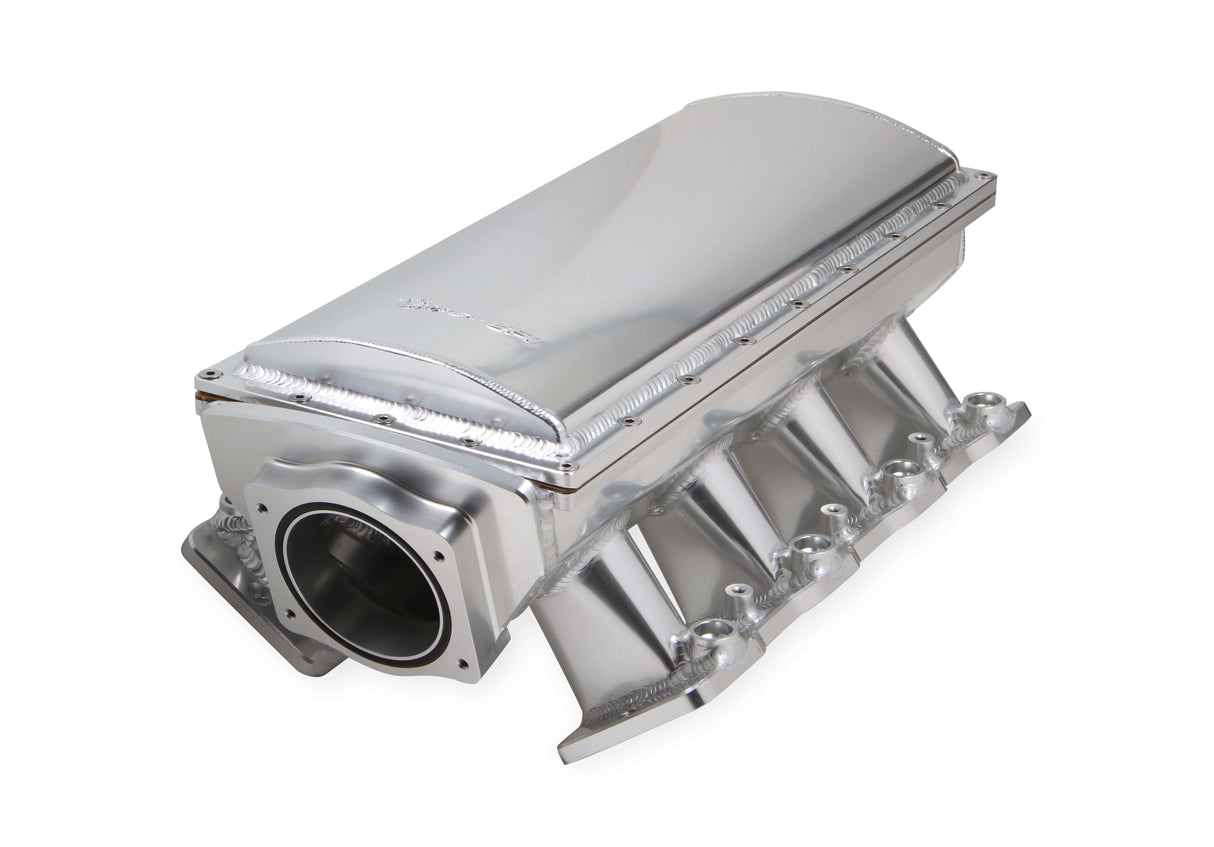

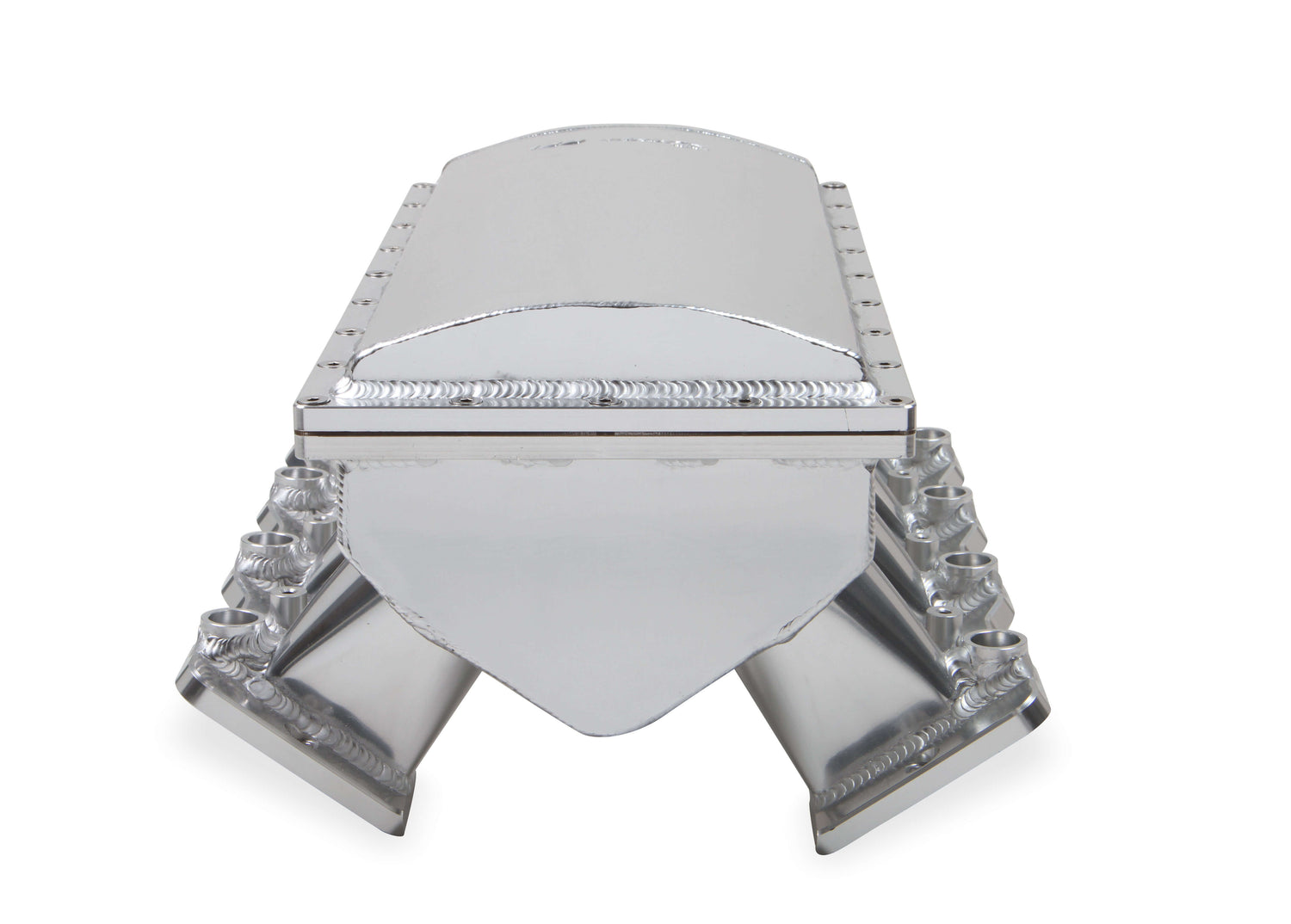

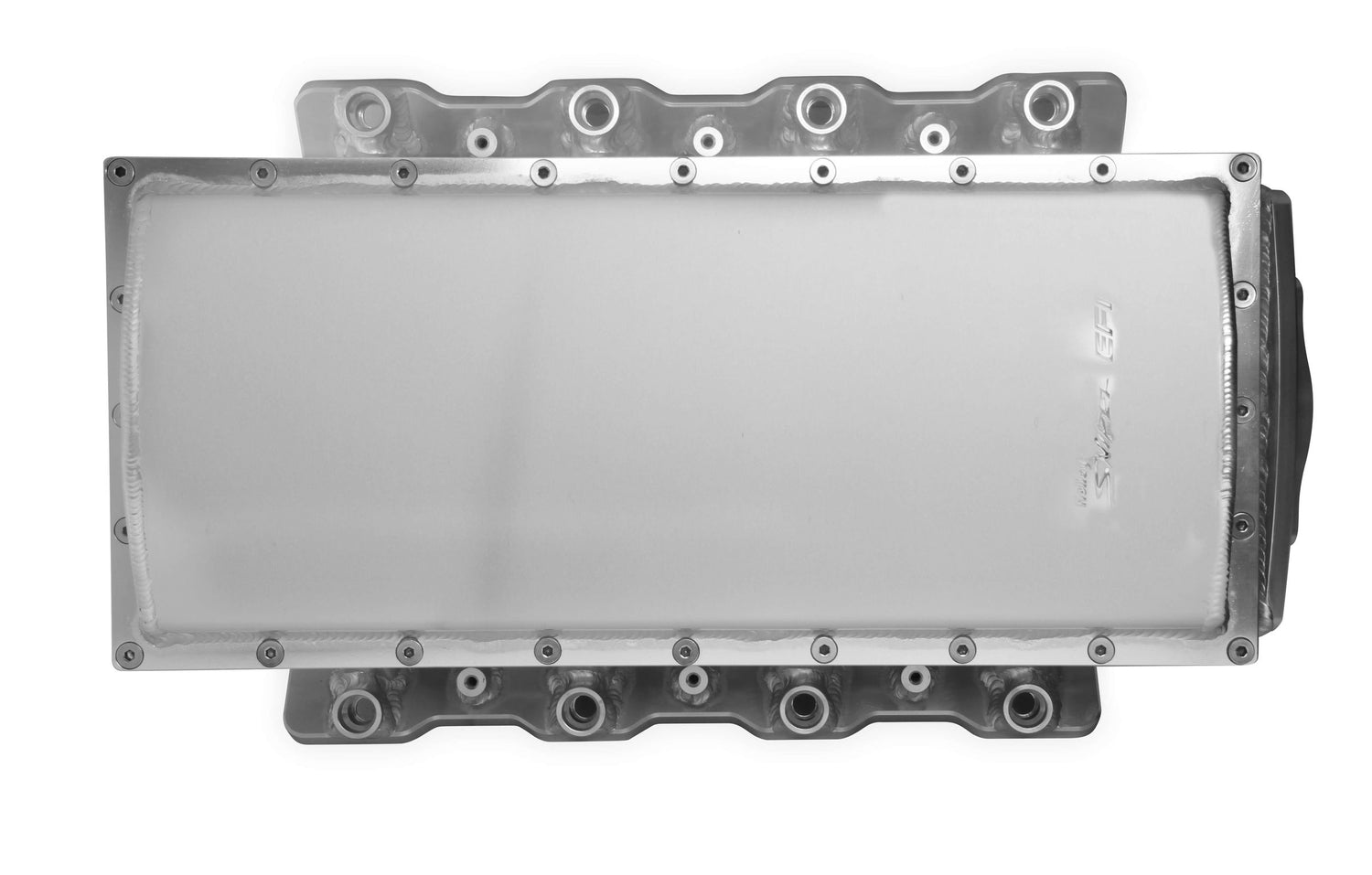

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.

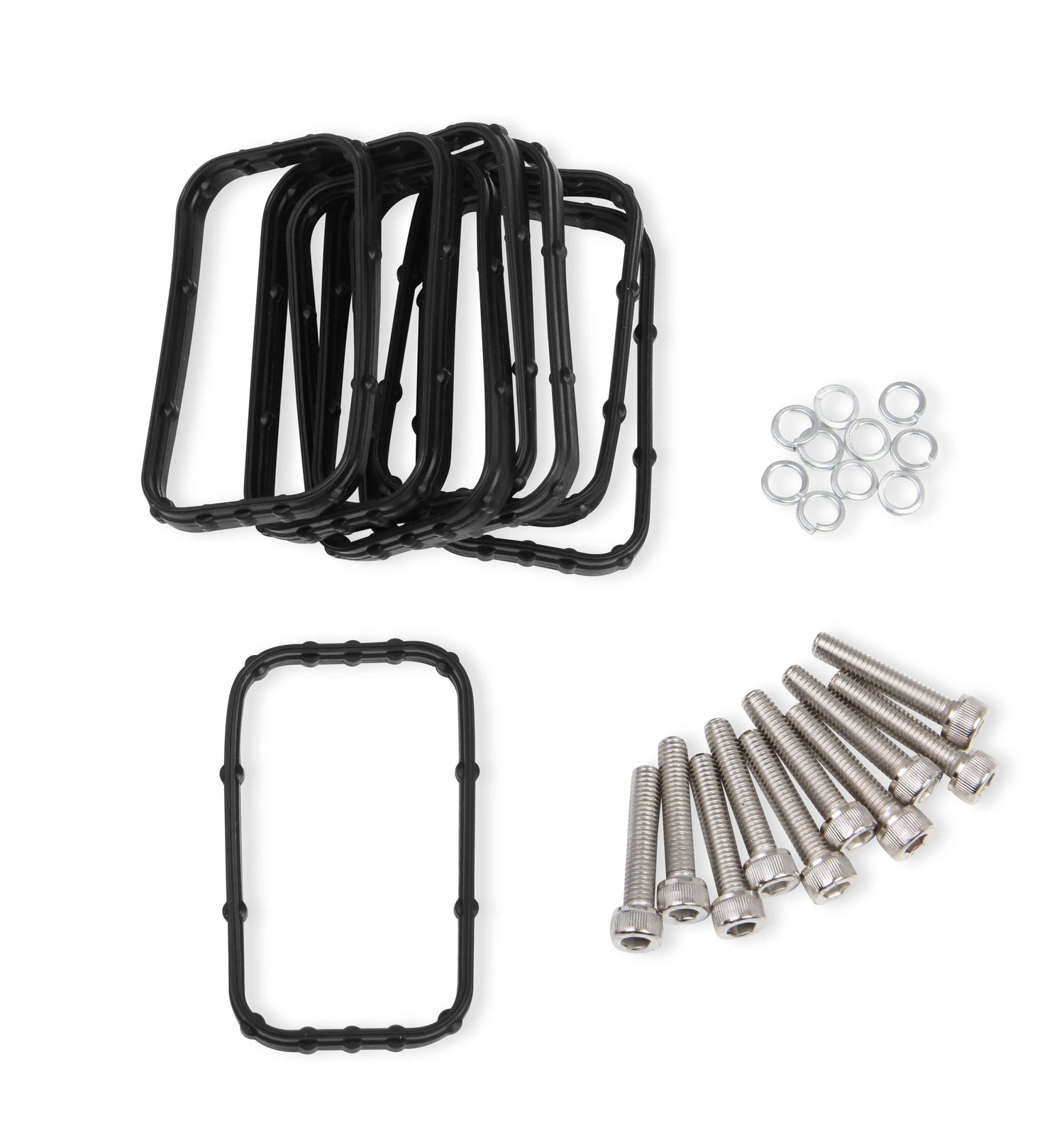

- Product includes all gaskets and hardware for a hassle-free installation

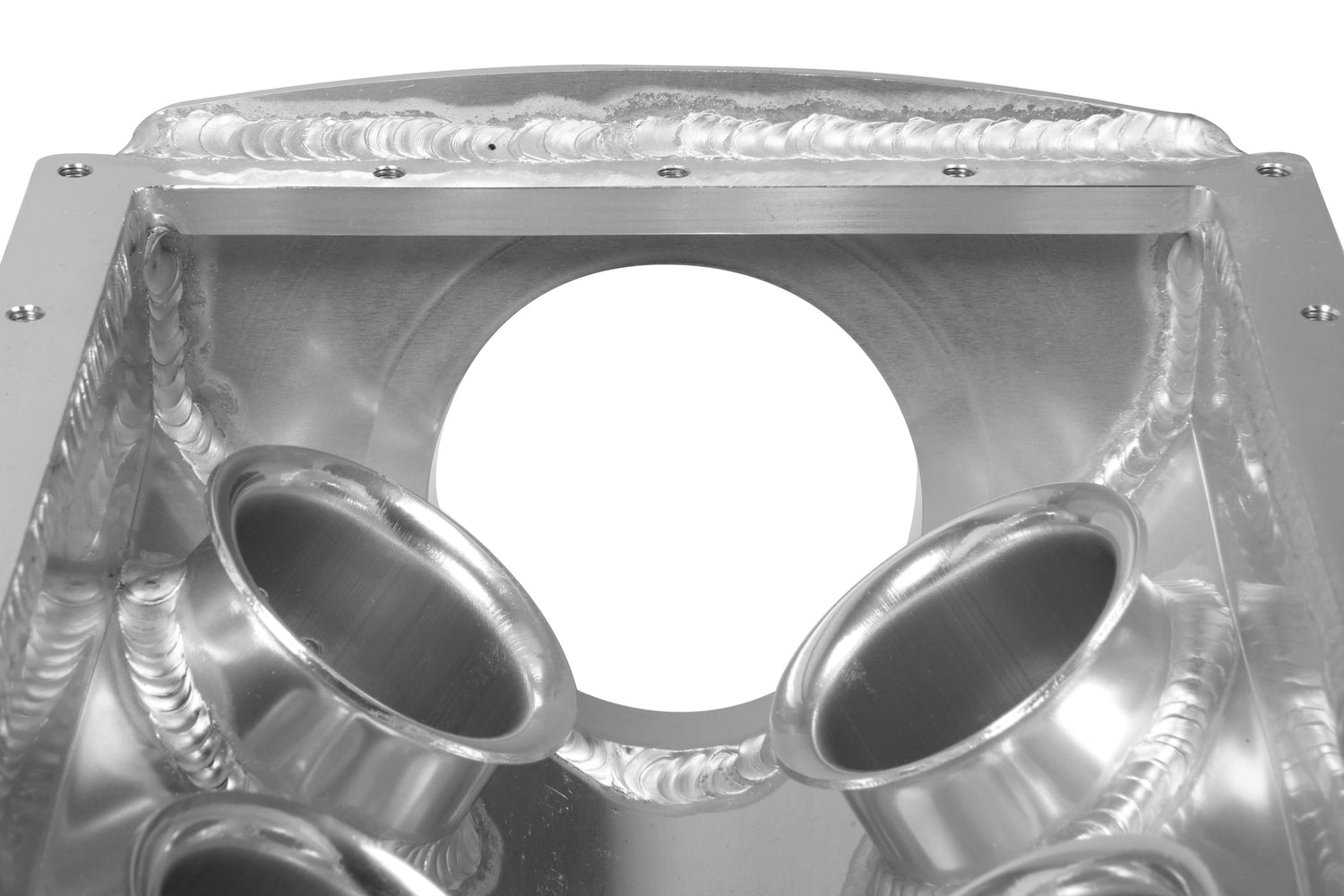

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability
- Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications

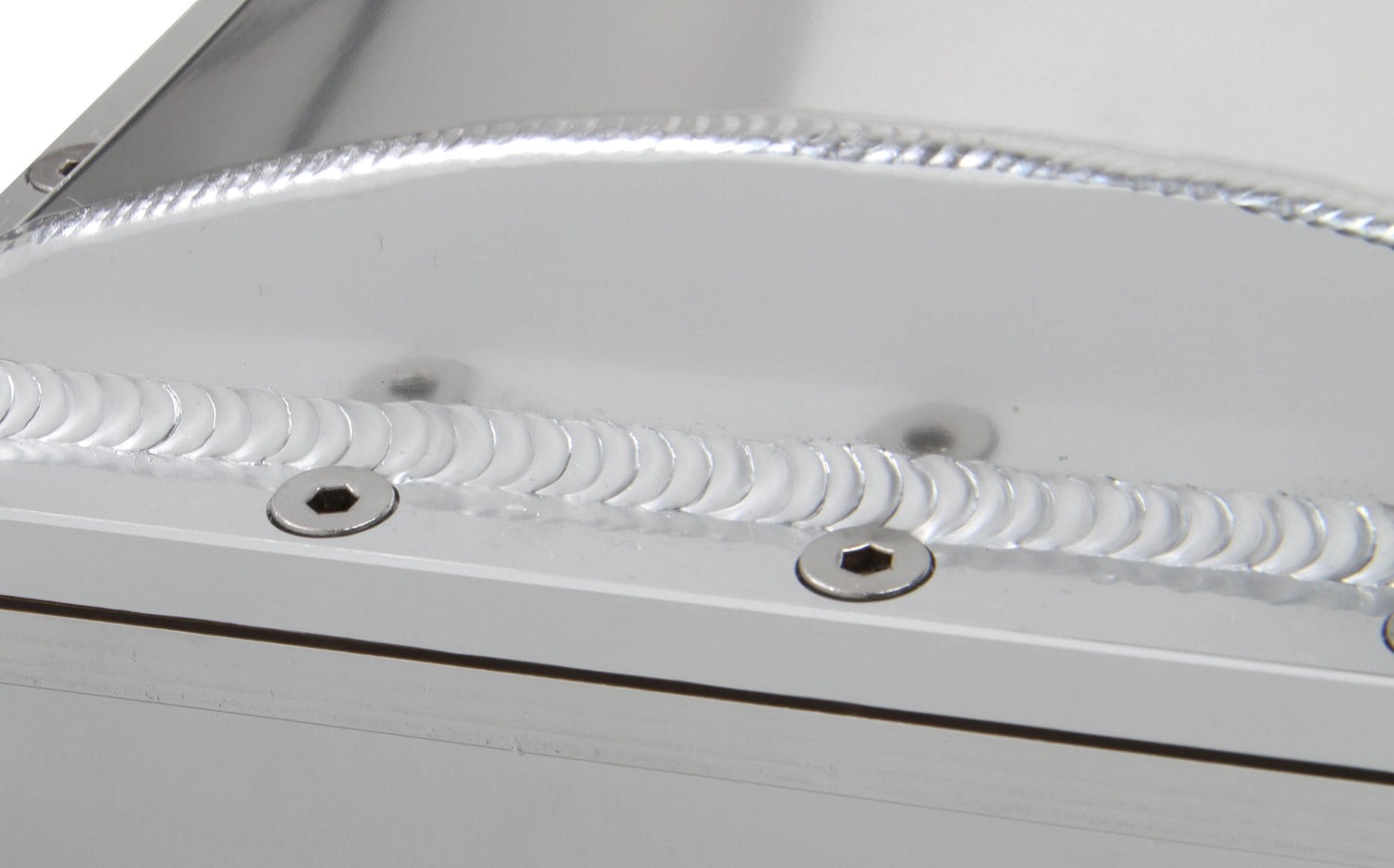

- 100% TIG welded for strength and durability
- Silver finish creates high impact under-hood styling
- Longer Intake runner lengths offering a wider RPM operating range of 2400-8200 RPM

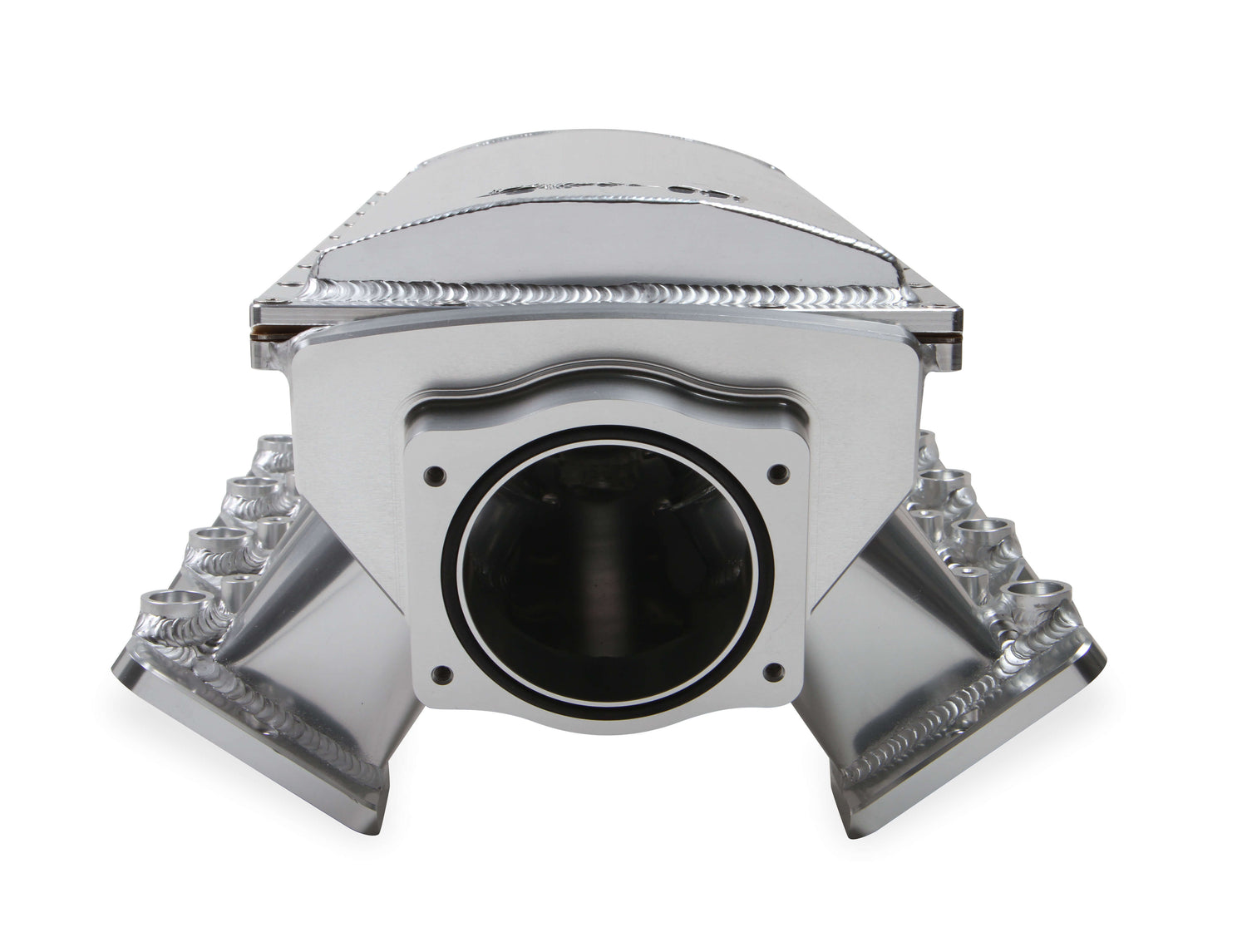

- 90mm throttle bore opening for increased air flow
- Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications

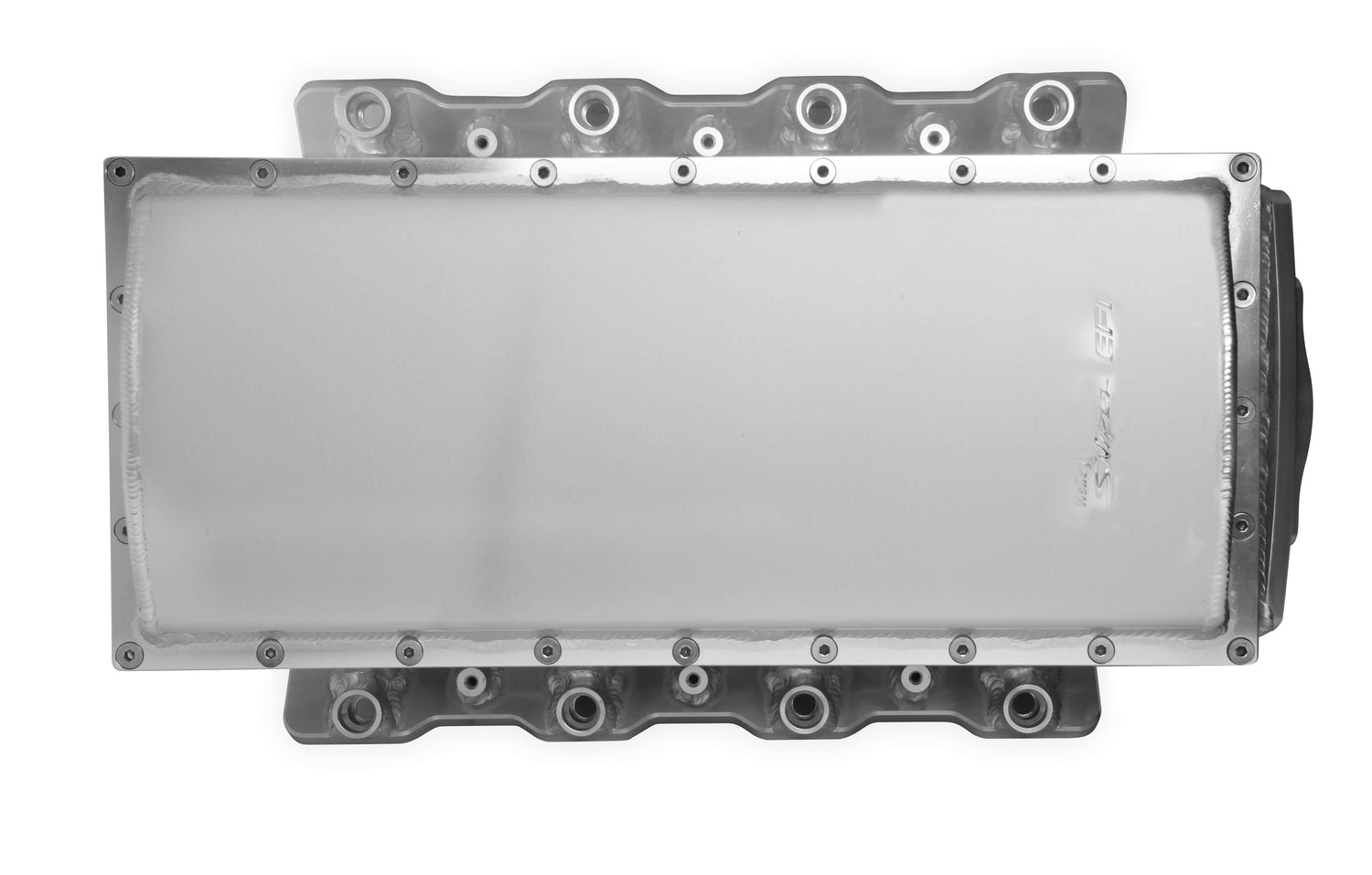

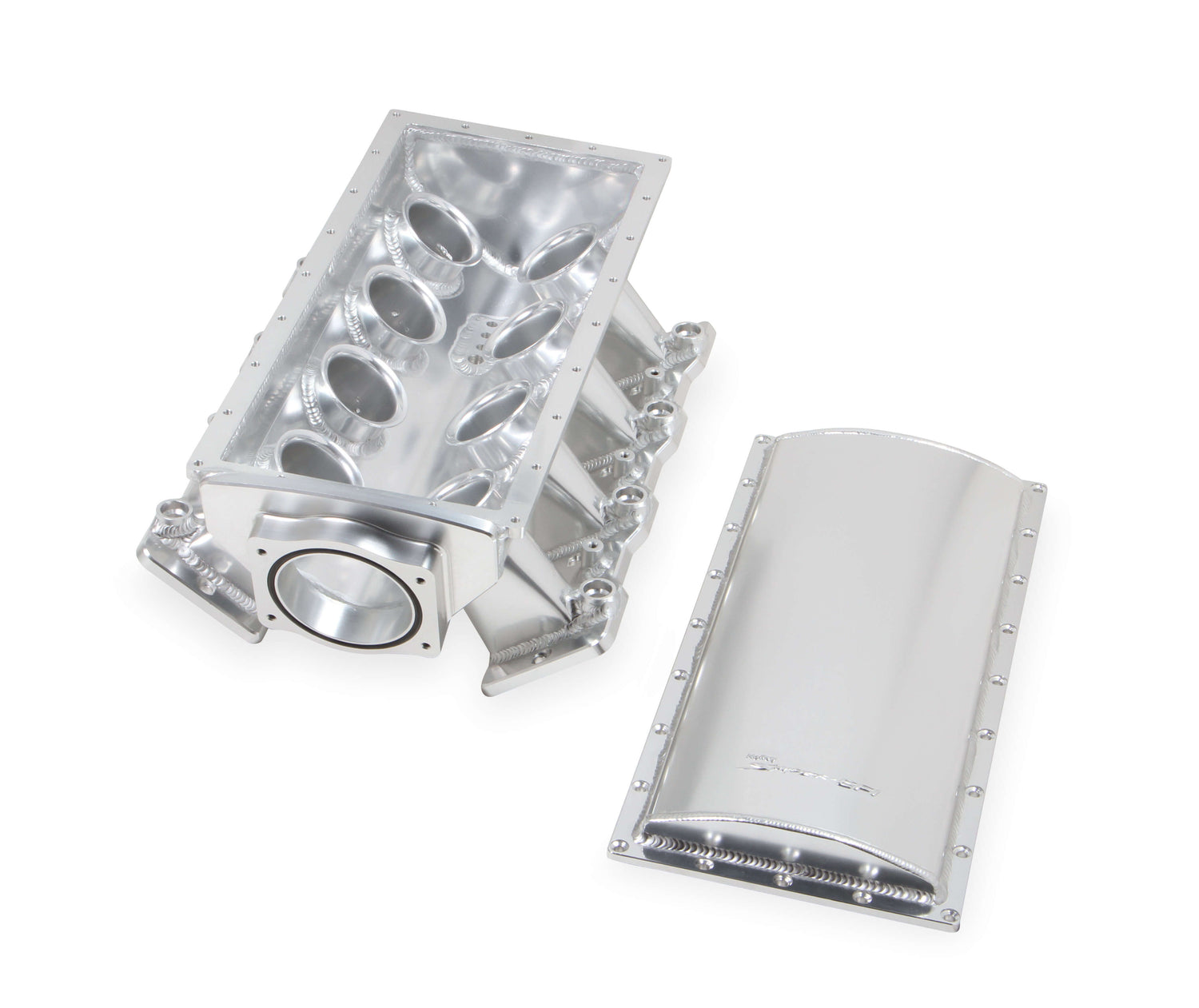

- Removable top for ease of inspection, modification, and addition of sensors

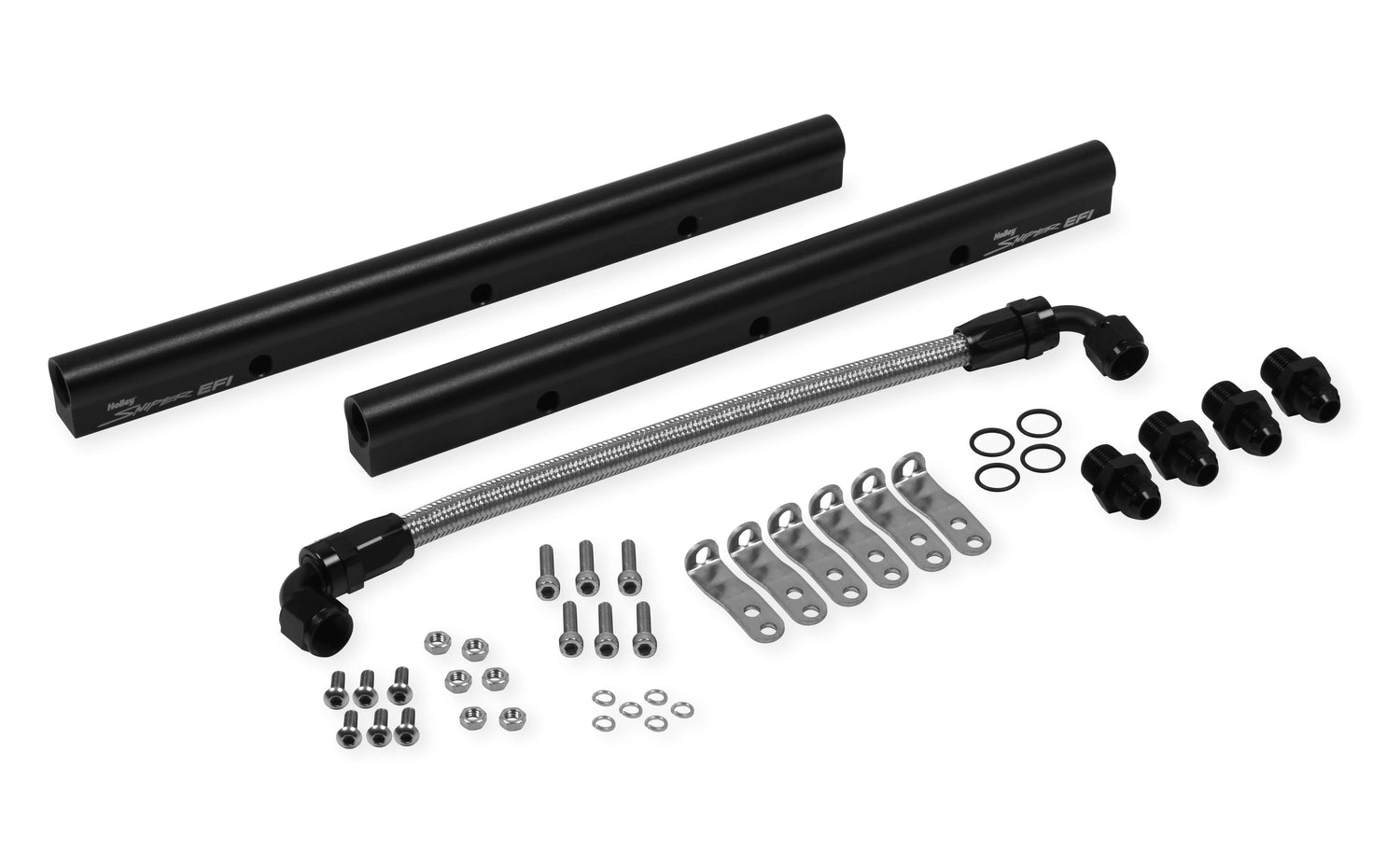

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
Basic Operating RPM Range: 3500-8000
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Sniper EFI Intakes
CNC Ported: No
Color: Silver
Construction: Fabricated

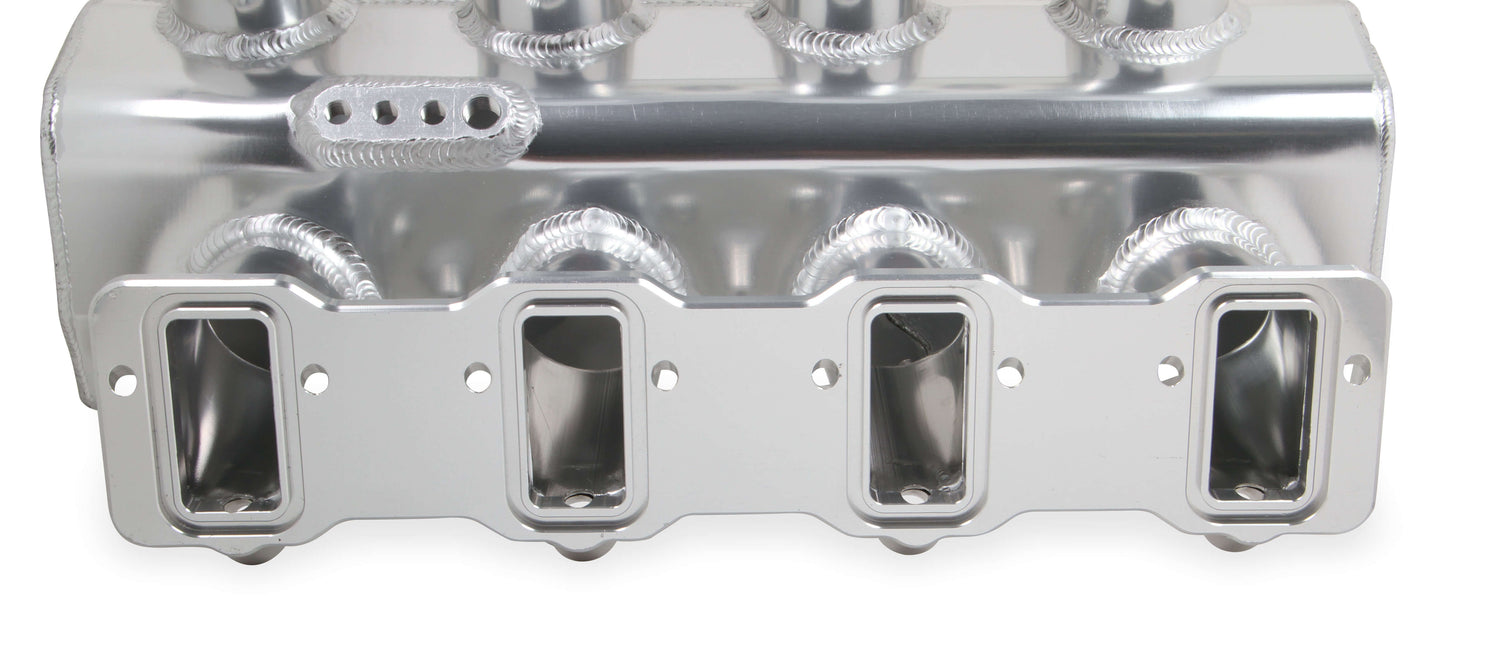

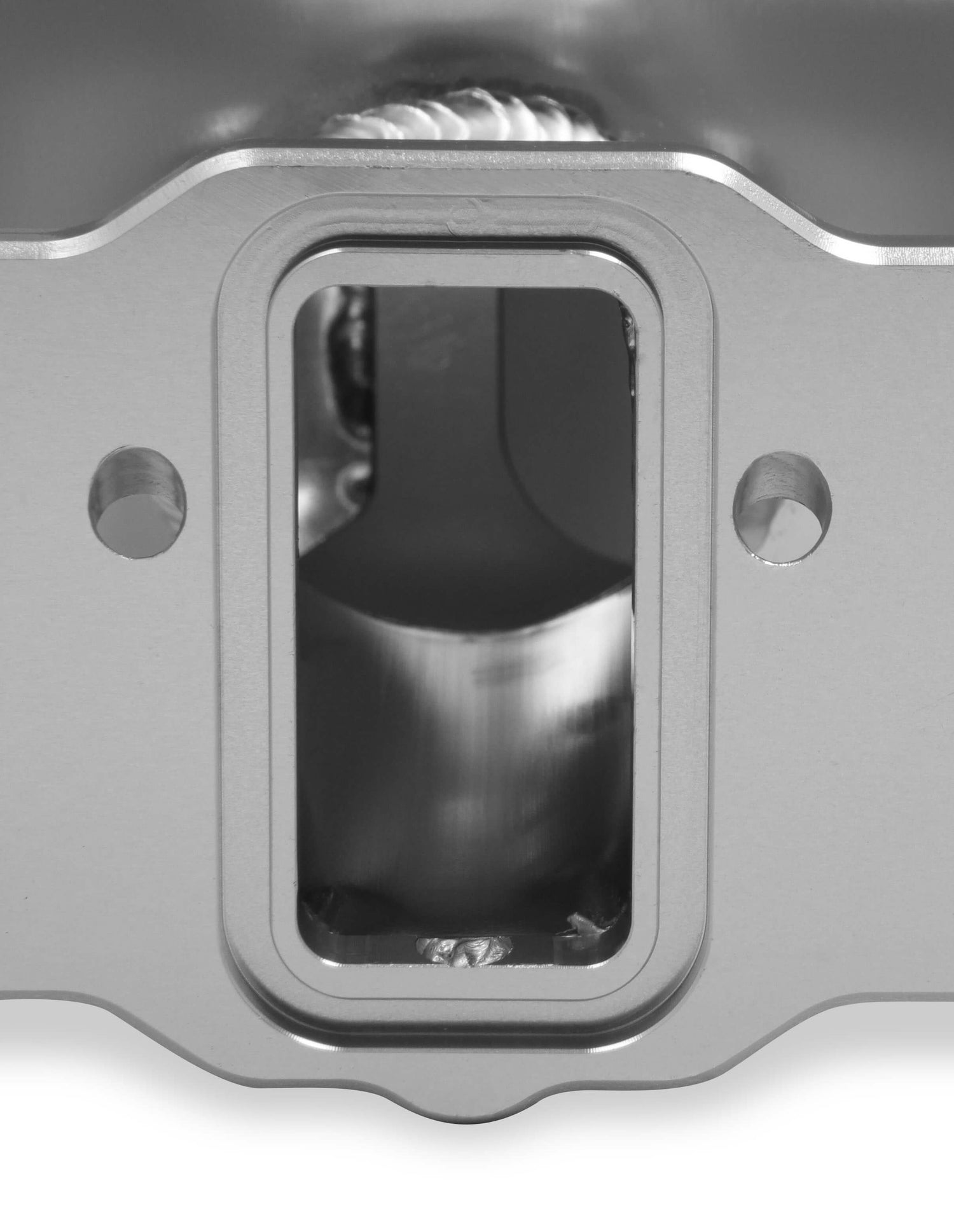

Cylinder Head Port Shape: Rectangle
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS3/L92
Flange Style: N/A
Front Maximum Height: 9.62
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: LS3/L92 EV6 USCAR
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Silver
Product Type: Intake Manifold
Rear Maximum Height: 9.015
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 5.512" (140mm)
Single Or Dual Plane Type: Single
Style: EFI
Throttle Body Bore Diameter: 90
Throttle Body Gasket Included: Yes
Throttle Body Included: No
Throttle Bore: 90mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
