Sniper 833151 - EFI 11-15 5.0L COY HI-RAM SILVER

Sniper  |  SKU: SNIP-833151
$1,37199 $1,44195

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 833151 - EFI 11-15 5.0L COY HI-RAM SILVER

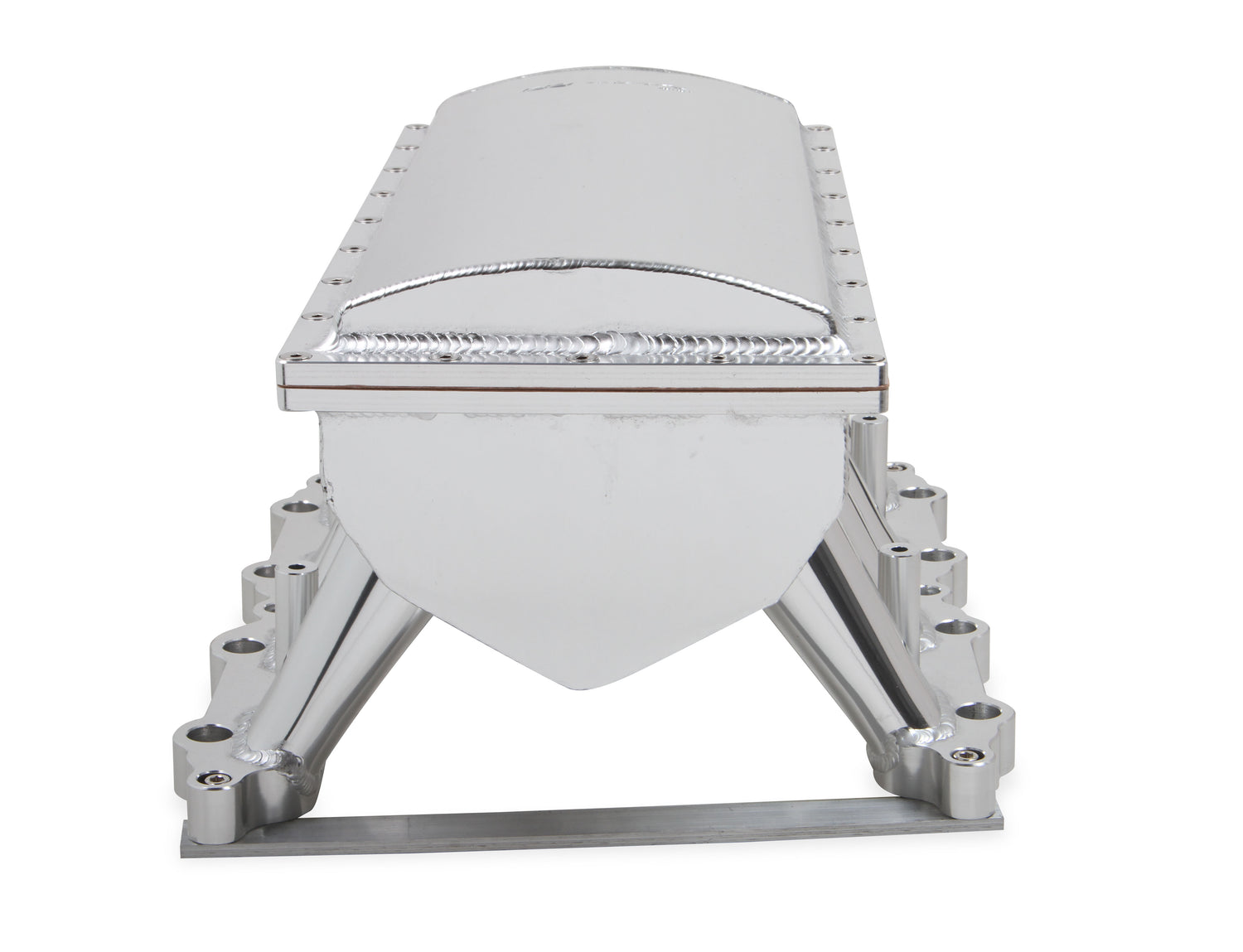

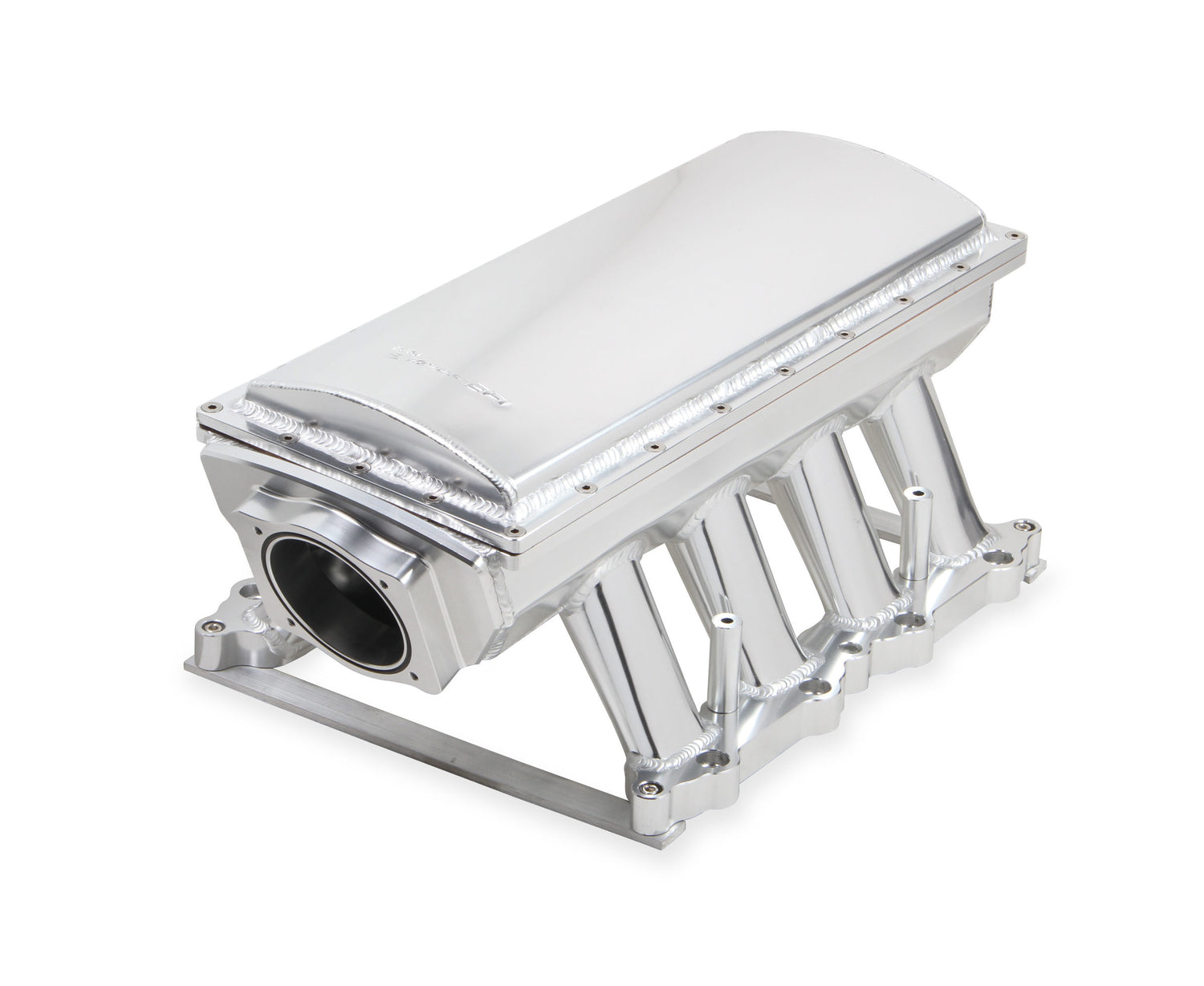

Hi-Ram Sheet Metal Fabricated Intake Manifold 90mm Race Series 2011-14 Ford 5.0L Coyote w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver

Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.

  • Silver finish creates high impact under-hood styling
  • 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability

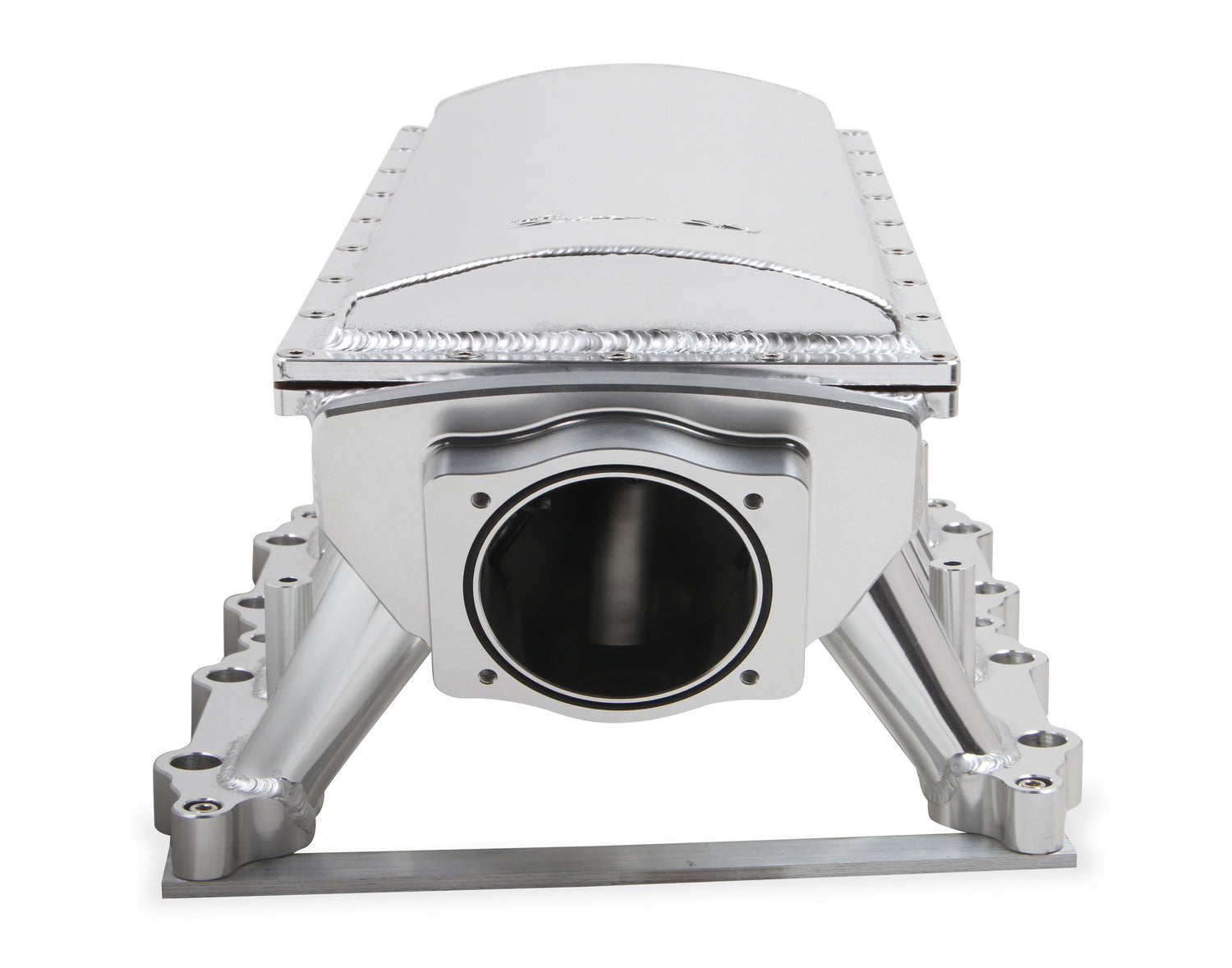

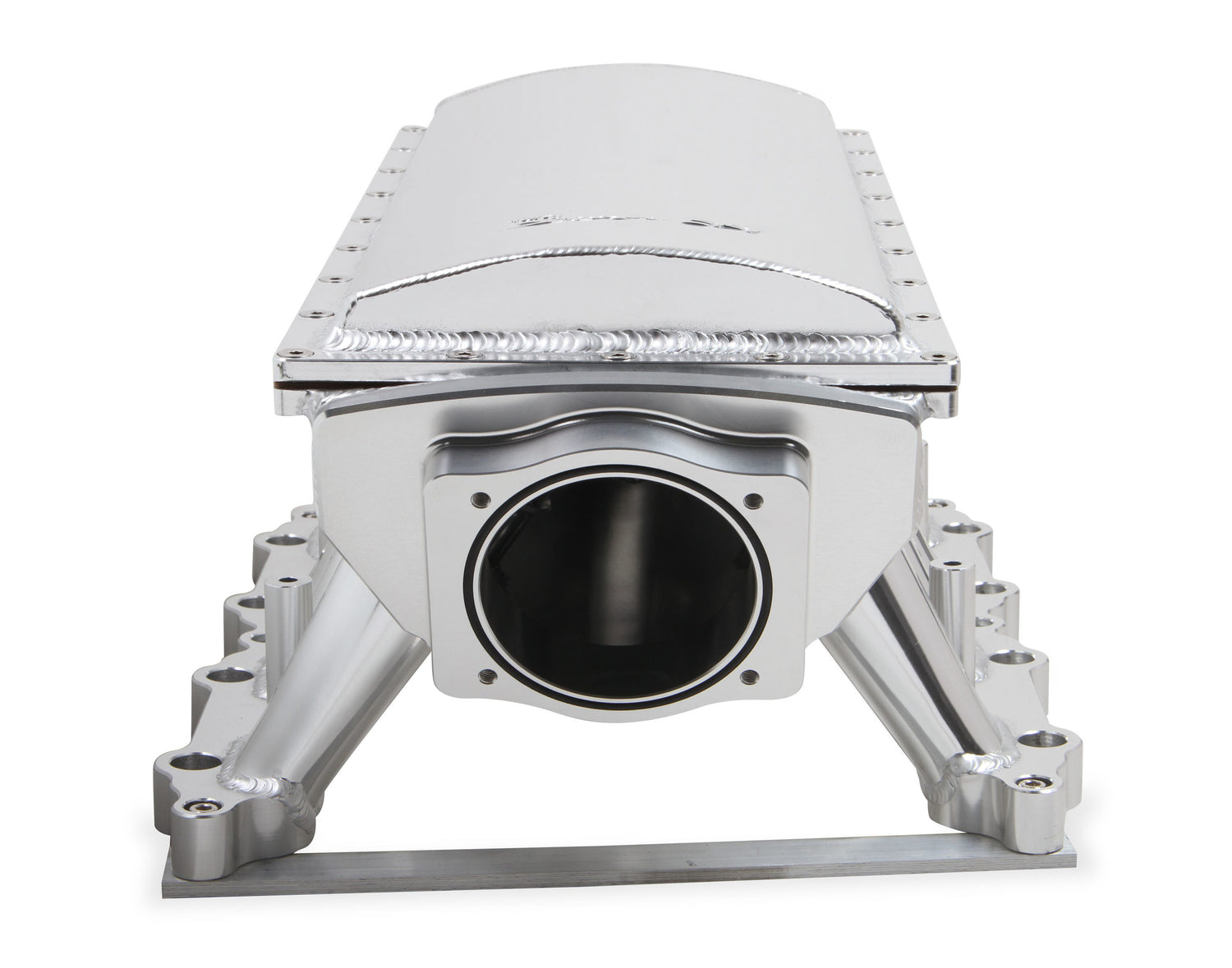

  • 90mm throttle bore opening for increased air flow
  • 100% TIG welded for strength and durability

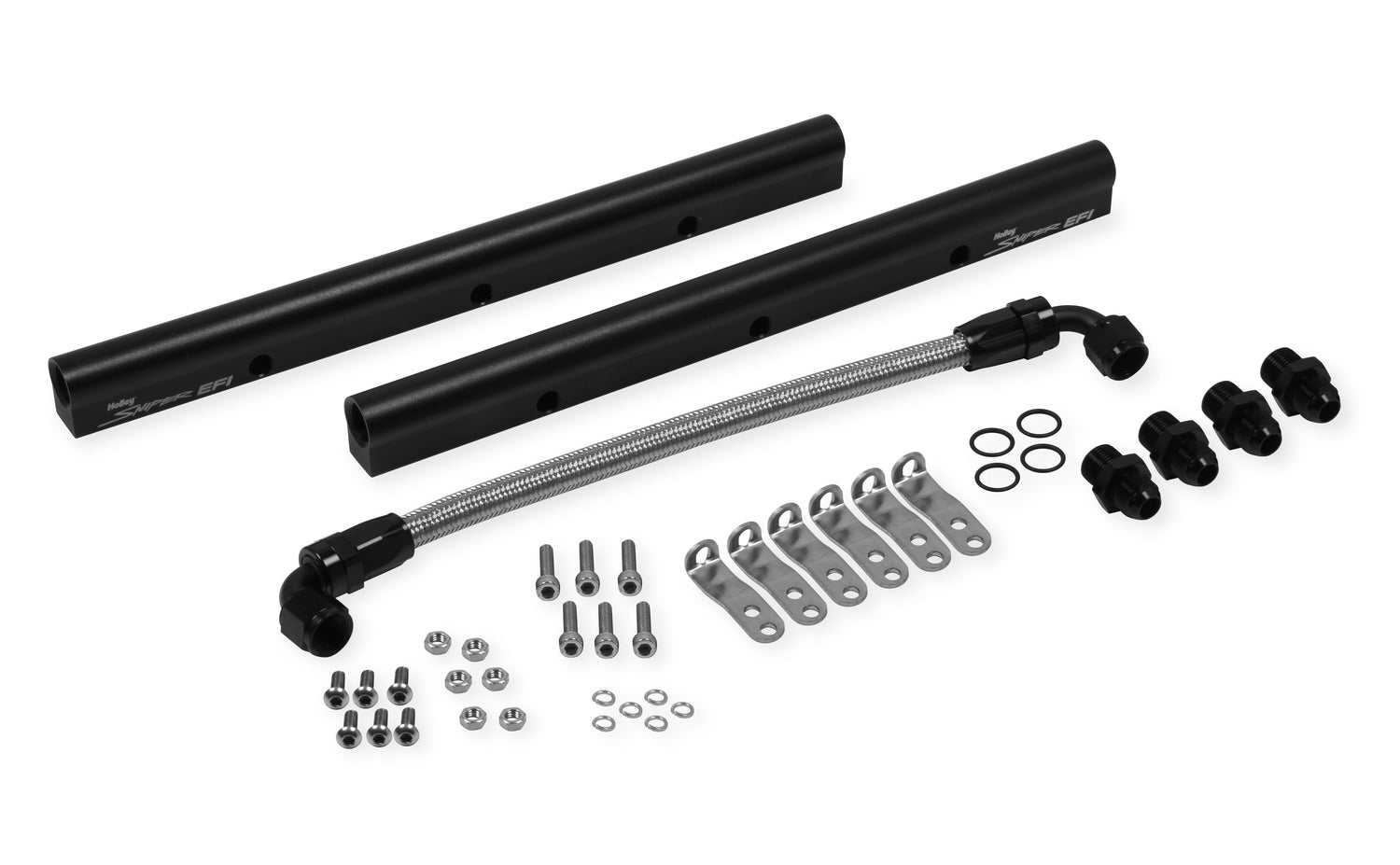

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

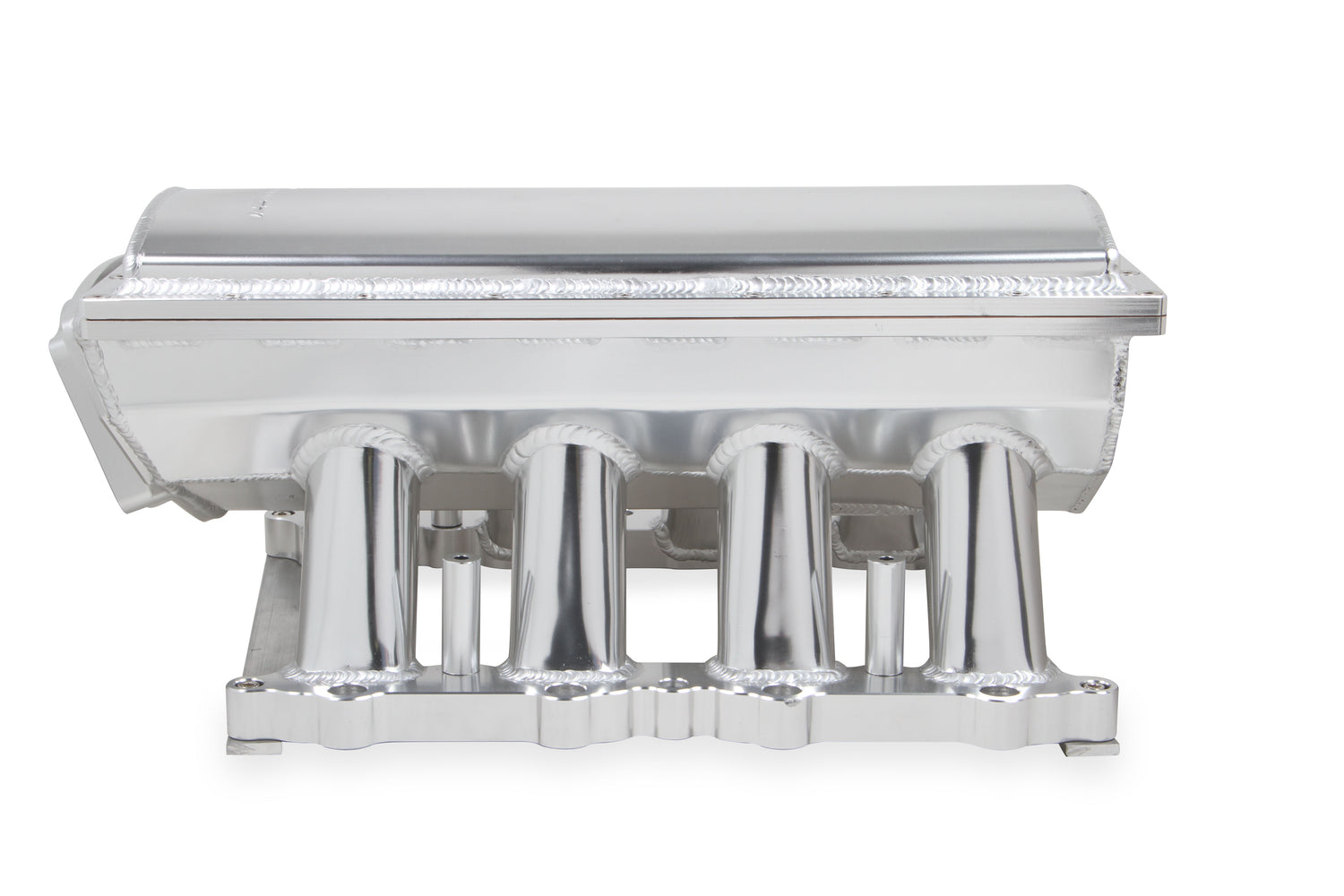

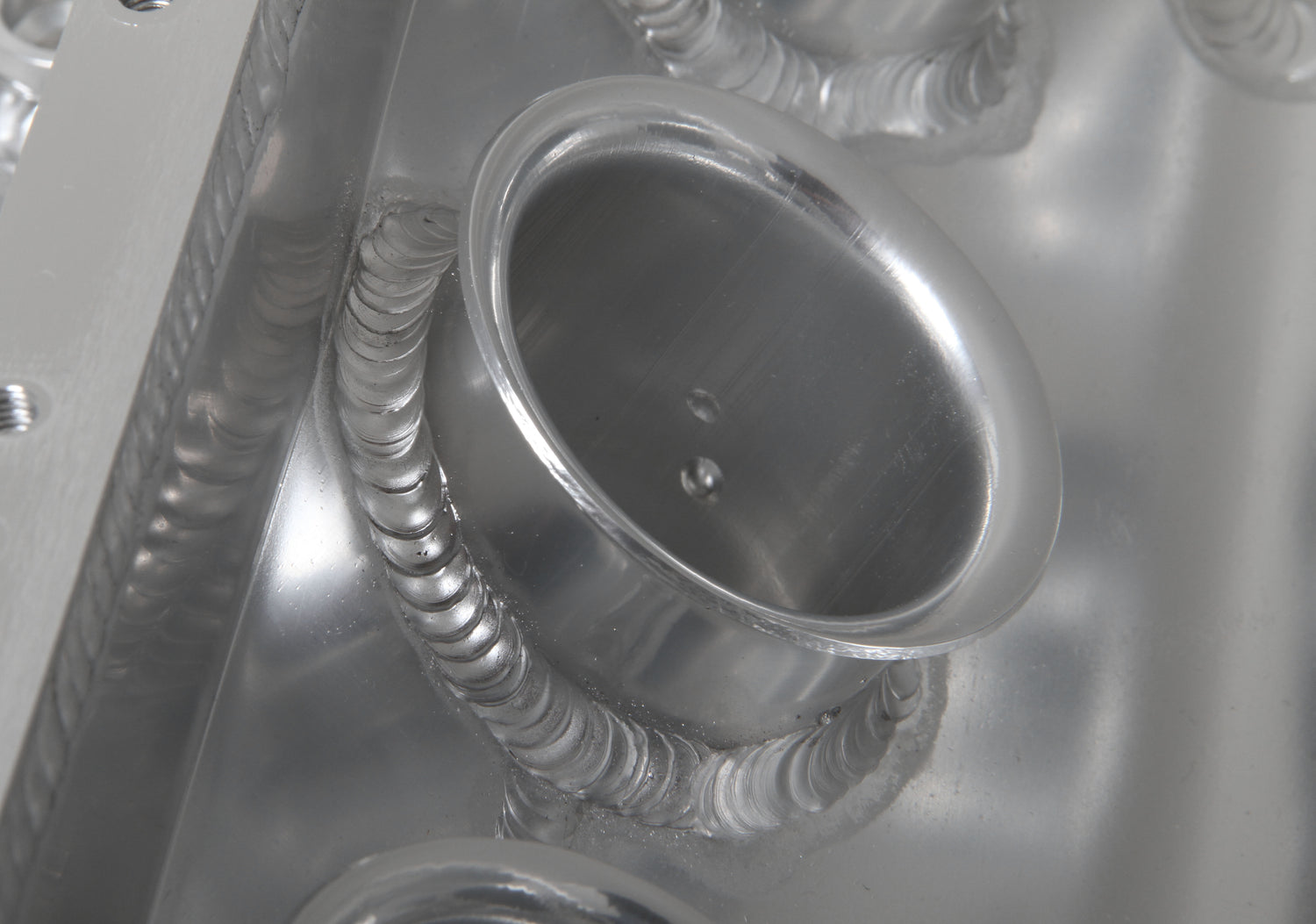

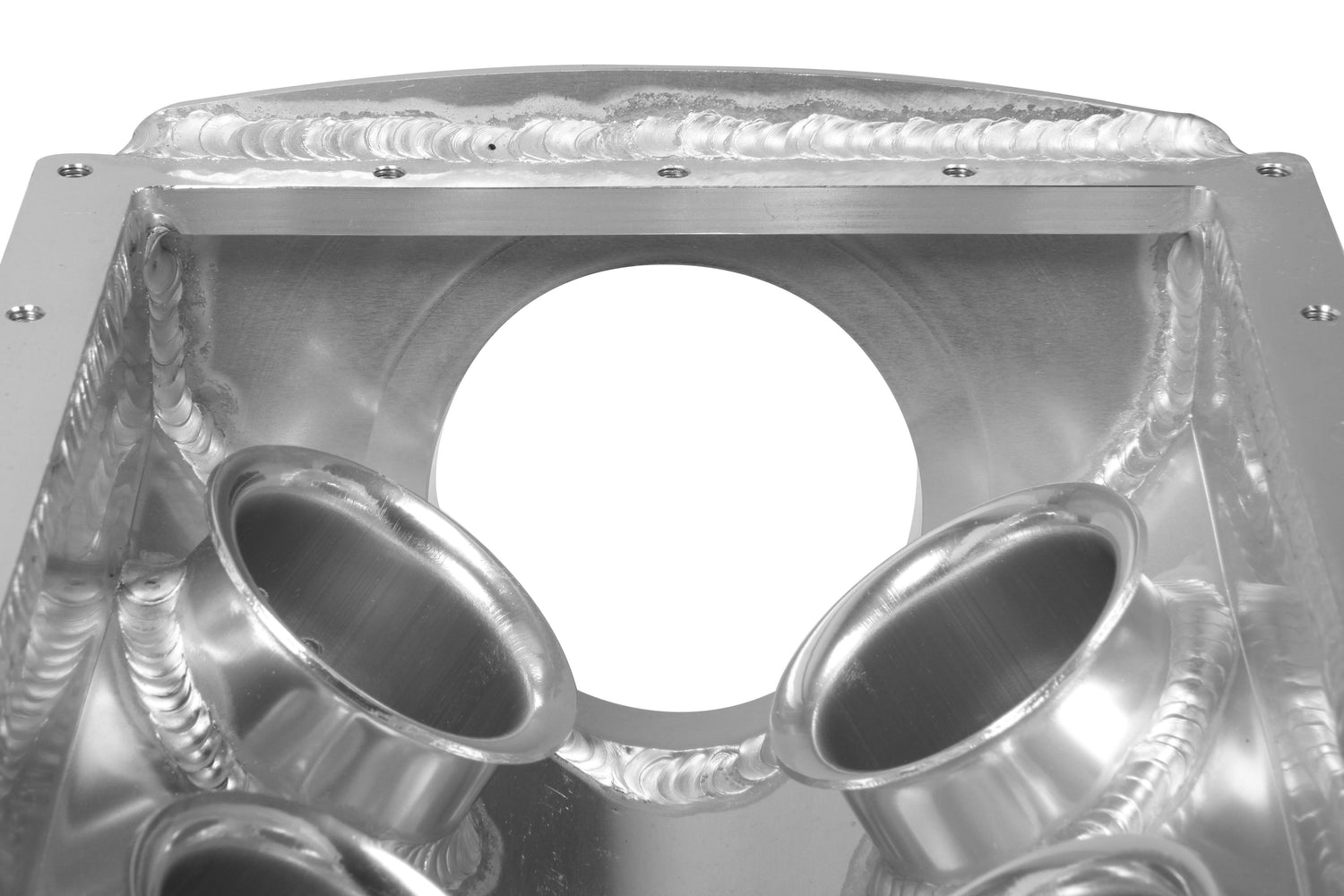

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

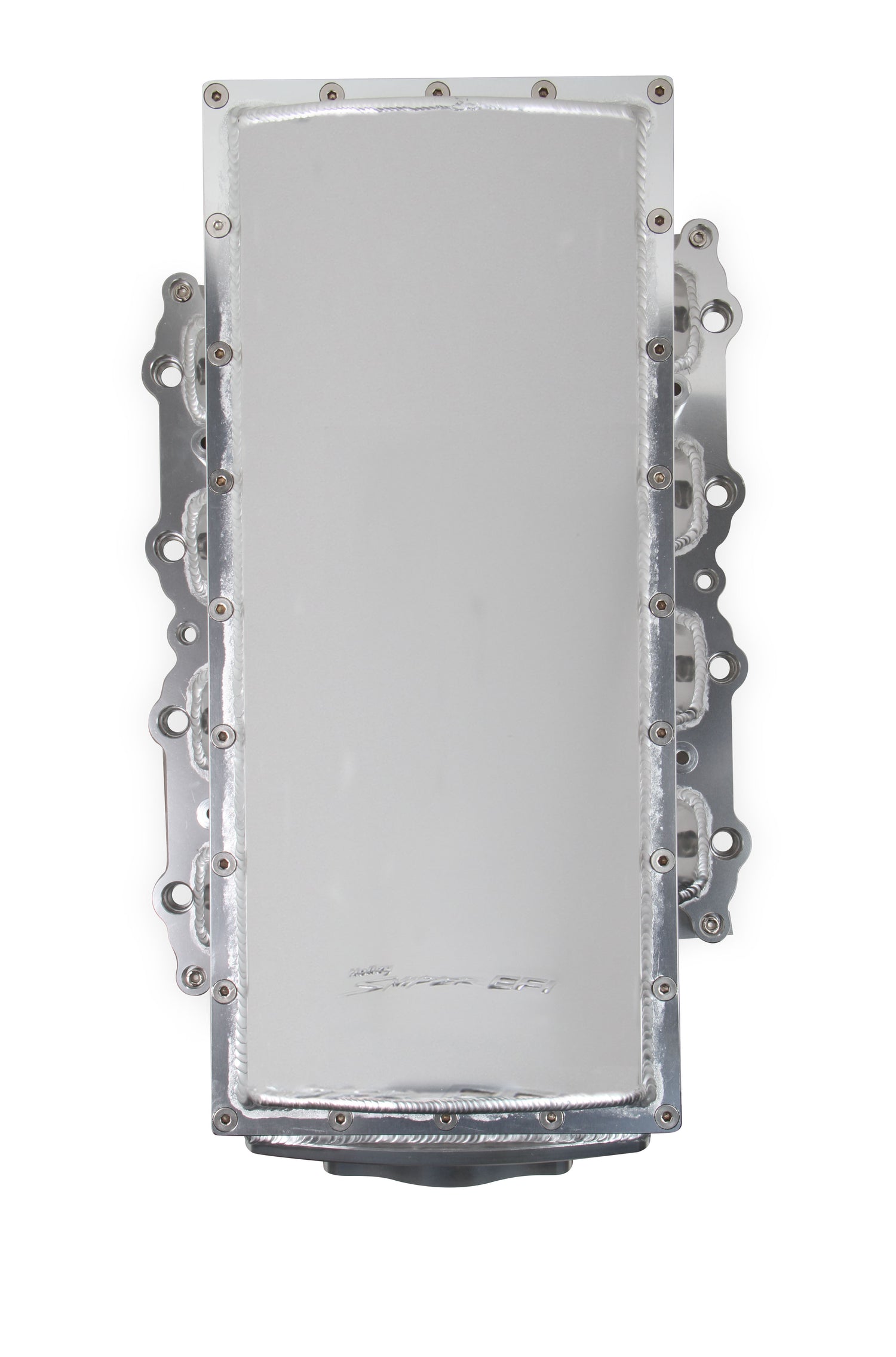

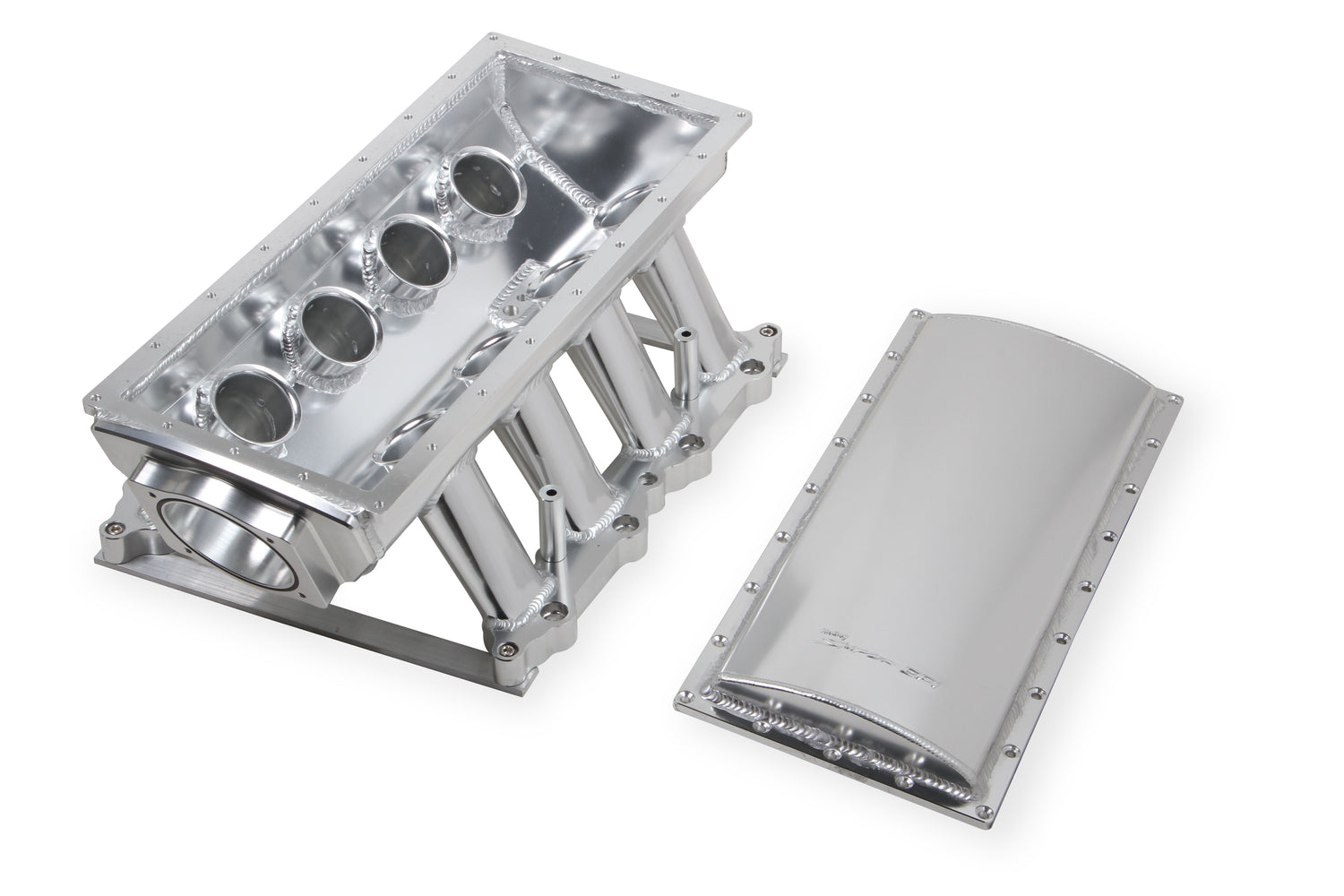

  • Removable top for ease of inspection, modification, and addition of sensors

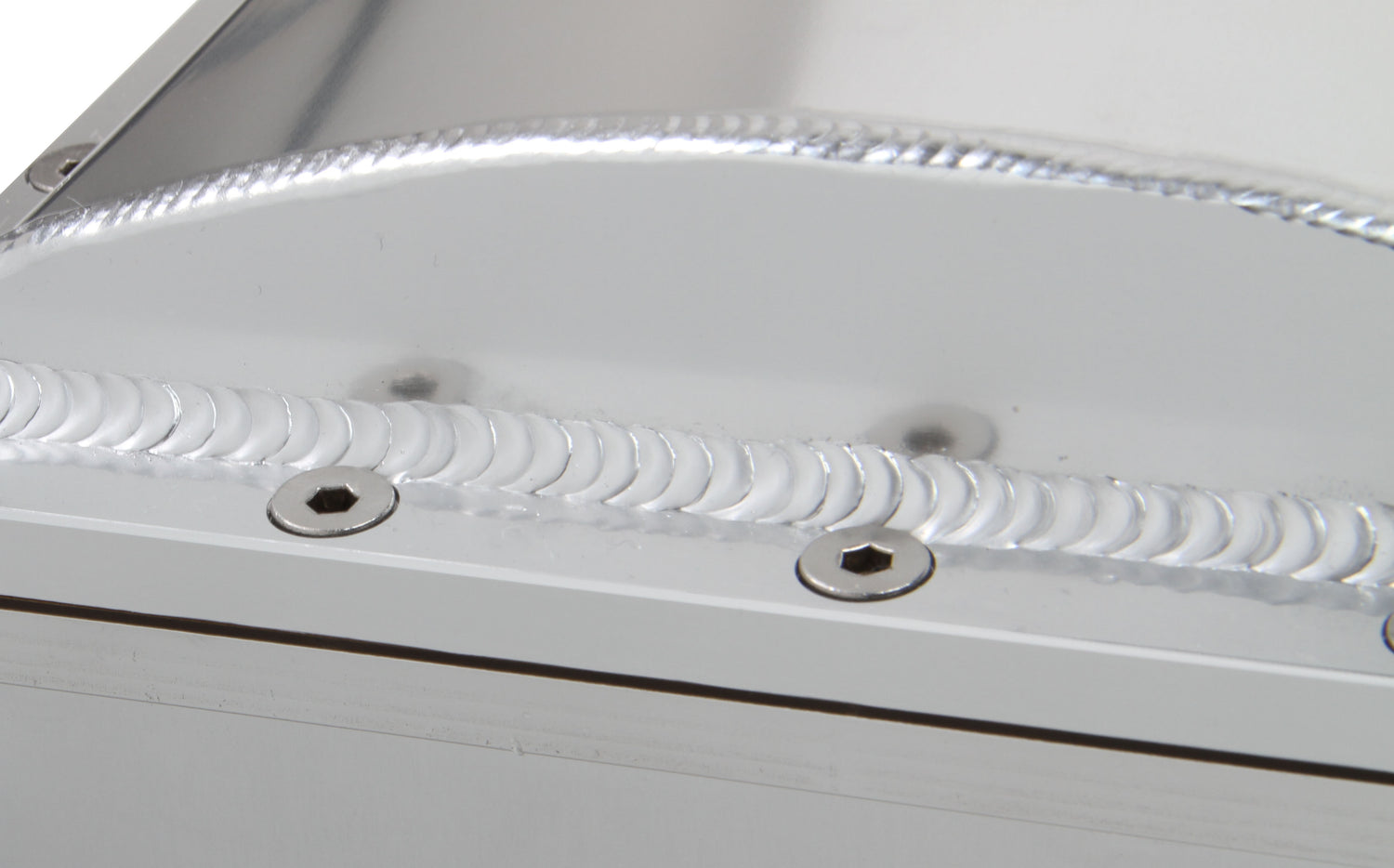

  • Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
  • Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
  • Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM

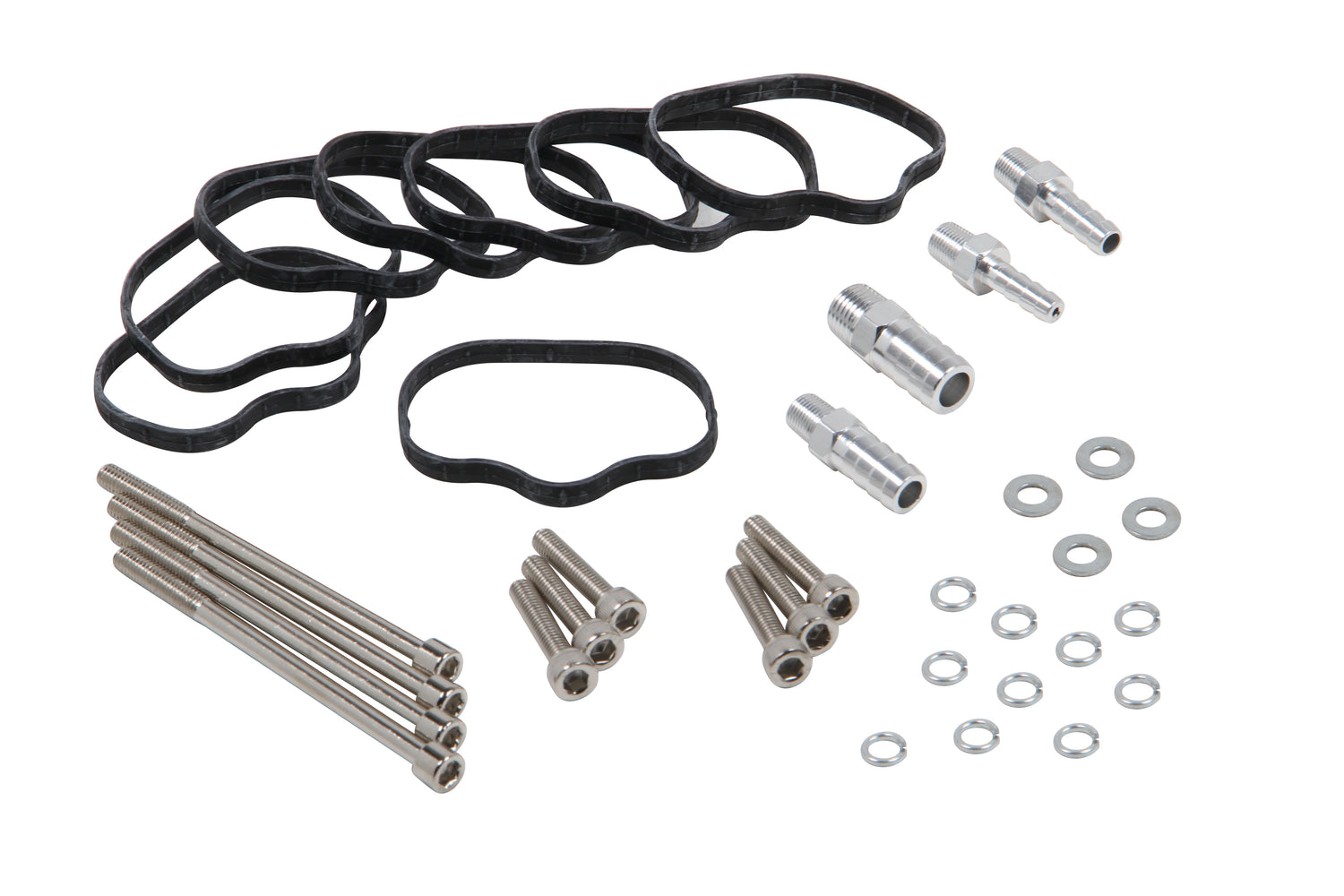

  • Product includes all gaskets and hardware for a hassle-free installation
Basic Operating RPM Range: 2100-8200 RPM
Brand: Holley Sniper EFI
Category: Engine
Color: Polished
Construction: Fabricated
EGR Port: No
Emission Code: 4
Engine: Ford Coyote
Finish: Silver
Front Height: 9.50 inch
Front Maximum Height: 9.5 IN
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Gasket Or Seal Included: Yes
Injector Style Provision: EV6 USCAR
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Height: 8.858 inch
Rear Maximum Height: 8.858 IN
Removable Runners: No
Removable Top/Lid: Yes
RPM Power Band: 2100-8200
Runner Length: 5.709" (145mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 90 MM
Throttle Body Included: No
Throttle Bore: 90mm

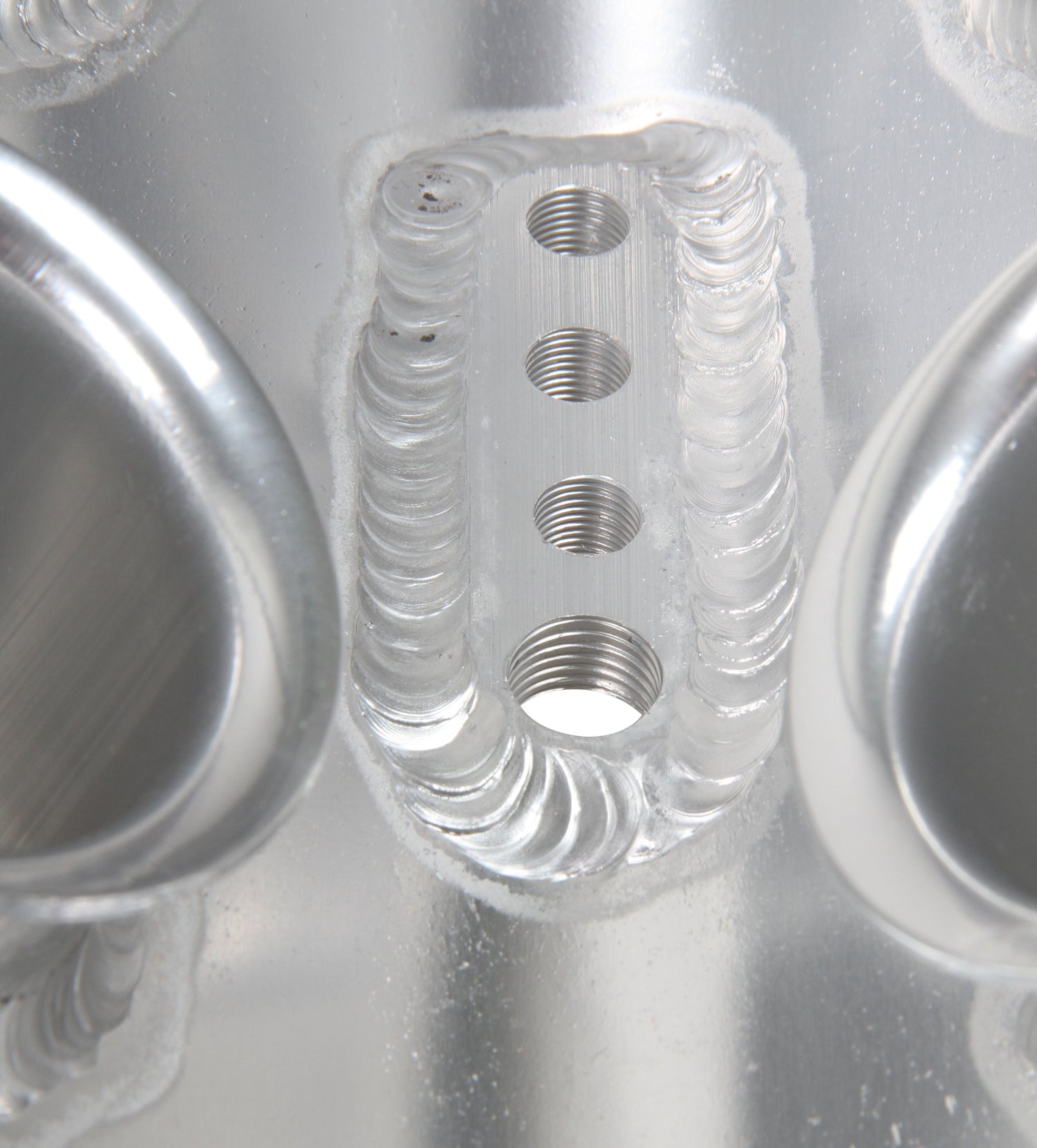

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
