Sniper 832142 - EFI LS1/2/6 HI-RAM 90MM BLACK W/
Sniper | SKU:
SNIP-832142
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Sniper 832142 - EFI LS1/2/6 HI-RAM 90MM BLACK W/

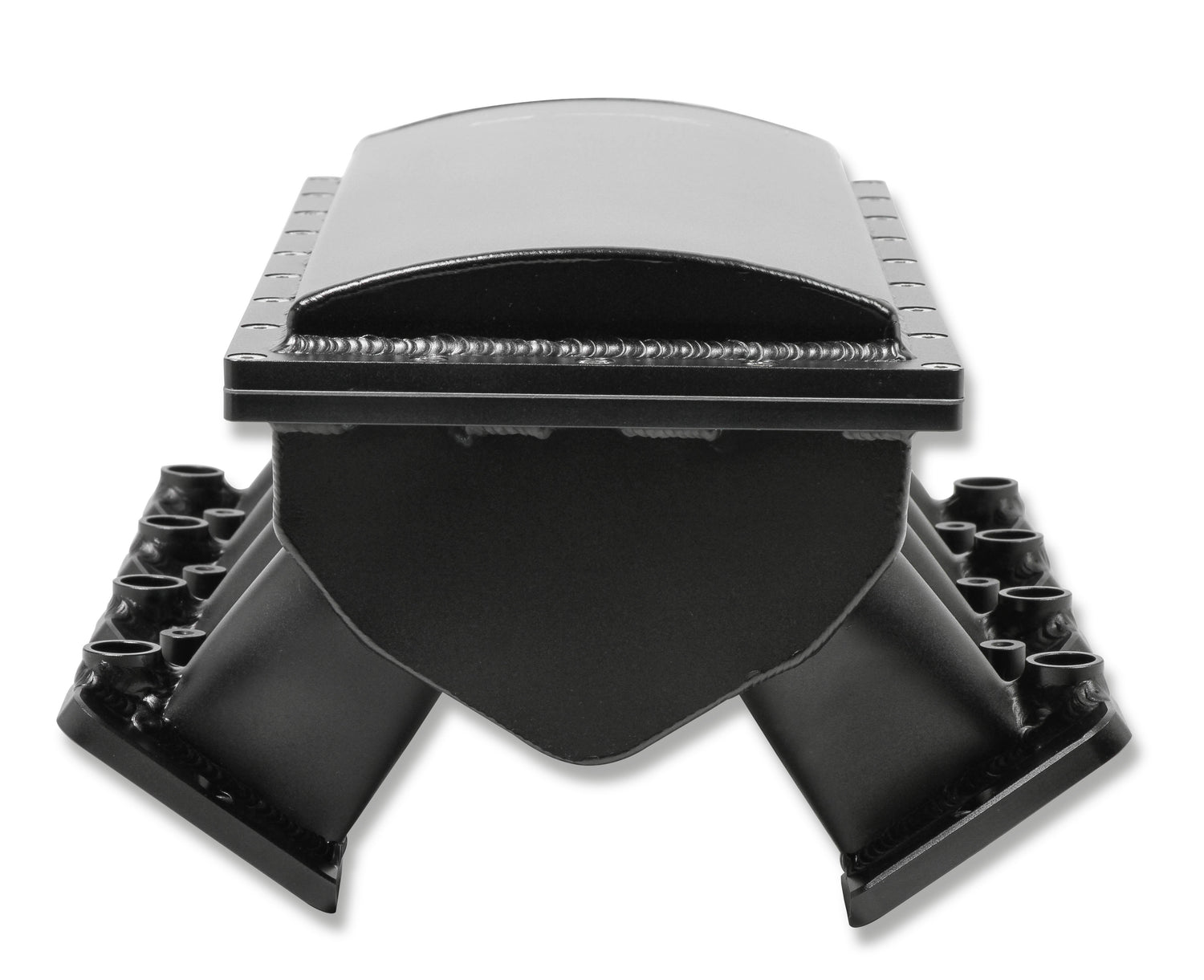

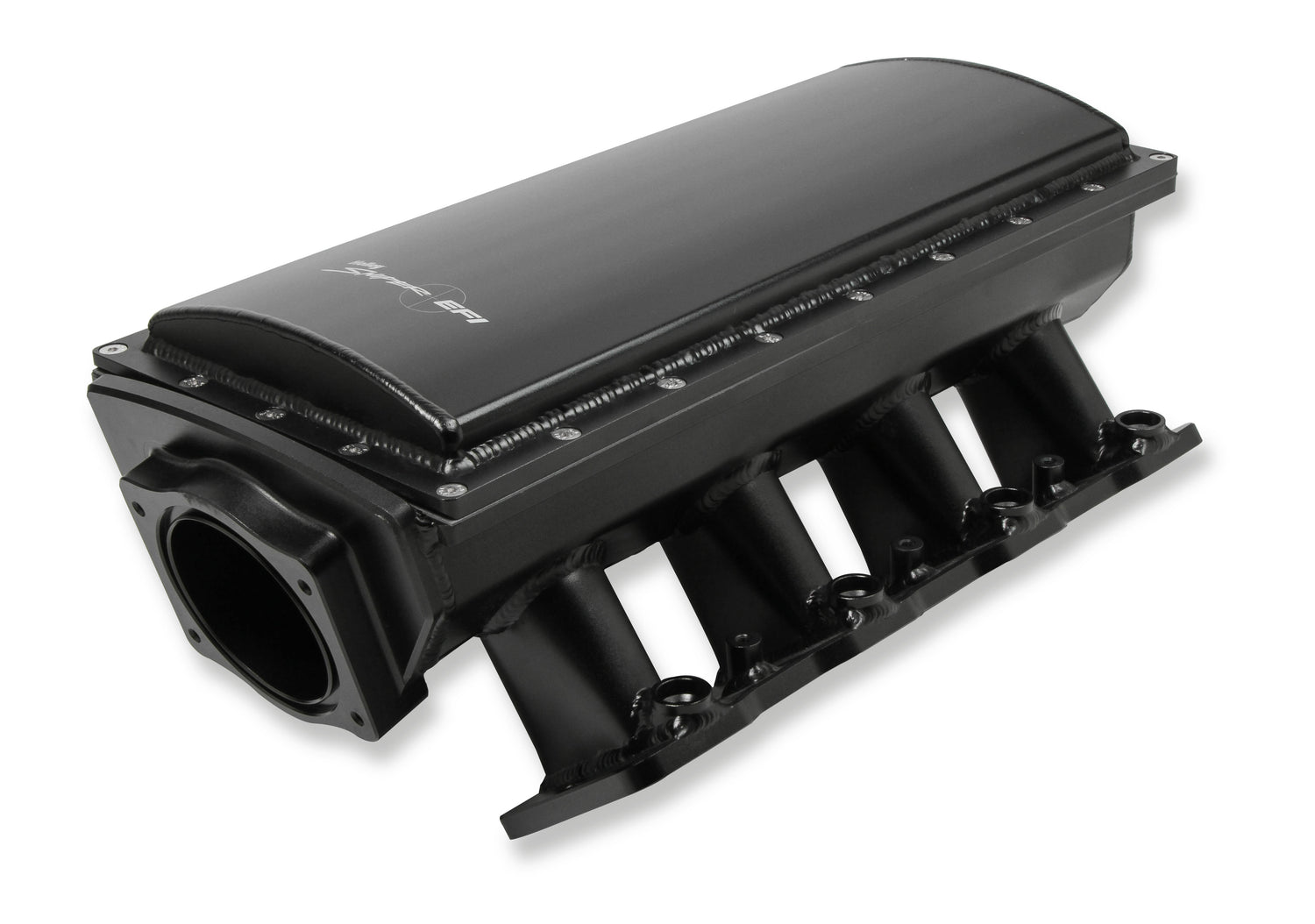

Sniper EFI Fabricated Race Series Intake Manifold - GM LS1/LS2/LS6 - Black
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Black
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- The Sniper intake will only accept EV1 style injectors.
- Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications

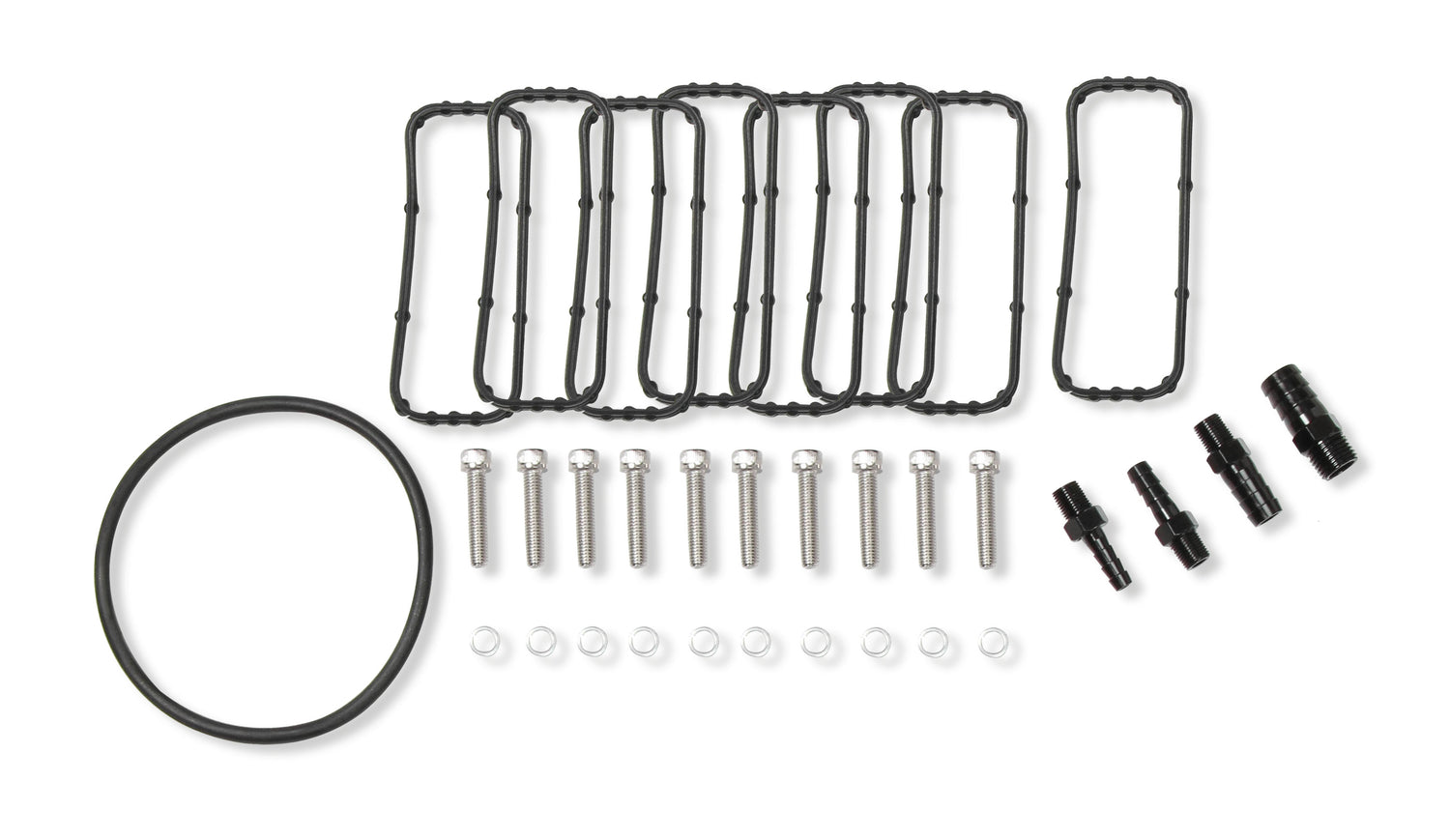

- Product includes all gaskets and hardware for a hassle-free installation

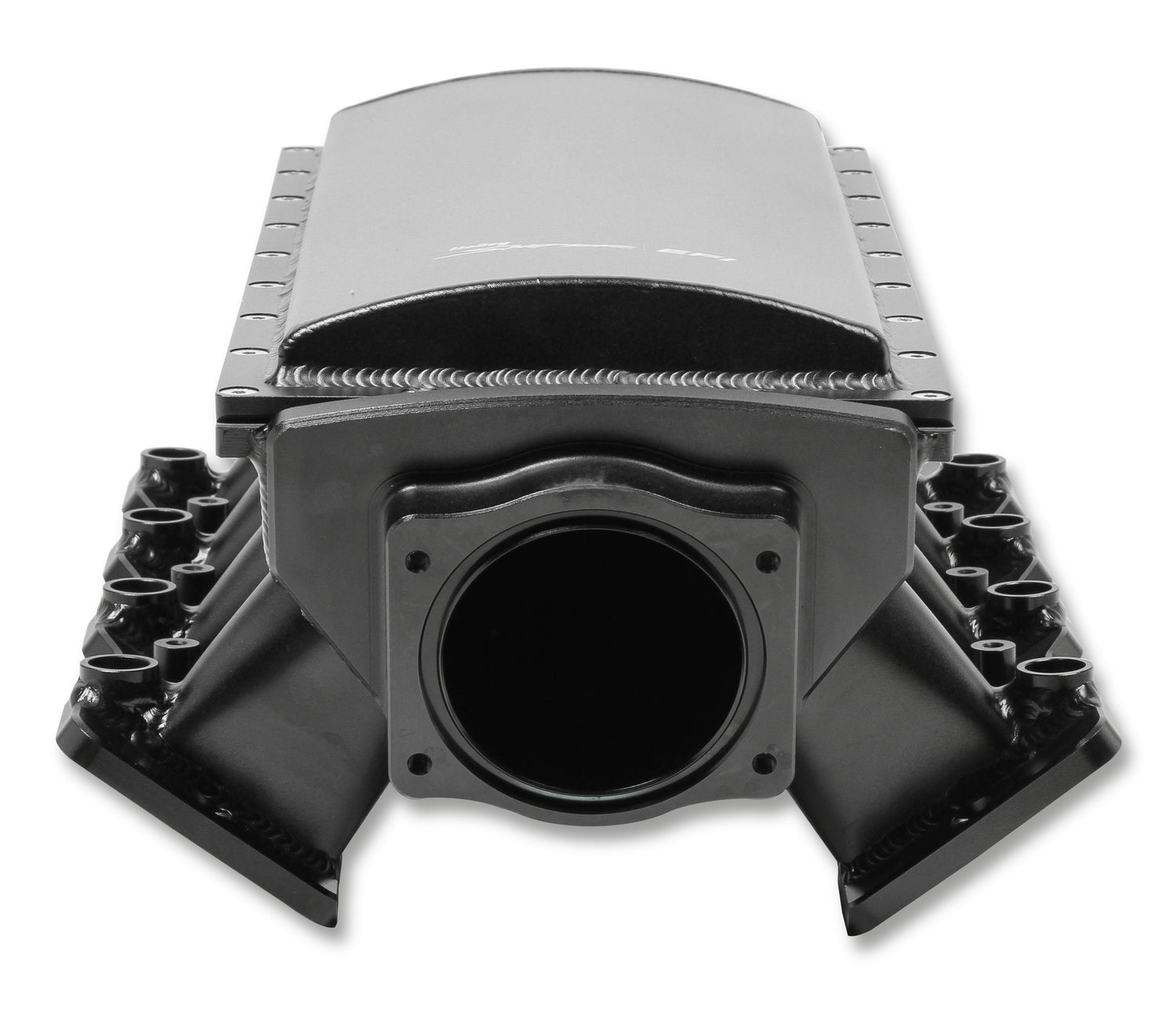

- 90mm throttle bore opening for increased air flow

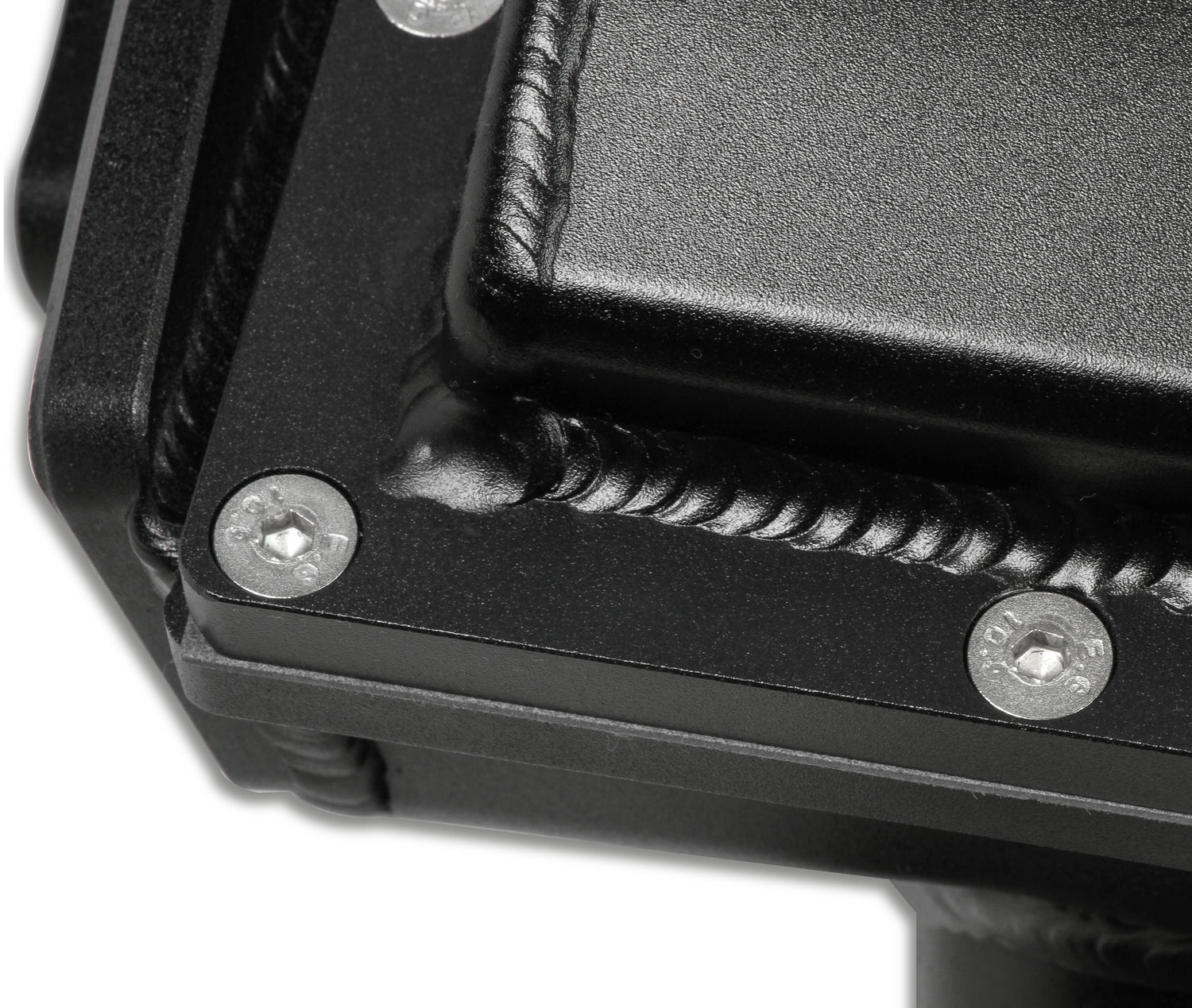

- 100% TIG welded for strength and durability
- 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability

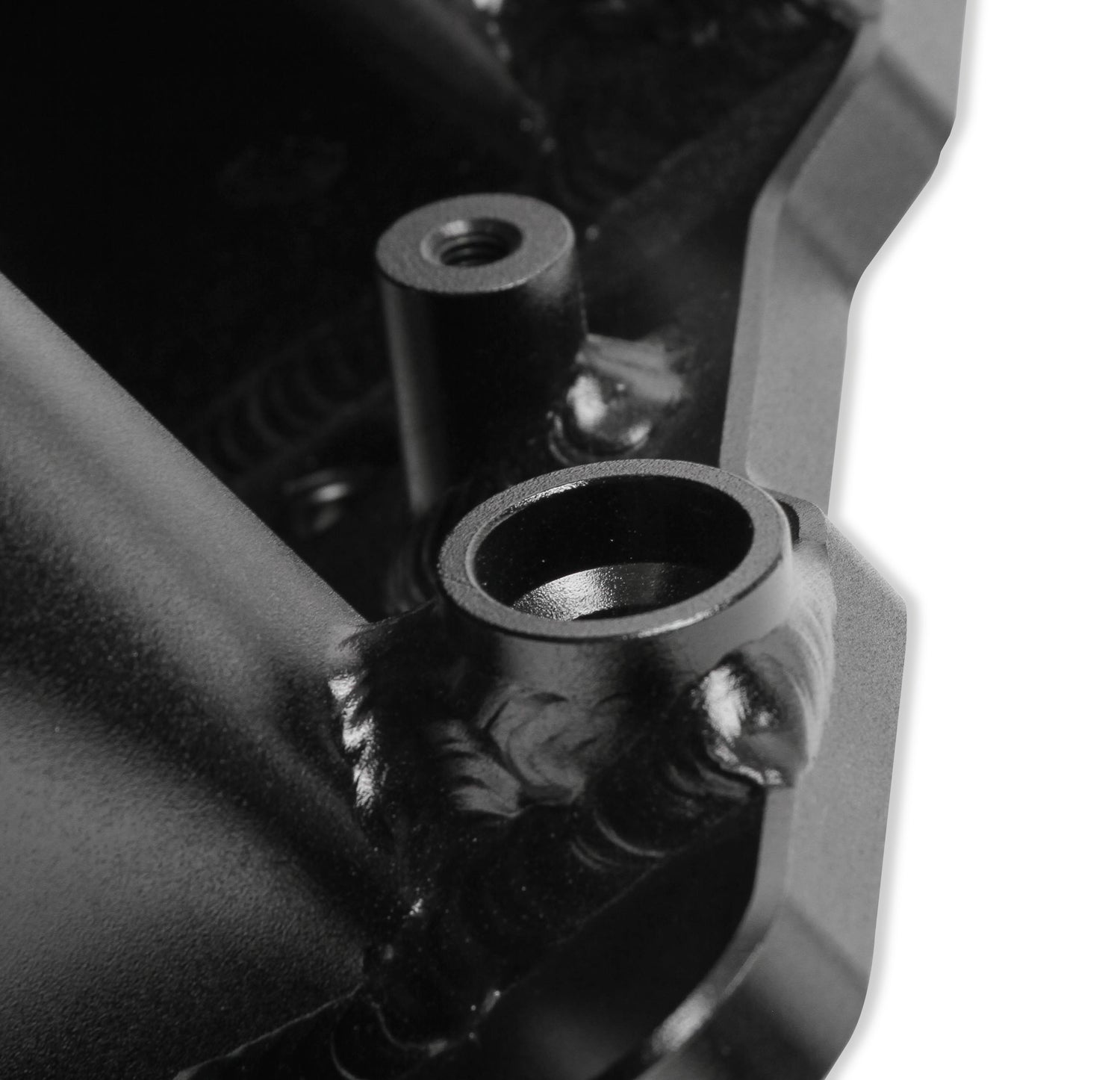

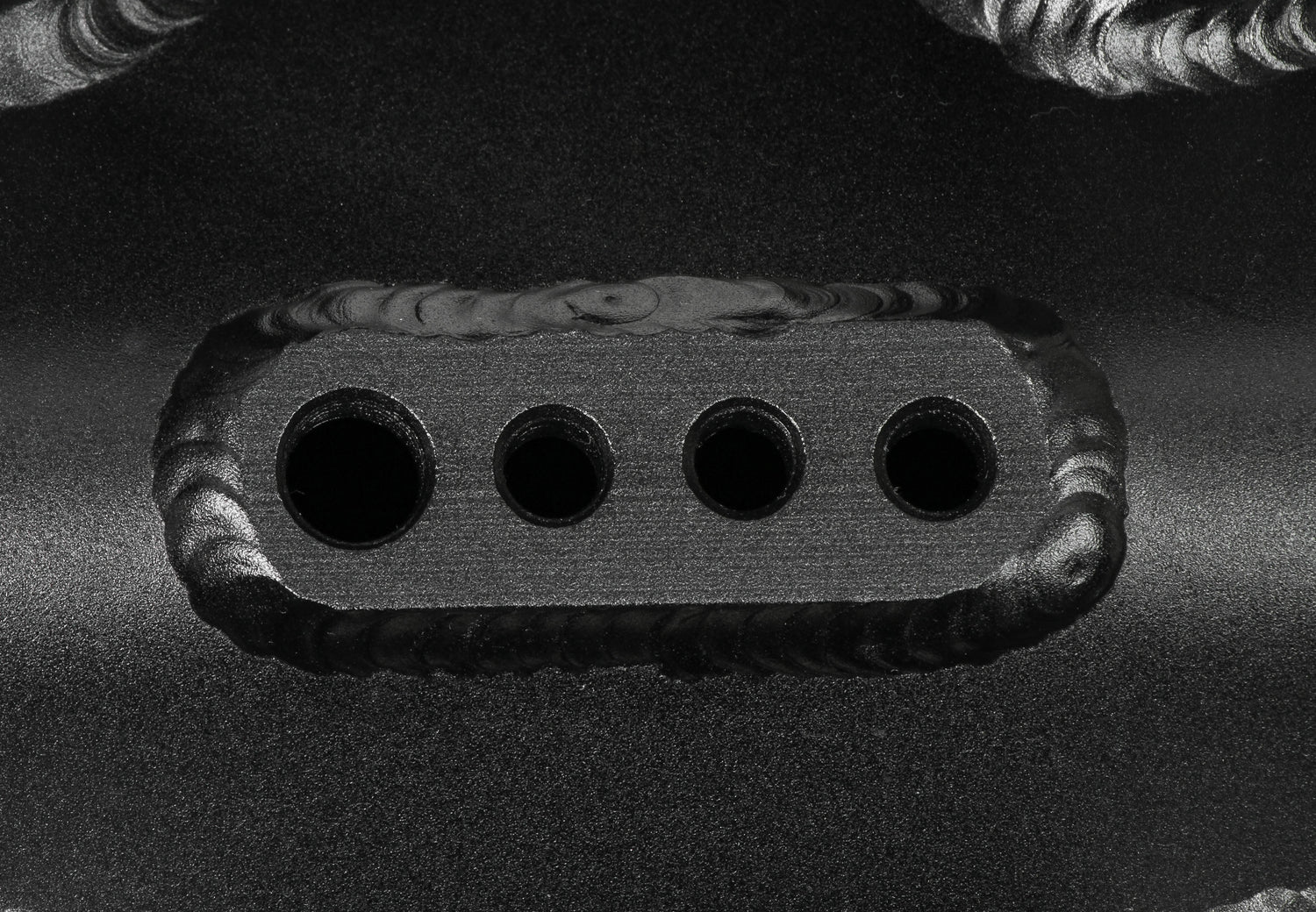

- Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications

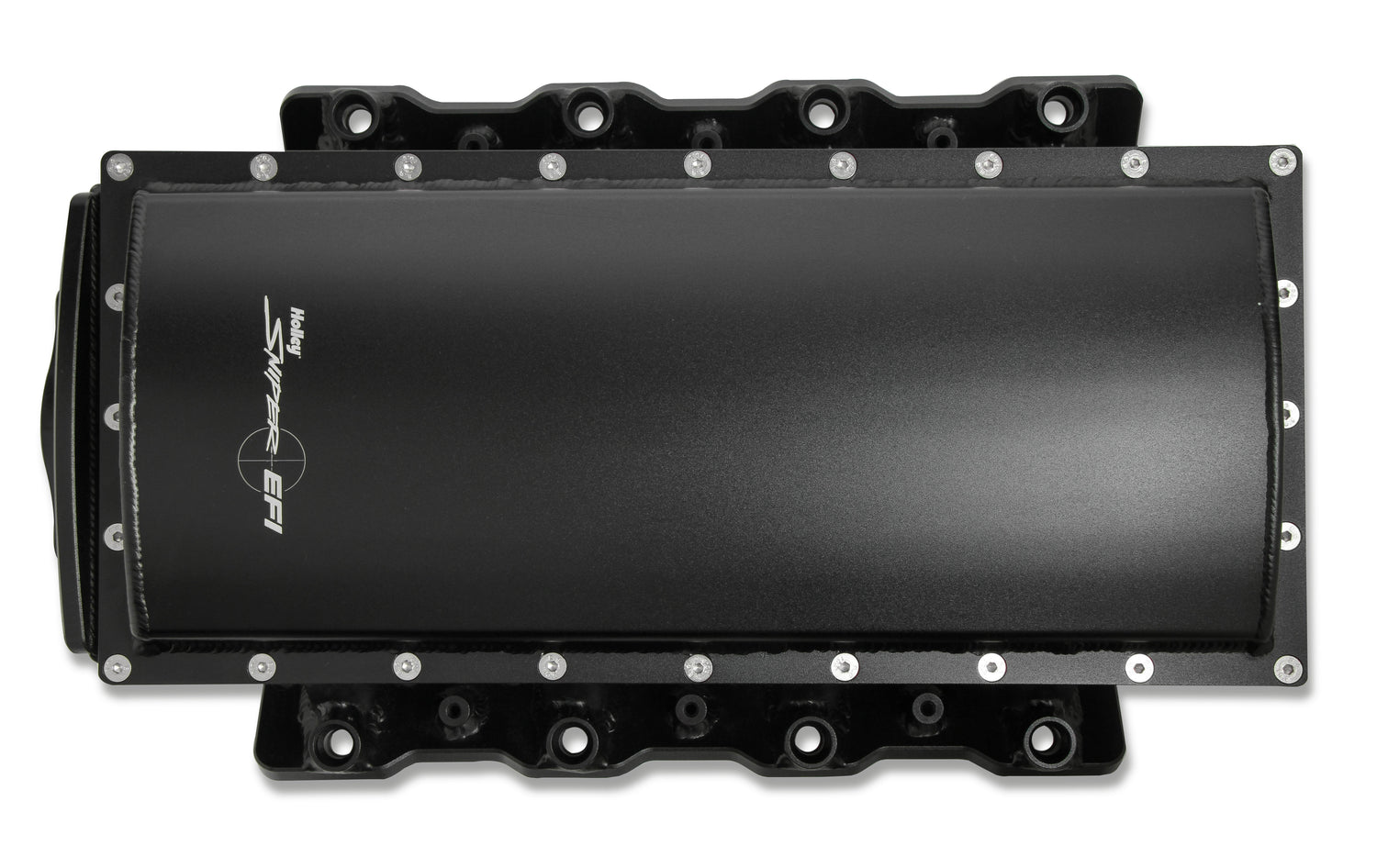

- Removable top for ease of inspection, modification, and addition of sensors

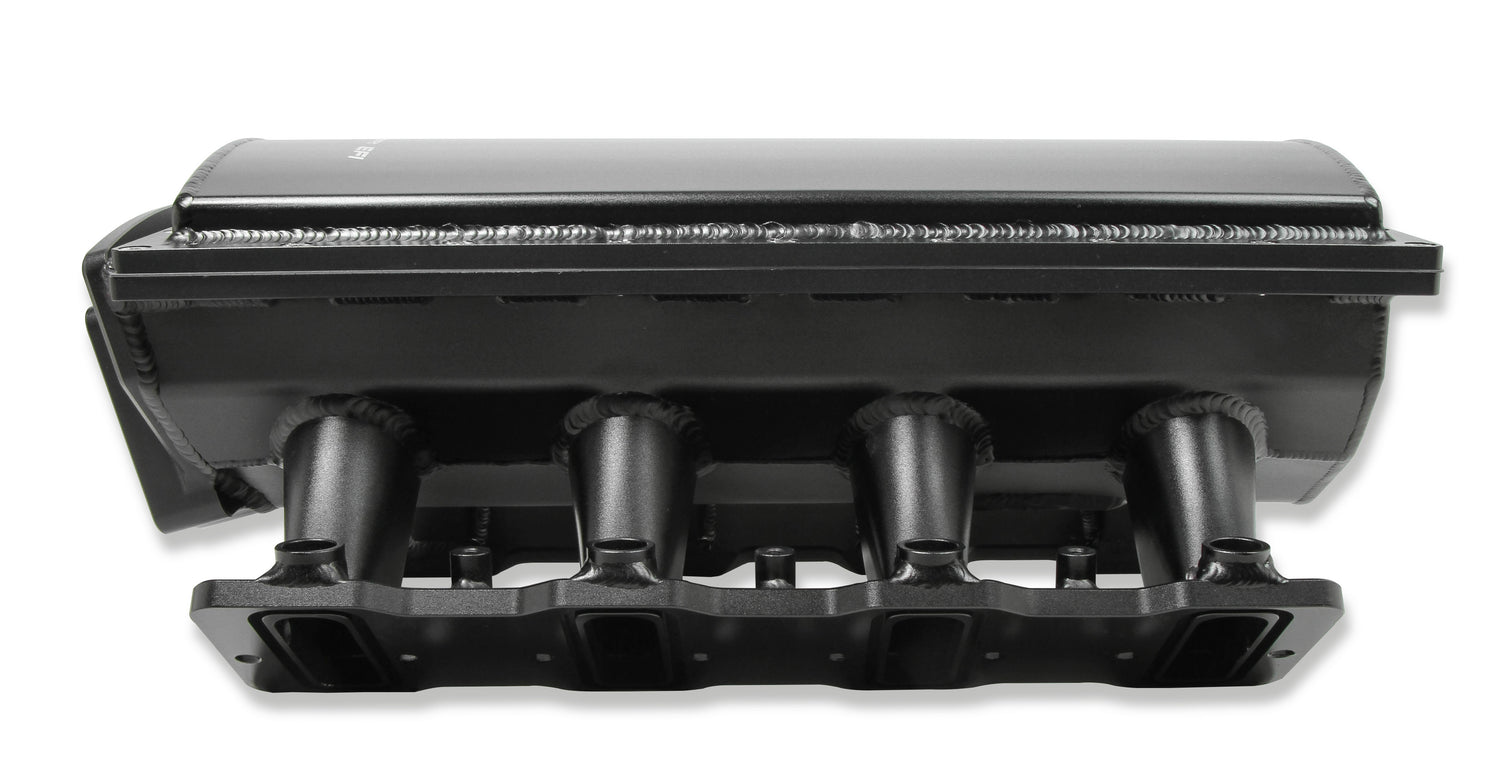

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Black Finish creates stealthy under-hood styling
- Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM
Basic Operating RPM Range: 3500-8000
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Sniper EFI Intakes
CNC Ported: No
Color: Black
Construction: Fabricated
Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS1/LS2/LS6
Flange Style: N/A
Front Maximum Height: 9.62
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Black
Product Type: Intake Manifold
Rear Maximum Height: 9.015
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: Yes
Runner Length: 4.527" (115mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 90
Throttle Body Gasket Included: Yes
Throttle Body Included: No
Throttle Bore: 90mm
Throttle Bore: 90mm MM
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
