Sniper 830111-1 - EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS7

Sniper  |  SKU: SNIP-830111-1
$90799 $1,01295

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Sniper 830111-1 - EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS7

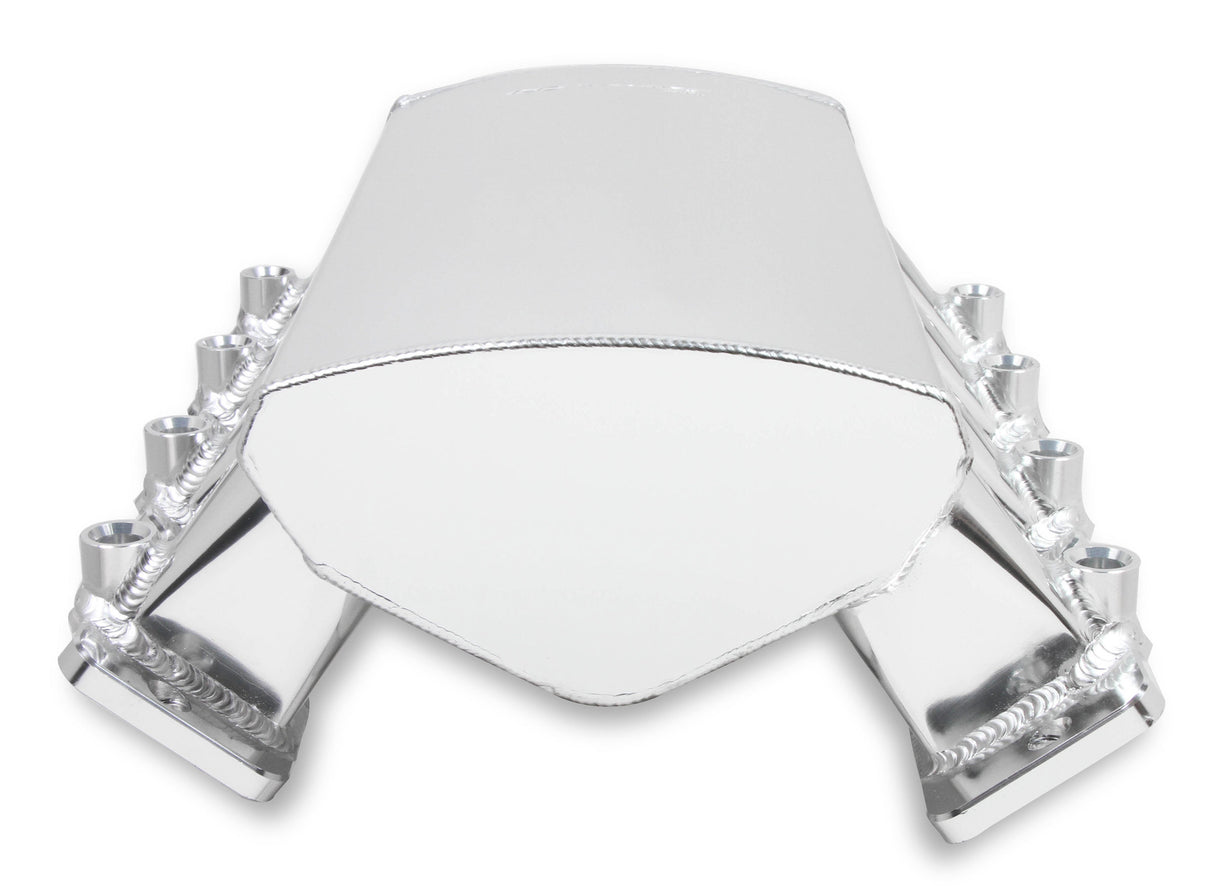

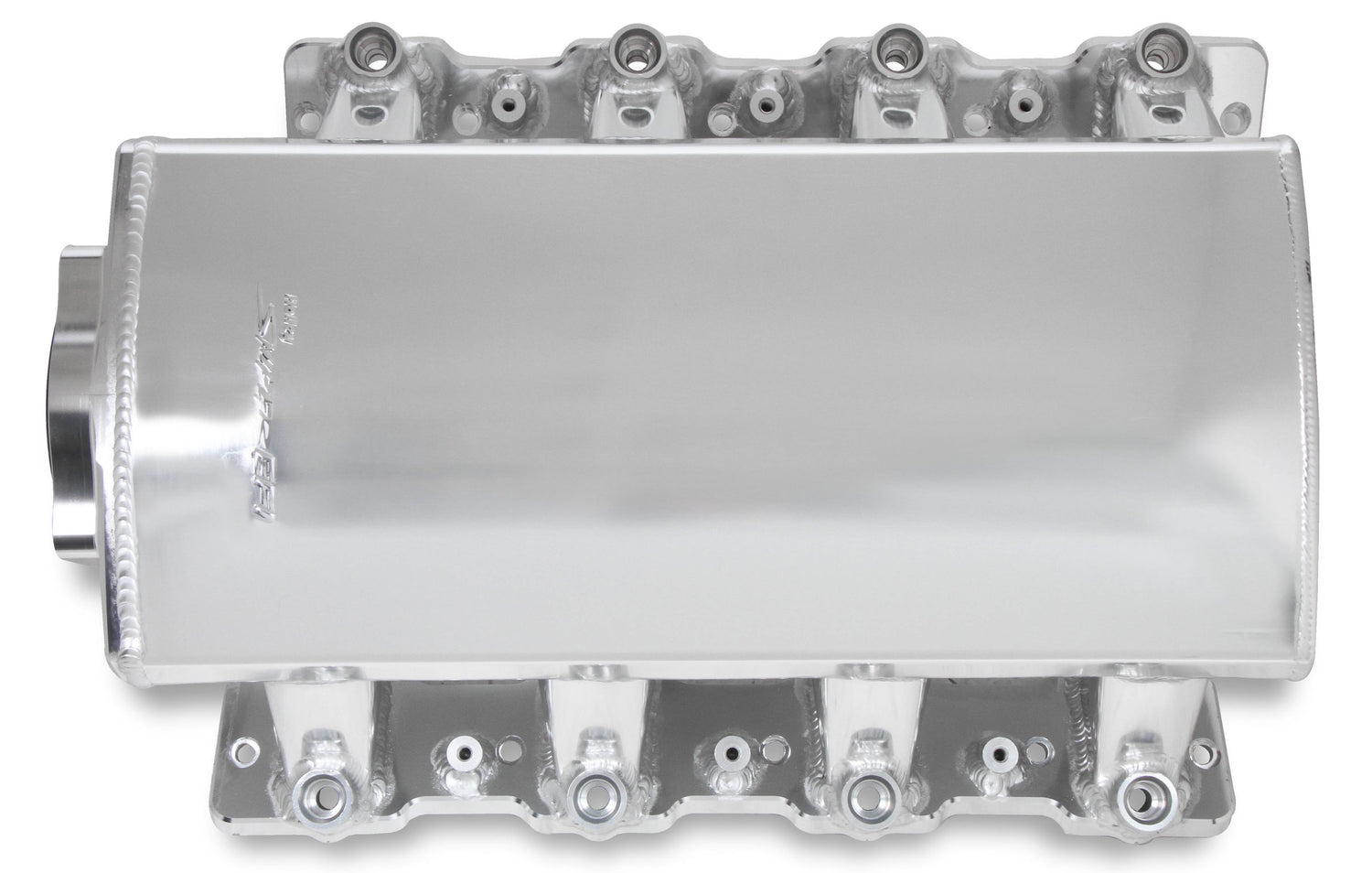

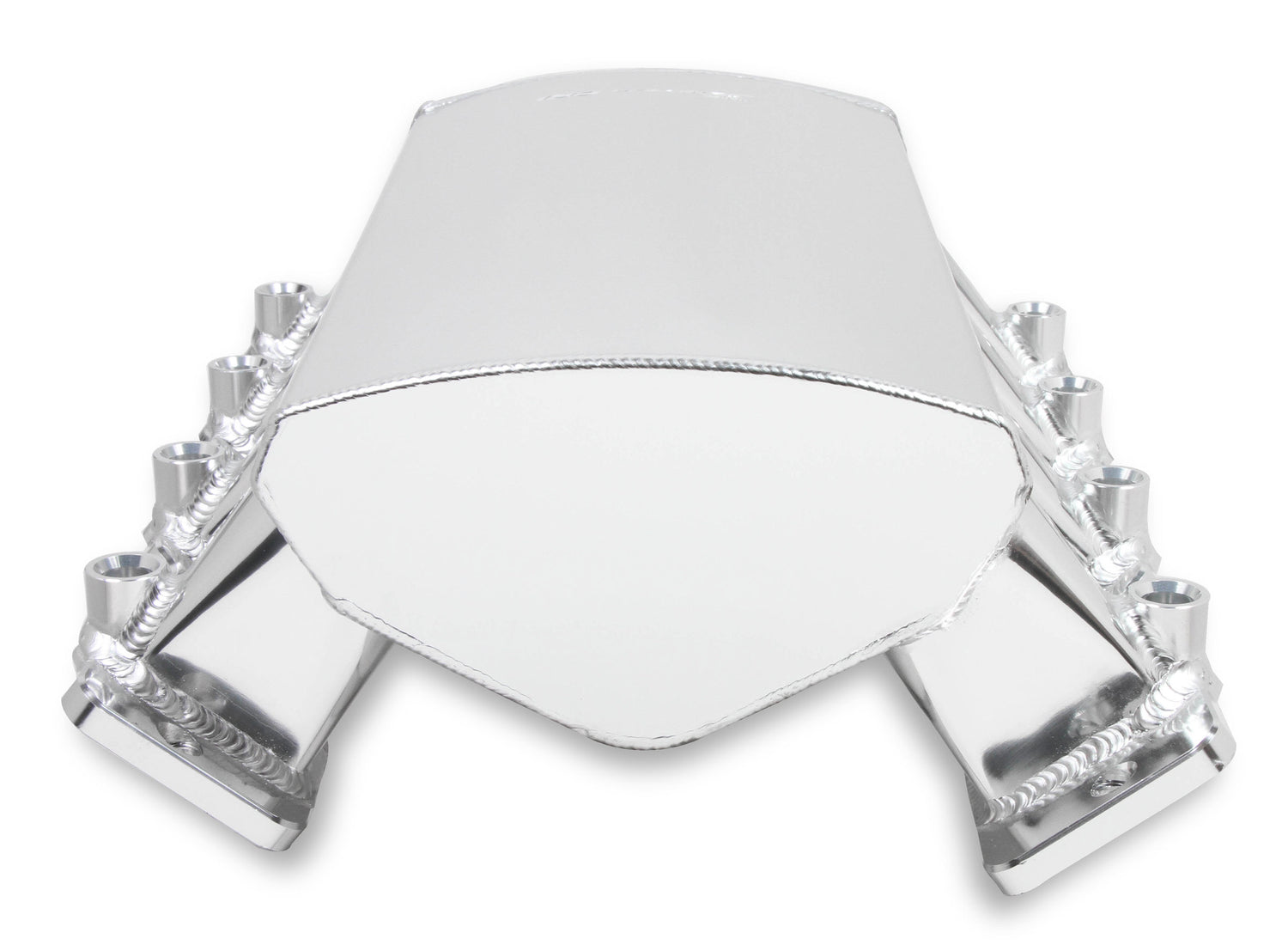

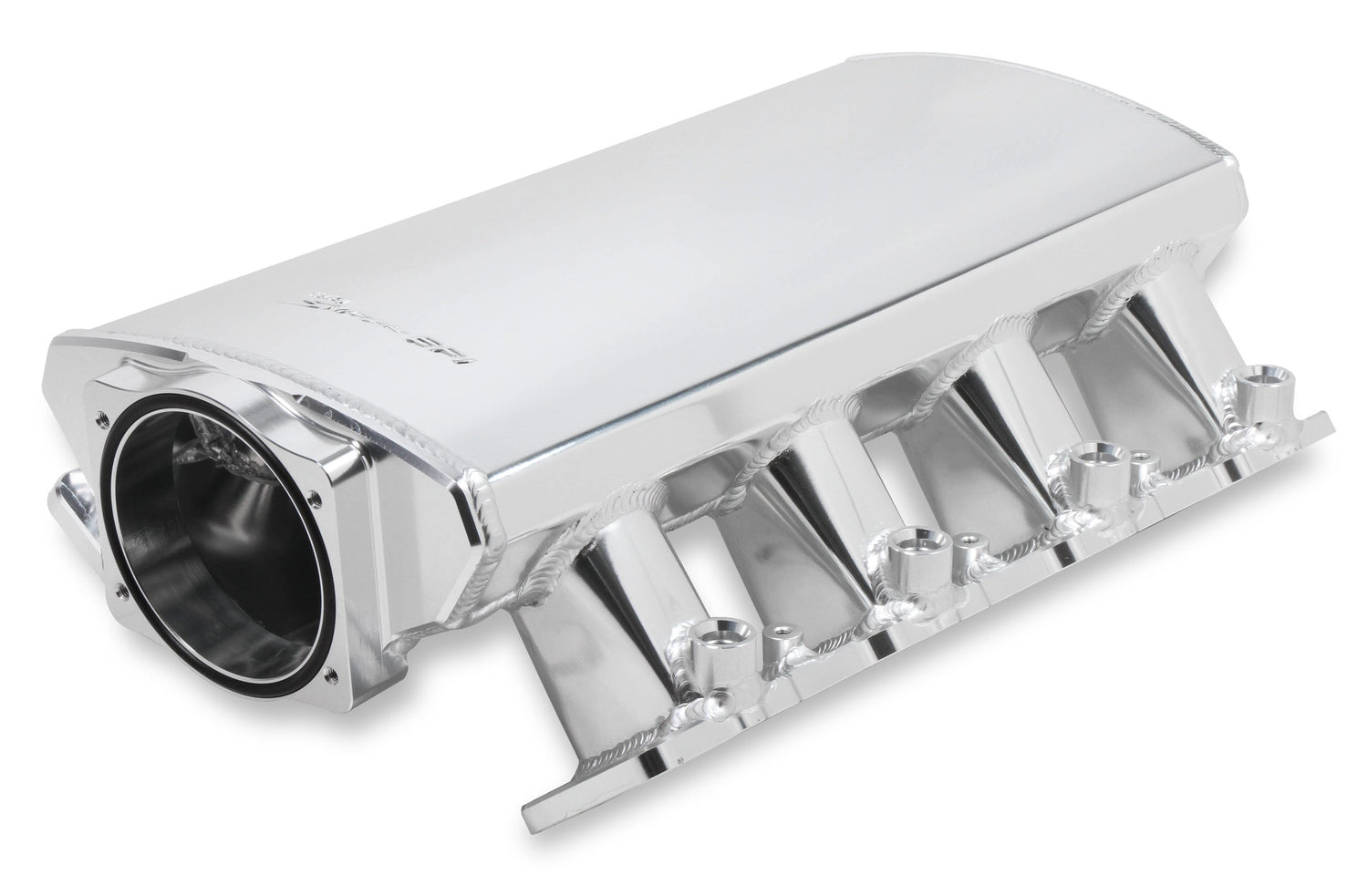

Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS7

Hi-Ram Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile

Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available

  • Silver finish creates high impact under-hood styling
  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

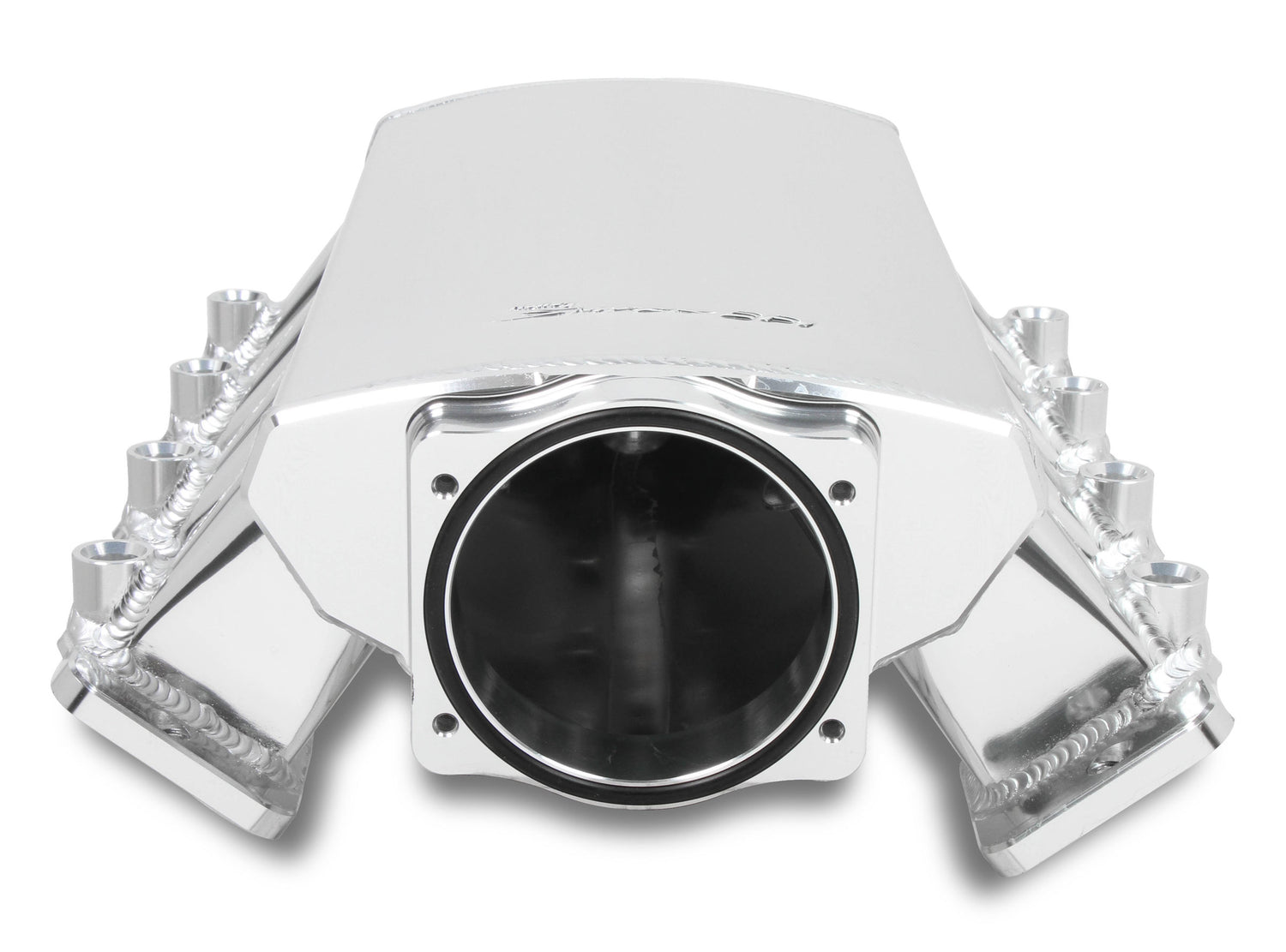

  • 102mm throttle bore opening for increased air flow

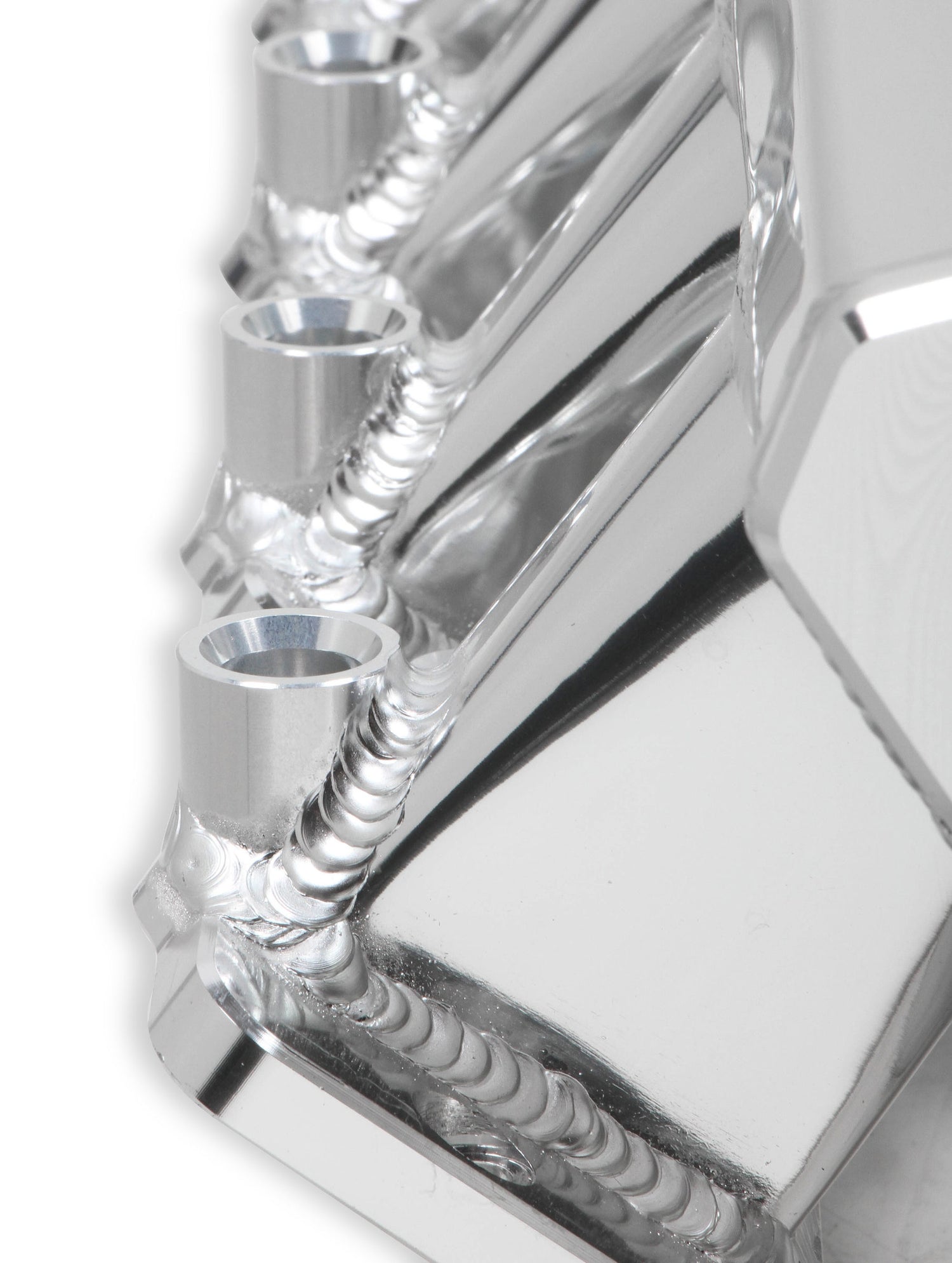

  • 100% TIG welded for strength and durability
  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

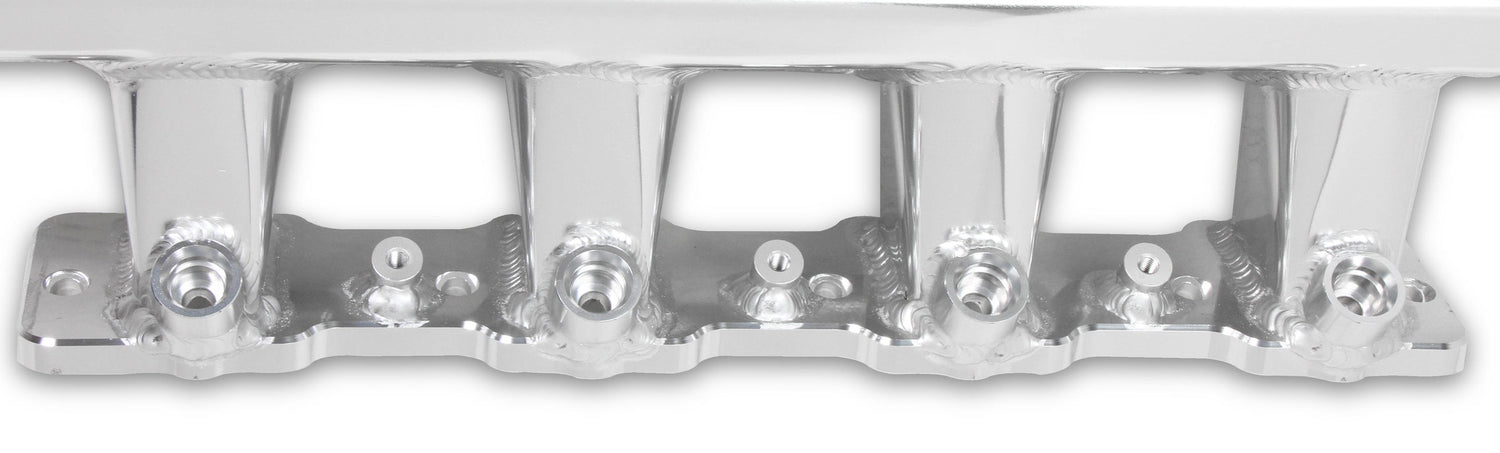

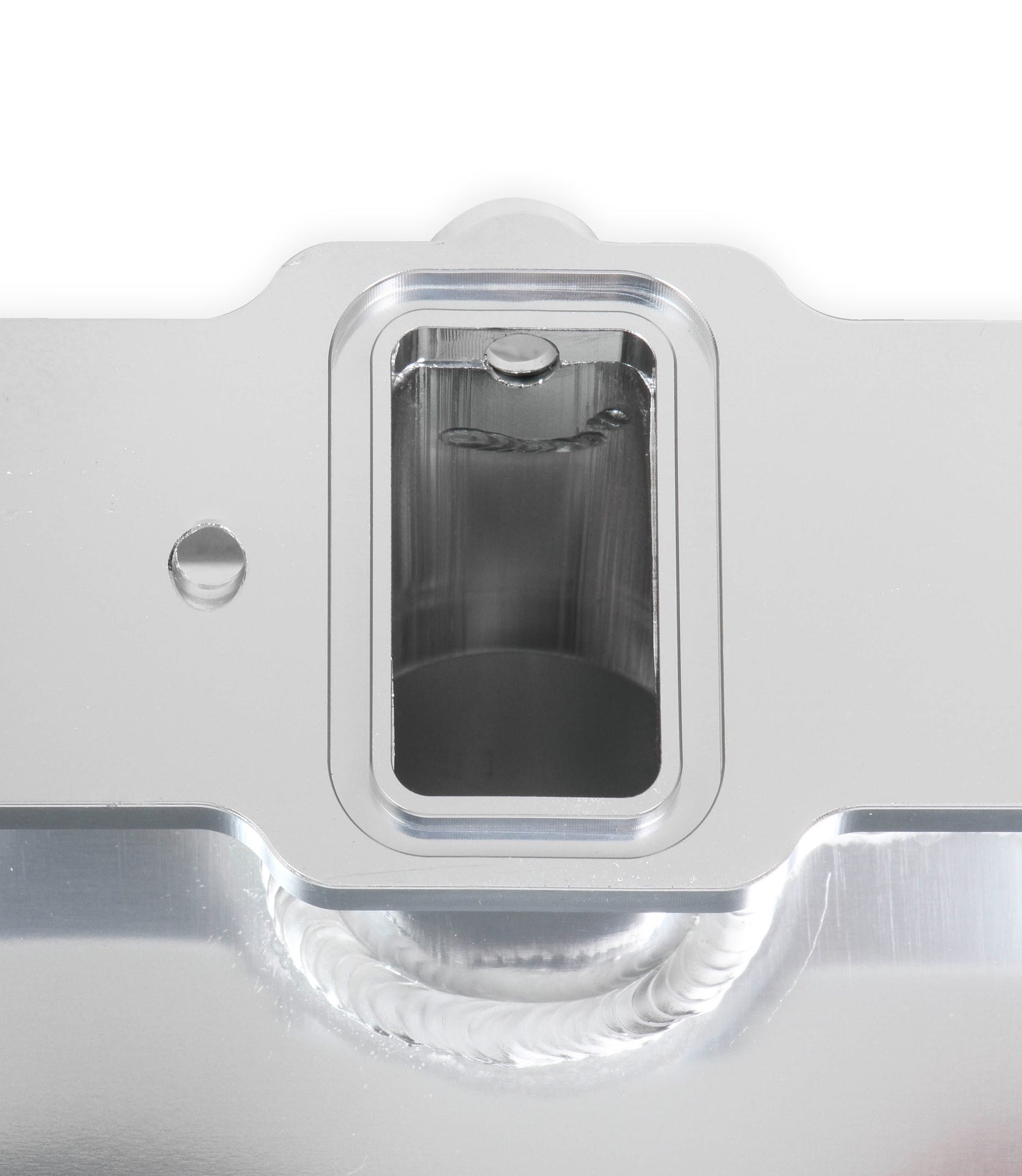

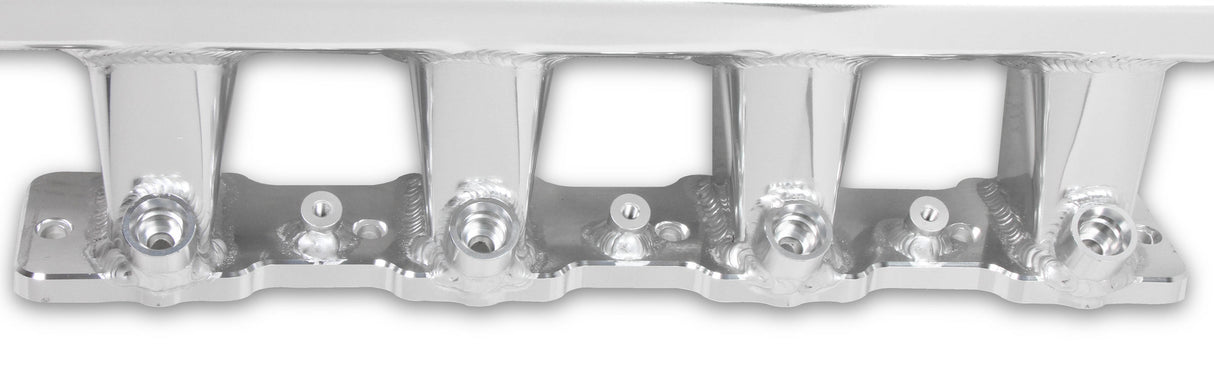

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Product includes all gaskets and hardware for a hassle-free installation
  • The Sniper intake will only accept EV1 style injectors.
Basic Operating RPM Range: 1500-6500 RPM
Brand: Holley Sniper EFI
Category: Engine
Color: Silver
Construction: Fabricated
EGR Port: No
Emission Code: 4
Engine: GM LS7
Finish: Silver
Front Height: 5.487 inch
Front Maximum Height: 5.487 IN
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Height: 4.975 inch
Rear Maximum Height: 4.975 IN
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
RPM Power Band: 1500-6500 RPM
Runner Length: 4.331" (110mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 102 MM
Throttle Body Included: No
Throttle Bore: 102mm

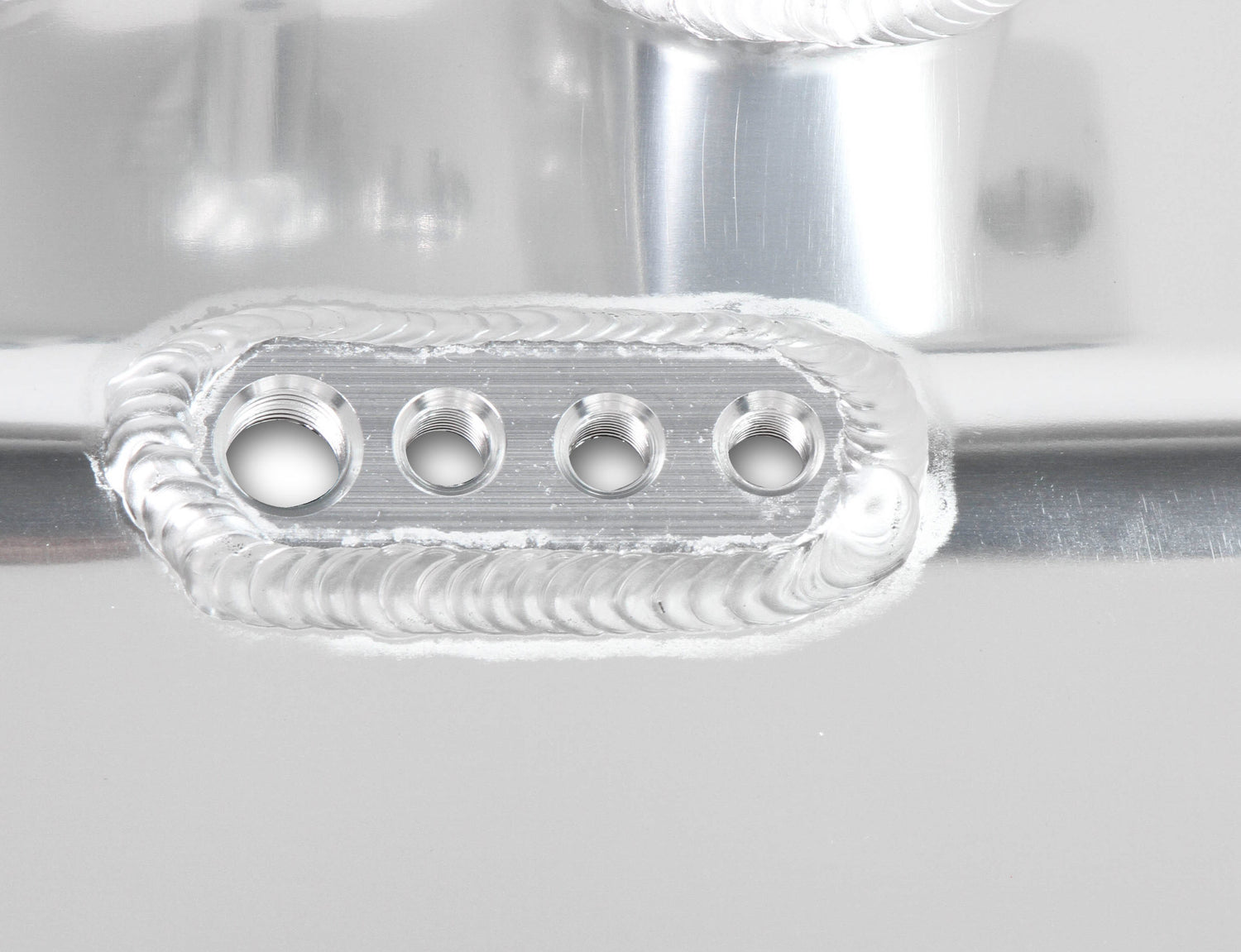

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
