Sniper 822202 - EFI LS3/L92 HI-RAM IM, EFI, 92MM
Sniper | SKU:
SNIP-822202
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

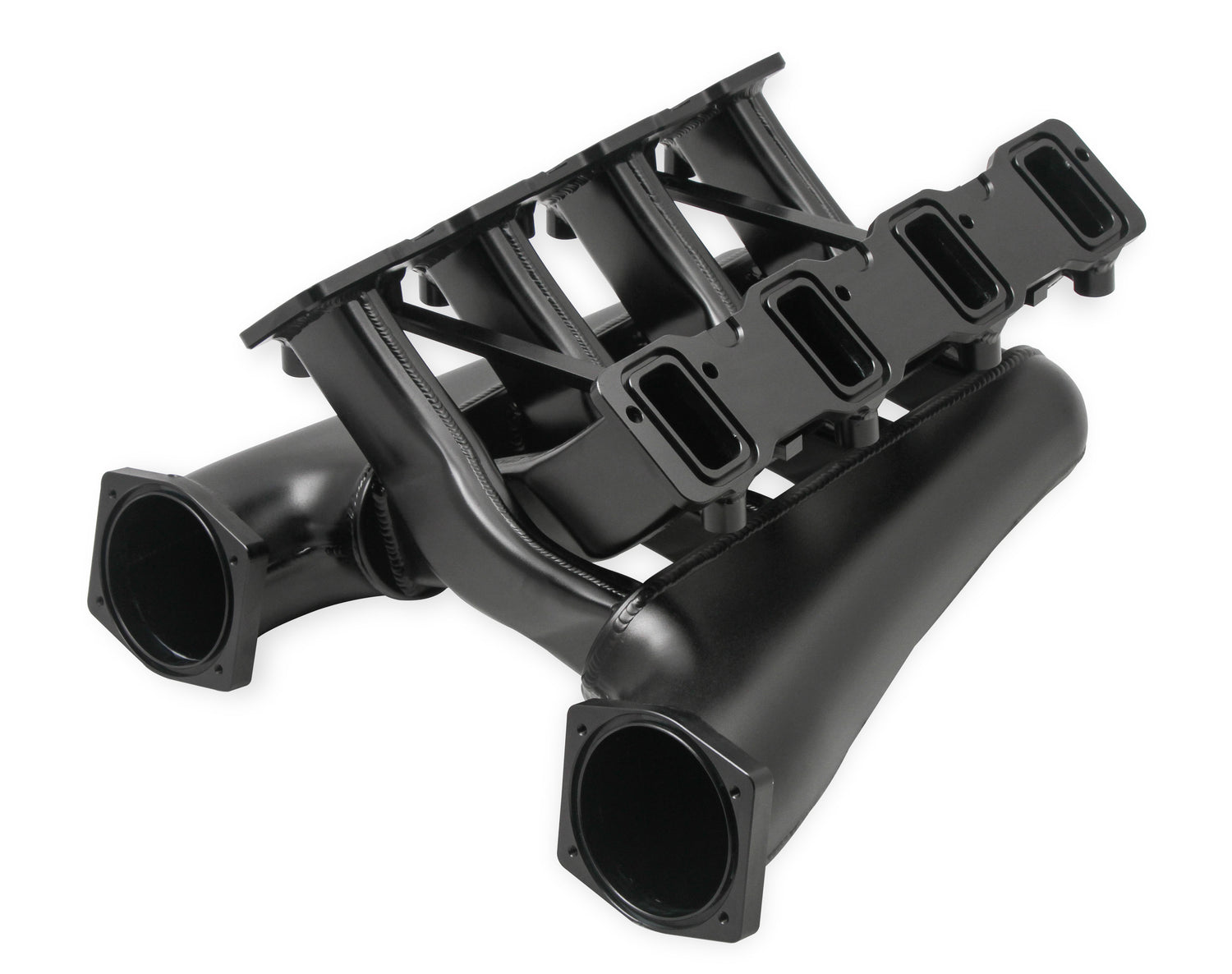

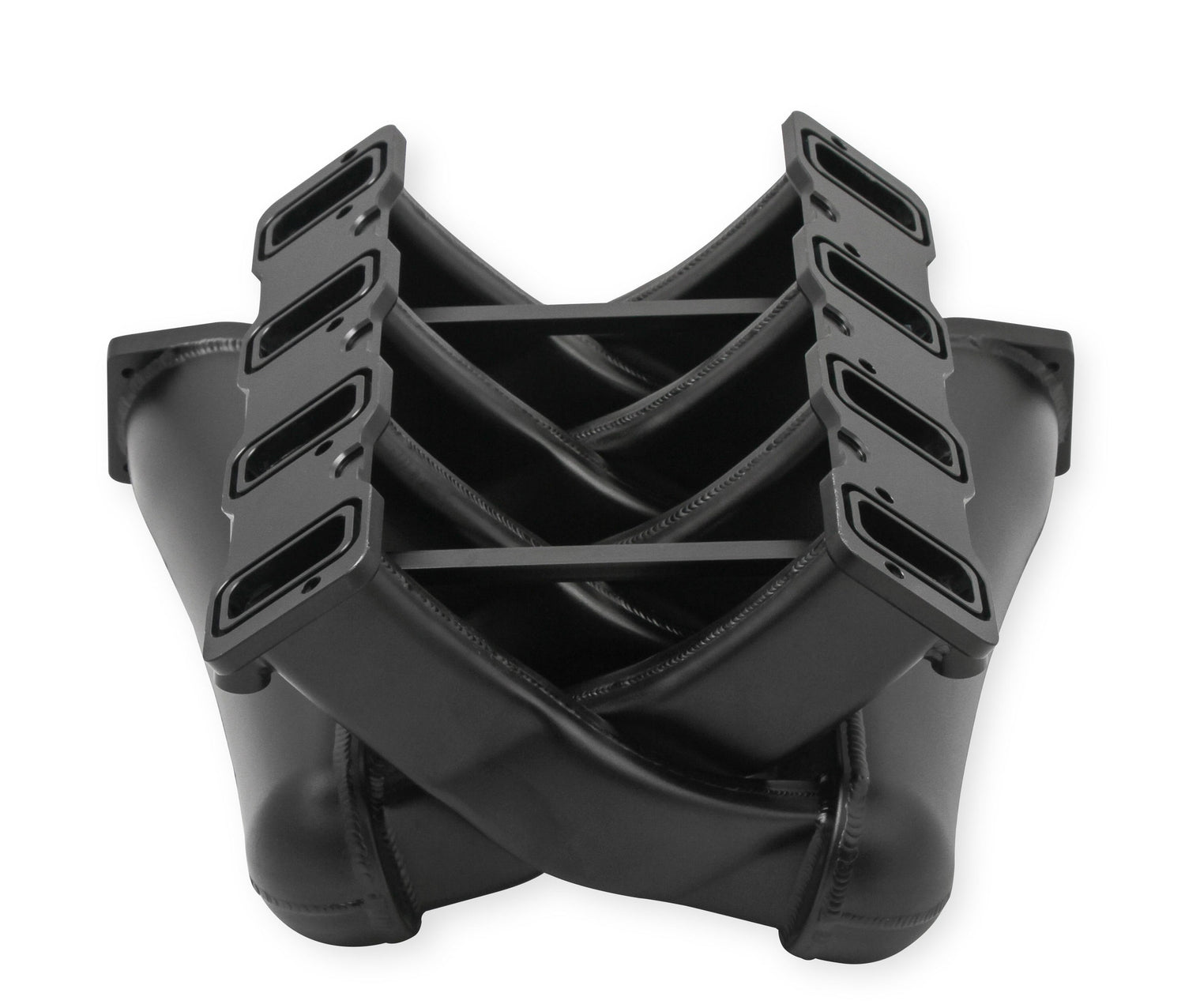

Sniper 822202 - EFI LS3/L92 HI-RAM IM, EFI, 92MM

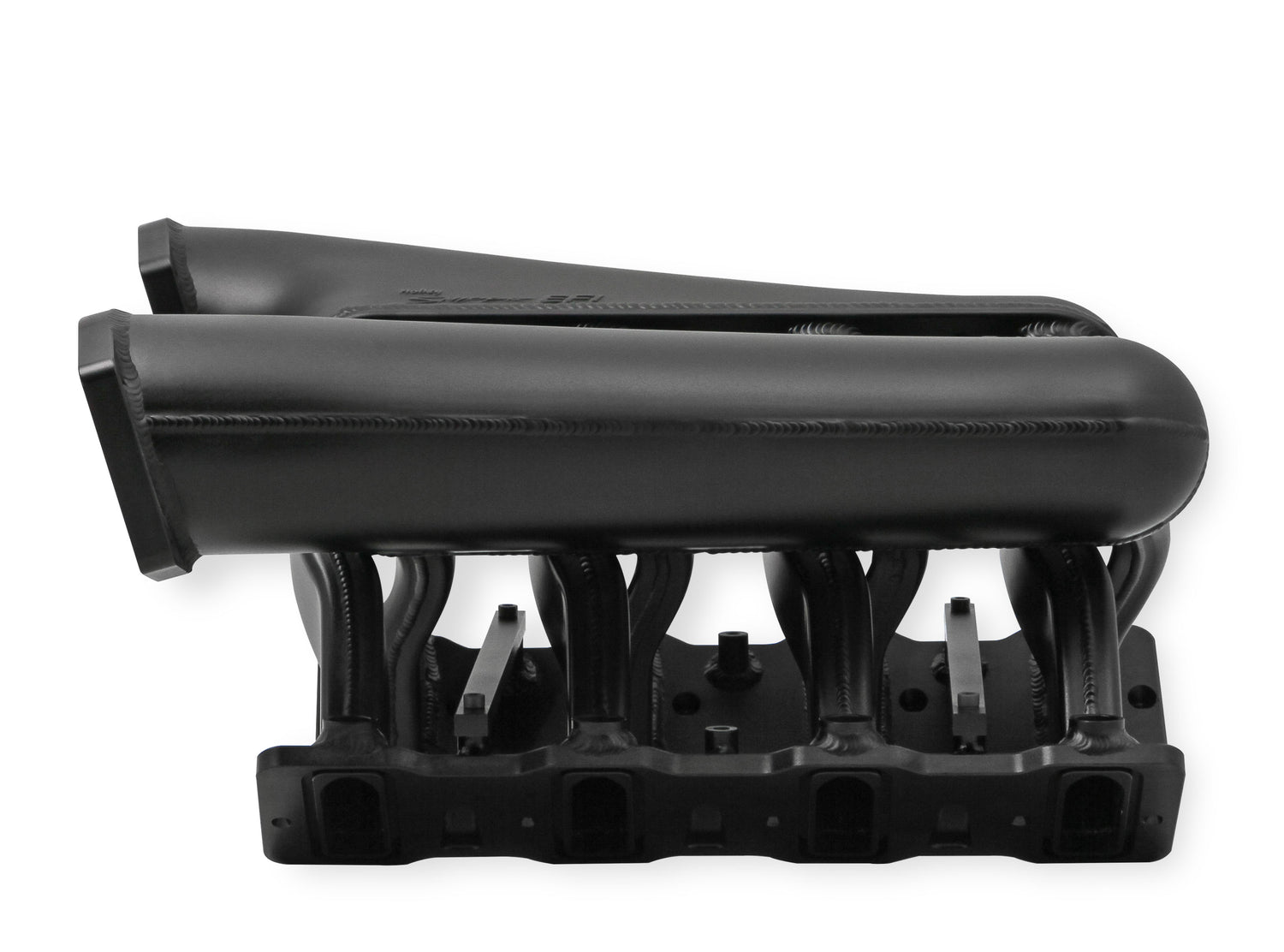

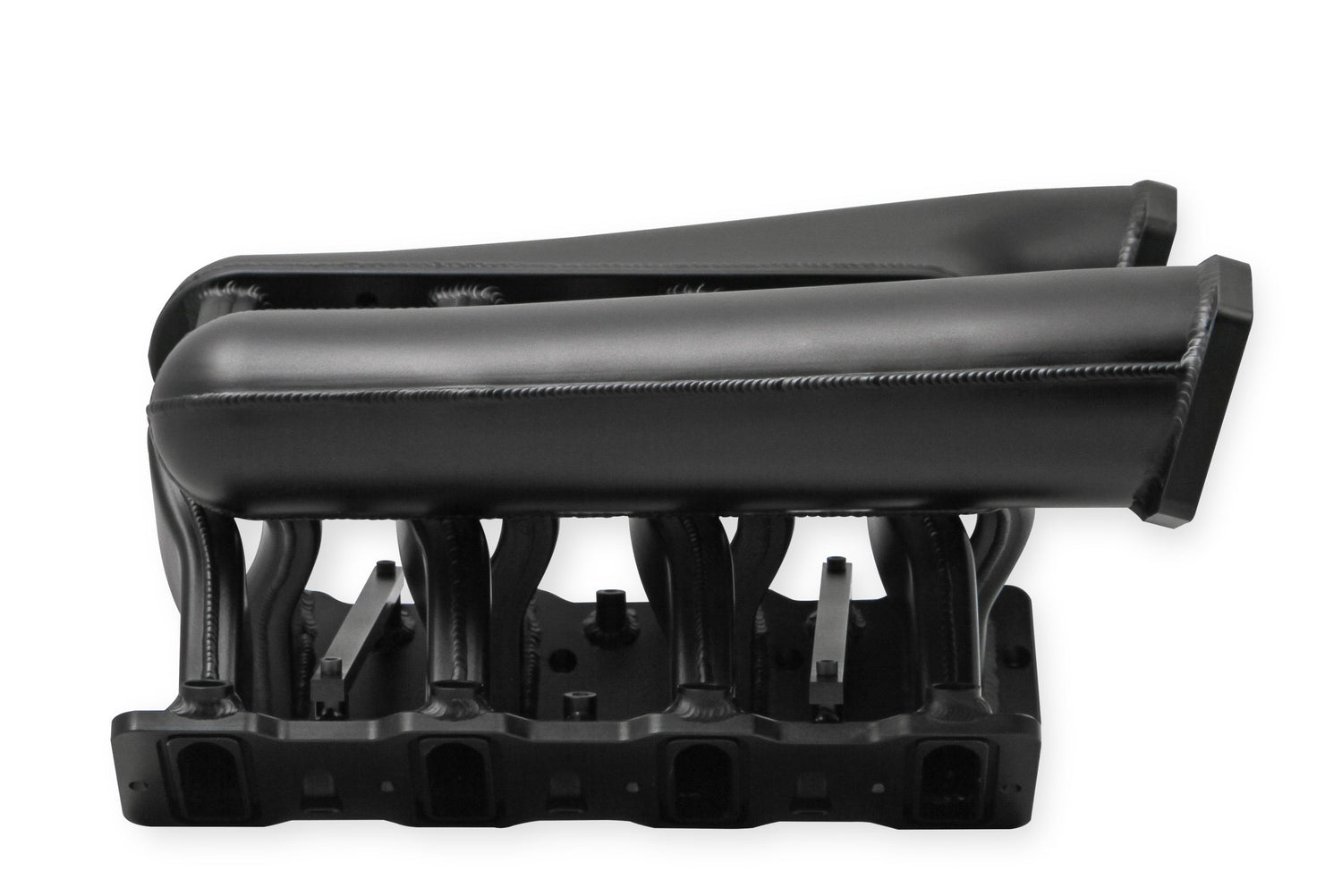

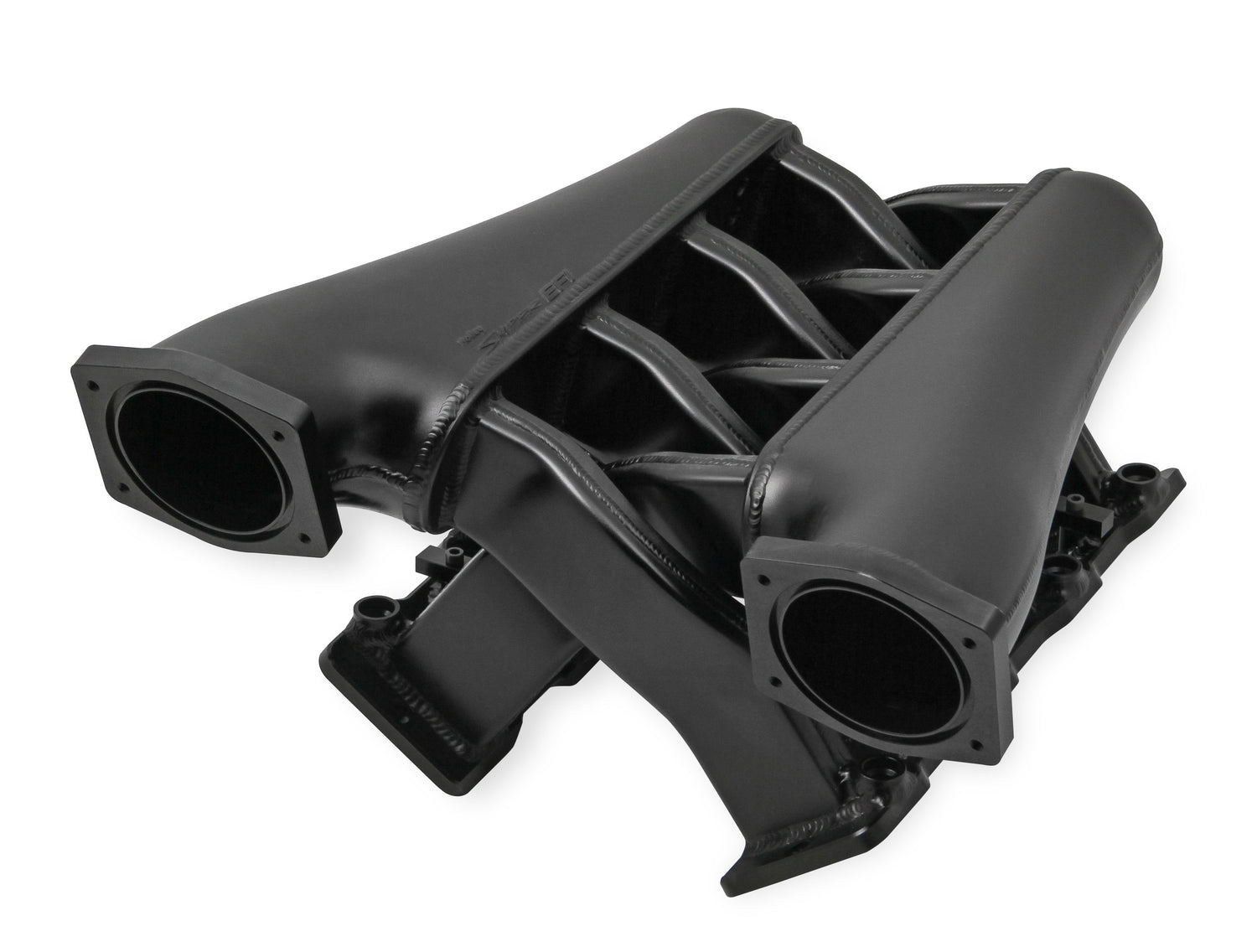

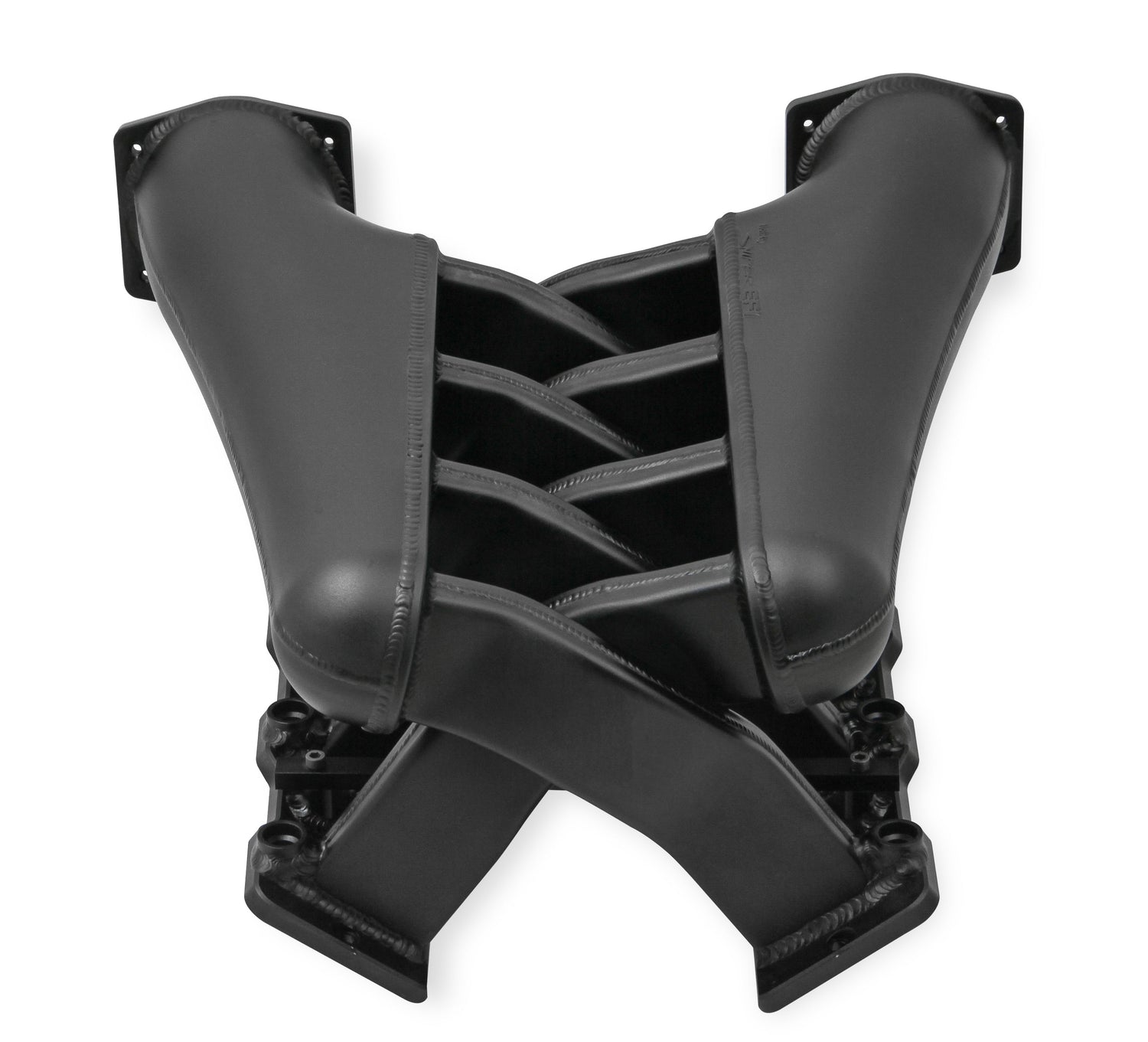

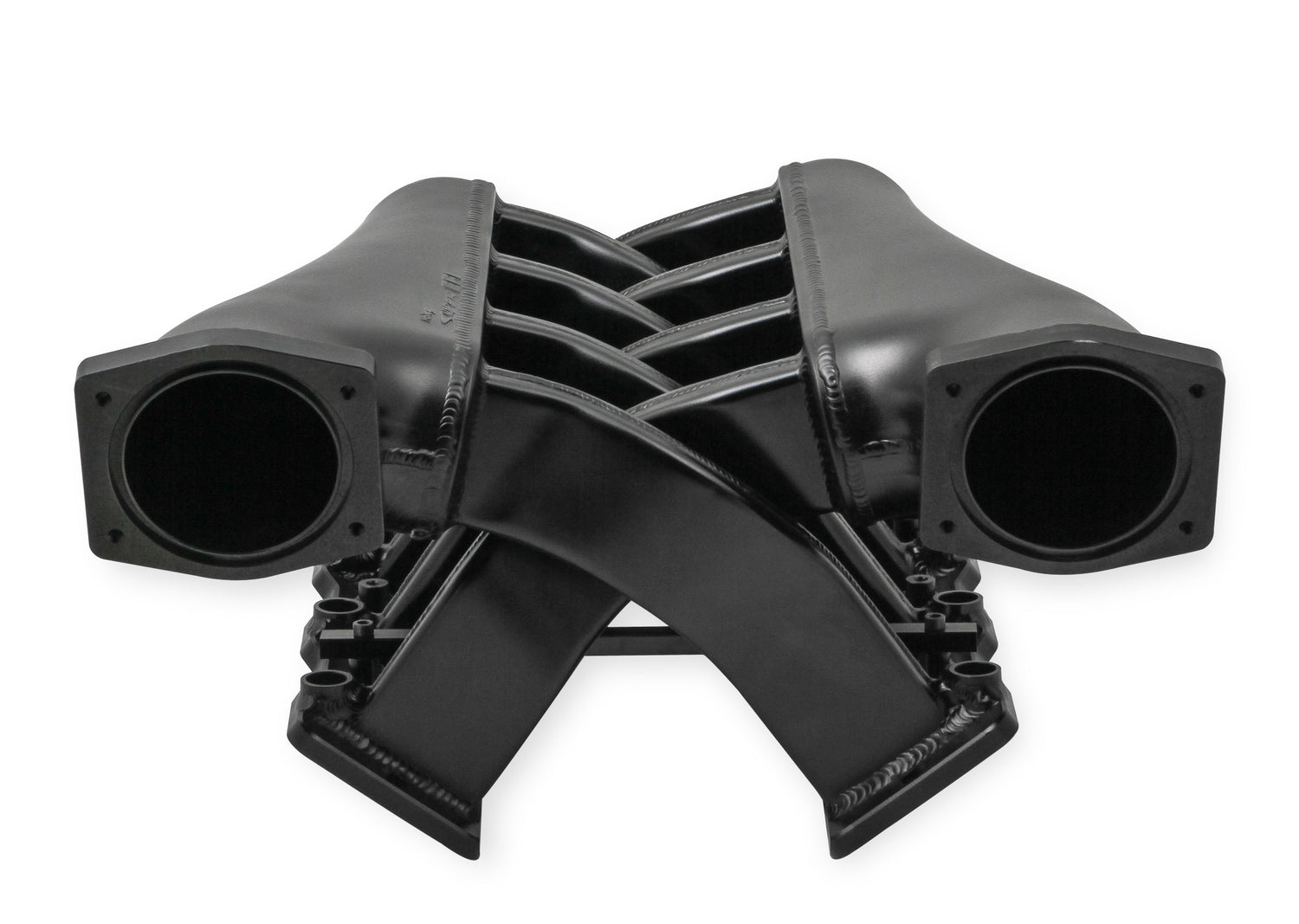

Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm LS3/L92, Rail Kit - Blk

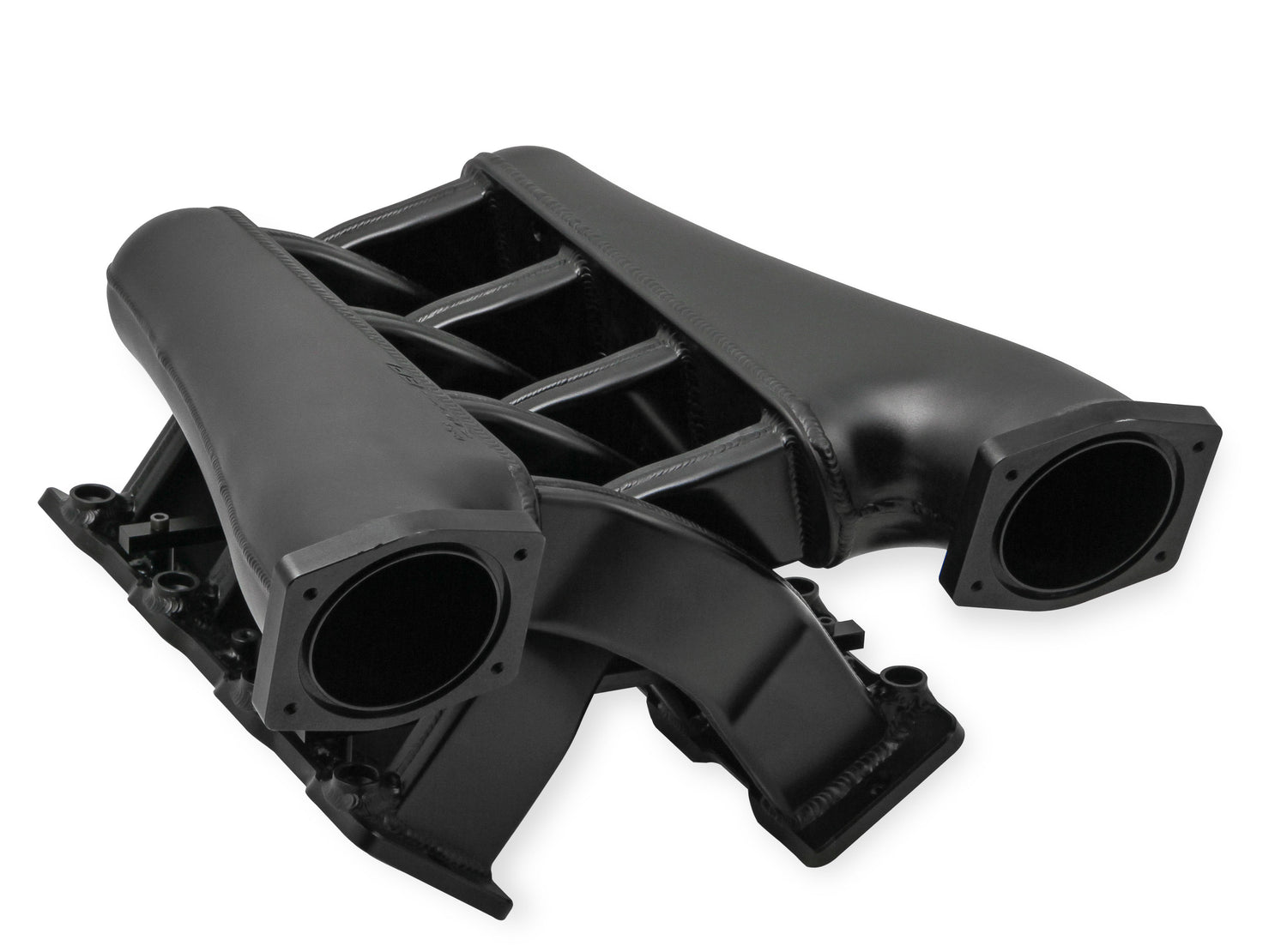

Sniper EFI "Dual Plenum" Intake Manifold 92mm throttle body bore for GM LS3/L92 engines (Includes installation kit, and fuel rail kit) Black Finish
Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake.
- The Sniper intake will only accept EV1 style injectors.

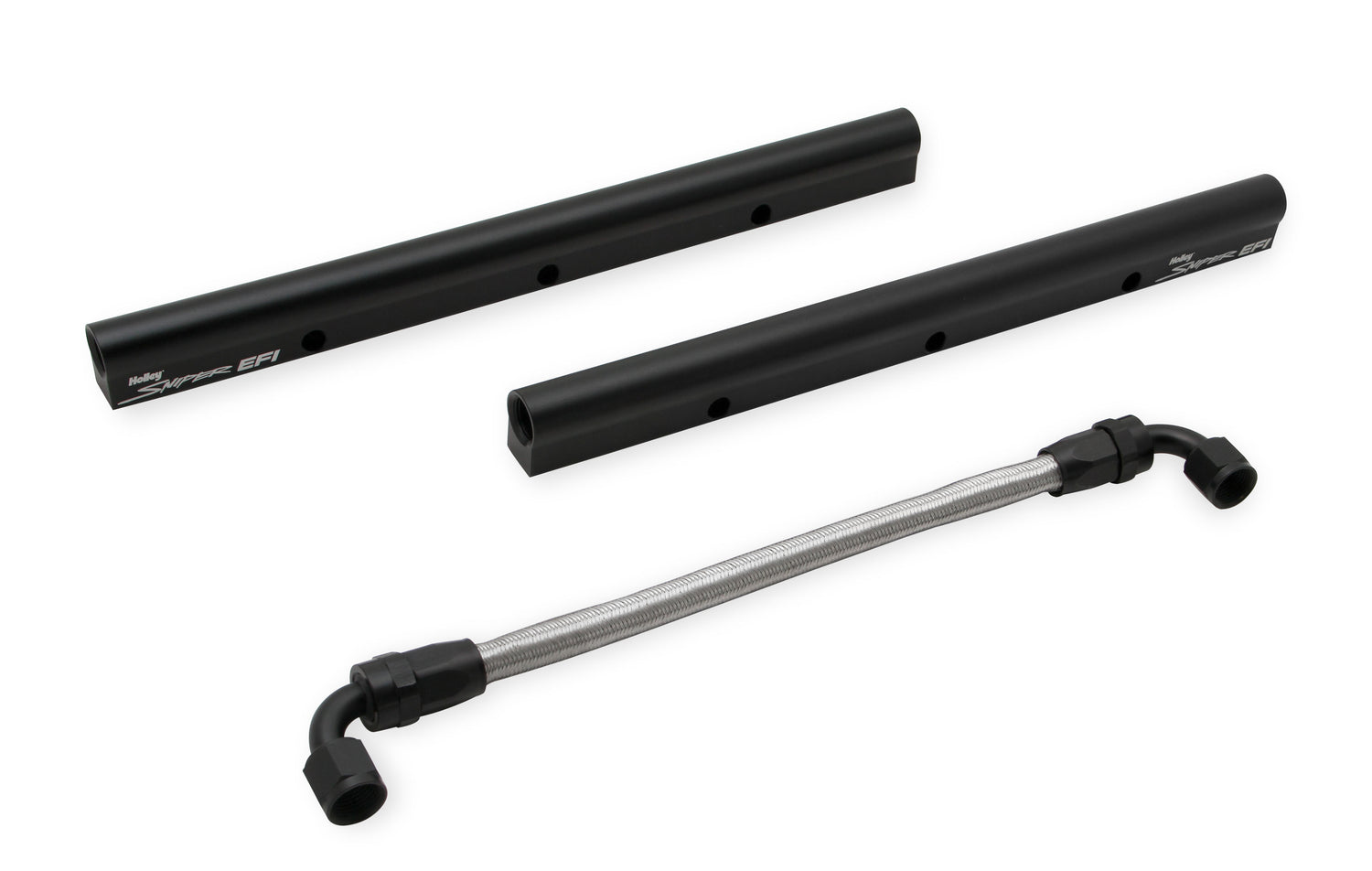

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Dual plenum design ideal for street max effort engines and boosted applications
- Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM
- Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM
- Black Finish creates stealthy under-hood styling
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

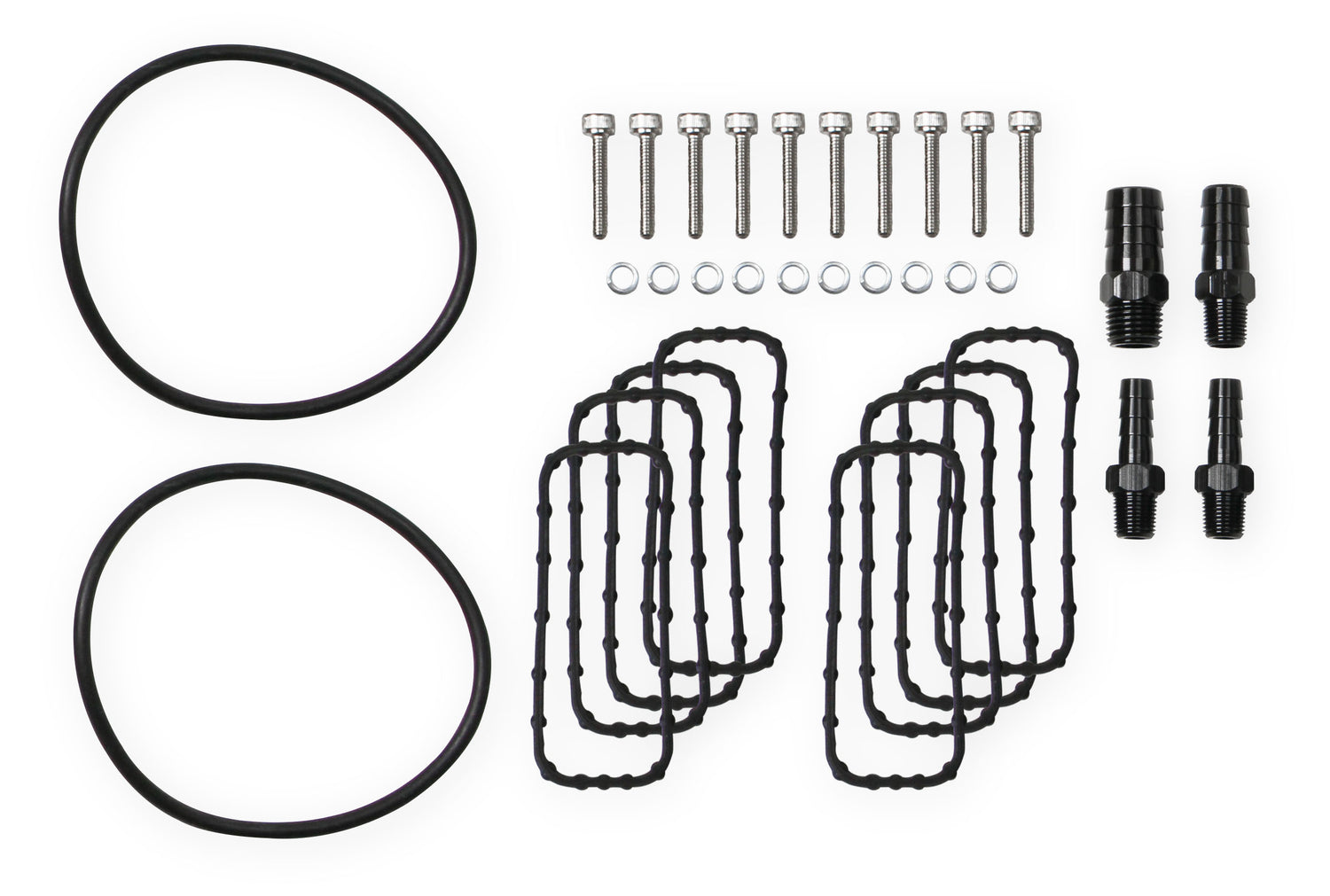

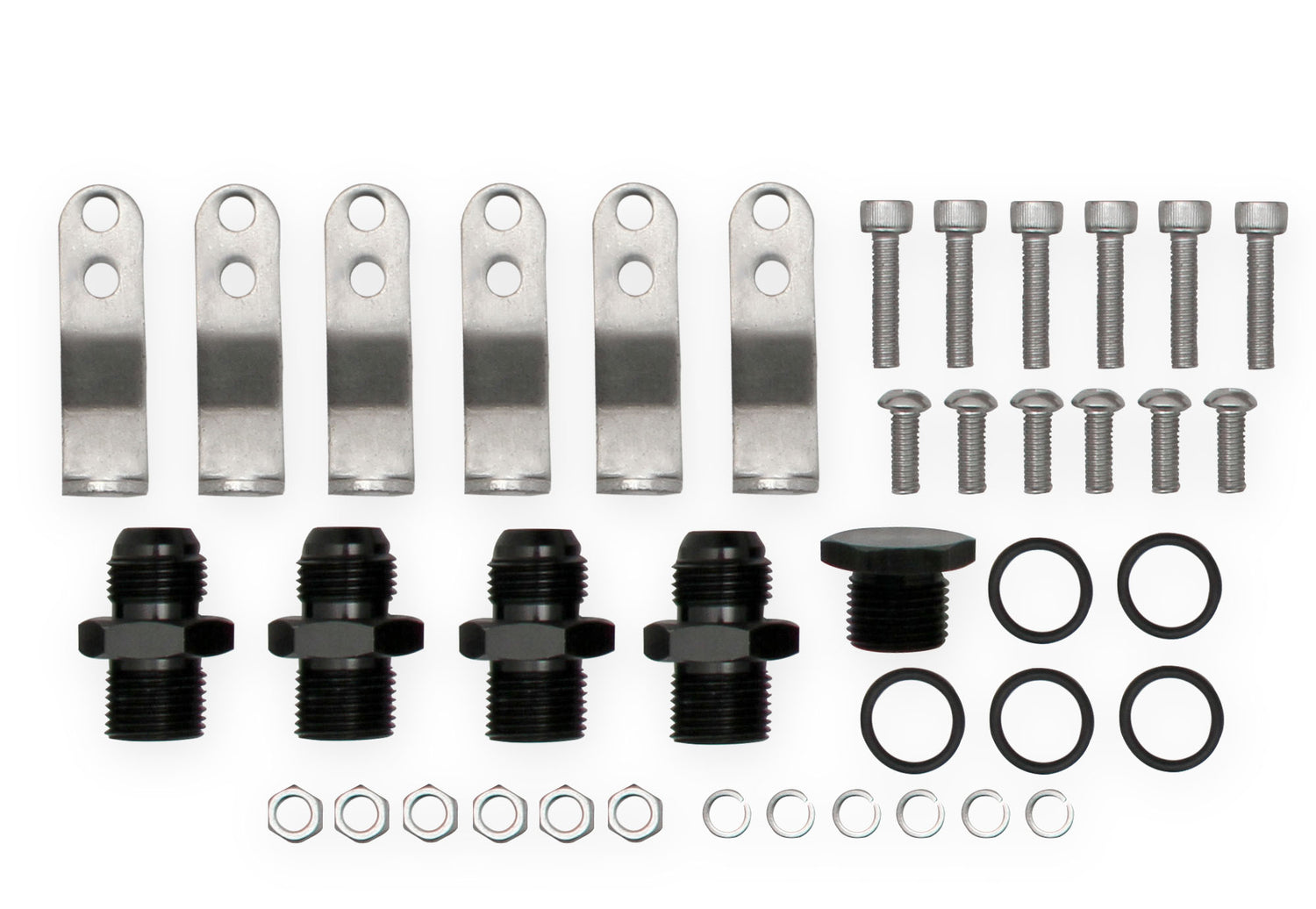

- Product includes all gaskets and hardware for a hassle-free installation

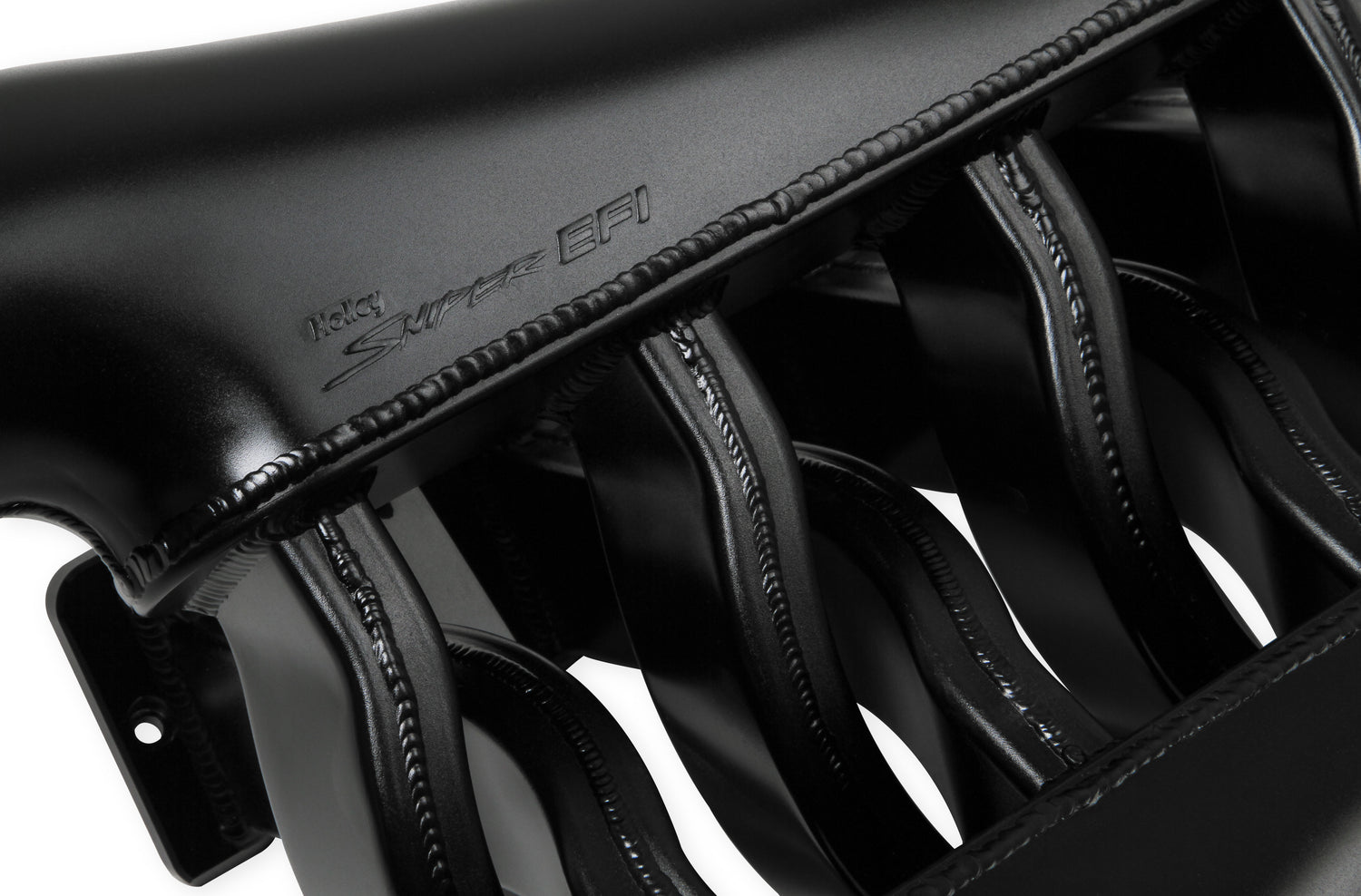

- 100% TIG welded for strength and durability
Basic Operating RPM Range: 1500-6500
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Sniper EFI Intakes
CNC Ported: No
Color: Black
Construction: Fabricated

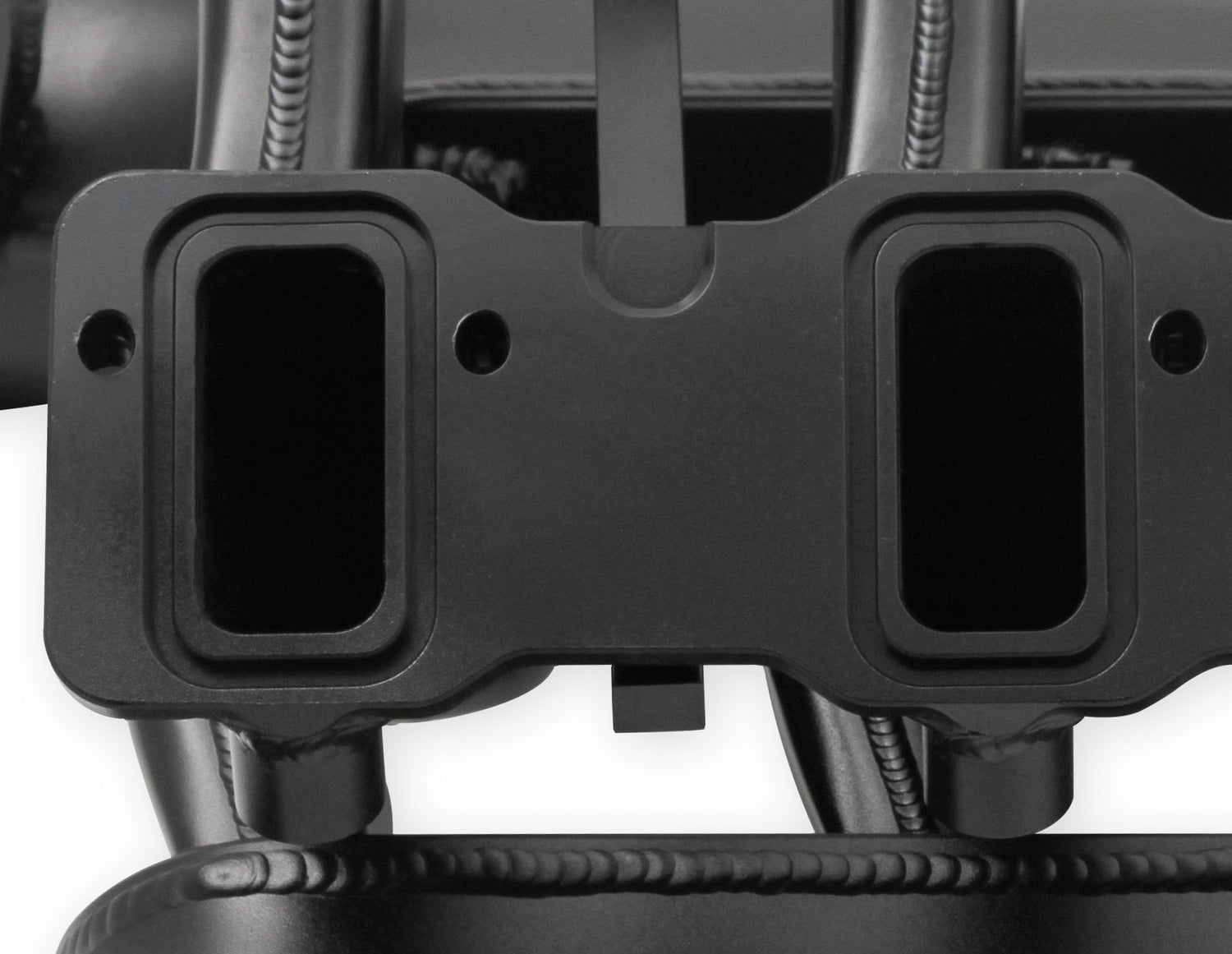

Cylinder Head Port Shape: Rectangle
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS3/L92
Flange Style: N/A

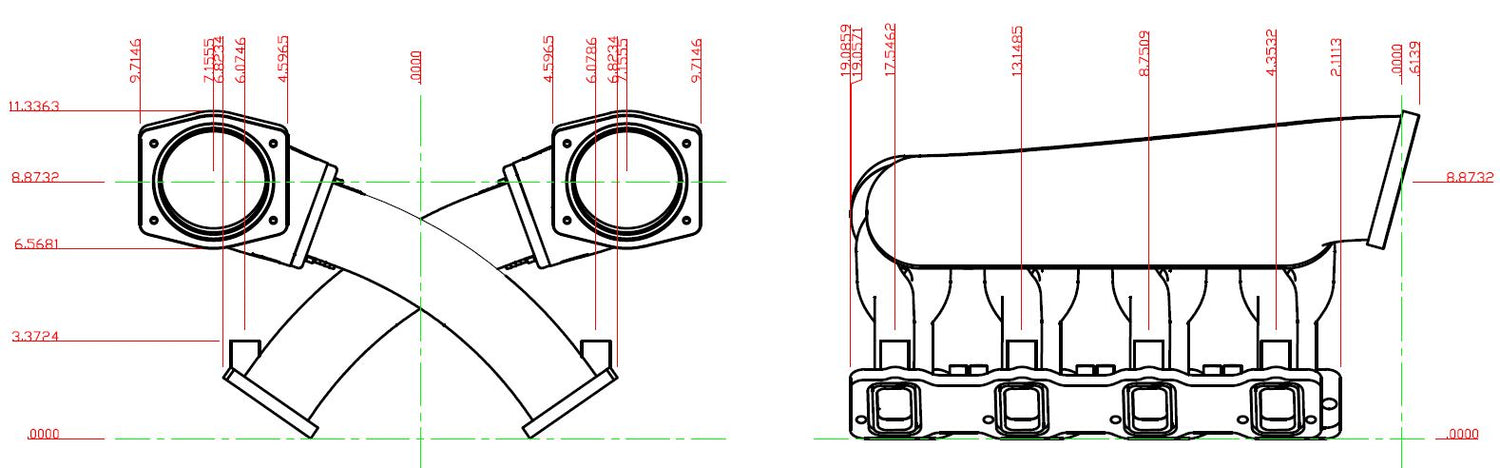

Front Maximum Height: 11.336
Front Width: 19.4292 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: EV14 USCAR
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Black
Product Type: Intake Manifold
Rear Maximum Height: 9.992
Rear Width: 13.6468 inch
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 5.512" (140mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 92
Throttle Body Gasket Included: No
Throttle Body Included: No
Throttle Bore: 92mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
