Sniper 822112-1 - EFI LS3/L92 LOW PROFILE IM,102MM

Name: Sniper 822112-1 - EFI LS3/L92 LOW PROFILE IM,102MM
Brand: Sniper
SKU: SNIP-822112-1
Price: 949.95 USD
Availability: InStock

Sniper | SKU: SNIP-822112-1

$949⁹⁵ $1,068⁹⁵

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 822112-1 - EFI LS3/L92 LOW PROFILE IM,102MM

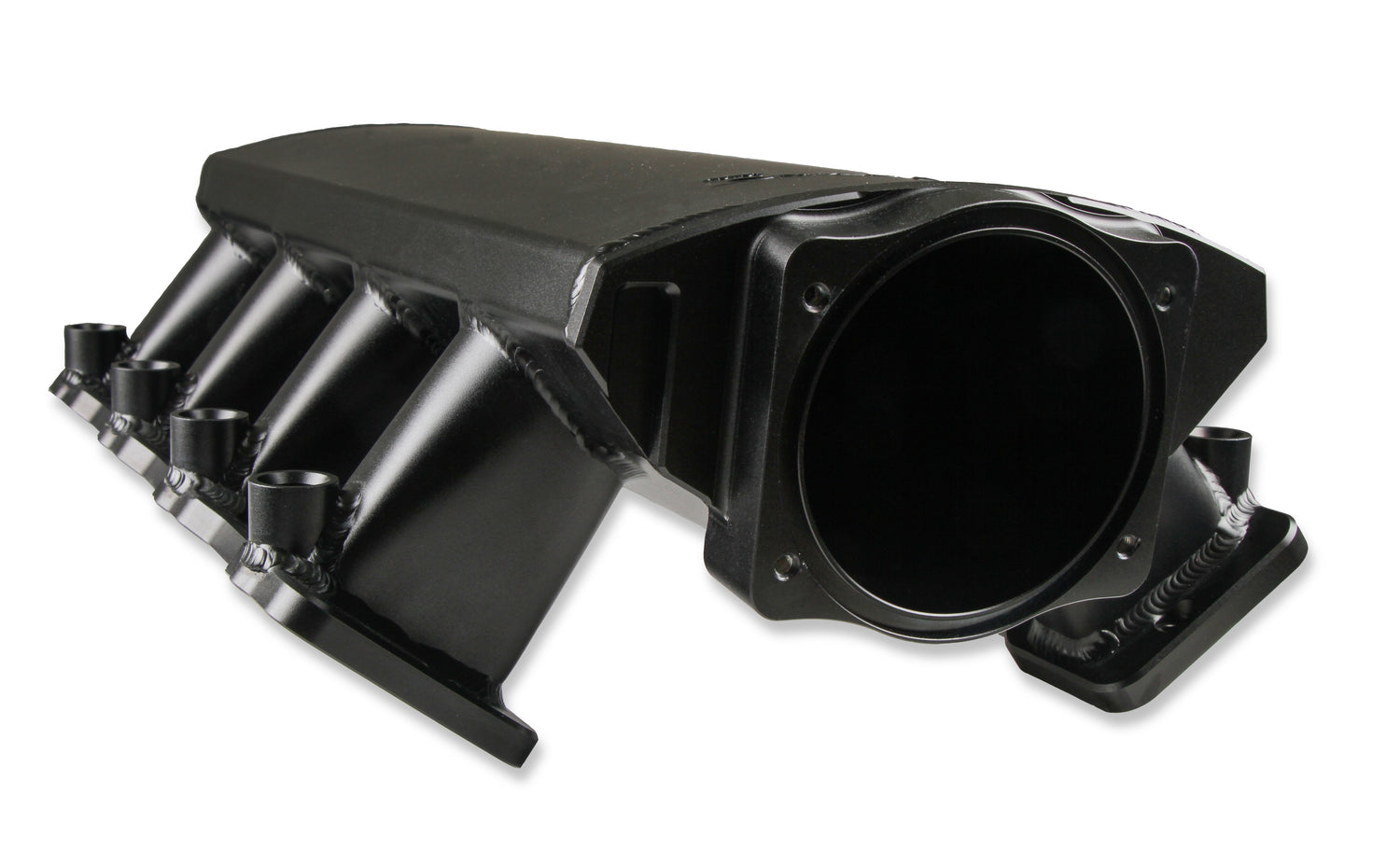

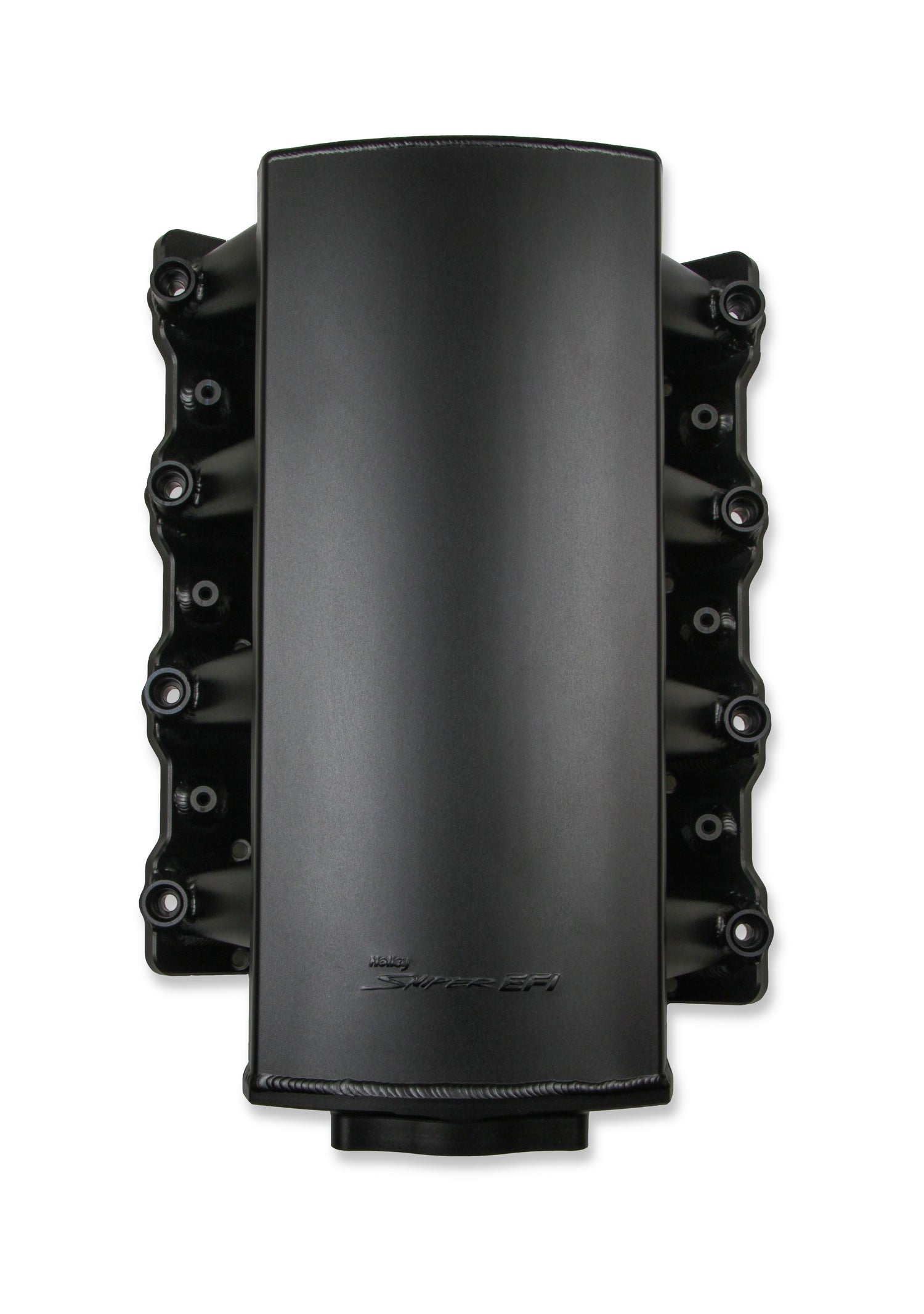

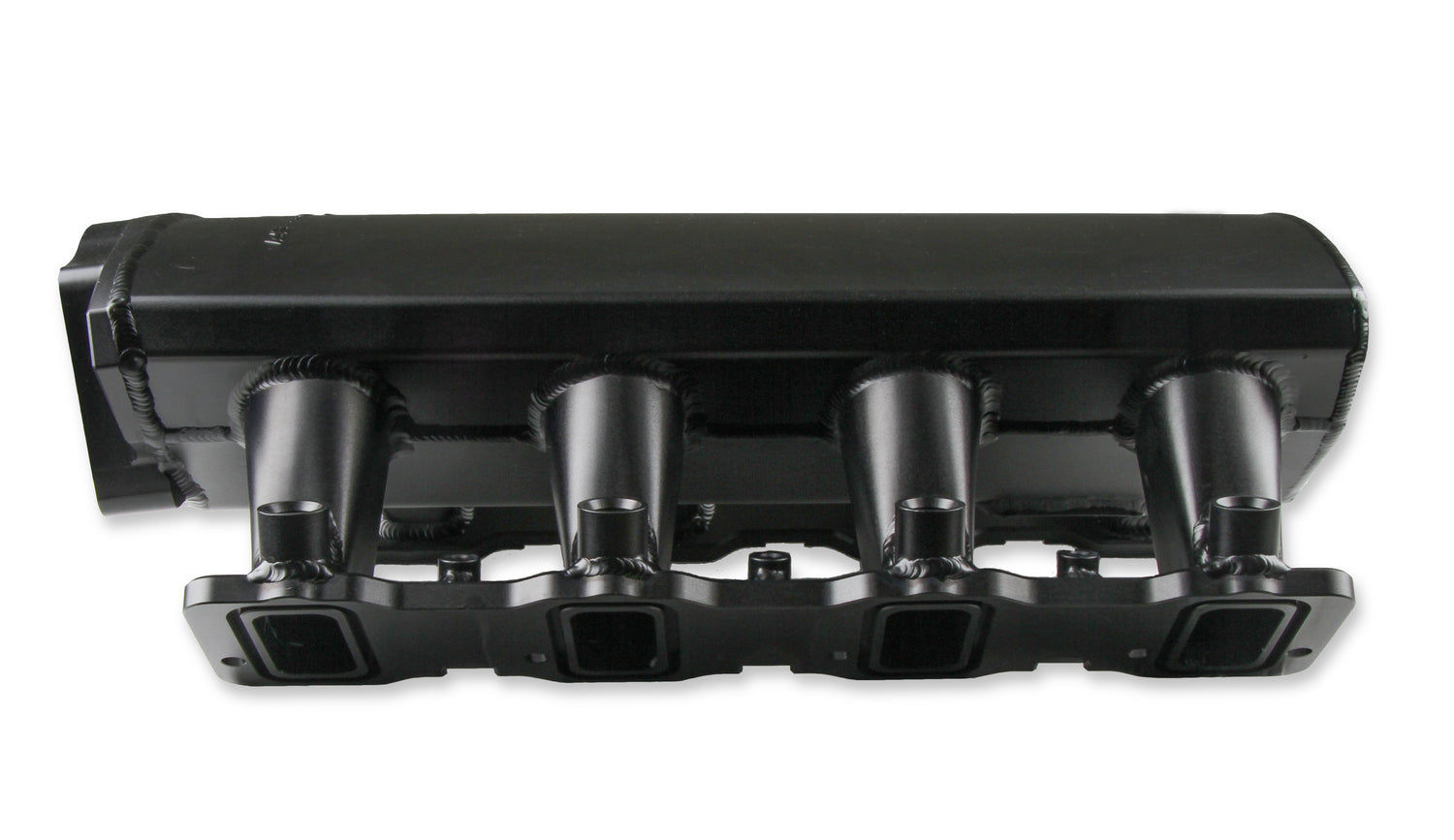

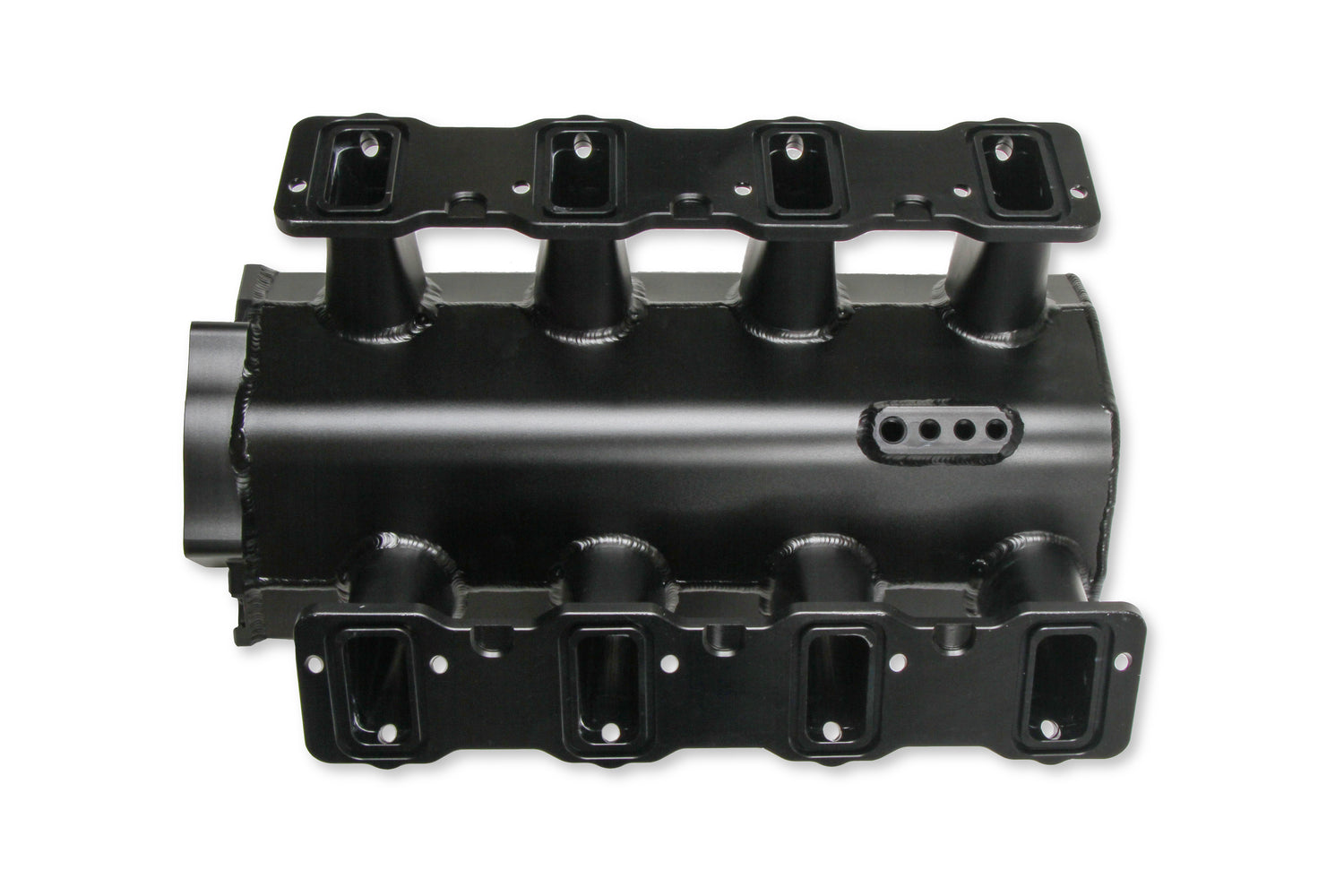

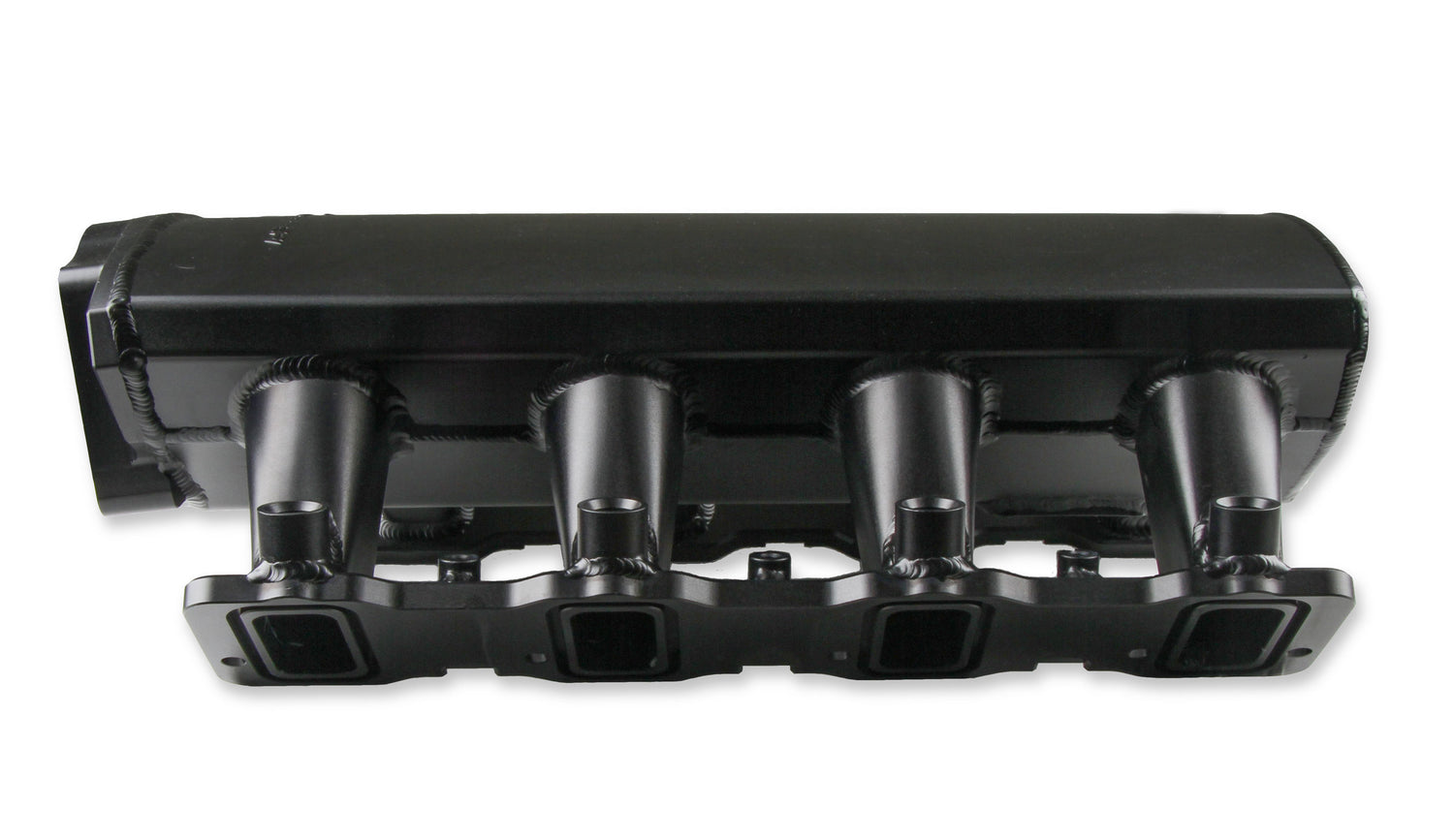

Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.

Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.

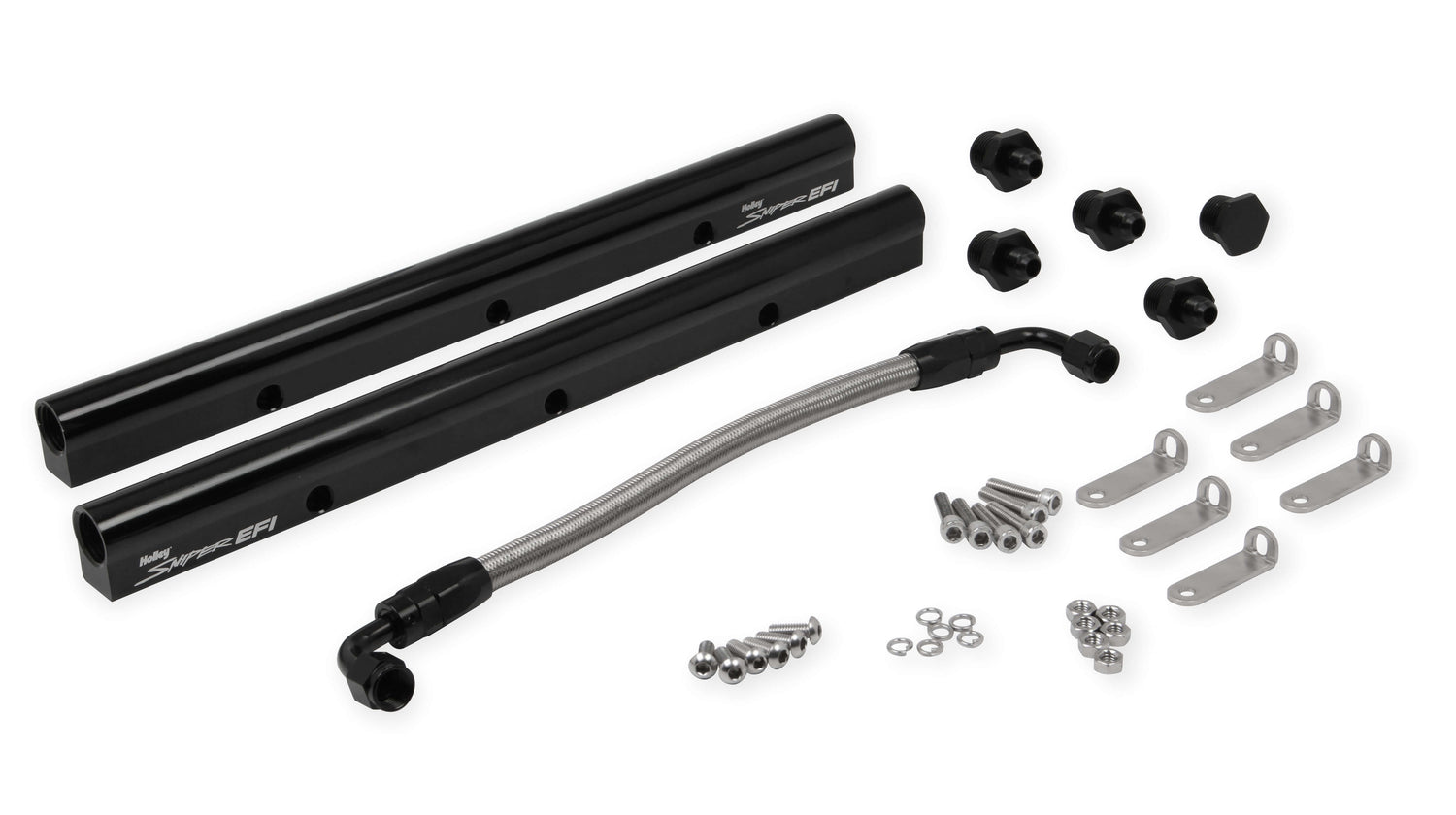

Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
100% TIG welded for strength and durability
Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
Provision for MAP sensor located on rear of plenum

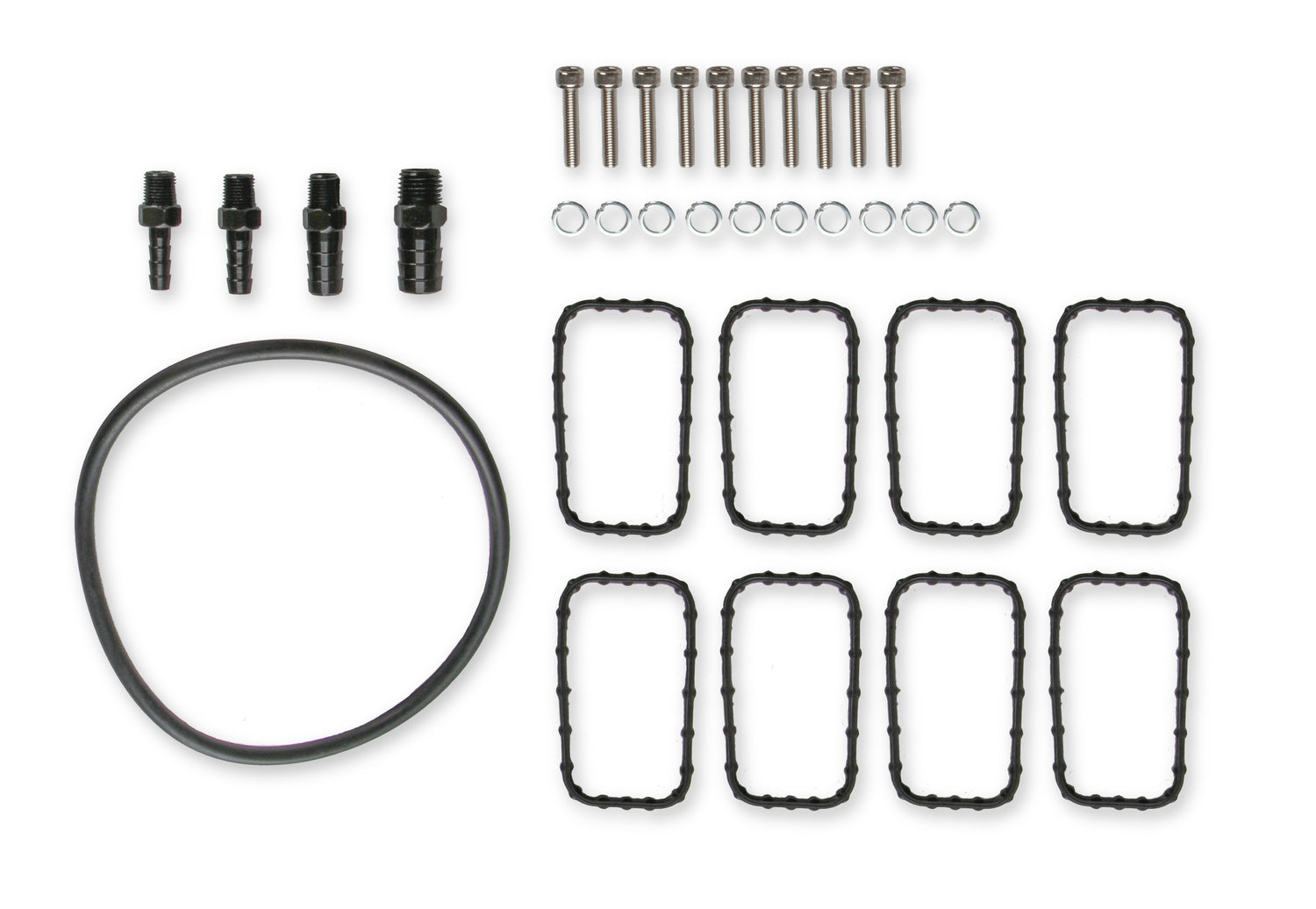

Product includes all gaskets and hardware for a hassle-free installation
3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

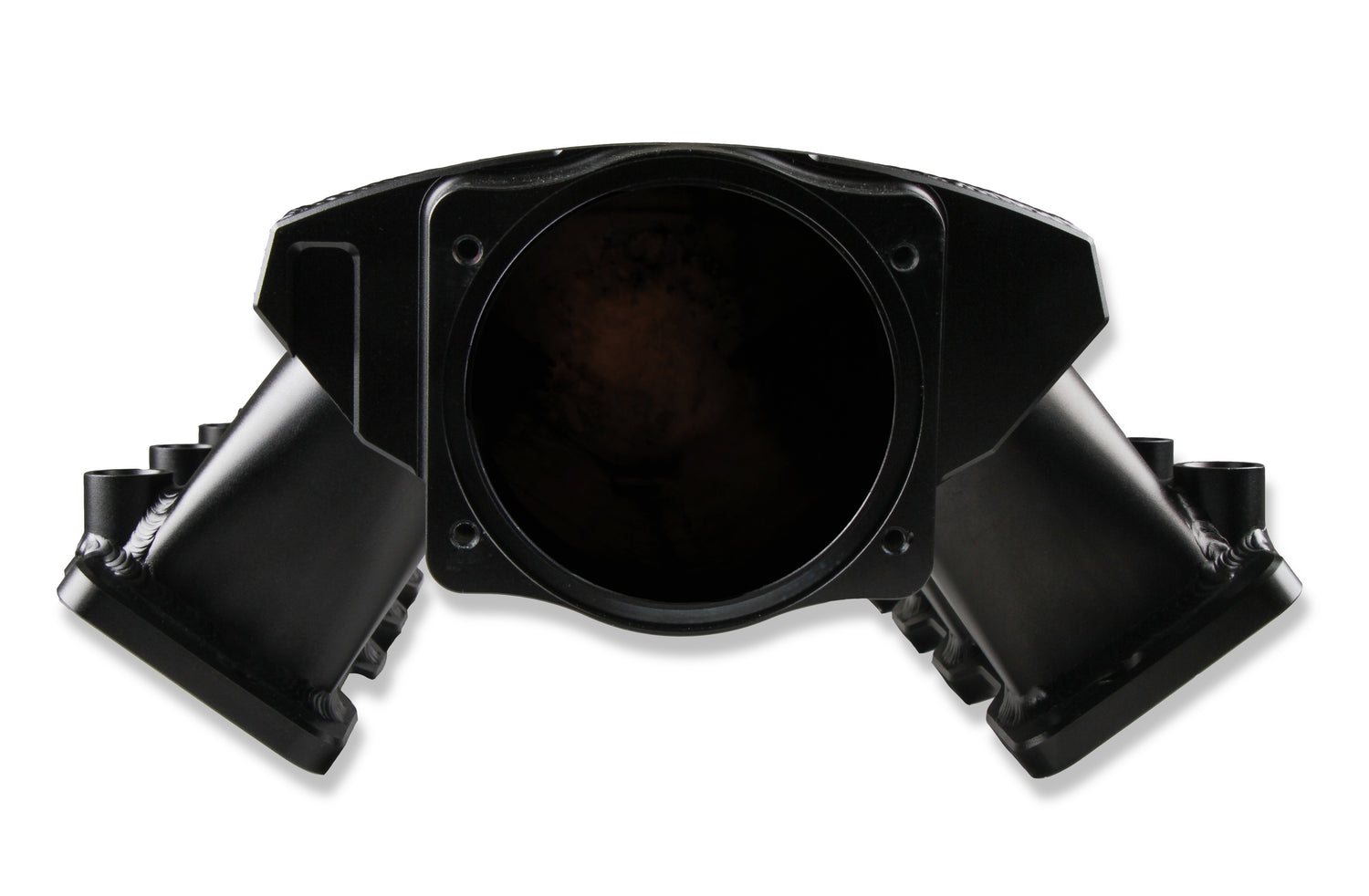

102mm throttle bore opening for increased air flow
The Sniper intake will only accept EV1 style injectors.
Black Finish creates stealthy under-hood styling
Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

Basic Operating RPM Range: 1800-7000

Brand: Holley Sniper EFI

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: No

Category: Engine

CNC Ported: No

Color: Black

Construction: Fabricated

Cylinder Head Port Shape: Rectangle

Deck Height: 9.24

EGR Port: No

Emission Code: 4

Engine: GM LS3/L92

Flange Style: N/A

Front Maximum Height: 6.077

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Gasket Or Seal Included: Yes

Grade Type: Performance

Injector Style Provision: EV1

Intake Port Gasket(s) Included: Yes

Material: Aluminum

Nitrous Bung(s) Included: No

part type: Engine Intake Manifold

Plenum Finish: Black

Product Type: Intake Manifold

Rear Maximum Height: 5.29

Removable Runners: No

Removable Top/Lid: No

Runner Length: 4.252" (108mm)

Single Or Dual Plane Type: Single

Style: EFI

Sub Category: Cylinder Block Components

Throttle Body Bore Diameter: 102

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Throttle Bore: 102mm

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT

Warning: California Proposition 65

Warranty: Manufacturer's Limited 90 Day Warranty
