Sniper 822031-1 - EFI LS3/L92 FABR. IM, EFI, 92MM
Sniper | SKU:
SNIP-822031-1
Sale price
$68495
Regular price
$90695
Unit price
/
Unavailable
$222.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Sniper 822031-1 - EFI LS3/L92 FABR. IM, EFI, 92MM

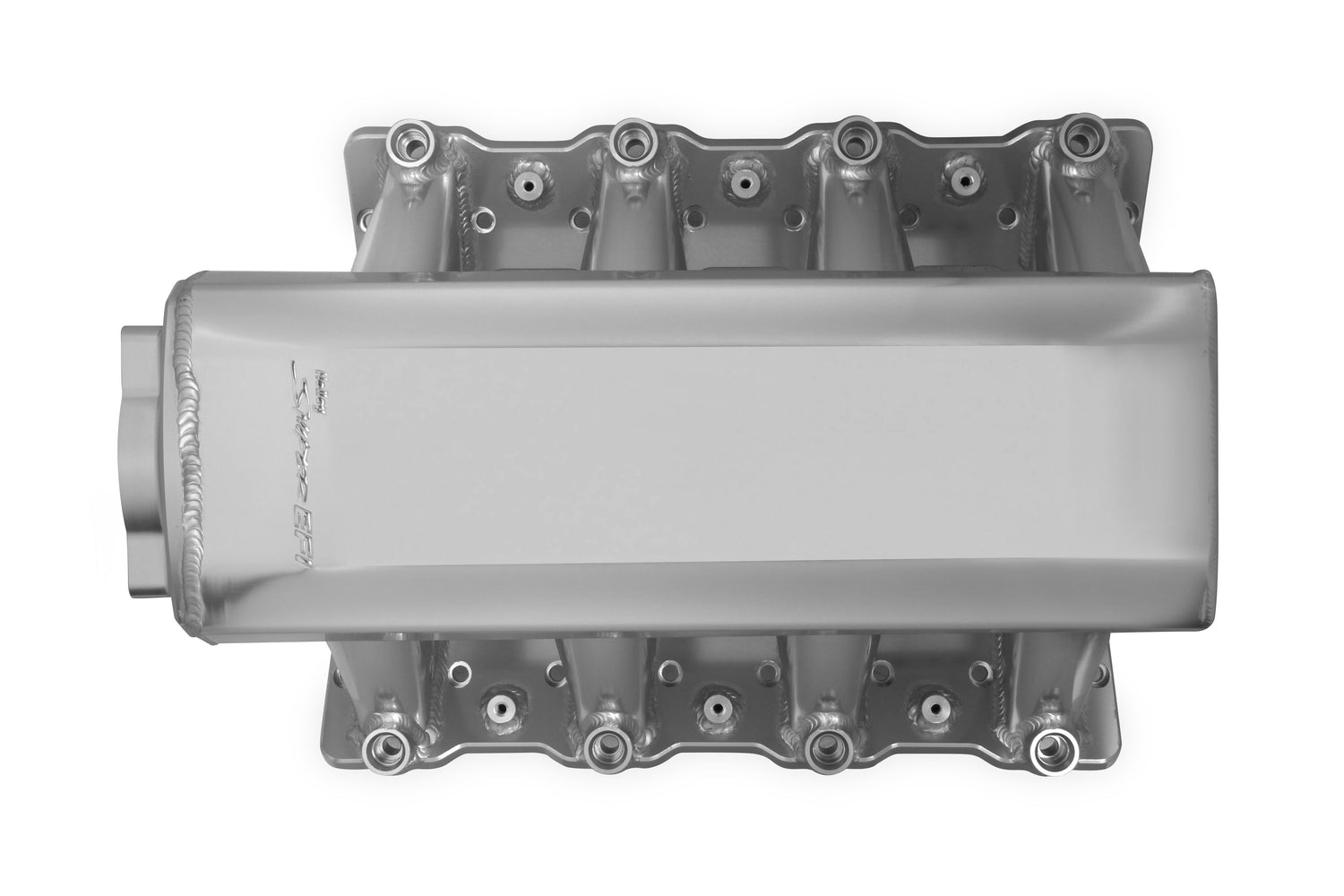

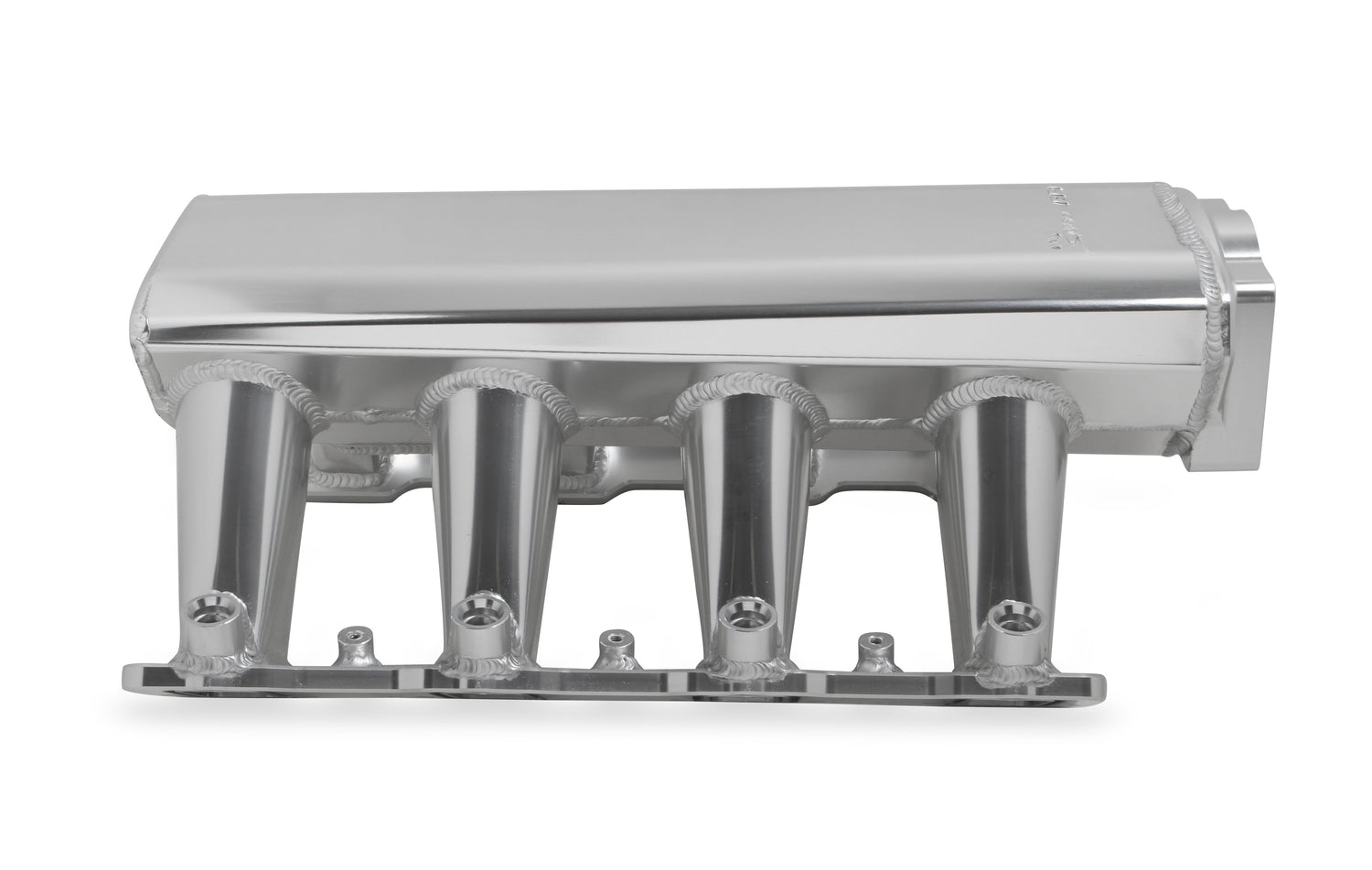

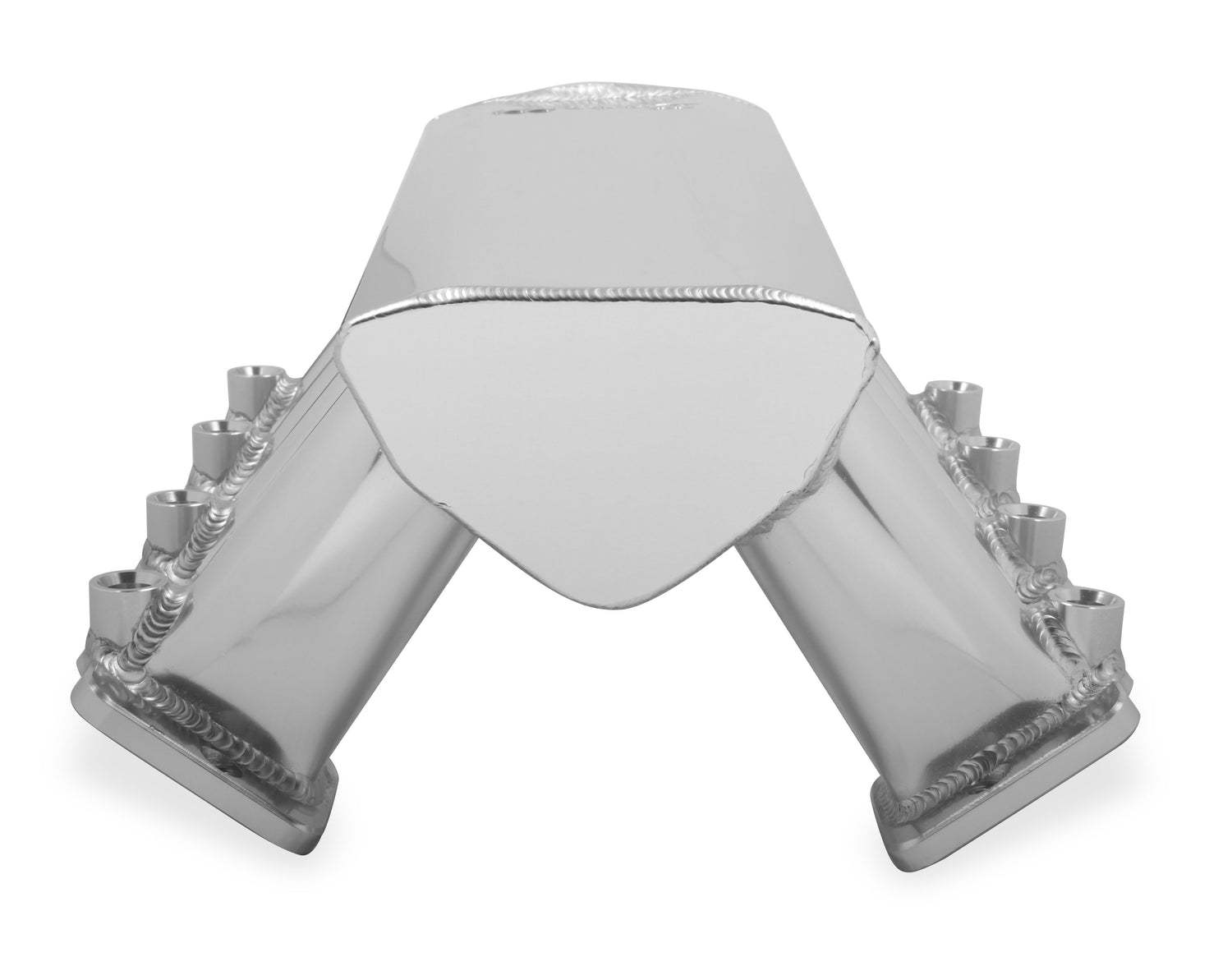

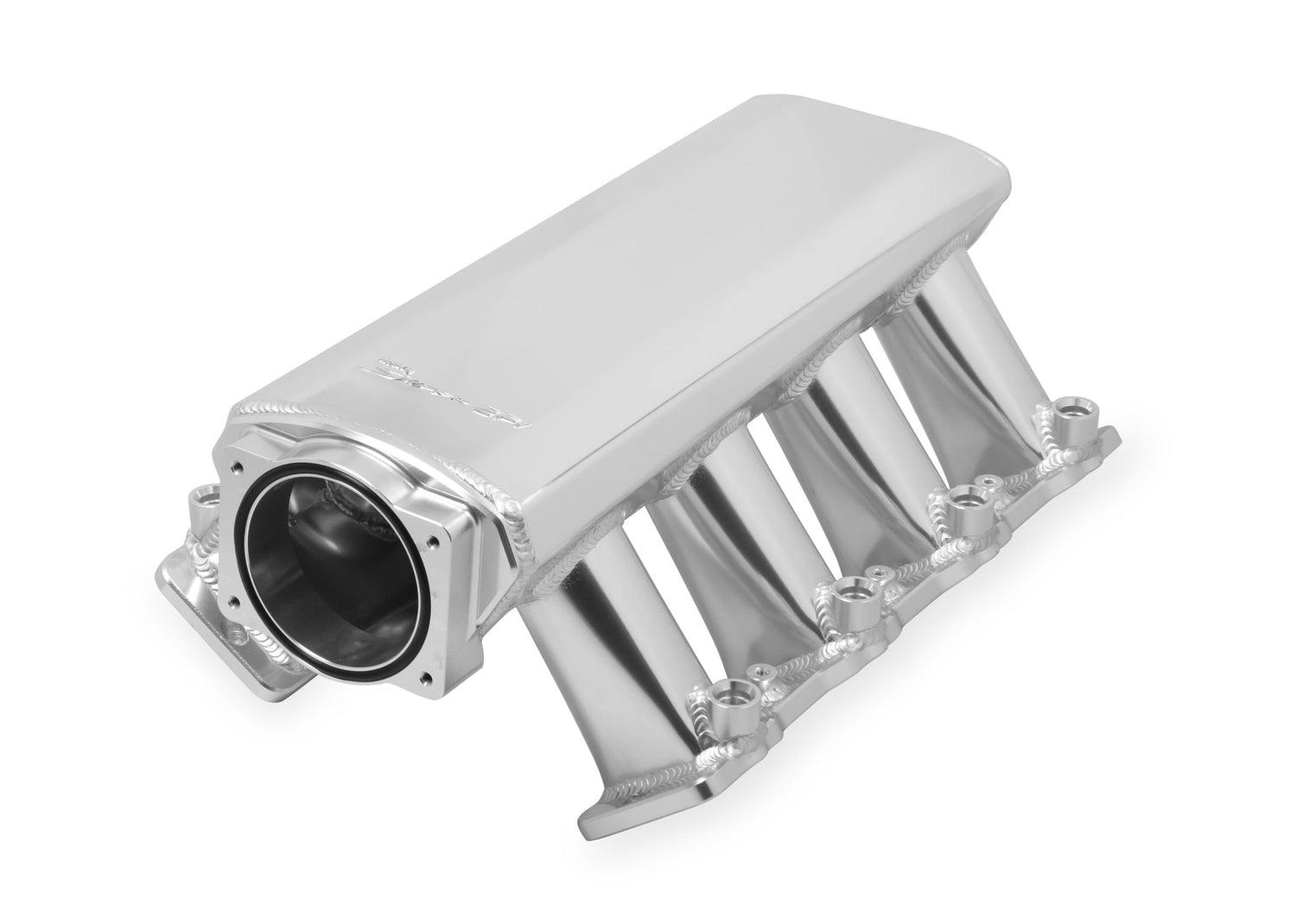

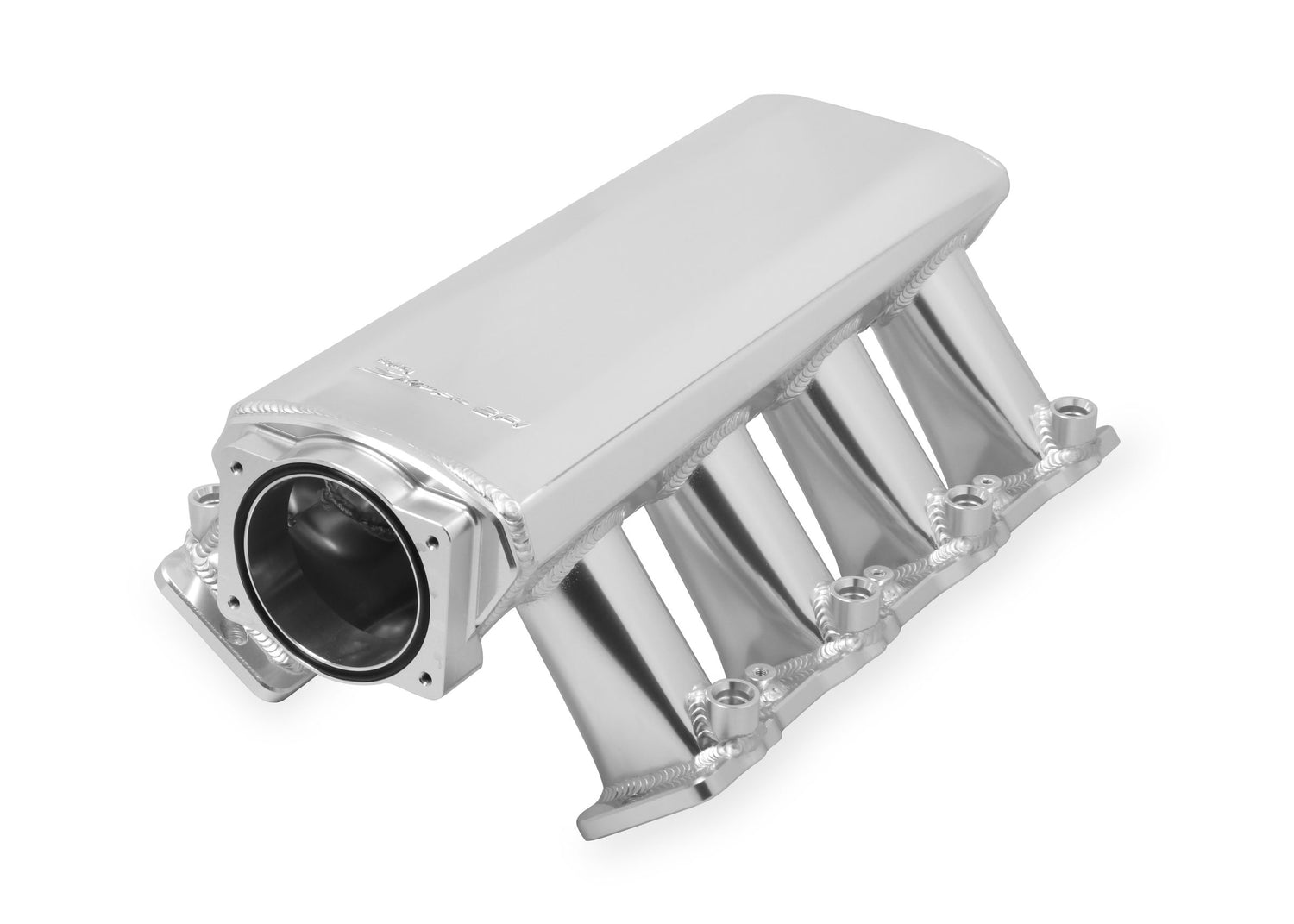

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
- 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes
- The Sniper intake will only accept EV1 style injectors.
- Provision for MAP sensor located on rear of plenum
- Available in 92mm and 102mm bore Throttle Body Openings

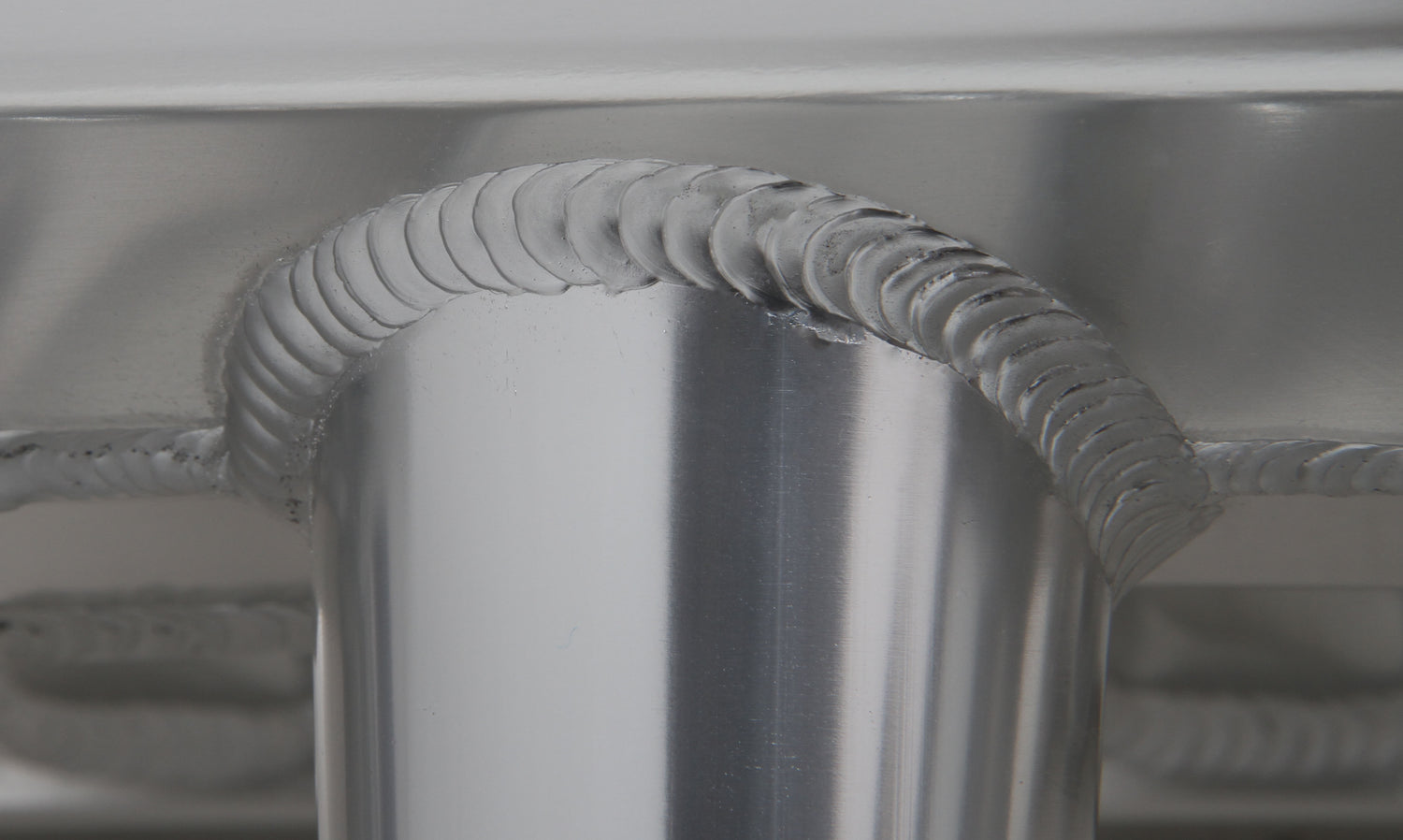

- 100% TIG welded
- EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved)
- Available for EFI and Carbureted applications with custom Holley Sniper logo

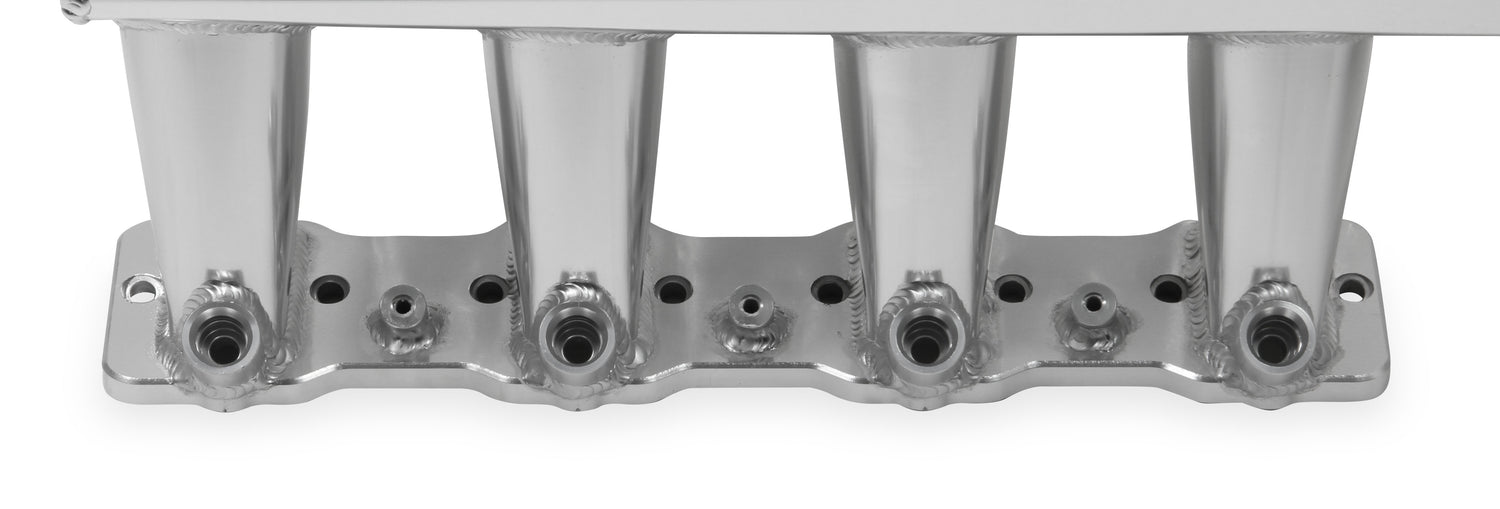

- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
Basic Operating RPM Range: 2500-7000
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Silver
Construction: Fabricated

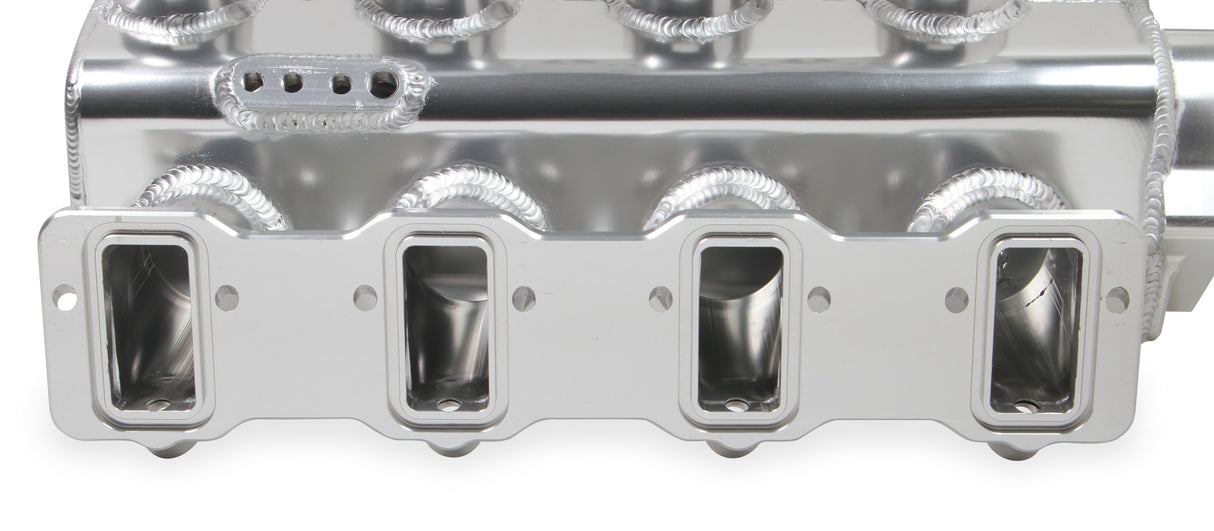

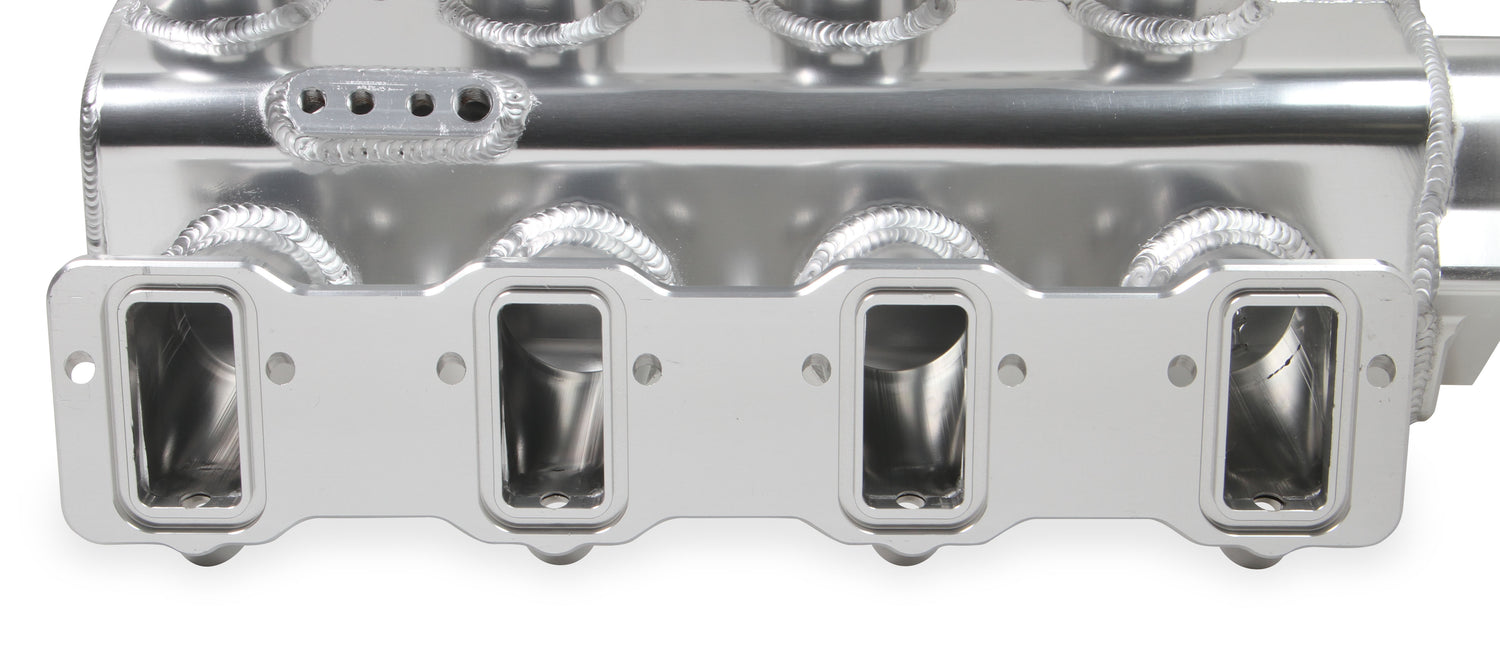

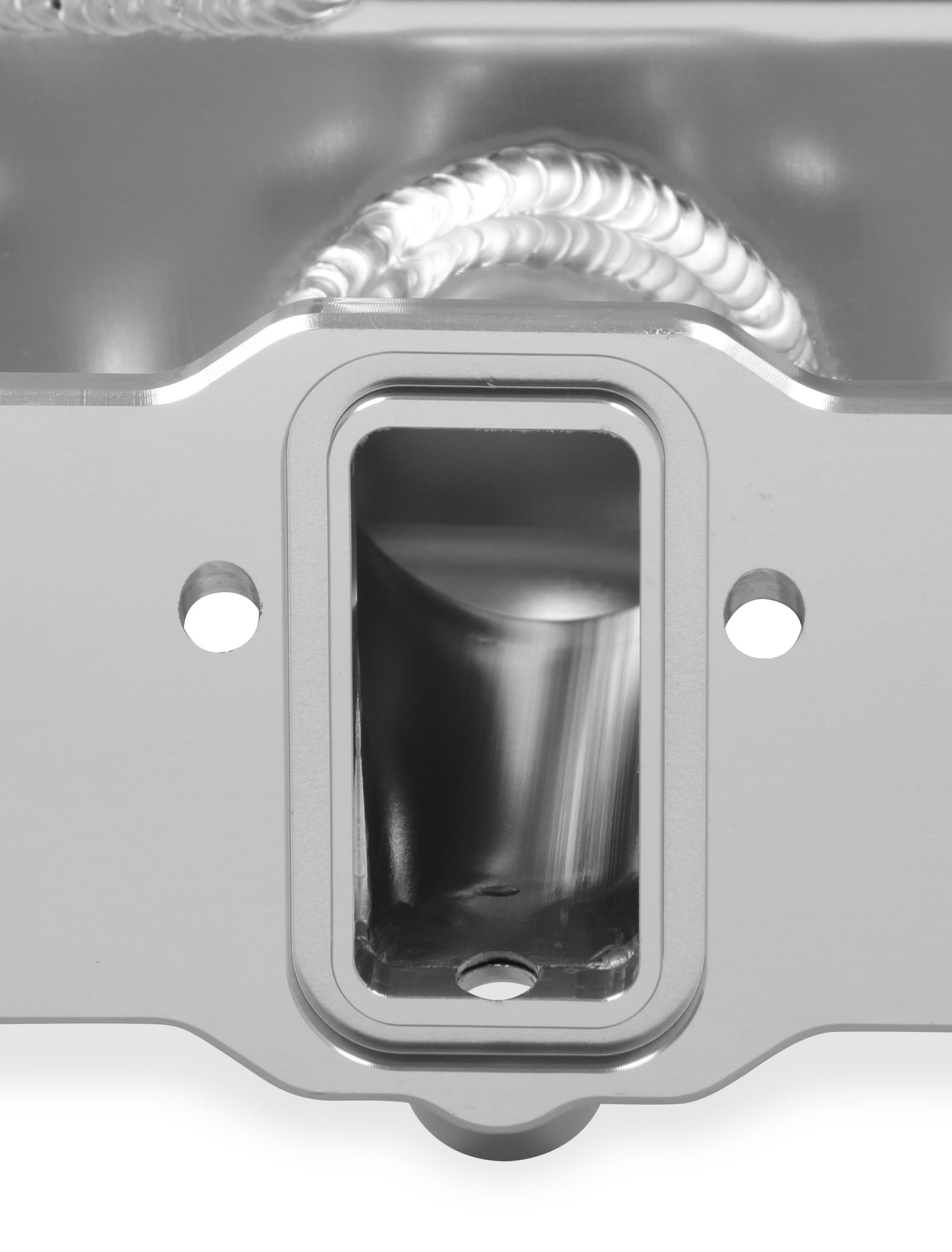

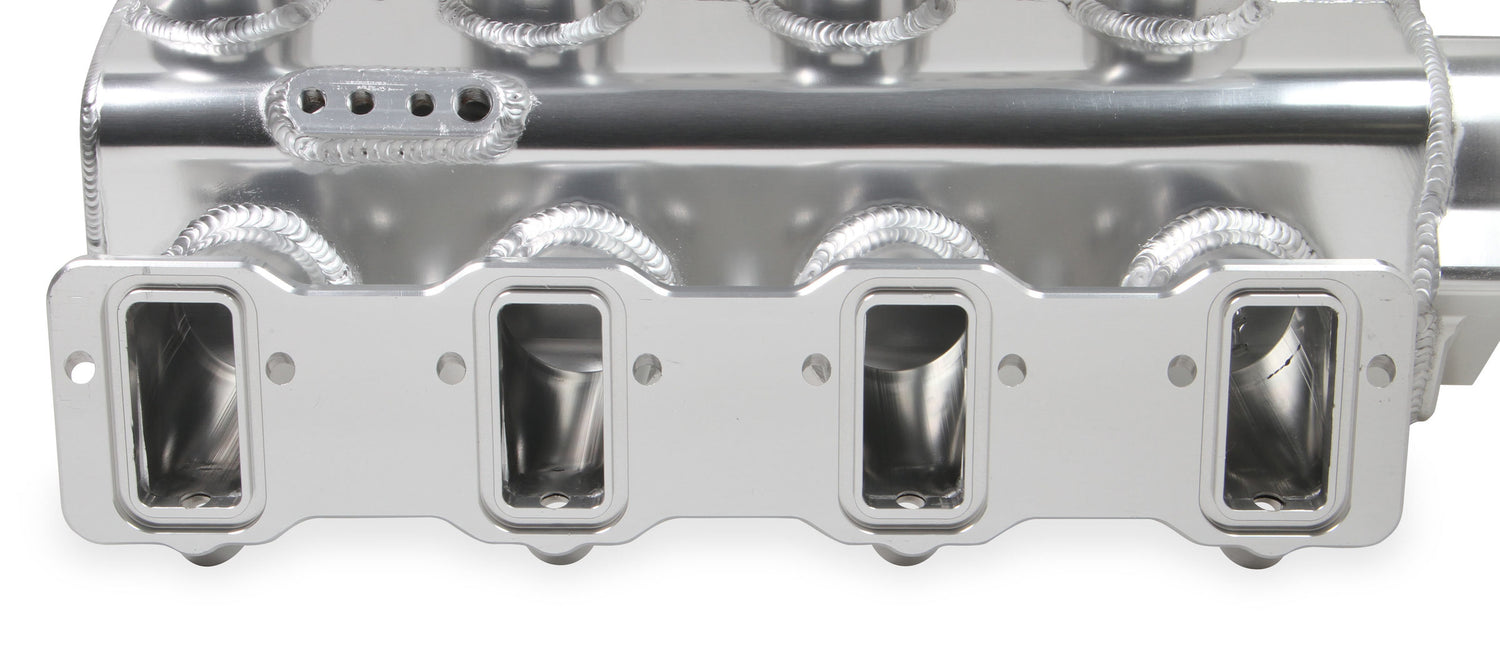

Cylinder Head Port Shape: Rectangle
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS3/L92
Flange Style: N/A
Front Maximum Height: 7.952
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI

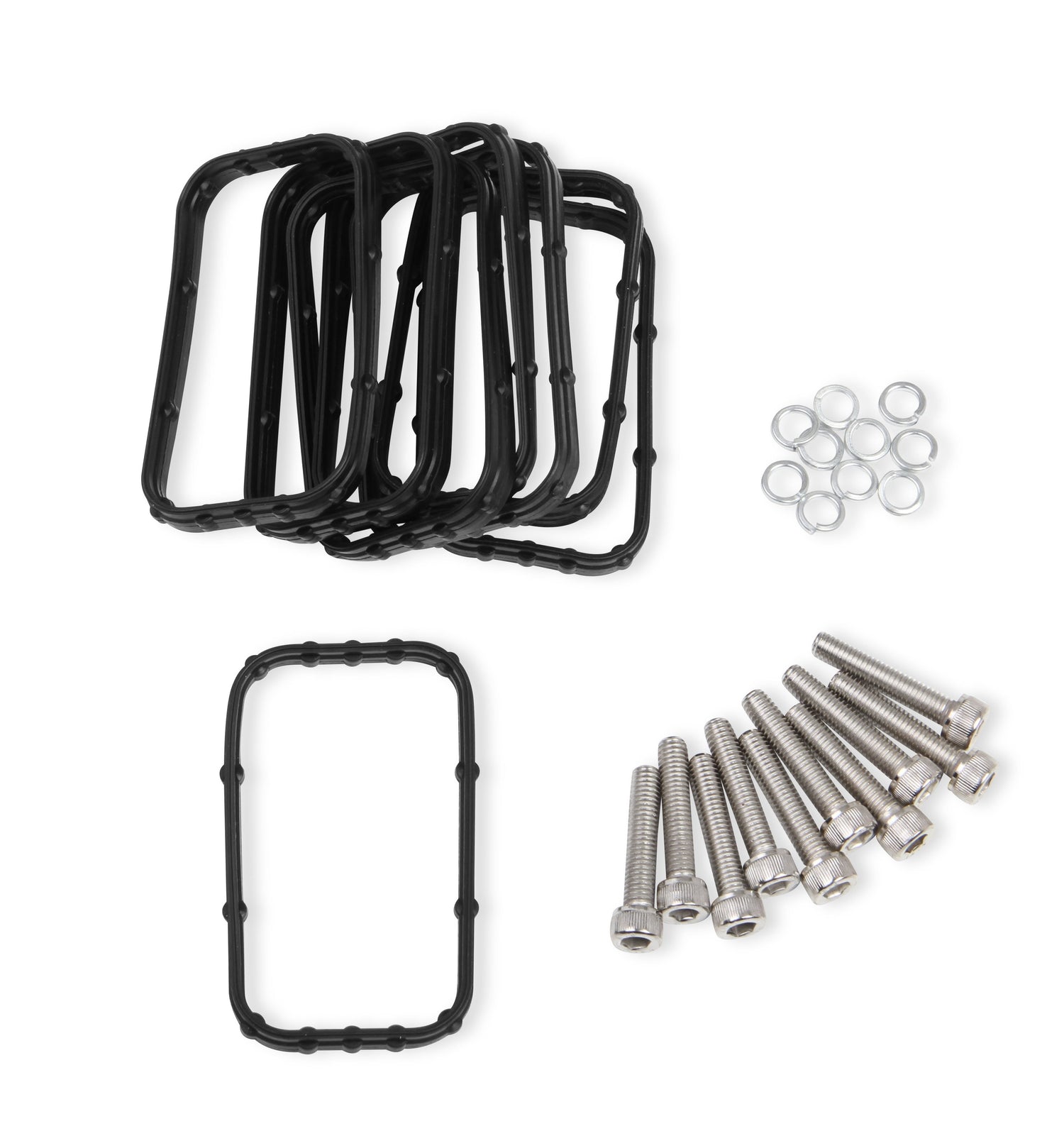

Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Silver
Product Type: Intake Manifold
Rear Maximum Height: 7.165
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 5.512" (140mm)
Single Or Dual Plane Type: Single
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 92
Throttle Body Gasket Included: Yes
Throttle Body Included: No

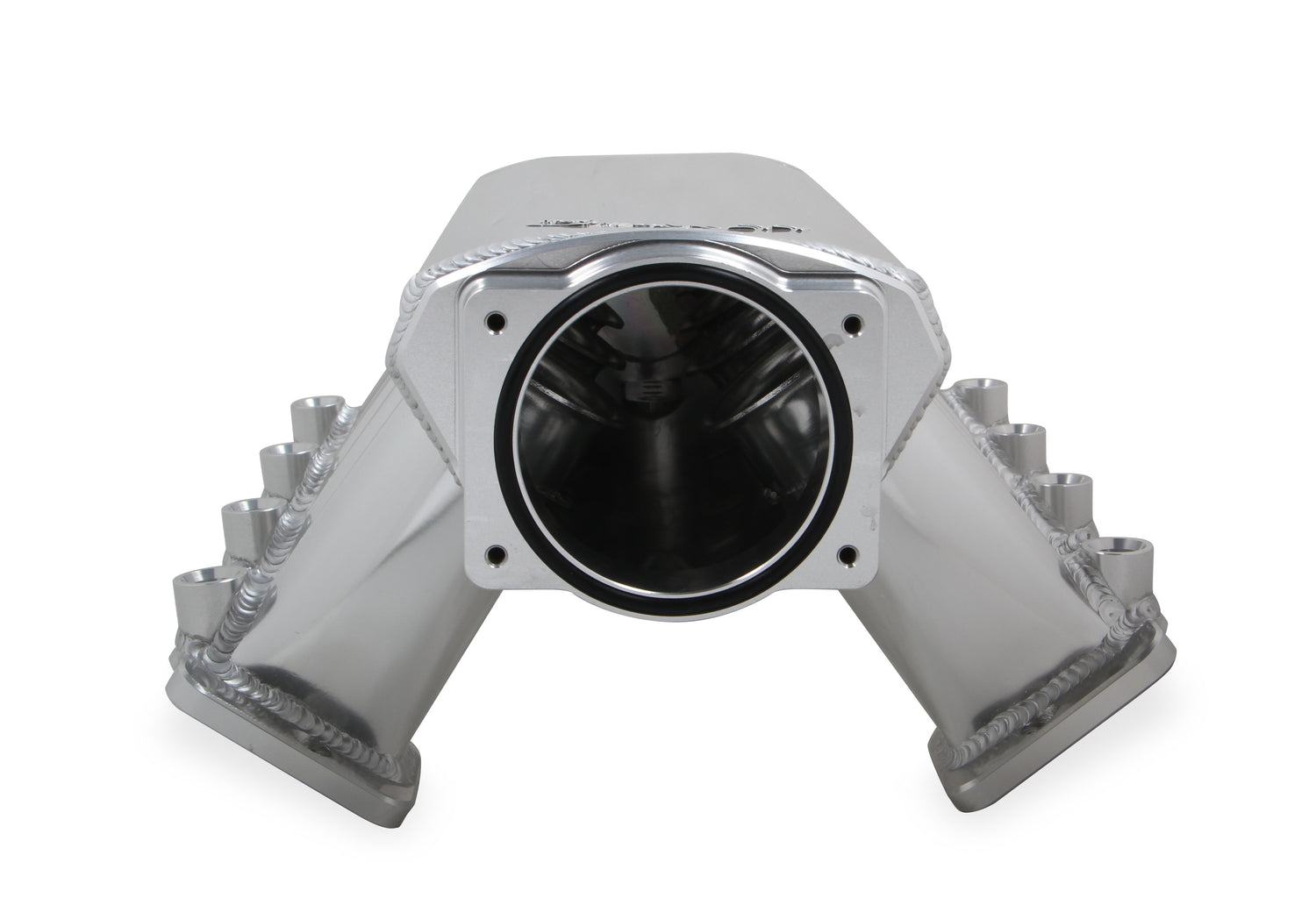

Throttle Bore: 92mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
