Sniper 820242 - EFI LS1/2/6 HI-RAM IM, EFI,102MM
Sniper | SKU:
SNIP-820242
Sale price
$1,59995
Regular price
$1,79995
Unit price
/
Unavailable
$200.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Sniper 820242 - EFI LS1/2/6 HI-RAM IM, EFI,102MM

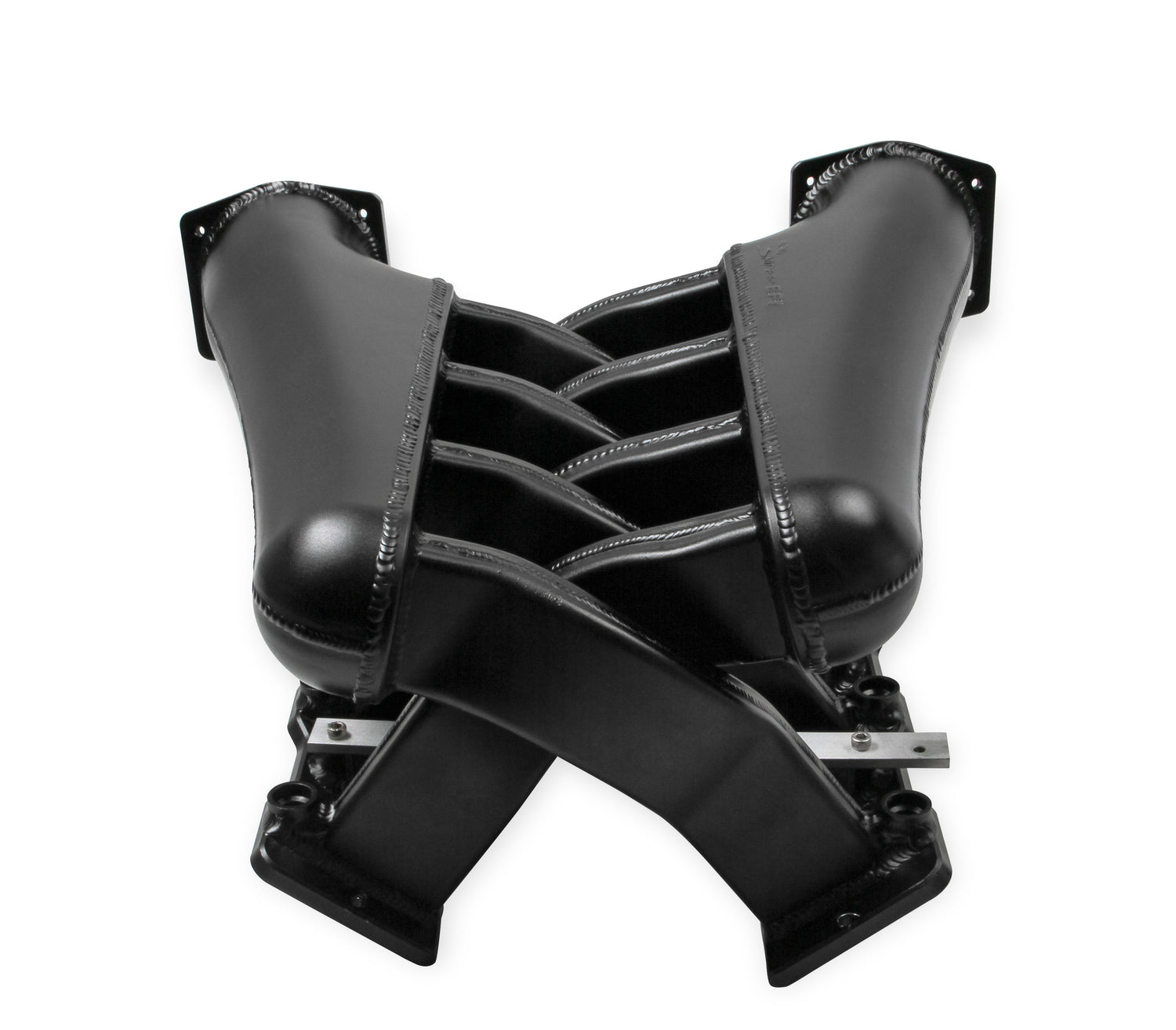

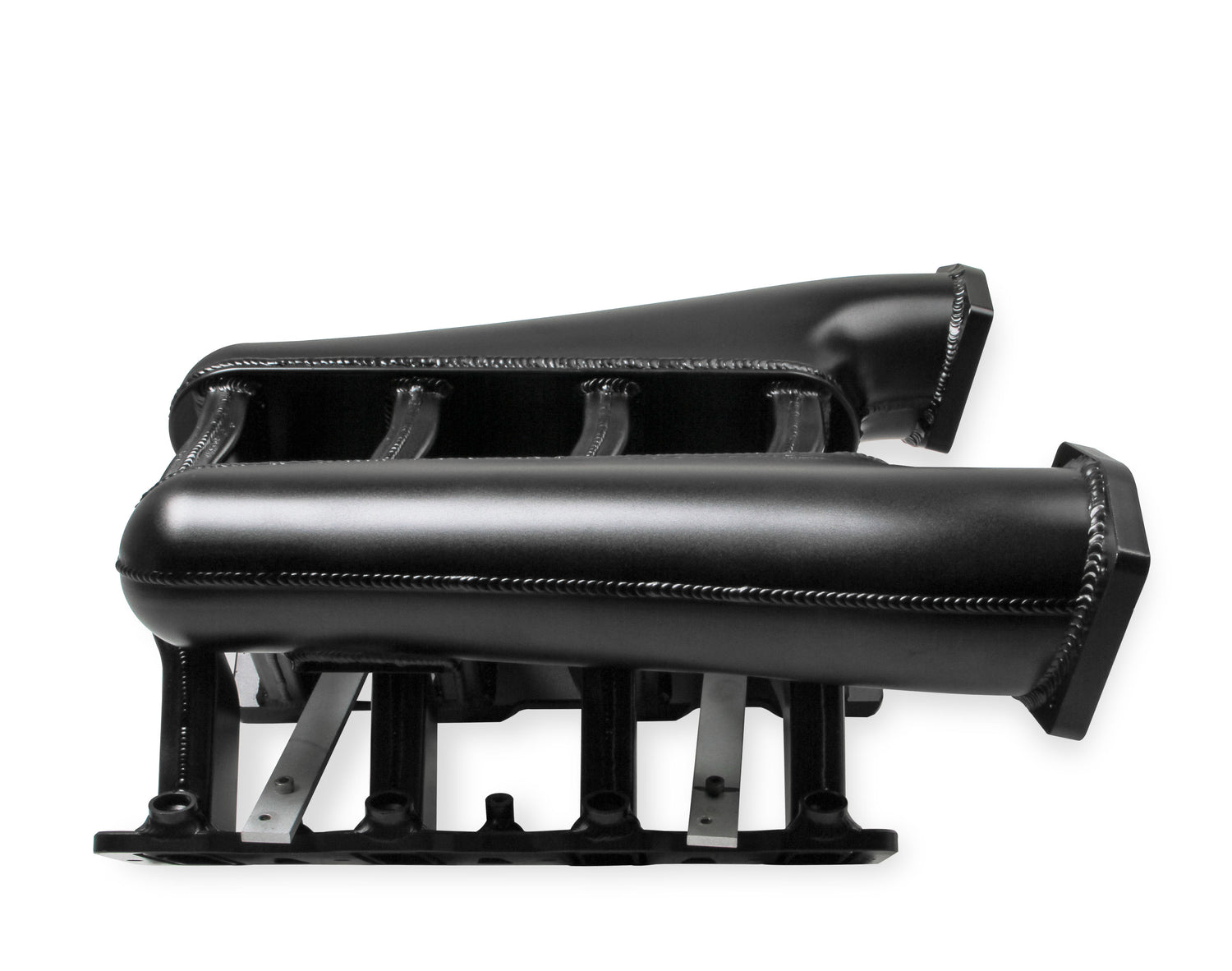

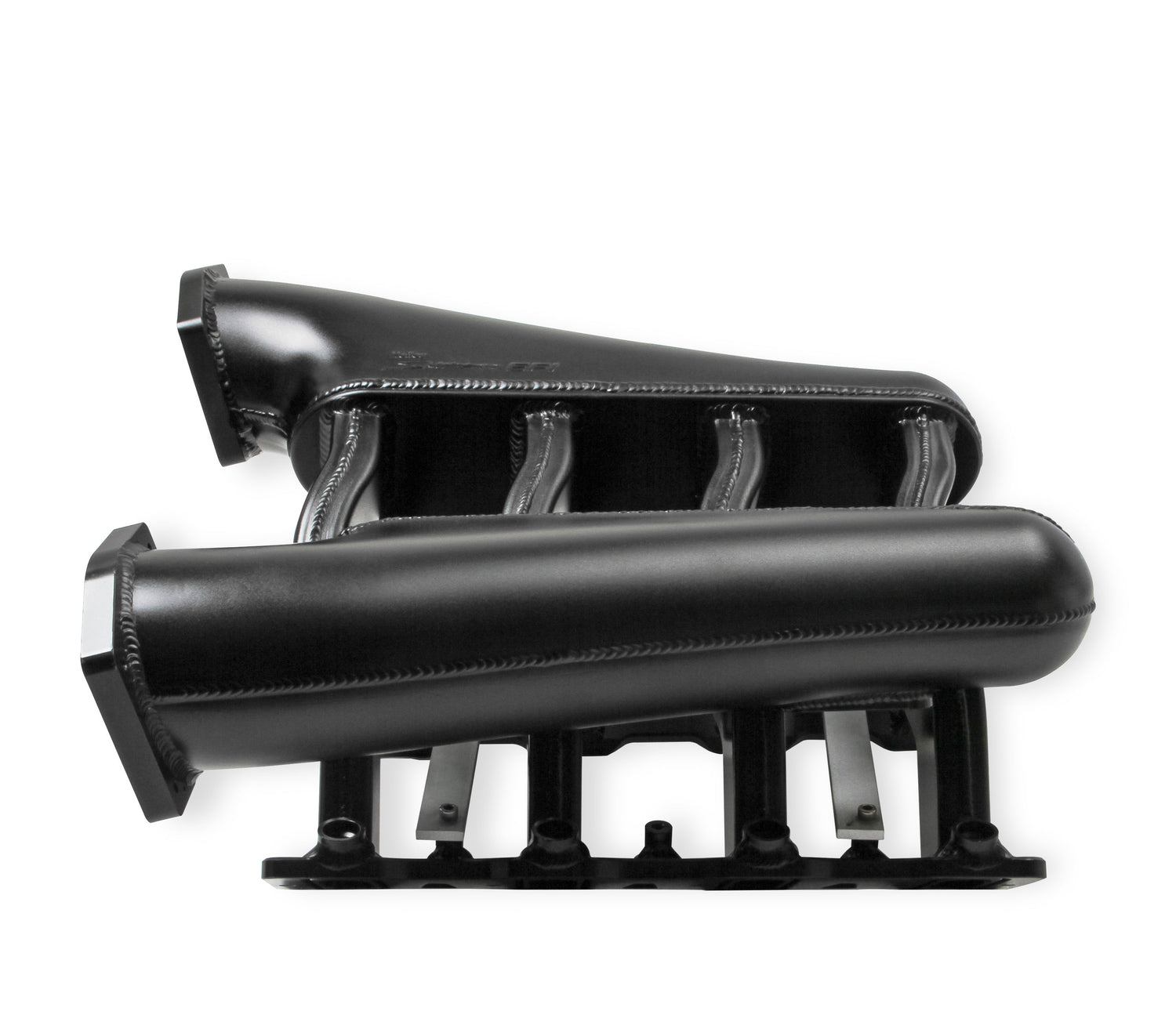

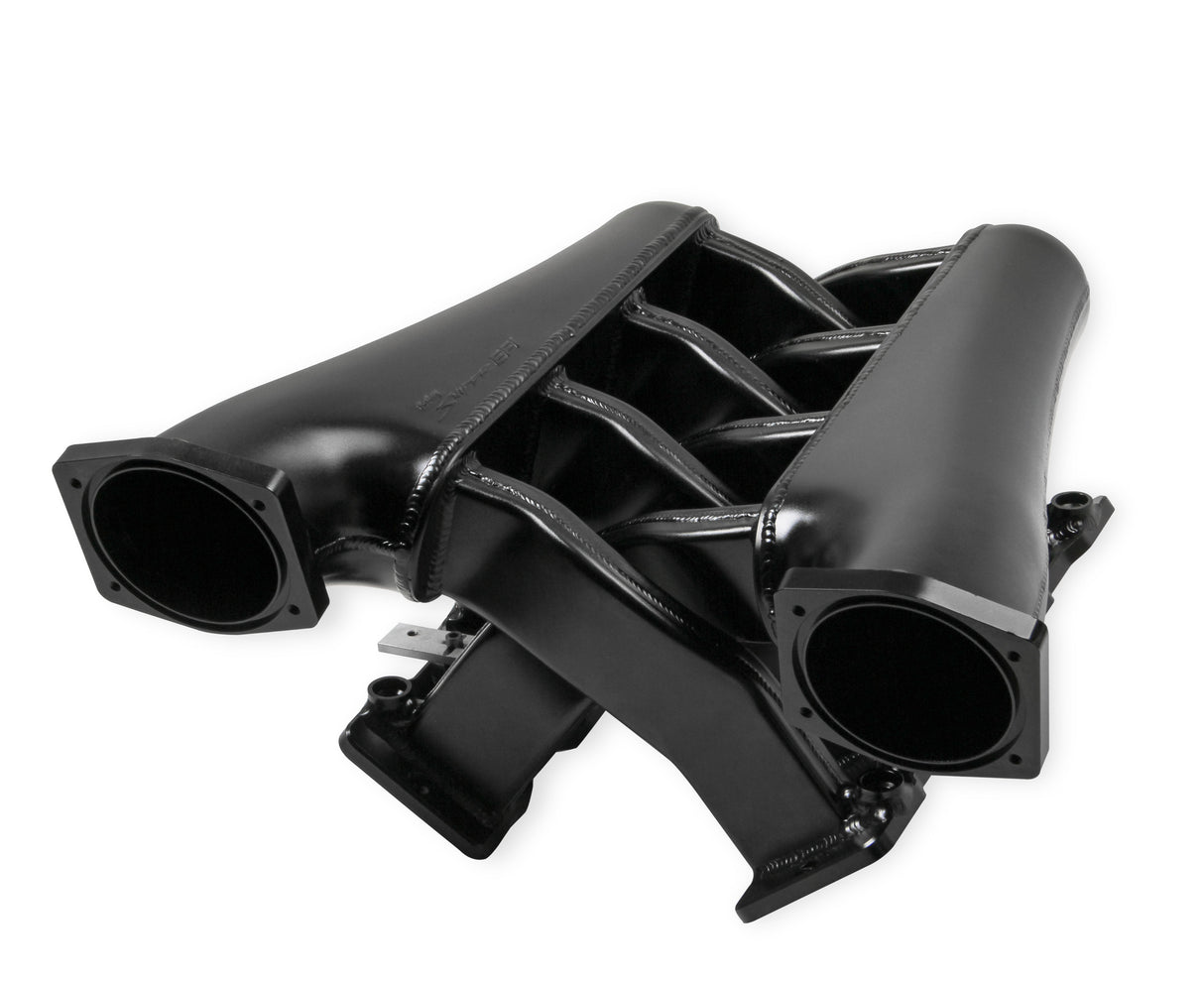

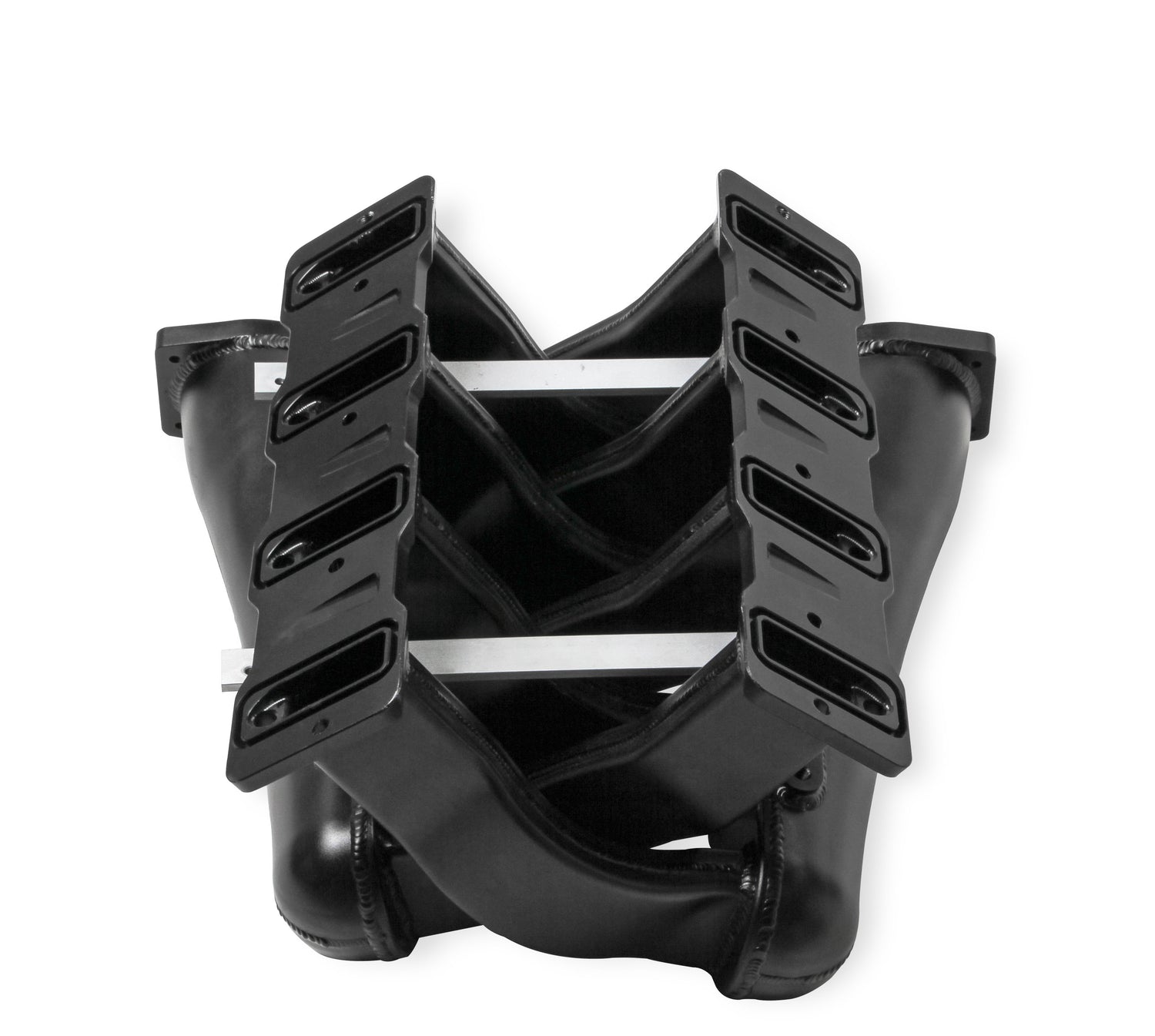

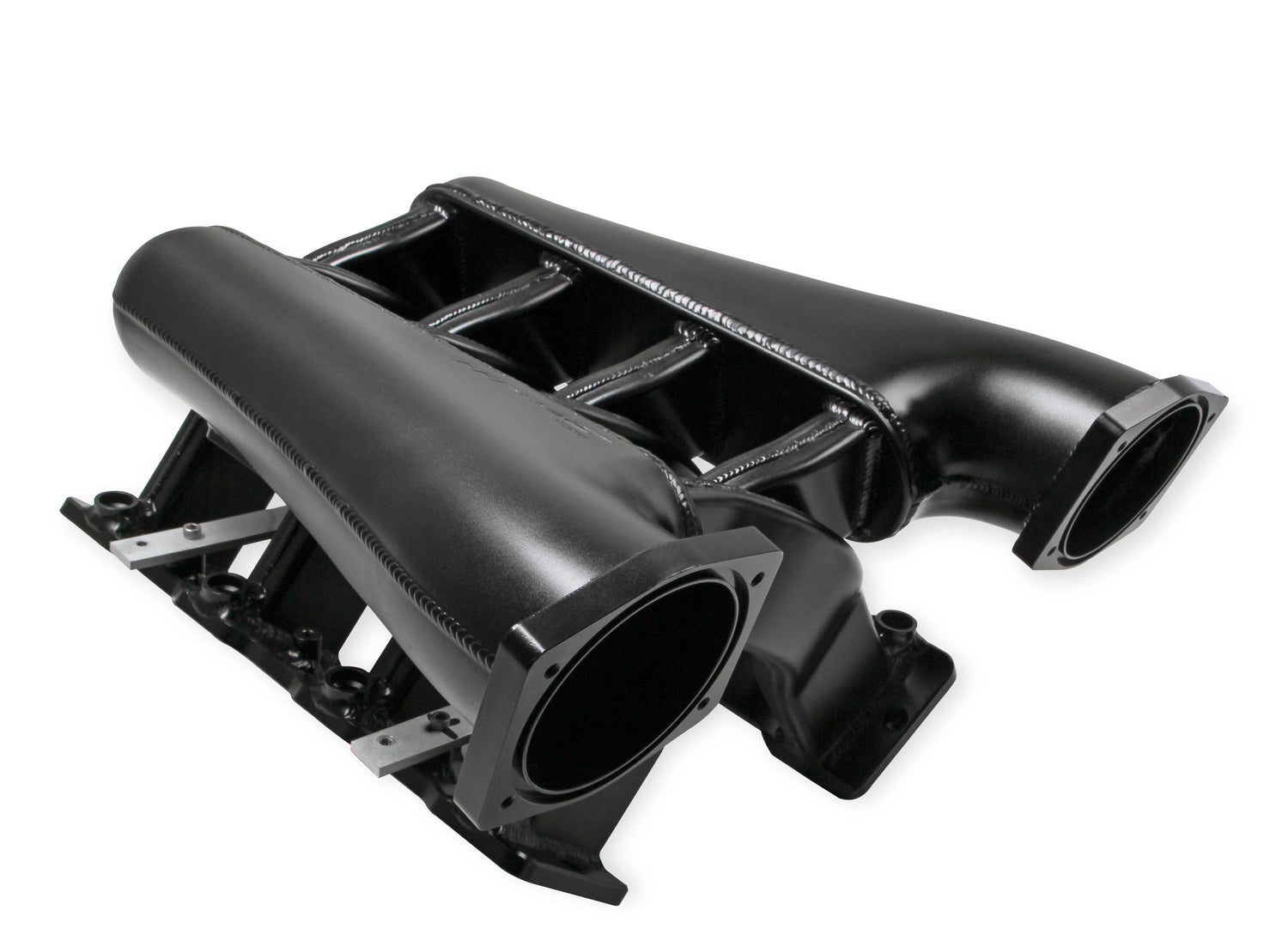

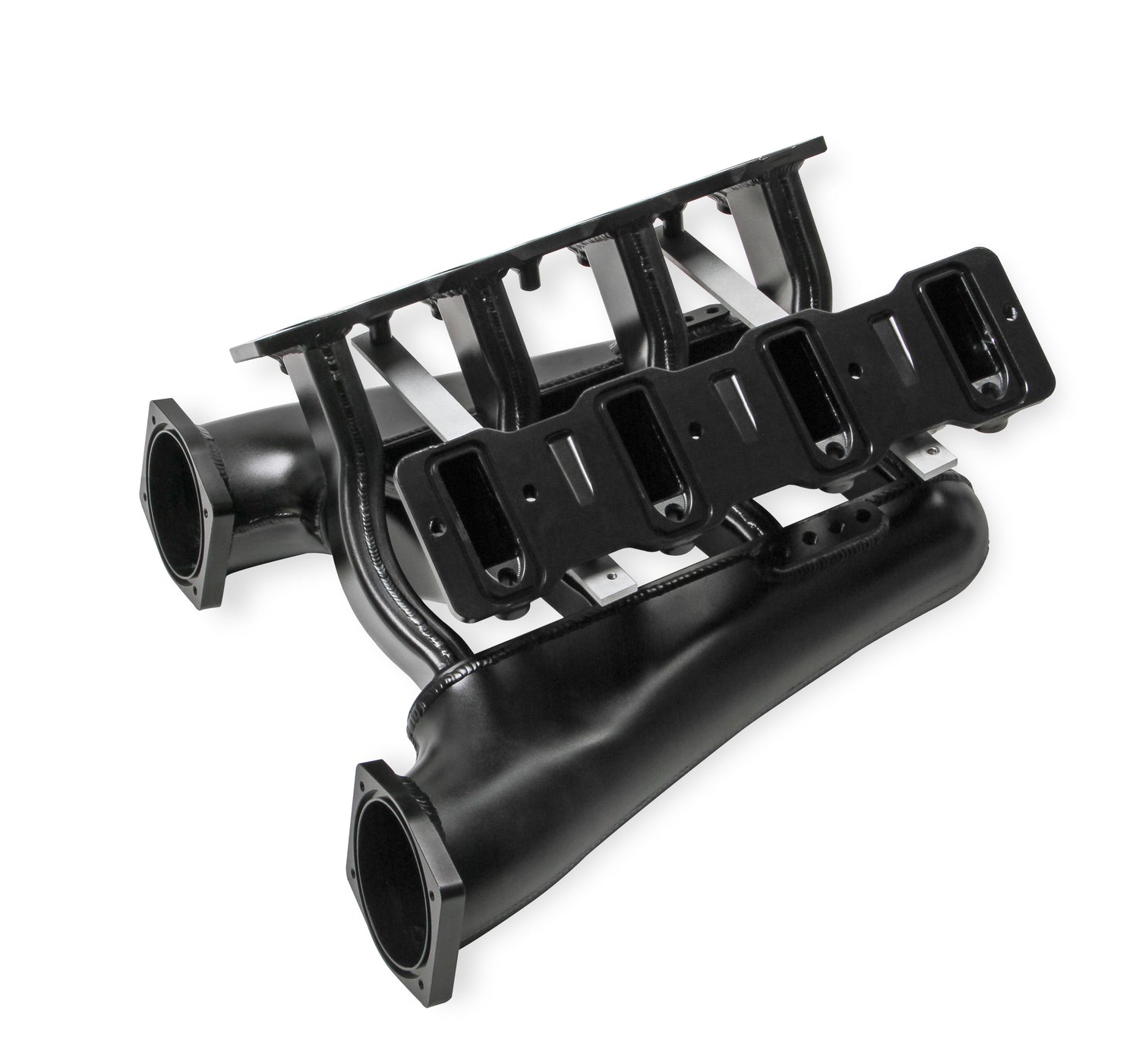

Sniper EFI Fabricated Intake Manifold Dual Plenum 102mm LS1/2/6, Rail Kit - Blk

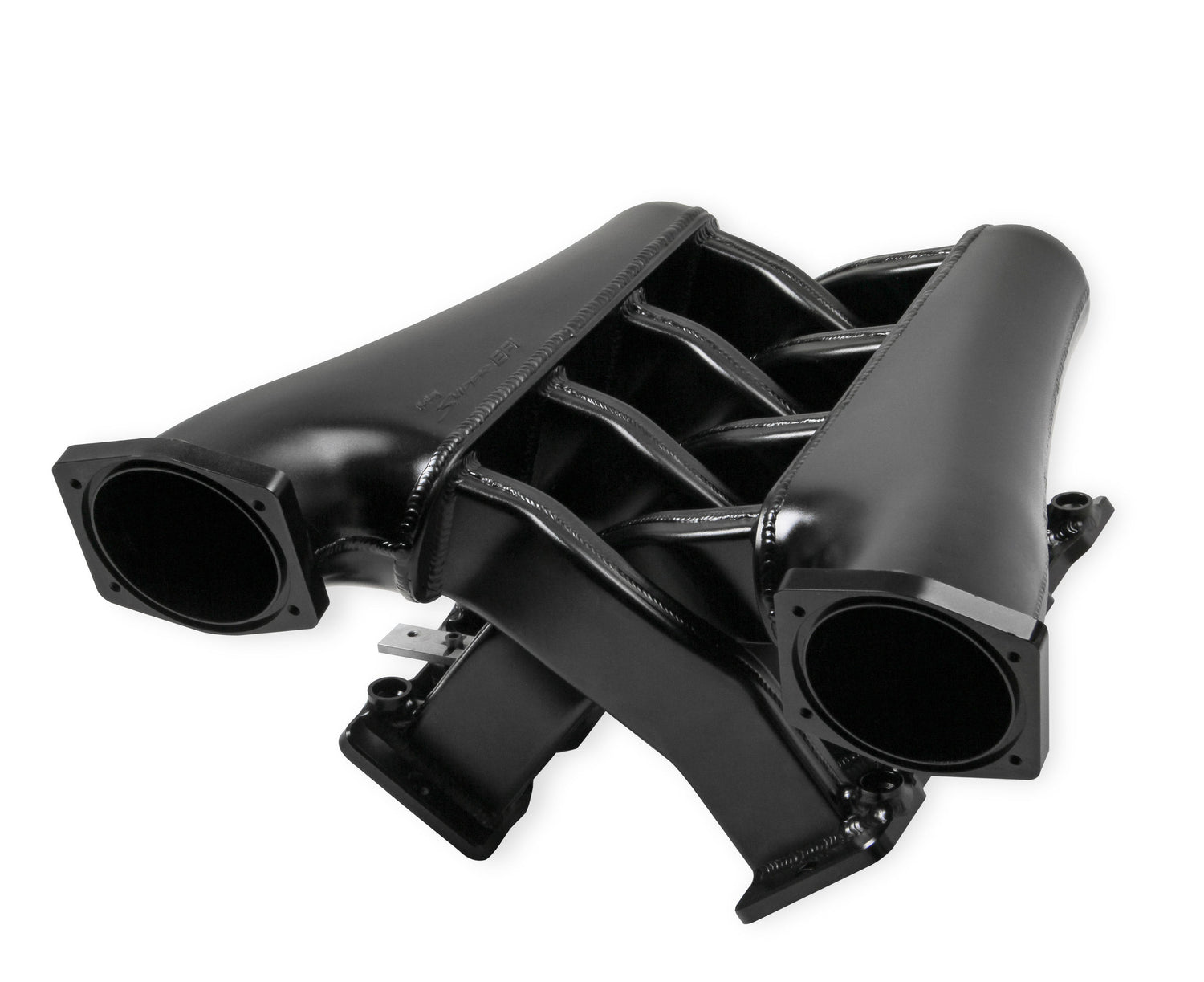

Sniper EFI "Dual Plenum" Intake Manifold 102mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Black Finish
Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake.

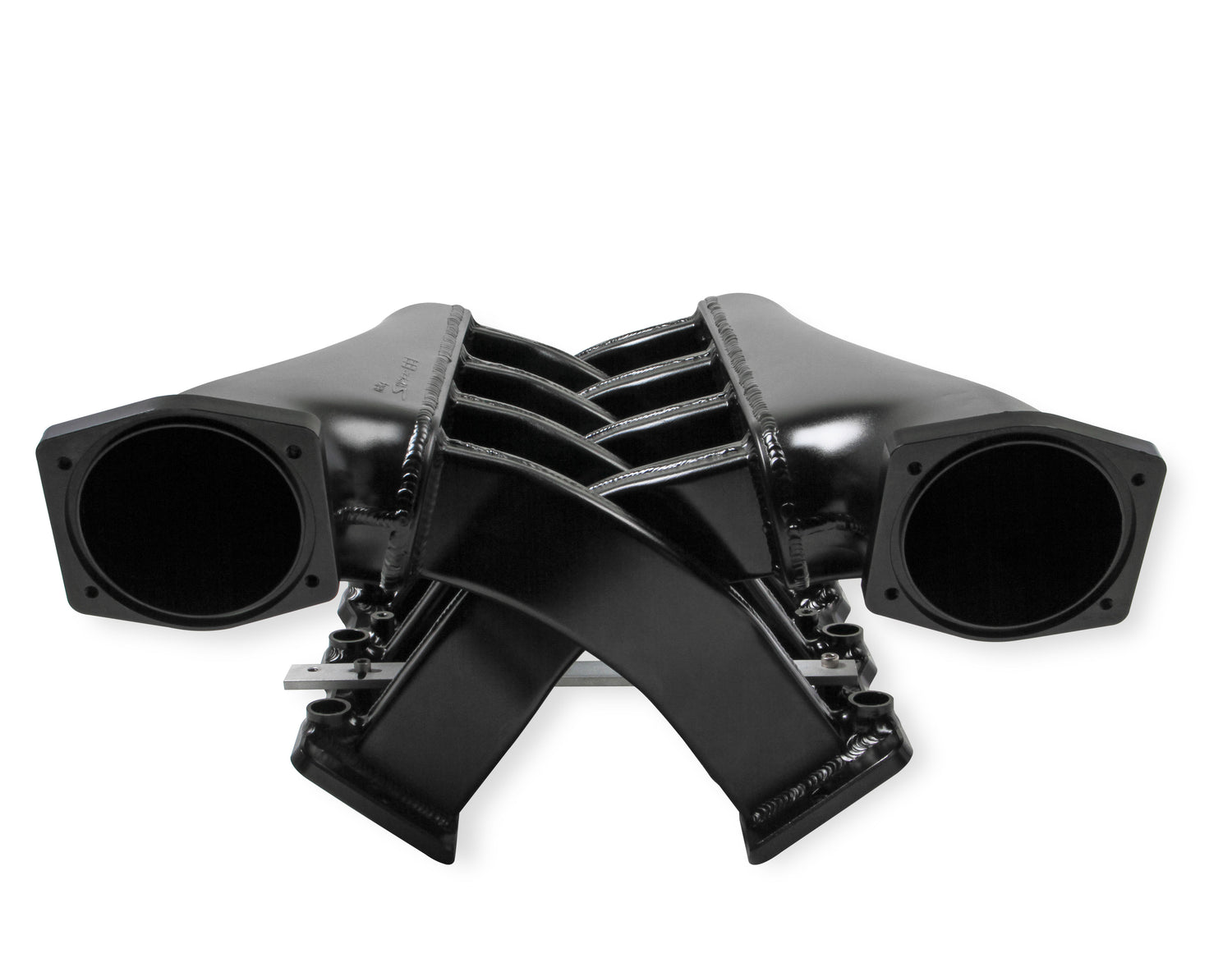

- Twin 102mm throttle bore openings for increased air flow
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- Black Finish creates stealthy under-hood styling
- Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Dual plenum design ideal for street max effort engines and boosted applications

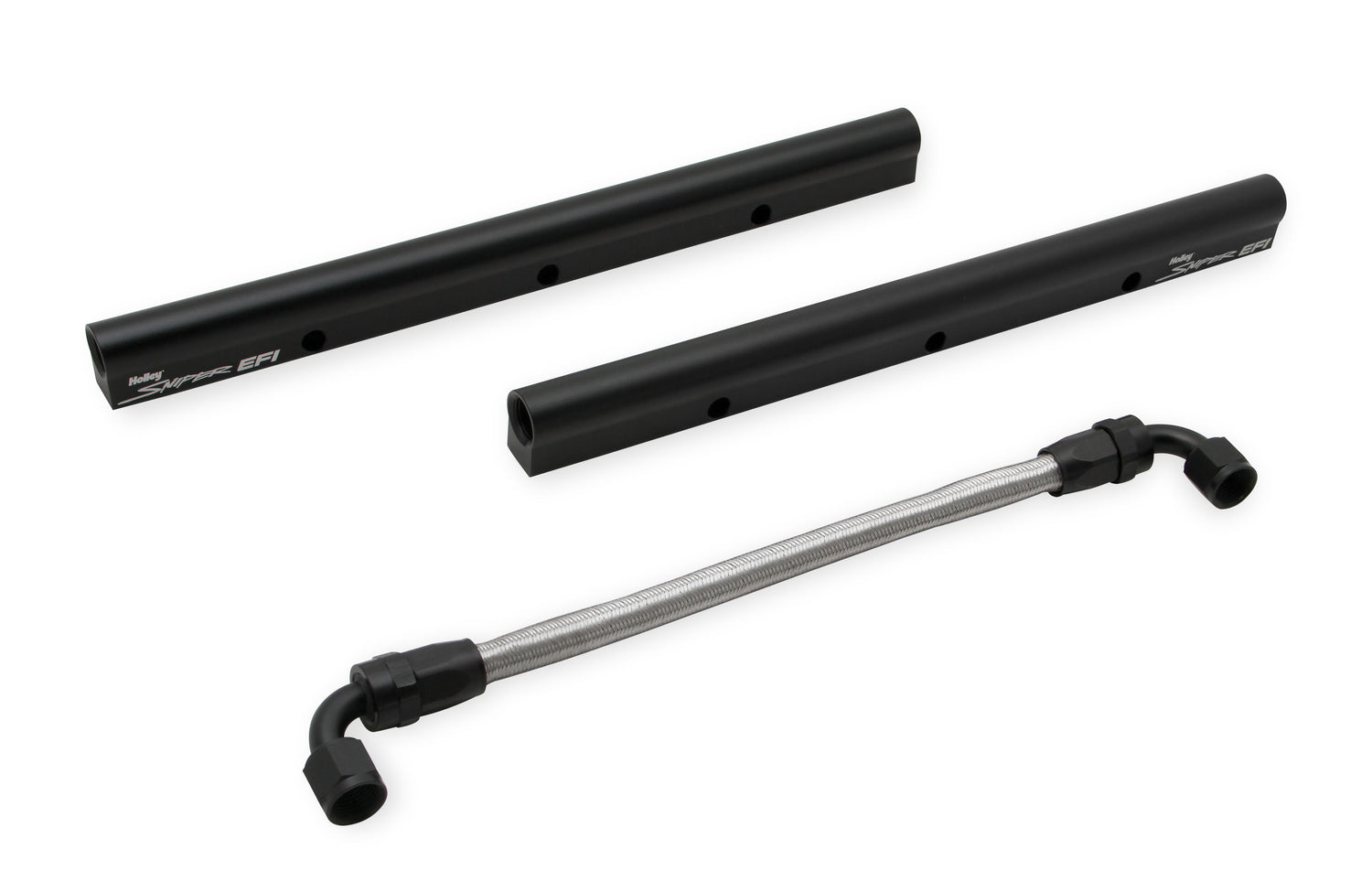

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM

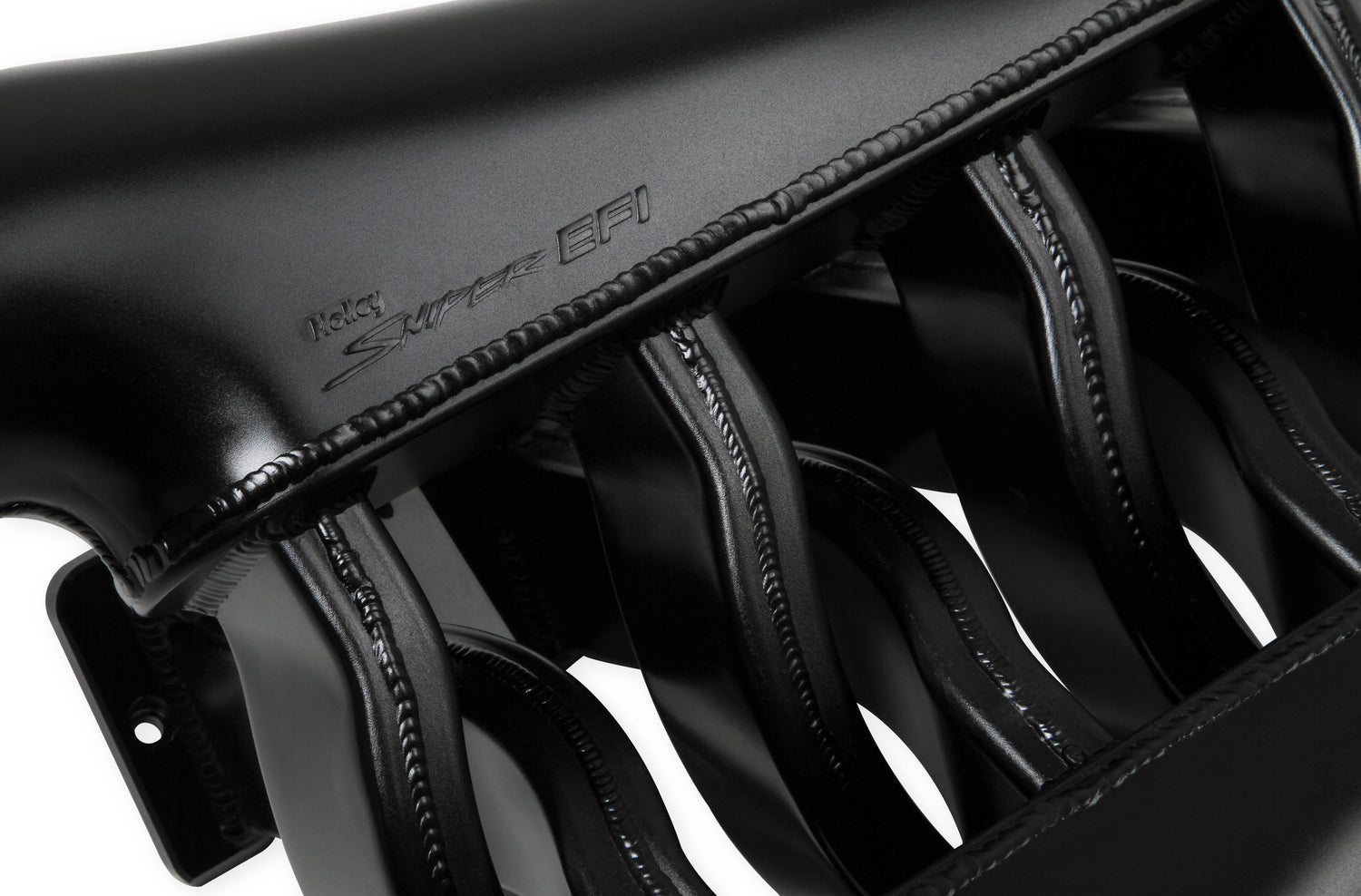

- 100% TIG welded for strength and durability

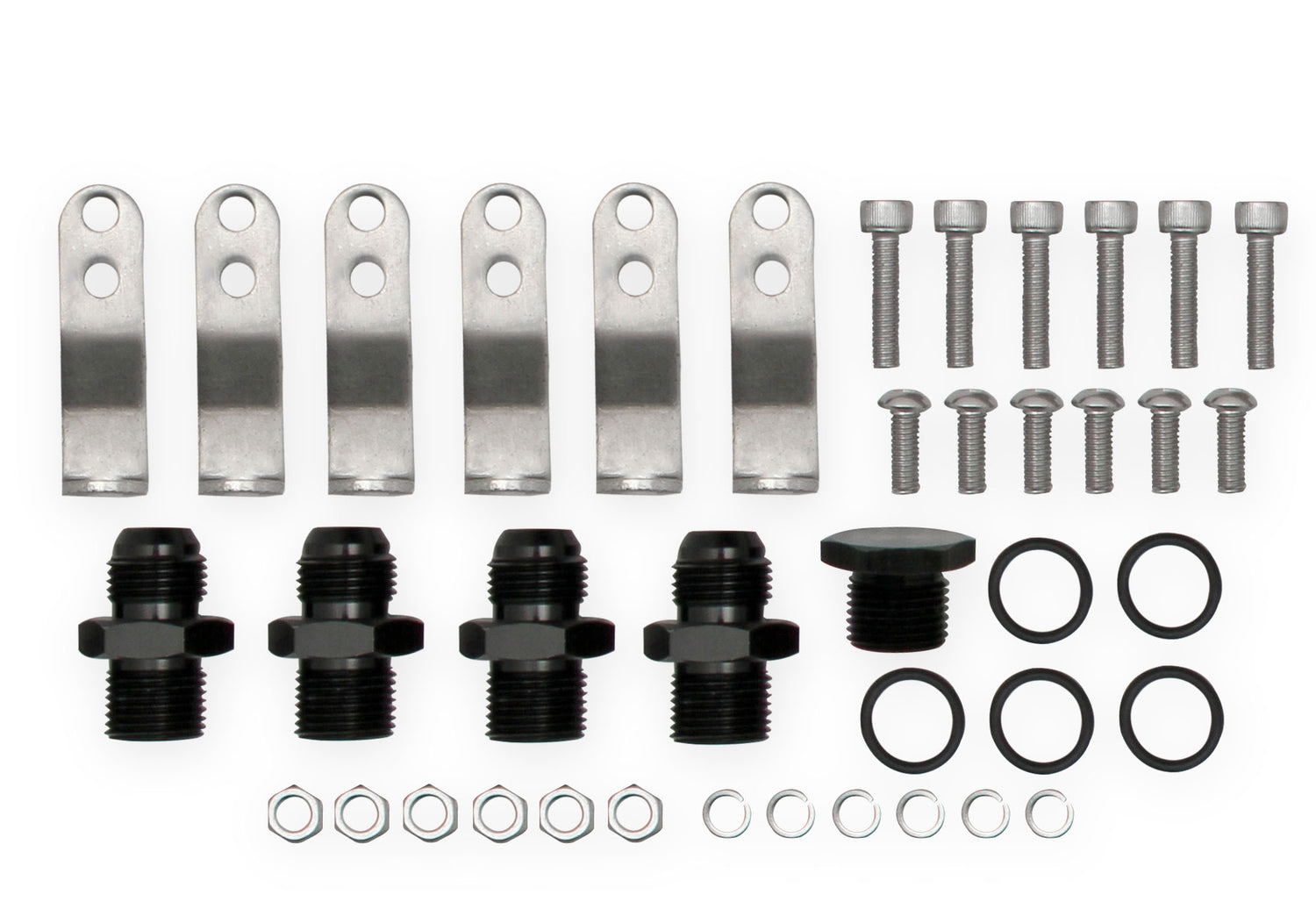

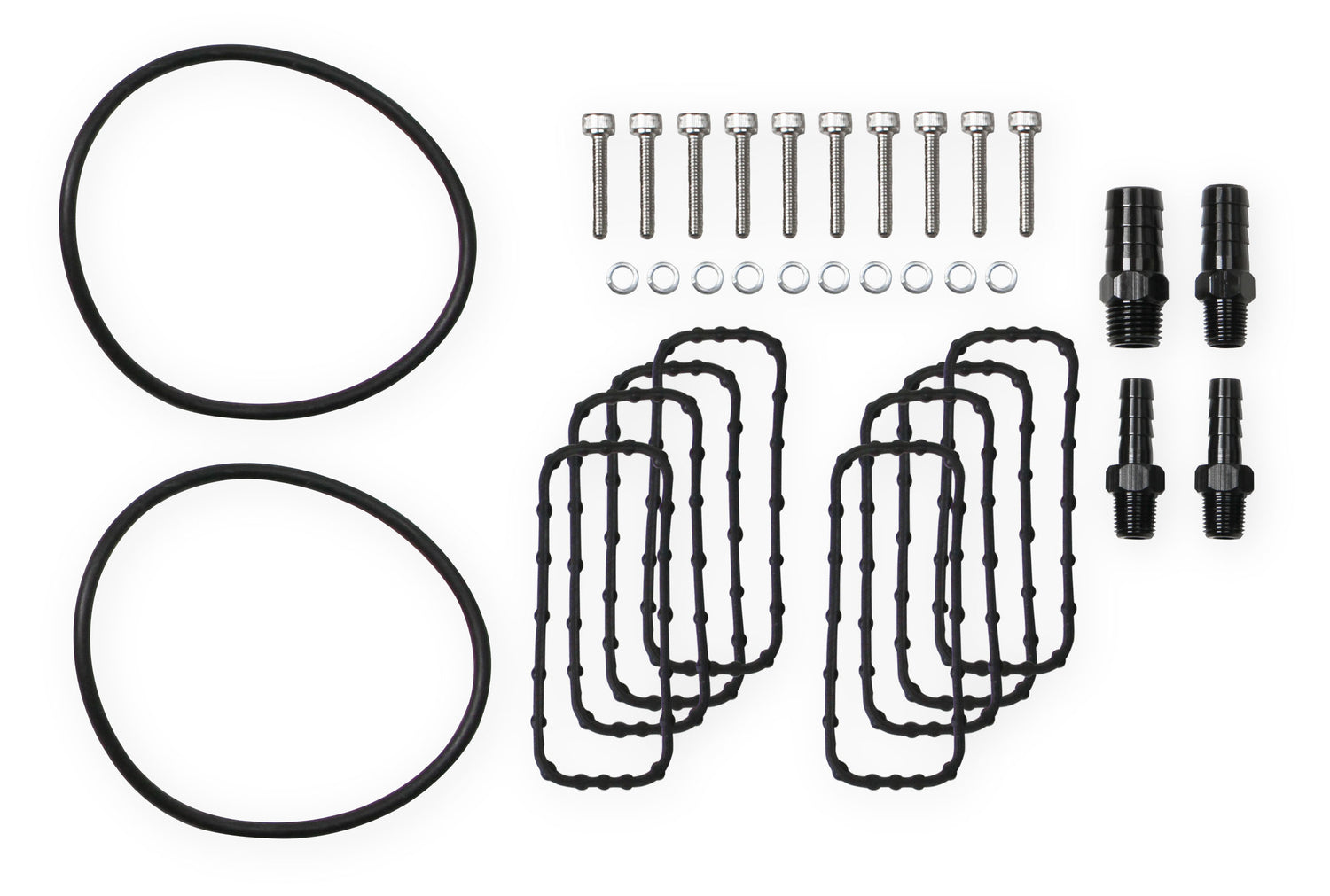

- Product includes all gaskets and hardware for a hassle-free installation
Basic Operating RPM Range: 1500-6500
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Sniper EFI Intakes
CNC Ported: No
Color: Black
Construction: Fabricated
Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS1/LS2/LS6
Flange Style: N/A

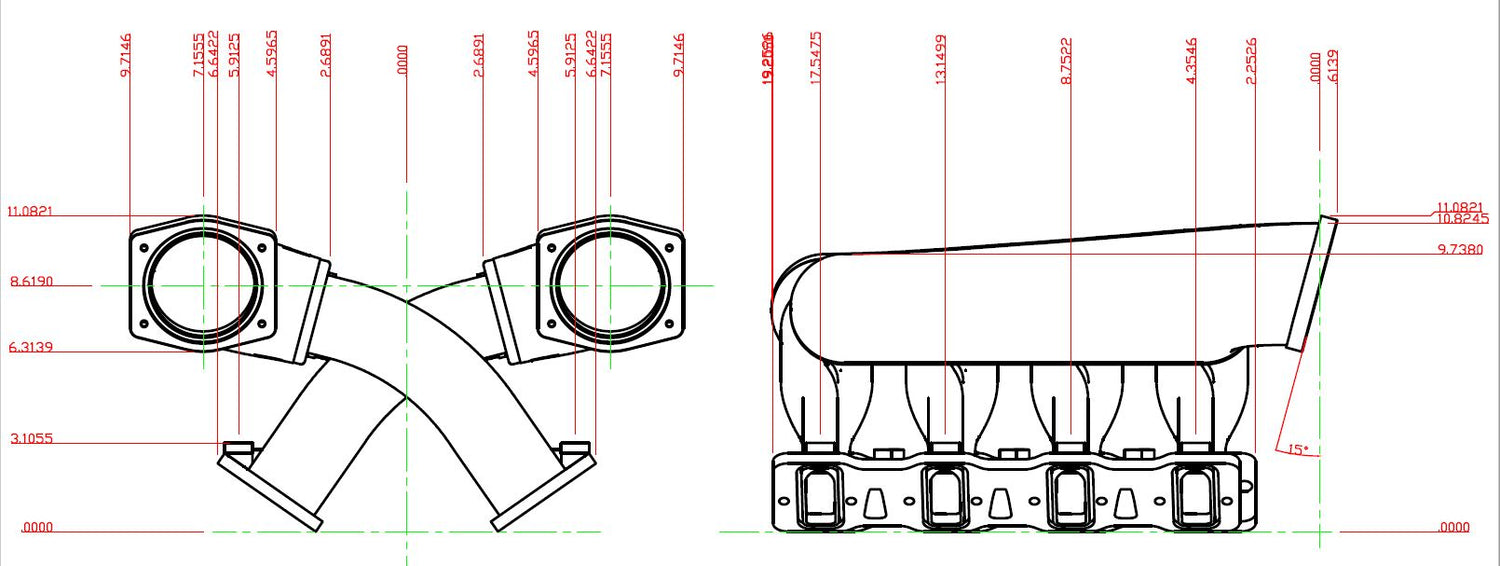

Front Maximum Height: 11.802
Front Width: 19.4292 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Black
Product Type: Intake Manifold
Rear Maximum Height: 9.738
Rear Width: 13.2844 inch
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 4.921" (125mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 102
Throttle Body Gasket Included: No
Throttle Body Included: No
Throttle Bore: 102mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
