Sniper 820241 - EFI LS1/2/6 HI-RAM IM, EFI,102MM

Sniper  |  SKU: SNIP-820241
$1,59995 $1,79995

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 820241 - EFI LS1/2/6 HI-RAM IM, EFI,102MM

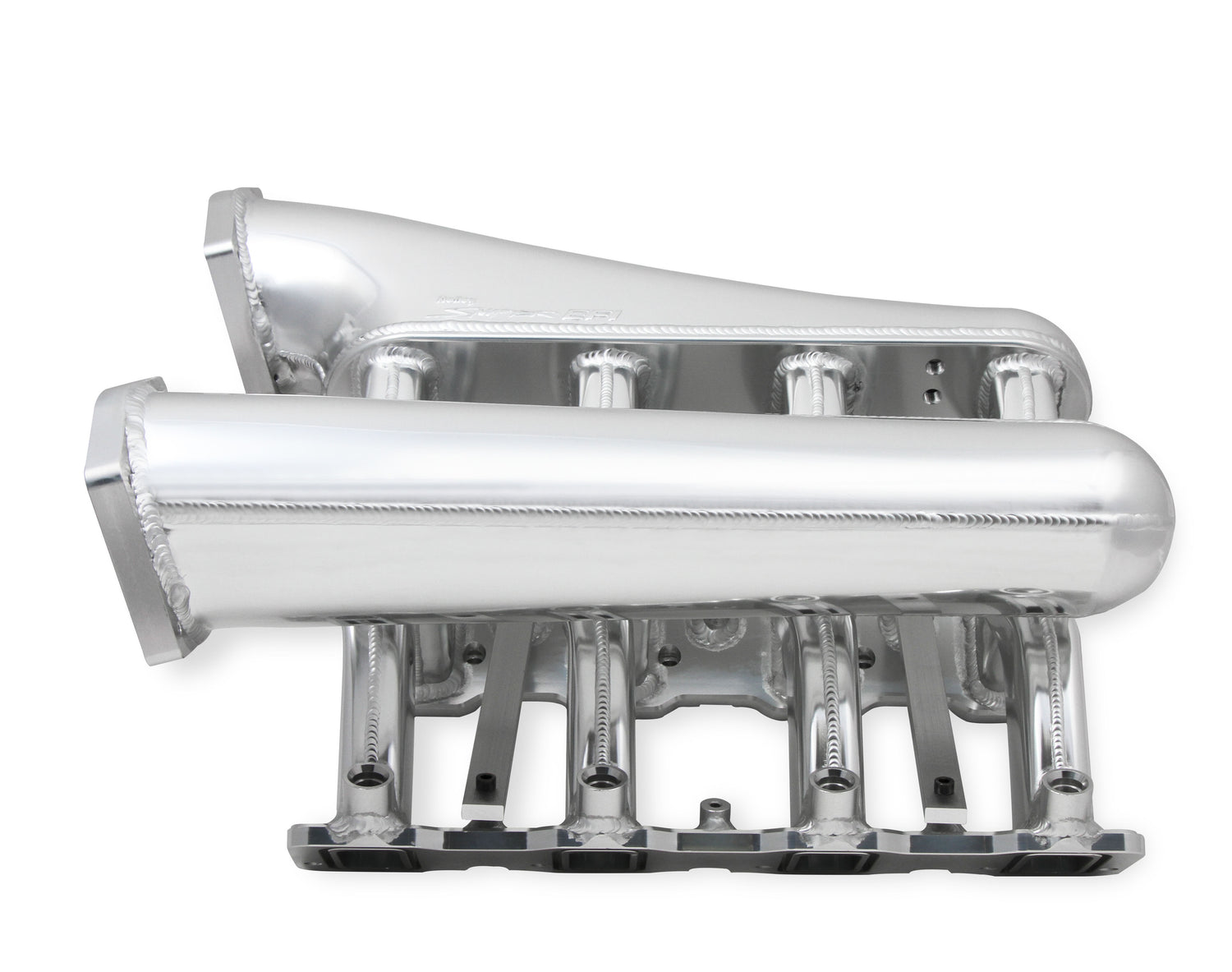

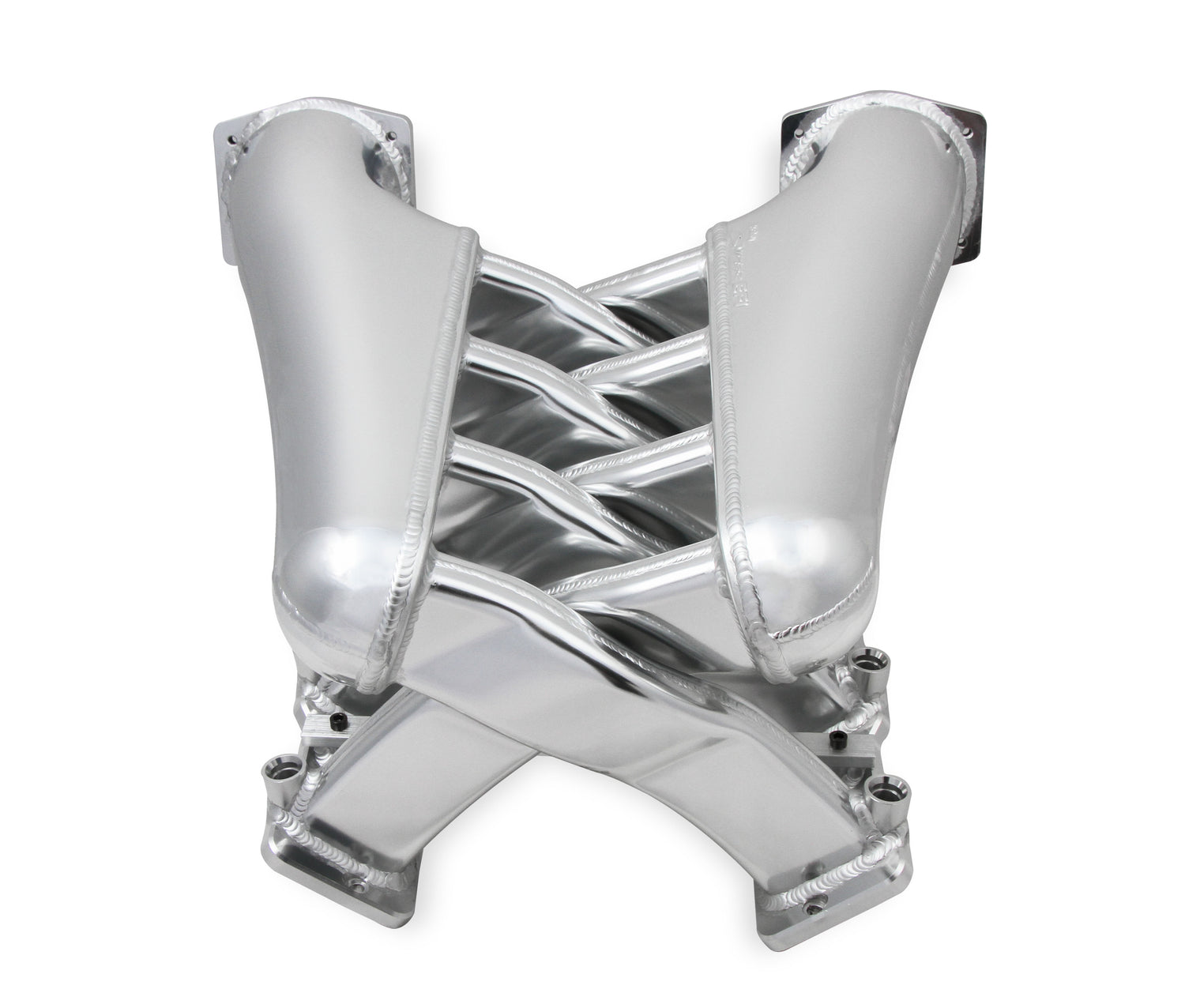

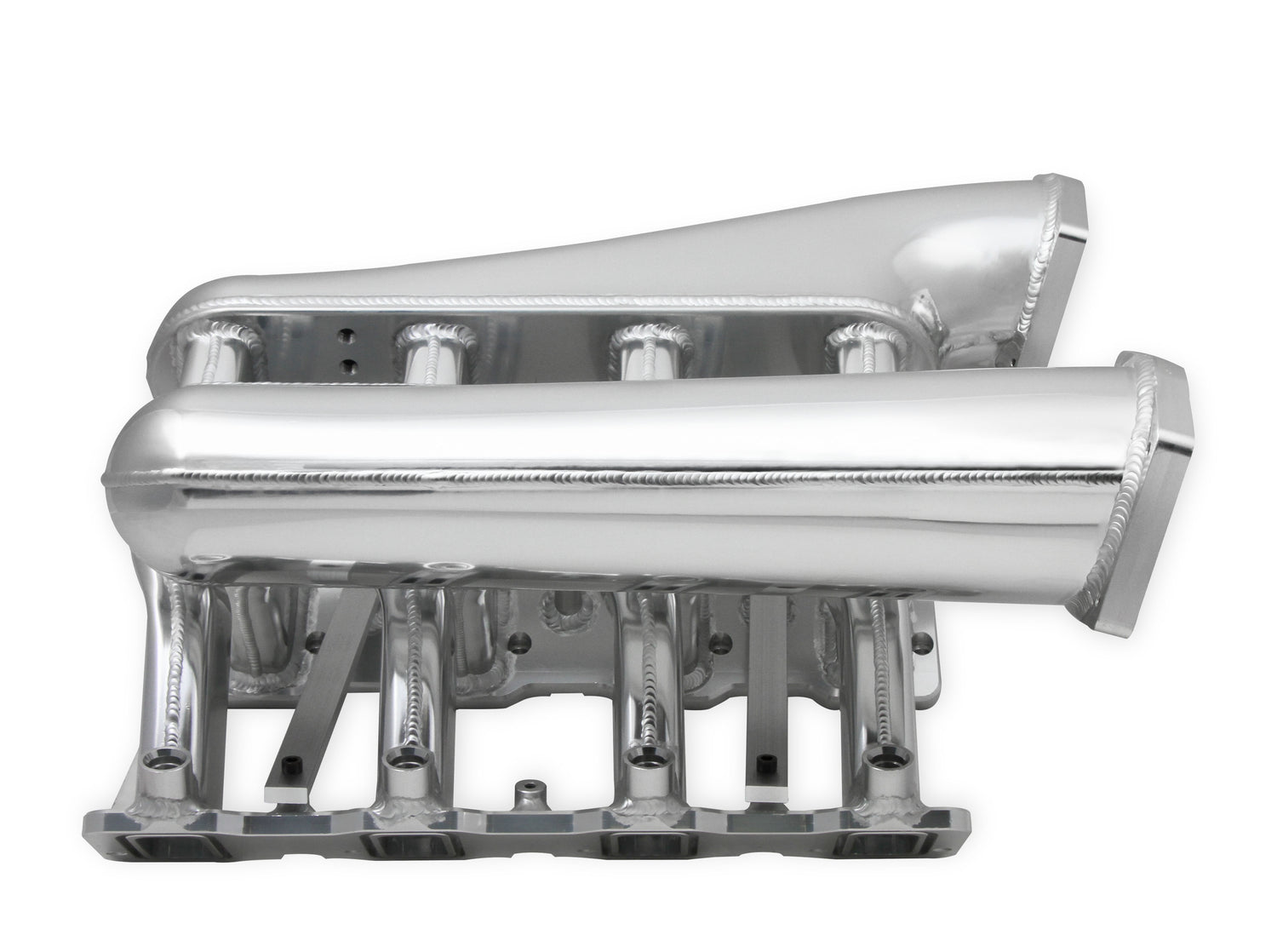

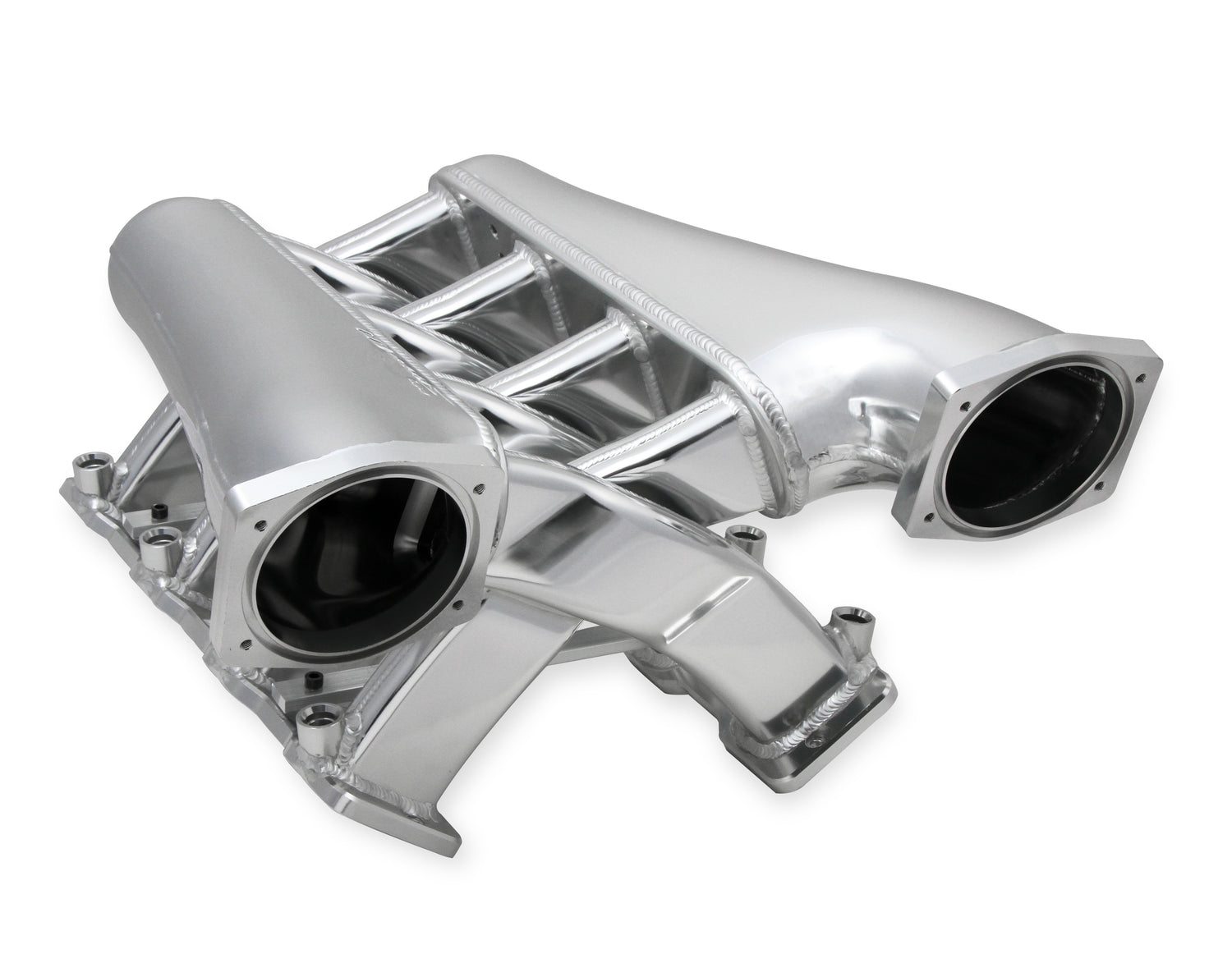

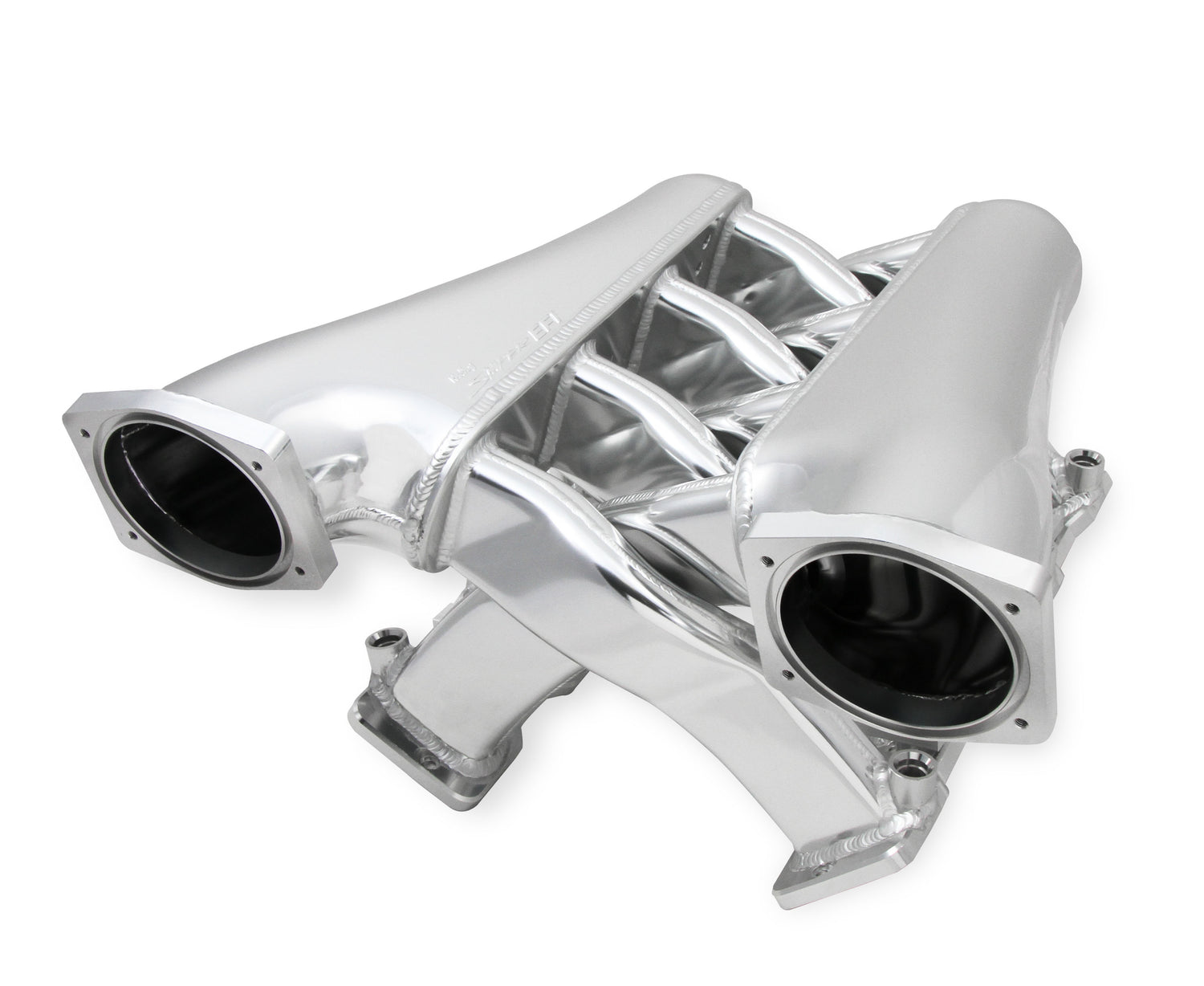

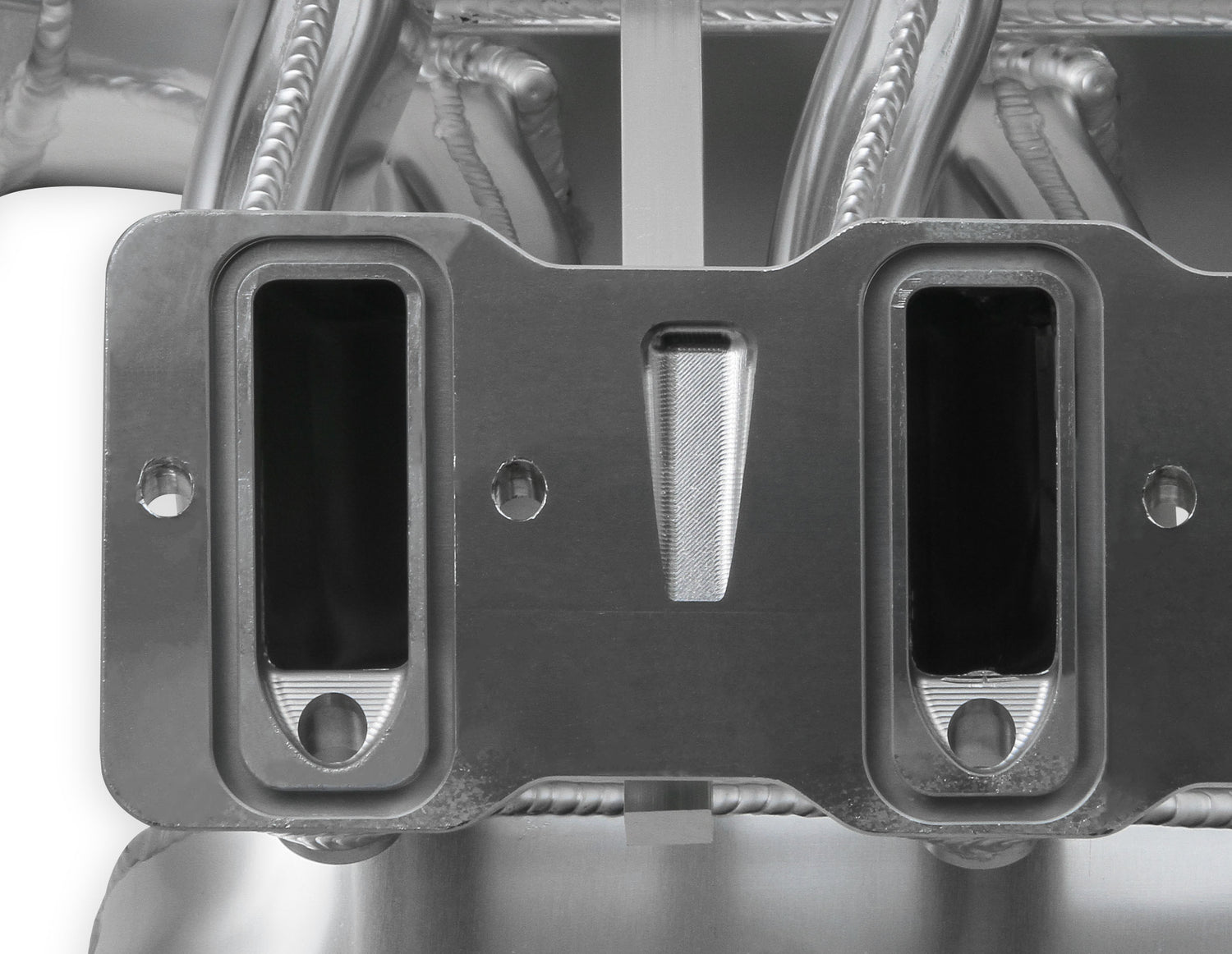

Sniper EFI Fabricated Intake Manifold Dual Plenum 102mm LS1/2/6, Rail Kit - Slvr

Sniper EFI "Dual Plenum" Intake Manifold 102mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Silver Finish

The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports.

  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

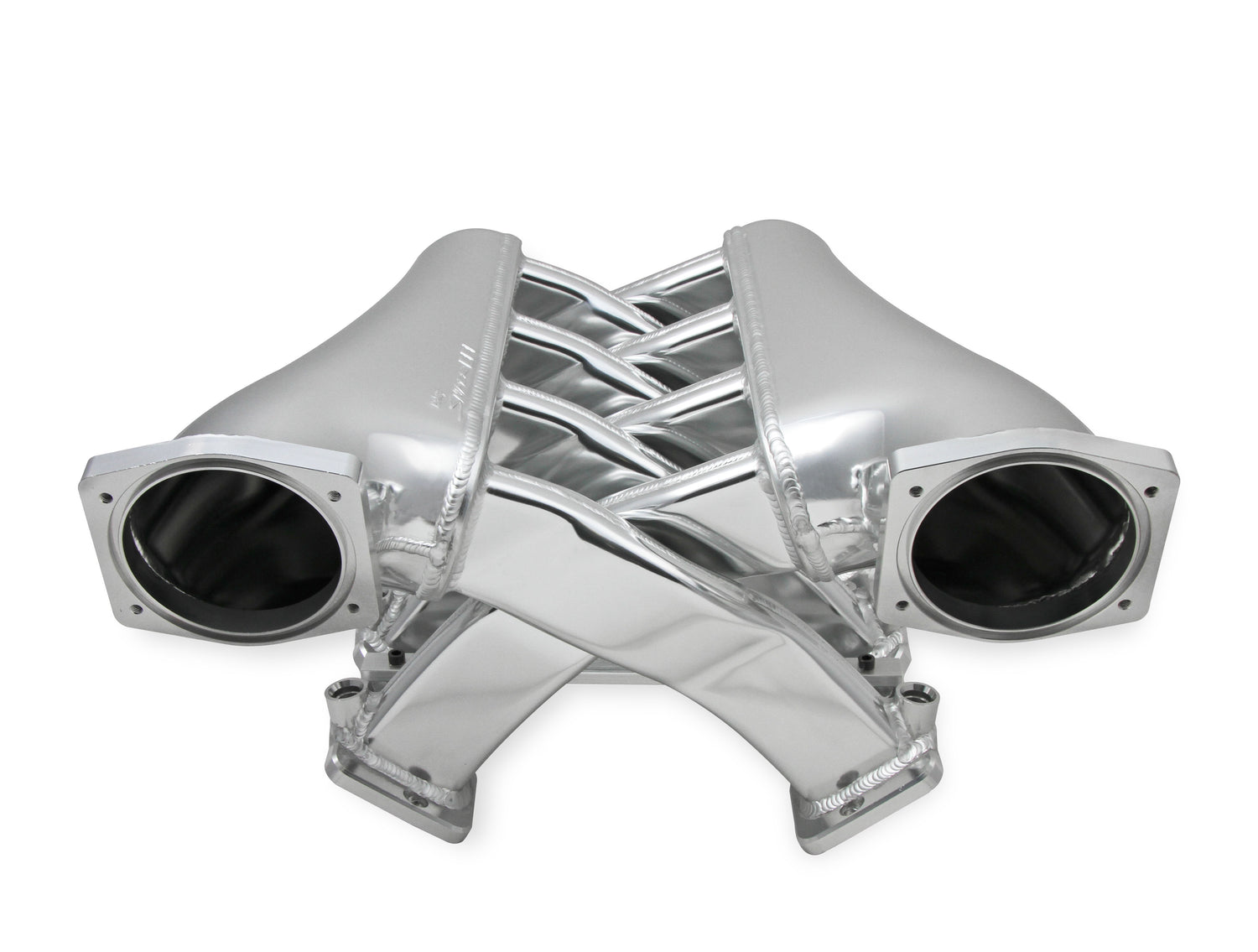

  • Twin 102mm throttle bore openings for increased air flow
  • Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM

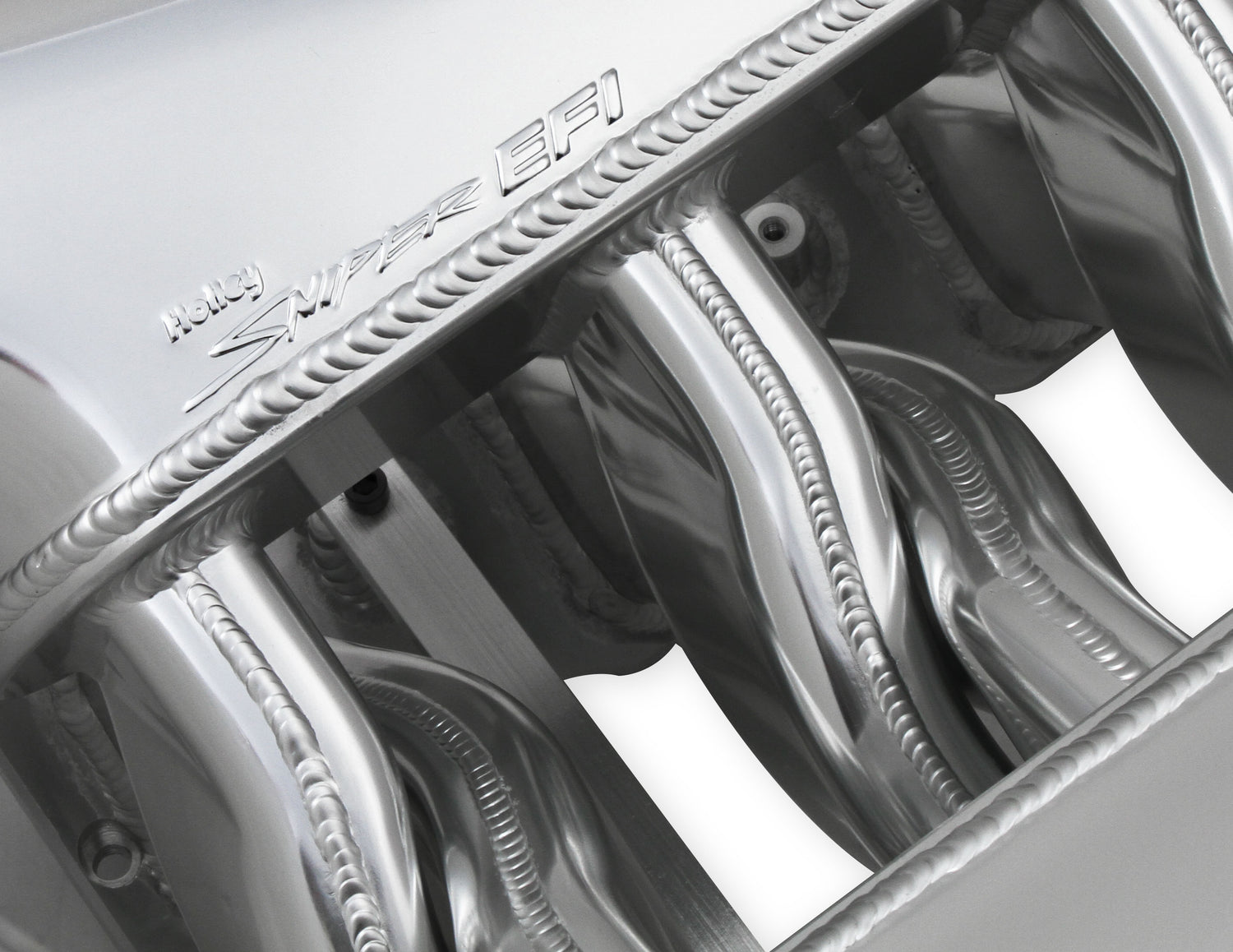

  • 100% TIG welded for strength and durability

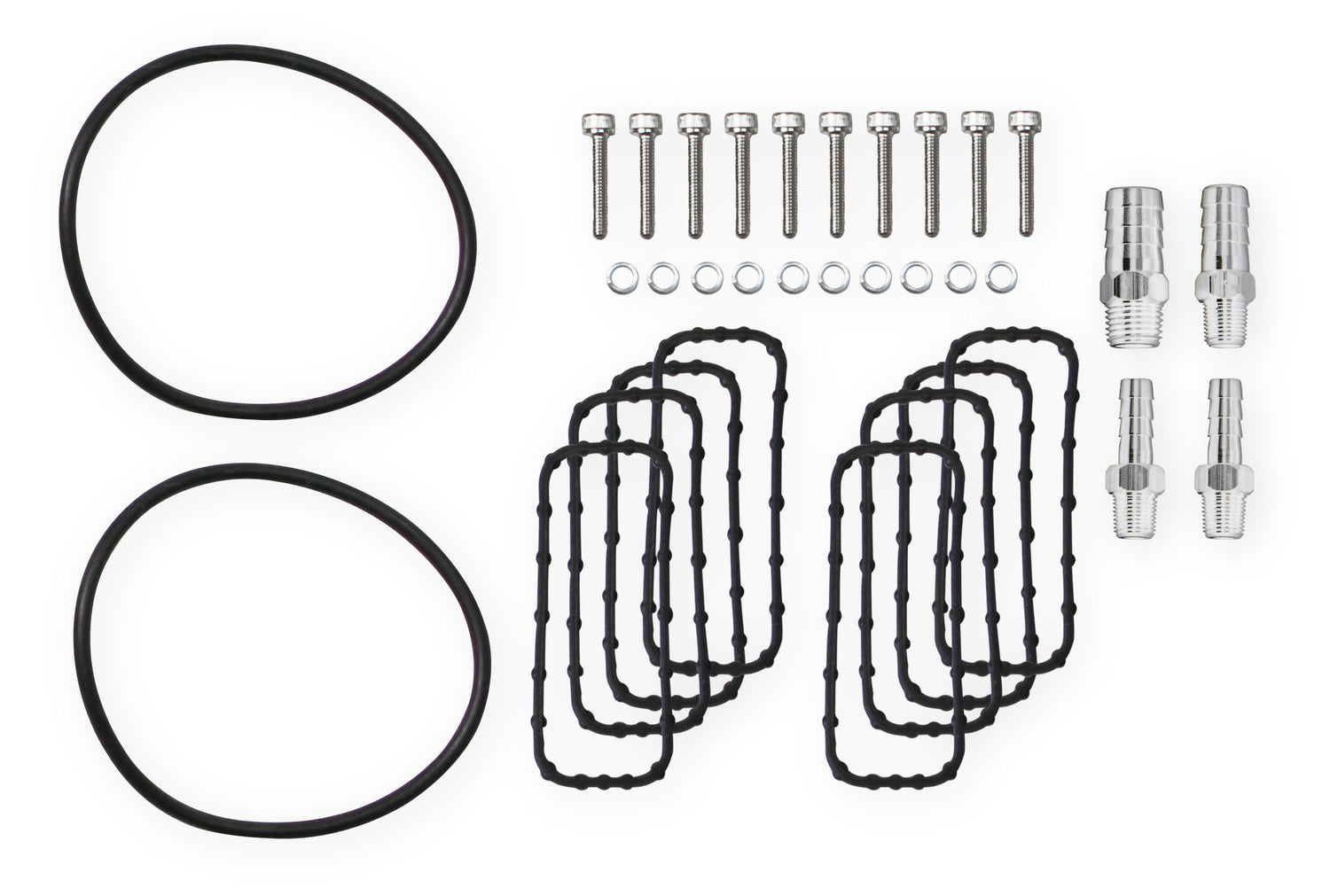

  • Product includes all gaskets and hardware for a hassle-free installation

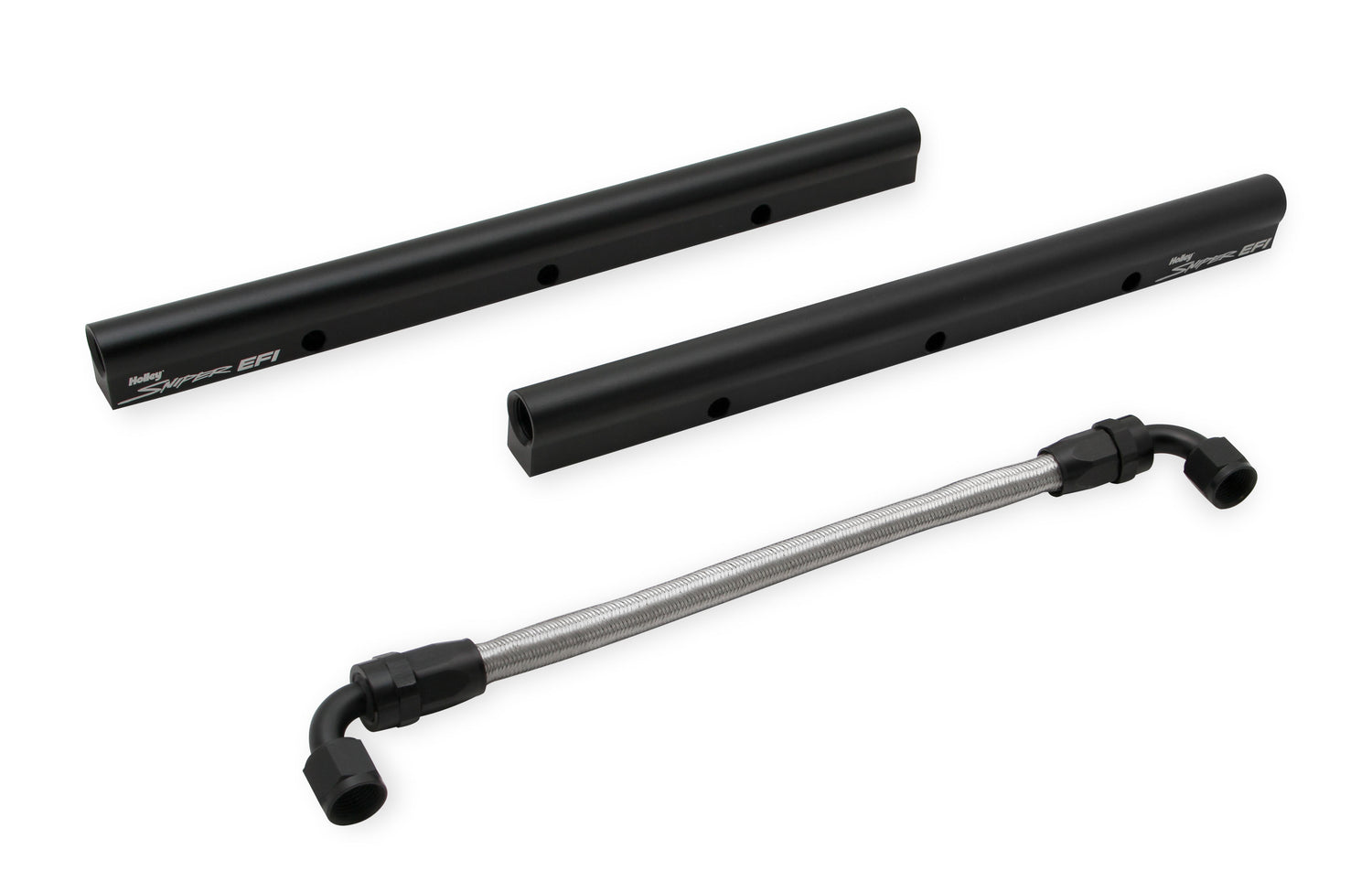

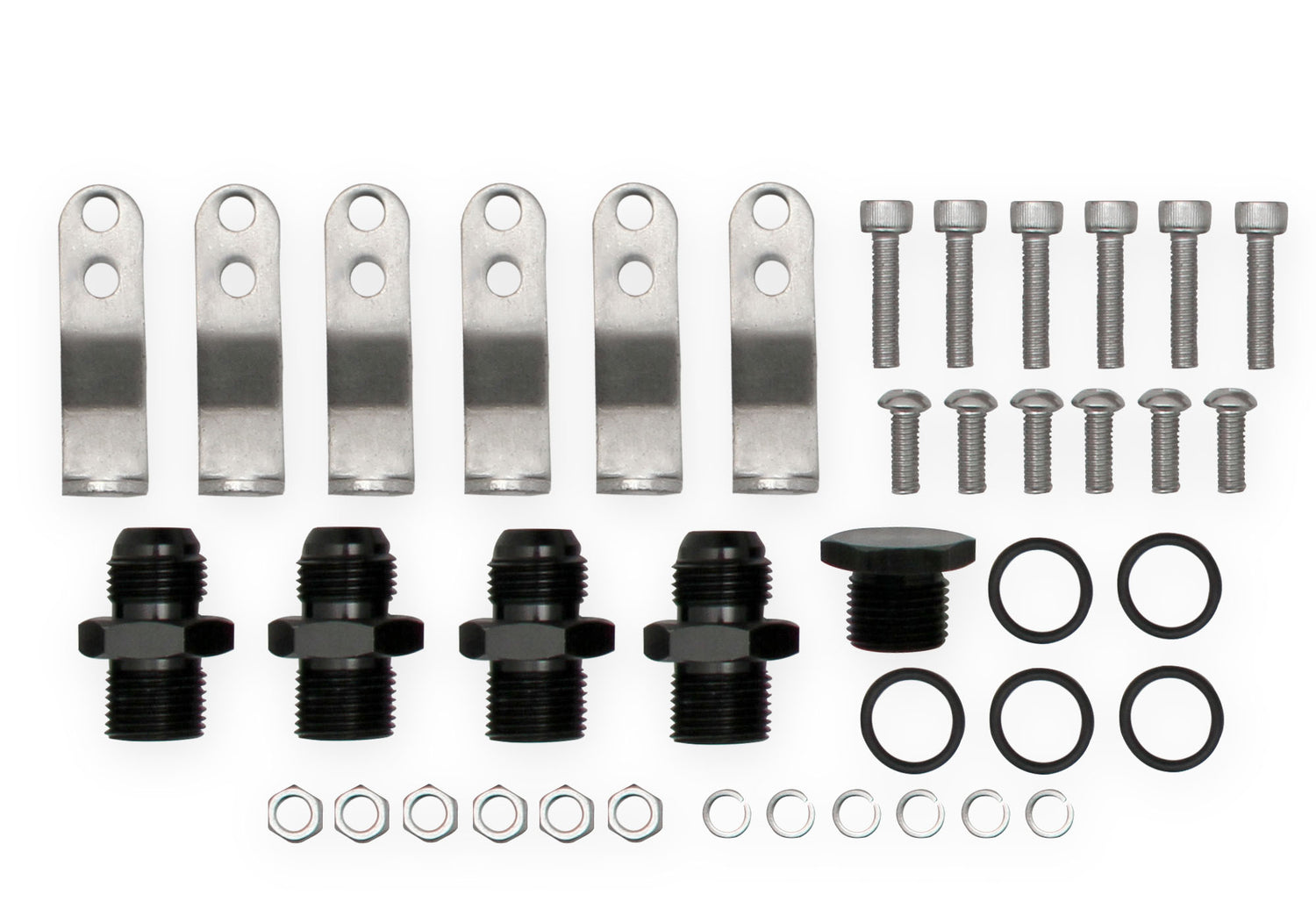

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM

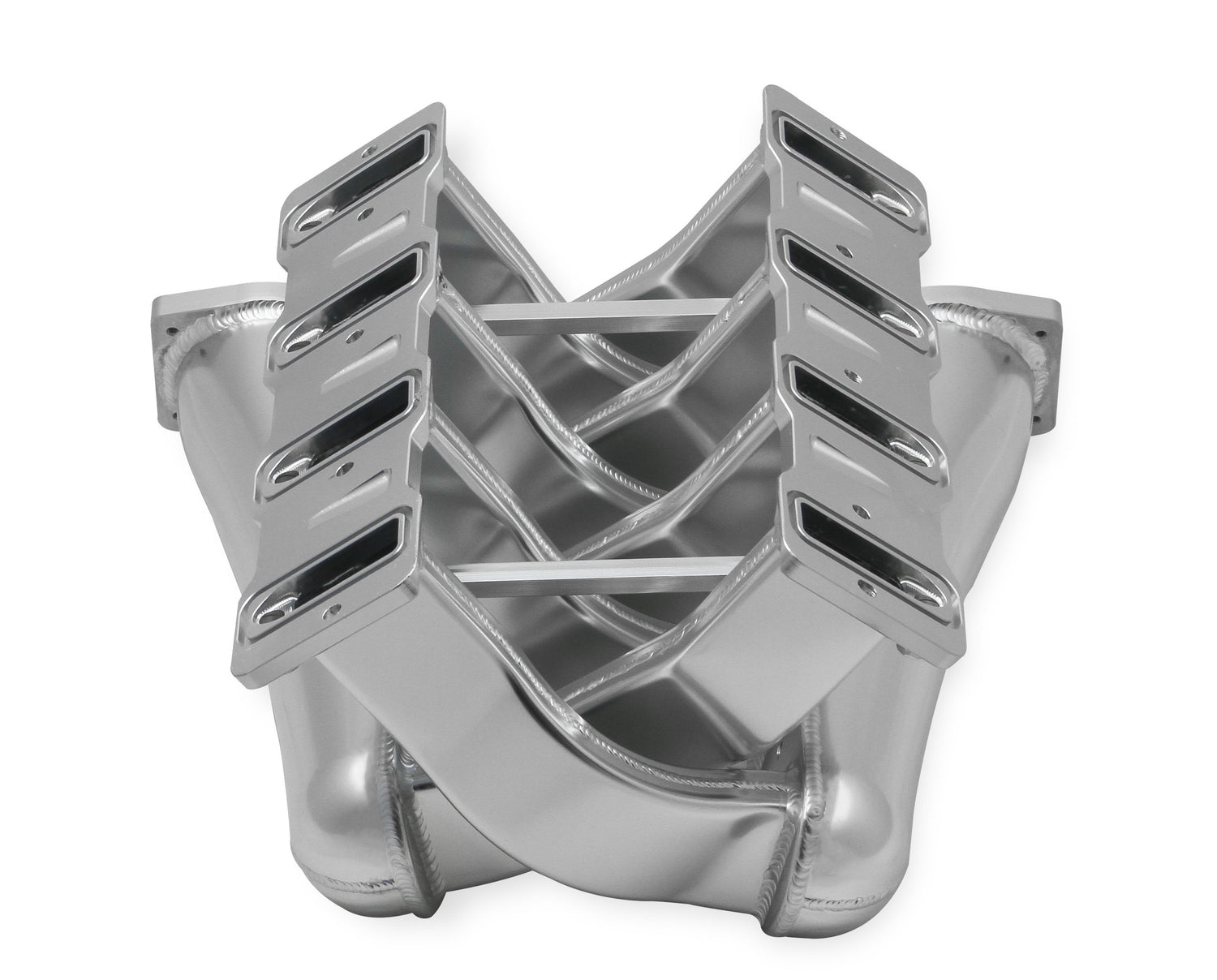

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Silver finish creates high impact under-hood styling
  • Dual plenum design ideal for street max effort engines and boosted applications
Basic Operating RPM Range: 1500-6500
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Sniper EFI Intakes
CNC Ported: No
Color: Polished
Construction: Fabricated
Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS1/LS2/LS6
Flange Style: N/A

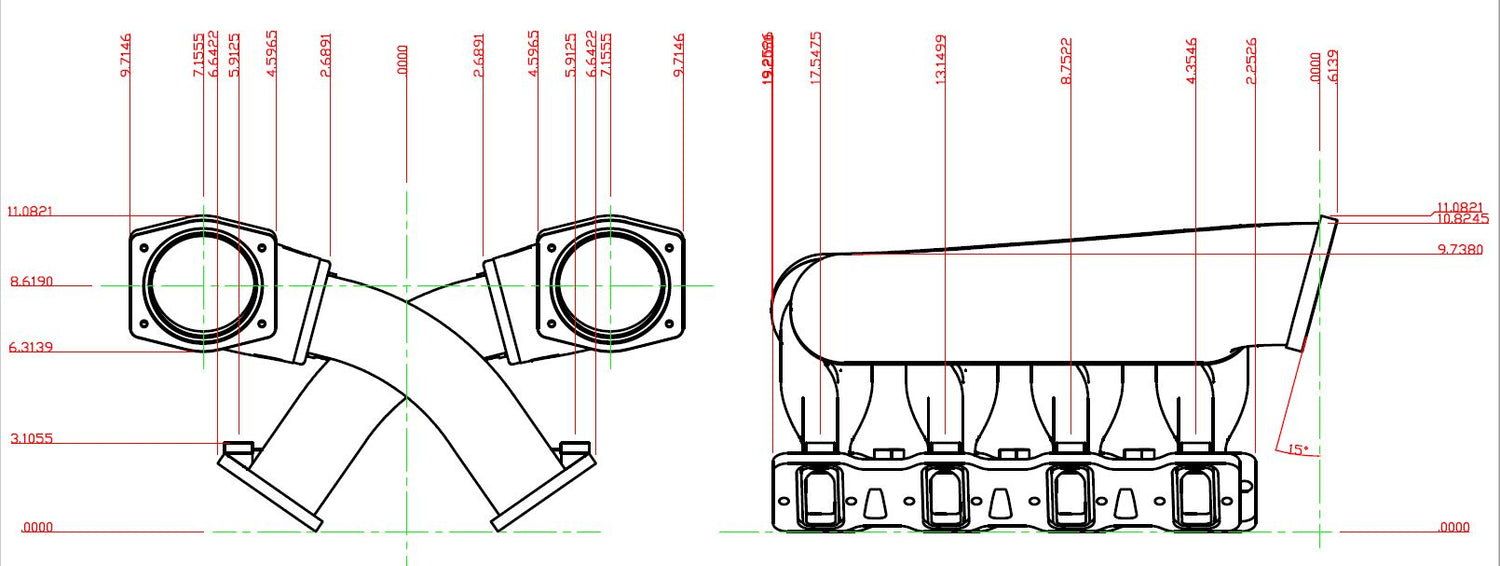

Front Maximum Height: 11.802
Front Width: 19.4292 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Maximum Height: 9.738
Rear Width: 13.2844 inch
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 4.921" (125mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 102
Throttle Body Gasket Included: No
Throttle Body Included: No
Throttle Bore: 102mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
