Sniper 820201 - EFI LS1/2/6 HI-RAM IM, EFI, 92MM
Sniper | SKU:
SNIP-820201
Sale price
$1,64995
Regular price
$1,85695
Unit price
/
Unavailable
$207.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Sniper 820201 - EFI LS1/2/6 HI-RAM IM, EFI, 92MM

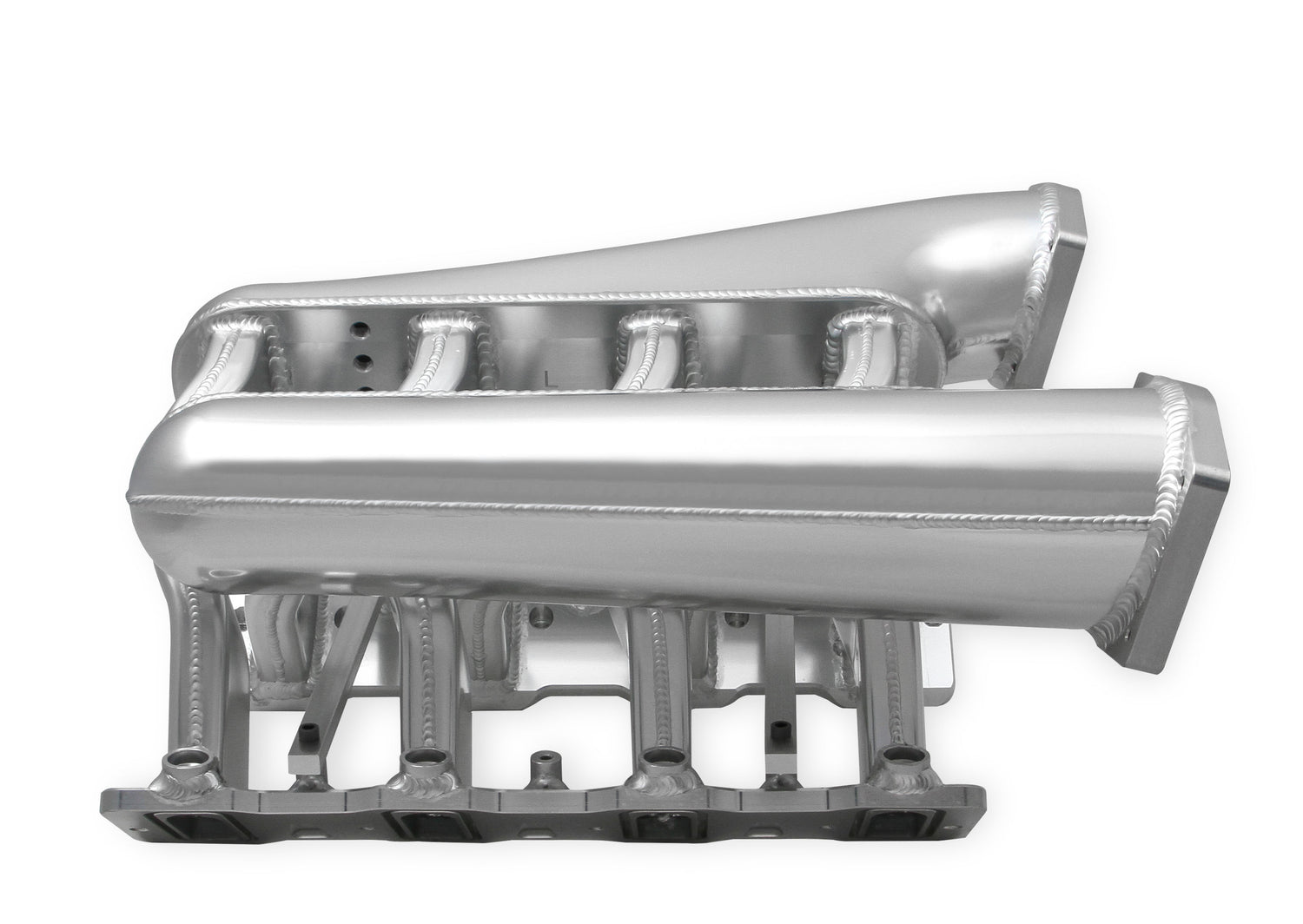

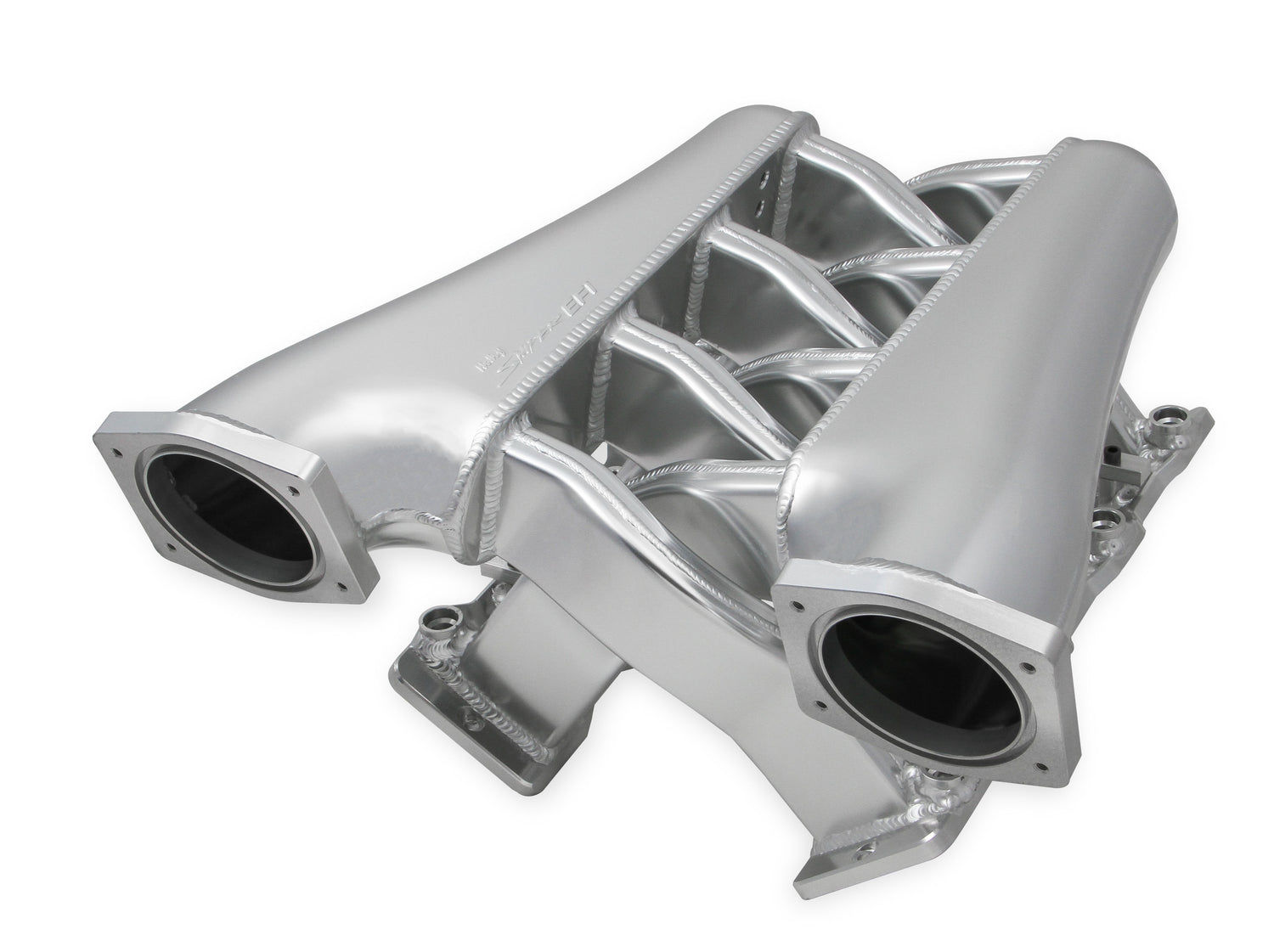

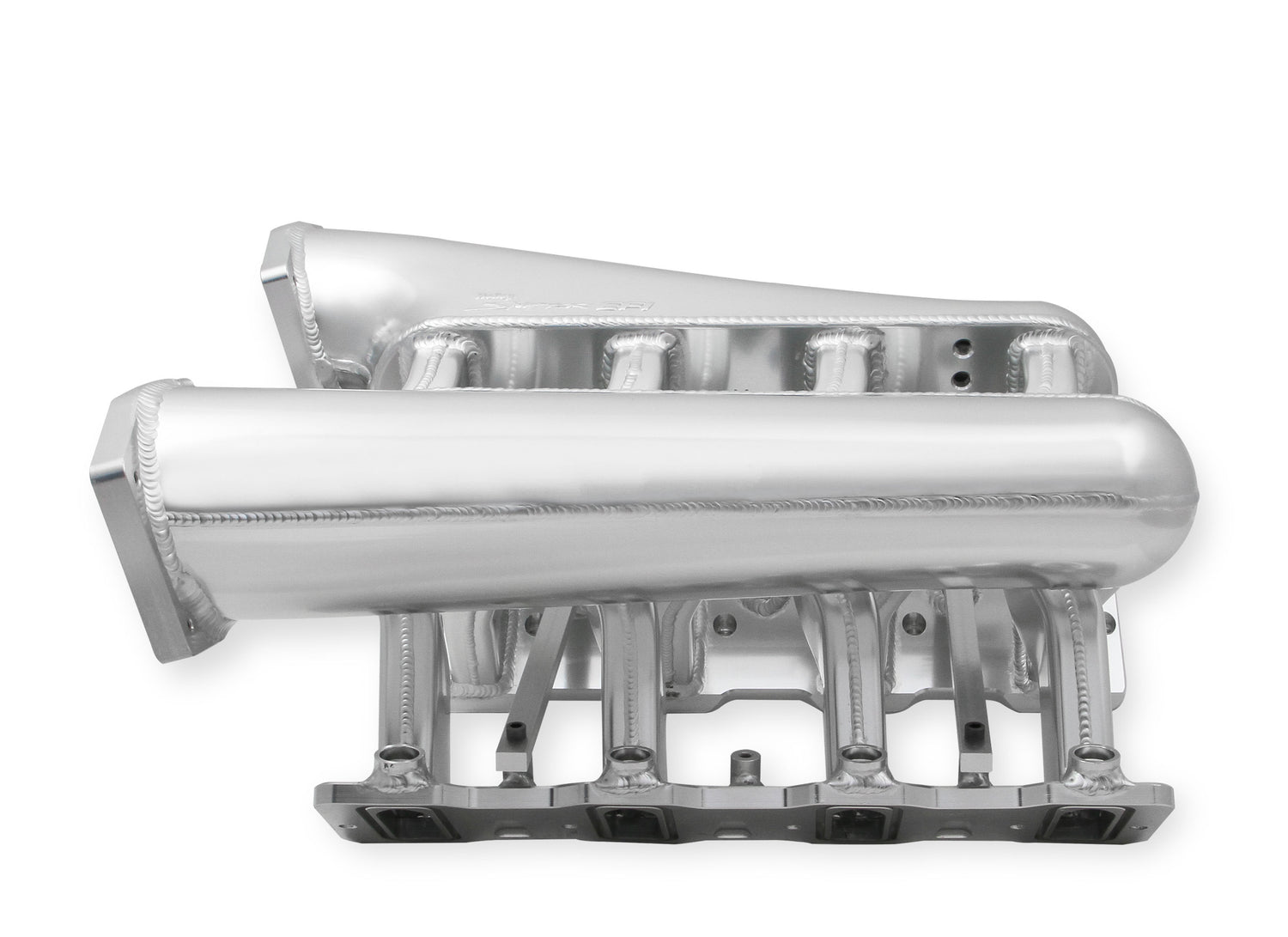

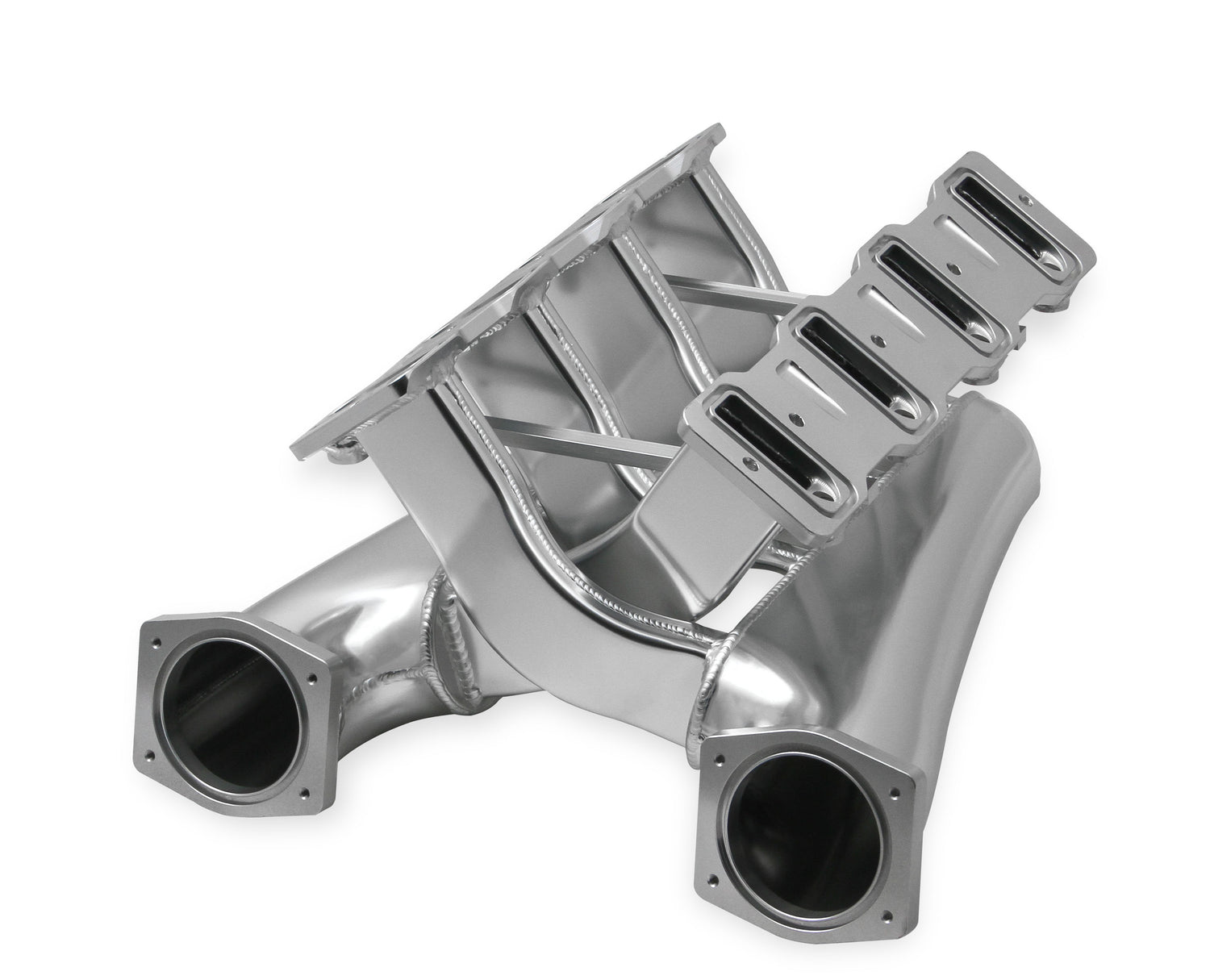

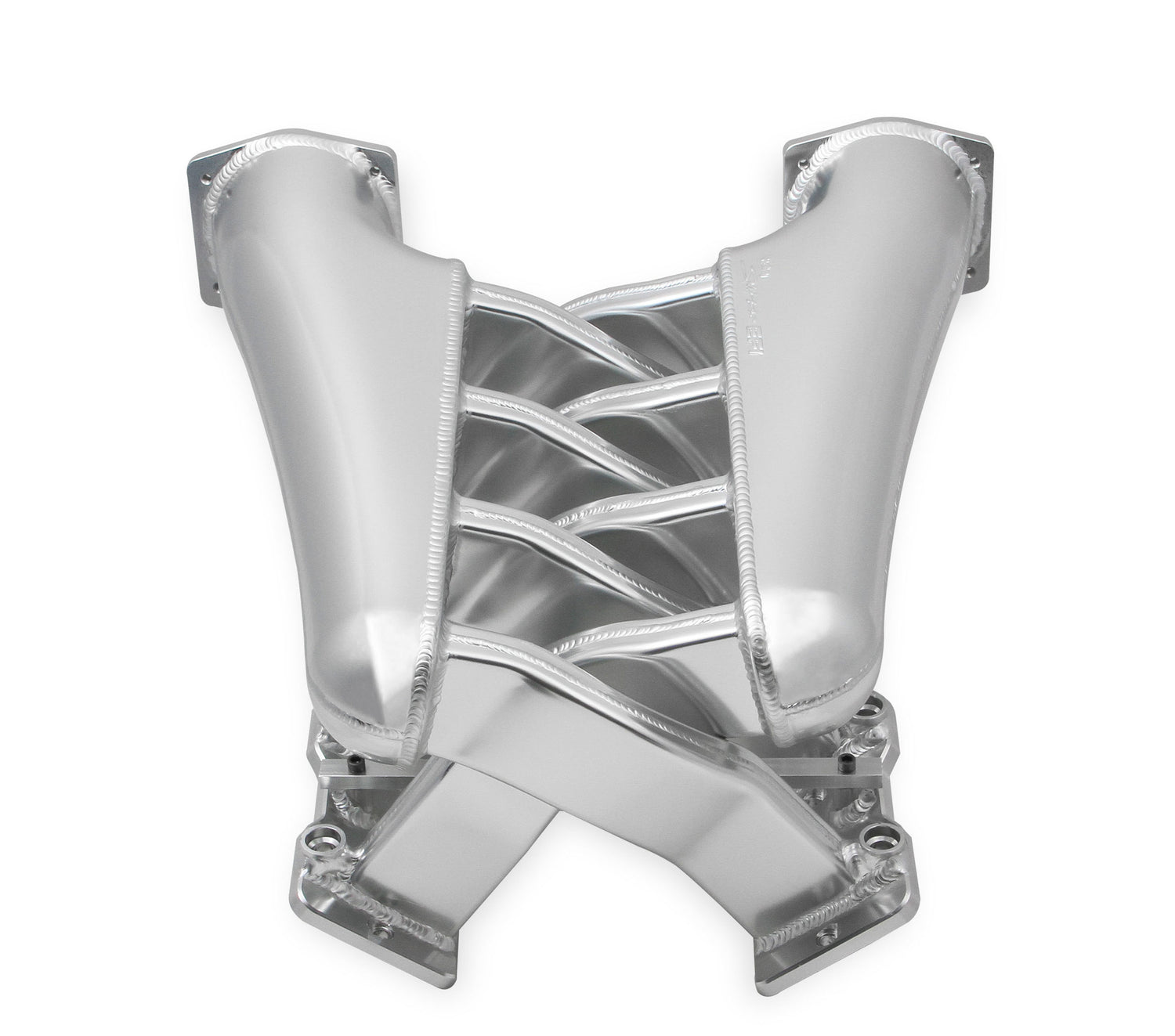

Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm LS1/2/6, Rail Kit - Slvr
Sniper EFI "Dual Plenum" Intake Manifold 92mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Silver Finish
Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd!

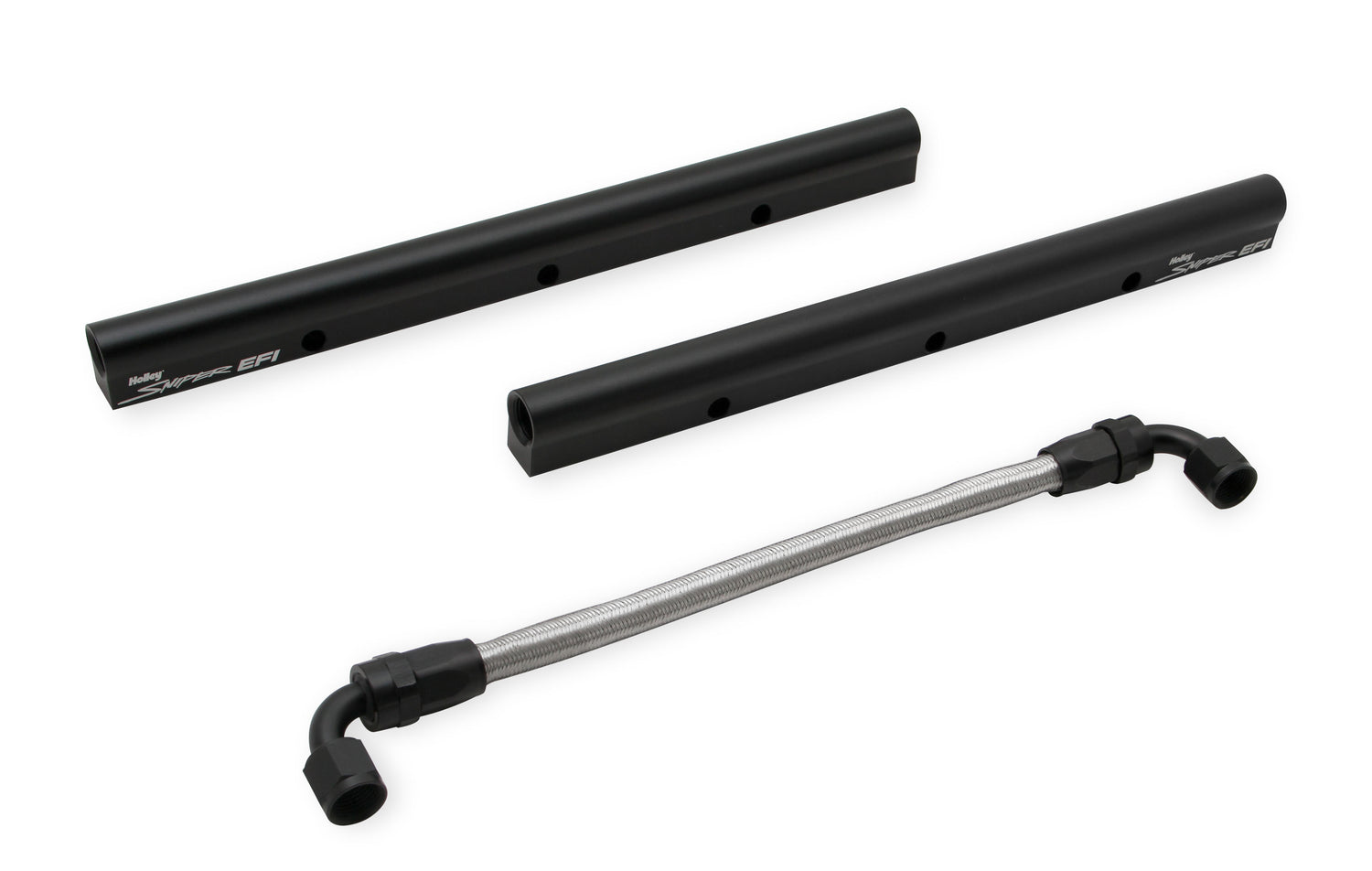

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

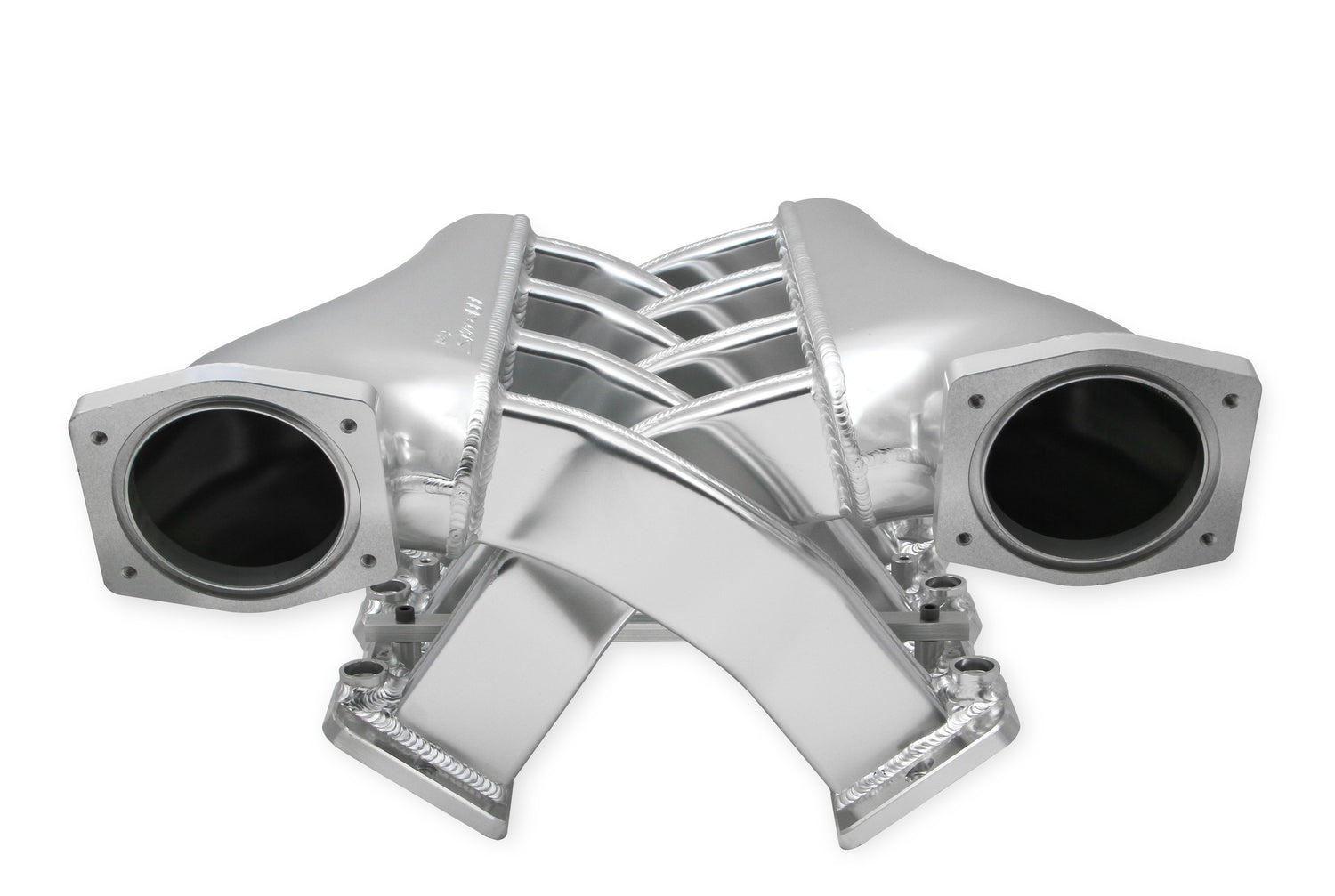

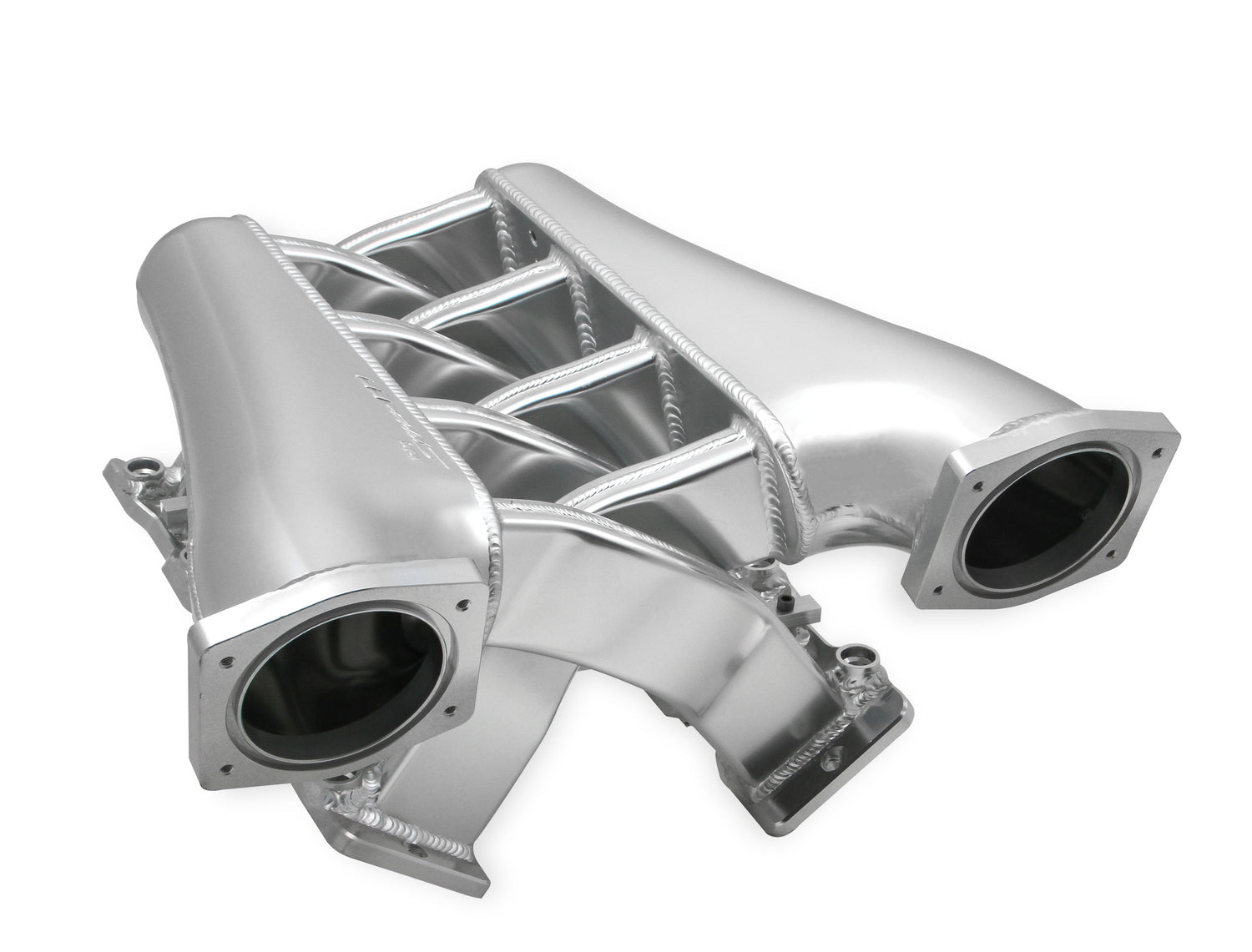

- Twin 92mm throttle bore openings for increased air flow
- Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM

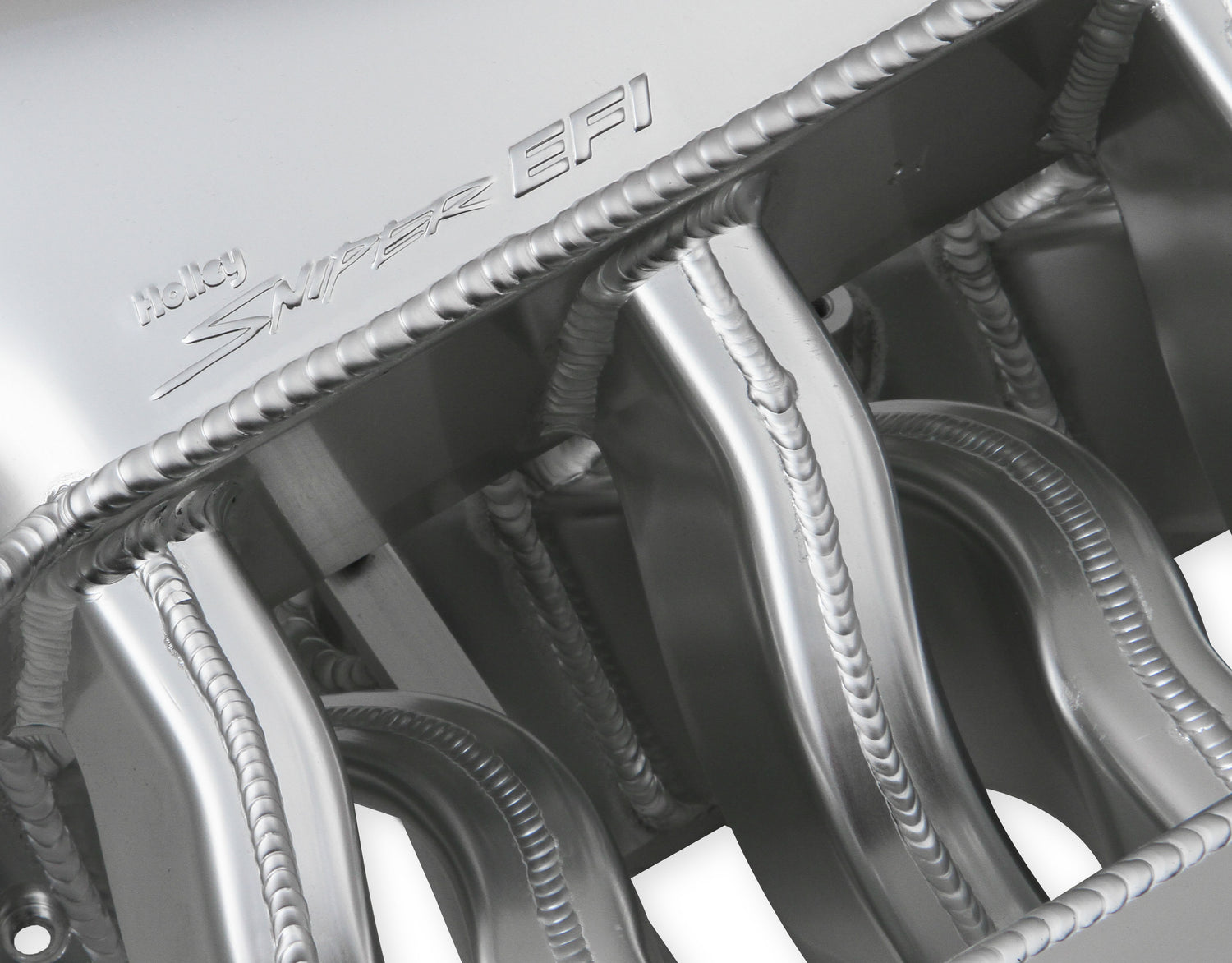

- 100% TIG welded for strength and durability
- Silver finish creates high impact under-hood styling
- Dual plenum design ideal for street max effort engines and boosted applications
- Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM

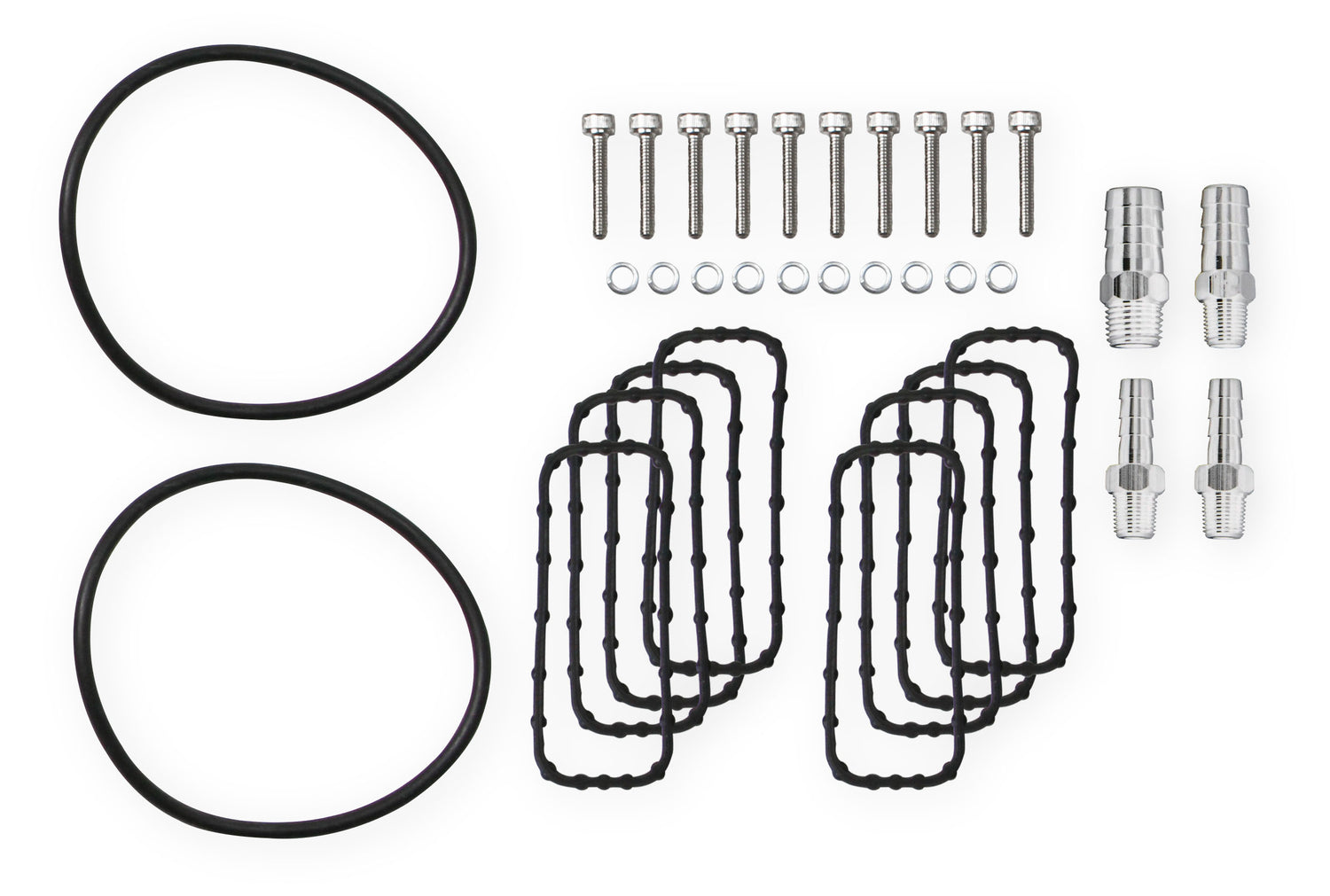

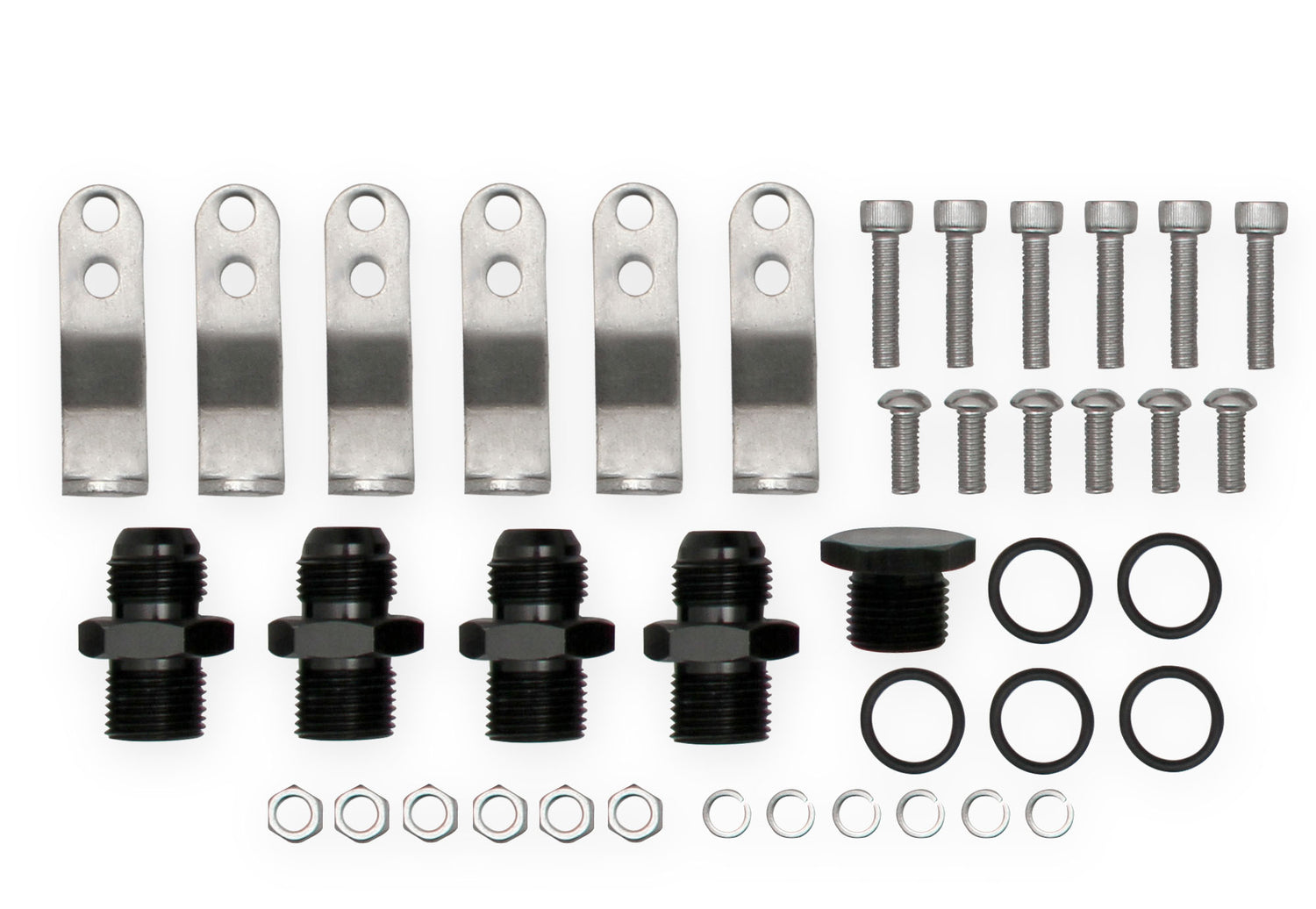

- Product includes all gaskets and hardware for a hassle-free installation

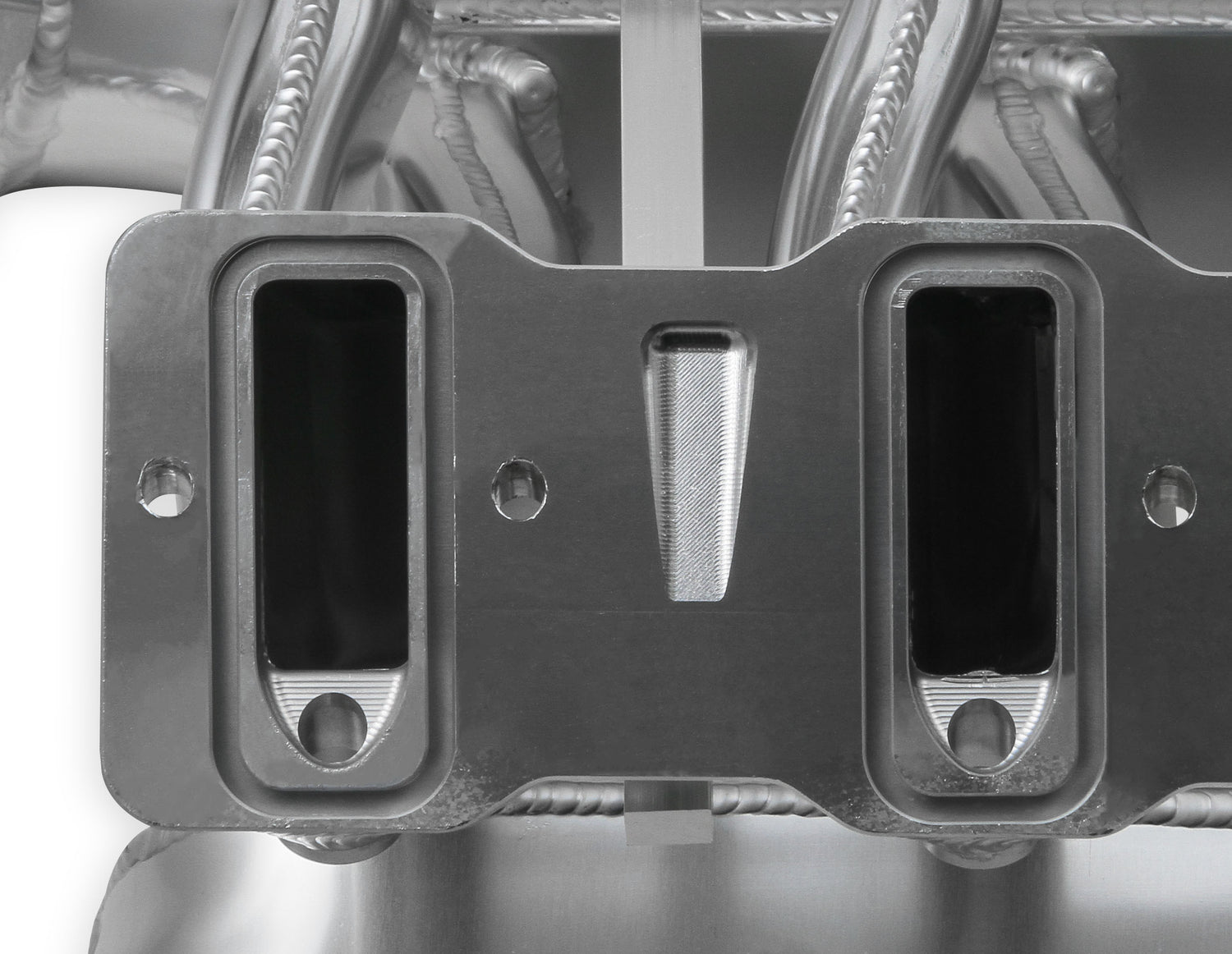

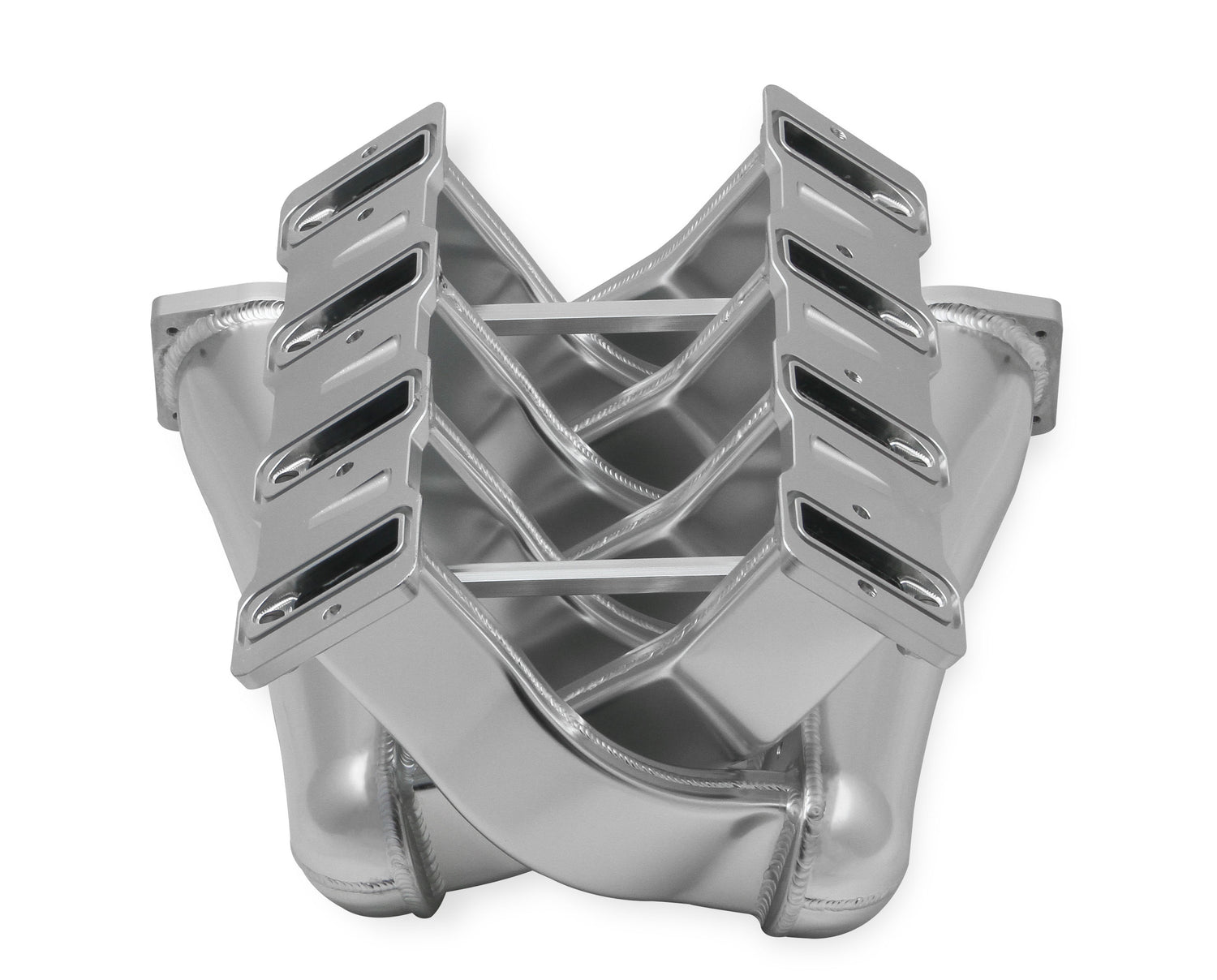

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
Basic Operating RPM Range: 1500-6500
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Sniper EFI Intakes
CNC Ported: No
Color: Silver
Construction: Fabricated
Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS1/LS2/LS6
Flange Style: N/A

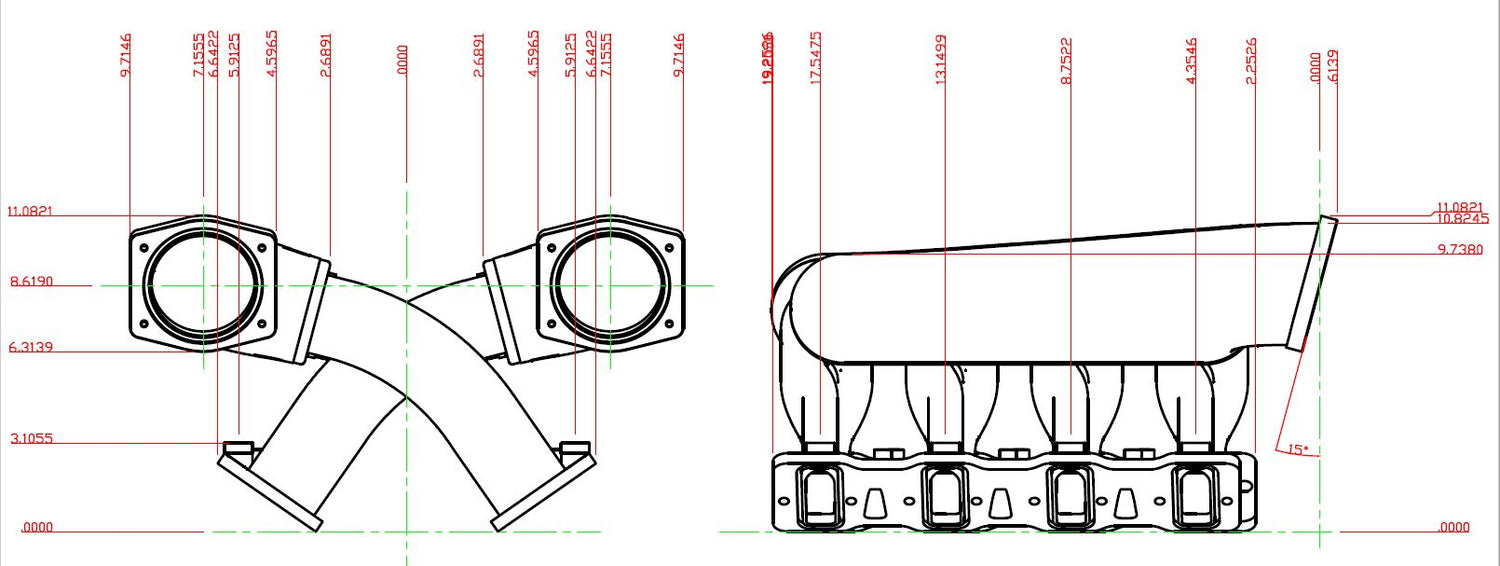

Front Maximum Height: 11.802
Front Width: 19.4292 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
Intake Port Gasket(s) Included: No
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Maximum Height: 9.738
Rear Width: 13.2844 inch
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 4.921" (125mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 92
Throttle Body Gasket Included: No
Throttle Body Included: No
Throttle Bore: 92mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
