Sniper 820112-1 - EFI LS1/2/6 LOW PROF.IM,EFI,102MM

Name: Sniper 820112-1 - EFI LS1/2/6 LOW PROF.IM,EFI,102MM
Brand: Sniper
SKU: SNIP-820112-1
Price: 949.95 USD
Availability: InStock

Sniper | SKU: SNIP-820112-1

$949⁹⁵ $1,068⁹⁵

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 820112-1 - EFI LS1/2/6 LOW PROF.IM,EFI,102MM

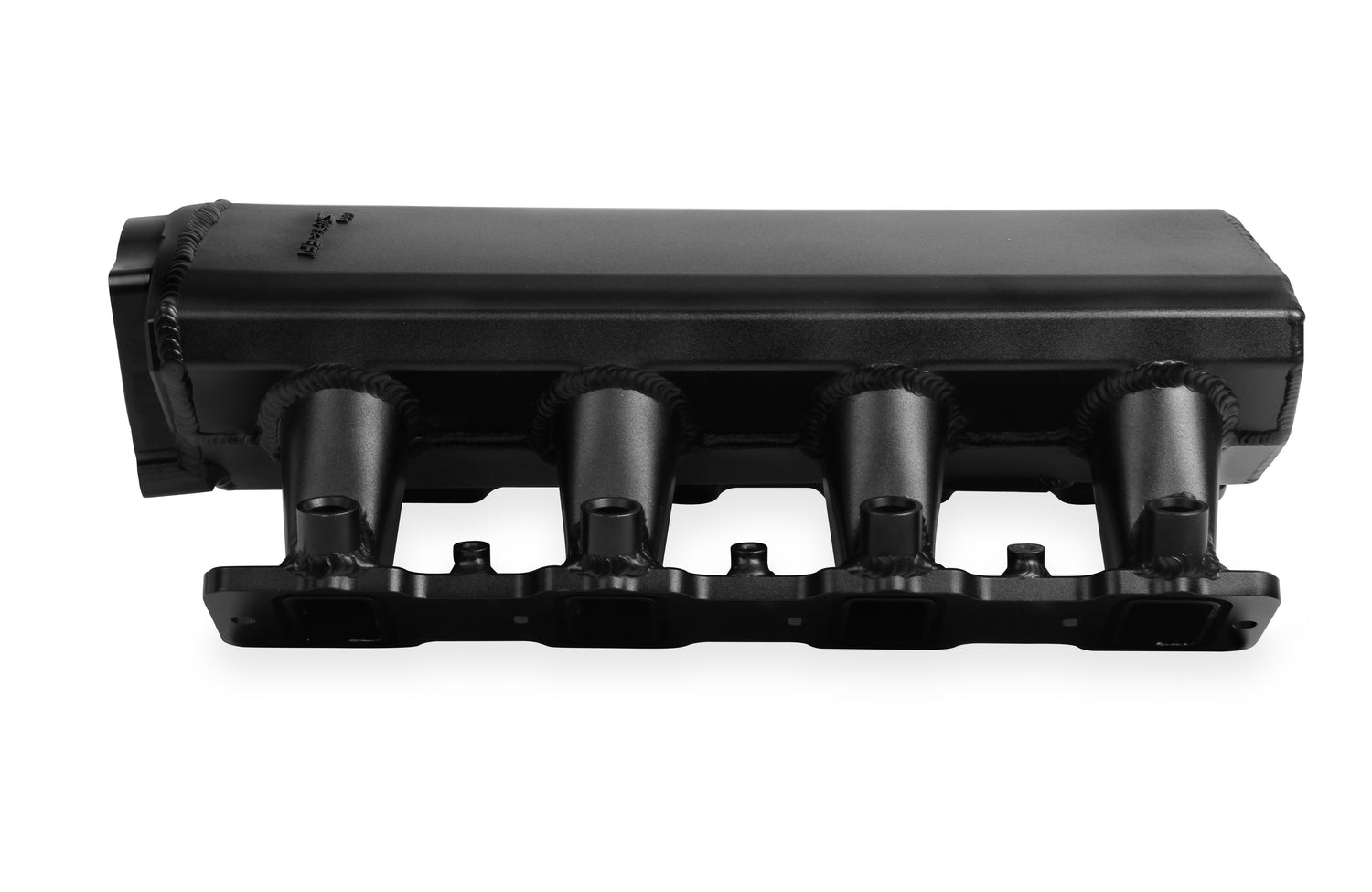

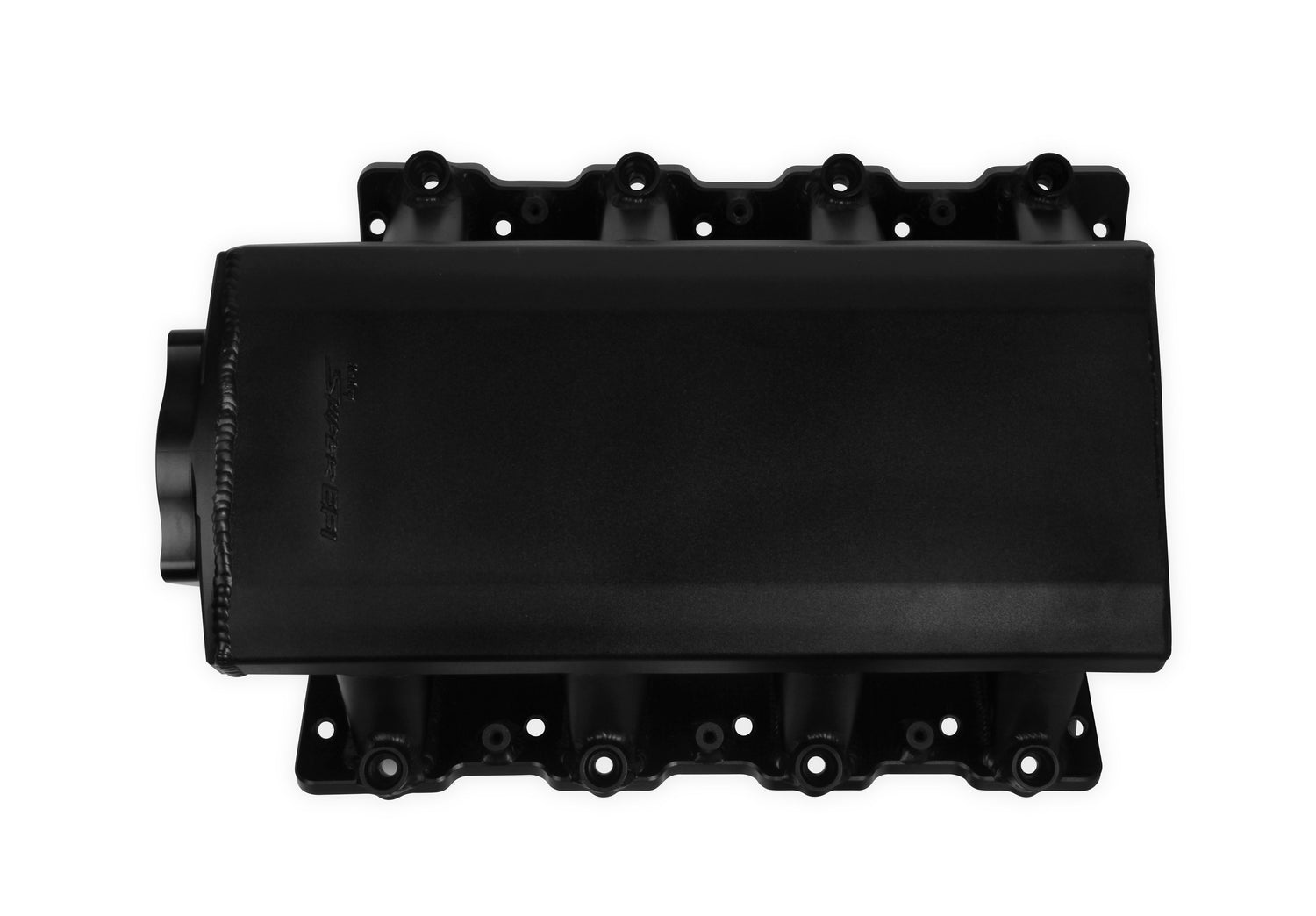

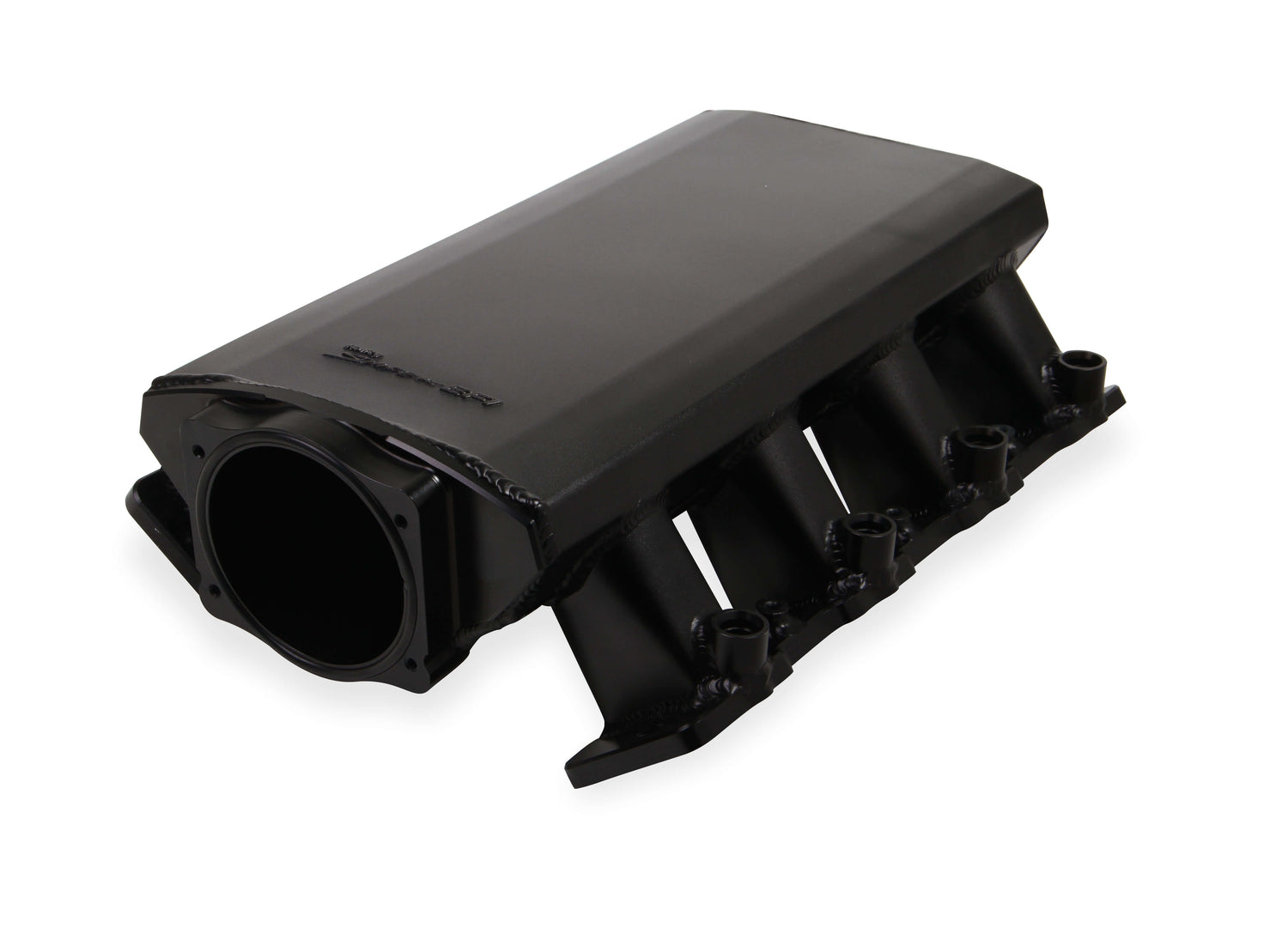

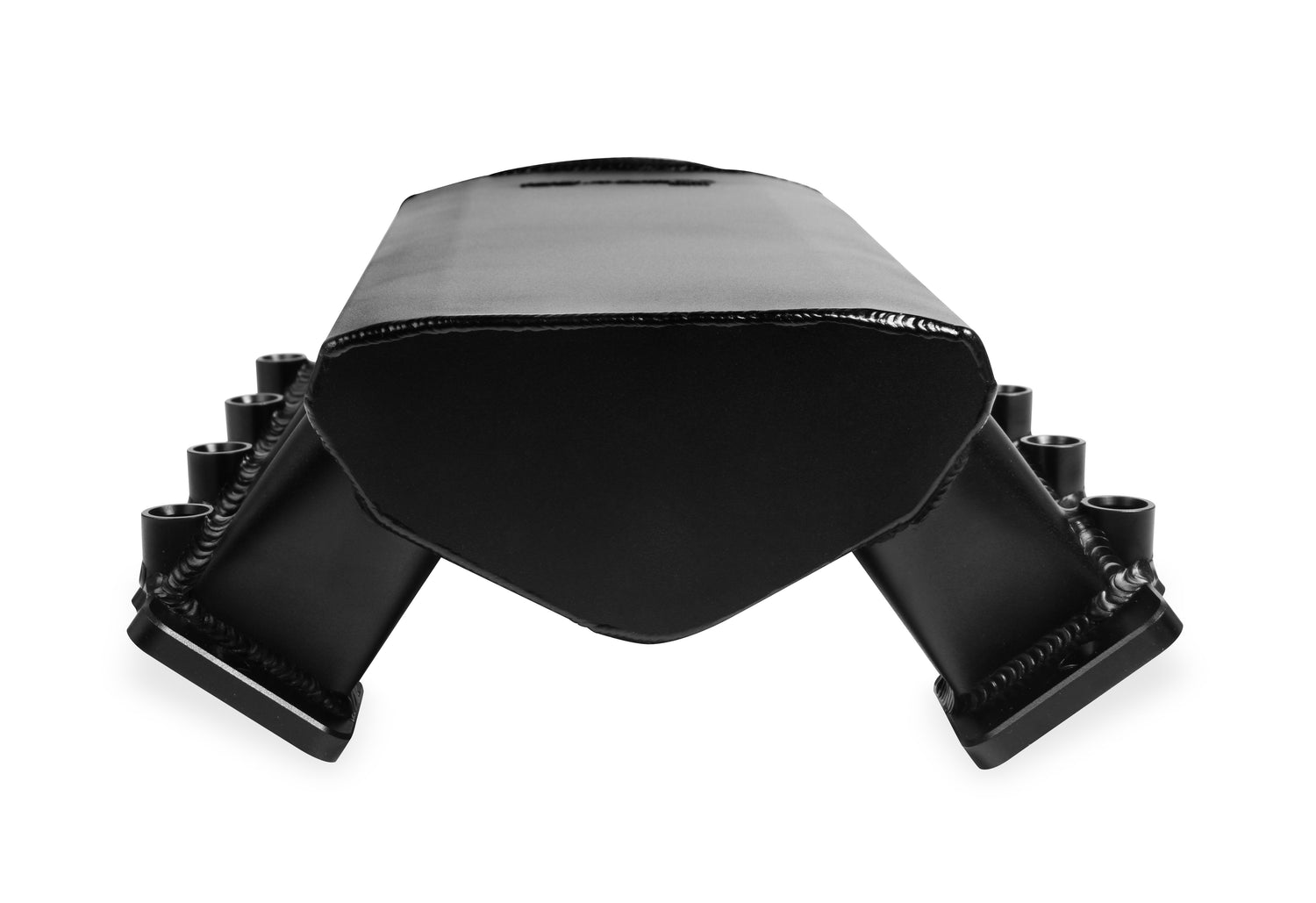

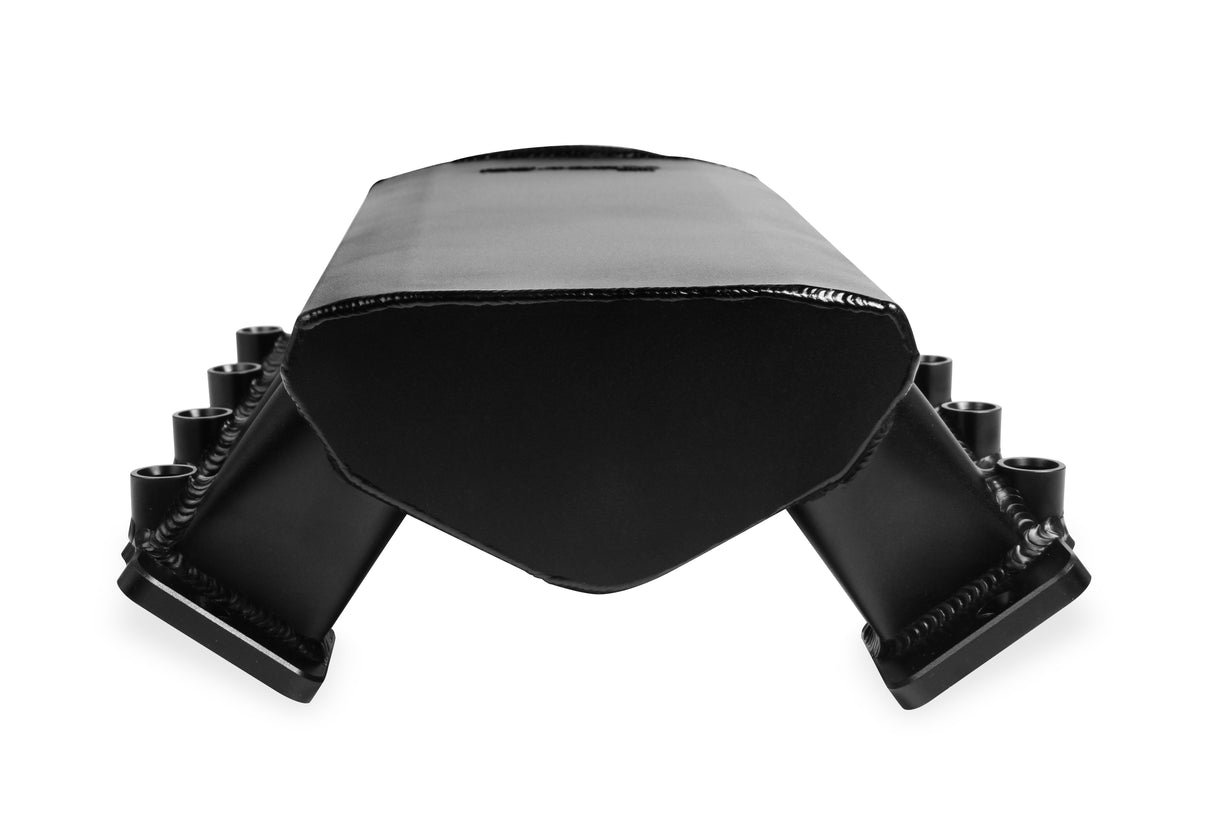

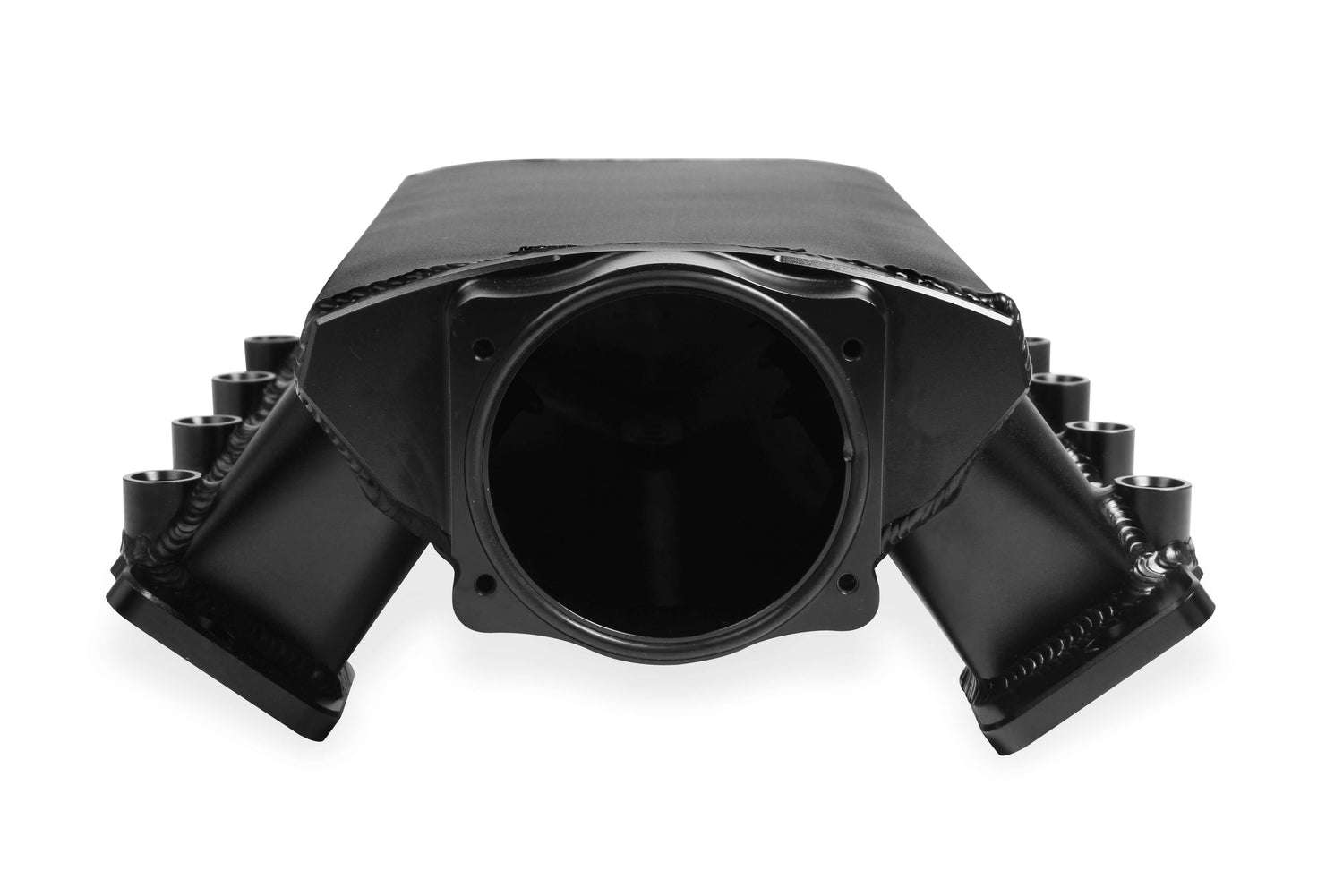

Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS1/LS2/LS6

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525

Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.

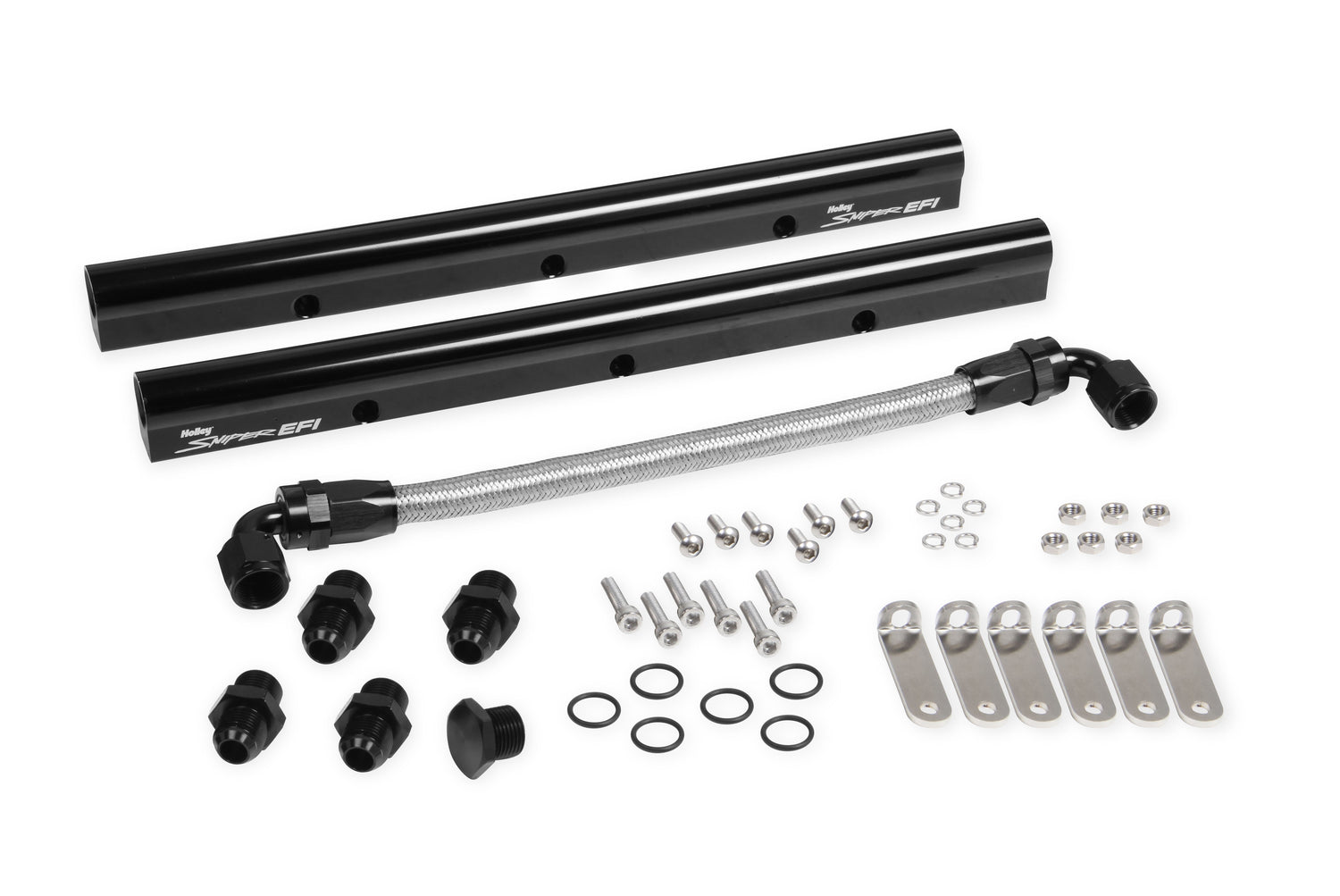

Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
Provision for MAP sensor located on rear of plenum
Black Finish creates stealthy under-hood styling

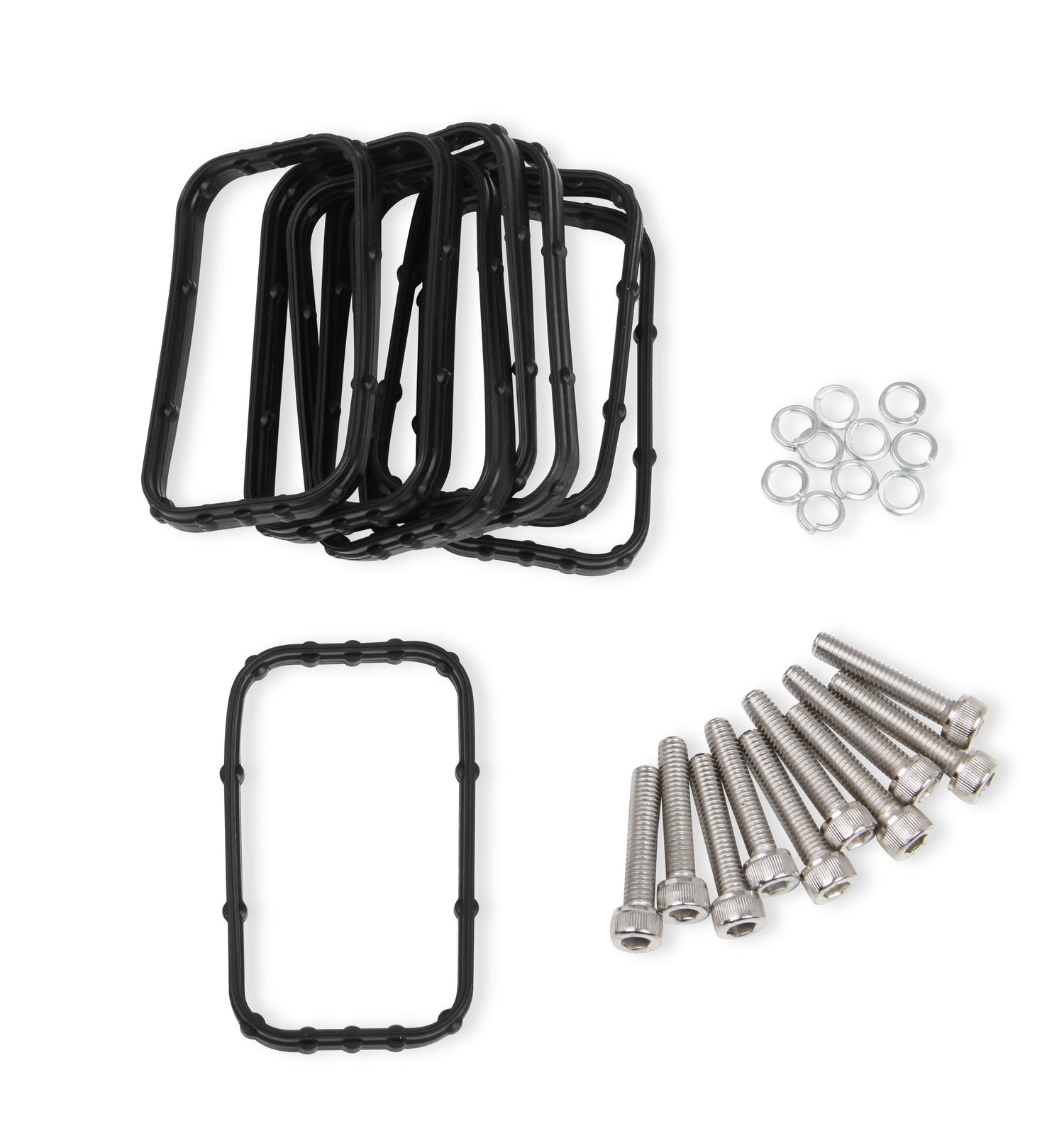

Product includes all gaskets and hardware for a hassle-free installation
102mm throttle bore opening for increased air flow
3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

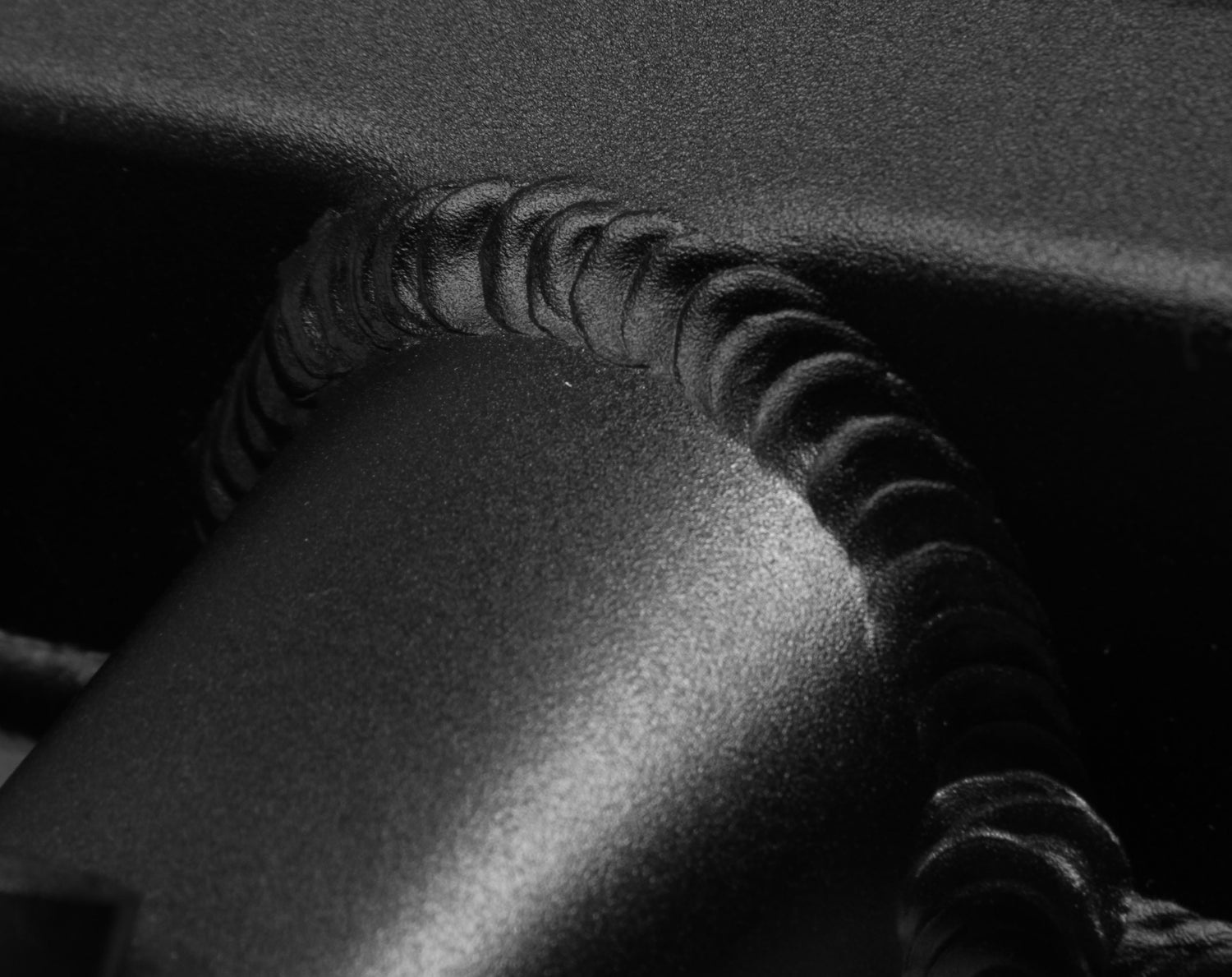

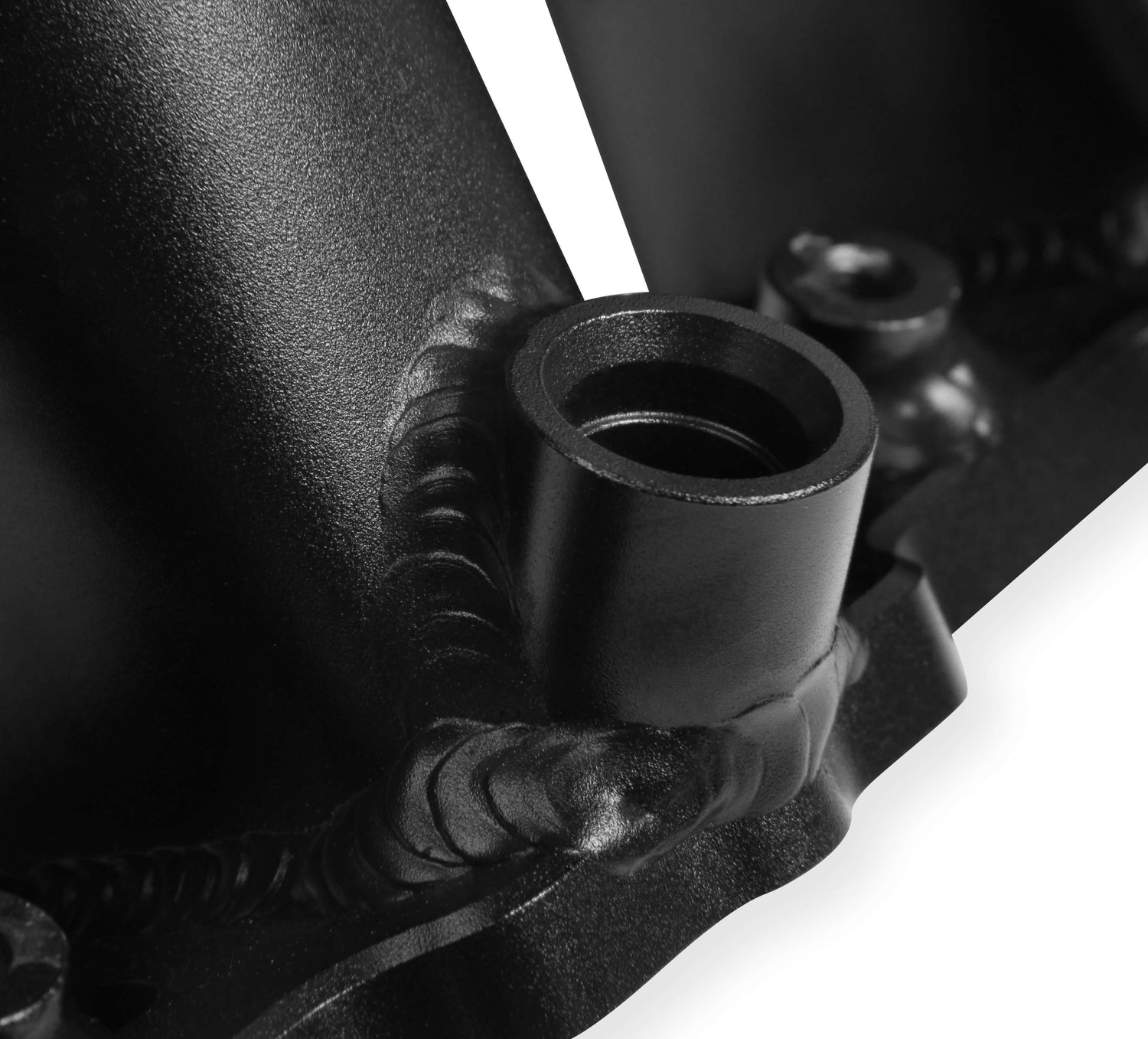

100% TIG welded for strength and durability
The Sniper intake will only accept EV1 style injectors.

Basic Operating RPM Range: 1500-6500

Brand: Holley Sniper EFI

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: No

Category: Engine

CNC Ported: No

Color: Black

Construction: Fabricated

Cylinder Head Port Shape: Cathedral

Deck Height: 9.24

EGR Port: No

Emission Code: 4

Engine: GM LS1/LS2/LS6

Flange Style: N/A

Front Maximum Height: 6.392

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: Yes

Grade Type: Performance

Injector Style Provision: EV1

Intake Port Gasket(s) Included: Yes

Material: Aluminum

Nitrous Bung(s) Included: No

part type: Engine Intake Manifold

Plenum Finish: Black

Product Type: Intake Manifold

Rear Maximum Height: 5.684

Recommended Use: Forced Induction

Removable Runners: No

Removable Top/Lid: No

Runner Length: 4.527" (115mm)

Single Or Dual Plane Type: Single

Style: EFI

Sub Category: Cylinder Block Components

Throttle Body Bore Diameter: 102

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Throttle Bore: 102mm

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT

Warning: California Proposition 65

Warranty: Manufacturer's Limited 90 Day Warranty
