Sniper 820102-1 - EFI LS1/2/6 LOW PROF. IM,EFI,92MM

Name: Sniper 820102-1 - EFI LS1/2/6 LOW PROF. IM,EFI,92MM
Brand: Sniper
SKU: SNIP-820102-1
Price: 949.95 USD
Availability: InStock

Sniper | SKU: SNIP-820102-1

$949⁹⁵ $1,068⁹⁵

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 820102-1 - EFI LS1/2/6 LOW PROF. IM,EFI,92MM

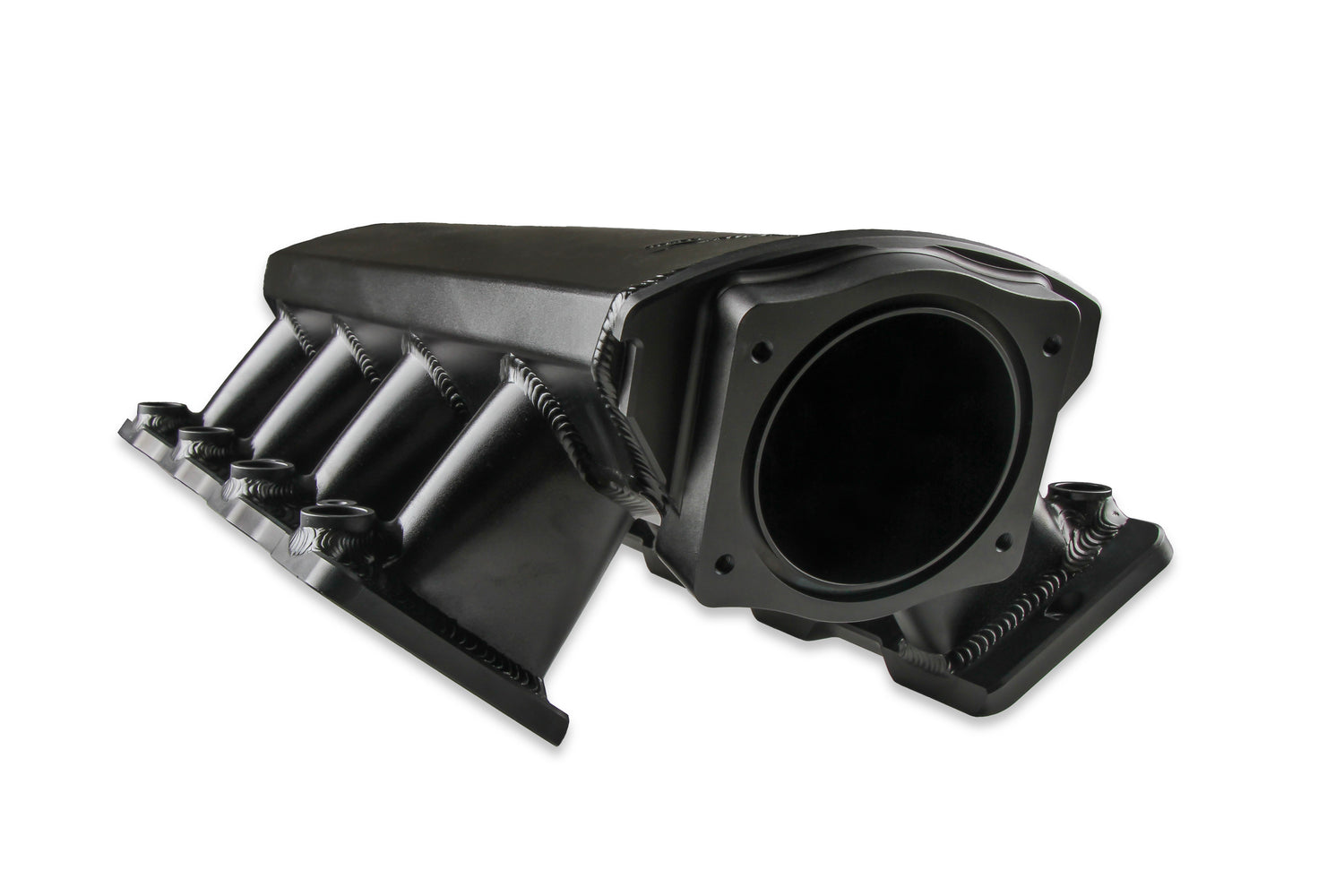

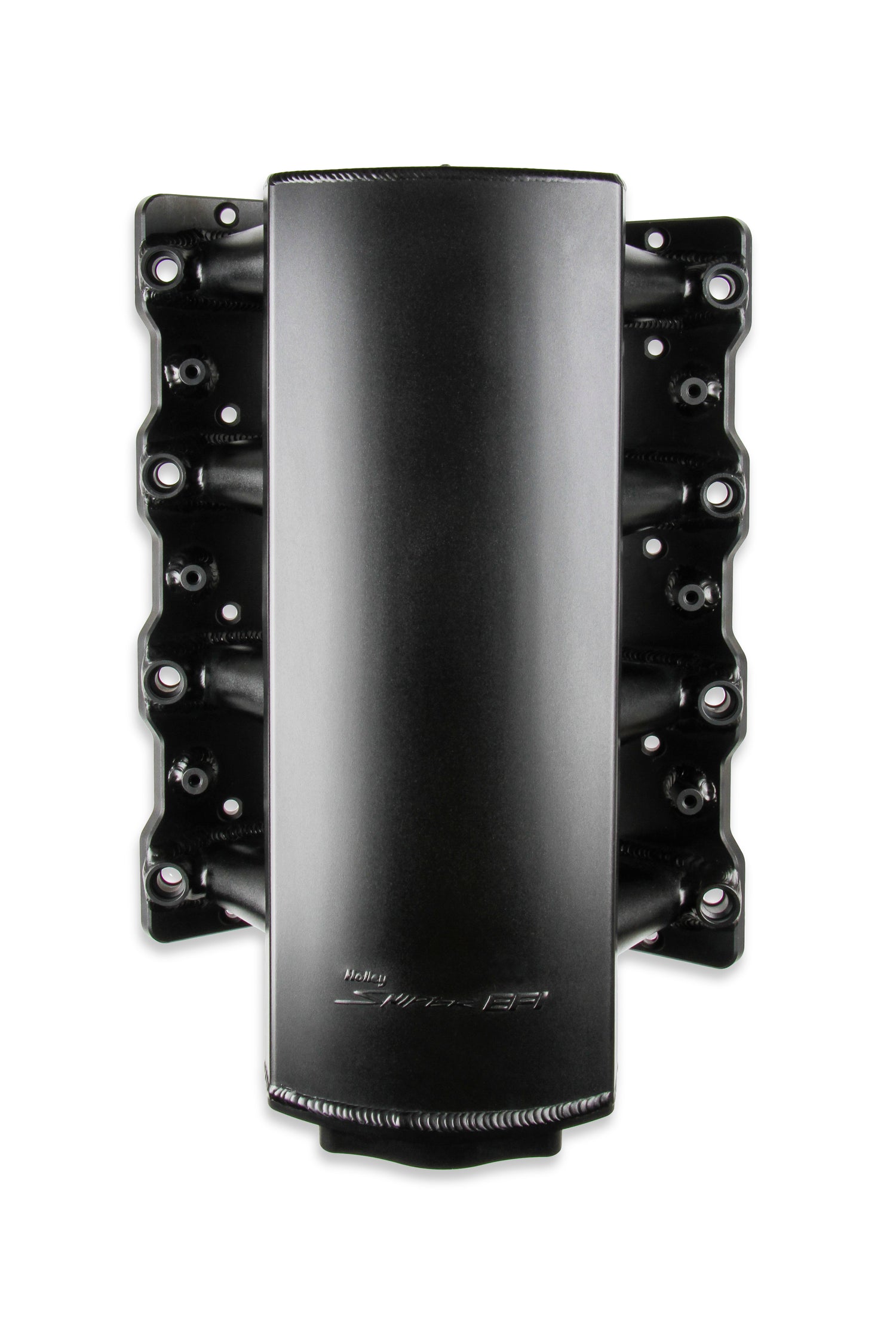

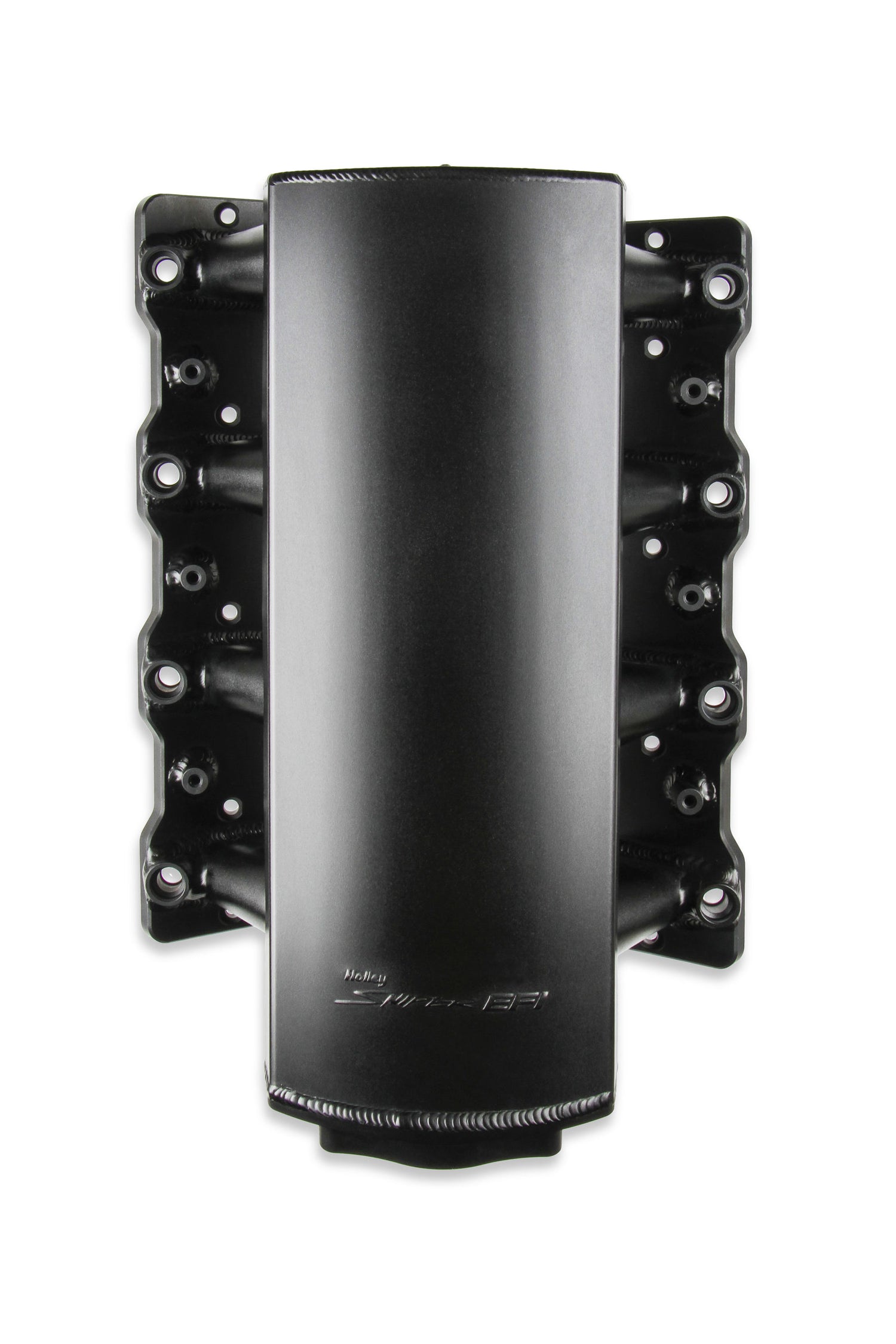

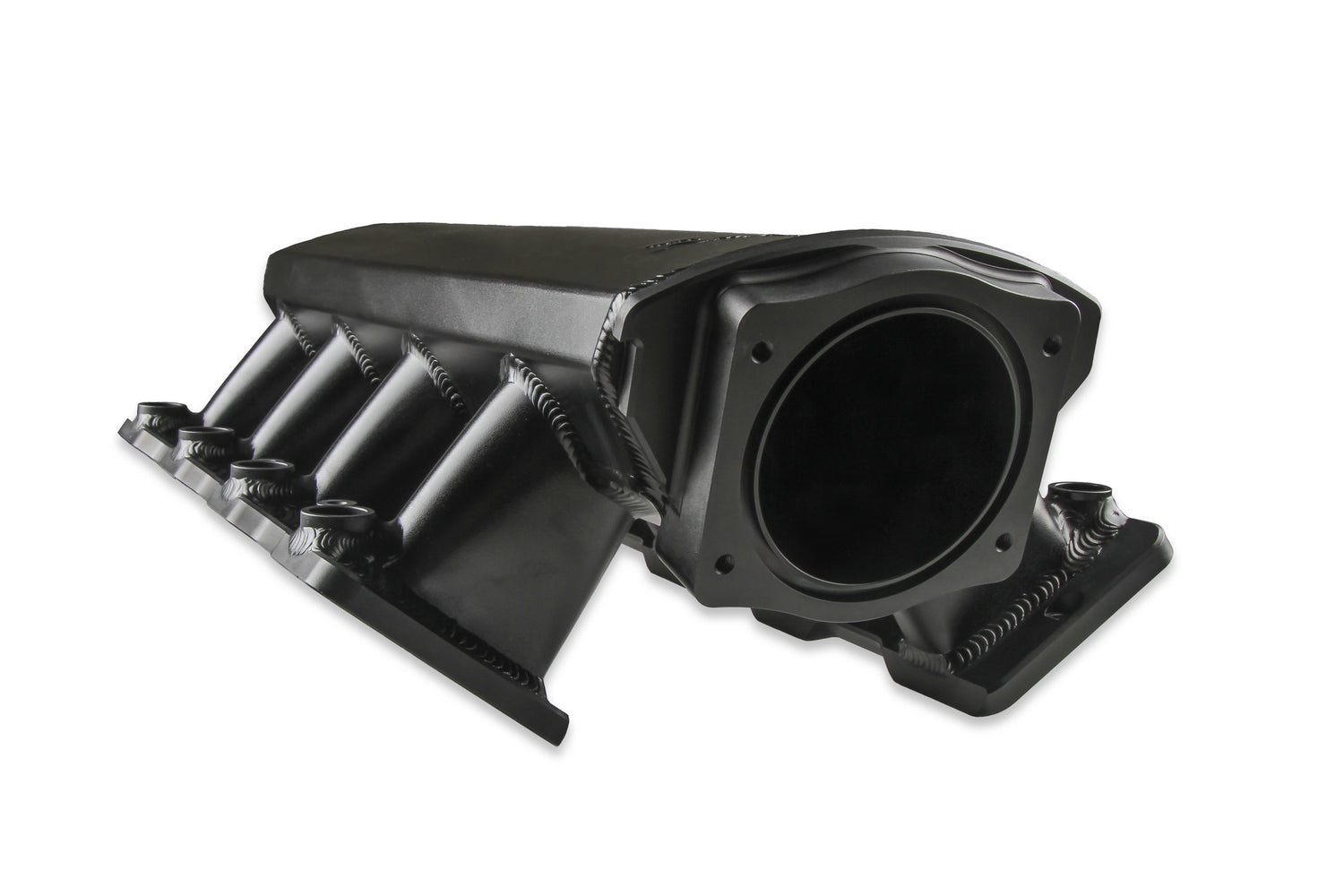

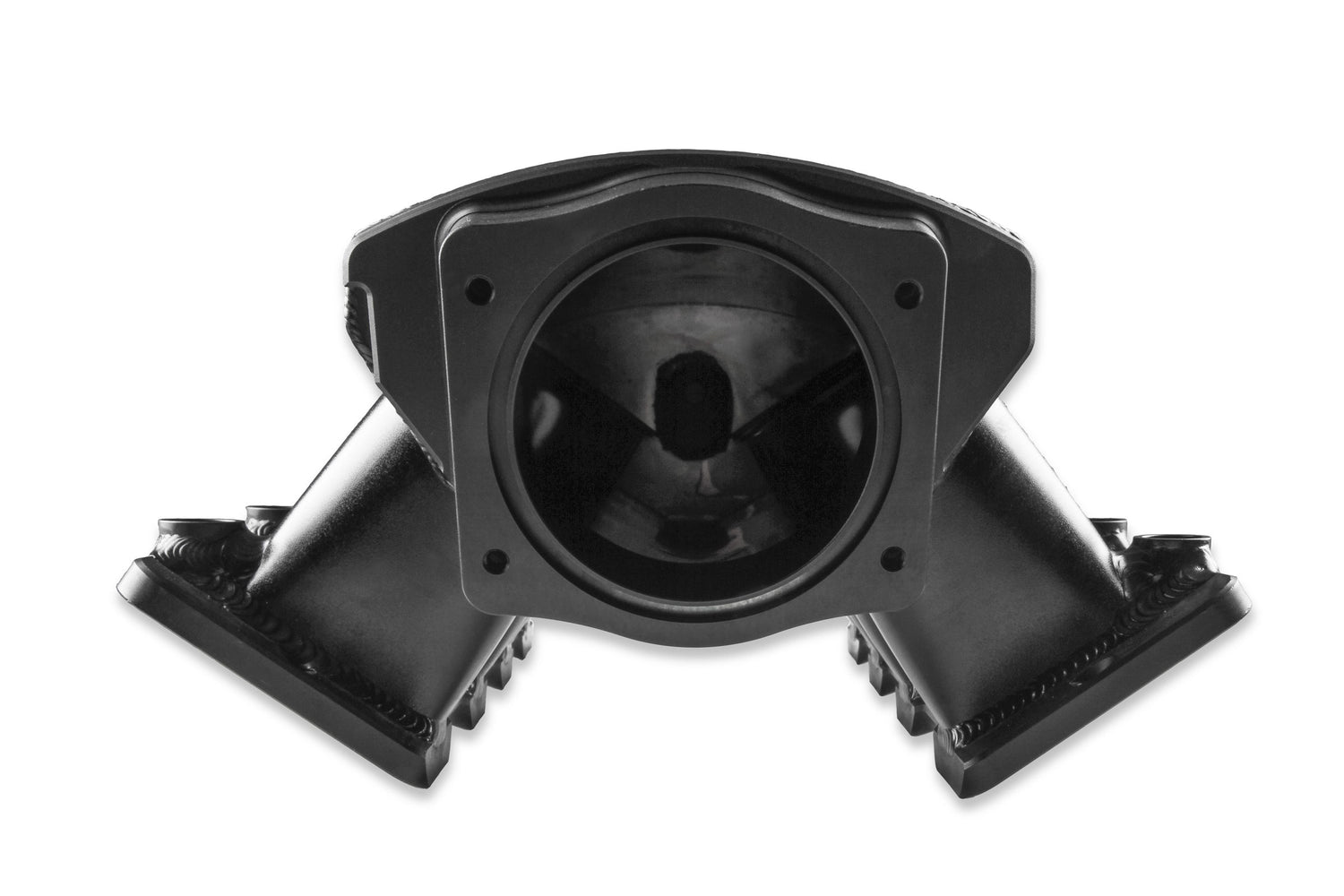

Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS1/LS2/LS6

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile- Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525

Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.

The Sniper intake will only accept EV1 style injectors.

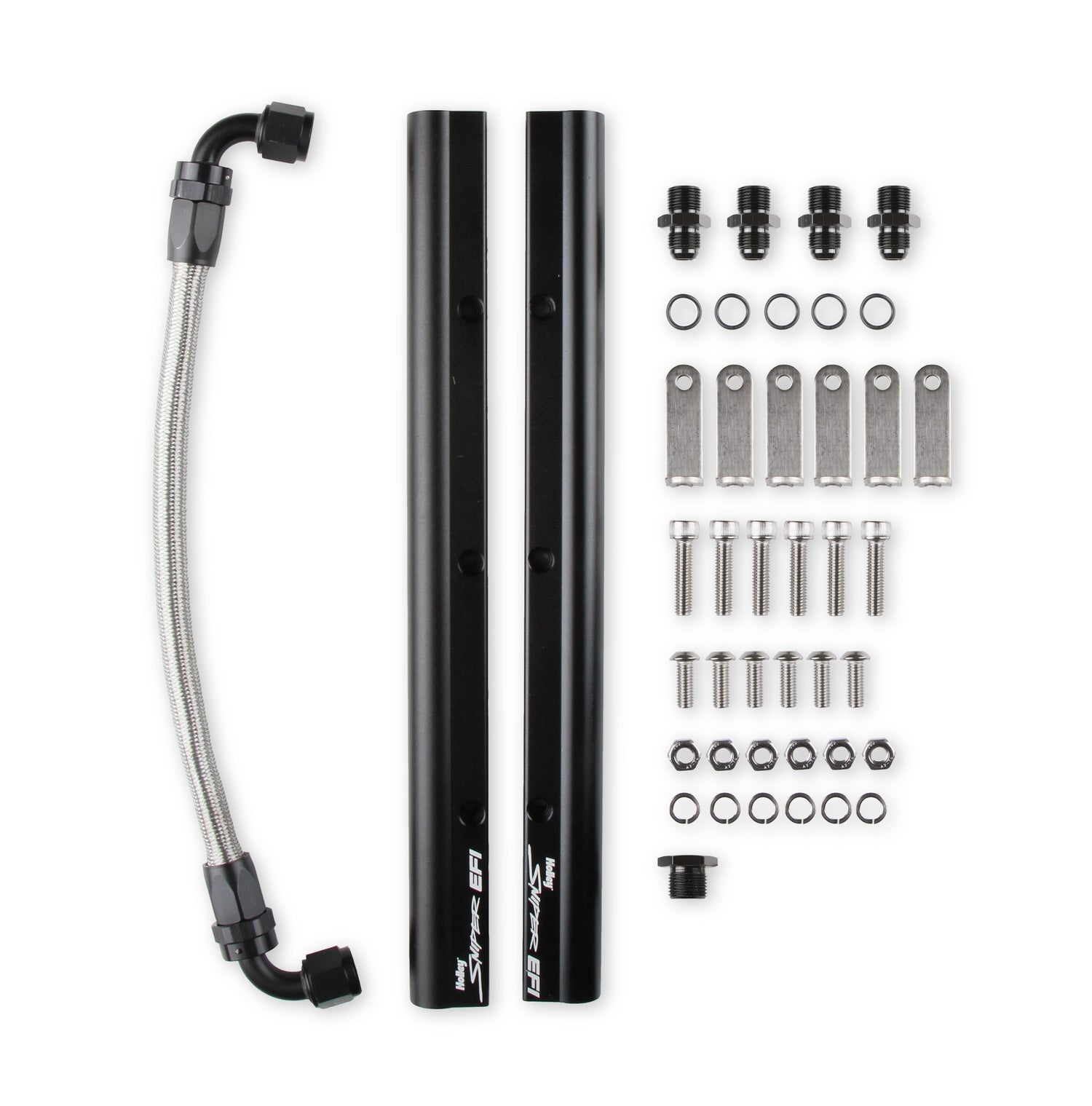

Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
100% TIG welded for strength and durability

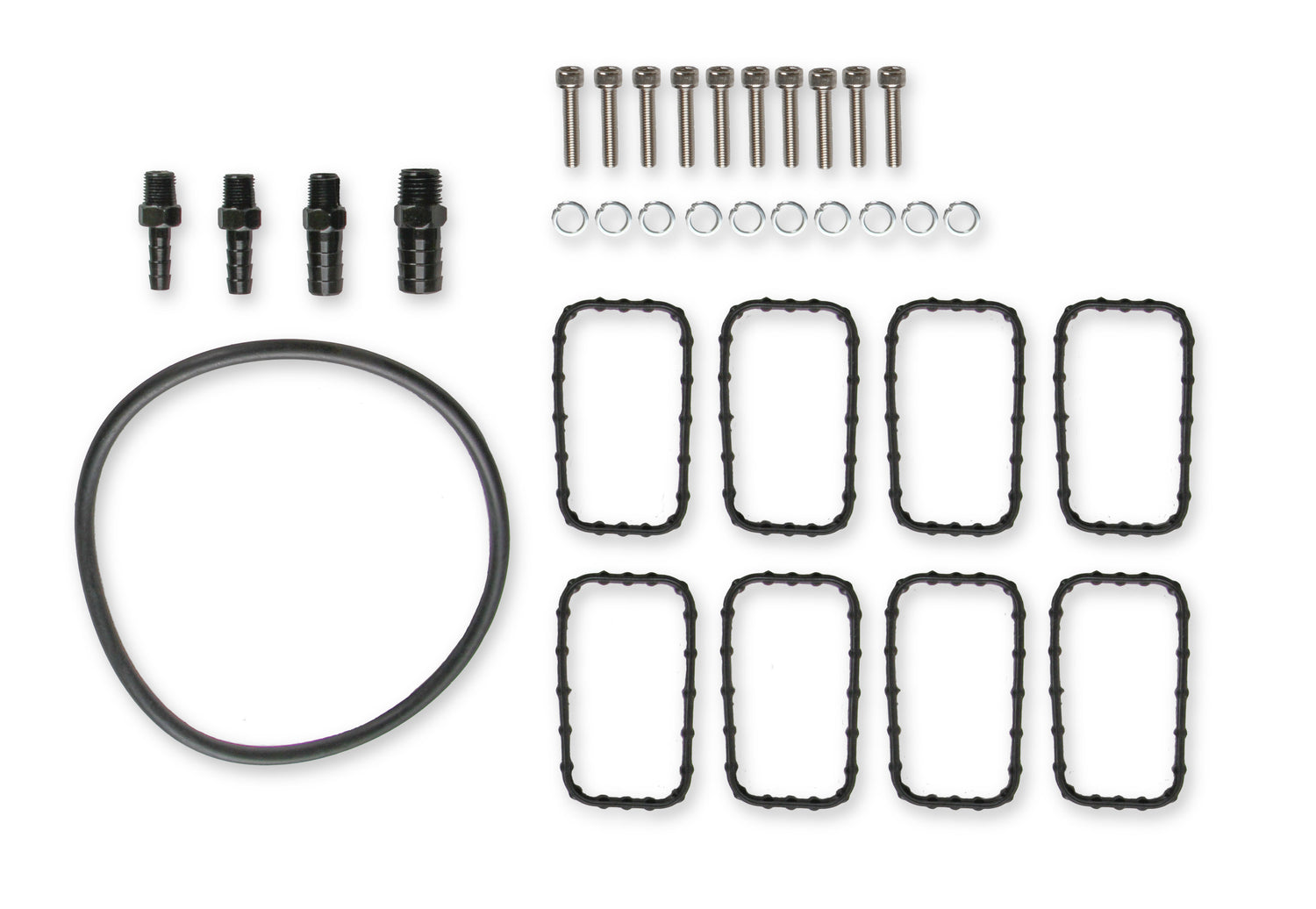

Product includes all gaskets and hardware for a hassle-free installation

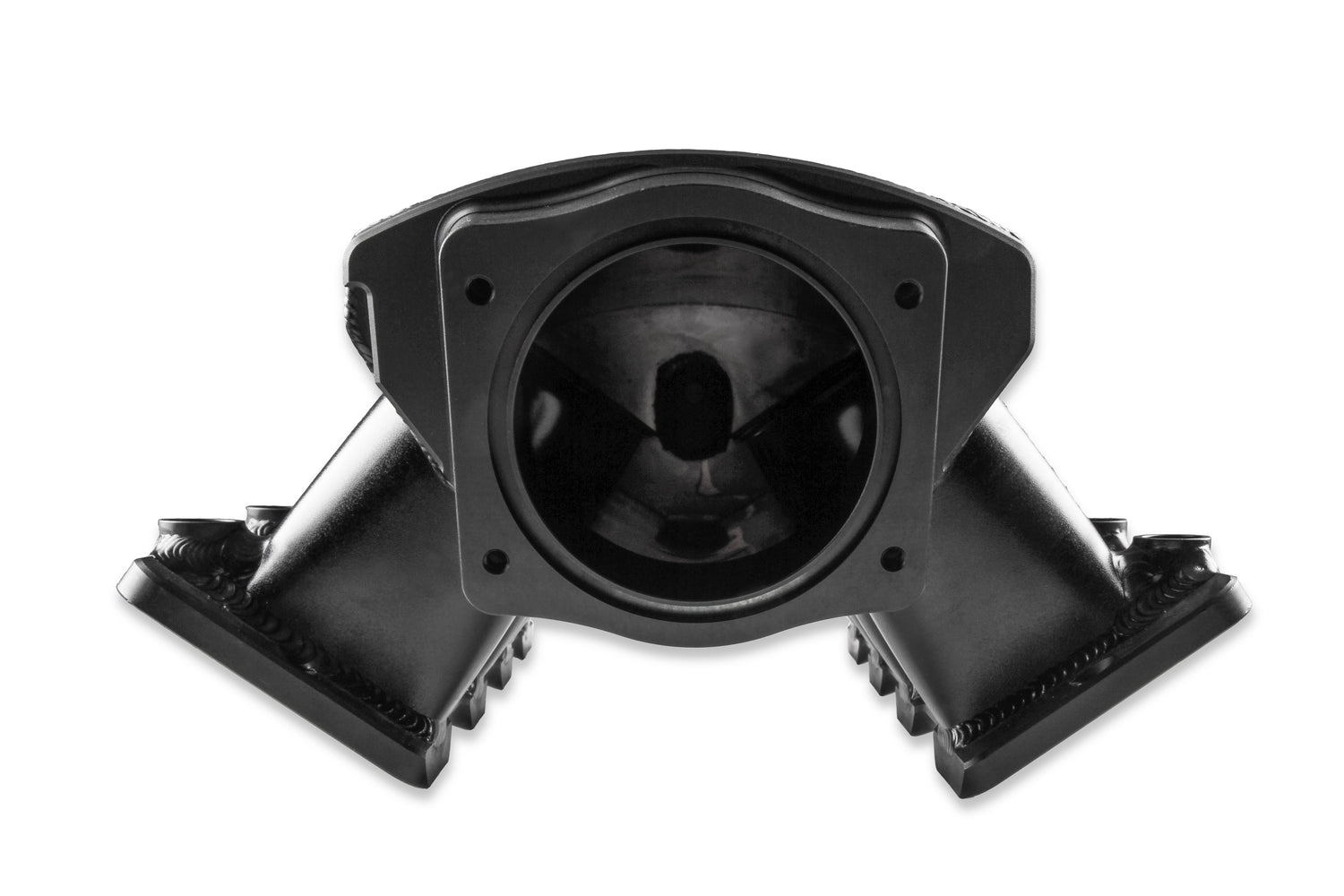

92mm throttle bore opening for increased air flow

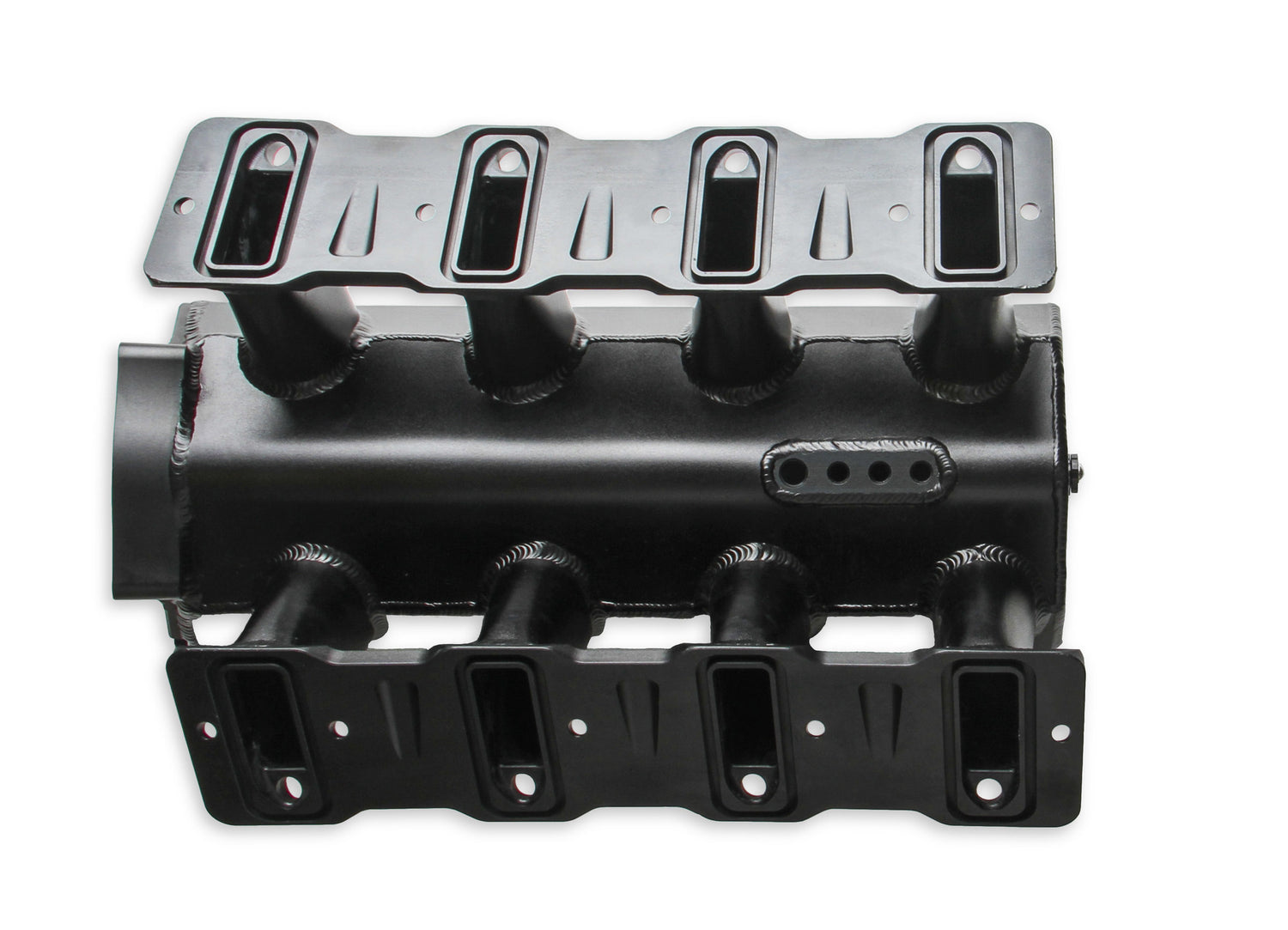

Provision for MAP sensor located on rear of plenum
Black Finish creates stealthy under-hood styling
3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

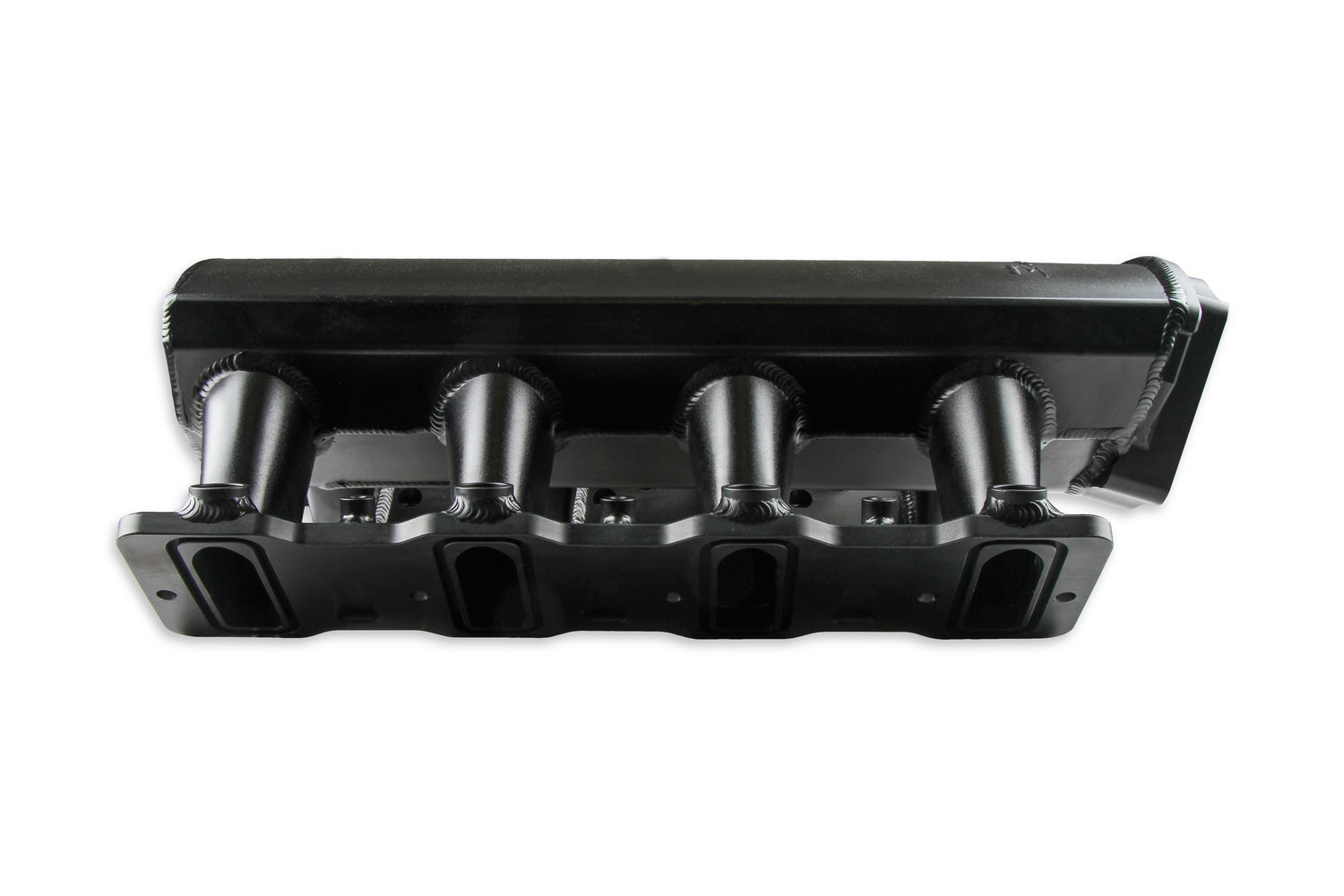

Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

Basic Operating RPM Range: 1500-6500

Brand: Holley Sniper EFI

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: No

Category: Engine

CNC Ported: No

Color: Black

Construction: Fabricated

Cylinder Head Port Shape: Cathedral

Deck Height: 9.24

EGR Port: No

Emission Code: 4

Engine: GM LS1/LS2/LS6

Flange Style: N/A

Front Maximum Height: 6.392

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: Yes

Grade Type: Performance

Injector Style Provision: EV1

Intake Port Gasket(s) Included: Yes

Manifold Type: Fabricated

Material: Aluminum

Nitrous Bung(s) Included: No

part type: Engine Intake Manifold

Plenum Finish: Black

Product Type: Intake Manifold

Rear Maximum Height: 5.684

Recommended Use: Forced Induction

Removable Runners: No

Removable Top/Lid: No

Runner Length: 4.527" (115mm)

Single Or Dual Plane Type: Single

Style: EFI

Sub Category: Cylinder Block Components

Throttle Body Bore Diameter: 92

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Throttle Bore: 92mm

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT

Warning: California Proposition 65

Warranty: Manufacturer's Limited 90 Day Warranty
