Sniper 820051 - EFI LS1/2/6 SINGLE PLANE INTAKE M
Sniper | SKU:
SNIP-820051
Sale price
$52295
Regular price
$1,06895
Unit price
/
Unavailable
$546.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Sniper 820051 - EFI LS1/2/6 SINGLE PLANE INTAKE M

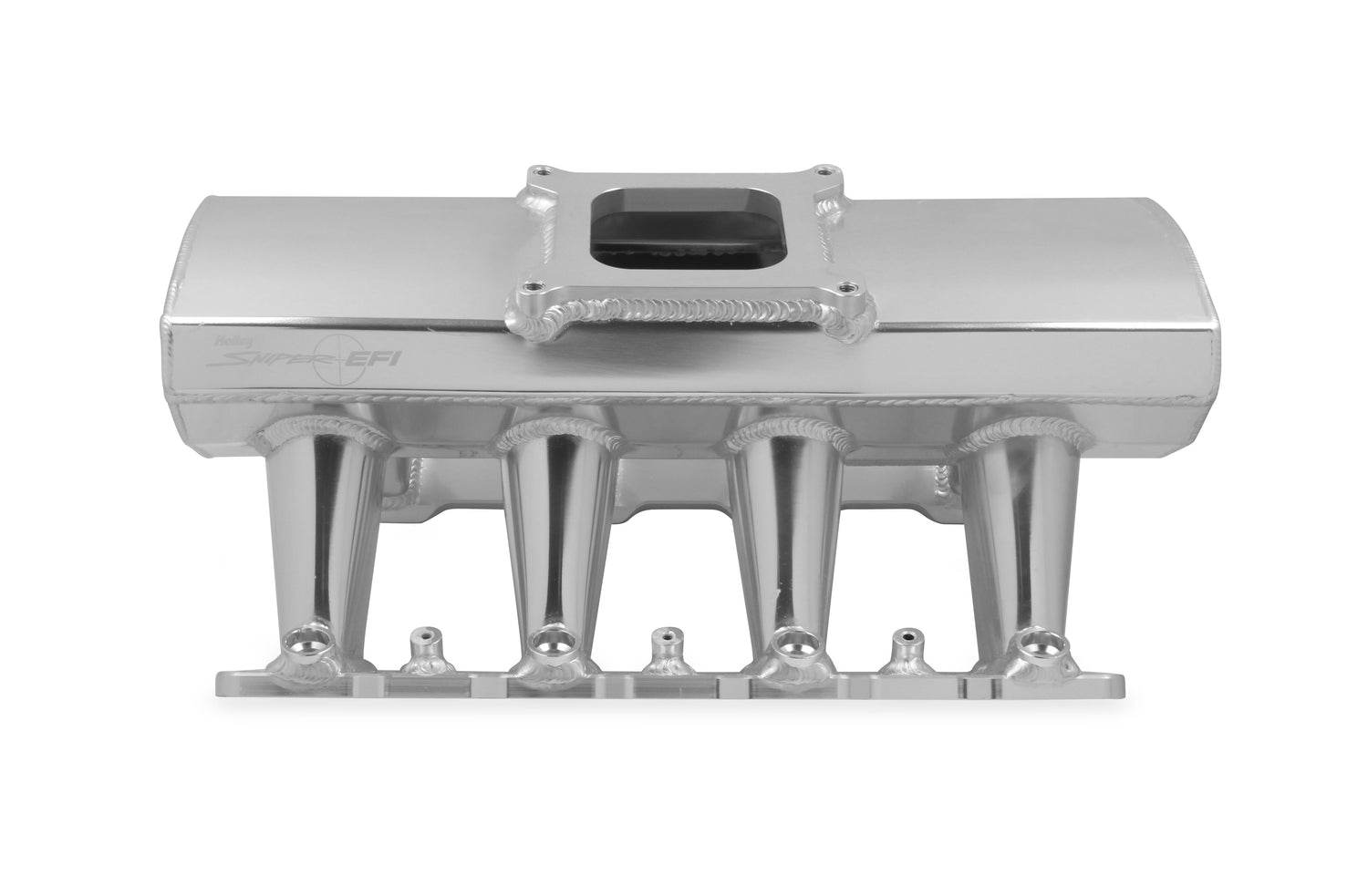

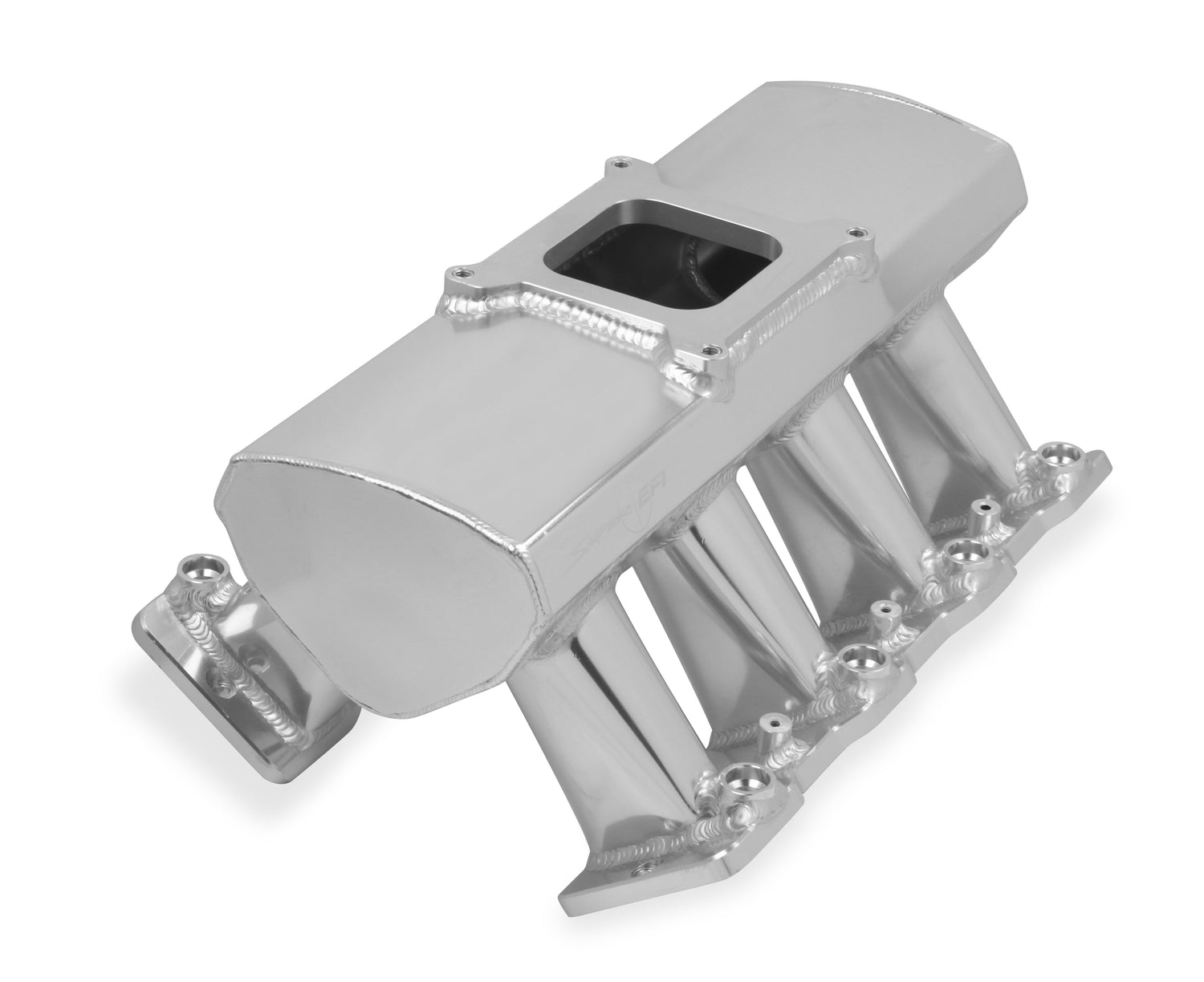

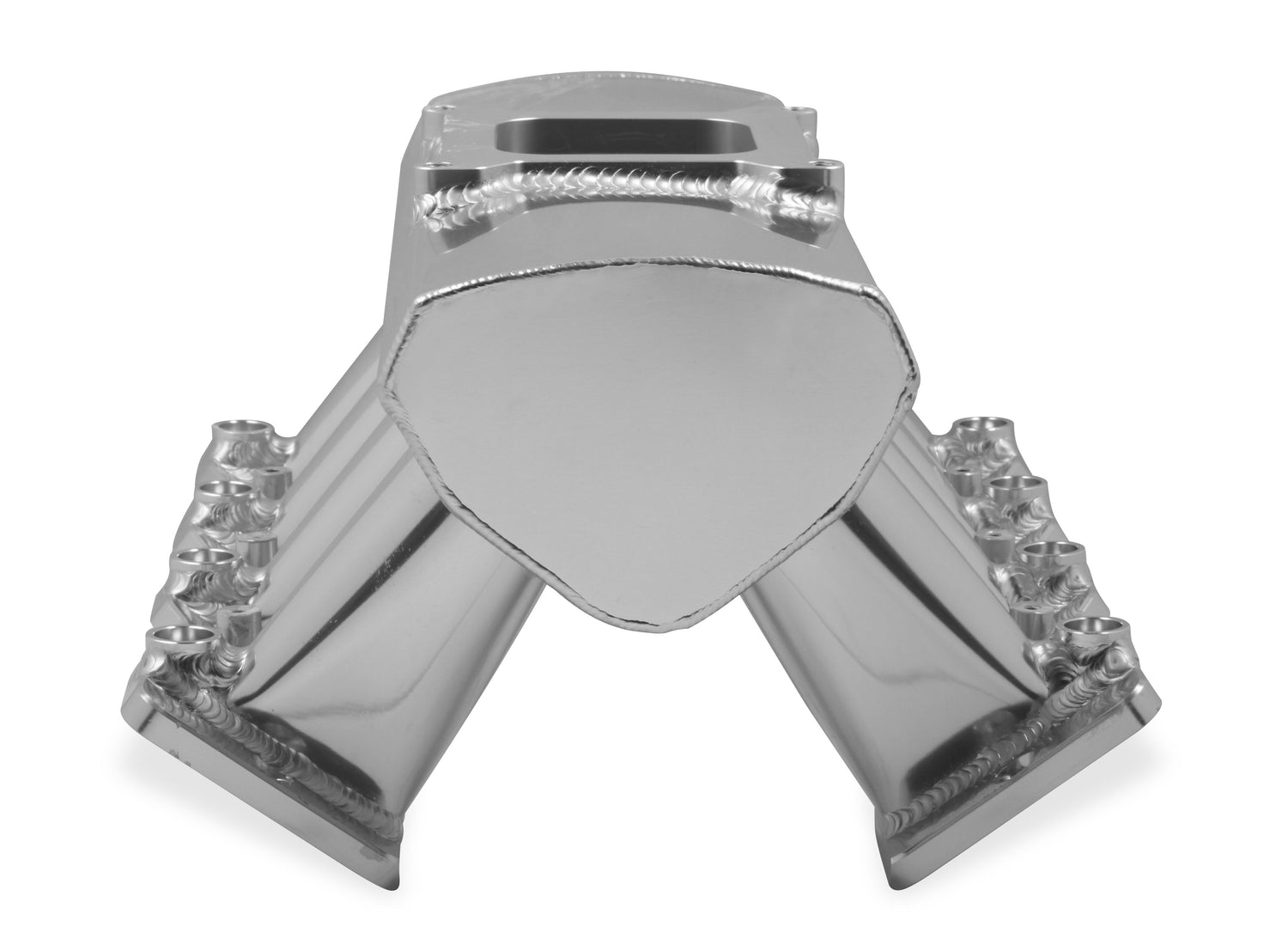

Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS1/2/6
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane EFI + Fuel Rail Kit Silver with Sniper EFI logo
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

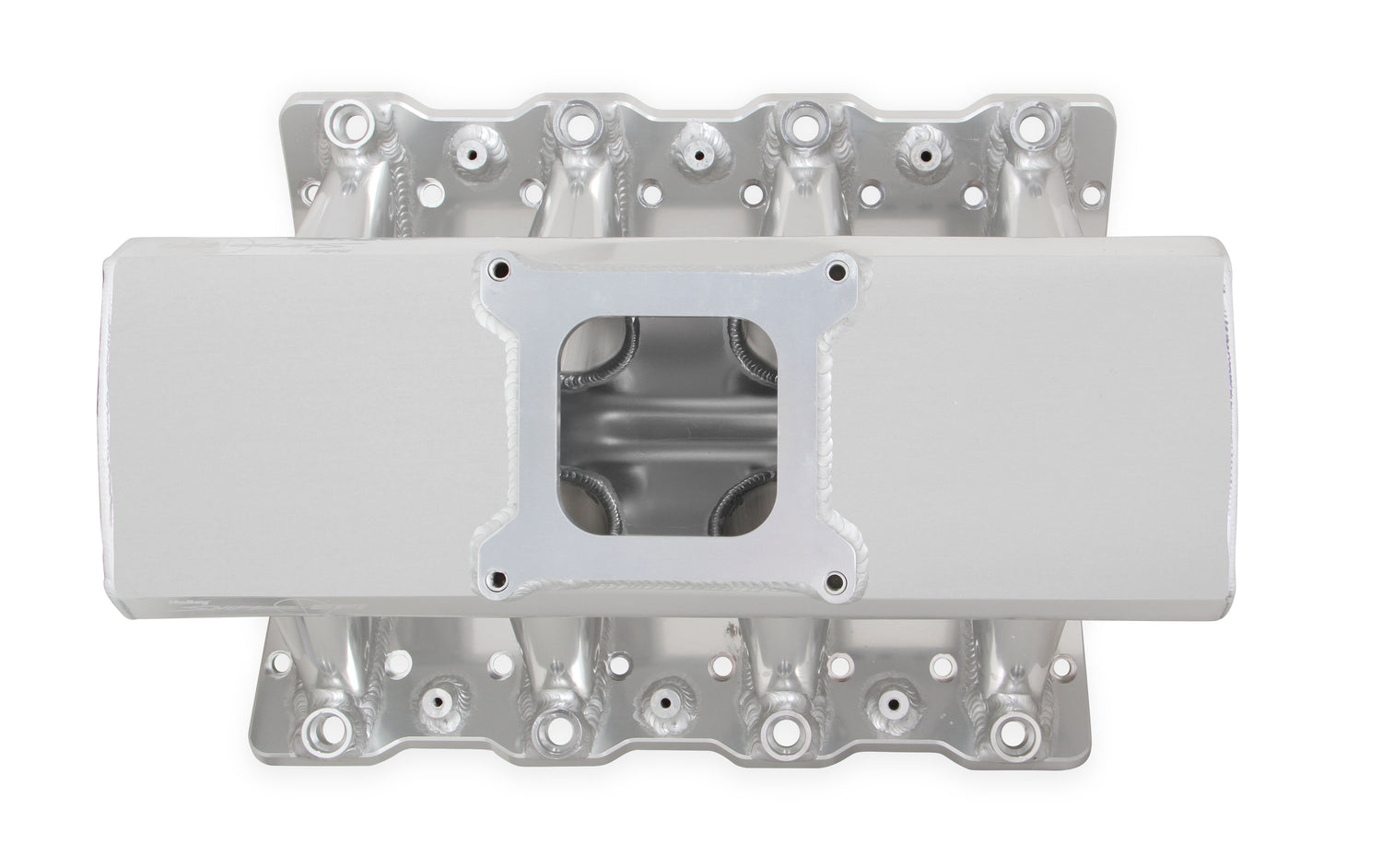

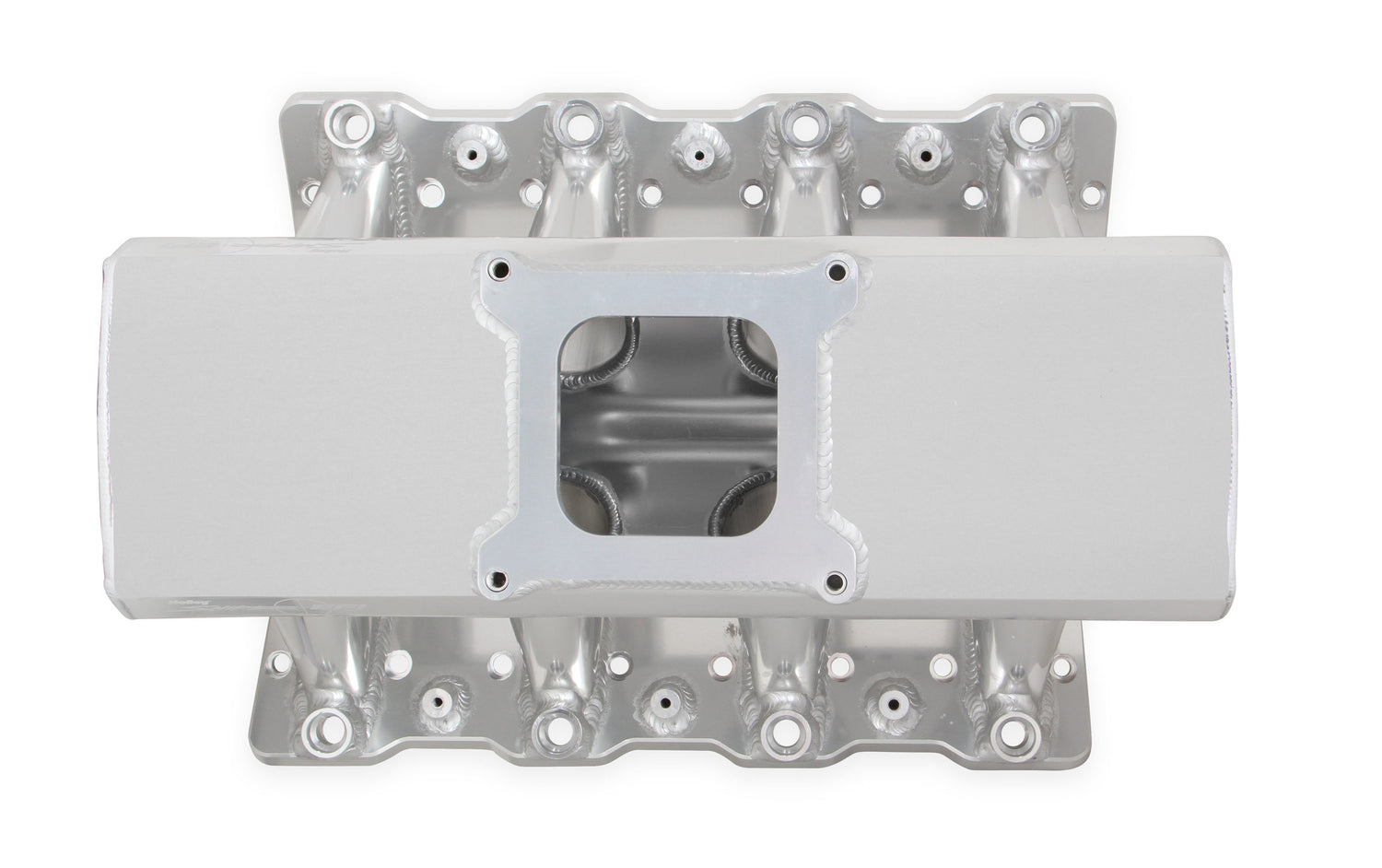

- 1 x 4150 flange option for increased air flow
- Product includes all gaskets and hardware for a hassle-free installation

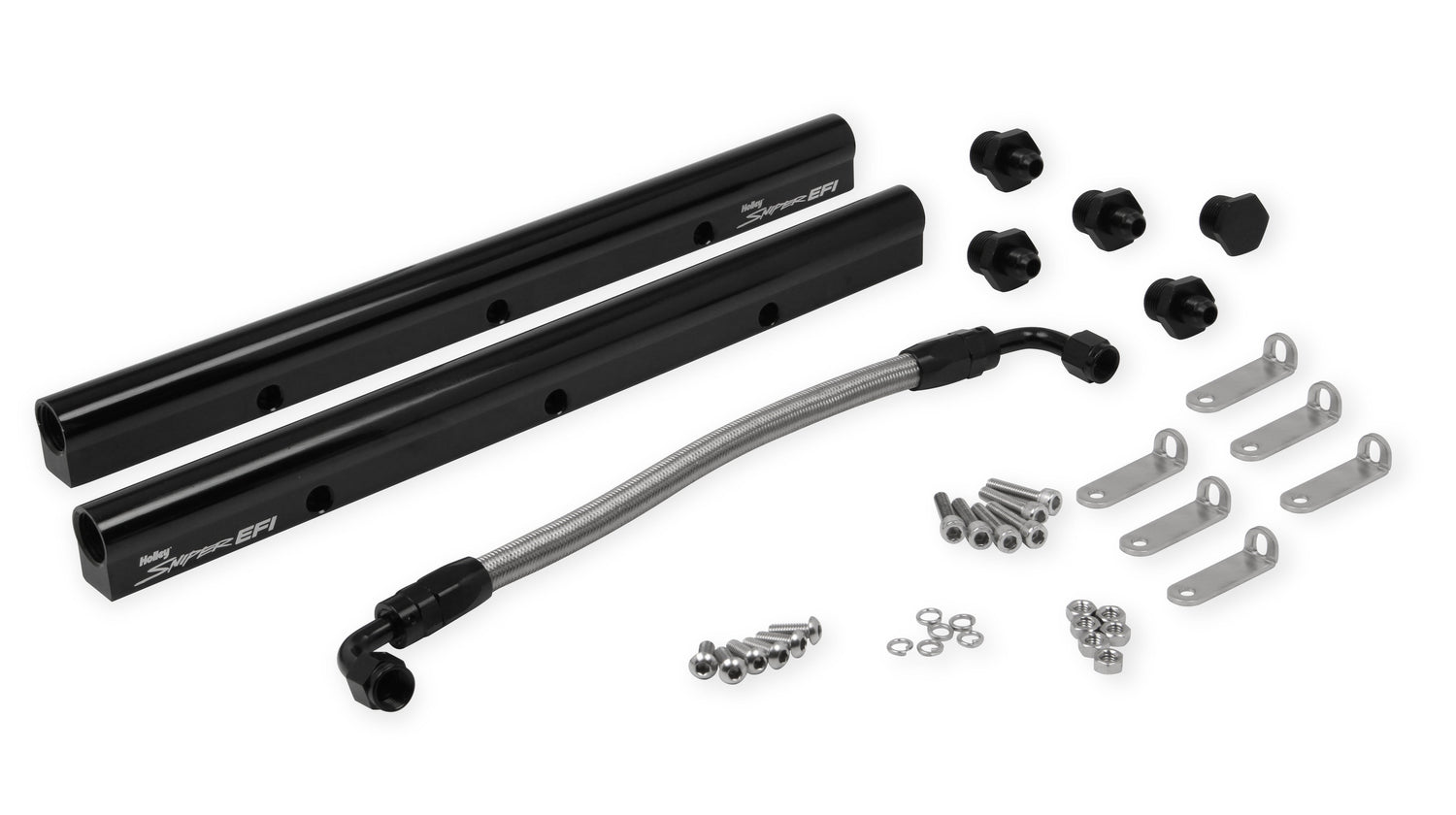

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

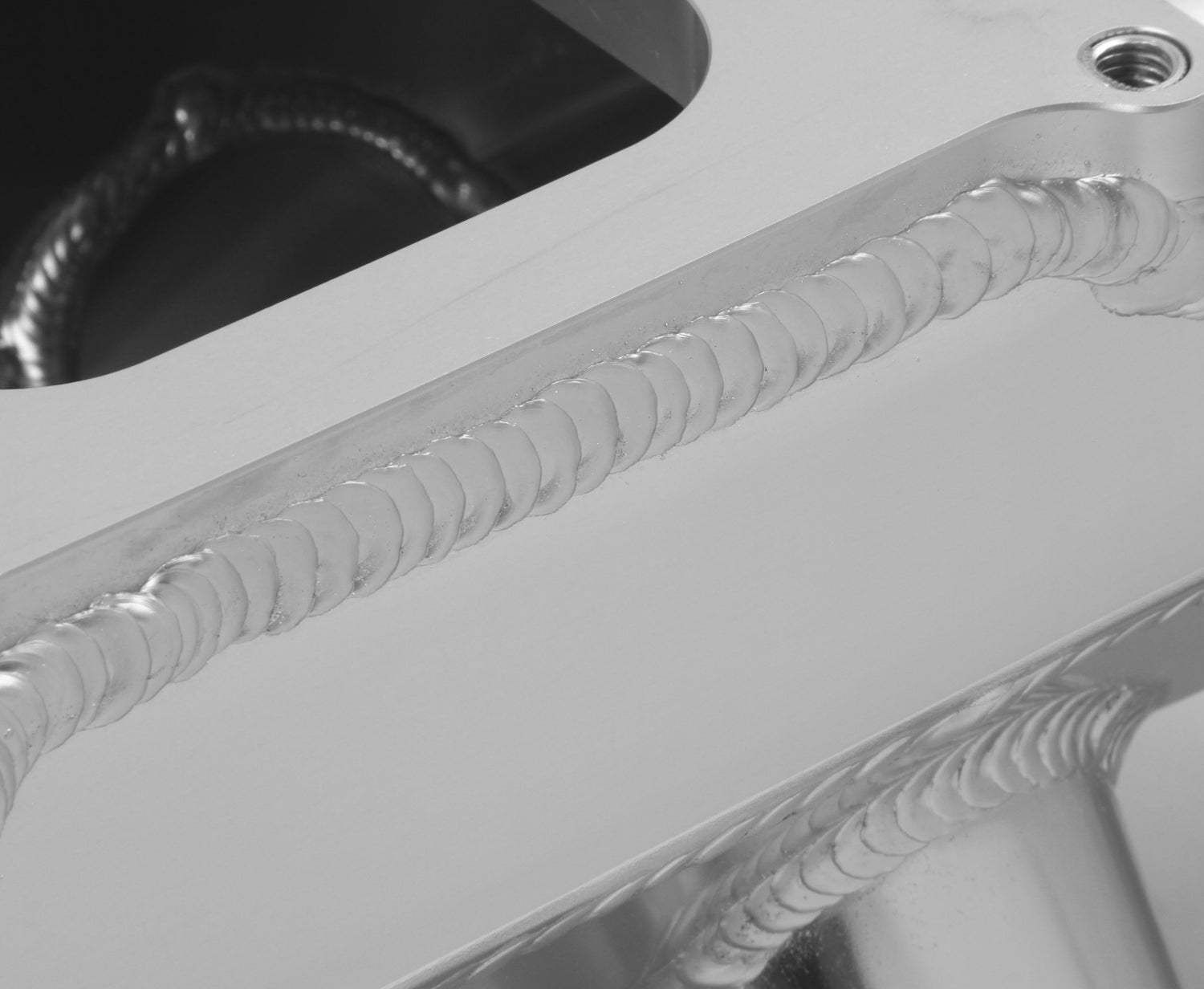

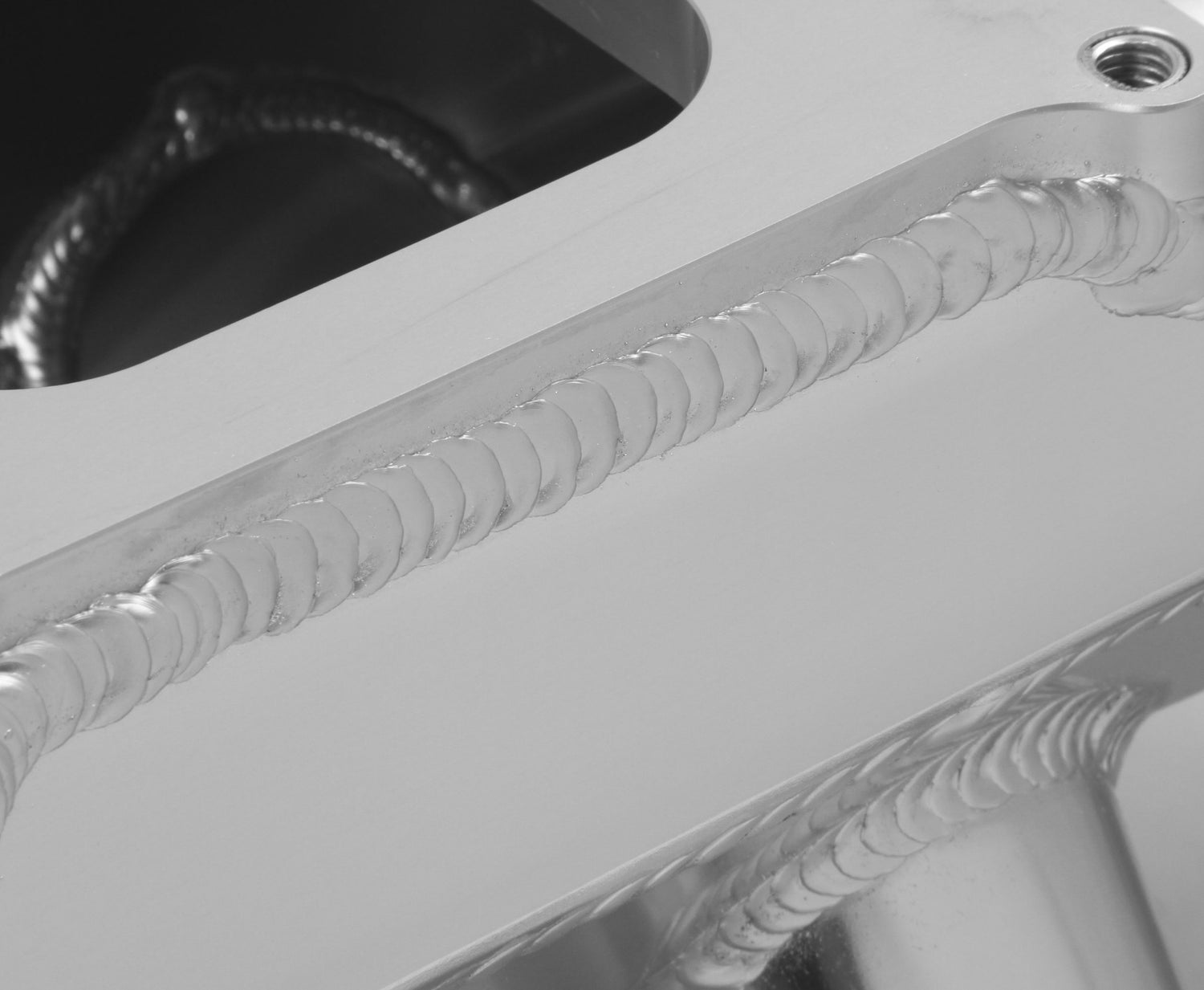

- 100% TIG welded for strength and durability
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

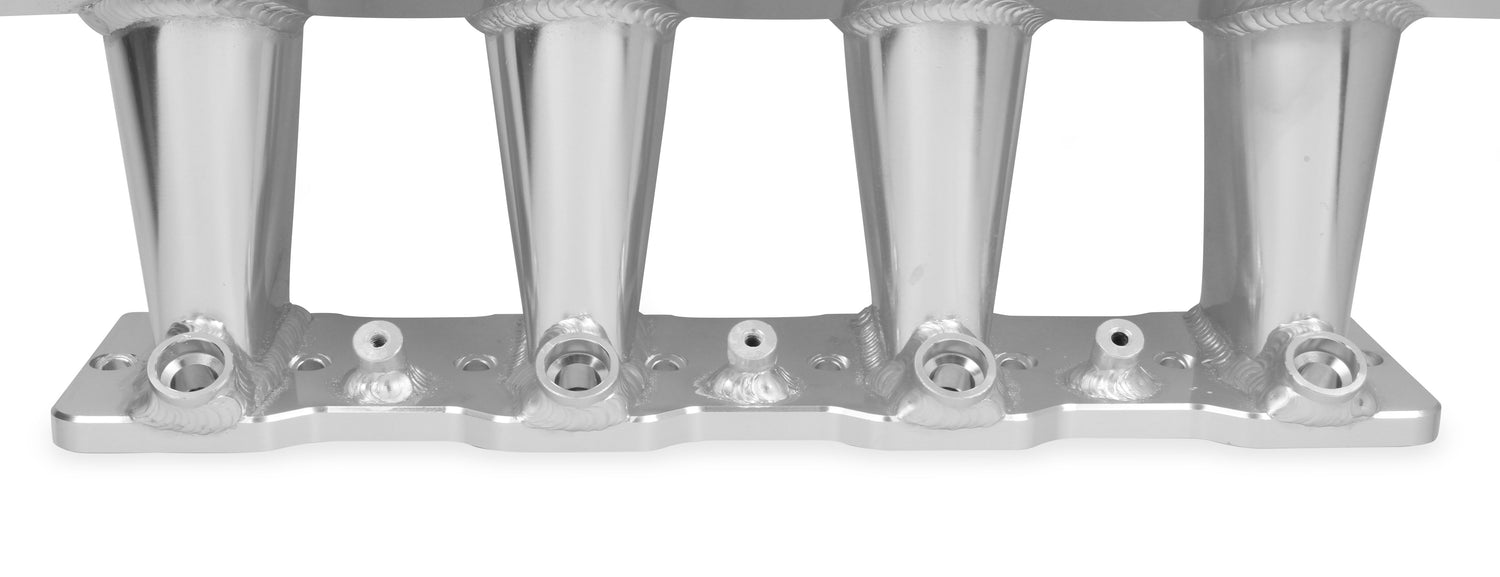

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Silver finish creates high impact under-hood styling
- The Sniper intake will only accept EV1 style injectors.
Basic Operating RPM Range: 2500-7000
Brand: Holley Sniper EFI
Carburetor Flange: Square/4150
Carburetor Quantity: 1
Carburetor Studs Included: No
Category: Sniper Intake Manifolds SP
CNC Ported: No
Color: Silver
Construction: Fabricated

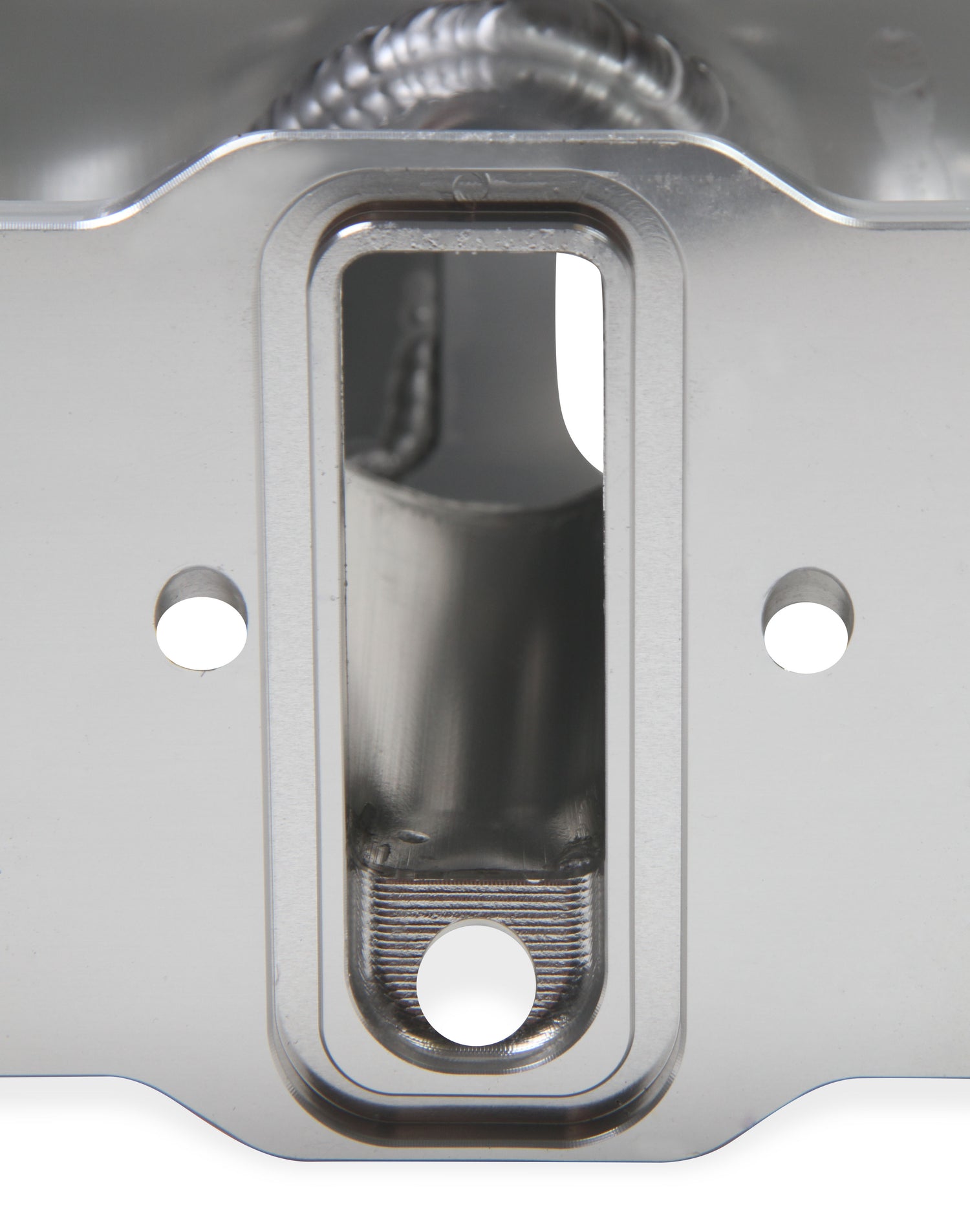

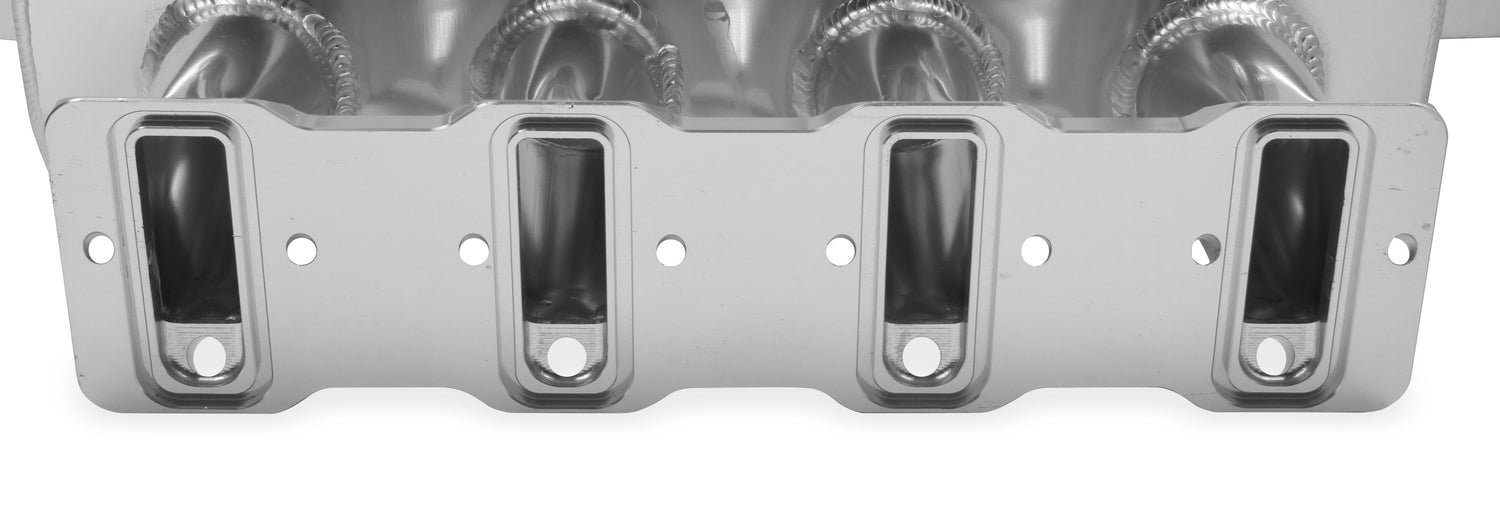

Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS1/LS2/LS6
Flange Size: 4150
Flange Style: 4150 Square Bore
Front Maximum Height: 8.858
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Maximum Height: 8.858
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 4.921" (125mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 3.6
Throttle Body Gasket Included: No
Throttle Body Included: No
Throttle Bore: 4150 flange
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
