Sniper 820031-1 - EFI LS1/2/6 FABR. IM, EFI, 92MM

Sniper  |  SKU: SNIP-820031-1
$84995 $95695

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 820031-1 - EFI LS1/2/6 FABR. IM, EFI, 92MM

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

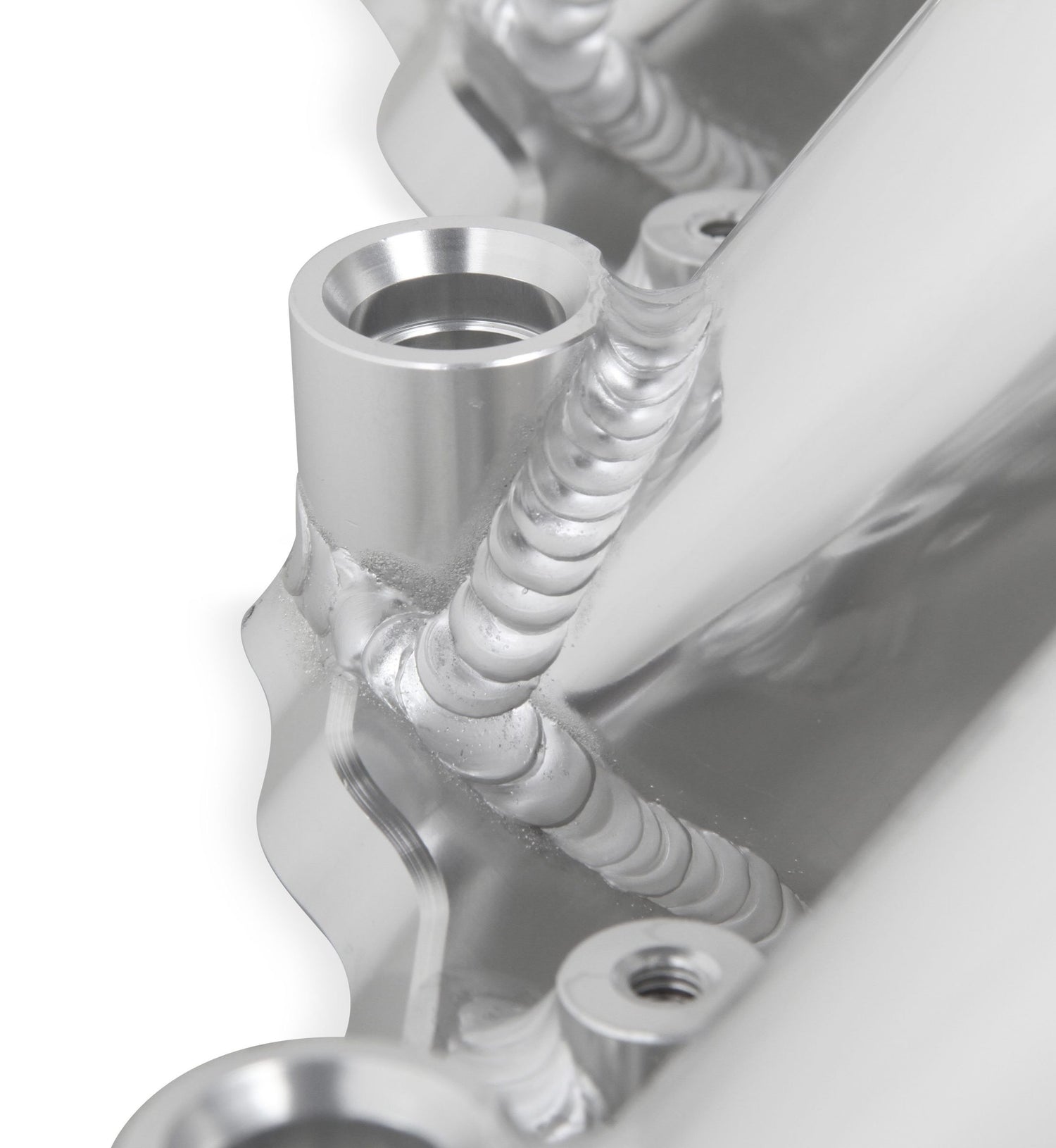

  • 100% TIG welded for strength and durability
  • The Sniper intake will only accept EV1 style injectors.
  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
  • 92mm throttle bore opening for increased air flow

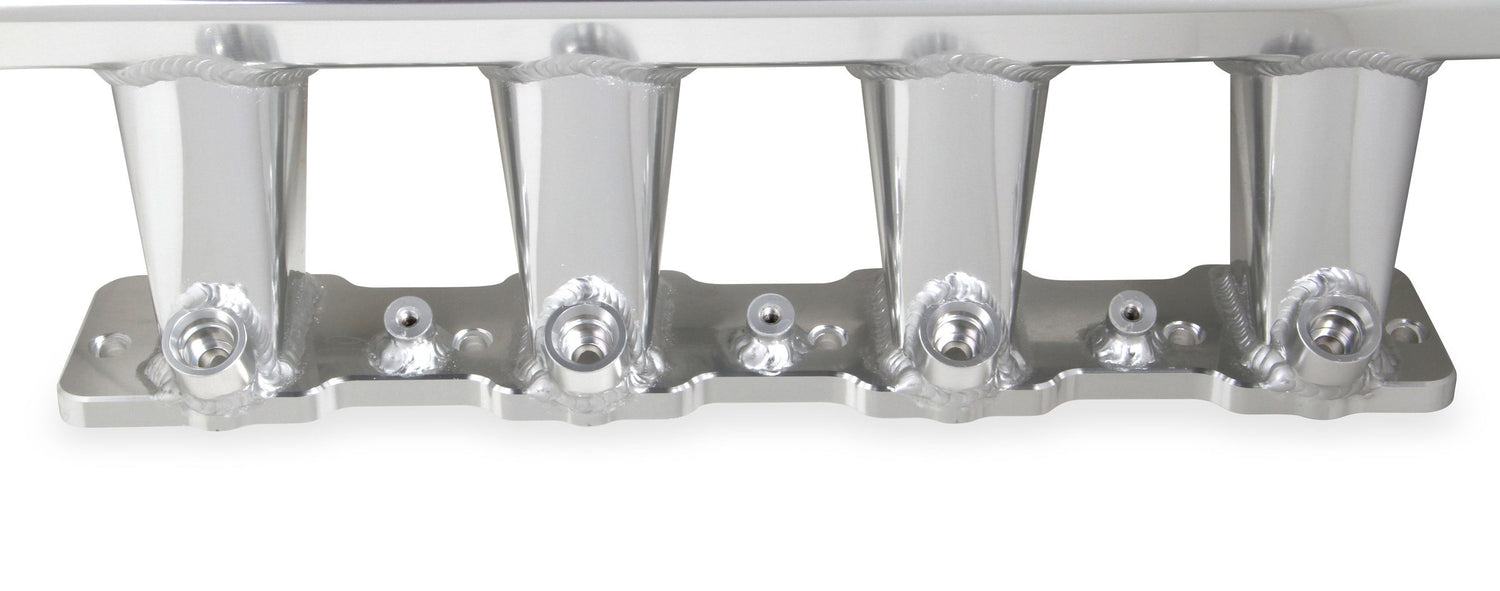

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Silver finish creates high impact under-hood styling

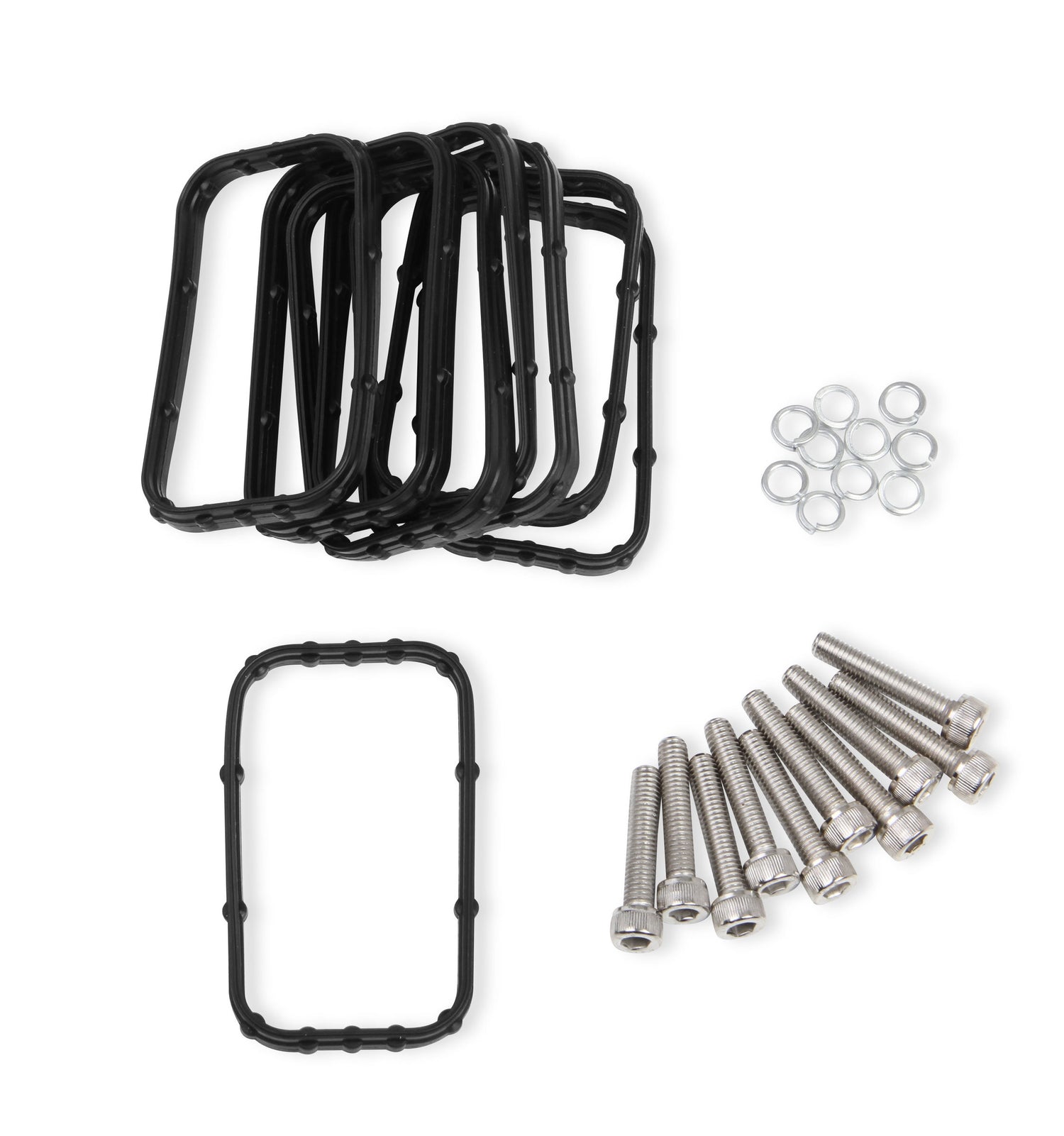

  • Product includes all gaskets and hardware for a hassle-free installation

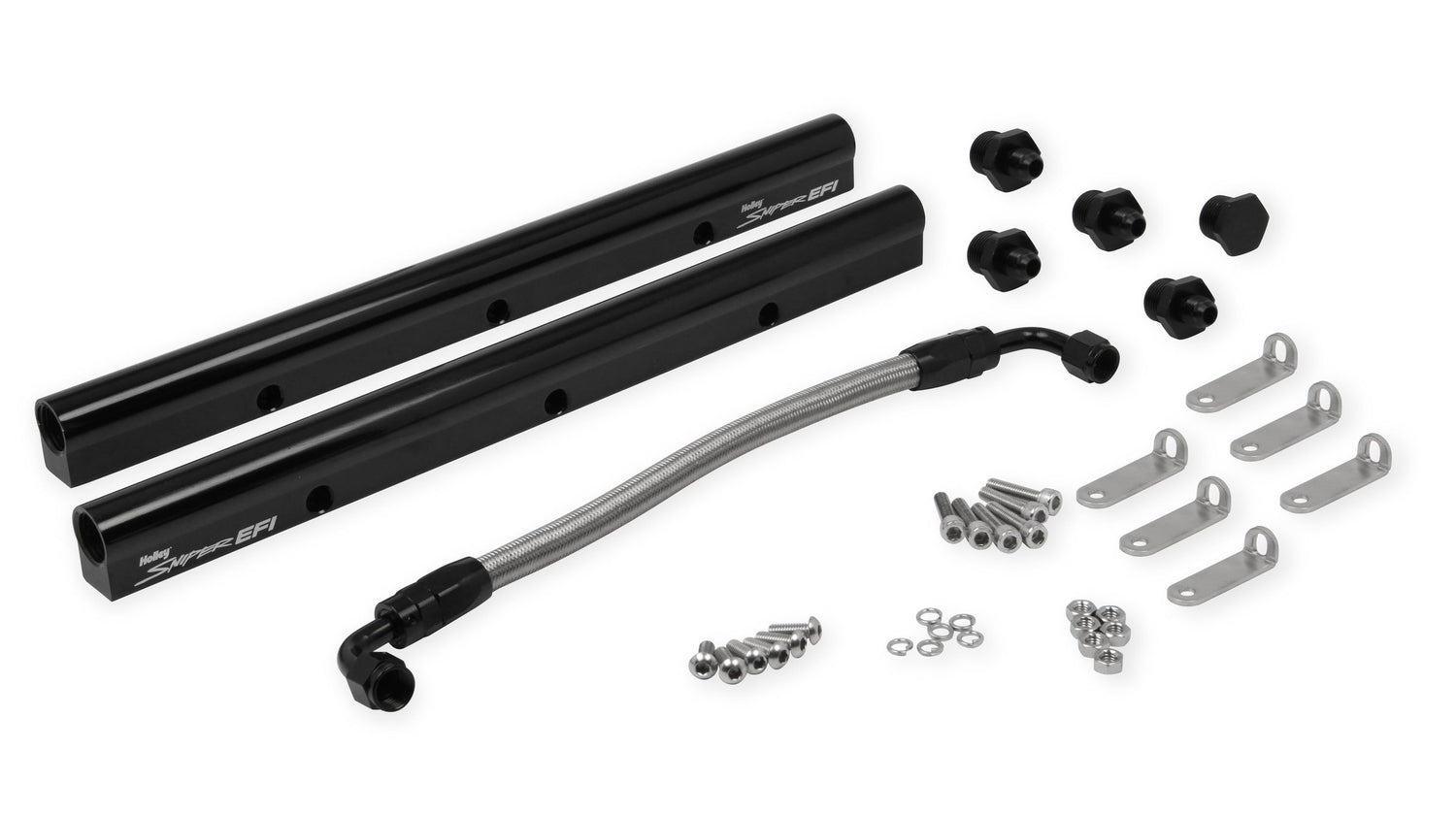

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
Basic Operating RPM Range: 2500-7000
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Black
Construction: Fabricated
Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS1/LS2/LS6
Flange Style: N/A
Front Maximum Height: 8.267
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: No
Grade Type: Performance
Injector Style Provision: LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
Intake Port Gasket(s) Included: No
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Maximum Height: 7.559
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 4.921" (125mm)
Single Or Dual Plane Type: Single
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 92
Throttle Body Gasket Included: Yes
Throttle Body Included: No
Throttle Bore: 92mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
