Sniper 565-307K - HyperSpark Kit w/ 565-307 - Jeep 258 CID I6

Sniper  |  SKU: SNIP-565-307K
$1,07699 $1,12495

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 565-307K - HyperSpark Kit w/ 565-307 - Jeep 258 CID I6

HyperSpark Kit w/ 565-307 - Jeep 258 CID I6

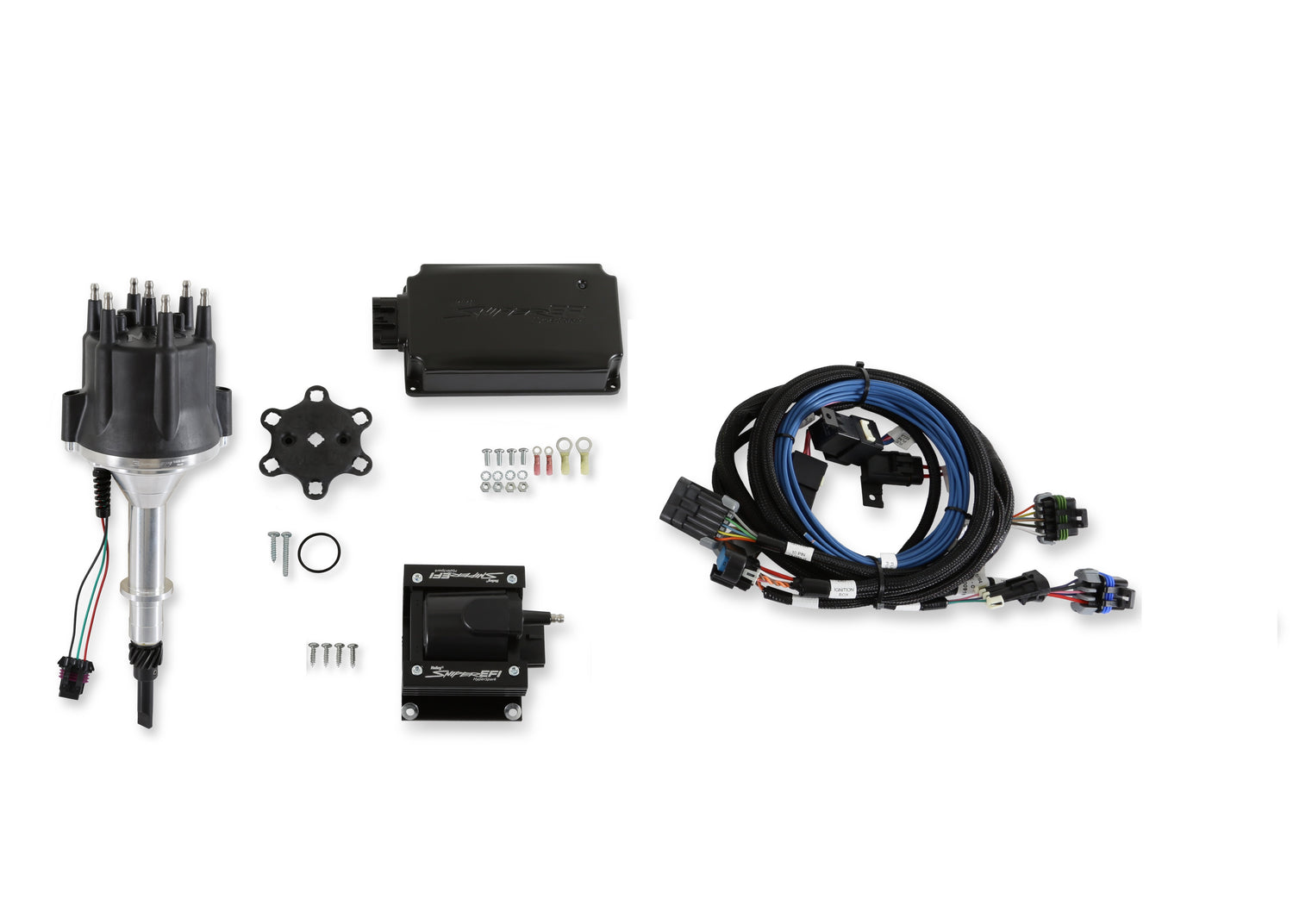

Includes distributor, ignition box, ignition coil, and main harness

Our HyperSpark kits were designed to make upgrading your ignition on a Sniper 1 EFI equipped engine simple. When installed along with a Sniper 1 EFI system, the combination creates the easiest conversion to install on the market, with only four connections required. Our harness only requires one connection to a switched 12V, battery+, battery-, and fuel pump power. The pre-terminated connectors and a built-in 40A relay provide power to all of the components within the system. With the main harness included, you no longer need to run multiple wires to provide switched 12V for each individual component. Route the harness and pre-terminated connectors to your HyperSpark coil, distributor, and ignition box and plug them in.

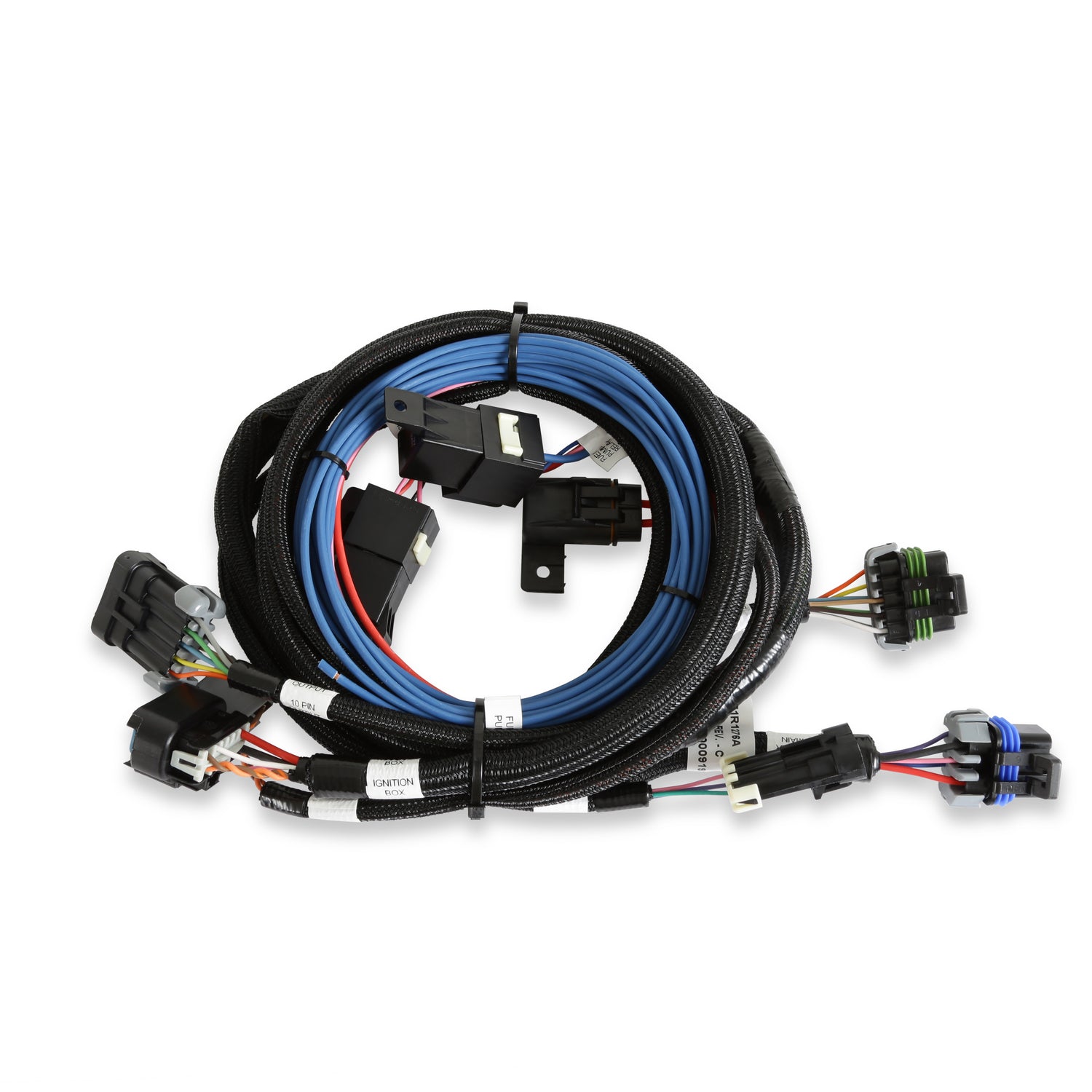

  • Plug and play main harness replaces the standard Sniper 1 EFI harness with battery+, battery-, switched 12V, and fuel pump power for a clean installation
  • HyperSpark ignition coil delivers 135mJ of spark energy during engine combustion
  • Single Hall Effect sensor provides noise-free RPM signal interference and precise timing control
  • ECU timing control or non-timing control options (Additional harnesses may be needed, refer to installation manual)

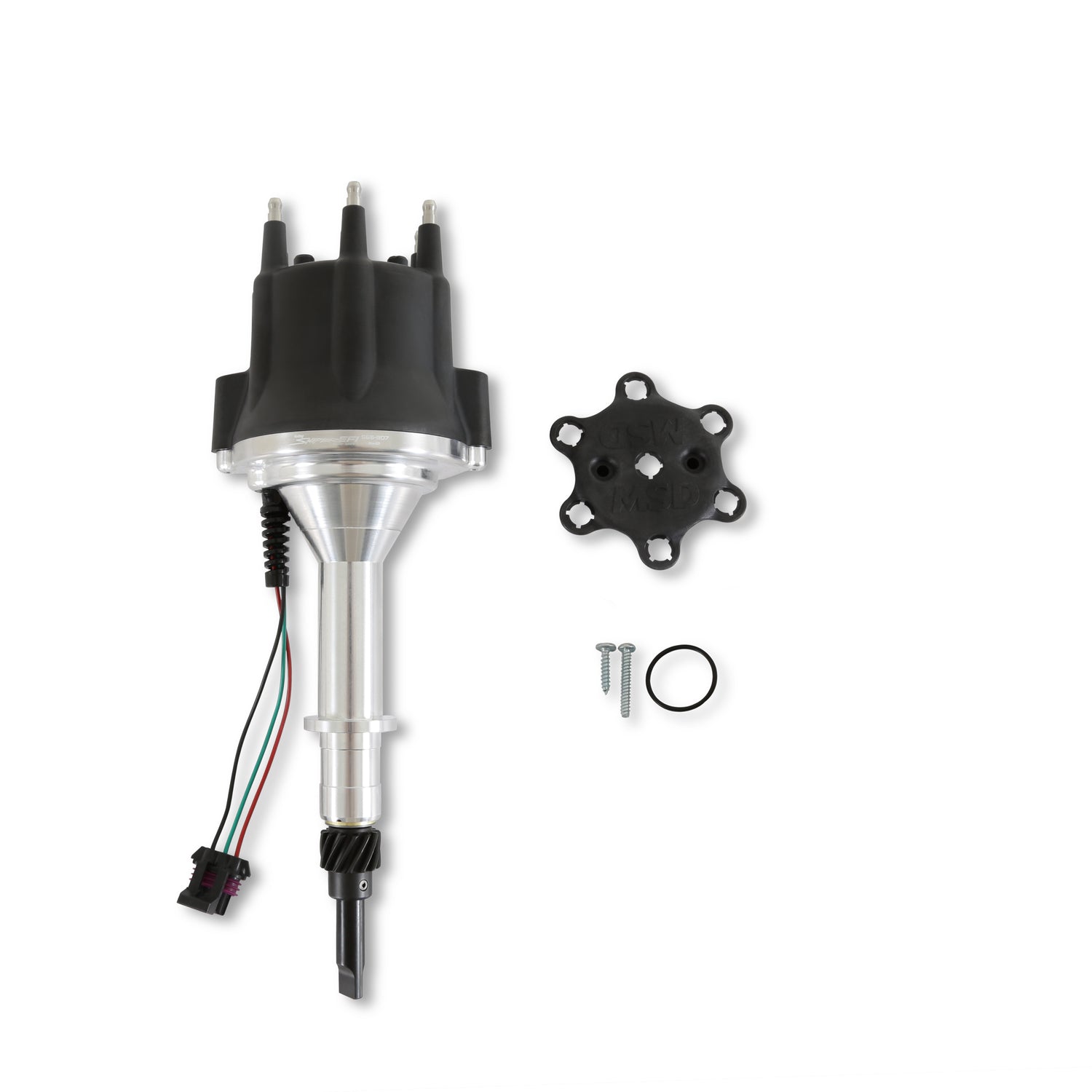

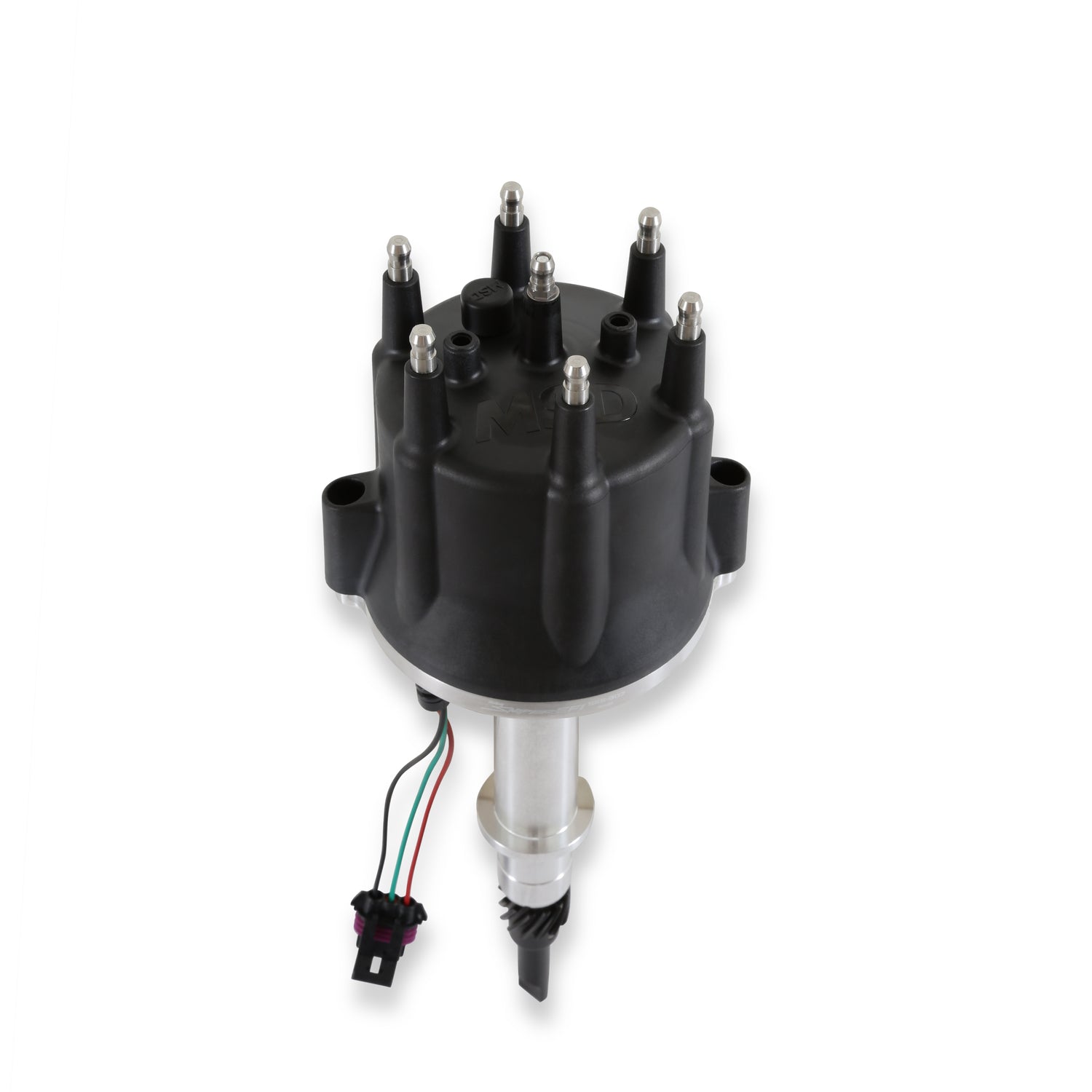

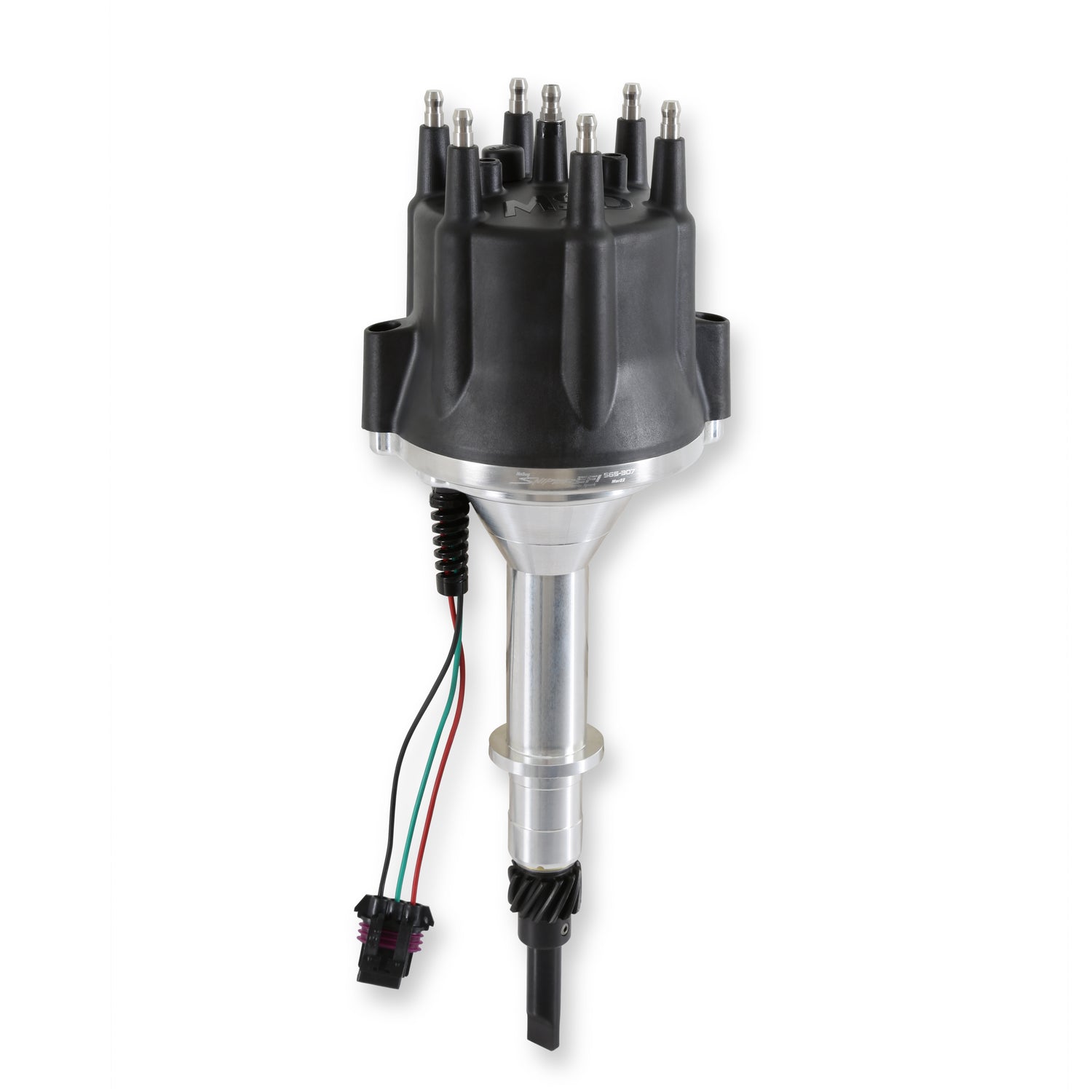

  • CNC billet aluminum distributor housing provides strength and protection
  • CNC billet machined distributor shutter wheel delivering accurate cylinder timing and accuracy at high speeds
  • Distributor shutter wheel is pinned and welded to the shaft for reliable accuracy
  • Cast distributor gear construction
  • Patented clear installation cap eliminating confusion and error during distributor install
  • Integrated ignition coil bracket simplifies mounting the ignition coil
  • External LED on HyperSpark ignition box helps verify 12V, cranking RPM, and low battery voltage
  • Wire retainer for securing spark plug wires
  • Lucas Racing Performance Gear Break-In Lubricant for protection
  • Includes distributor, ignition box (565-151), ignition coil (565-152), and harness (558-328)
Adjustable Collar: No
Advance Type: Locked-Out
Brand: Holley Sniper EFI
Cap Color: Black
Cap Terminal Gender: Male
Category: Ignition
Category: Fuel Injection - EFI
Clamp Hardware Included: No
Coil Wire Included: No
Color: Polished
Computer Controlled Compatible: Yes
Connector Type: Sealed
Distributor Cap Included: Yes
Distributor Gear Included: Yes
Distributor Included: Yes
Distributor Type: Hall Effect
Emission Code: 3
Gear: Cast
Gear Material: Cast Iron
Grade Type: Performance
Housing Color: Polished
Housing Finish: Polished
Housing Material: Billet Aluminum
Ignition Box Required: Yes
Ignition Coil Included: Yes
Ignition Module Included: Yes
Ignition Rotor Included: Yes
Marine Approved: No
Material: Billet Aluminum
Mechanical Tach Drive Provision: No
part type: Distributor
Product Type: Distributor
Rotor Rotation: Clockwise (Right)
Sub Category: Distributor and Magneto
Trigger Type: Hall Effect
Warning: California Proposition 65
Warranty: Manufacturer's Limited 1 Year Warranty
