Sniper 12-353 - EFI Fuel Pump Module - 340 LPH
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Sniper 12-353 - EFI Fuel Pump Module - 340 LPH

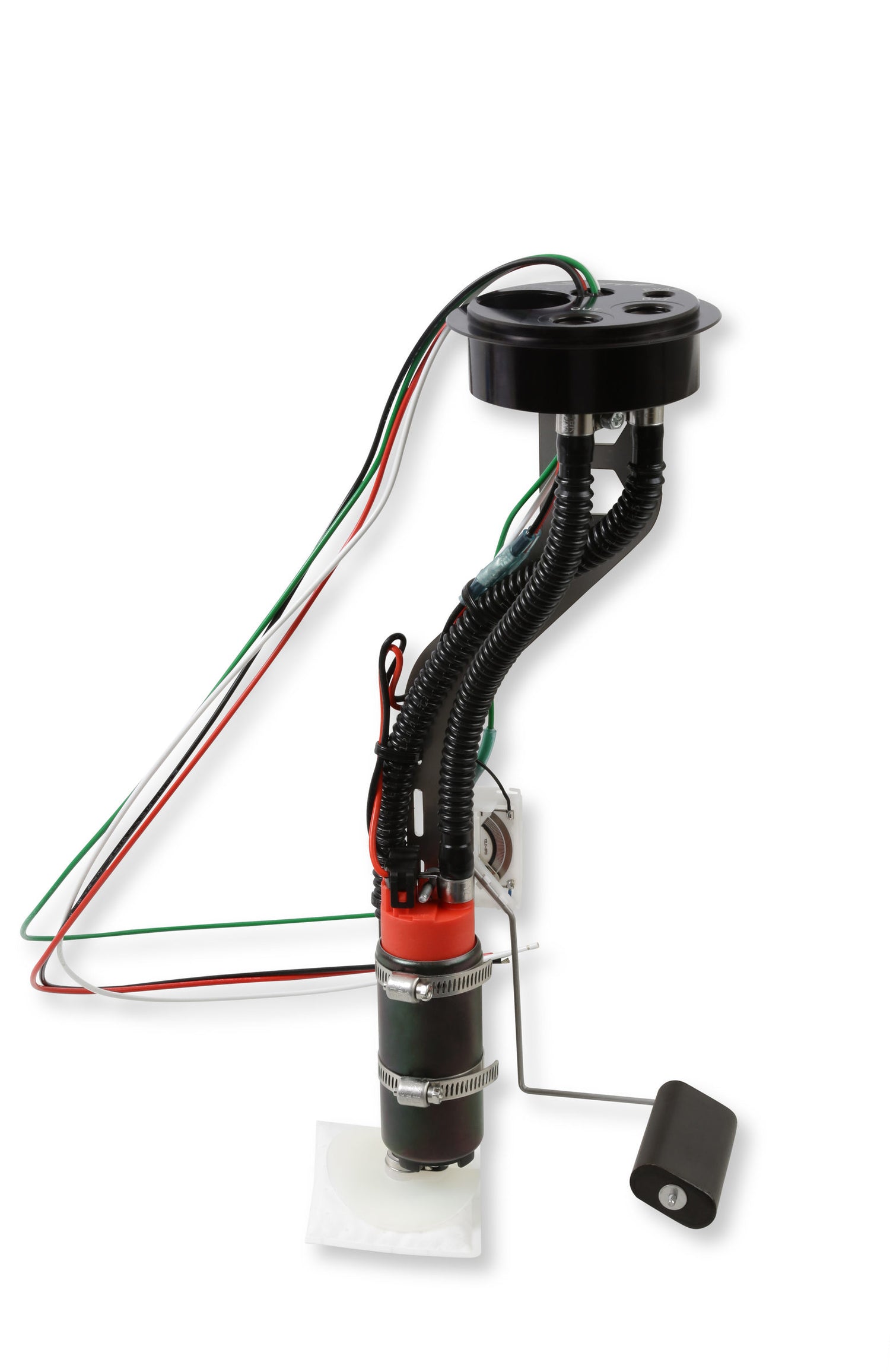

Sniper EFI Fuel Pump Module - 340 LPH
Fits 1988-1997 GMT400 C/K Series Trucks

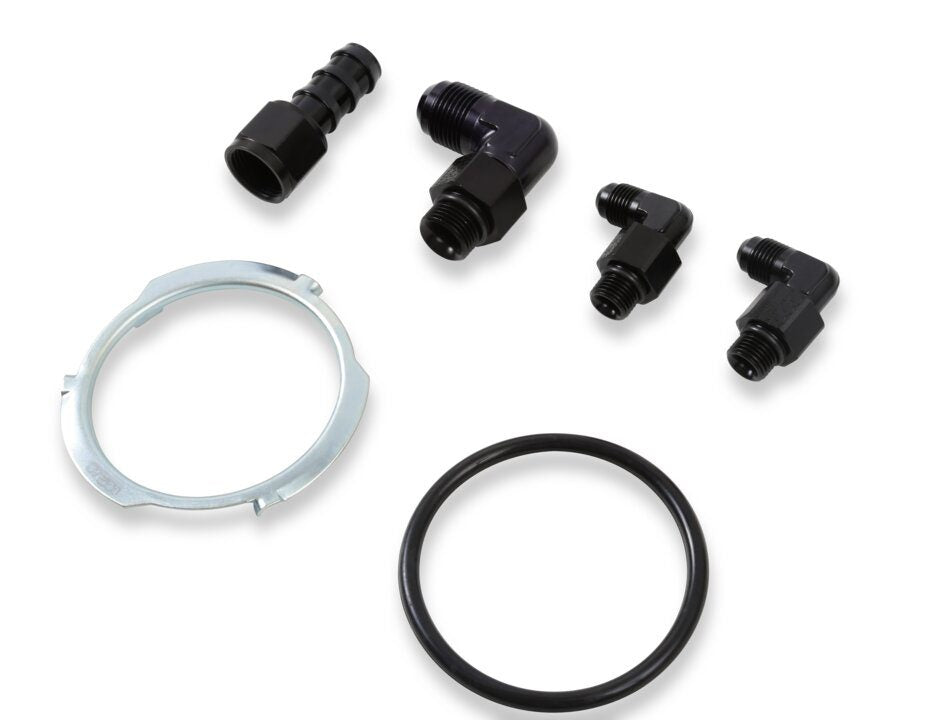

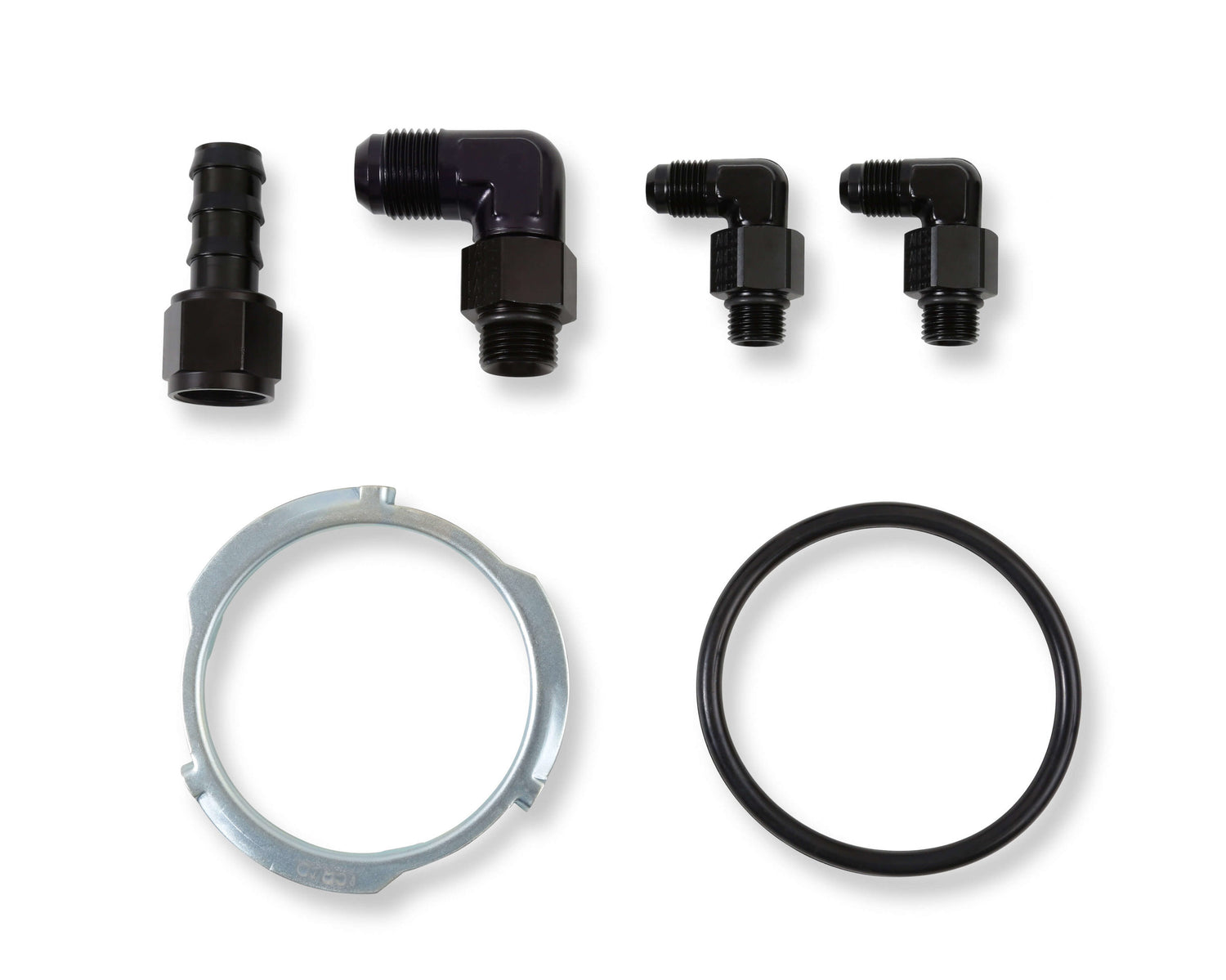

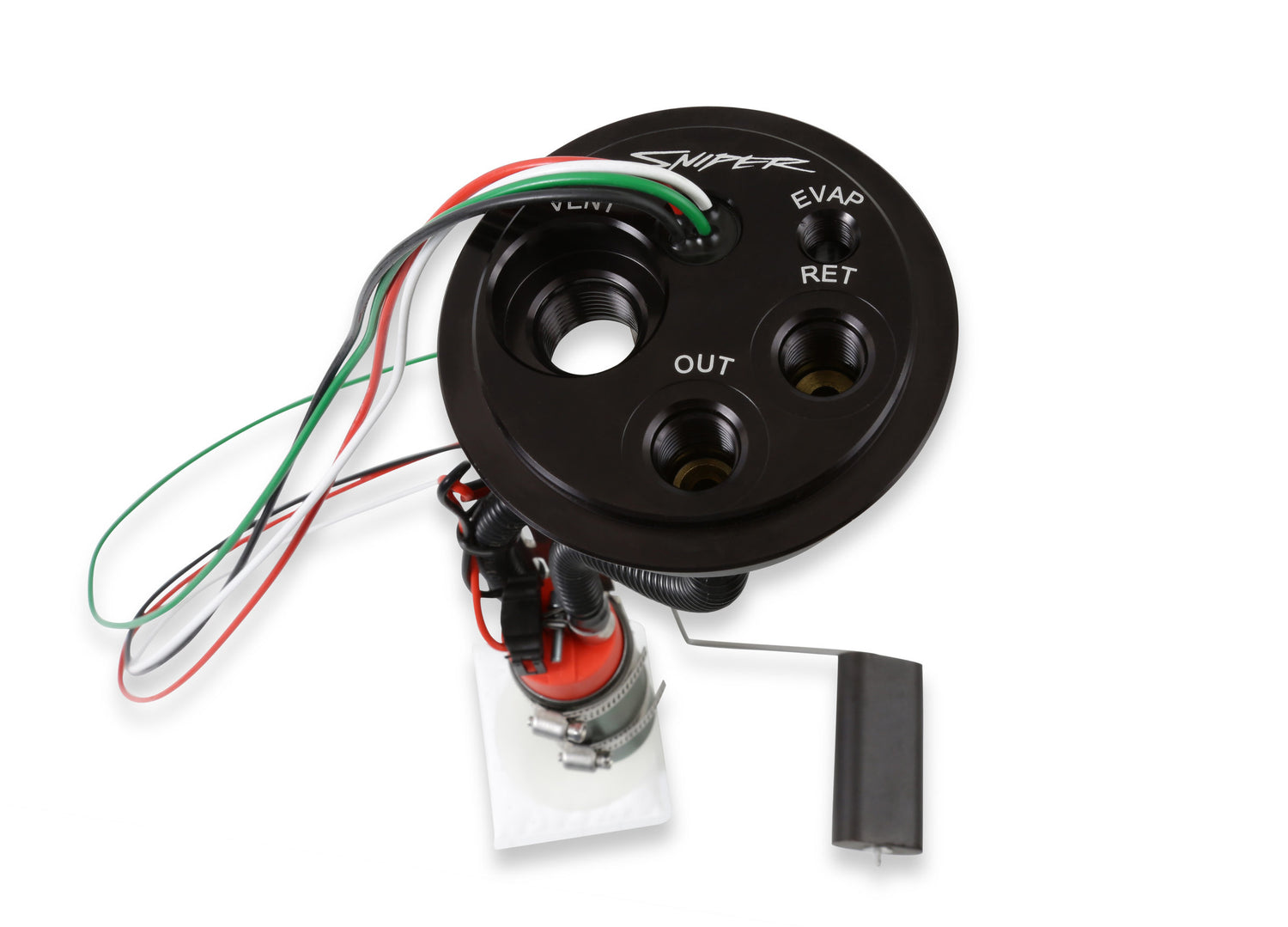

The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.
- The 6061-T6 Aluminum fuel pump module is a high-pressure unit that flows 340 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 700 EFI horsepower.
- For the 1988-1998 GM Trucks, we also offer the unit with a 525 LPH pump which supports up to 1200 EFI horsepower
- Includes a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application
- 6AN o-ring outlet and return ports for easy plumbing connections
- 8AN o-ring vent port
- 1/8NPT port to retain EVAP system (optional)

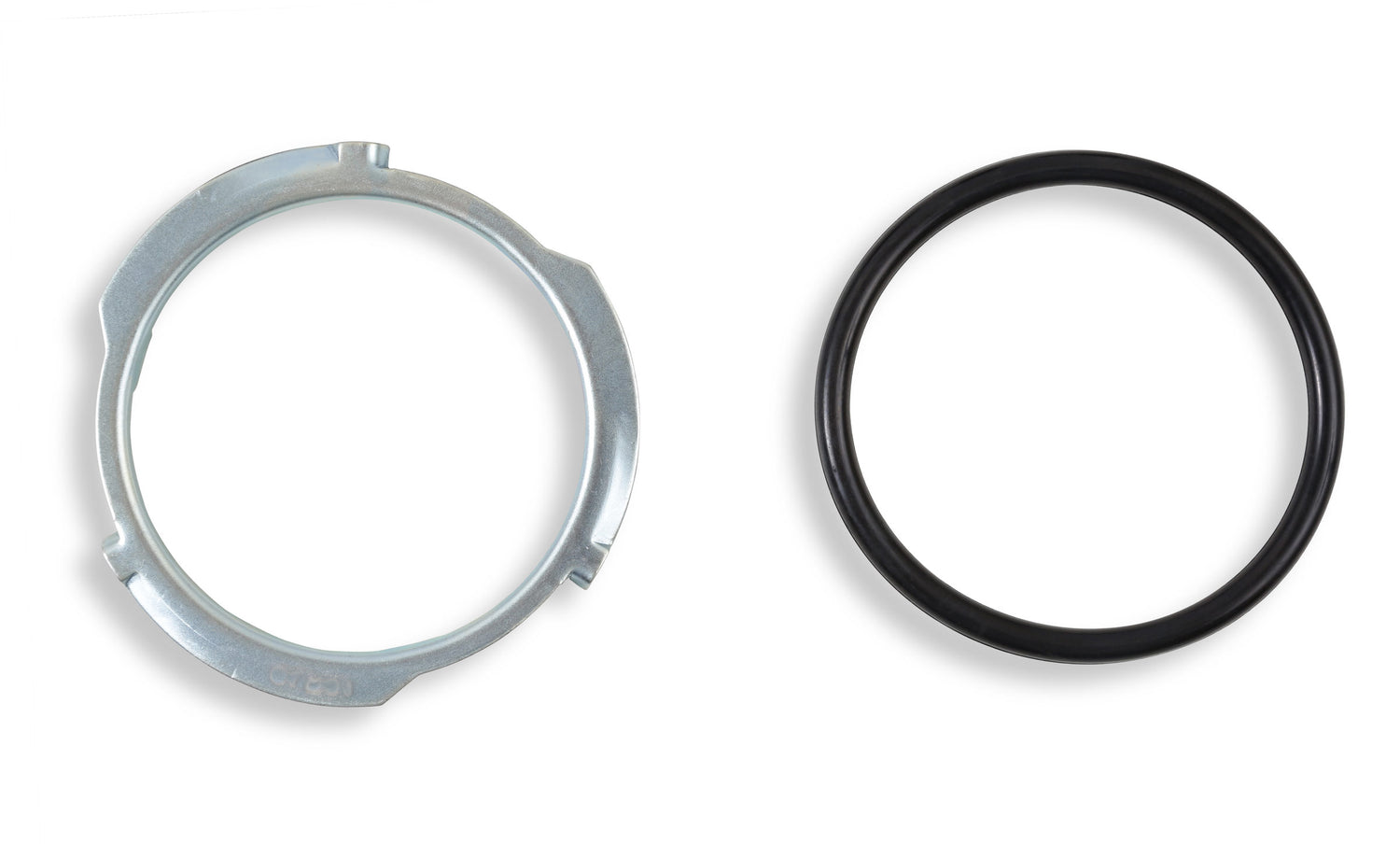

- Filter sock, flange O-ring, and fuel tank lock ring included to complete your installation
- Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your need
- Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations. They can be used for both carbureted and EFI systems)
- The flange is bright dip black anodized for corrosion protection from undercar moisture.
