Sniper 12-307 - Holley EFI Fuel Tank Module - 255 LPH - Jeep CJ

Sniper  |  SKU: SNIP-12-307
Sale price $51195 Regular price $57595

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Sniper 12-307 - Holley EFI Fuel Tank Module - 255 LPH - Jeep CJ

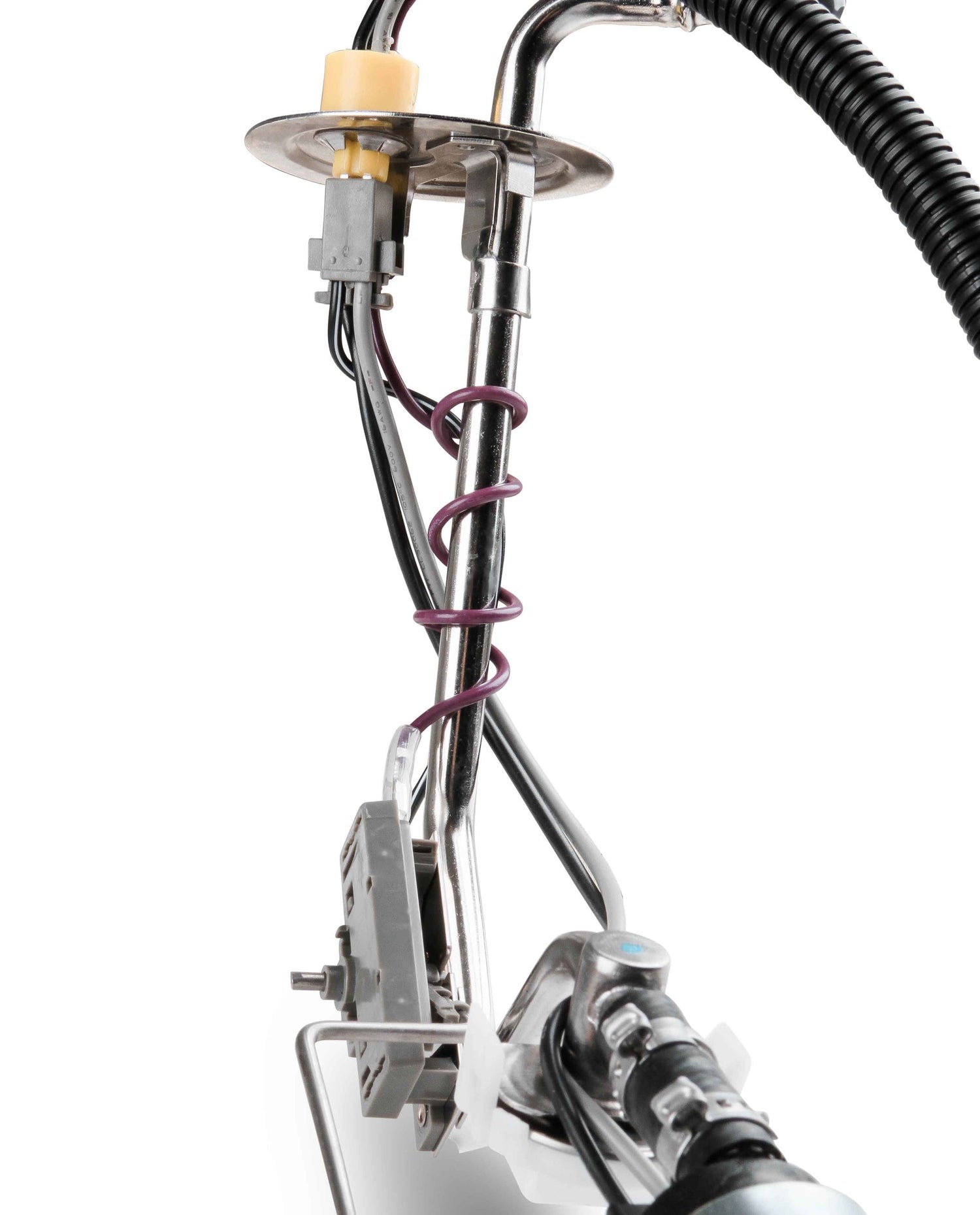

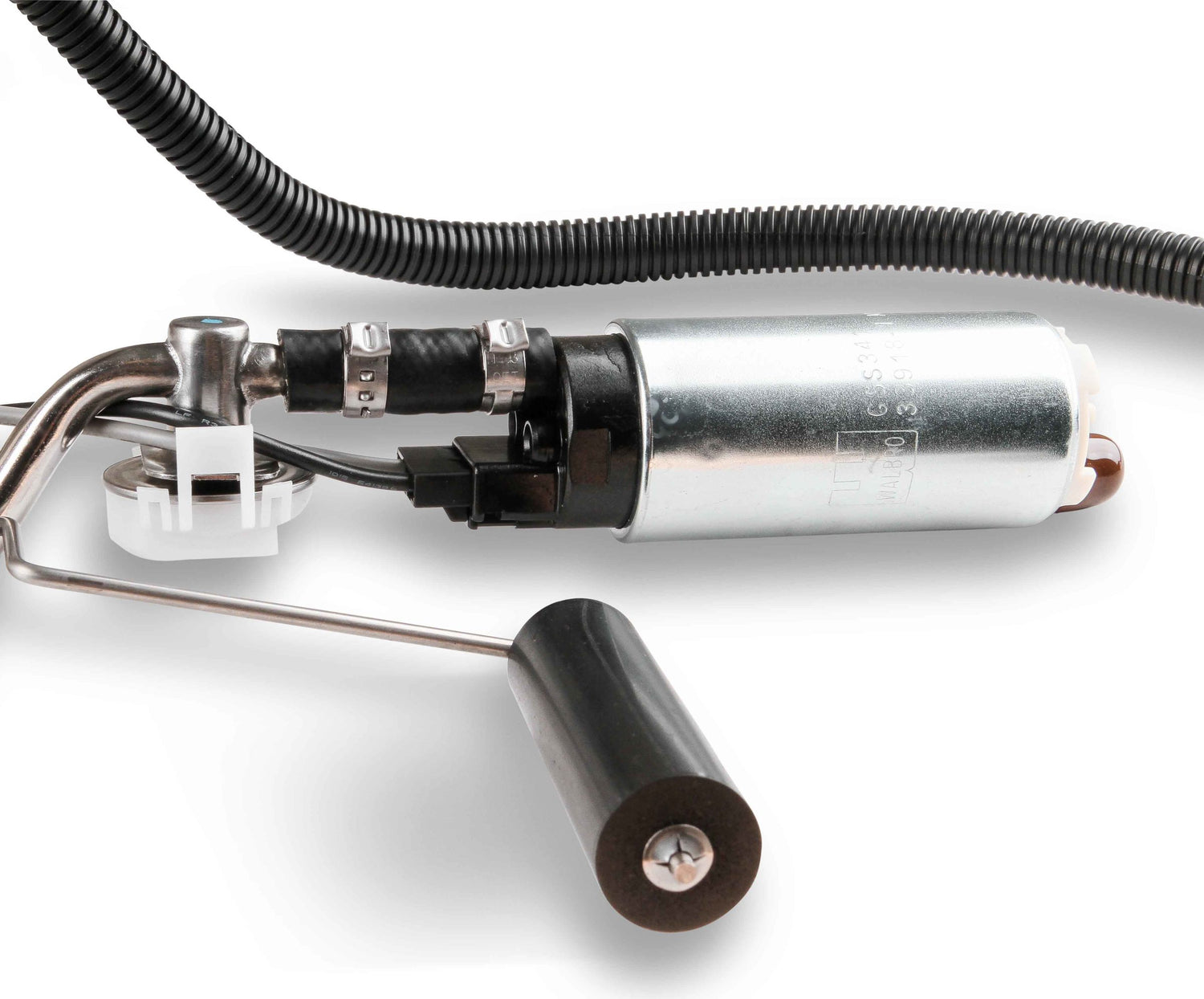

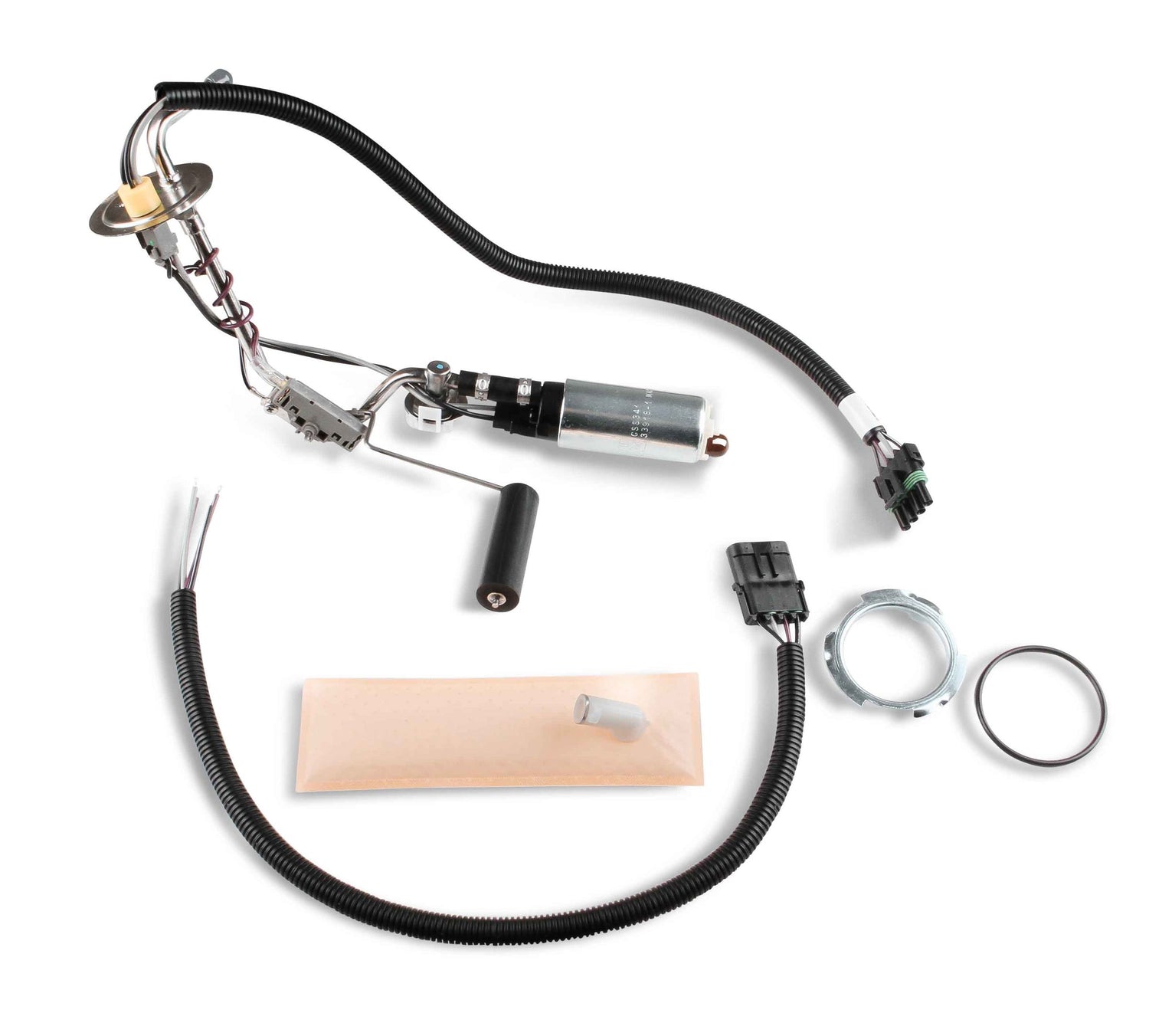

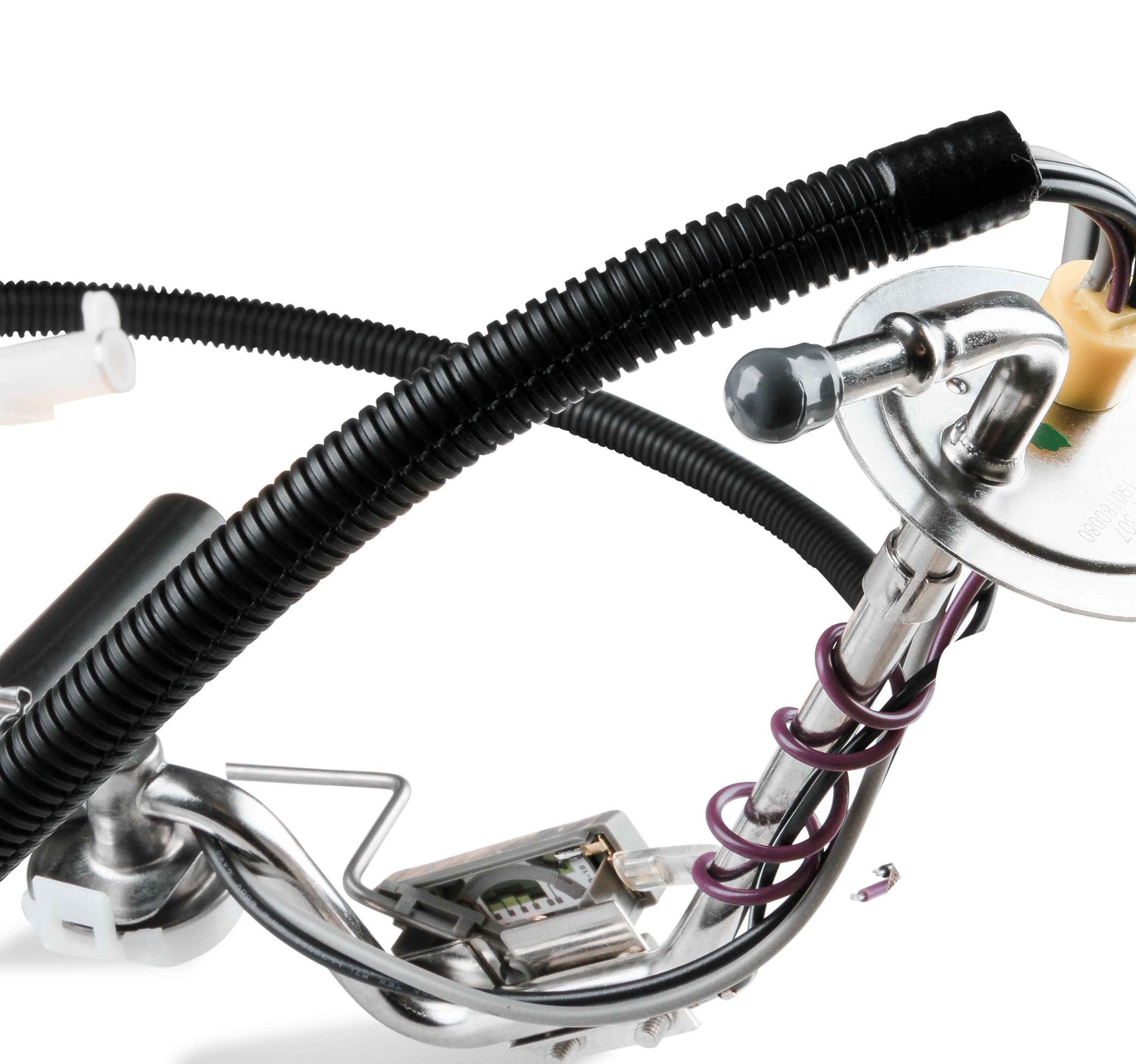

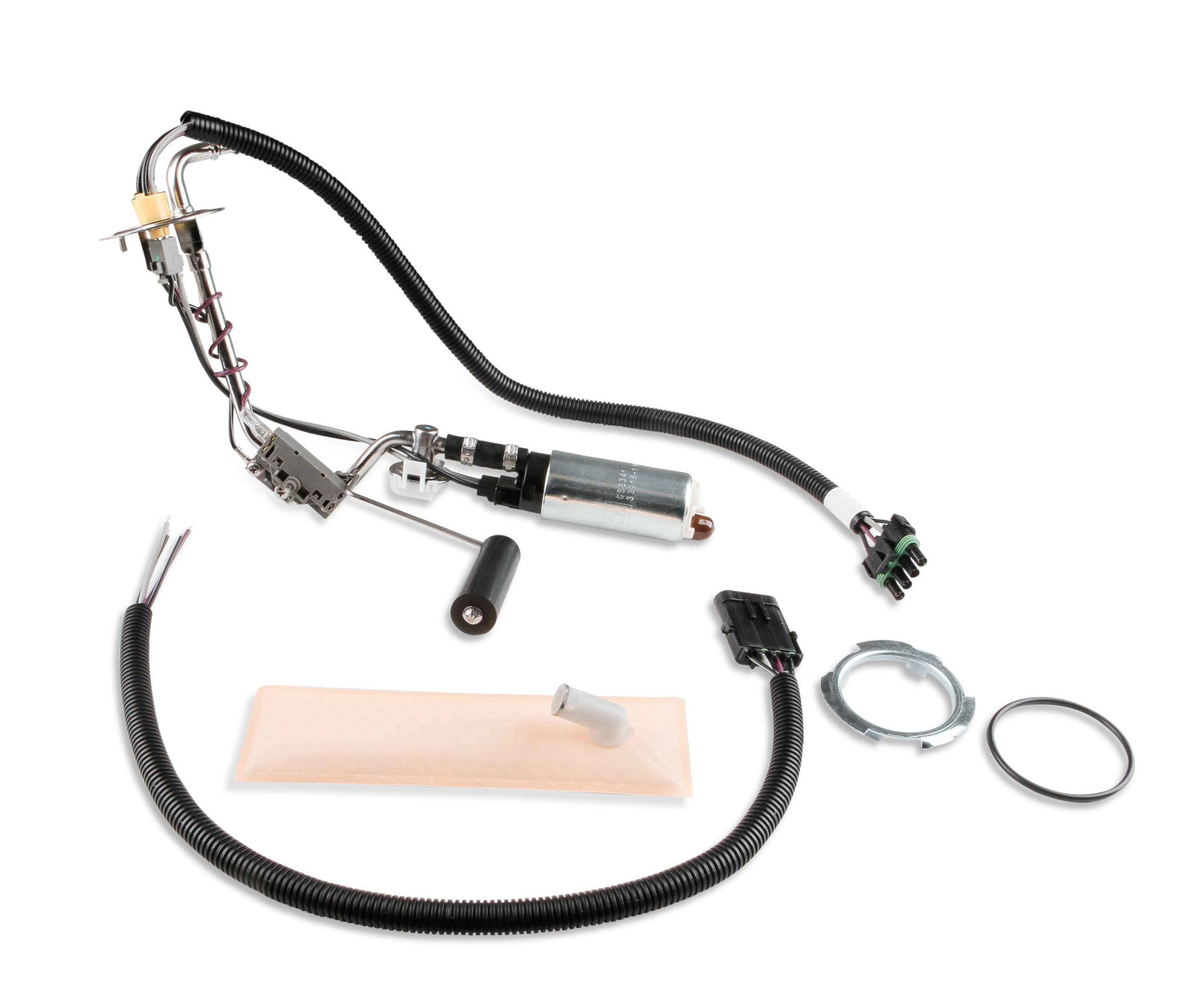

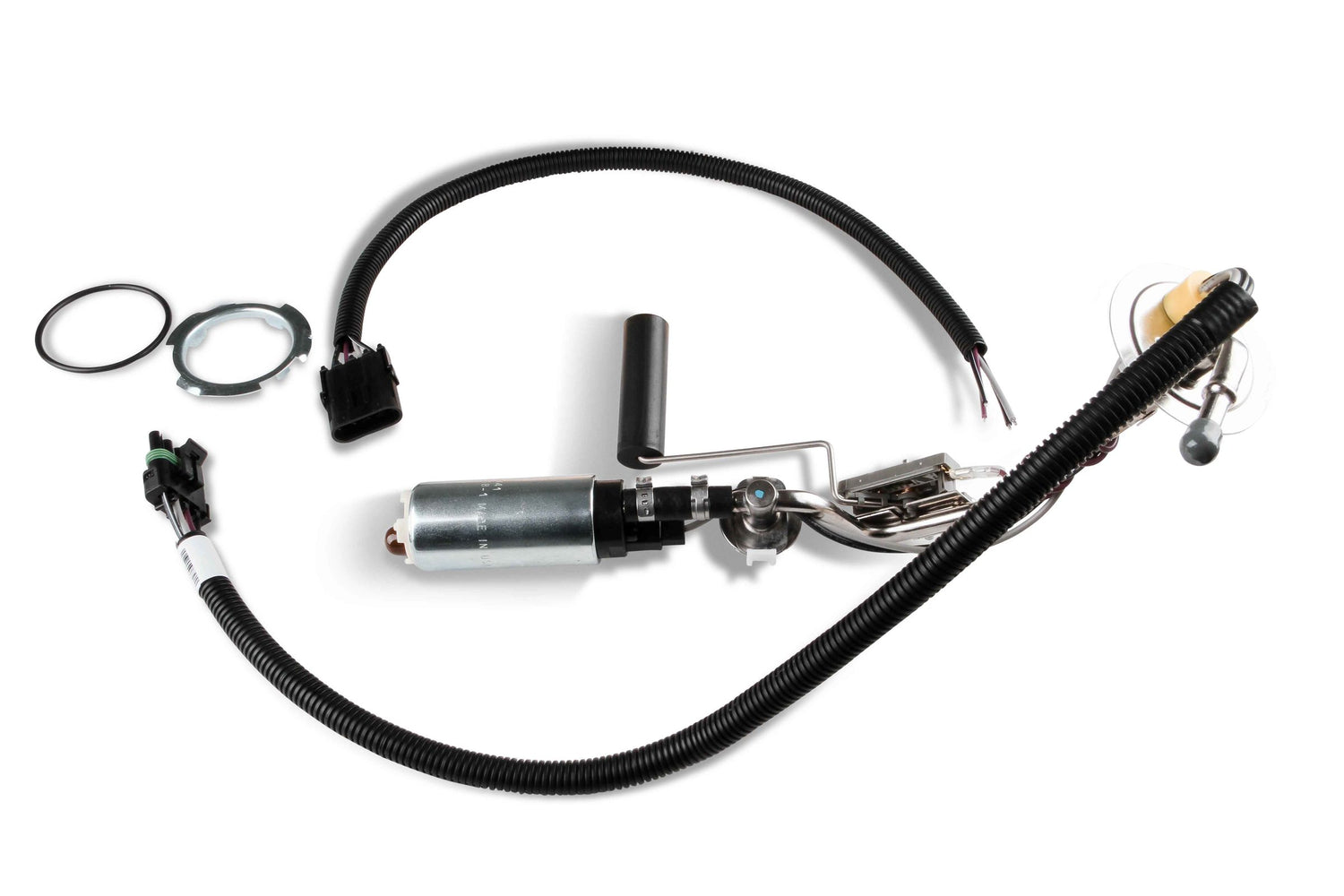

Holley EFI Fuel Tank Module - 255 LPH - Jeep CJ

In-tank fuel pump module for 1973-1986 Jeep CJ Models with 15 Gallon Steel Tanks. Supports Up To 550 Horsepower.

A fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1973-1983 Jeep EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

  • Supports up to 550 horsepower (HP)
  • Flows 255 liters per hour (LPH)
  • Internally regulated to 58 PSI
  • Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues
Application: 1973-86 Jeep CJ Models
Average Flow Rating: 255 LPH
Brand: Holley Sniper EFI
Category: Air and Fuel Delivery
Connector Gender: Male
Emission Code: 5
Free Flow LPH: 255
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel Sending Unit Ohms: 73-10 Ohms
Fuel Tank Pressure Sensor Included: No
Fuel Type: Gasoline
Gasket Or Seal Included: Yes
Grade Type: Performance
In Tank or External: In Tank
Inlet Diameter (in): 5/16
Inlet Quantity: One

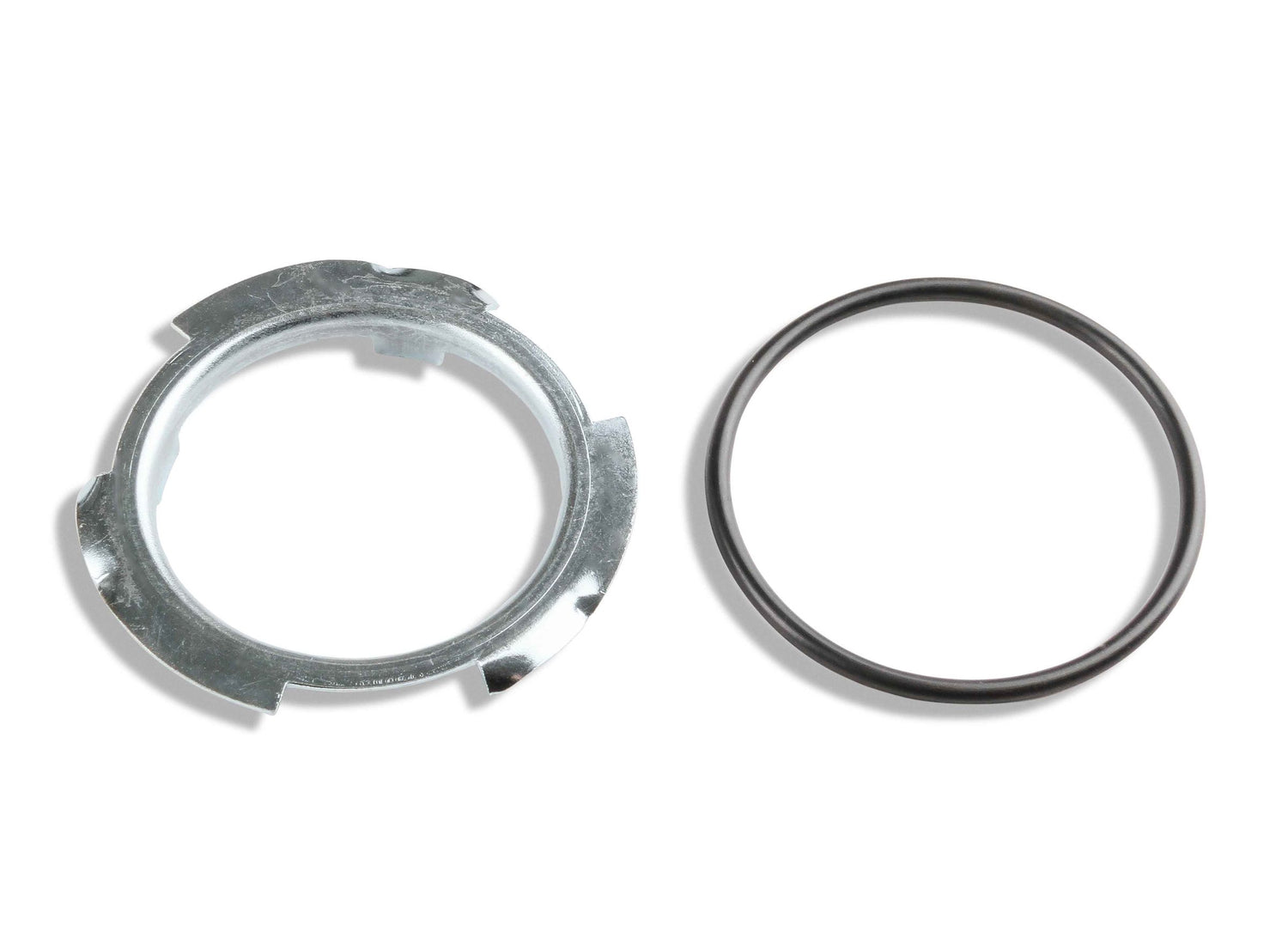

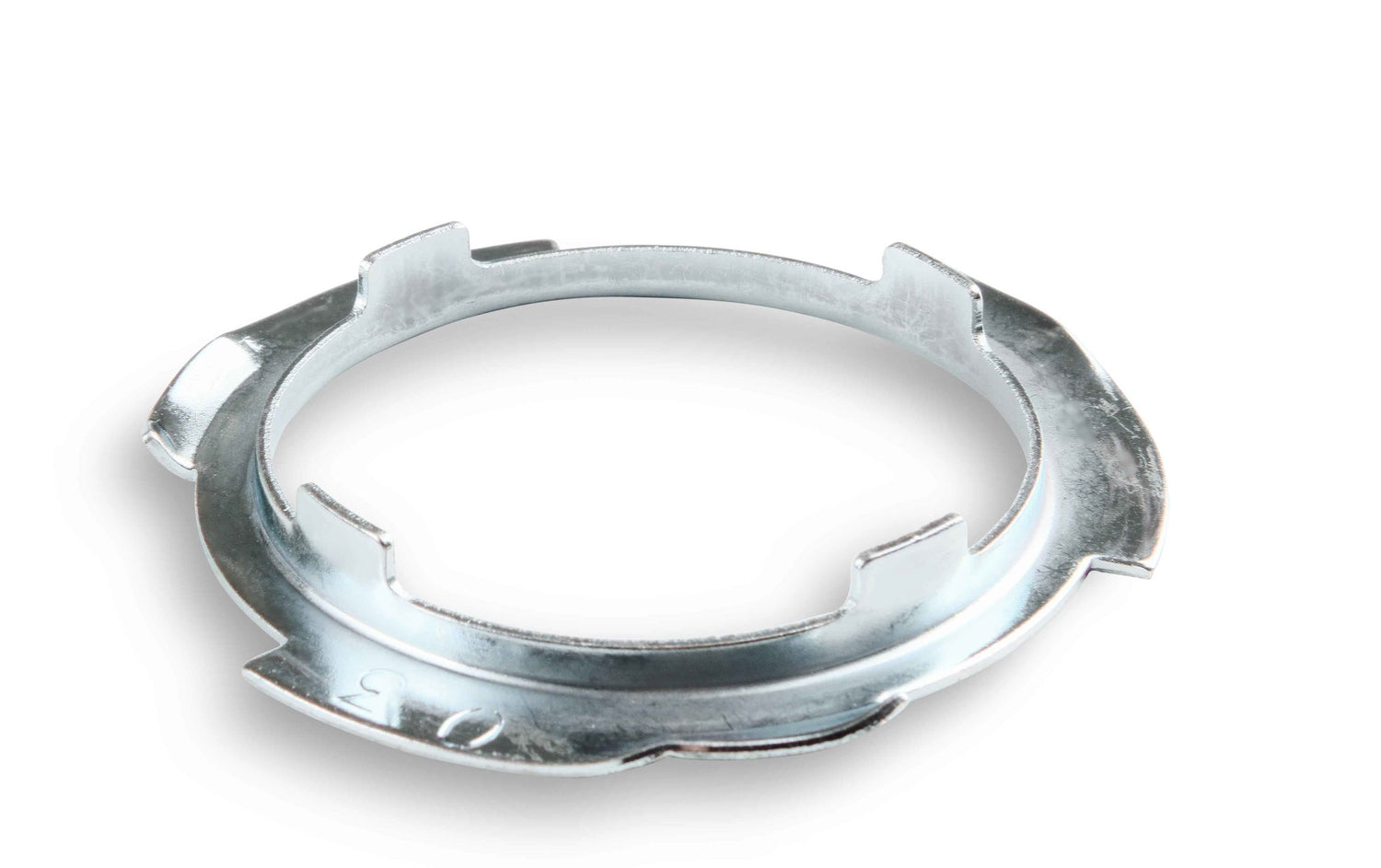

Lock Ring Included: Yes
Material: Steel
Maximum Pressure: 58
Negative Ground: Yes
Outlet Outside Diameter: 3/8 IN
Outlet Quantity: One
part type: Fuel Pump Module Assembly
Product Type: Fuel Pump Module
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 73 82
Resistance Ohms Full: 10 82
Strainer Included: Yes
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Specific
Vent Size: N/A
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Harness Included: Yes
