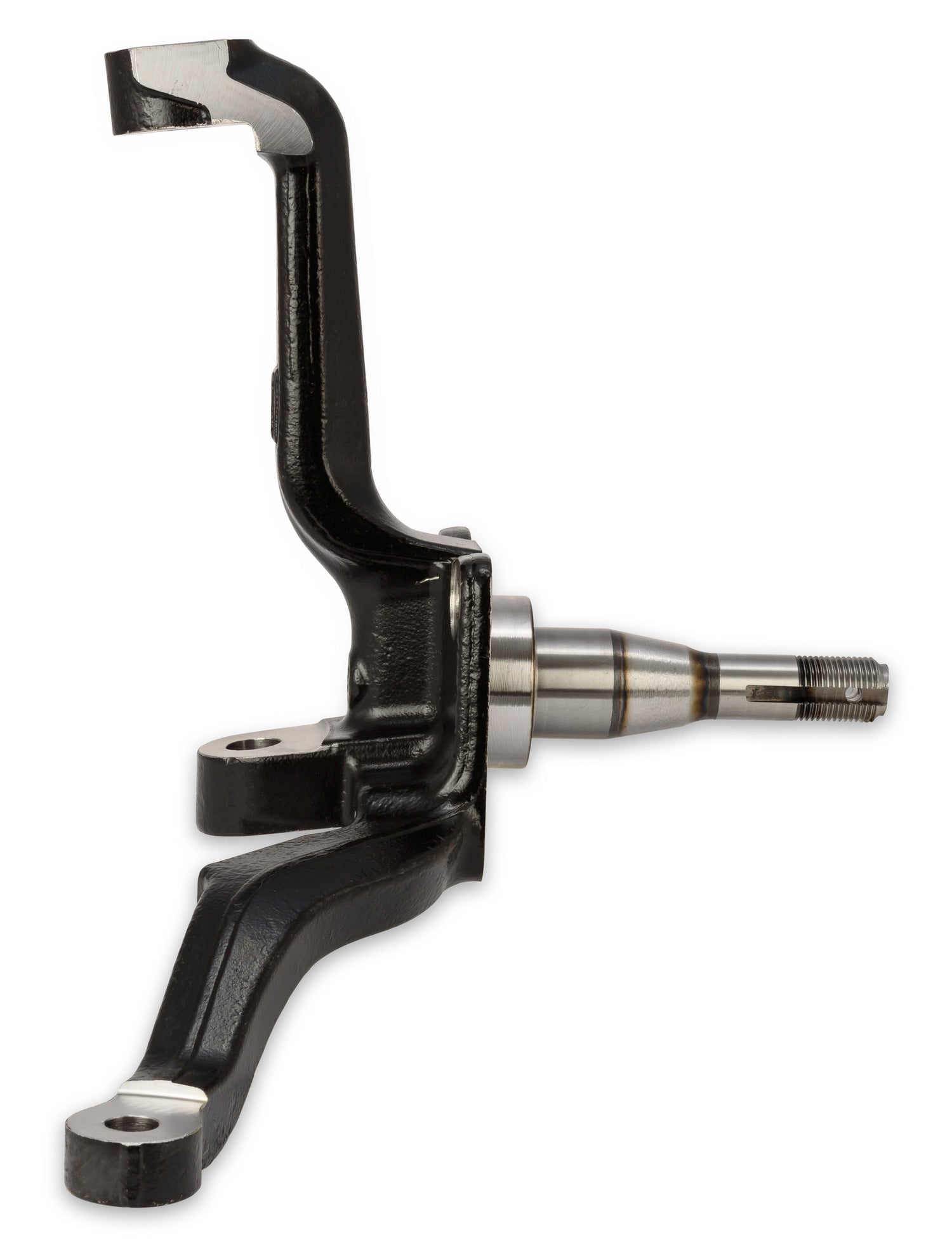

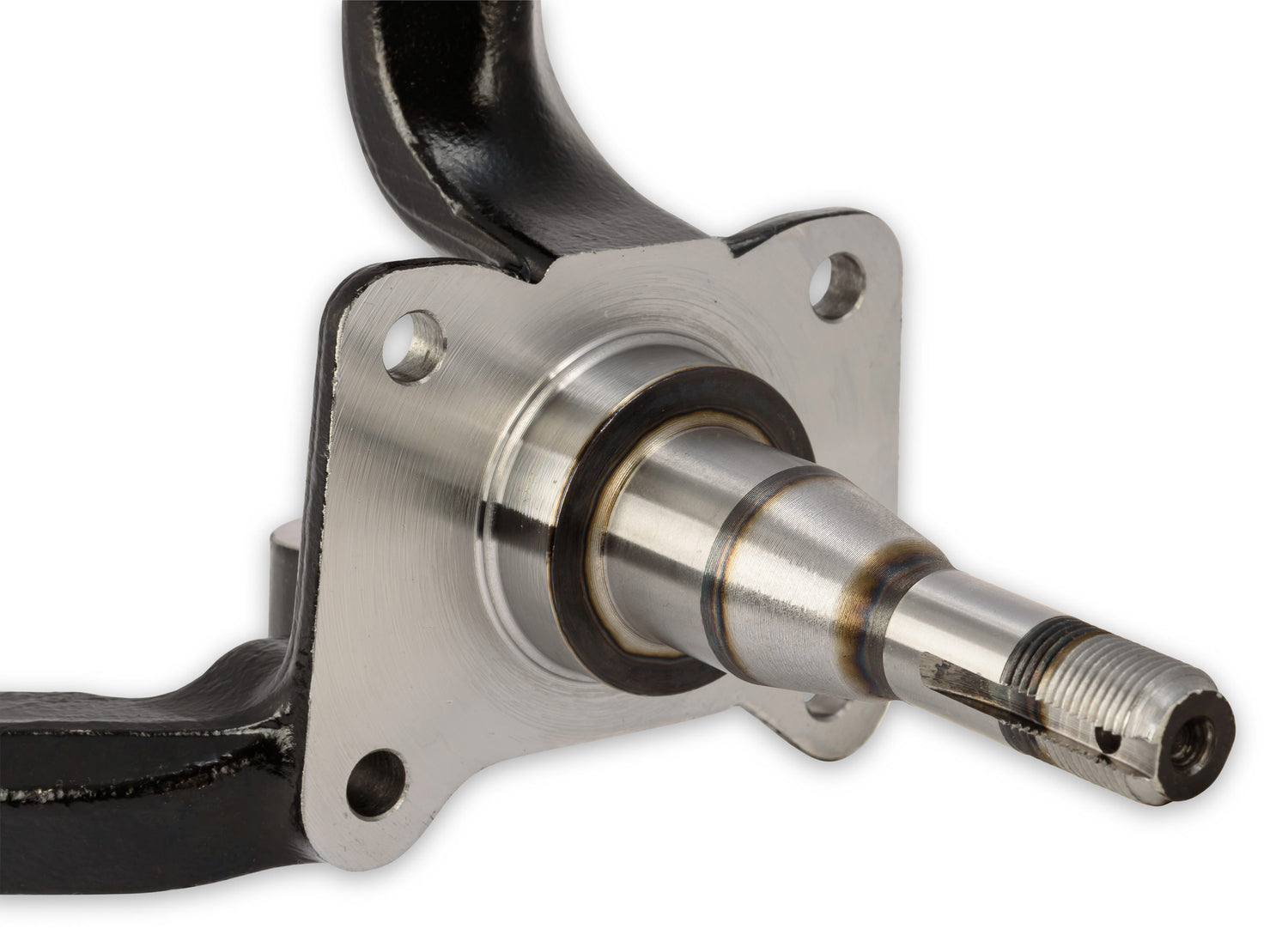

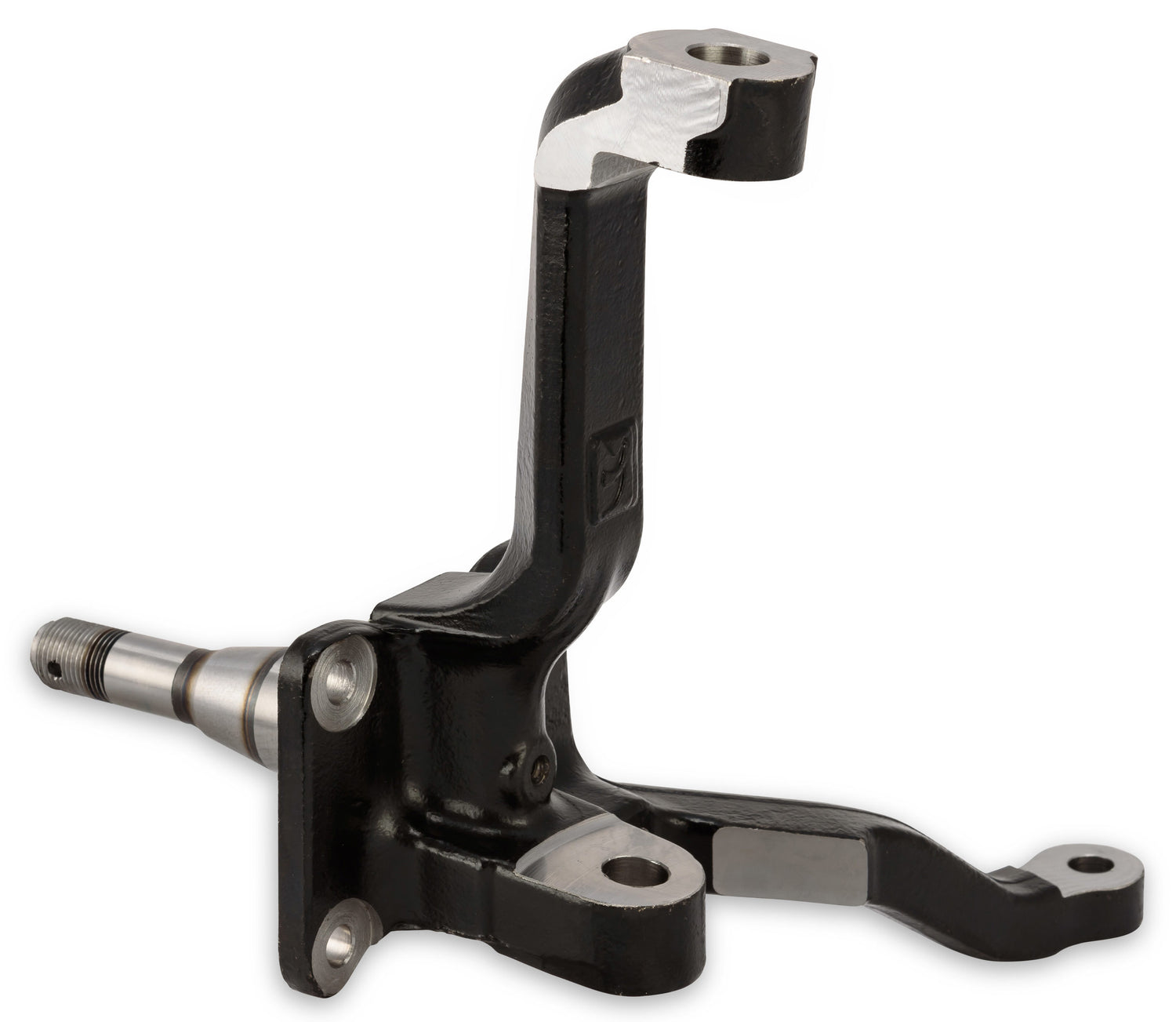

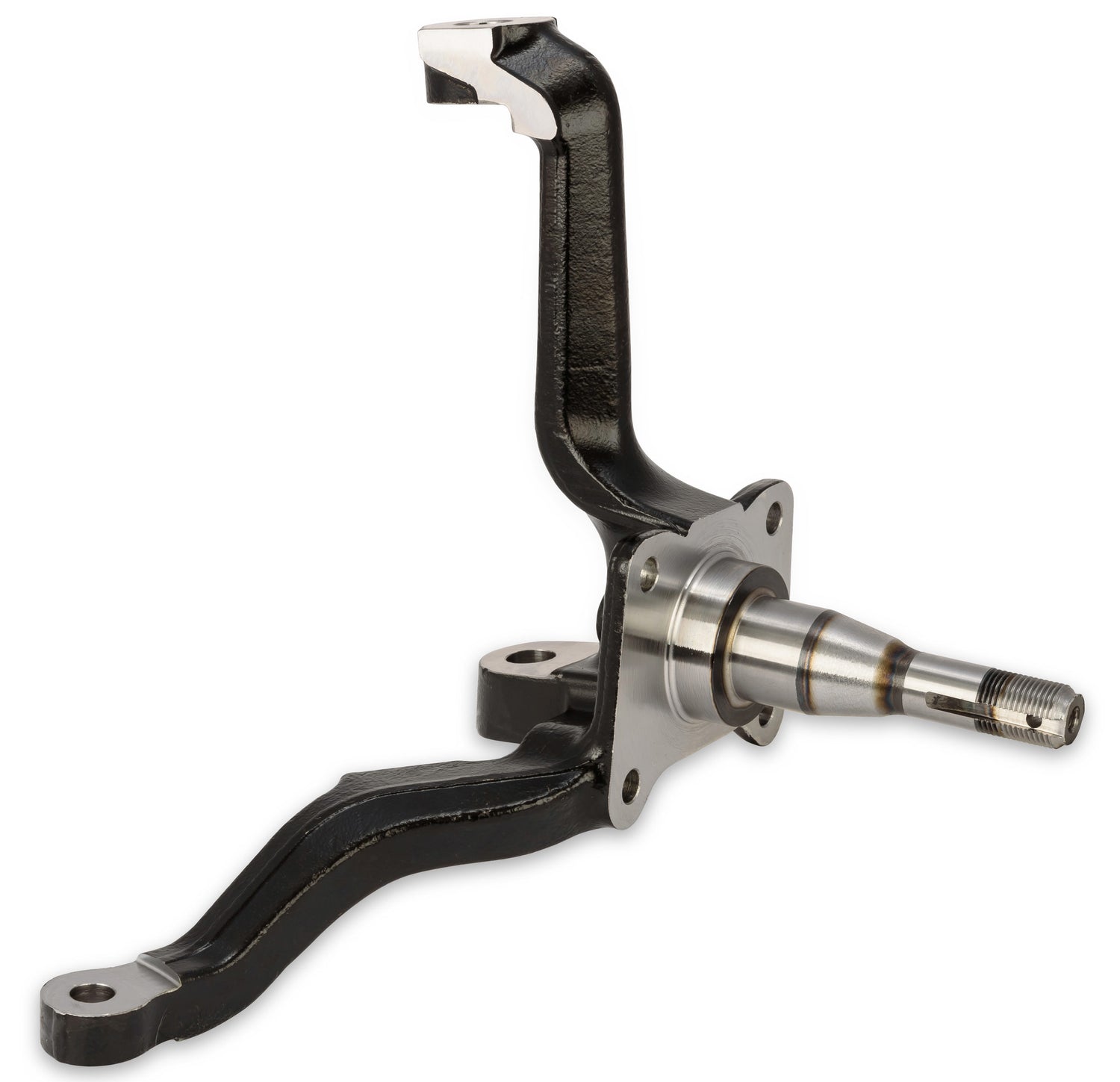

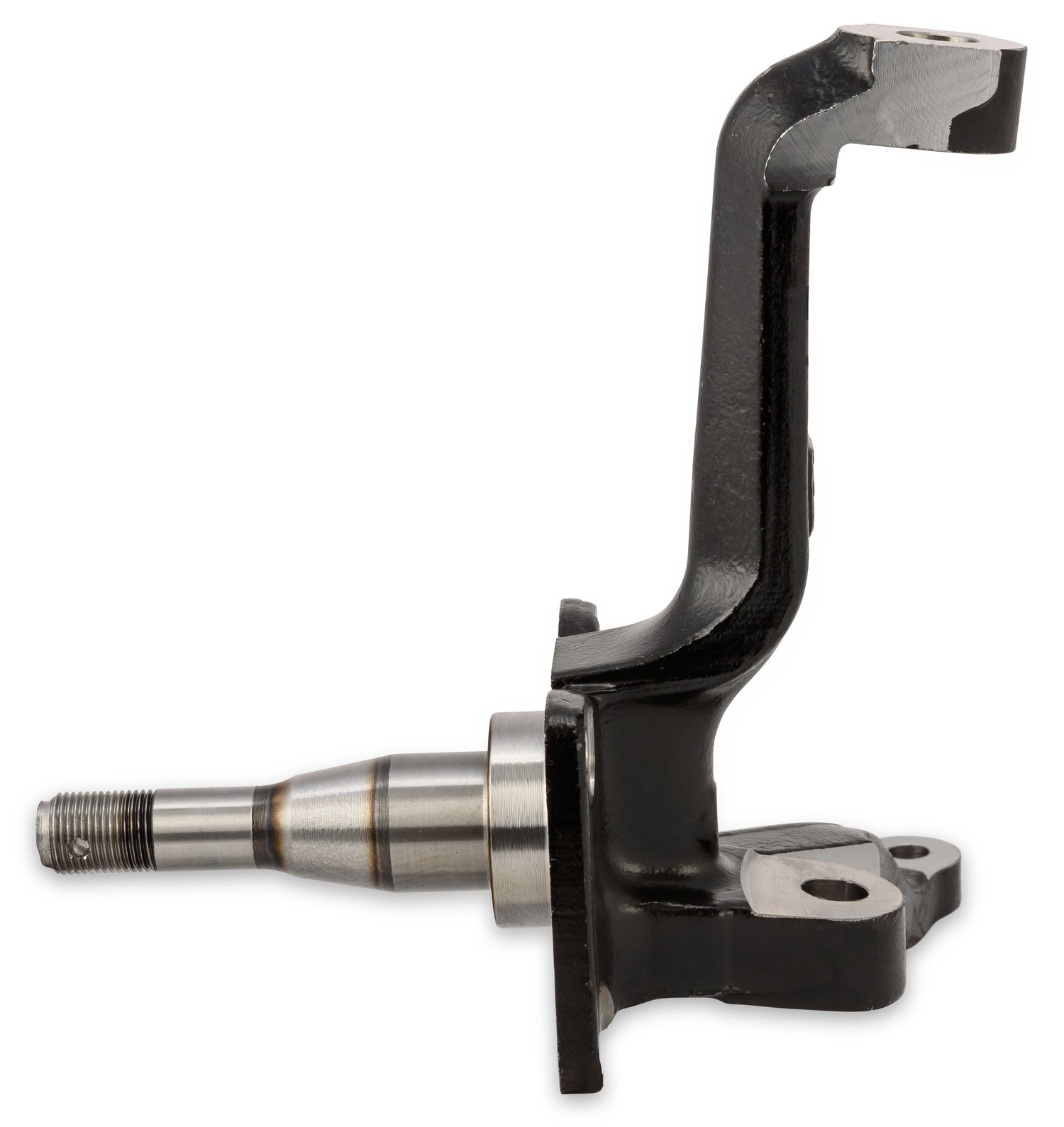

Scott Drake C7OZ-3106-L - Brake Spindle Driver side with Drum Brakes

Scott Drake C7OZ-3106-L - Brake Spindle Driver side with Drum Brakes

Scott Drake Brake Spindle Driver side with Drum Brakes

1967-1969 Ford Mustang Brake Spindle Driver side with Drum Brakes

These spindles were obsoleted long ago by Ford and have become increasingly expensive and extremely difficult to find and now Scott Drake has the answer. Our Engineering team started with a set of used, but excellent condition, Ford originals, to create 3D scans which were then used for CAD modeling and then double-checked against original Ford blueprints. No corners were cut on this critical component - they were constructed from FORGED ASTM 5140 grade steel, next, we applied a protective, black e-coating, and then all mounting surfaces were precision machined. We took special care to ensure bearing tolerances were identical to Ford's. For an extra measure of safety and durability, the entire spindle is heat-treated and the bearing surface is treated with additional induction hardening. All Drake spindles are 100% Magnetic Particle Tested as well. These spindles also fit a wide variety of 1960s Ford and Mercury cars.

• Constructed Using Premium Forged JIS S46C Grade Steel
• Heat Treated Snout Via Induction Hardening
• Able To Be Used w/Both Disc And Drum Brakes
• Finished w/Black E Coat For Increased Durability
