Scott Drake 259-2AL - Radiator 2-Row Aluminum V8 Automatic Transmission

Scott Drake  |  SKU: SD-259-2AL
$000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

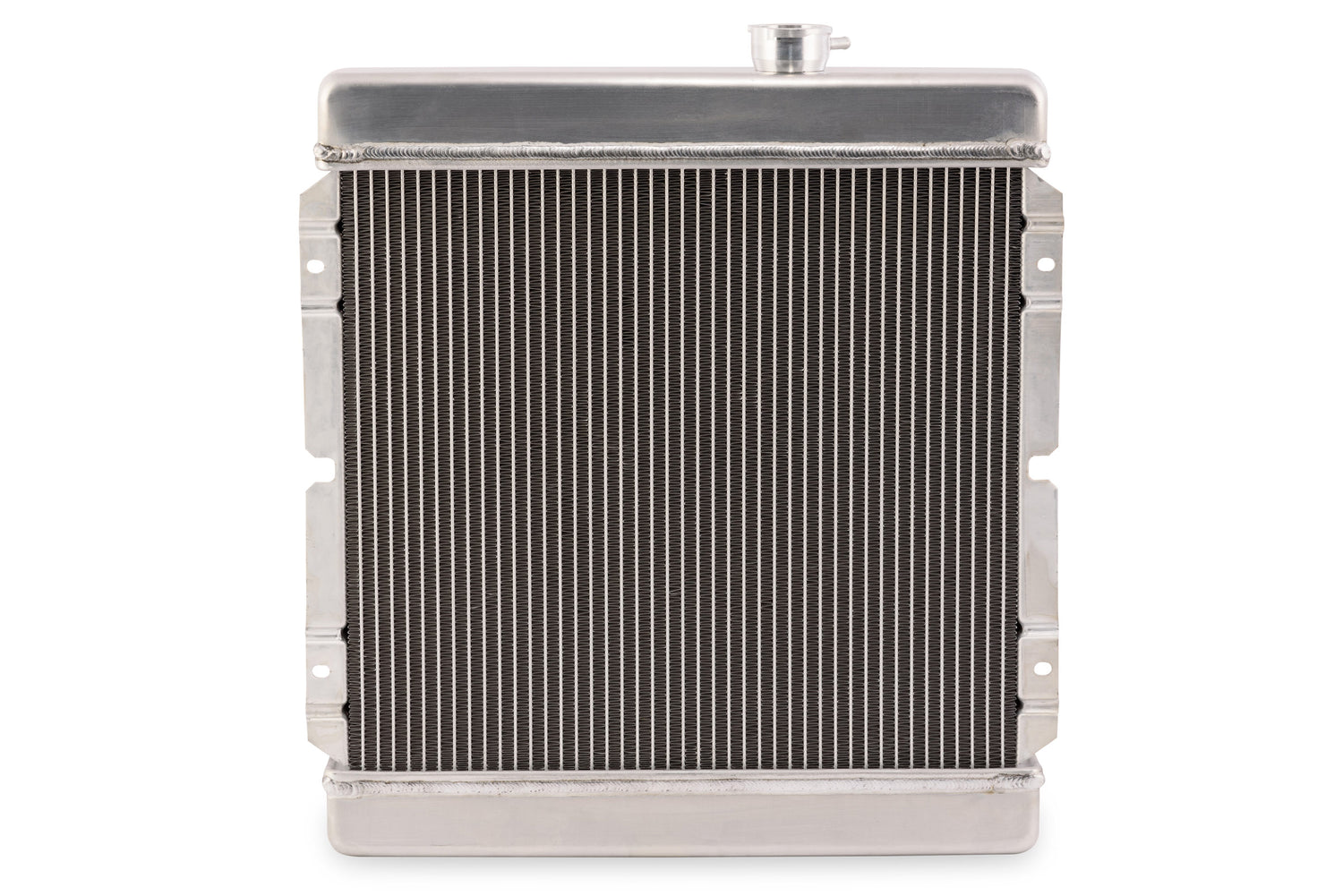

Scott Drake 259-2AL - Radiator 2-Row Aluminum V8 Automatic Transmission

Scott Drake Radiator 2-Row Aluminum V8 Automatic Transmission

1964-1966 Ford Mustang Radiator 2-Row Aluminum V8 Automatic Transmission

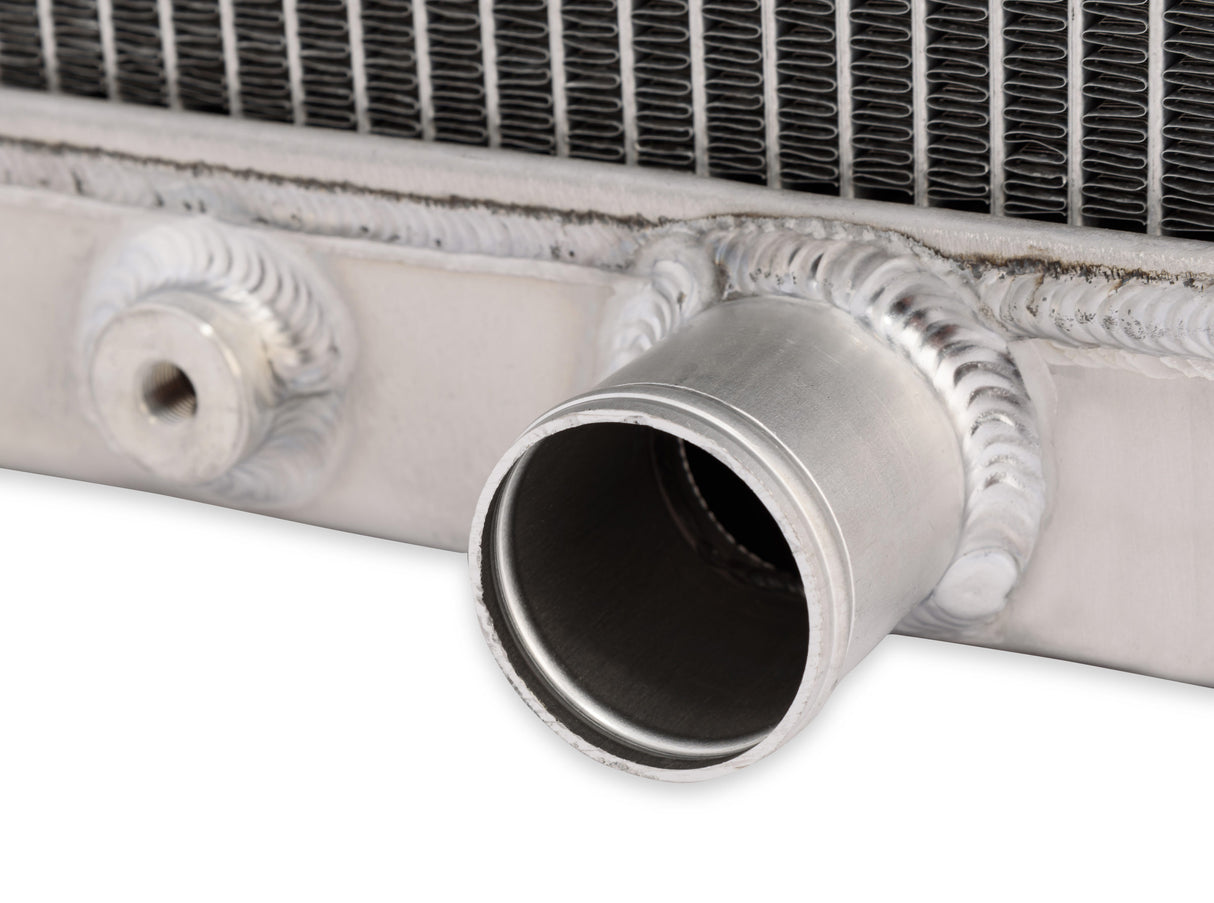

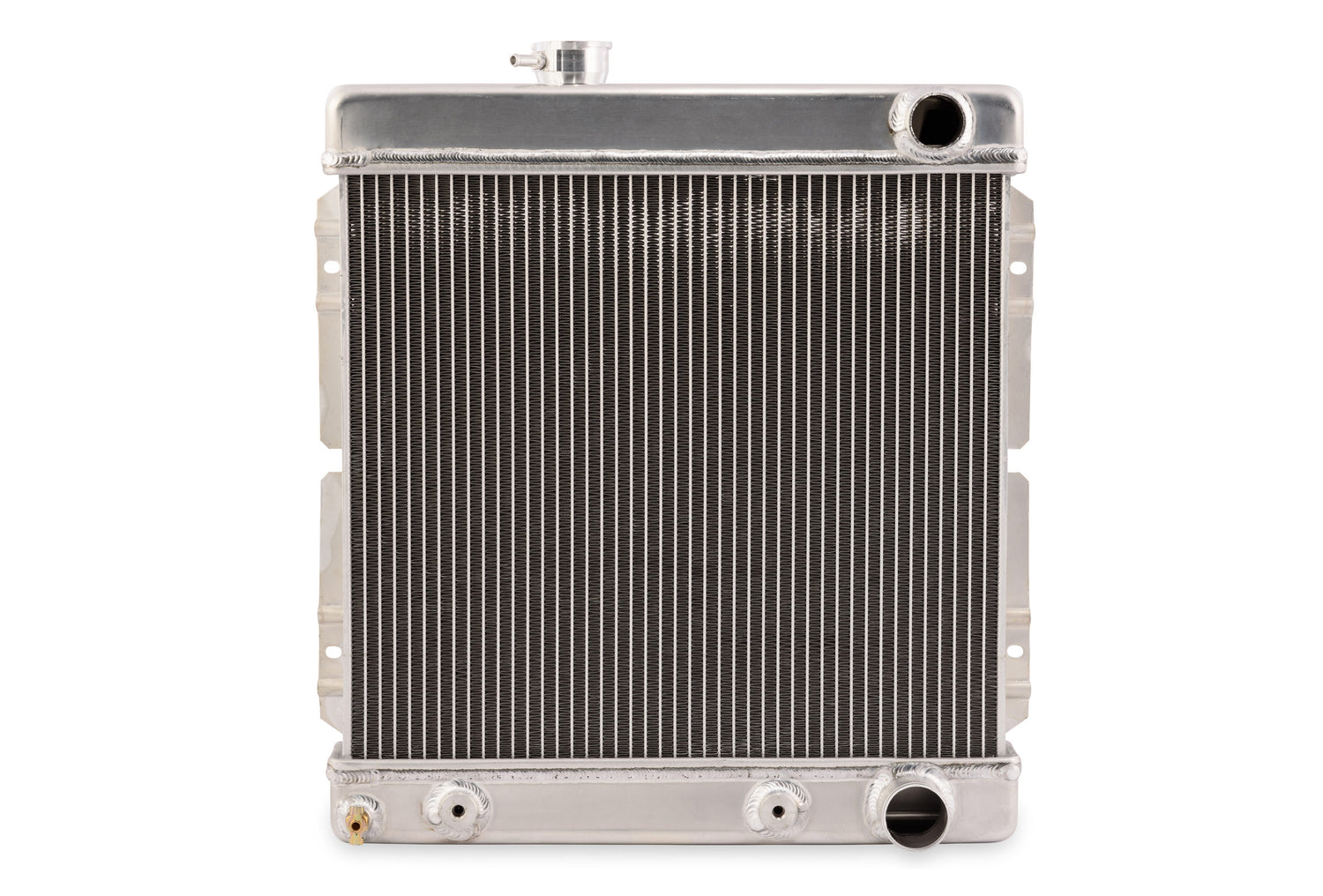

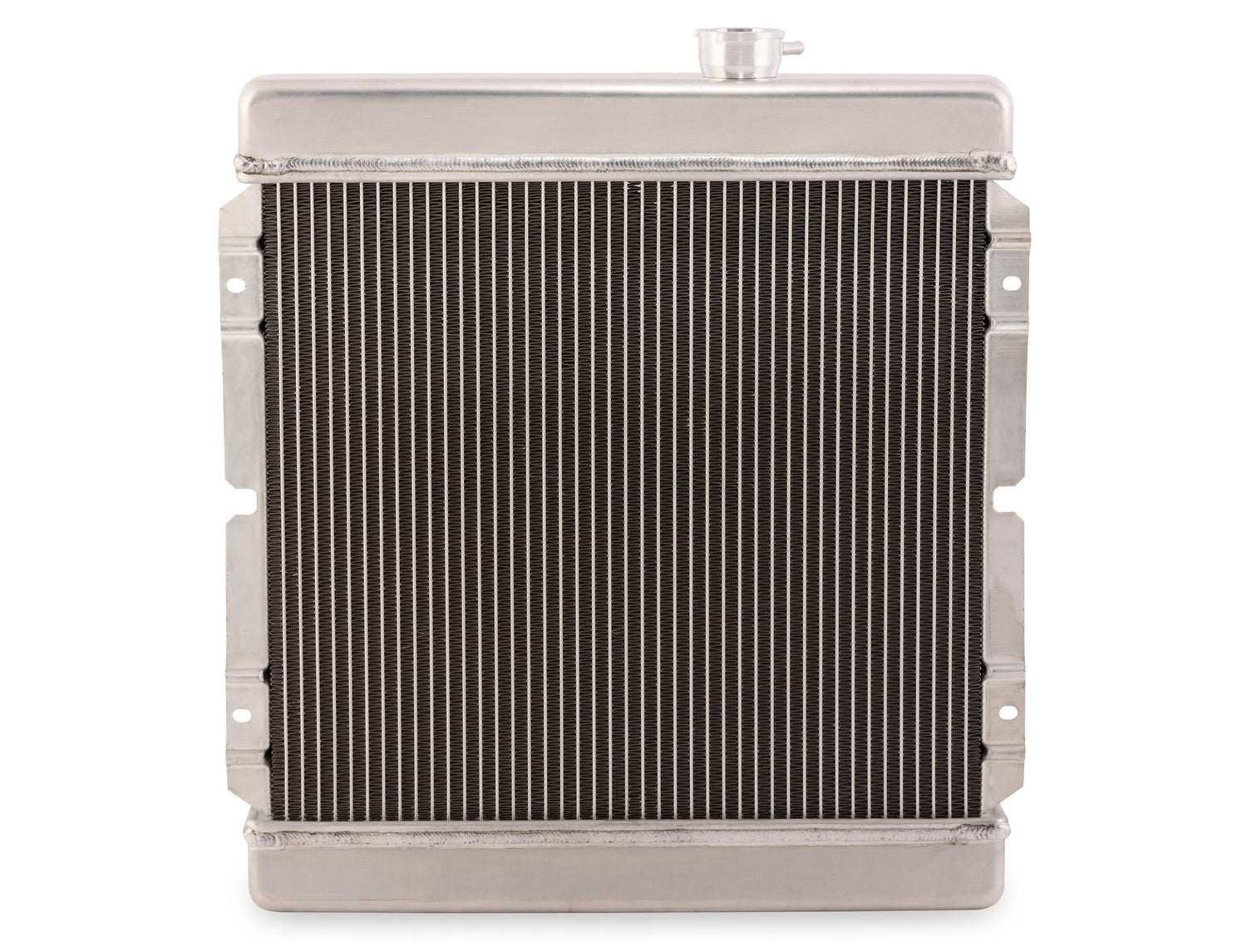

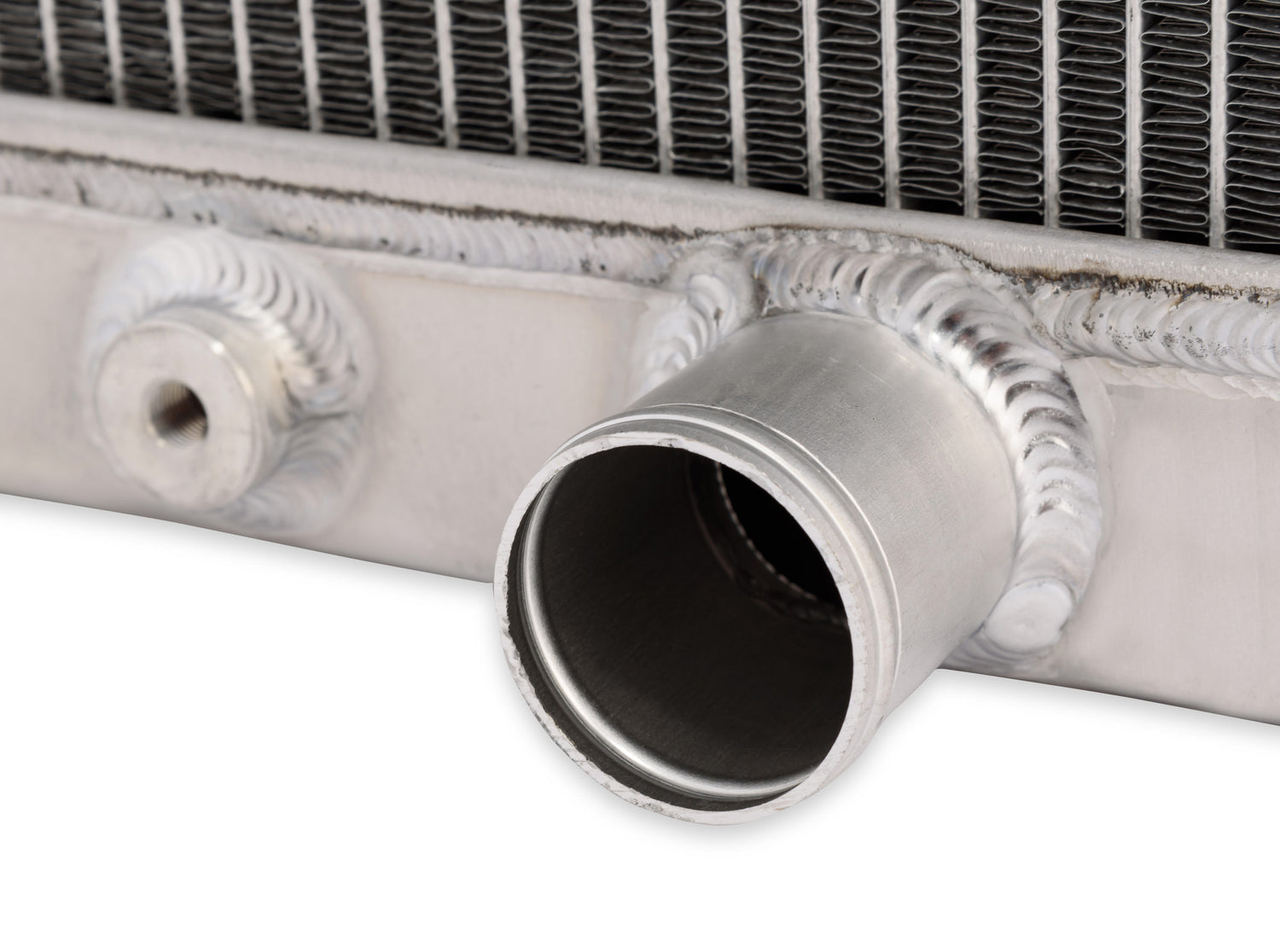

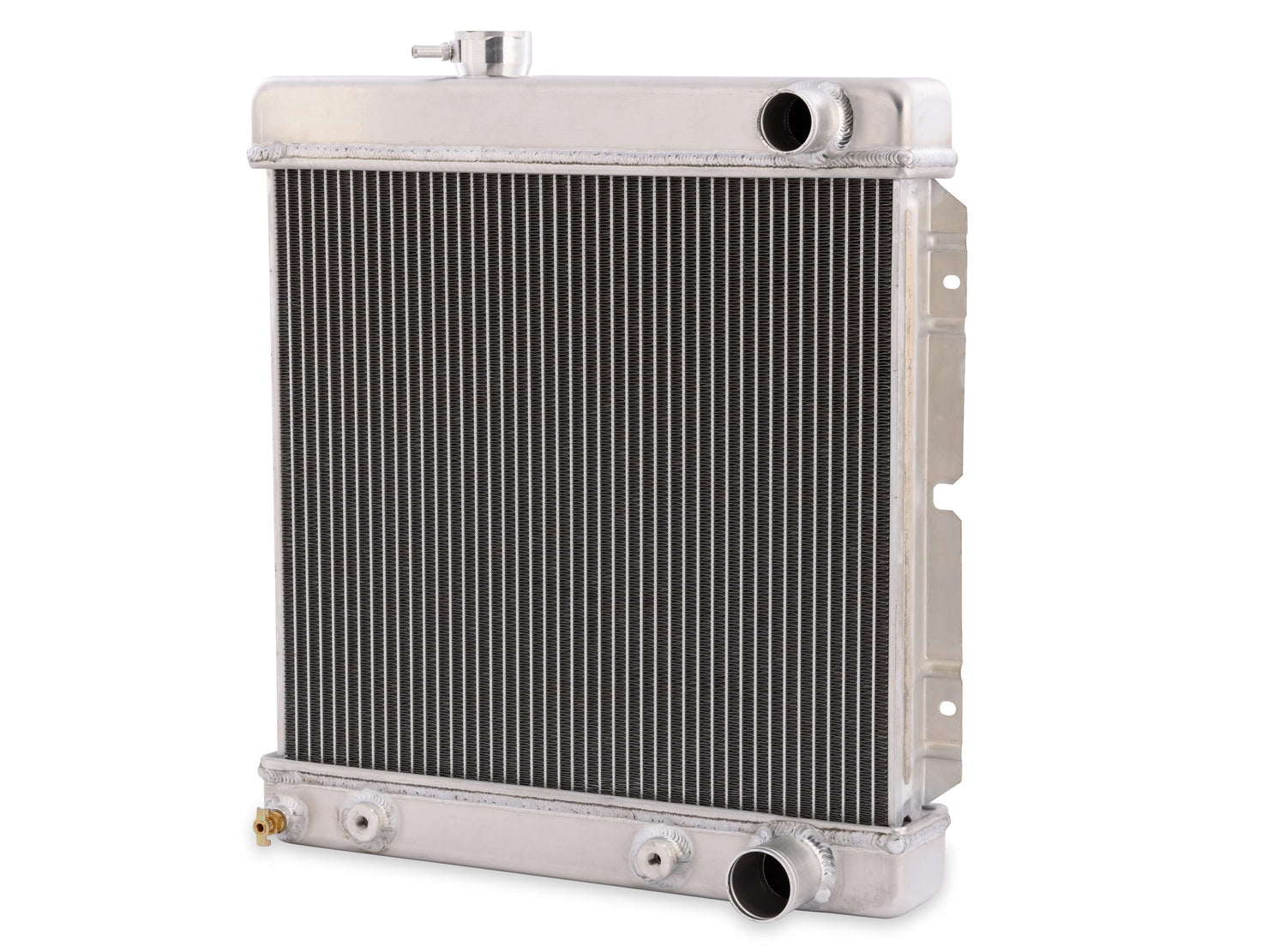

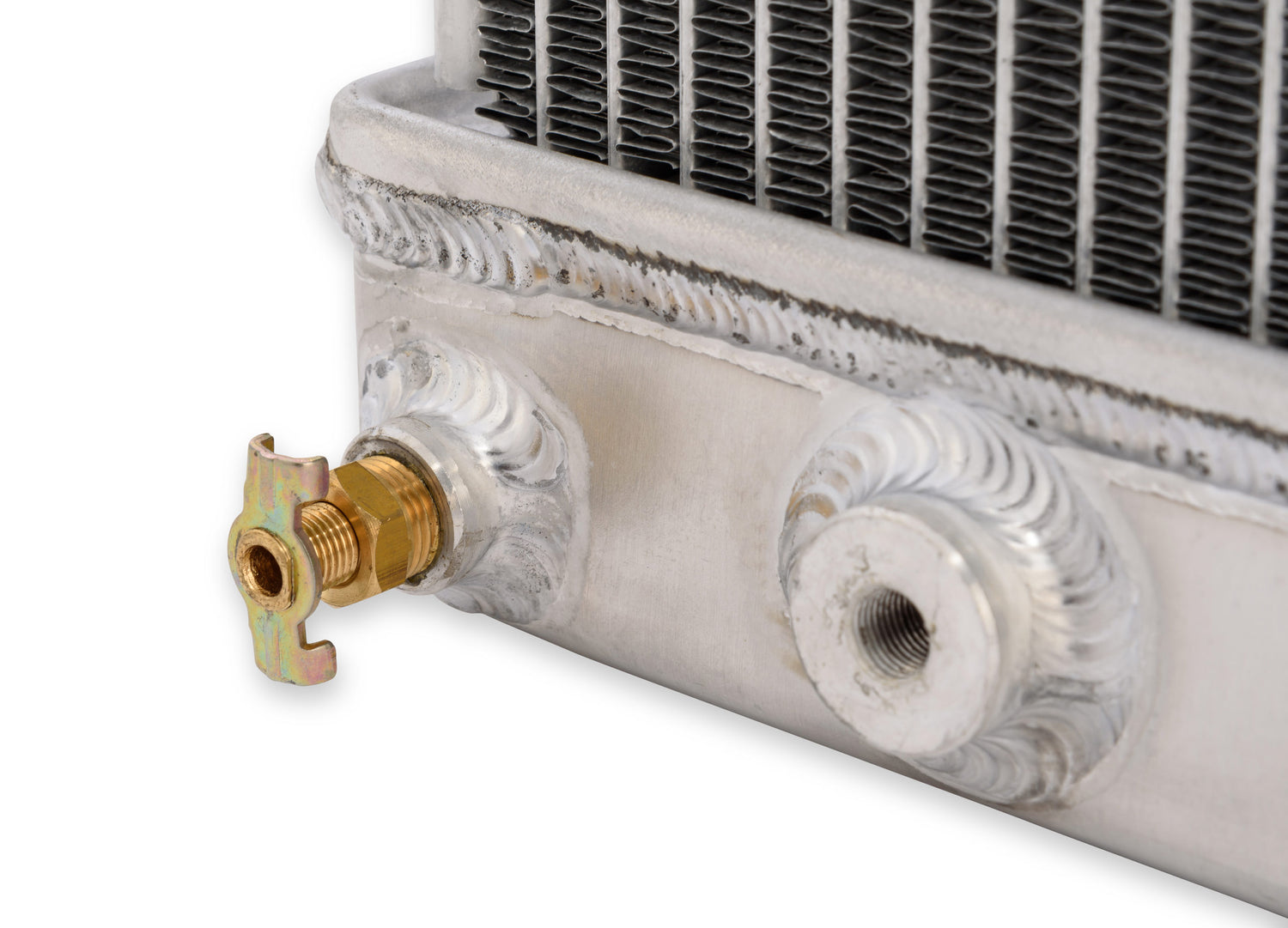

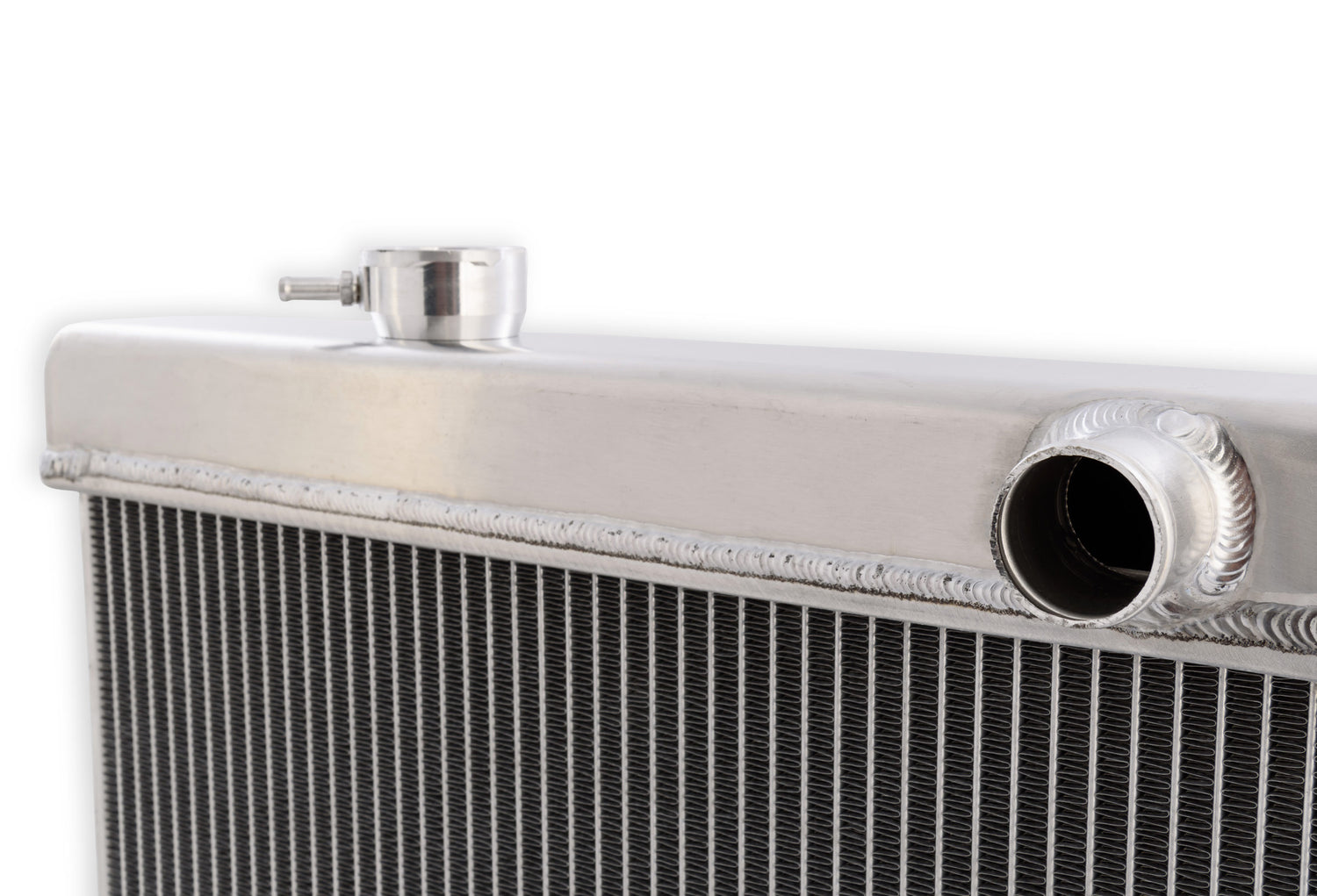

Scott Drake designed this downflow aluminum radiator with an exclusive baffle at the top to help evenly distribute the flow of hot water across the upper part of the radiator. This aluminum radiator is 100% fully tig welded. The inlet and outlet on the radiator are located on the same side and also include a built-in petcock on the lower driver side of the radiator. This aluminum 2-row radiator features extra-large 1" tubes for 4-row efficiency, but with 5-7 lbs. less weight, while solving the original radiator's serious problem of distributing the hot water to the far-right side of the radiator. This aluminum radiator includes an automatic transmission cooler with 1/2"x20 inverted flare fittings.

  • Features Extra Large Tubes For 4 Row Efficiency w/5-7 lbs. Less Weight
  • Added Exclusive Baffle At Top To Help Evenly Distribute Flow Of Hot Water Across Upper Part Of Radiator
  • Significant Changes In Temperatures Across Radiator Cooling Tubes
  • Includes AT Cooler
Brand: Scott Drake
Category: Belts and Cooling
Core Height: 16 1/2
Core Row Quantity: 2
Core Thickness: 2 5/8
Core Width: 17
Down Flow Or Cross Flow Type: Down Flow
Drain Petcock Included: Yes
Emission Code: 6
Engine Oil Cooler Included: No
Fan Included: No
Finish: Natural
Hose Location Inlet: Passenger
Hose Location Outlet: Passenger
Inlet Diameter: 1 1/2
Inlet Location: Passenger
Material: Aluminum
Mounting Type: Bolt On
Outlet Diameter: 1-3/4 in.
Outlet Location: Passenger
Outlet Size: 1-3/4 in.
Overall Height: 21 1/2
Overall Thickness: 3
Overall Width: 17 3/8
part type: Radiator
Product Type: Radiator
Radiator Cap Included: No
Sub Category: Radiators, Coolers and Related Components
Transcooler Provision: Yes
Transmission Oil Cooler Included: Yes
Tube Quantity: 41
Tubing Spacing: 5/8
Warning: California Proposition 65
