RockJock RJ-365000-101 - Johnny Joint Rod End 3 Inch Narrow Weld-On Chromoly 3.250 Inch x .750 Inch Ball Externally Greased 4X4
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

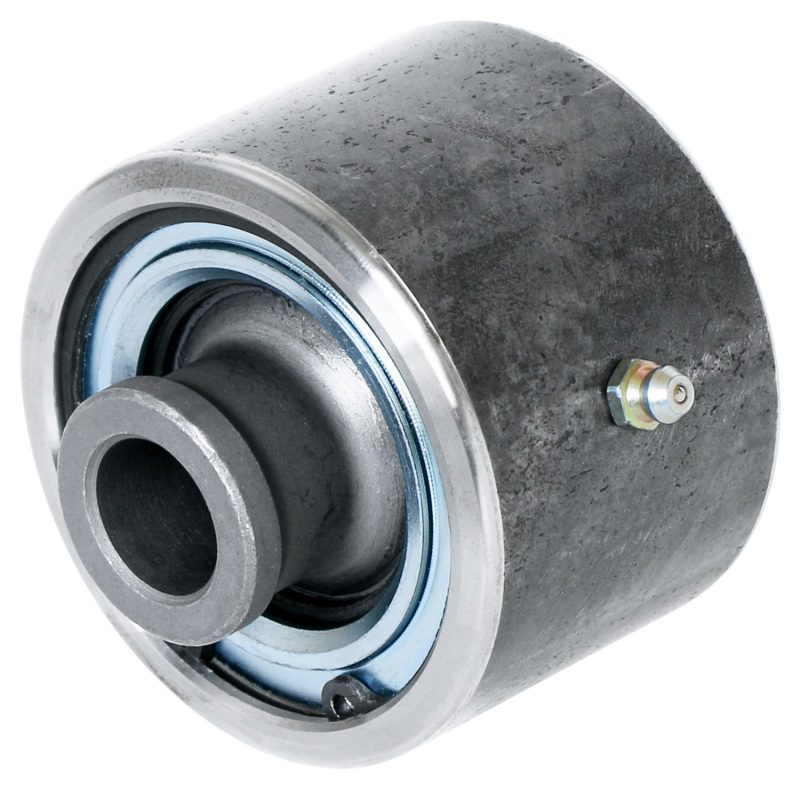

RockJock RJ-365000-101 - Johnny Joint Rod End 3 Inch Narrow Weld-On Chromoly 3.250 Inch x .750 Inch Ball Externally Greased 4X4
RockJock's narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
The 3 inch narrow style outer shell is weldable CNC machined chromoly tubingandnbsp;that is fitted with a zerk fitting for greasing. This specific joint features a 3.250 inch mounting width ball with a .750 inch thru hole.
