RockJock RJ-331004-101 - Johnny Joint Rod End 2 1/2 Inch Narrow Weld-On 2.625 Inch x .625 Inch Ball Externally Greased 4x4
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

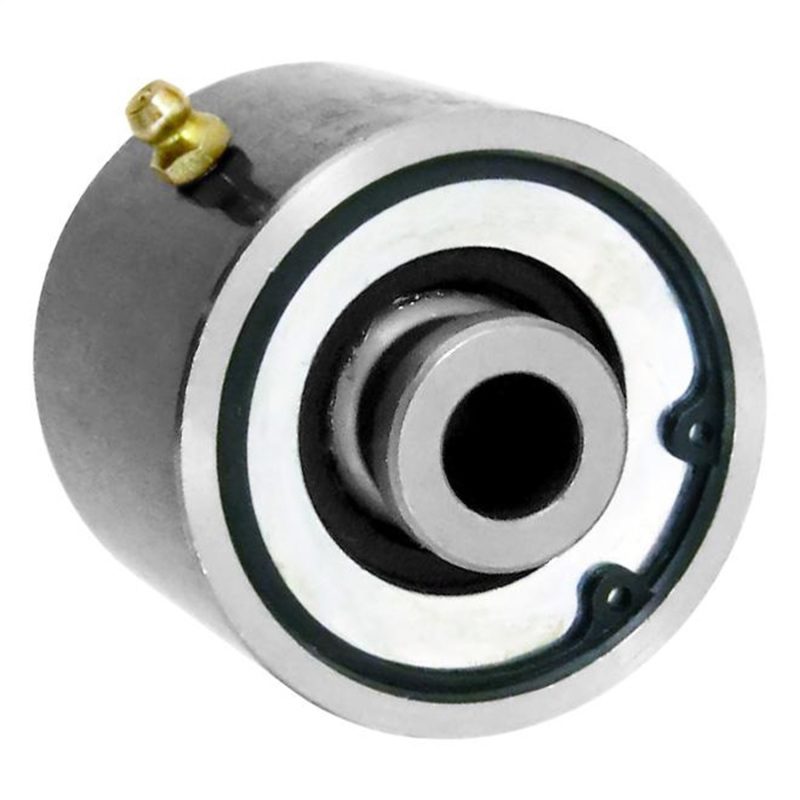

RockJock RJ-331004-101 - Johnny Joint Rod End 2 1/2 Inch Narrow Weld-On 2.625 Inch x .625 Inch Ball Externally Greased 4x4
RockJock's narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The narrow style outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.625 in. mounting width and a .625 in. thru bolt hole.
Features:
- Johnny Joint Rod End, 2 1/2 Inch, Narrow Weld-On, 2.625 Inch x .625 Inch Ball, Externally Greased
- The narrow style outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing.
- This specific joint is a 2 1/2 in. o.d.
- Features a 2.625 in. mounting width and a .625 in. thru bolt hole
