RockJock RJ-331002-101 - Johnny Joint Rod End 2 1/2 Inch Narrow Weld-On 70mm x 16mm Ball Externally Greased 2021-Present Ford Bronco Rear Axle 4X4
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

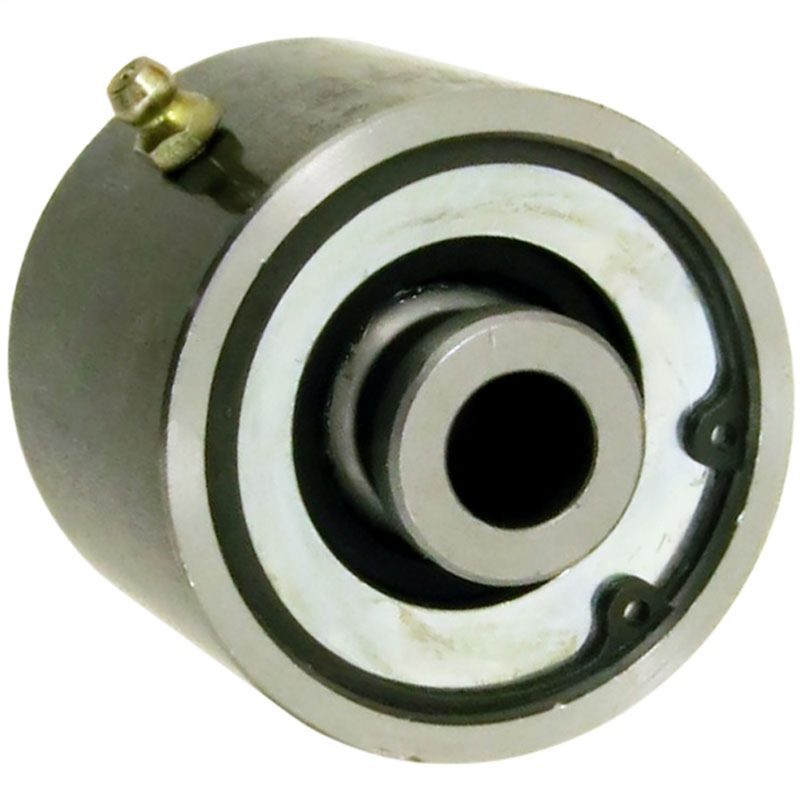

RockJock RJ-331002-101 - Johnny Joint Rod End 2 1/2 Inch Narrow Weld-On 70mm x 16mm Ball Externally Greased 2021-Present Ford Bronco Rear Axle 4X4
RockJock's narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The 2 1/2 inch narrow style outer shell is weldable CNC machined DOM tubing that is fitted with a zerk fitting for greasing.
This specific joint's 70mm mounting width ball with a 16mm thru bolt hole is designed to fit the axle side of the 2021 and up Bronco's rear control arms.
