RockJock RJ-301600-101 - Johnny Joint Rod End 2 Inch Narrow Forged 7/8 Inch-14 LH Threads 2Inch x .515 Inch Ball 4X4
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
RockJock RJ-301600-101 - Johnny Joint Rod End 2 Inch Narrow Forged 7/8 Inch-14 LH Threads 2Inch x .515 Inch Ball 4X4
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

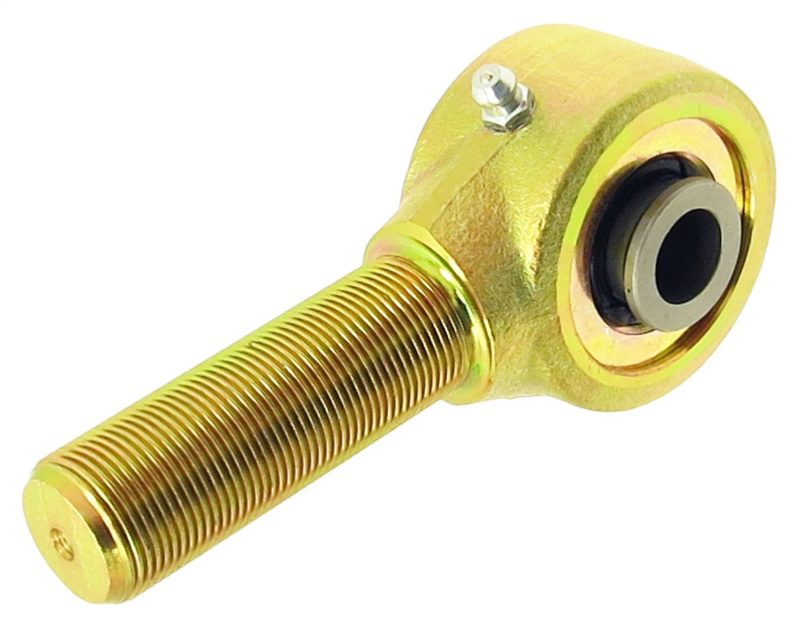

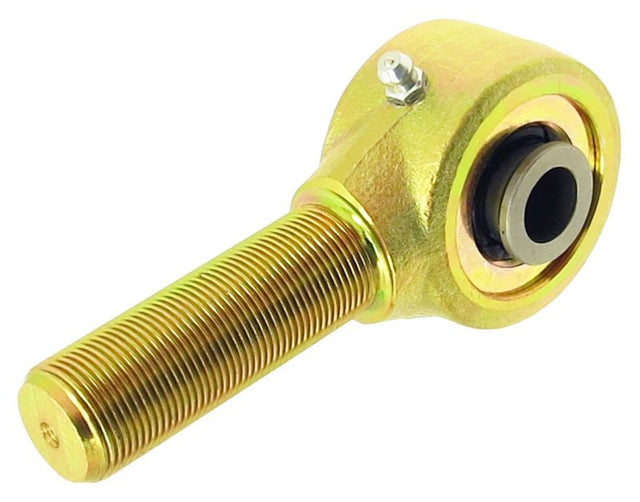

This specific joint features a narrow 2 inch diameter joint body, fitted with a zerk fitting for greasing, 2.3 inch of 7/8 inch-14 left hand threads on the shank, and a 2 inch mounting width ball with a .515 thru bolt hole. Finished in gold zinc plating.
