RockJock RJ-252201-101 - Antirock Forged Chromoly Sway Bar Arms 16.2 Inch Long x 25 Spline Vertically Offset Incl. Stickers Pair 4X4

RockJock RJ-252201-101 - Antirock Forged Chromoly Sway Bar Arms 16.2 Inch Long x 25 Spline Vertically Offset Incl. Stickers Pair 4X4

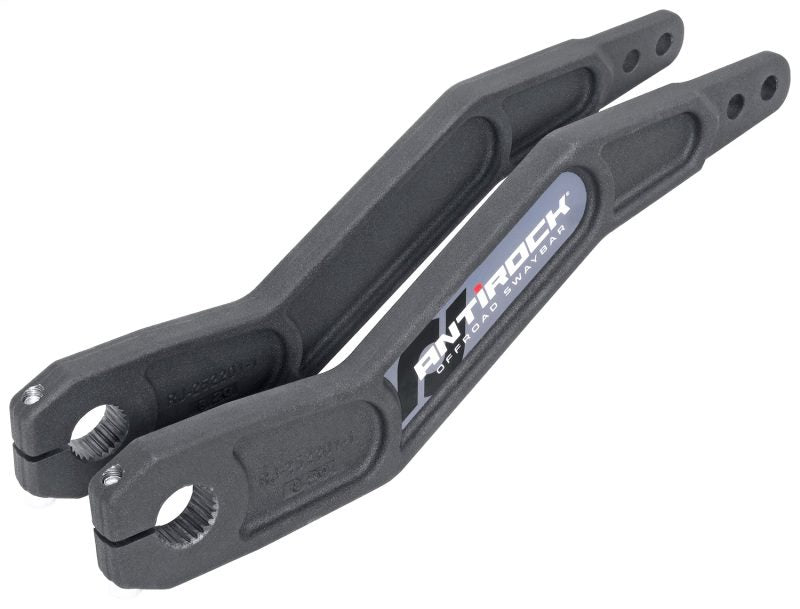

RockJock offers forged chromoly arms for Antirock sway bar kits as an upgrade to existing vehicles or for those looking for maximum strength for their rock crawling rig! These arms provide maximum strength and rigidity via their forged 4340 chromoly construction and I-beam cross section design.

Arms are 3/4 inch thick, 16.2 inch long overall, making them 14.2 inch from center to center, to outer hole. The vertical offset design of these unique arms allows for maximum suspension uptravel in applications that feature clearance restrictions.

These arms feature 2 adjustable sway bar link mounting holes and they can be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. These arms would be replacements for our Jeep JT Gladiator heavy bar rear Antirock kits that feature the 25 spline torsion bar. Sold as a pair only.
Arms Fit:

• Jeep Gladiator JT - rear
• Universal Applications

Kit Includes:

• 16.2 inch Antirock Sway Bar Arms (pair)
• Arm Stickers (pair)

Specs and Dimensions:

• Overall length=16.2 inch
• Thickness=3/4 inch
• Material=4140 chromoly, forged
• Offset=Vertical
• Spline count=25
• Center of splined hole to center of nearest 1/2 inch hole=13.20 inch
• Center of splined hole to center of farthest 1/2 inch hole=14.20 inch
• Weight=13lbs. (for the pair)

Notes:

• These are the replacement arms for a Jeep JT rear Antirock kit.
• Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 inch in arm length and the ability to offset the end link up to 1 1/4 inch
• See RJ-520201-101 for arm hardware kit.
