RockJock CE-9114NL-28 - Johnny Joint Rod End 2 1/2 Inch Narrow Forged 2.625 Inch X .640 Inch Ball 1 1/4 Inch-12 RH Threaded Shank Externally Greased 4X4
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

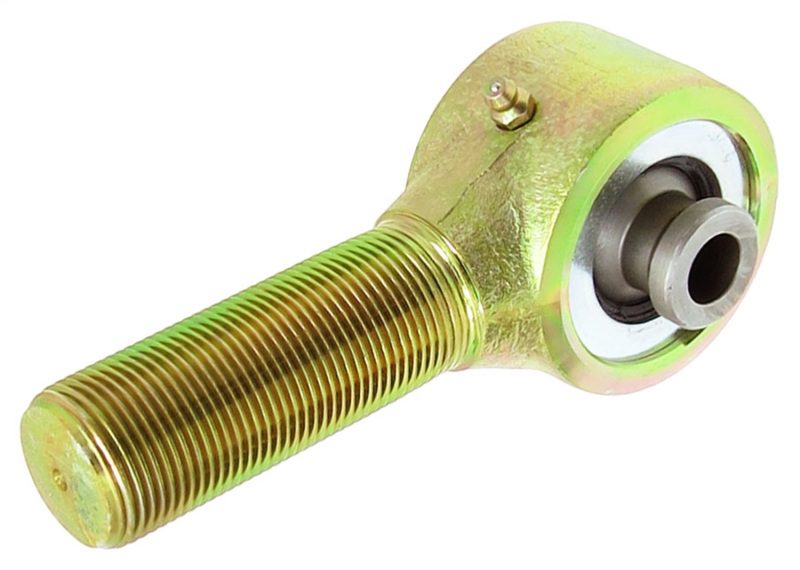

RockJock CE-9114NL-28 - Johnny Joint Rod End 2 1/2 Inch Narrow Forged 2.625 Inch X .640 Inch Ball 1 1/4 Inch-12 RH Threaded Shank Externally Greased 4X4
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
This specific joint is a 2 1/2 inch diameter, fitted with a zerk fitting for greasing, 2 1/4 inch of 1 1/4 inch-12 left hand threads on the shank, and a 2.625 inch mounting width offset ball with a .625 inch thru bolt hole. Finished in gold zinc plating.
