Ridetech 11537194 - Rear StrongArms System for C7 Hubs W/ 33/35 Spline Outer Axles 1963-1979 Corvette

Ridetech 11537194 - Rear StrongArms System for C7 Hubs W/ 33/35 Spline Outer Axles 1963-1979 Corvette

Rear StrongArms System for C7 Hubs W/ 33/35 Spline Outer Axles 1963-1979 Corvette. Similar to the standard Ridetech Rear StrongArm System, this is system is upgraded for use W/ C7 Corvette hubs, extreme duty outer axles and C5/C6 brakes.

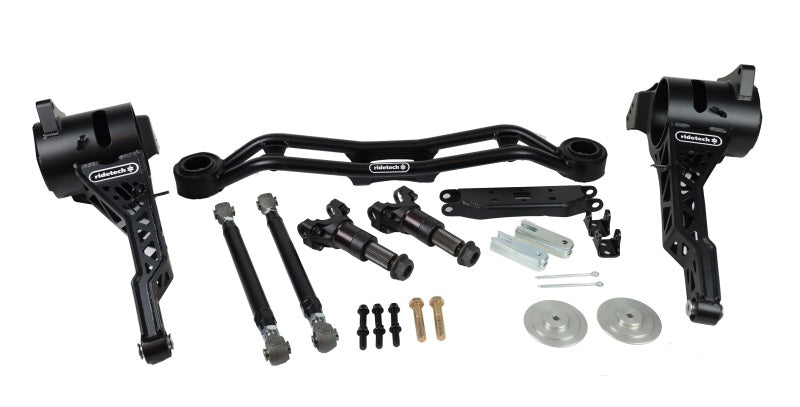

These upgrades provide maximum strength, consistent braking and reduced maintenance. Includes offset trailing arms, outer axles, shock crossmember (for stock differential), camber rods w/ R-Joints and hardware. Hubs and coil-overs not included.

Features:

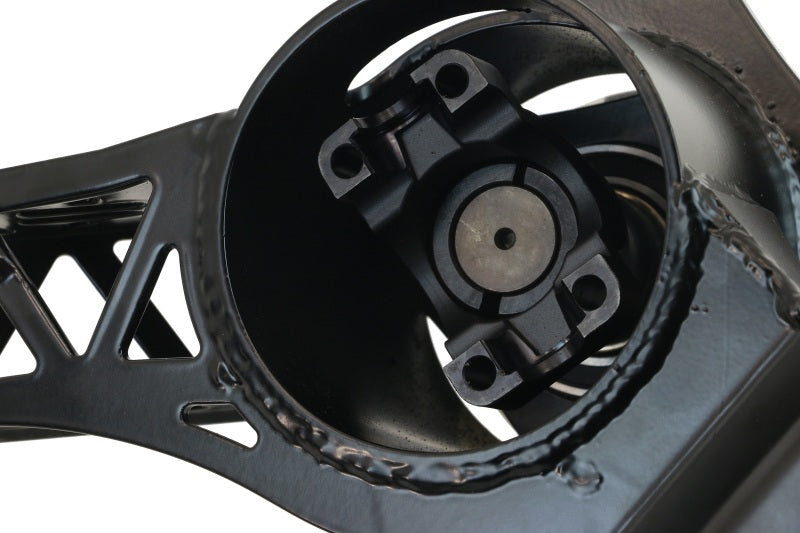

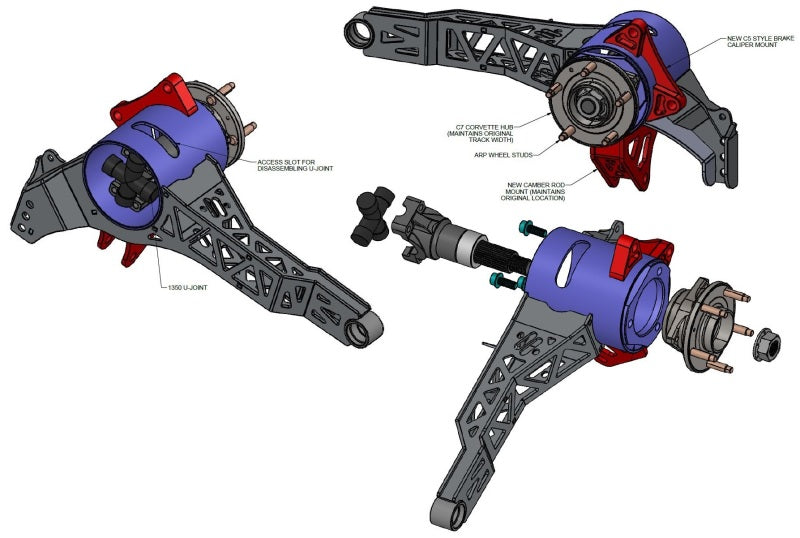

• Eliminates stock spindle and outer axle/bearing assembly and instead uses a C7 Corvette hub.
• Includes 33/35 Spline outer stub axle made of Hy-Tuf alloy steel (manufactured by Strange).
• Utilizes a 1350 outer U-joint, matches stock thru 1979 model year.
• Compatible W/ stock length axle shafts.

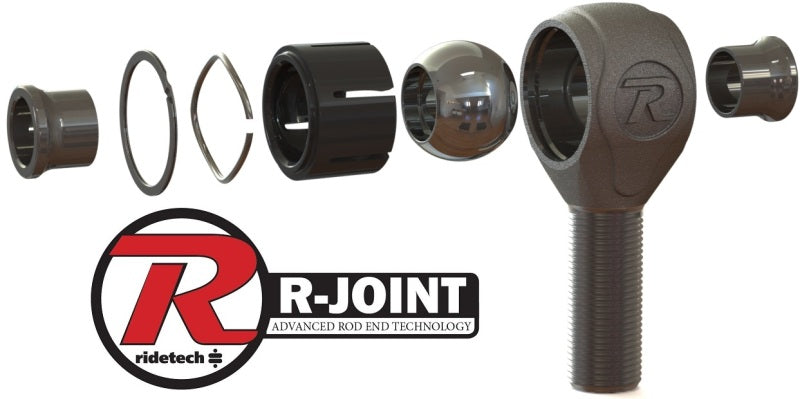

• Includes camber rod W/ R-Joint rod ends along W/ integrated lower camber rod mount to correct camber gain.

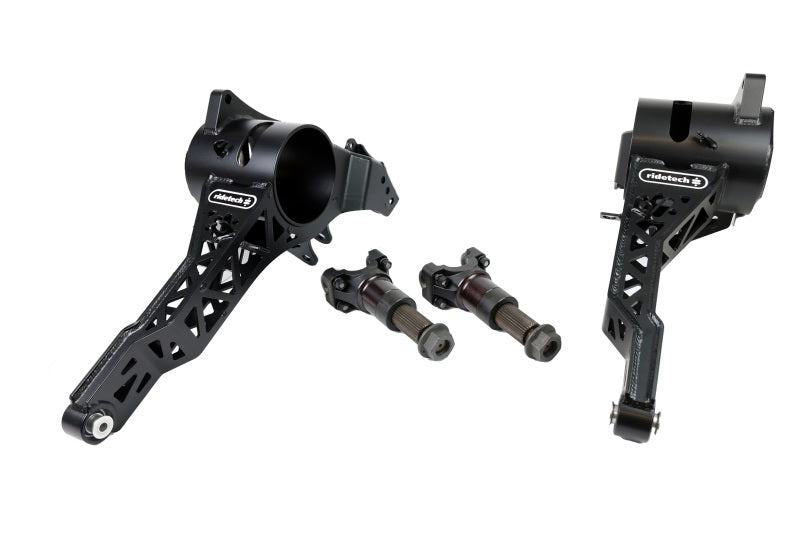

• Offset trailing arms for increased tire clearance. Truss design provides lightweight strength.
• Designed for use W/ Ridetech Coil-Overs (sold separately). Lowers ride height approximately 1-3 inch.
• Upper crossmember and camber rod brackets create bolt on installation to stock frame mounts and stock differential.
• Integrated brake mount accepts C5/C6 Corvette rear brake kit (most require 17 inch or larger wheels).
• Not compatible W/ parking brake
• Minimum 17 inch wheels.
• Spherical bearing forward mount.

Hub and Brake Compatibility:

• Hubs - 1997-2013 Corvette (C5/C6) or 2014-2019 Corvette (C7). C7 hubs are preferred (such as Moog 512558), they are stronger and more cost effective (no wheel speed sensor).
• Brakes - Any 1997-2013 Corvette (C5/C6) will fit (OE replacement or aftermarket).
• Suspension Locationandnbsp;Rear
• Suspension Type Coil-Over Suspension
