Racepak 620-KT-IQ3LDPL - IQ3 Logger Dash 2WD Puller Kit

Racepak 620-KT-IQ3LDPL - IQ3 Logger Dash 2WD Puller Kit

IQ3 Logger Dash 2WD Puller Kit; Incl. IQ3 Data Logger Dash / USM / Harness / Memory Card / GPS Antenna And Cable / Magnets / Software / Cables / Connectors / Sensors;

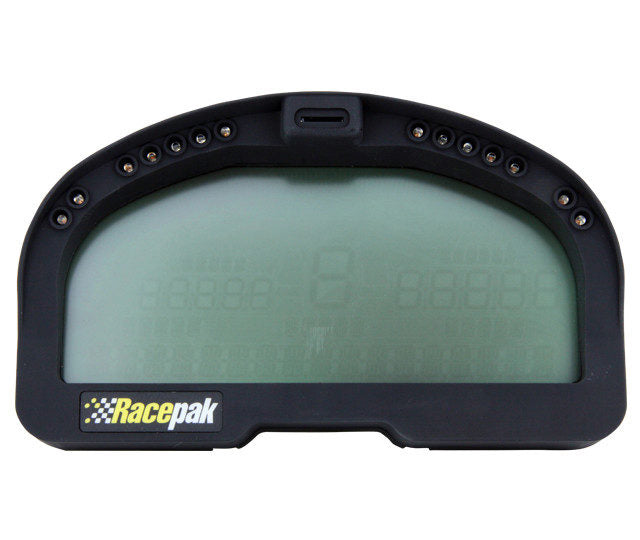

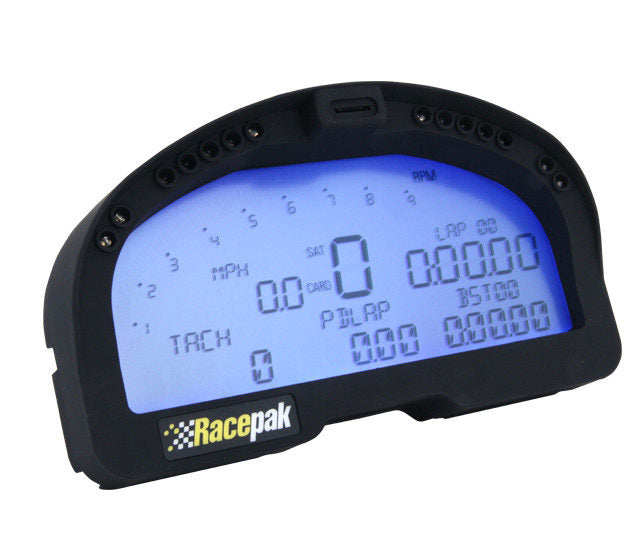

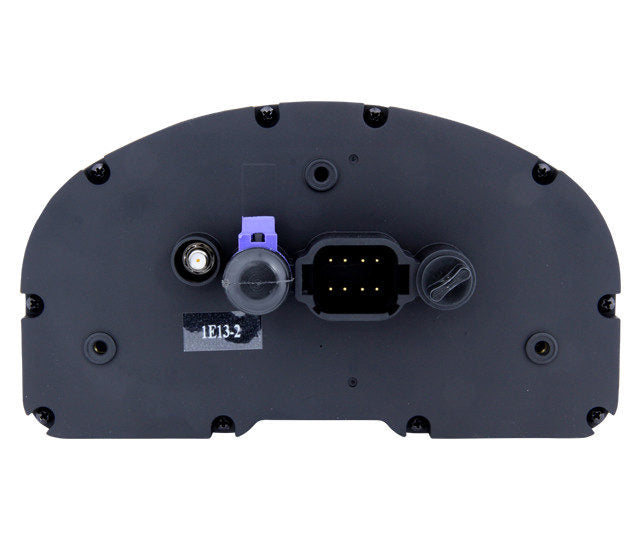

The IQ3 Logger Dash combines a 32 channel data logger with a complete display dash. This eliminates the need for an external data recorder and simplifies wiring complexity. The display features four user-definable pages of data with programmable shift and warning lights. Data is collected on a front-mounted MicroSD card for convenience. Internal GPS speed measurement eliminates the need for added wheel sensors. The 620-KT-IQ3LDPL edition Logger Dash is optimized for 2WD pulling vehicles. The box includes: Q3 data logger dash / universal sensor module / power/ground/engine RPM harness / 48 in. V-Net extension cable / 512mb microSD memory card / throttle position sensor / GPS antenna and cable / 3 RPM sensors / programming cable / 10 magnets / DatalinkII software and installation manual / cables and connectors. Specifications: 32 total channels of data / 24 programmable sensor inputs on 4 pages / internal GPS / programmable shift and warning lights / gear indicator. Dimensions: 7.30 in. (W) x 4.10 in. (H) x 2.10 in. (D) (18.54 cm. x 10.41 cm. x 5.33 cm.) / 3.0 lb. (731.4 g)

• Combines 32 Channel Data Logger w/Complete Display Dash
• Features Four User-Definable Pages Of Data
• Features Programmable Shift And Warning Lights
• Eliminates The Need For Added Wheel Sensors
• Optimized For 2WD Pulling Vehicles
• Includes Q3 Data Logger Dash / Sensor Module / More Parts
• 24 Programmable Sensor Inputs On 4 Pages
