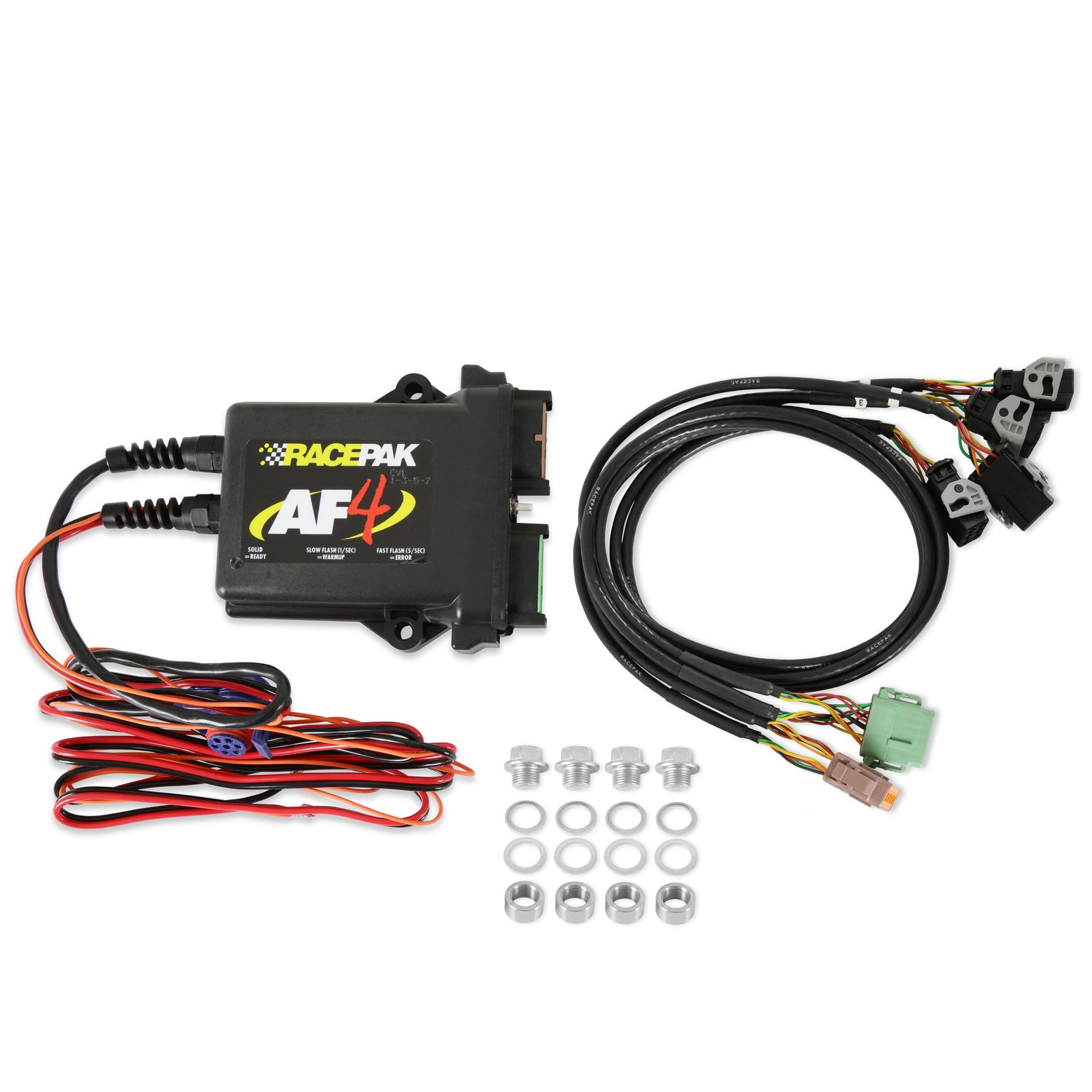

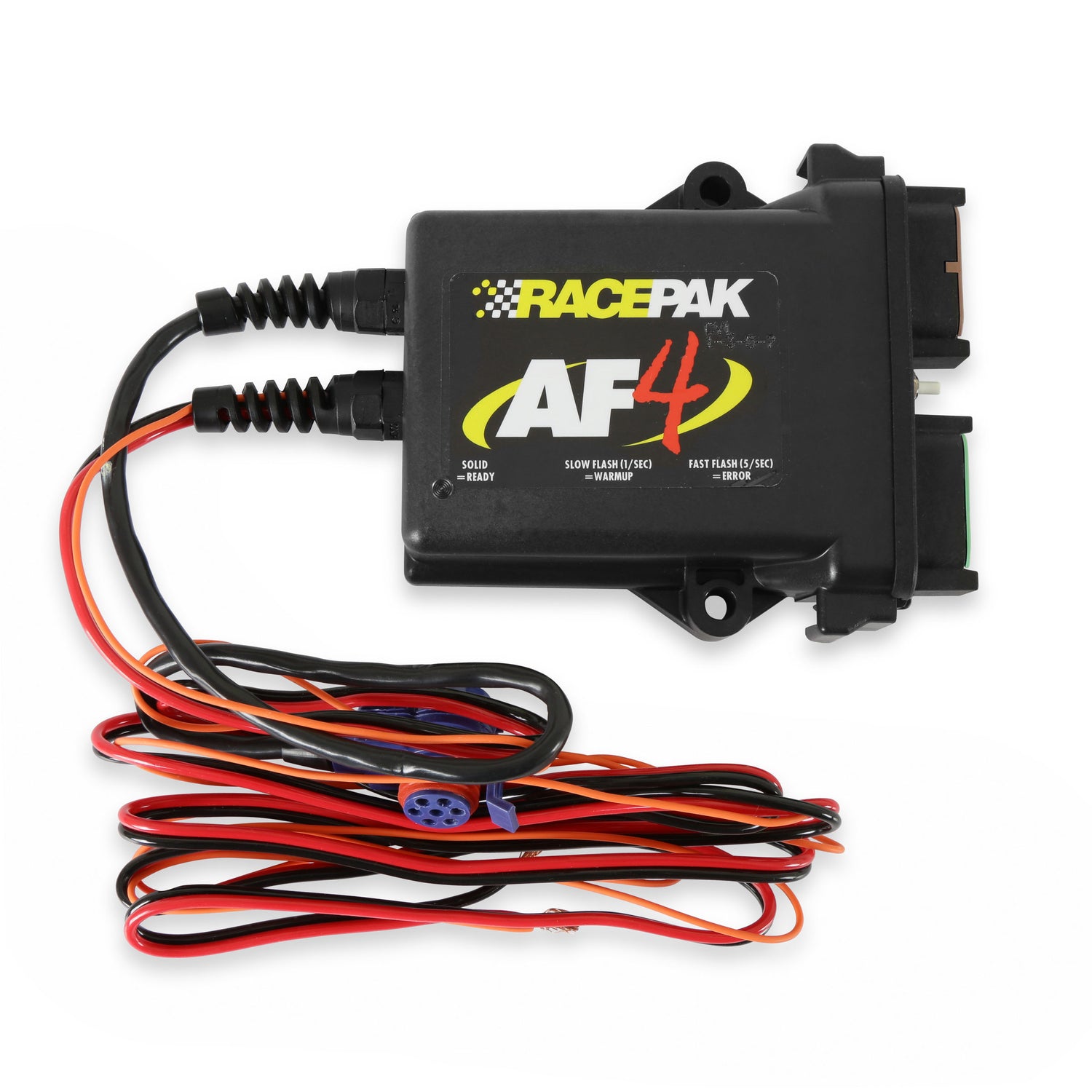

Racepak 220-VM-AF4-1357 - 4 Channel Wideband Air / Fuel Controller

Racepak 220-VM-AF4-1357 - 4 Channel Wideband Air / Fuel Controller

Wideband Controller - 4 Channel - Left Cylinder Bank - 13 in Pigtail Cable - 37 in Controller Cable - Racepak V-Series Recorders - Kit

4 Channel Wideband Air / Fuel Controller; For Use On 1 / 3 / 5 / 7 Cylinder Bank Of V8; Features 13 in. Pigtail Cable / 37 in. Cable For Attachment To The Sensor;

Racepak has an excellent selection of A/F controllers and sensors created specifically for tuning race engines. Each of these 2 and 4 channel controllers are designed to be connected to the V-Net cable of Racepak V-series recorders. All sensors have a 13 pigtail cable, and the controller has a 37 cable for attachment to the sensor. These lengths cannot be altered. Controllers are ordered by cylinder bank layout. Racepak A/F sensors are compatible with either gasoline or methanol fueled engines. Gasoline application will display A/F ratios between 9.55:1 and 20:1, while methanol is shown from 4.22:1 to 8.7:1. Please specify the type of fuel you will be using when ordering. Each sensor includes one weldment and plug. Air/Fuel sensors can be used with all V-Net products and can run on 12-18 volt battery systems. Sensors must be ordered separately - PN# 810-SN-AFAMP

• Excellent Selection Of A/F Controllers And Sensors
• Created Specifically For Tuning Race Engines
• Connects To The V-Net Cable Of Racepak V-Series Recorders

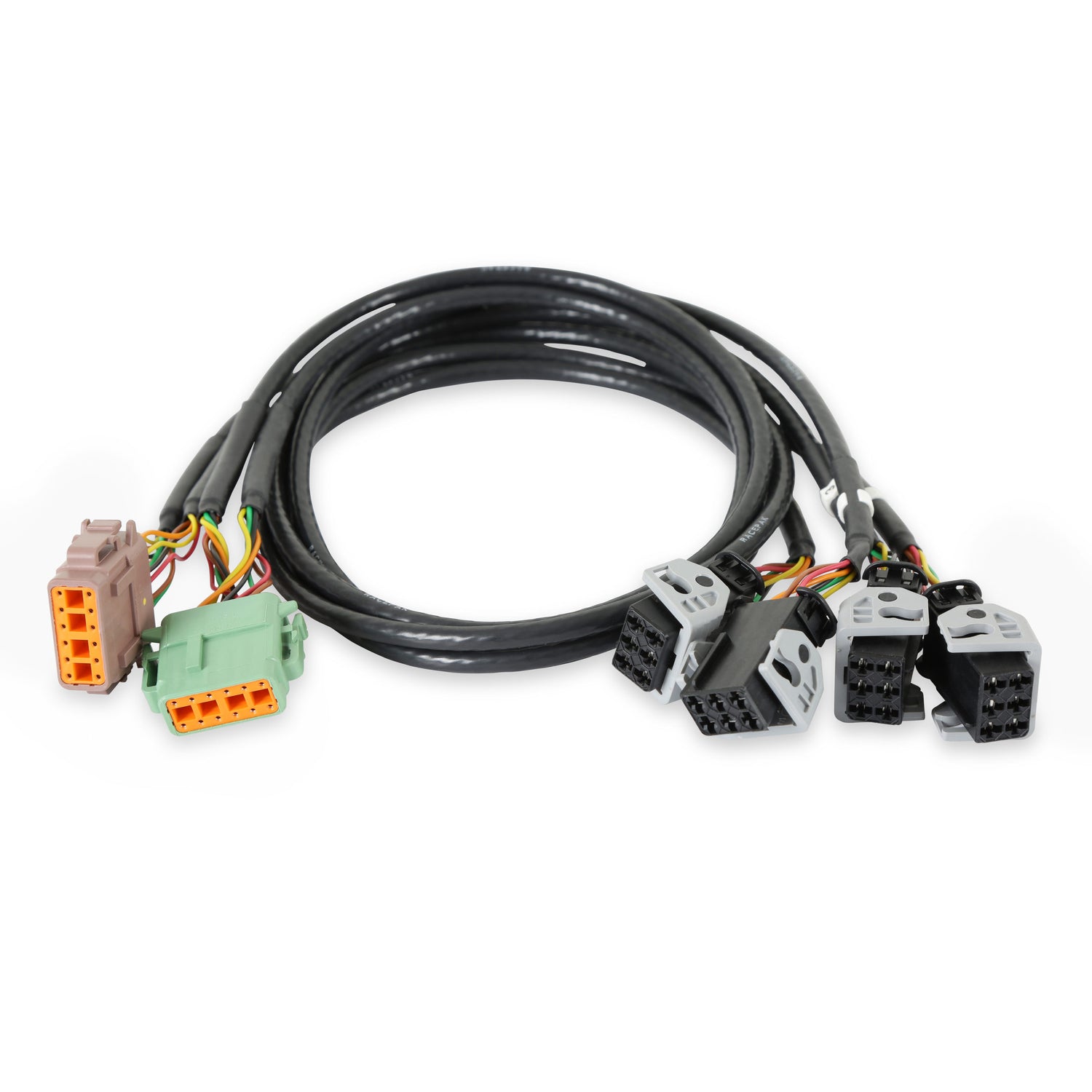

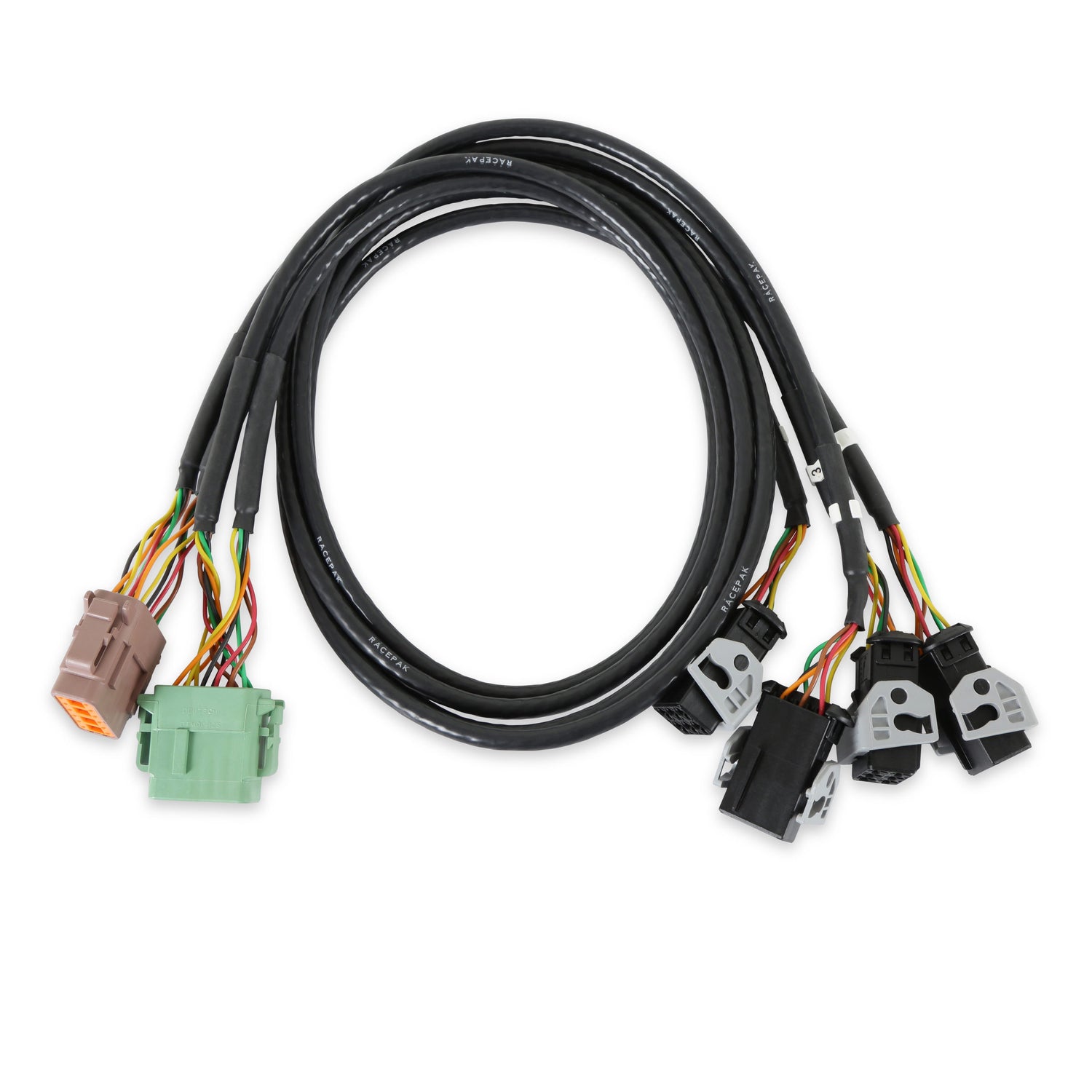

• Features 13 in. Pigtail Cable
• For 1/2/3/4 Cylinder Bank Layout
• Compatible w/Either Gasoline Or Methanol Fueled Engines
• Gasoline Application Displays A/F Ratios Between 9.55:1 And 20:1
• Methanol Application Displays A/F Ratios Between 4.22:1 And 8.7:1
• Includes Weldment / Plug
• Can Be Used w/All V-Net Products
• Can Run On 12-18 Volt Battery Systems
