QuickTime Bellhousing; BBC/SBC/LT1 Chevy To Muncie/Jerico/Richmond/Saginaw Style Trans.; 6.1W SFI Cert.; Mech. or Hyd.; 153/168 Tooth; 6.290 in. Height; 4.687 in. Trans Bore;

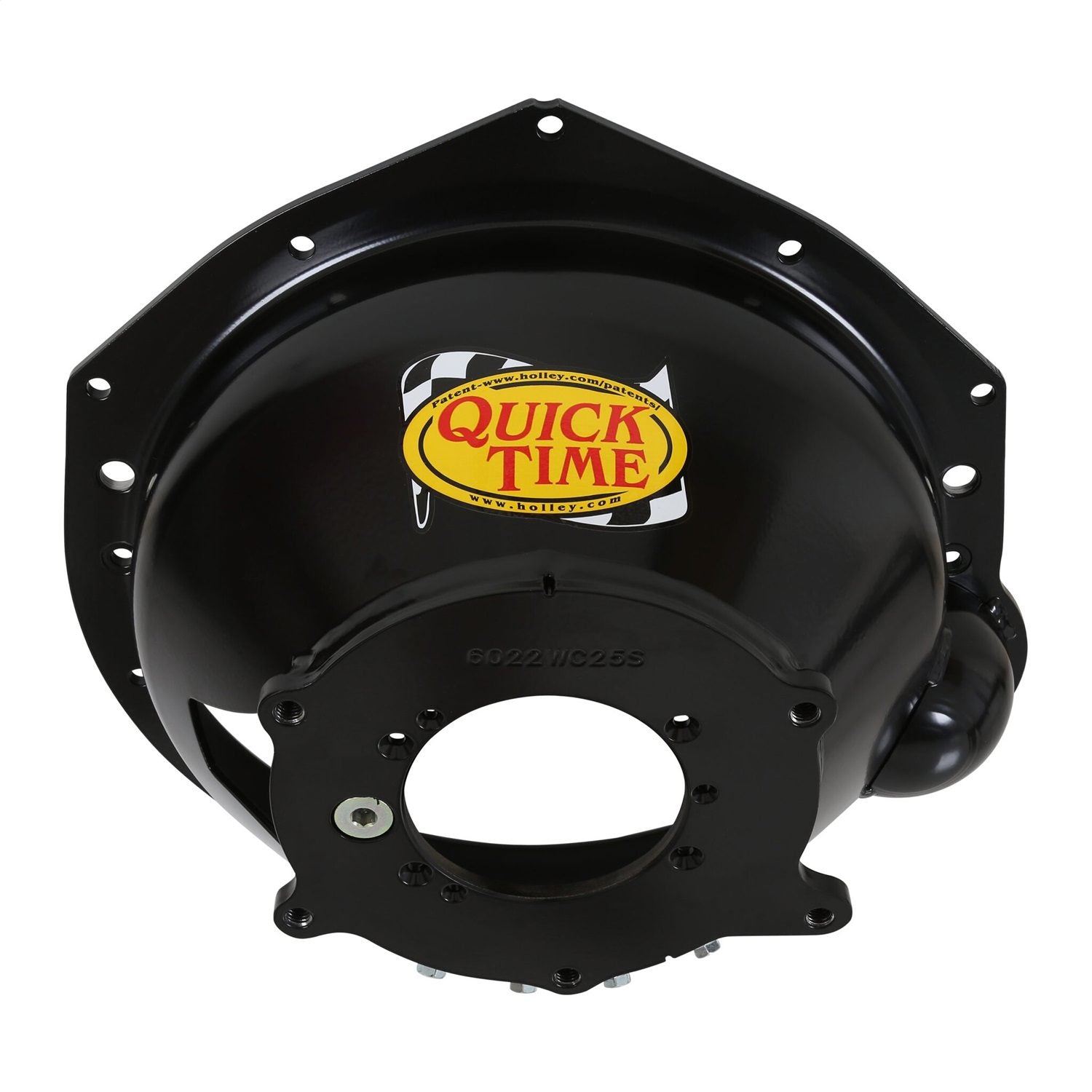

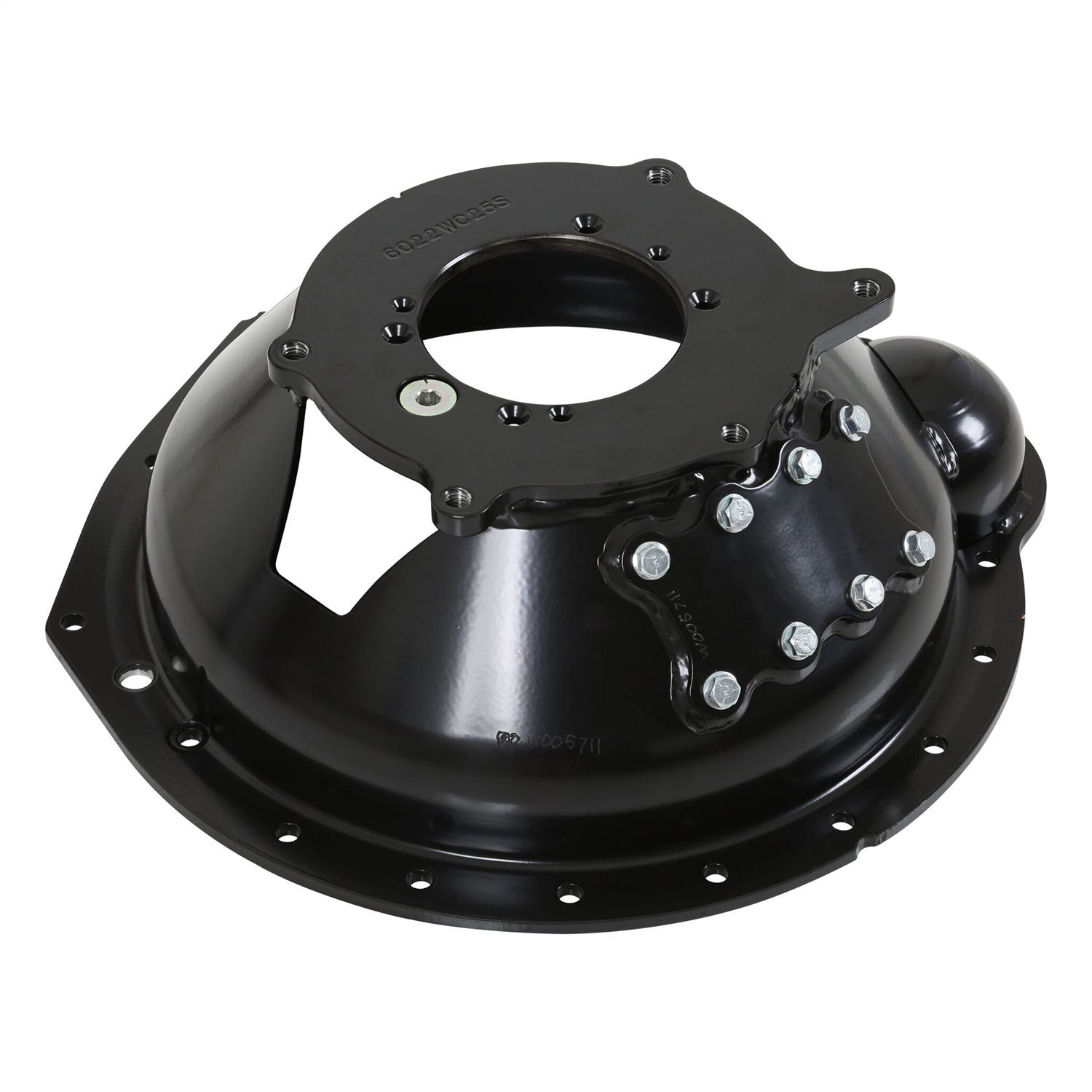

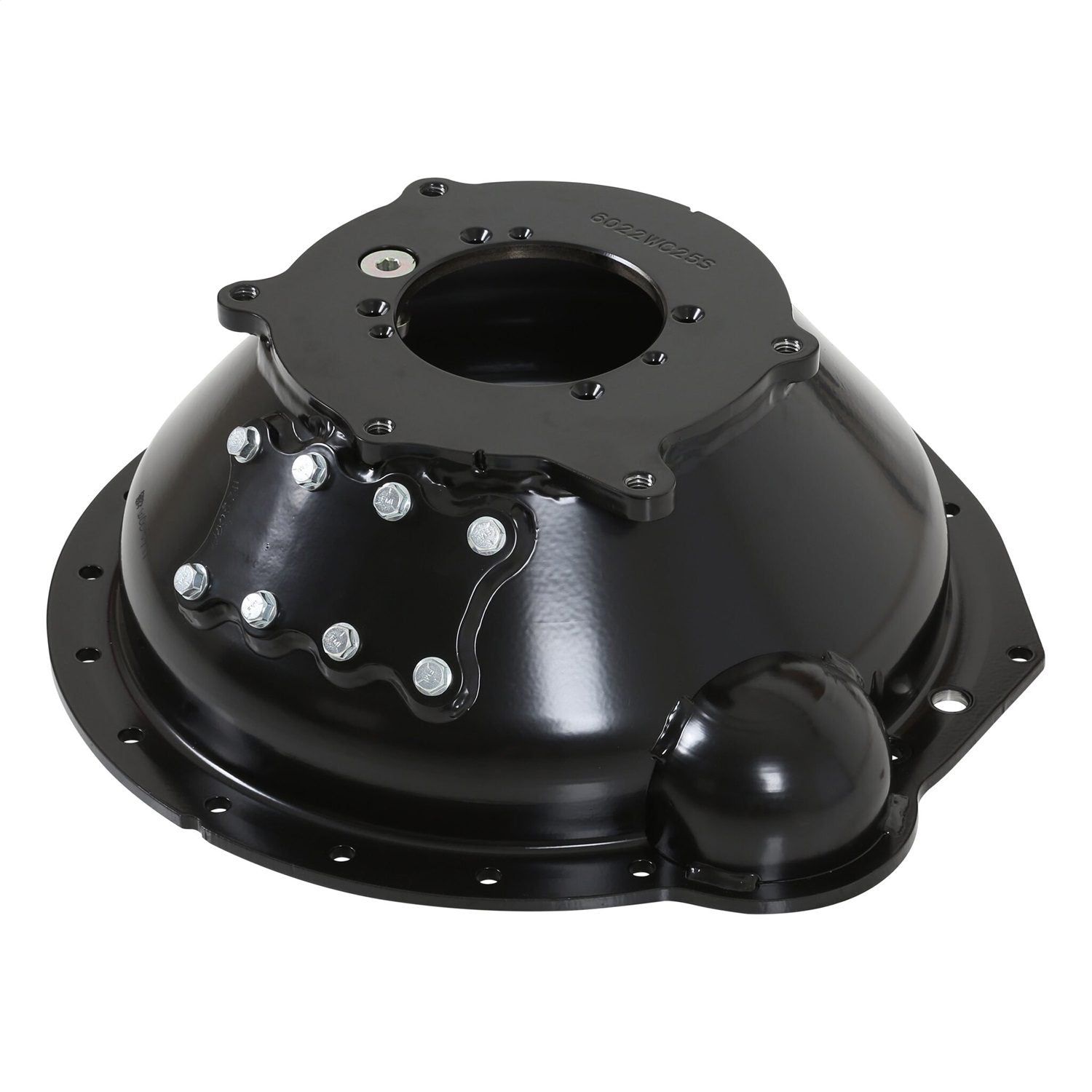

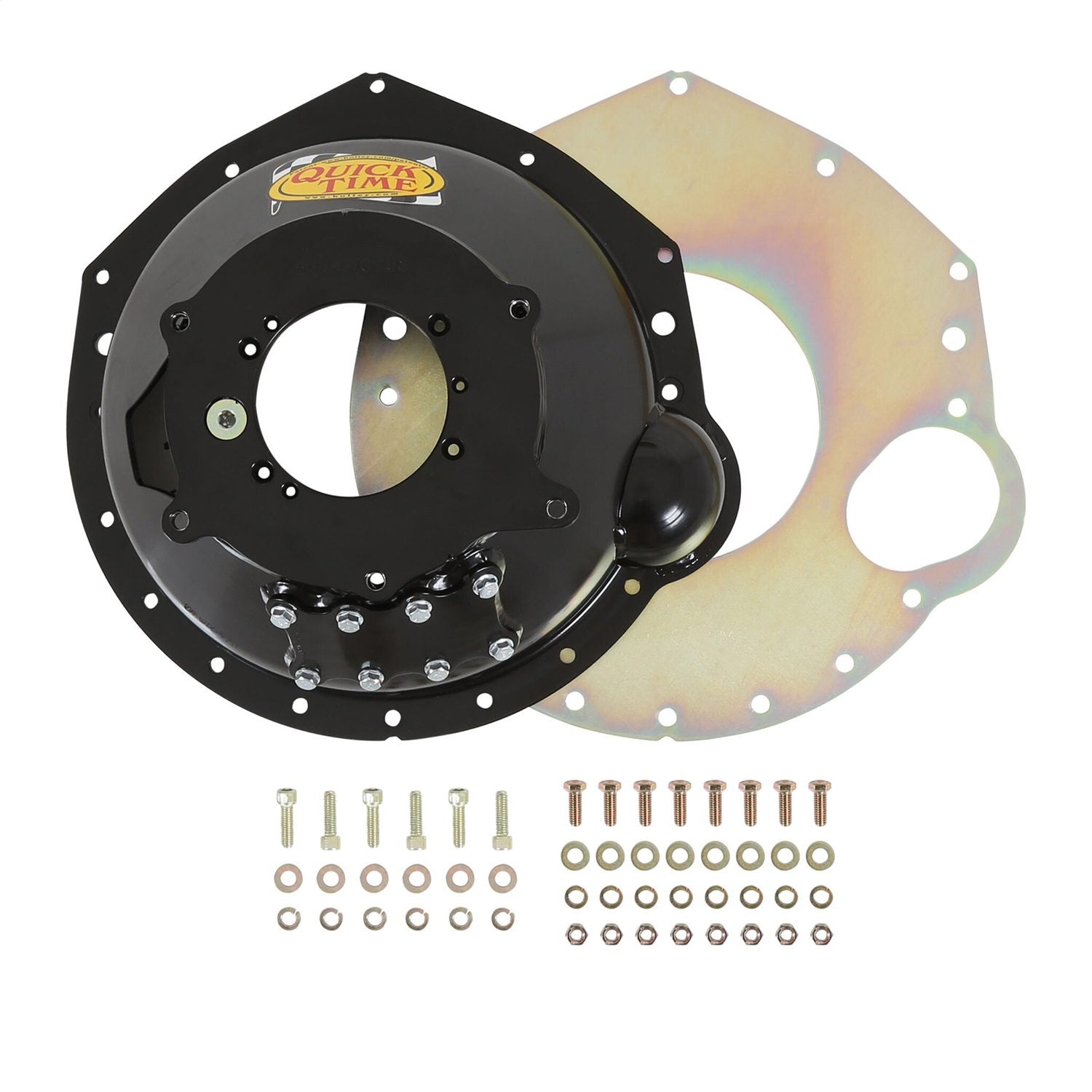

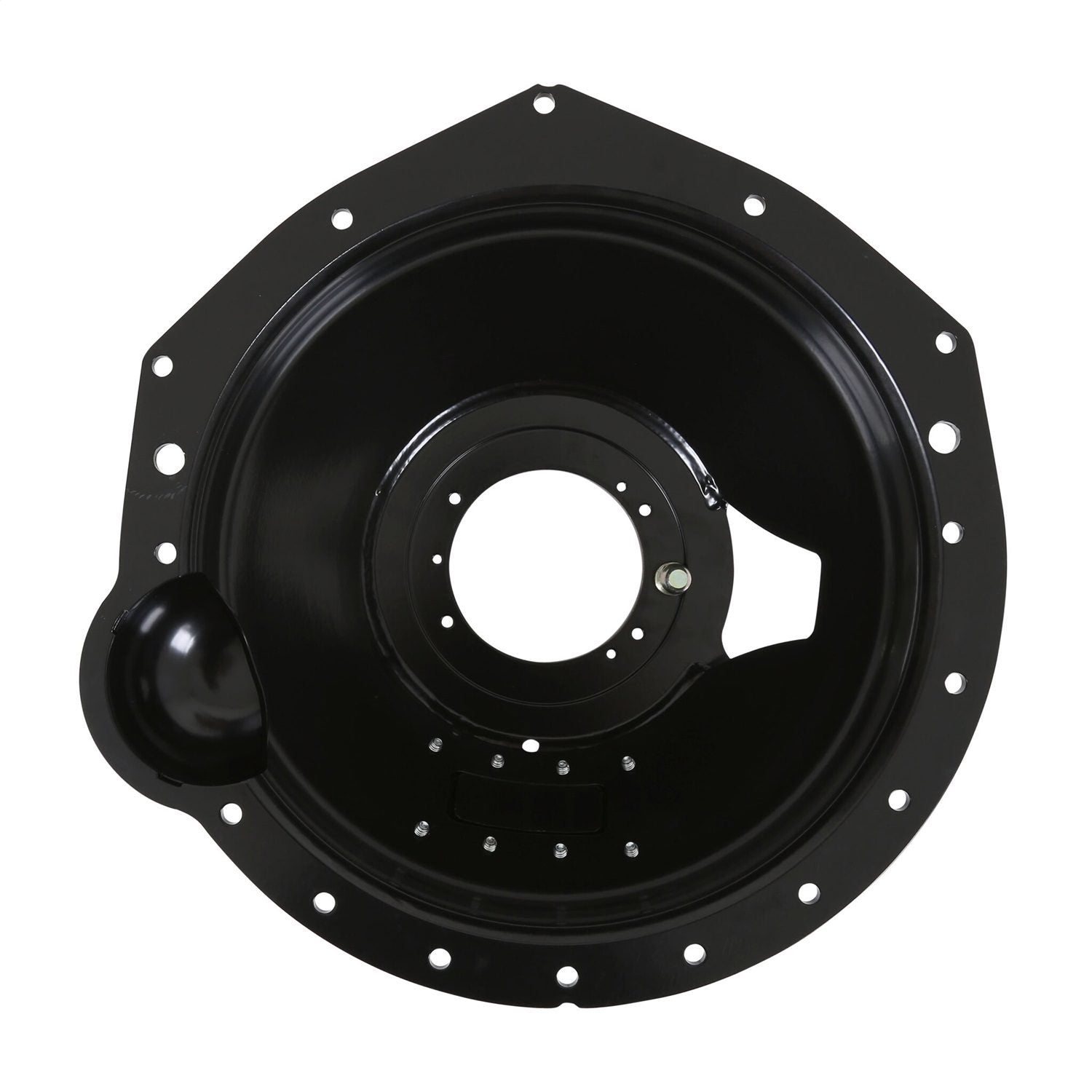

The Quick Time RM-6022W bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, Tremec TKO, and Tremec TKX transmissions. This bellhousing is S.F.I. 6.1W (window) certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile and contains an adjustable clutch window. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

• Patent On 16 Points Of Bellhousing Design And Process
• Standard Left Hand Fork Or Hyd. Bearing
• Fits Up To A 168 Tooth Flywheel And 11 in. Clutch
• Utilizes OEM Style Starter Attachment / Placement
• Transmission Bore Diameter: 4.685 in.
• Bellhousing Depth 6.290 in.

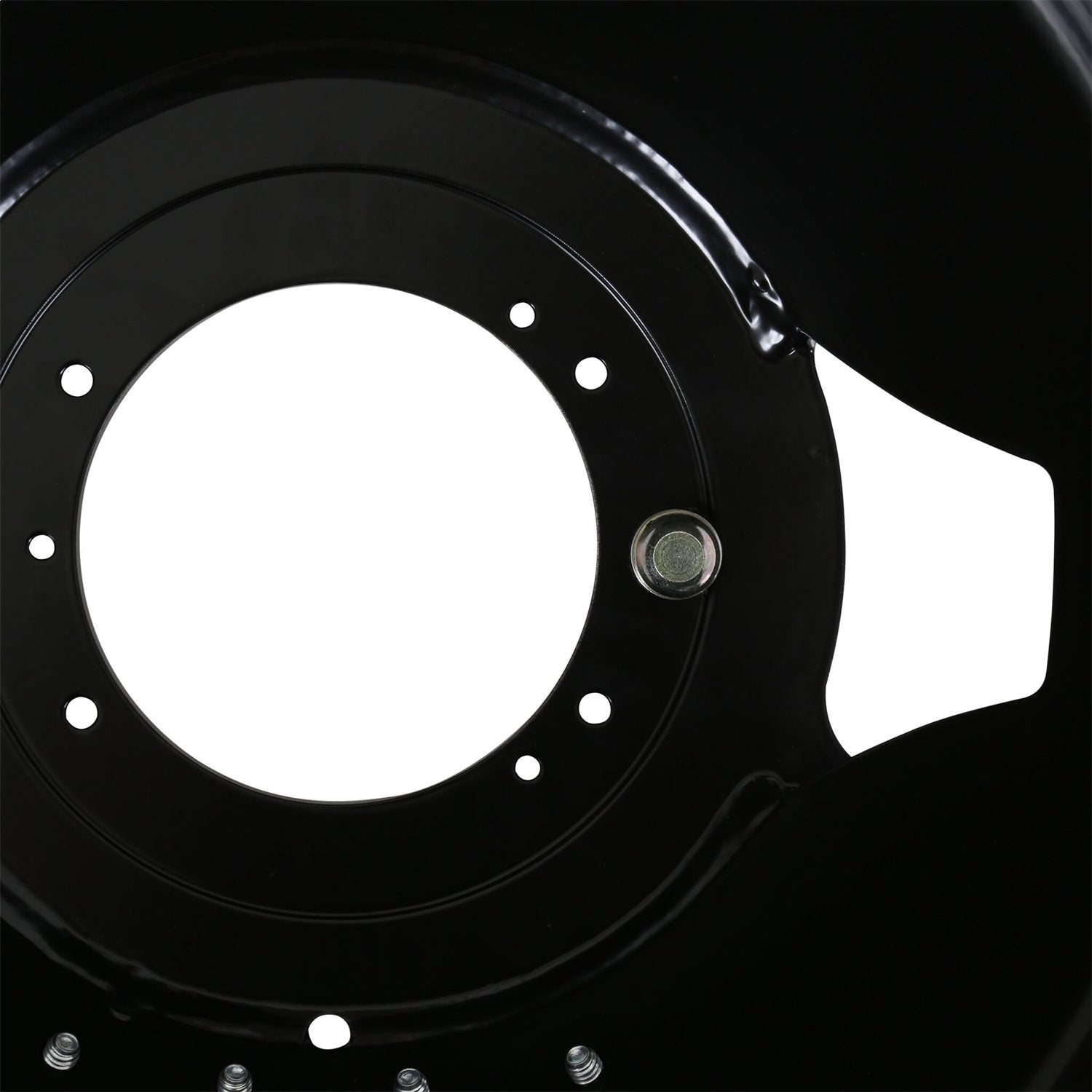

• Access Window For Clutch Adjustment
• Weight 22 lbs.
• S.F.I 6.1 Certified
• Made In The USA
