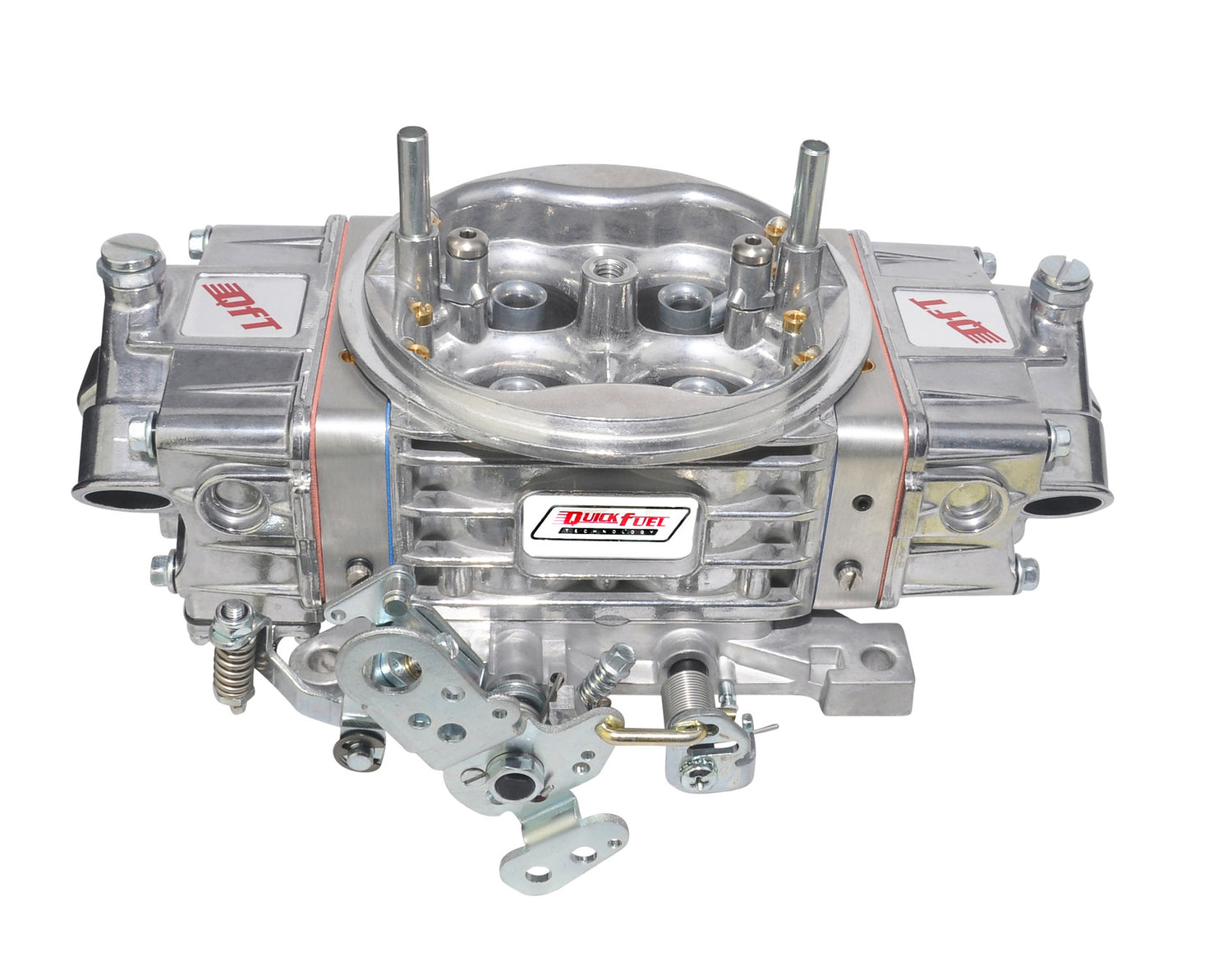

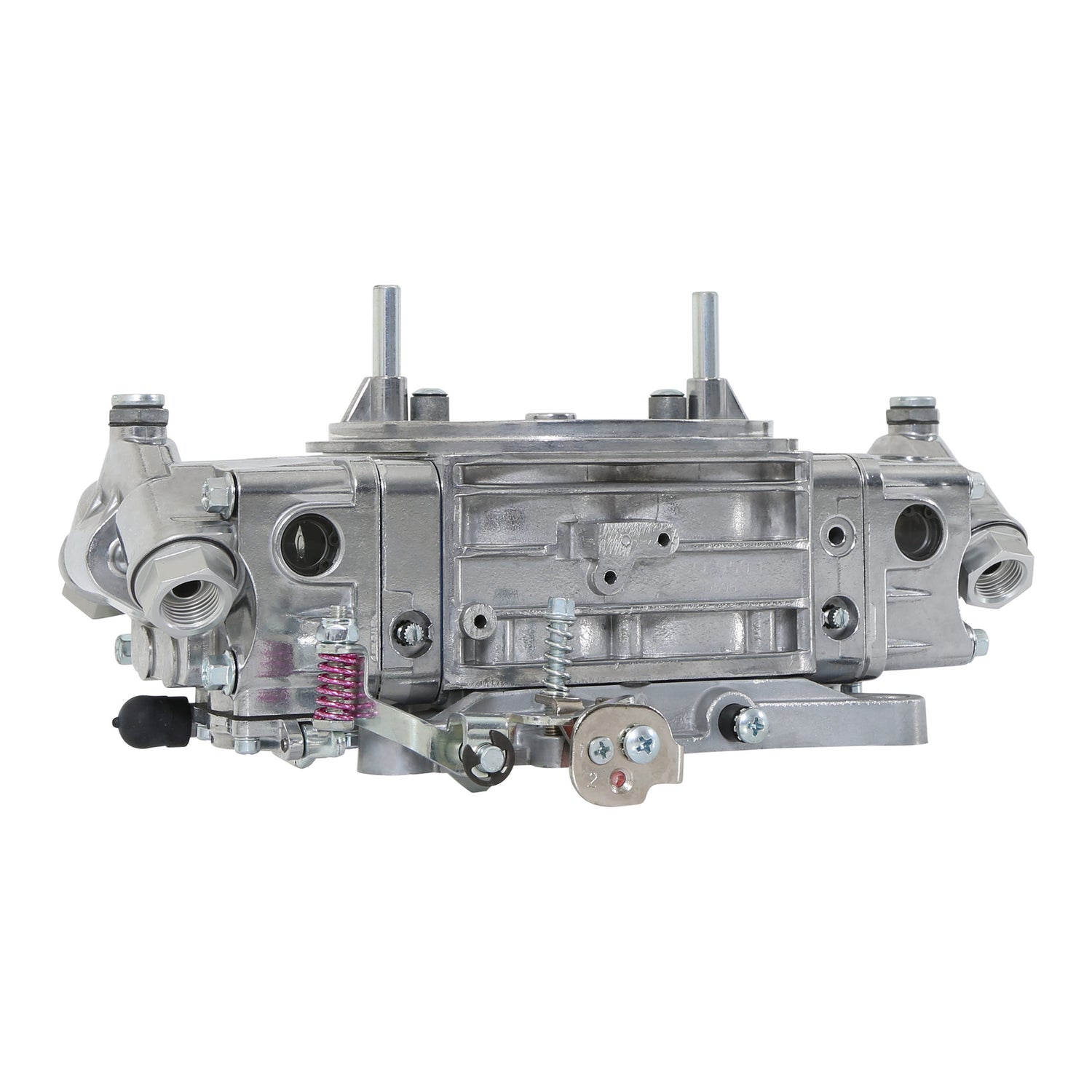

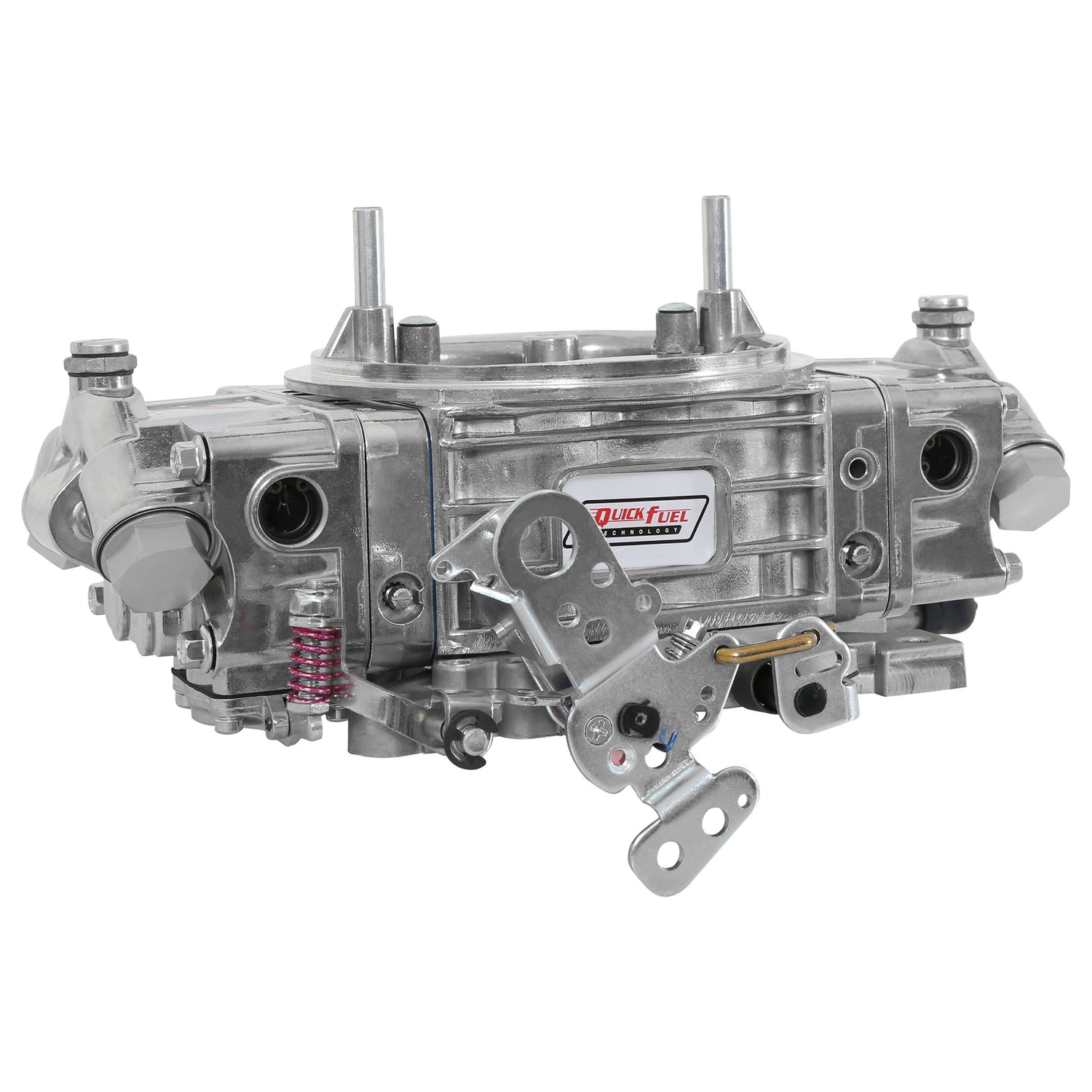

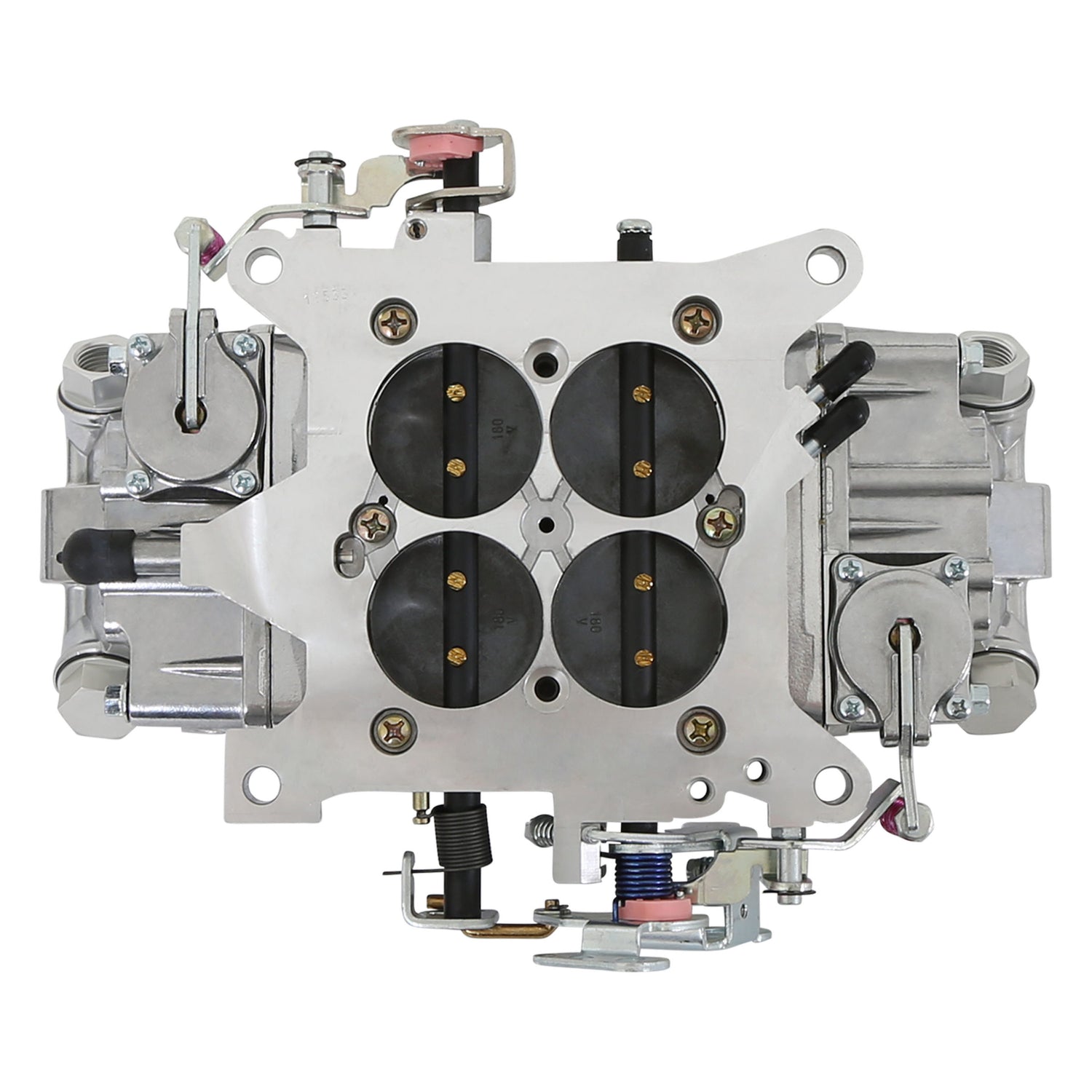

Quick Fuel Technology SQ-950 - Street Q Series Carburetor

Quick Fuel Technology SQ-950 - Street Q Series Carburetor

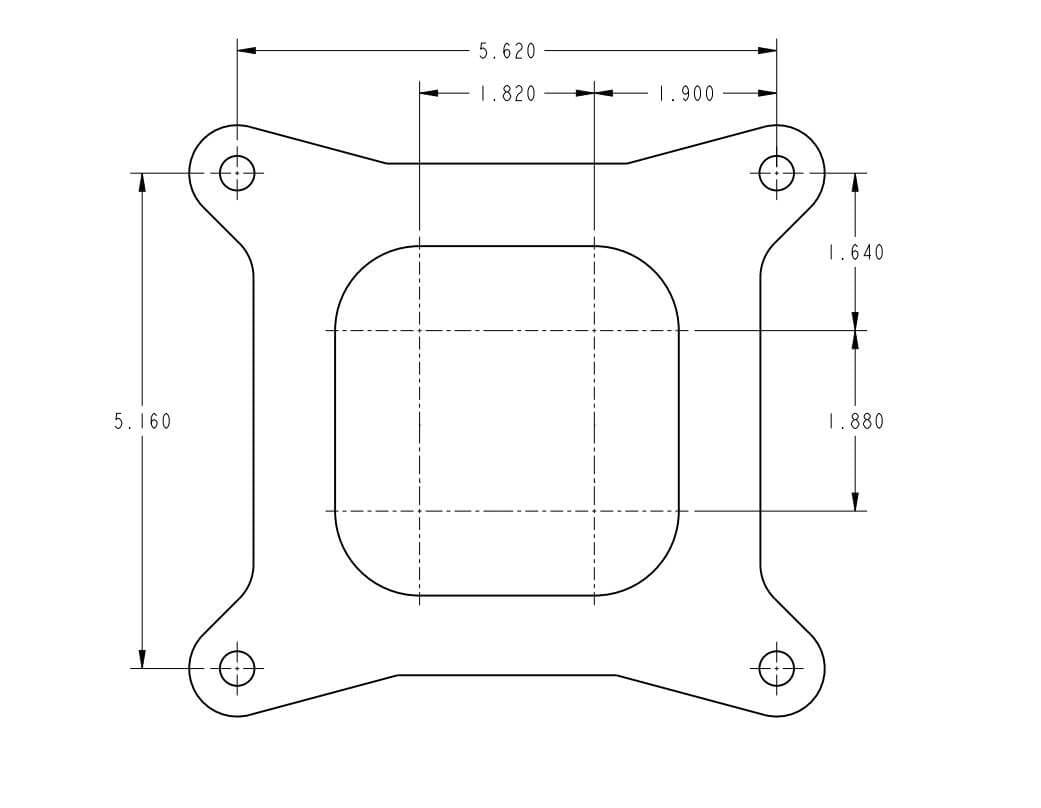

Carburetor - Street-Q - 4-Barrel - 950 CFM - Square Bore Flange - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Tumble Polished - Each

Street Q Series Carburetor; 950 cfm.; Mechanical Secondary; Polished Finish;

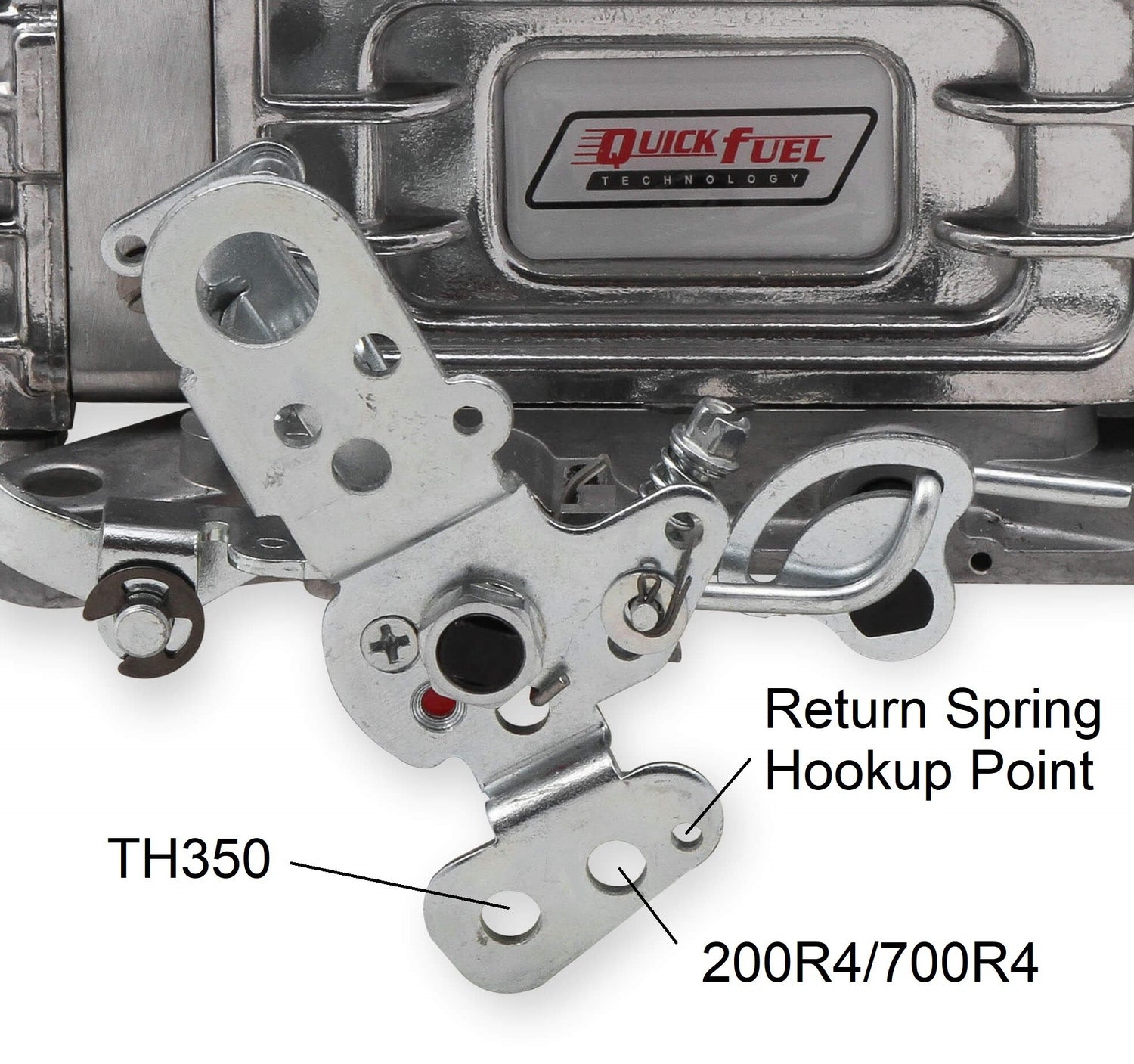

Quick Fuel Technologys new Street-Q carburetor is intended to deliver legendary Q-Series performance to hardcore street enthusiasts at a reduced price. The major differences between the Street-Q and the race-bred Q-Series is the substitution of cast metering blocks and a cast throttle body in place of fully-machined billet components. All of the critical functionality is retained - 2-circuit metering, downleg boosters, changeable idle and high-speed air bleeds and 4-corner idle. A universal throttle lever design accommodates Ford A/T kickdowns, 700-R4 bracket mounting holes and the ability to mount brackets for Chrysler vehicles. Available sizes include 650, 750, 850, and 950cfm for mechanical secondary models and a 750 vacuum secondary is also offered. Lightweight die-cast aluminum components Changeable idle and high-speed air bleeds Vacuum & mechanical secondary models2-circuit metering - 4-Corner idle systemDownleg boosters Universal throttle lever design fits Ford A/T Kickdown, 700-R4 mounting holes - accepts brackets for Chrysler vehicles

• 1 3/4 in. Throttle Bore Size
• 22-78 Primary Jet
• 22-86 Secondary Jet
• 26-70 Idle Bleed
• 26-70 Inter. Bleed
• 21-32 Pump Nozzle
• 25-45 Power Valve
• 18-3 Needle And Gas
