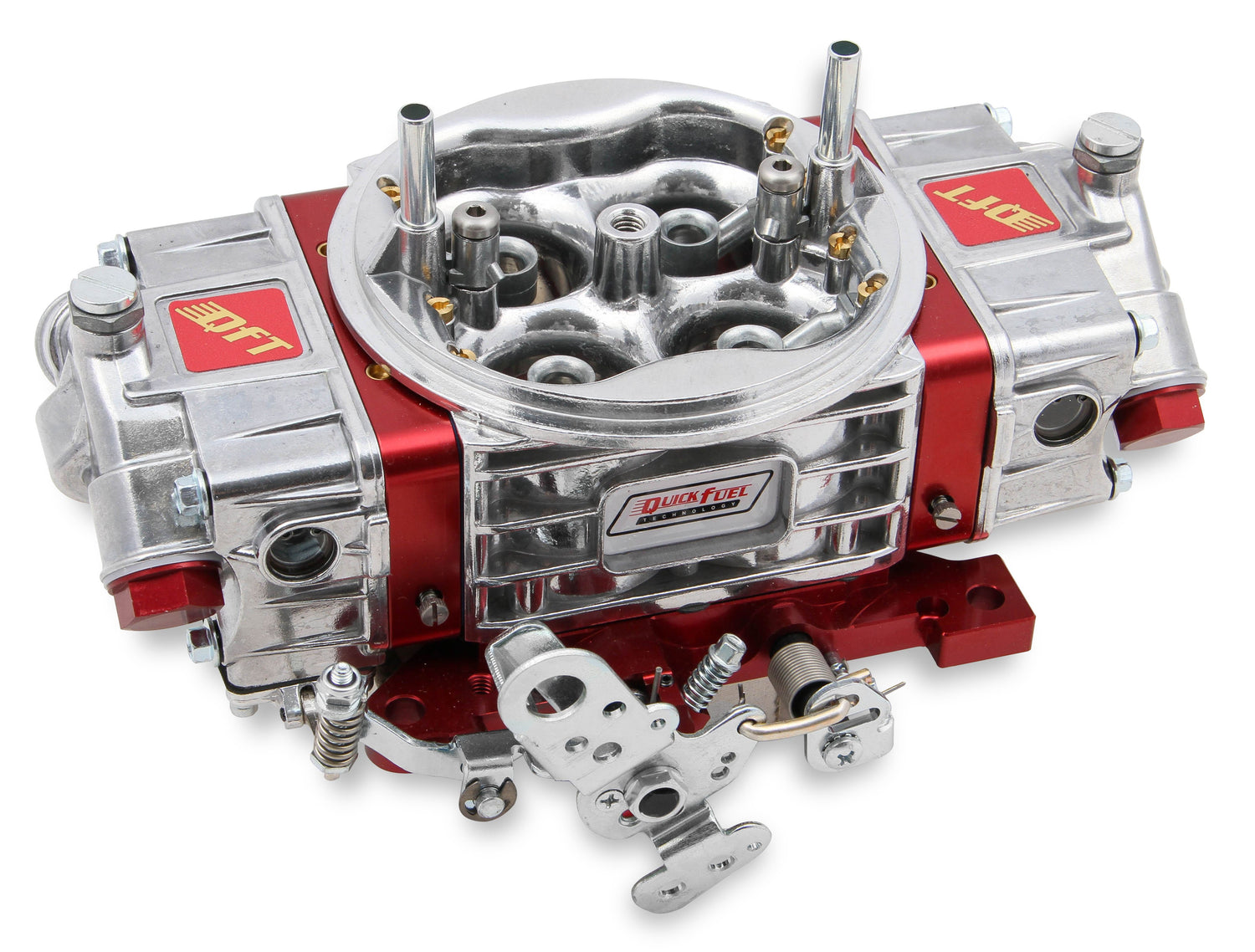

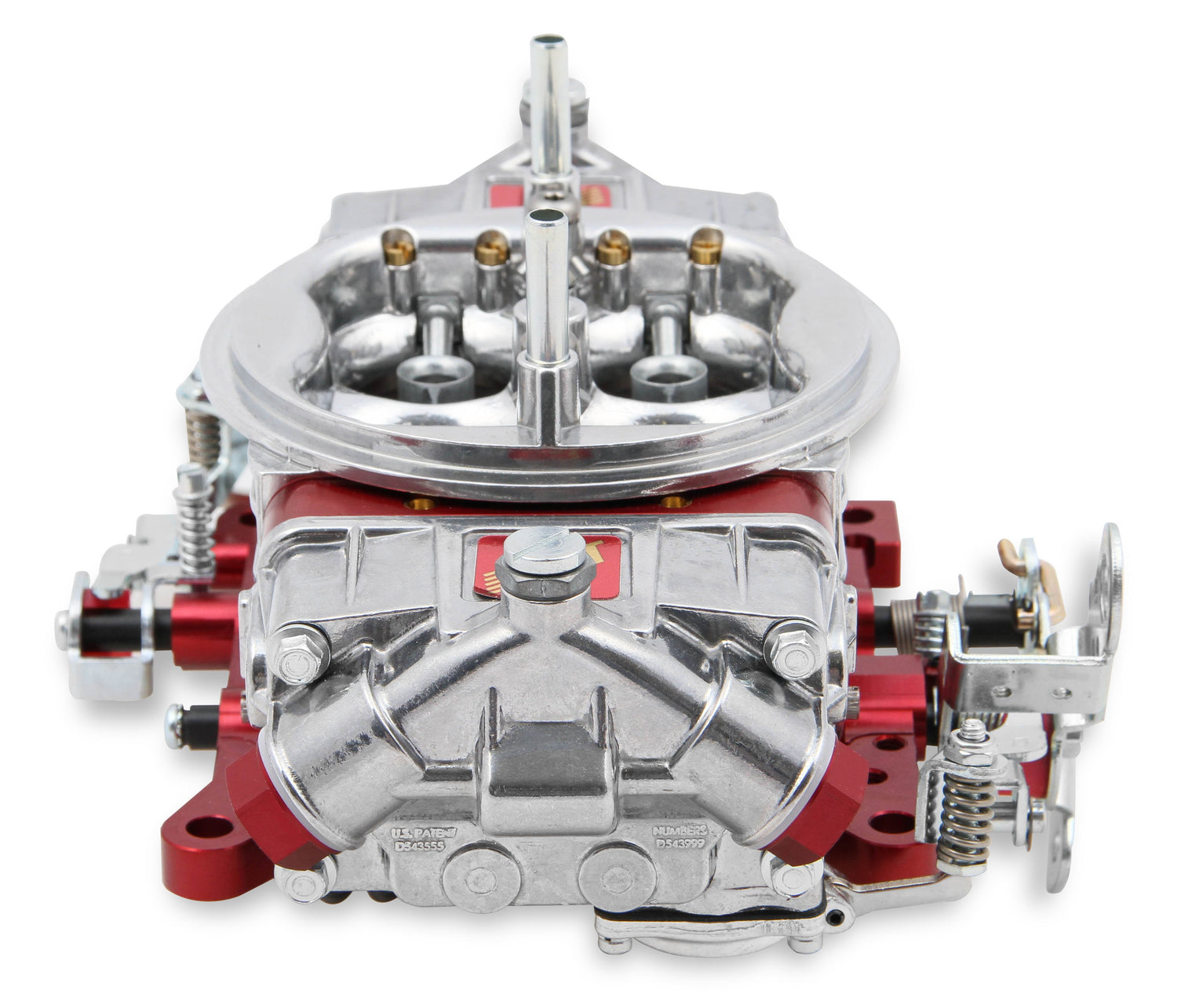

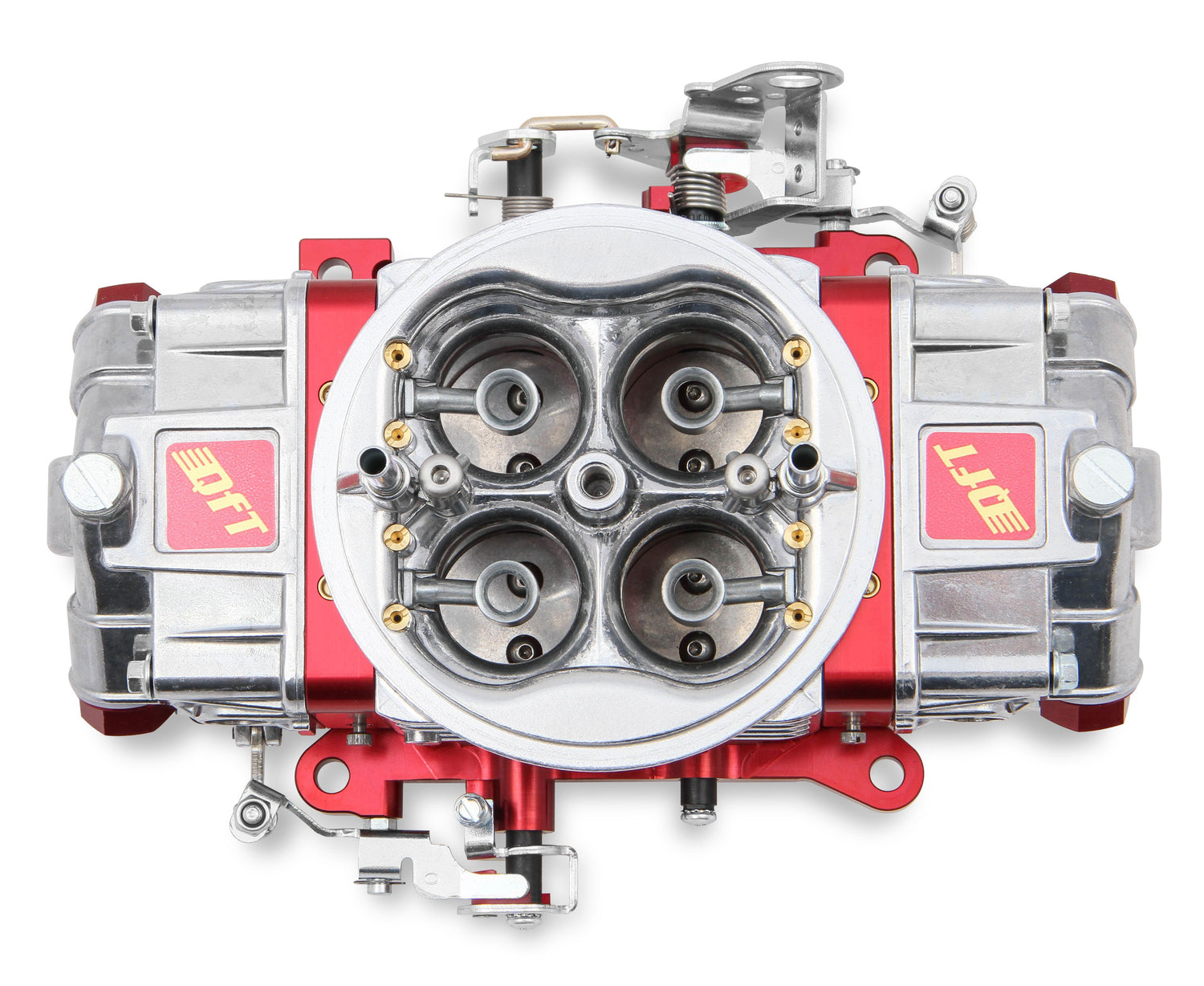

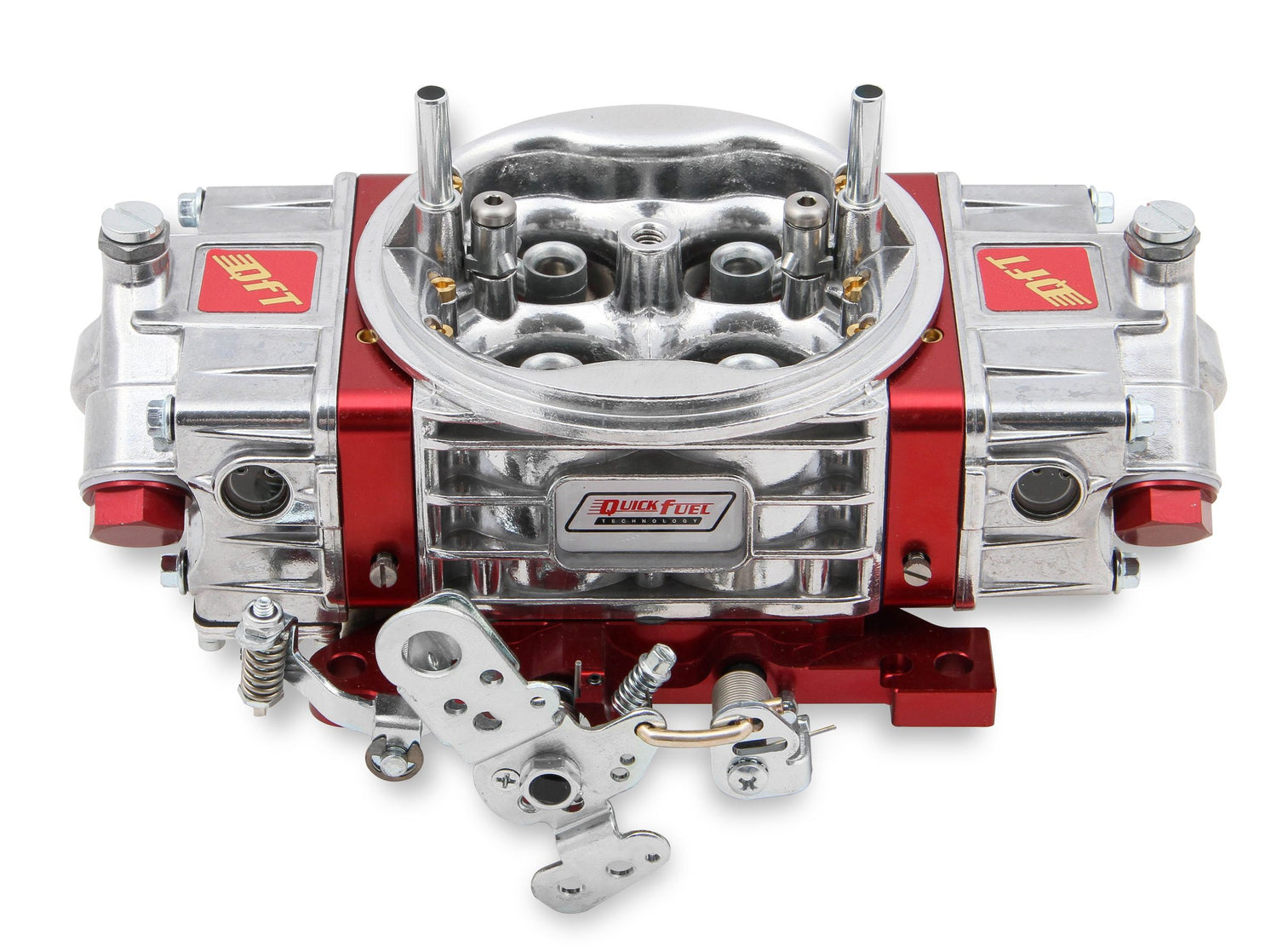

Quick Fuel Technology Q-750-B2 - Q- Series Carburetor 750CFM Draw-Thru 2x4 Supercharger

Quick Fuel Technology Q-750-B2 - Q- Series Carburetor 750CFM Draw-Thru 2x4 Supercharger

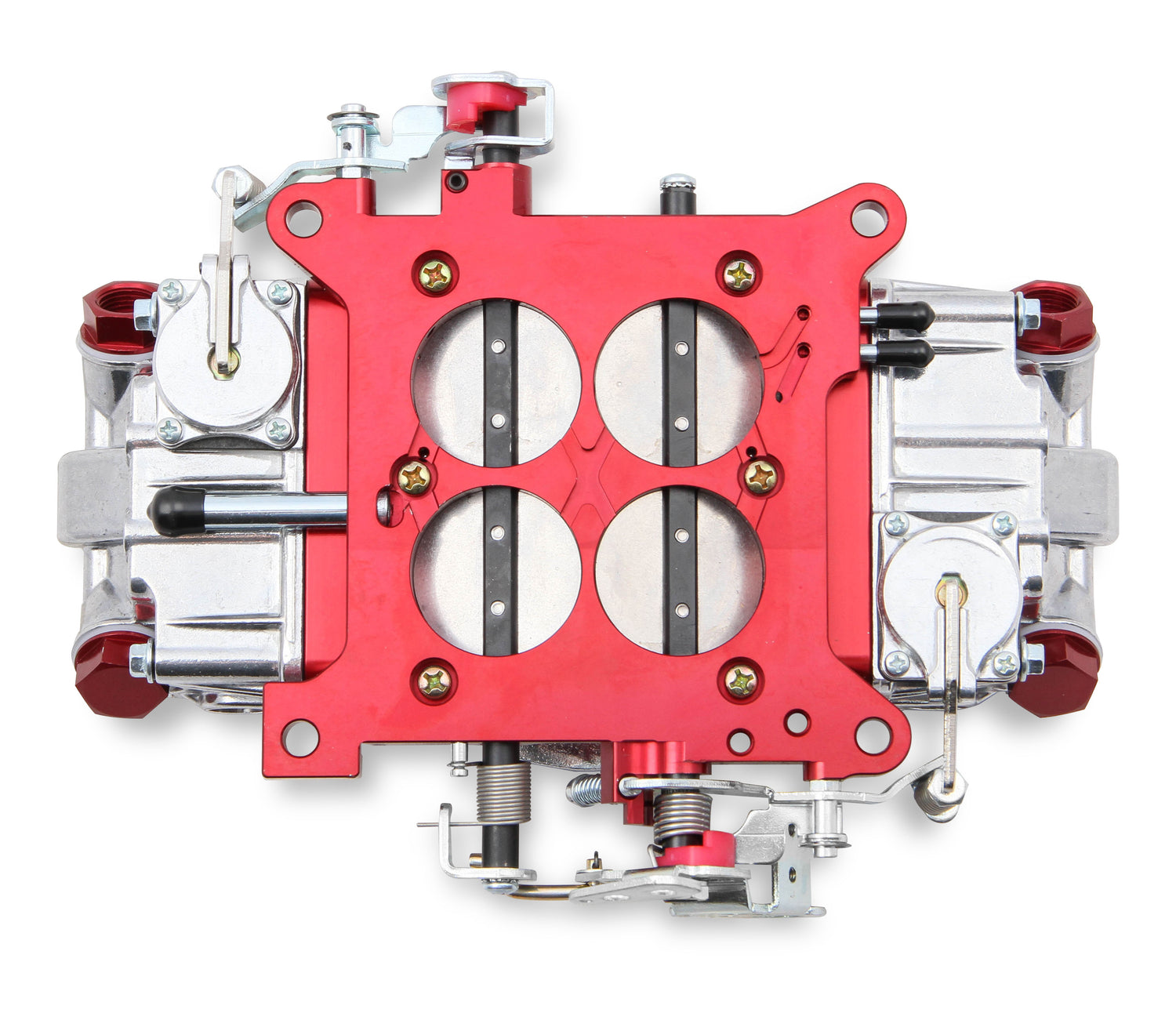

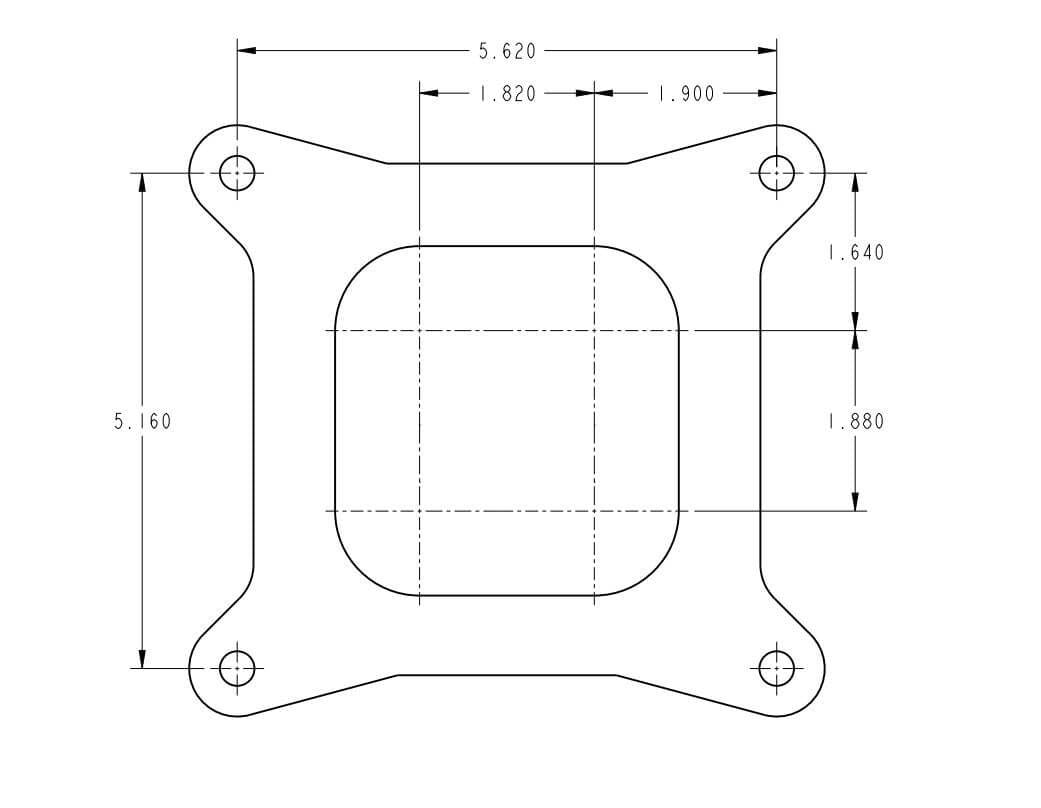

Carburetor - Q-Series Forced Induction - 4-Barrel - 750 CFM - Square Bore - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Red Anodized / Tumble Polished - Each

Q Series Carburetor; 750 cfm.; Mechanical Secondary; Drag Race; For Use w/Blower w/2x4;

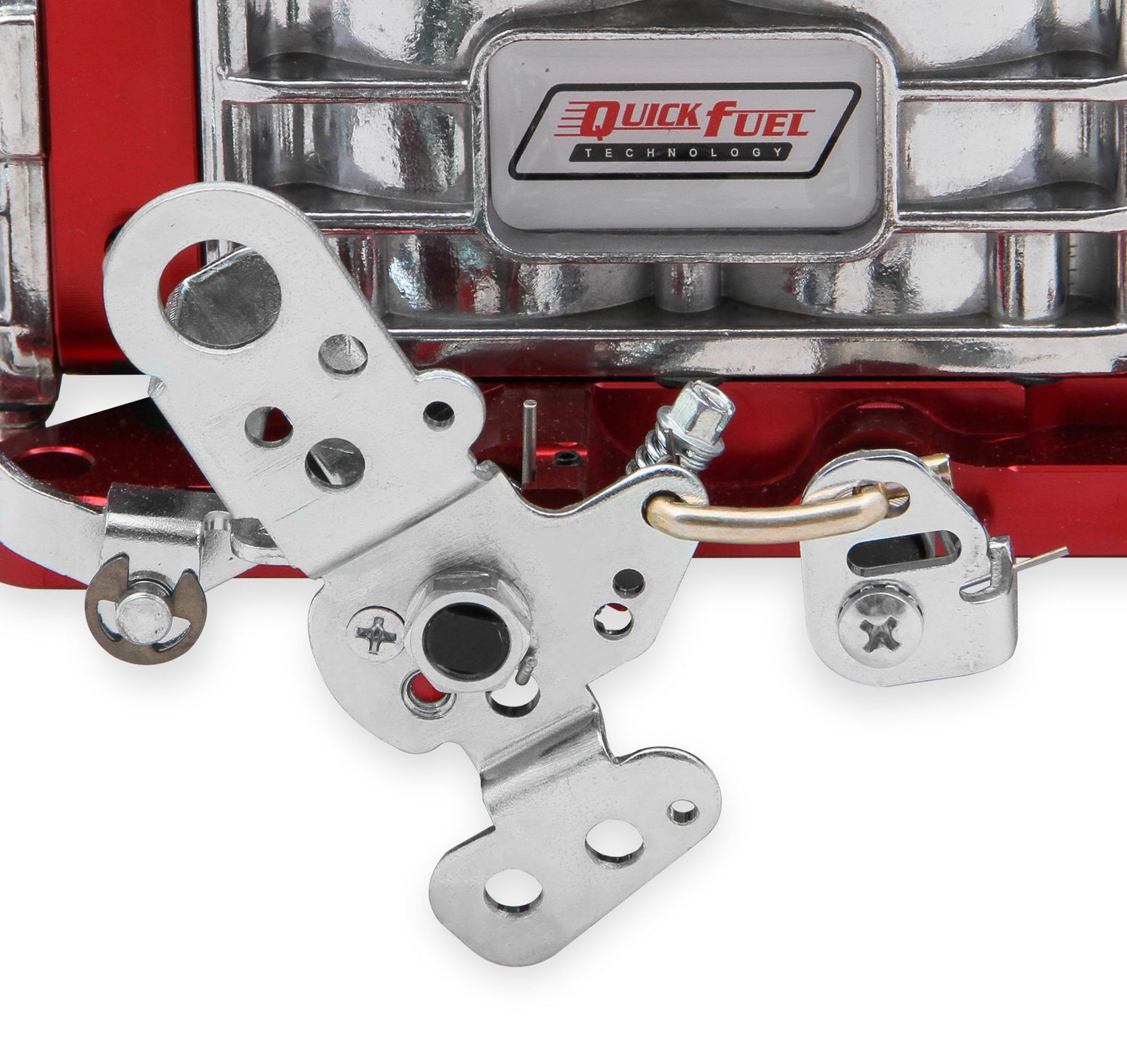

Ideally suited for bracket racers and weekend warriors alike, Q-Series carburetors are purpose-built for the dragstrip. To combat the gs experienced during hard launches, Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isnt just lightweight, but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve, while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next, QFTs QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors, with applications available for use with gasoline, methanol, and E85 fuels, forced induction, drag race, circle track, and comes in both vacuum and mechanical secondary models. Lightweight aluminum main body Vacuum and mechanical secondary models available Aluminum fuel bowls with dual sight glass windows Billet metering blocks with 4-corner idle system Changeable idle feed and power valve channel restrictions Billet aluminum throttle body provides exceptional precision and strengthPTFE coated and sealed shafts

• 1 11/16 in. Throttle Bore Size
• 22-74 Primary Jet
• 22-84 Secondary Jet
• 26-73 Idle Bleed
• 26-31/26-33 Hi Speed Bleed
• 21-31 Pump Nozzle
• 25-45 Power Valve
• 18-2 Needle And Seat
• Gas Fuel
