QA1 6394 - 63 Series Sealed Threaded Body Twin Tube Shock Absorber - 9in Stroke - 4-4 Valving - Aluminum

QA1  |  SKU: BJGM-6394
Sale price $23495 Regular price $24462

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

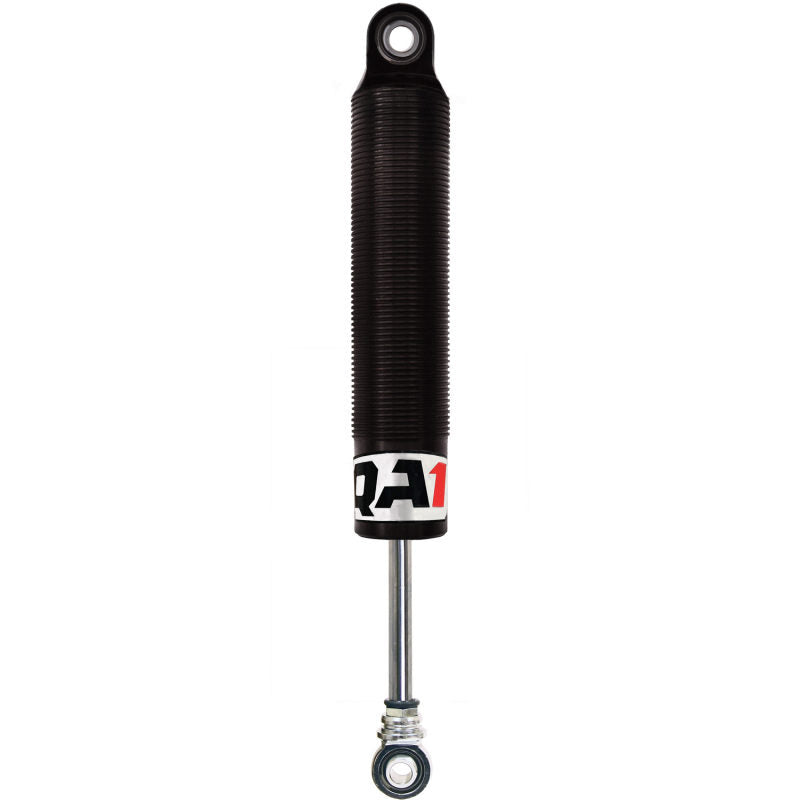

QA1 6394 - 63 Series Sealed Threaded Body Twin Tube Shock Absorber - 9in Stroke - 4-4 Valving - Aluminum

Shock - 63 Series - Twintube - 15.38 in Compressed / 24.30 in Extended - 2.00 in OD - C4-R4 Valve - Linear - Threaded Aluminum - Natural - Rear - Each

63 Series aluminum threaded large body twin tube shock. Compressed height of 15.38", extended height of 24.30". Eyelet top and eyelet bottom, with a valving of 4.

The 63 Series is a sealed non-rebuildable version of the 62 Series. These are most commonly used in coil-over applications on both dirt and asphalt tracks. The twin tube design gives excellent feel and grip across all track conditions, but they really shine when there is a lack of grip. Built as a spec shock that could be used at specific tracks or series, the 63 Series can be used in any late model or modified.

  • Sealed aluminum bodied spec shock
  • Excellent choice for sanctioning bodies looking to control cost
  • Twin tube design gives excellent feel and grip in many track conditions
  • Individually dyno'd and serialized
  • Made in the USA
Brand: QA1
Manufacturer Part Number: 6394
UPC: 806990155399
Active or Passive Suspension: Passive
Adjustable Rebound: No
Adjustable Ride Height: Yes
Adjustable Compression: No
Body Diameter: 2
Body Color: Black
Body Material: Aluminum
Boot Included: No
Coil Spring Insulator(s) Included: No
Compressed Length: 15.38
Extended Length: 24.3
Color: Black
Finish: Anodized
Gas Charged: No
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Twin Tube
Internal Rebound Bumper: No
Internal Rebound Spring: No
Lower Mount Type: Loop (Eyelet) Bearing
Mounting Hardware Included: No
Remote Reservoir: No
Shock Stroke: 9
Upper Mount Type: Loop (Eyelet) Bearing
Self-Leveling: No
