Pertronix 510C - Digital HP Ignition Box and Coil Combo
Couldn't load pickup availability
Description
Description

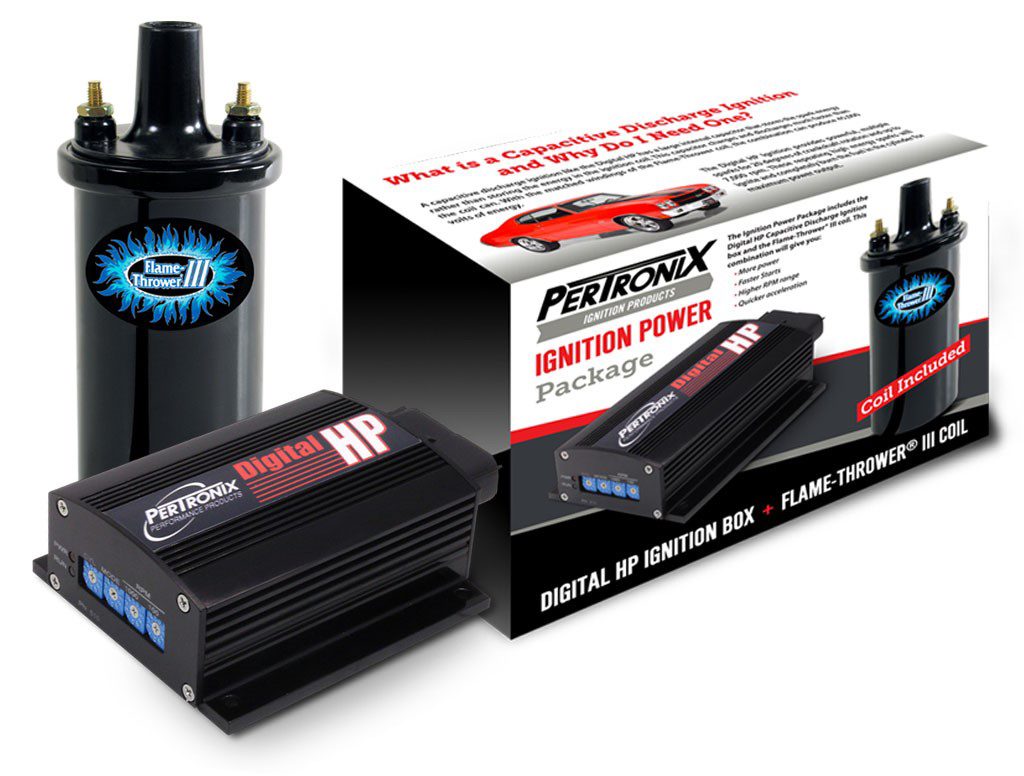

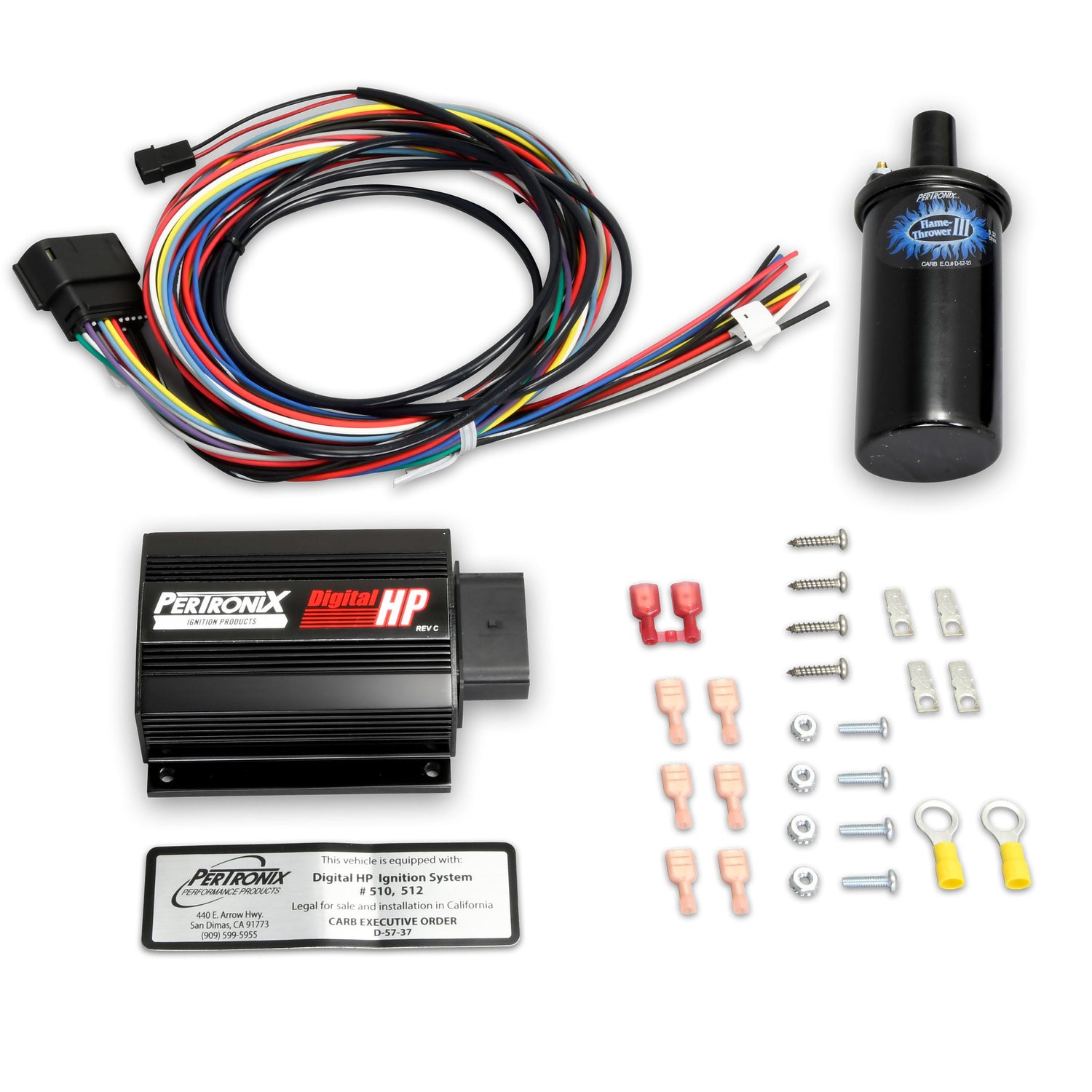

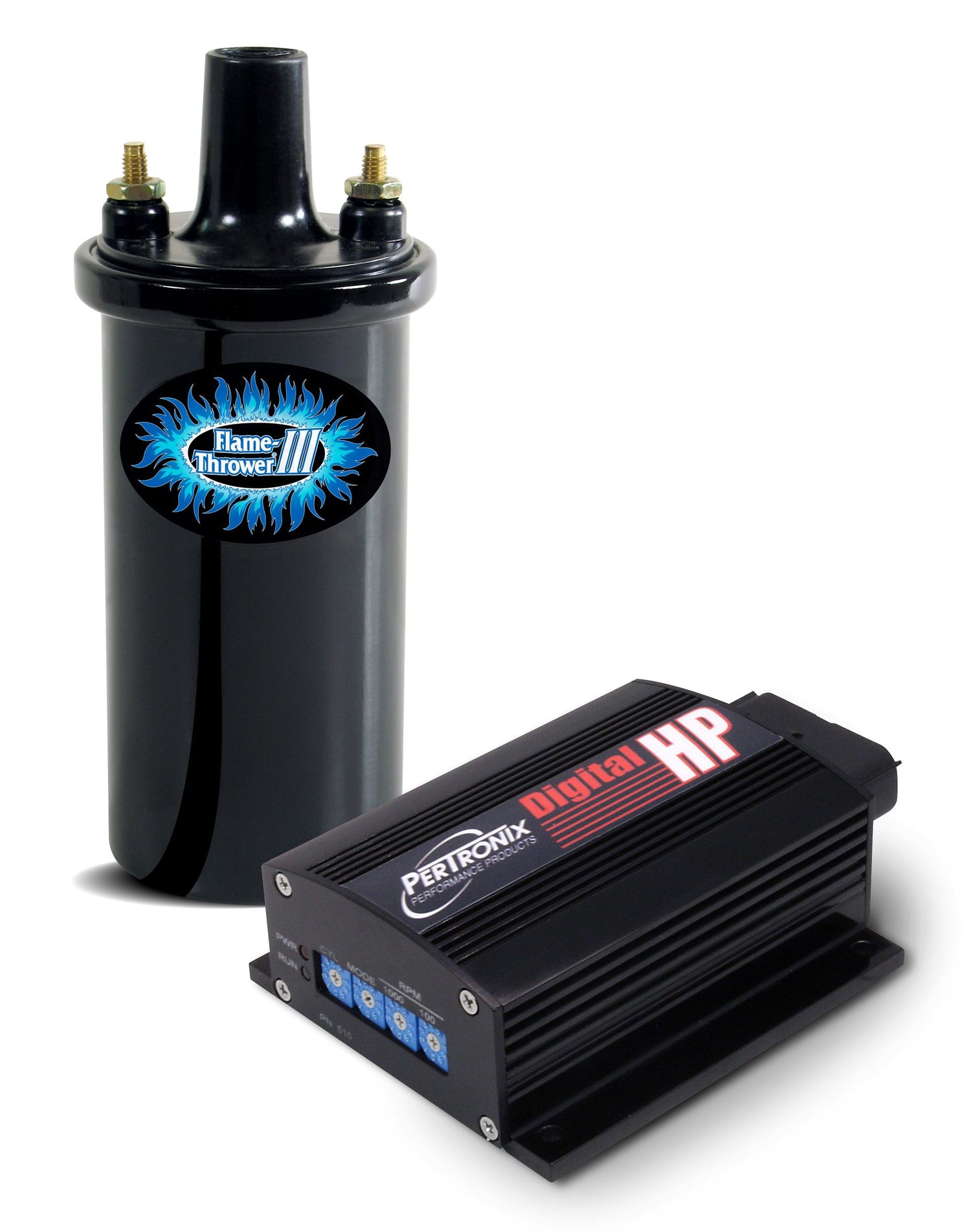

Pertronix 510C - Digital HP Ignition Box and Coil Combo
Ignition Box - Digital HP - 3-Step Rev Limiter - Multi-Spark - Each

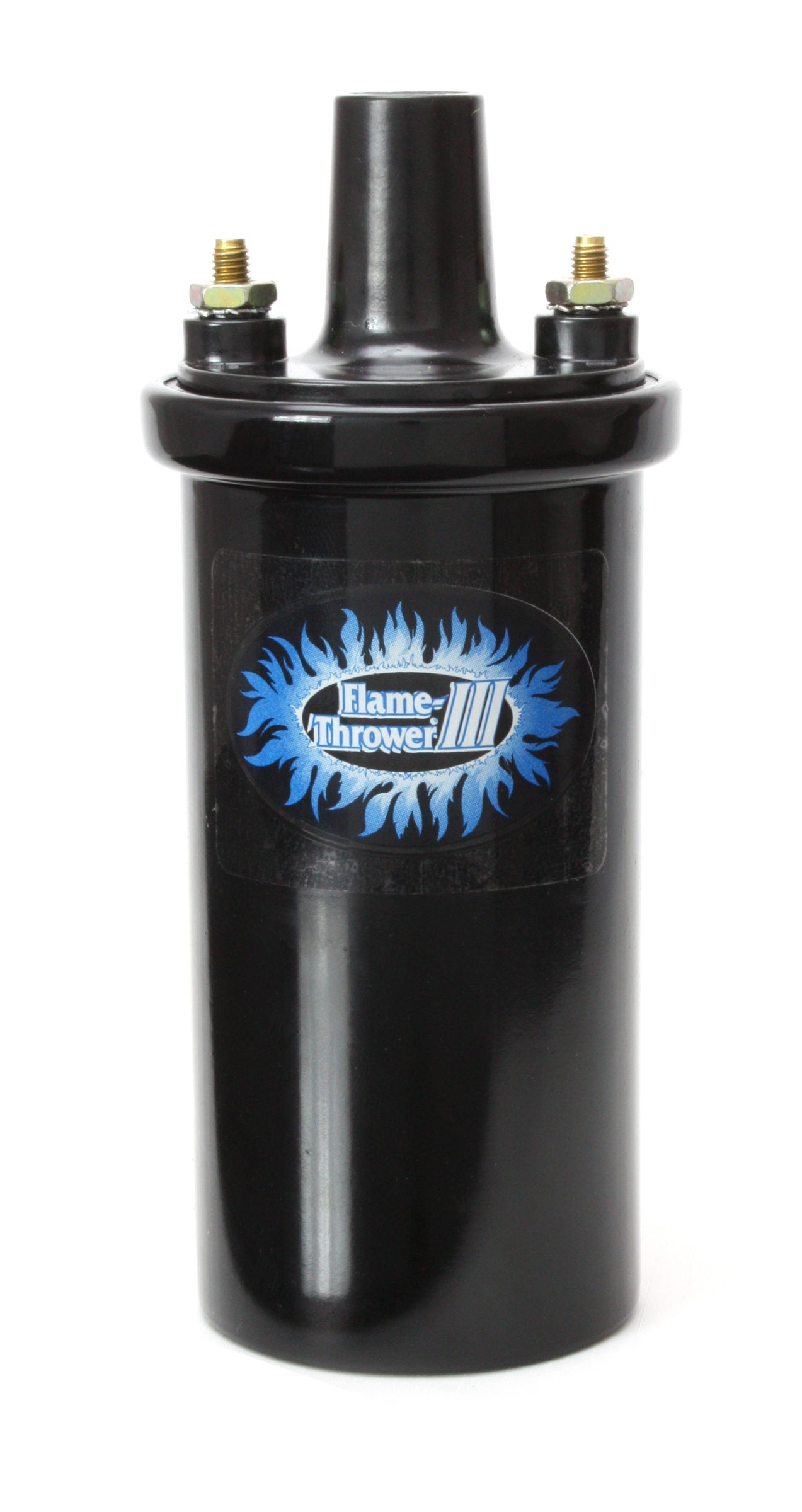

Digital HP Ignition and Coil combo. 172mJ of spark energy, 3 step REV limiter, multispark to redline . The matching coil is designed to rapidly charge 70% faster.
Our Digital HP Ignition increases the spark output as well as the duration of the spark across the plug gap to ensure a full combustion of the fuel mixture in the cylinder. The Digital HP Ignition Box delivers 172 mJ of Spark Energy and features an integrated 3 step digital REV limiter delivering multiple spark all the way to redline. Key features also include an RPM triggered output, adjustable start retard, locking automotive connector, tachometer output lead, and onboard error logging all in an ultra-small form factor.
- 45,000 volts
- Integrated 3 Step Digital REV Limiter
- Legal in all 50 states and Canada C.A.R.B. E.O #D-57-21

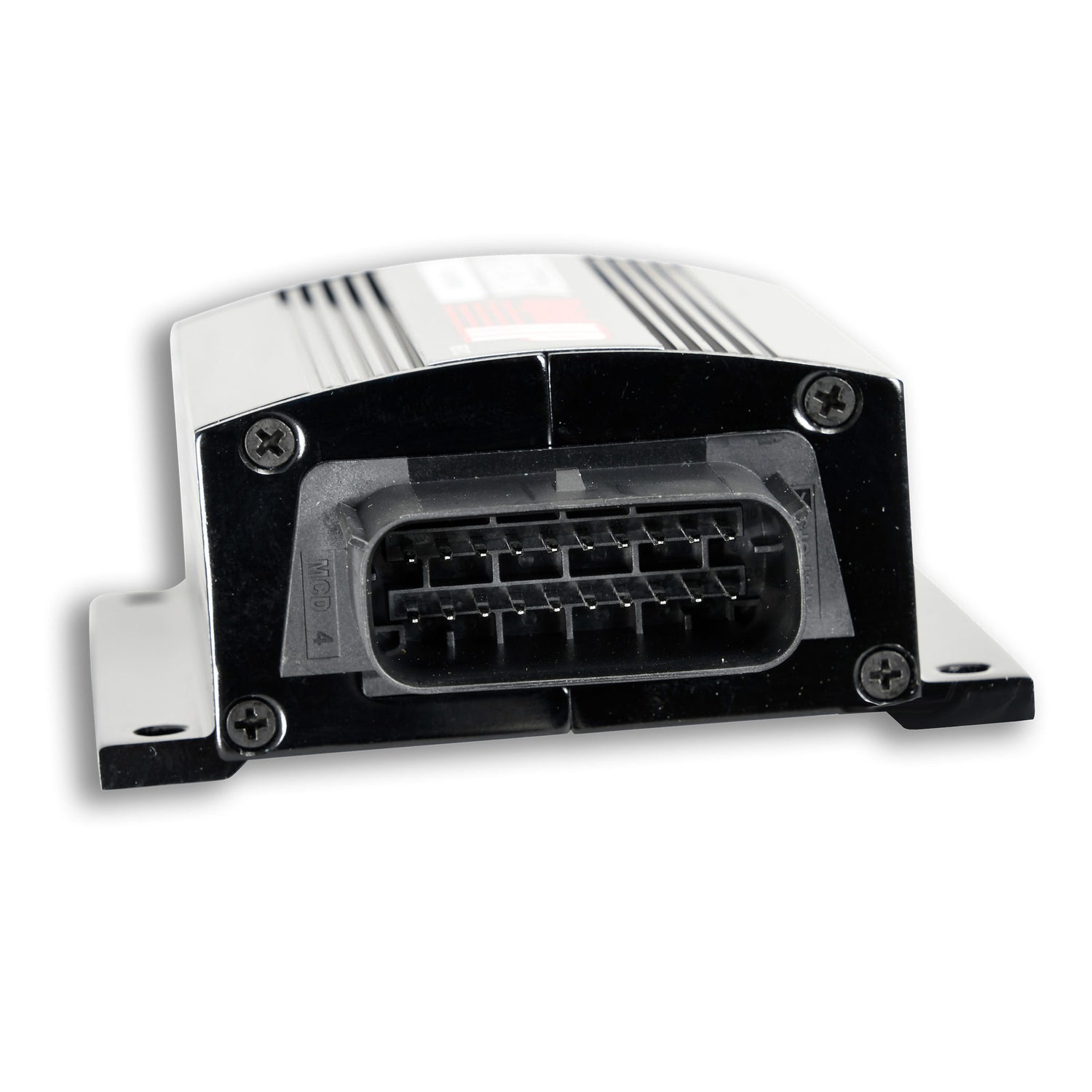

- Locking Automotive Connector
- Rapid charge time means maximum spark energy is sustained to higher engine RPM
- Multiple Spark All the Way to Redline
- Ultra low 0.32 primary resistance
- Tachometer Output Lead
- 172 mJ of Spark Energy
- Ultra Small Form Factor
- RPM Triggered Output
- Onboard Error Logging
