Pertronix 40111 - Coil F-T (1.5 ohm) black epoxy
Pertronix | SKU:
BHKK-40111
Sale price
$7099
Regular price
$7247
Unit price
/
Unavailable
$1.48 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

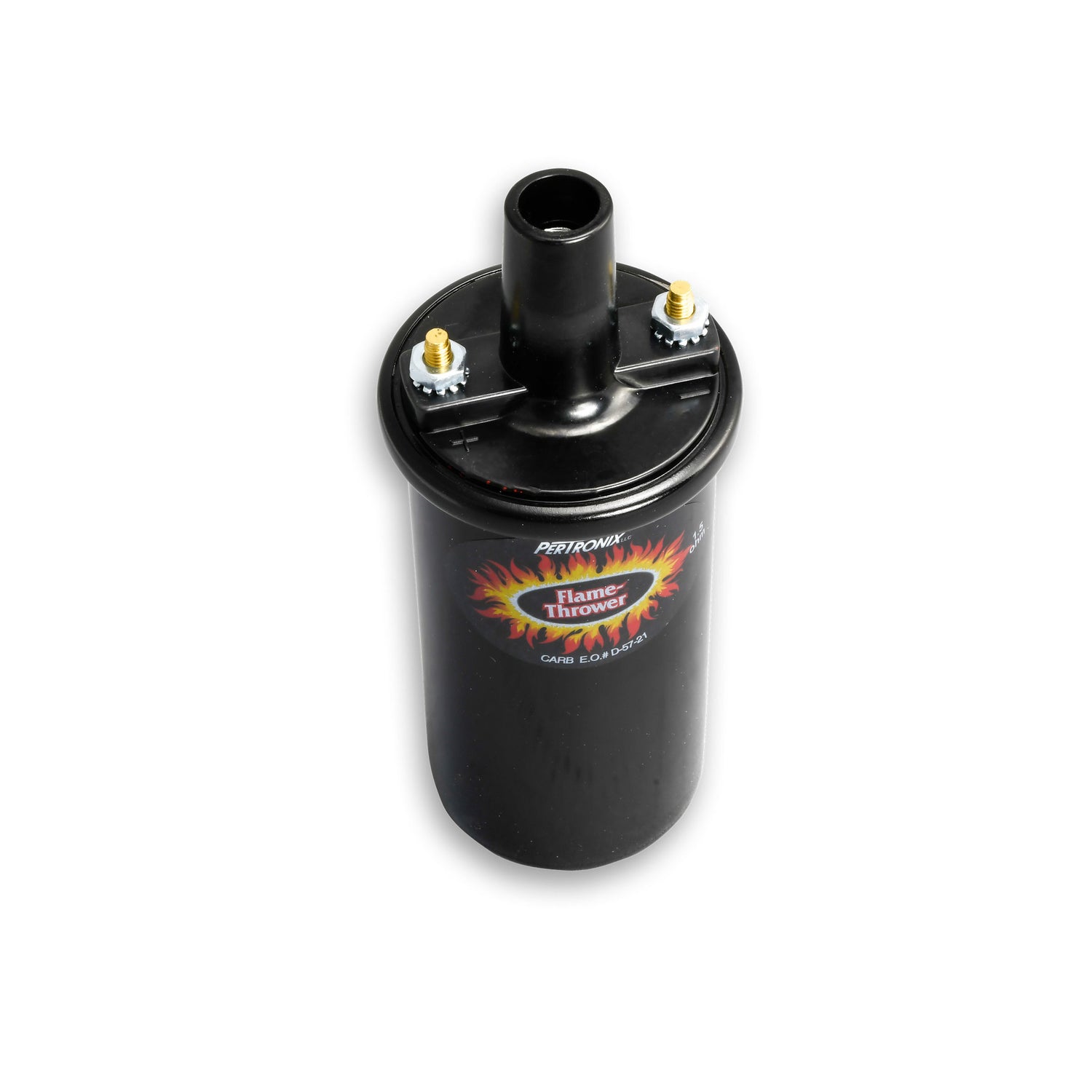

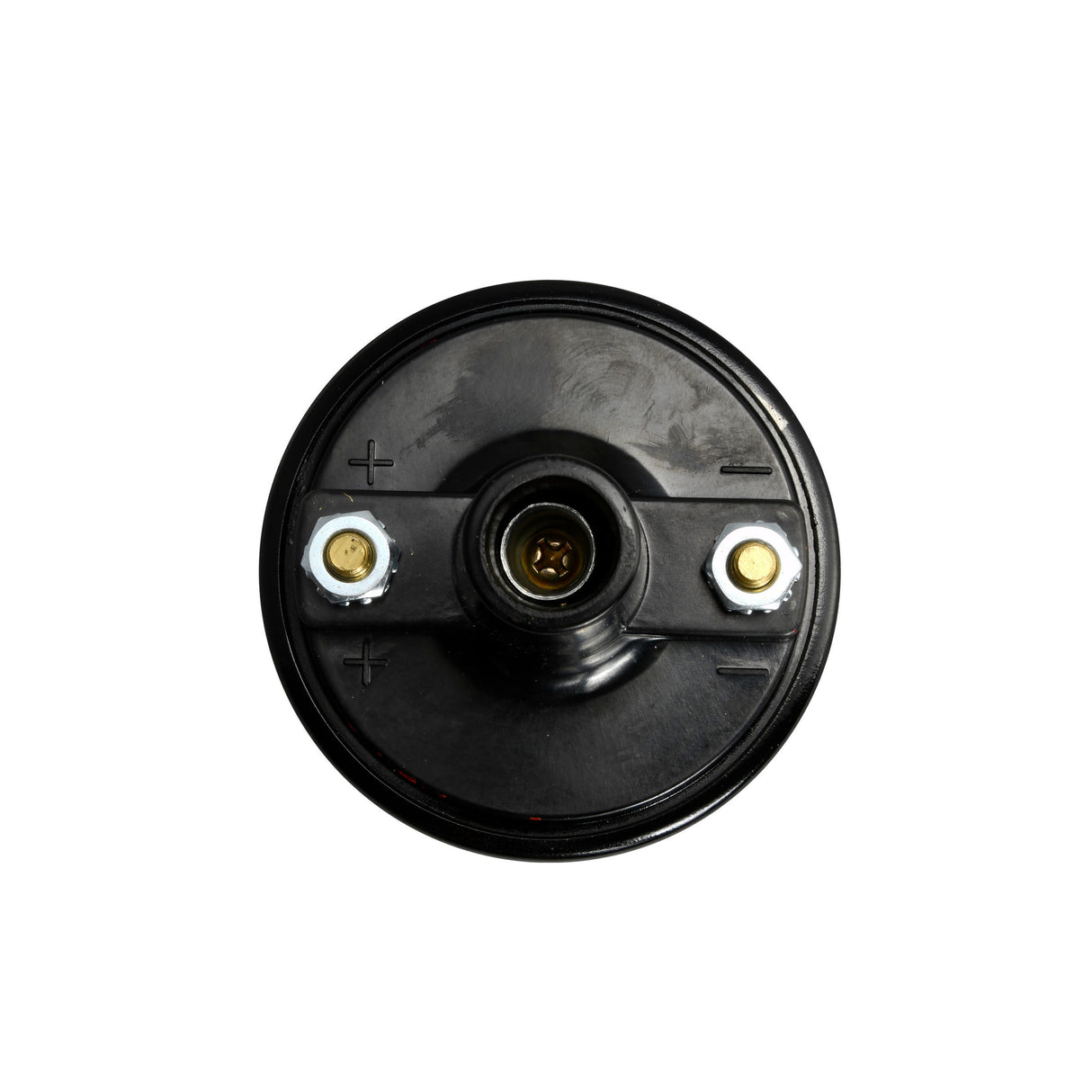

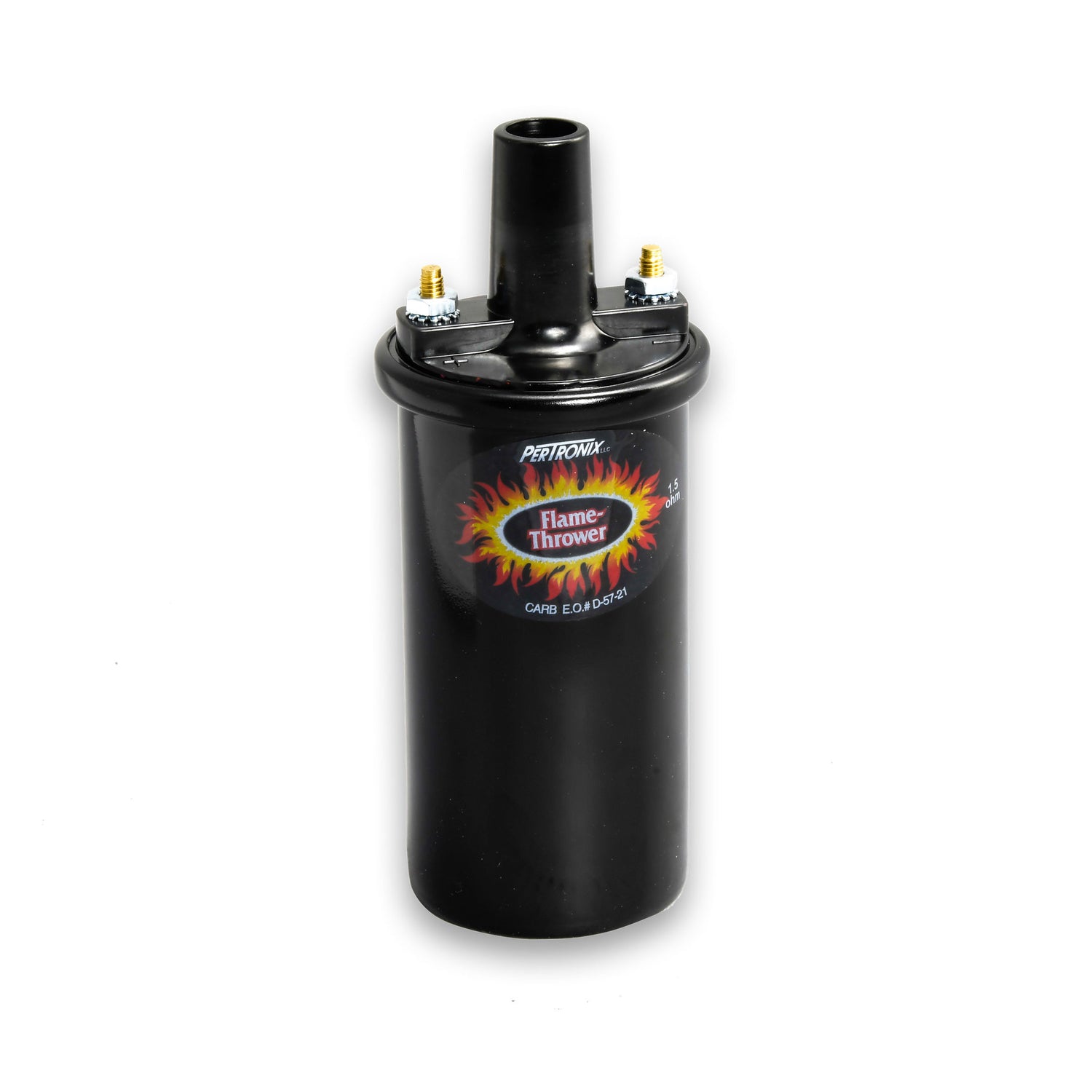

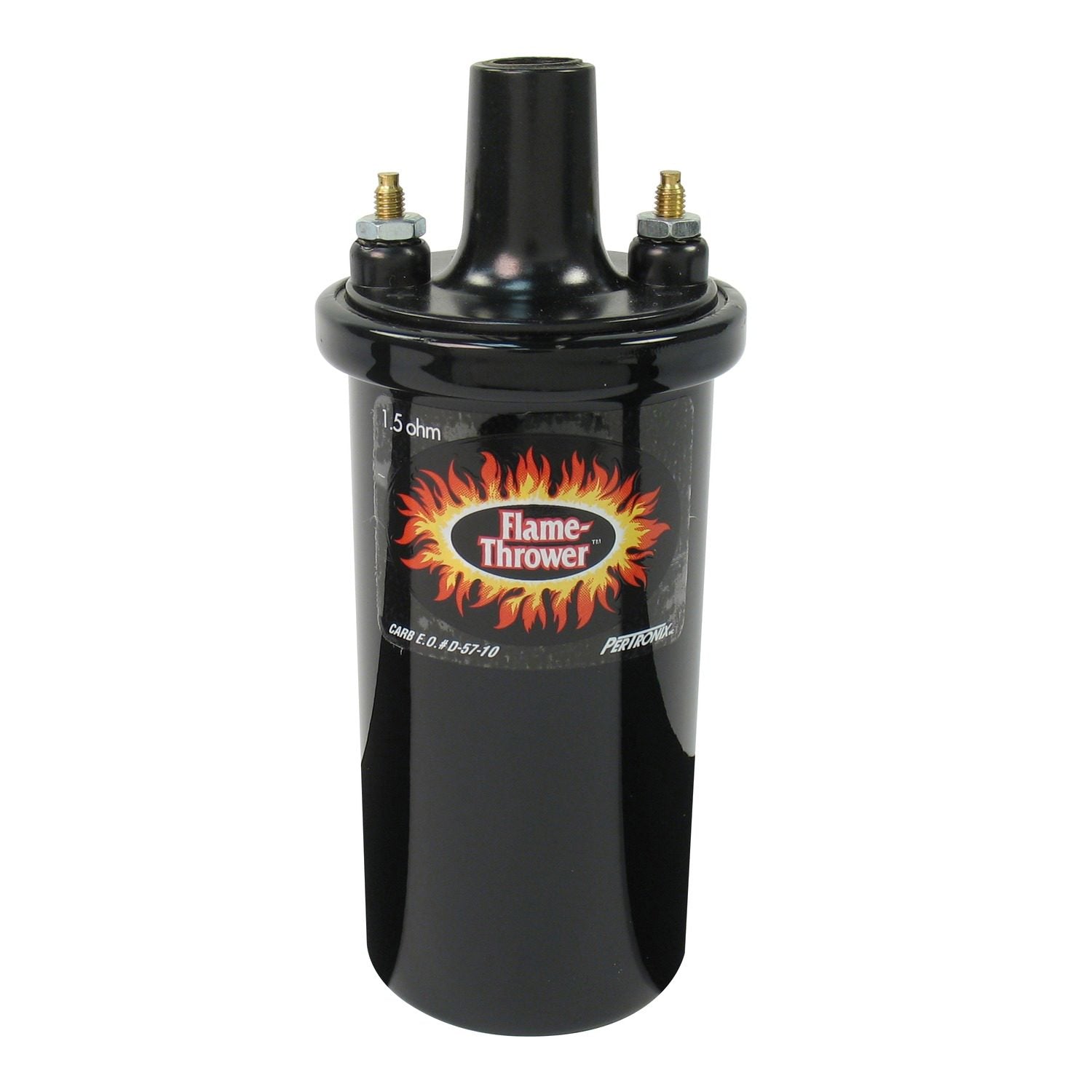

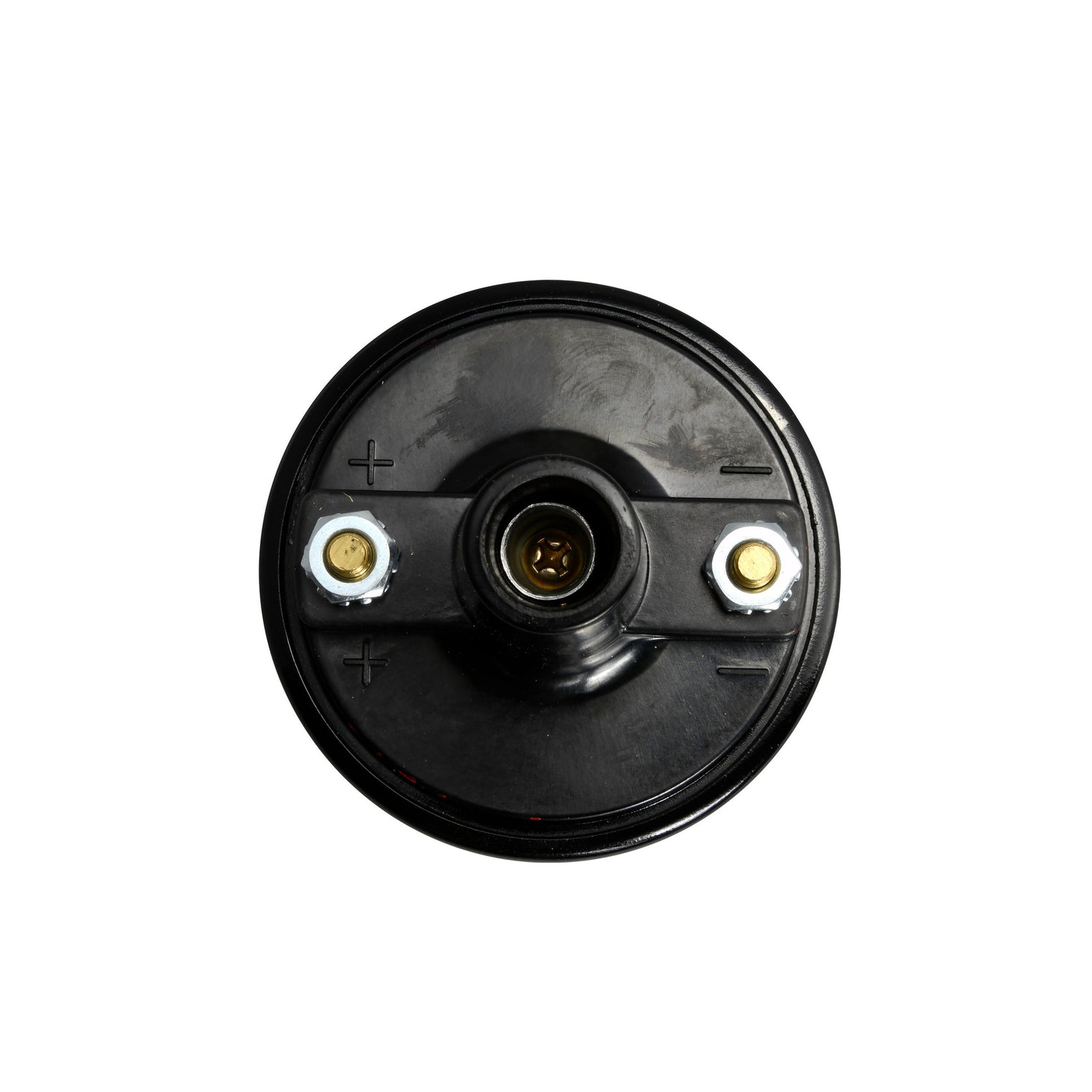

Pertronix 40111 - Coil F-T (1.5 ohm) black epoxy
Ignition Coil - Flame Thrower - Canister - 1.50 ohm - Female Socket - 40000V - Epoxy Filled - Black - Each
PERTRONIX FLAME-THROWER COIL. 40,000-VOLT RATED WITH 1.5-OHMS OF RESISTANCE. BLACK EPOXY FILLED CANISTER STYLE. EPOXY FILLED COILS ARE ENGINEERED FOR HIGH VIBRATION APPLICATIONS.
The Flame Thrower canister coil is designed to mate with the Ignitor Electronic Conversion Kit, but can benefit virtually any distributor type inductive systems. Higher voltage allows larger spark plug gap for added power, smoother response, and improved fuel economy.
- 40,000 volts.
- Available chrome plated or black for that "stock look".
- For use with inductive ignition systems.
- 1.5 or 3.0 Ohm primary resistance values available.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
Ballast Resistor Included: No
Coil Internal Construction: Epoxy
Coil Shape: Round
Coil Type: No
Coil Type: Remote Mount Canister
Coil Wire Attachment: Female/Socket
Coil Wire Included: No
Color: Black
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Finish: Semi-Gloss
Grade Type: Performance
Ignition Type: Electronic
Maximum Diameter: 2.15
Maximum Voltage: 40000
Mount Type: Circular Bracket
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Position: Vertical
Mounting Position: Horizontal
Overall Height: 6
Primary Inductance: 6.4
Primary Resistance: 1.5
Requires External Resistor: No
Secondary Resistance: 9000
Turns Ratio: 100:1
Voltage: 12
